DUO CM

Scissors Lift

Original Operating Instructions

BA082901-en

Pos: 1 / Te chn is c he Dokum e n tat ion /H eb e tec hn ik/ D UO/ 08 2 90 1 DUO C M/ BA/ I nh a lt: 0829 Tite lb ild @ 42\m od_1436788474721_0.docx @ 2270252@ @ 1

Pos: 1 / Te chnisc he D okum entat ion/Heb etec hnik/ 08 S cher en-Heb eb üh ne n/ 29 0 1 DUO C M/ BA /I n ha lt: 08 29 Tite lb ild @ 42\mod_1436788474721_0.docx @ 2270230@ @ 1

Pos: 2 / -----F or m at---- -/M AN UEL LE R UMB R UCH Sei te numb r uc h @ 0\mod_ 11 3 4403 5 776 87_ 0.d ocx @ 1 27 7 @ @ 1

BA082901-en

Pos: 4 / -----F or m at---- -/In ha ltsv er z eic hn is - 3 Eb e ne n @ 5\m od_ 11 6 8867 4 410 46_ 7 5.do cx @ 72 9 20 @ @ 1

Contents

Safety.................................................................................................................. 5

1.1 Introduction..............................................................................................................5

1.2 Symbols...................................................................................................................5

1.3 Intended Use ...........................................................................................................5

1.4 Inappropriate Use.....................................................................................................5

1.5 Requirements on Operating and Service Personnel ..................................................5

1.6 Safety Instructions for Commissioning......................................................................6

1.7 Safety Instructions for Operation...............................................................................6

1.8 Safety Instructions for Servicing................................................................................8

1.9 Safety Instructions for Handling Hydraulic Fluid.........................................................8

1.10 What to Do in the Event of Defects or Malfunctions ..................................................9

1.11 What to Do in the Event of an Accident ....................................................................9

1.12 Safety Features ........................................................................................................9

Description ........................................................................................................ 11

2.1 General Information................................................................................................11

2.2 Specifications.........................................................................................................11

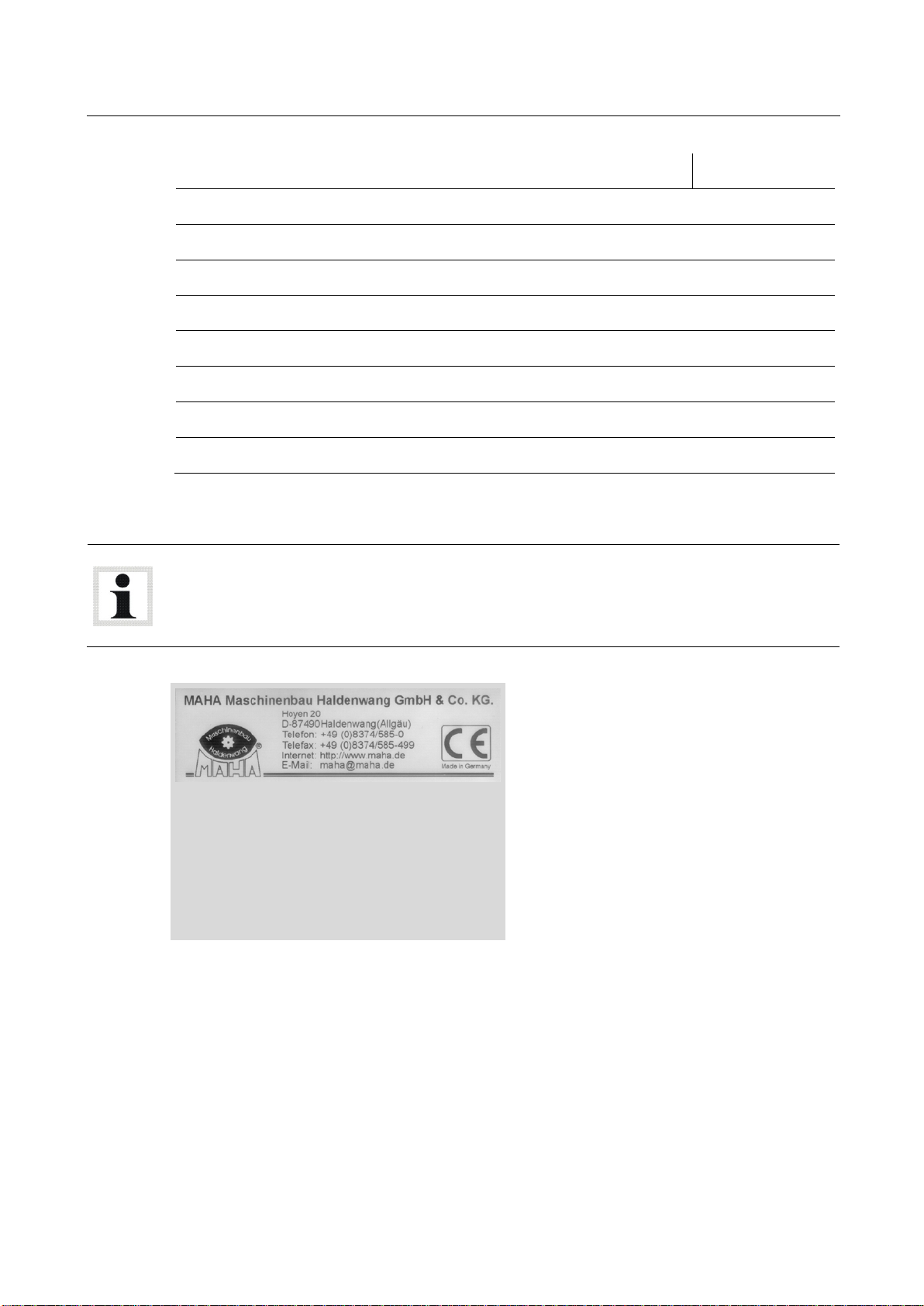

2.3 Sample Nameplate.................................................................................................13

Transport and Storage ....................................................................................... 14

Installation and Initial Operation........................................................................... 14

Operation .......................................................................................................... 14

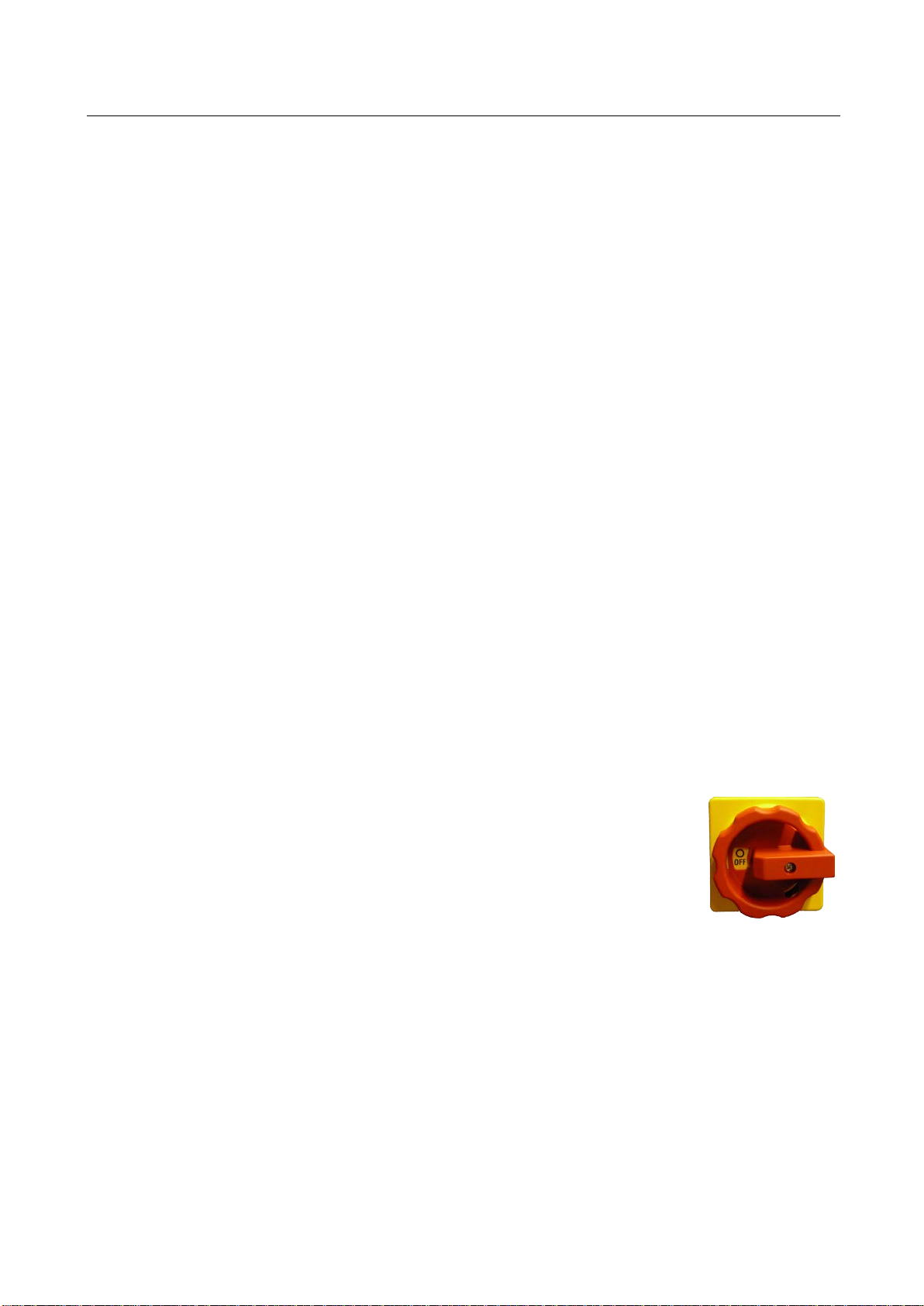

5.1 Main Switch ...........................................................................................................14

5.2 Controls and Indicators ..........................................................................................15

5.3 Display Codes........................................................................................................16

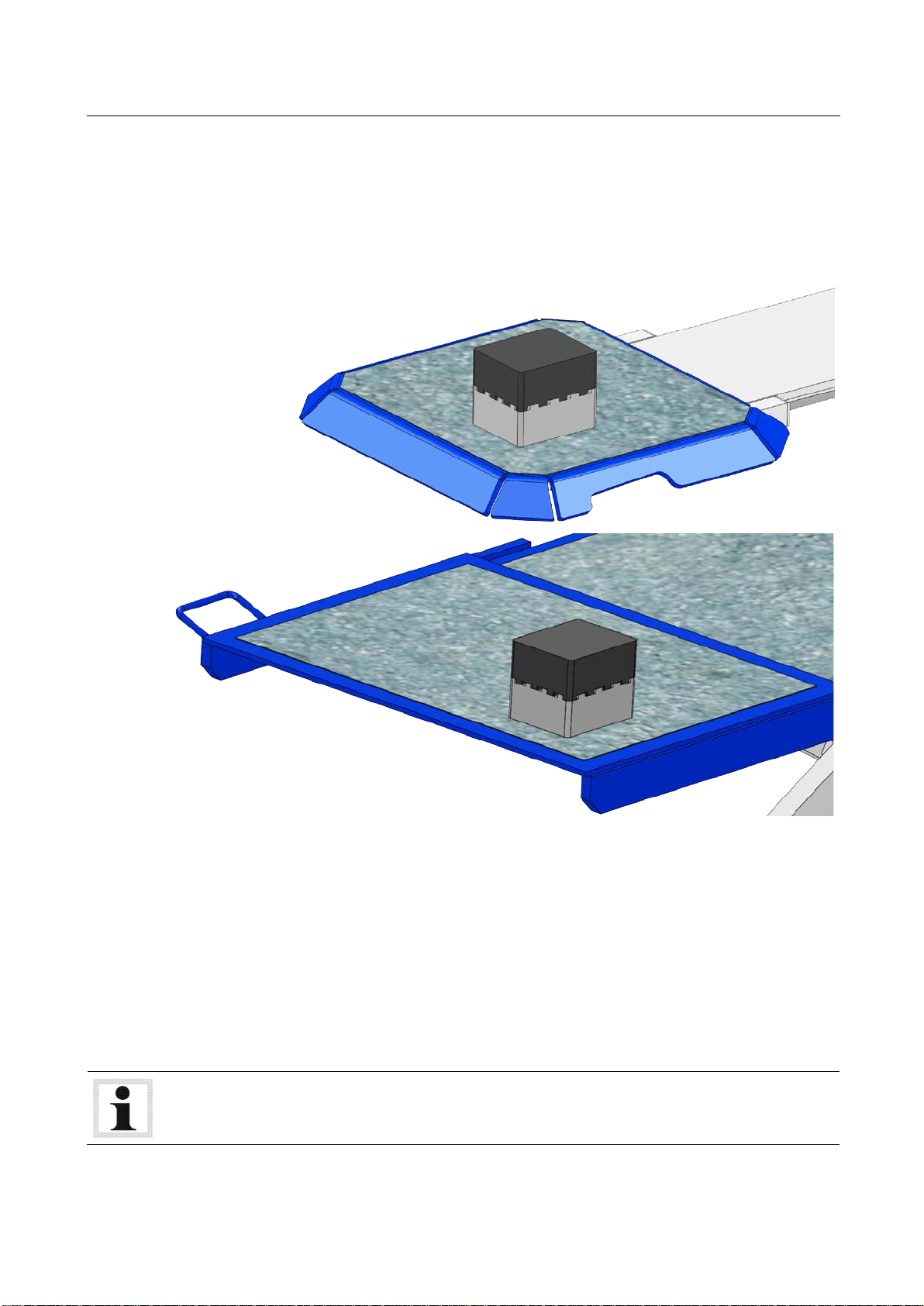

5.4 Using Support Blocks ............................................................................................16

5.4.1 Stacking Two Blocks on Top of Each Other ...........................................................19

5.5 Raising...................................................................................................................19

5.6 Lowering................................................................................................................20

5.7 Wheel-Free Jack (Optional).....................................................................................20

5.8 Hydraulic Inclination ...............................................................................................21

5.9 Routing the Manual Lowering Rope on Lifts with Power Unit in Middle Platform......22

5.9.1 Manual Lowering Rope with 5.5 kW Unit in Middle Platform ...................................22

5.10 Manual Lowering of the Lift ....................................................................................24

5.10.1 Important Notice Regarding Manual Lowering ........................................................24

5.10.2 Sequence of Actions for Manual Lowering..............................................................24

5.10.3 Identifying the Hydraulic Power Unit .......................................................................25

BA082901-en

5.10.4Manual Lowering with 2.5 kW or 5.5 kW Power Unit in the Control Desk ................26

5.10.5Manual Lowering with 2 × 5.5 kW Power Unit in the Control Desk ..........................28

5.10.6Manual Lowering with 5.5 kW Power Unit in the Middle Platform ............................30

5.10.7Manual Lowering with 2 × 5.5 kW Power Unit in the Middle Platform ......................32

5.11Manual Lowering of the Wheel-Free Jack ...............................................................34

5.11.1Manual Lowering of Wheel-Free Jack with 2.5 kW or 5.5 kW Power Unit................34

5.11.2Manual Lowering of Wheel-Free Jack with 2 x 5.5 kW Power Unit in the Control

Desk ......................................................................................................................34

5.11.3Manual Lowering of Wheel-Free Jack with 2 x 5.5 kW Power Unit in the

Middle Platform......................................................................................................36

6Maintenance ........................................................................................................ 38

6.1Maintenance Schedule...........................................................................................38

6.2Annual Inspection...................................................................................................38

6.3Replacing the Filter Element ...................................................................................39

6.4Care Instructions....................................................................................................39

6.5Checking the Fluid Level.........................................................................................40

6.6Wearing Parts ........................................................................................................41

6.6.1Checking the Sliding Blocks in the Base Tub ..........................................................41

6.7Greasing Points......................................................................................................42

6.7.1Lubrication Points at the Lift ...................................................................................42

6.7.2Lubrication Points at Optional Accessories .............................................................43

6.8Troubleshooting .....................................................................................................44

6.9Spare Parts............................................................................................................44

7Service Lifetime.................................................................................................... 45

8Dismantling .......................................................................................................... 45

9Disposal............................................................................................................... 45

10Contents of the Declaration of Conformity............................................................. 45

11Company Information........................................................................................... 46

BA082901-en

Pos: 6 / -----F or m at---- -/MAN UEL LE R UM B RUCH Seite num br uc h @ 0\m od_ 11 3 4403 5 776 87_ 0.d ocx @ 1 27 7 @ @ 1

BA082901-en

Pos: 7 / Te chnisc he D okum entat ion/A lle G erä te/Üb erschr ifte n/Übers chr iften 1/ S/ Überschr ift 1: Sich erhei t @ 6\mod_1174482399906_75.docx@ 76962@ 1 @ 1

Safety

Pos: 8 / Te chn isc he Dokum en tat i on/A ll e Ger ä te/ Üb er schr if te n/Üb er sc hr ift en 1 .1/ E/ Über sc hr if t 1.1: E inf ühr u ng @ 6\mod_1174482219062_75.docx @ 76793@ 2 @ 1

1.1

Introduction

Pos: 9 / Te chnisc he D okum entat ion/A lle G erä te/In halte/S icher heit/In ha lt: Ei nf ühr u ng Si cher hei t_ 12p t @ 2 5\mod_1324455248318_75.docx @ 1138886@ @ 1

Thoroughly read this manual before operating the equipment and comply with the

instructions. Always display the manual in a conspicuous location.

Personal injury and property damage incurred due to non-compliance with these

safety instructions are not covered by the product liability regulations.

Pos: 10 /Techn ische Dokument ation/Alle Ger äte/Übersc hriften/ Überschrifte n 1.1/S/Übersc hrift 1.1: Symb ole @6\m od_1174482270875_75.docx @ 7686 5 @ 2 @ 1

1.2

Symbols

Pos: 11 /Techn ische Dokume ntation/Al le Geräte/Inh alte/Sicher heit/Inhal t: Symbole Sicher heit_12pt @ 2 5\mod_1324456650897_75.docx@ 1139046@ @ 1

Important safety instructions. Failure to comply with instructions could result in

personal injury or property damage.

Important information.

Pos: 1 2 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/B/ Übers chrift 1.1: Bes timm un gsgemä ßer Geb rau ch @ 6\m od_117 6734 02220 3_75.d ocx @ 887 46 @ 2 @ 1

1.3

Intended Use

Pos: 1 3 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 00 H ebet echni k -Al le/In ha lte/I nhalt : Best imm ungs gem äßer G eb rauc h H BZ_1 2pt @ 29\mod_1351147628024_75.docx@ 1668694@ @ 1

•This lift shall be used exclusively for the safe lifting of motor vehicles. Observe

the rated load capacity and load distribution.

•The lift shall not be modified without the express written consent of the manu-

facturer. In case of non-compliance the declaration of conformity becomes

void.

Pos: 1 4 / Tec hn isch e Dokume nt at ion/ Al le Ger äte/ Übersc hrift en/ Überschr ifte n 1. 1/B/ Überschr ift 1.1: Bes timm ungsw idr iger G ebrauc h @ 18\mod_1255530265027_75.docx@ 471571 @ 2@ 1

1.4

Inappropriate Use

Pos: 1 5 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 00 H ebet echni k -Al le/In ha lte/I nha lt: Bestimmu ngsw idri ger Geb ra uch HBZ_12p t @ 26\mod_1325512462855_75.docx @ 1143595@ @ 1

Any use other than described is inappropriate, for example:

•Climbing on the lift supports

•Transporting persons on the lift supports

•Usage as mobile work platform or for other lifting operations

Pos: 1 6 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/A/Über sc hrif t 1. 1: A nfor derun gen a n das Bedien un gs- und Servic epersonal @ 3 4\mod_1380637497630_75.docx@ 1835413@ 2 @ 1

1.5

Requirements on Operating and Service Personnel

Pos: 17 / Techn ische Dokume ntation/ Alle Ger äte/ Inhalte/ Sicher heit/In halt: A nford erunge n an das Bed ienungs- u nd Servicep ersona l_12pt @ 47\mod_1482392891402_75.docx @ 2803198@ @ 1

All persons employed in the operation, maintenance, installation, removal and dis-

posal of the device must

•be mentally and physically suited for these activities,

•be at least 18 years old,

•be trained and instructed in writing,

BA082901-en

•have read and understood the operating instructions, especially the instructions

what to do in the event of defects or malfunctions,

•be on record as having been instructed in safety guidelines,

•have practical experience in working with vehicle lifts and the hazards inherent

in such equipment.

Pos: 1 8 / Tec hn is ch e Dokume ntat ion/Al le G erät e/Übers chr iften/ Übers chrif ten 1. 1/S/Üb ersc hrif t 1. 1: Sic herhe itsv orschr iften f ür di e I nbetr ieb nahme @ 6\mod_1174482269156_75.docx@76838 @ 2 @ 1

1.6

Safety Instructions for Commissioning

Pos: 1 9 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 00 H ebet echni k -Al le/ In ha lte/I nha lt: S ic her he itsv ors chr ifte n f ür die I nbe tr iebn ahm e HBZ_ 12p t @4 7\mod_1483524035338_75.docx@ 2804458@ @ 1

•The lift shall be installed and commissioned by authorised service personnel on-

ly.

•Use personal protective equipment.

•All safety features must be checked for proper function at commissioning.

•The control desk (if present) shall not be installed in the danger zone of the lift.

•The standard lift version shall not be installed and commissioned in hazardous

locations, outdoors, in moist rooms (e.g. car wash) or outside a temperature

range of 5…40 °C (41…104 °F).

Pos: 2 0 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/S/Über sc hrif t 1. 1: S icherhe its vorschr ift en f ür d en B etrieb @ 6\m od_ 1174482268953_75.docx@ 76826@ 2 @ 1

1.7

Safety Instructions for Operation

Pos: 2 1 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 00 H ebet echni k -Al le/ In ha lte/I nha lt: S ic her he itsv ors chr ifte n f ür den Be tr ieb HBZ_ 12p t @ 47\mod_1484658648165_75.docx @ 2810948@ @ 1

•Observe the detailed operating instructions.

•Observe all accident prevention regulations.

•Use personal protective equipment.

•The standard lift version shall not be operated in hazardous locations, outdoors,

in moist rooms (e.g. car wash) or outside a temperature range of 5…40 °C

(41…104 °F).

•To ensure safe operation, check the functionality of all safety devices before us-

ing the lift.

•The control desk (if present) must be positioned in such a way that there is an

unobstructed view to the complete working area and the emergency stop can

be accessed at all times.

•All structural parts of the equipment must be visually checked at regular inter-

vals.

•Supply of suitable illuminating devices is the owner's/operator's responsibility.

•Do not allow anyone to stay in the danger zone when driving on or off the lift.

•Lifts with cylinder and runways: when lifting vehicles with a short wheelbase,

make sure that one axle is in front of the lifting cylinder, the other behind it.

•Lifts with wheel-free jack: before driving on or off the lift or wheel-free jack,

make sure the jack is in bottom position.

•If the operator is unable to see all parts of the danger zone, a trained second

person must monitor such areas.

•Center the vehicle on the lift when it is in fully lowered position.

BA082901-en

•After positioning the vehicle on the lift secure it against roll-off.

•Lifts with runways: make sure the vehicle tyres do not contact the roll-off pro-

tection when raising or lowering the lift.

•Lifts with runways: modifications (such as usage of extensions) are permissible

only under the condition that the functionality of the roll-off protection is main-

tained (protective position of ≥0.1 m above the runways).

•The load rating on the identification plate must not be exceeded.

•Keep the path of movement free of obstructions.

•Only use the vehicle manufacturer's recommended lift points.

•Only use lifting supports approved by the vehicle manufacturer.

•The vehicle must be lifted as a whole. usage of external hoisting and support

devices in combination with the lift must be approved by the manufacturer.

•Do not use the lift for transporting persons.

•Lifts with support arms or wheel-free jack: when raising the lift, all support

points at the vehicle body must be engaged at the same time.

•Lifts with support arms or swing arm jack: use one additional extender or one

support block only for each support point.

•Lifts with support arms or swing arm jack: check arm restraints for secure en-

gagement as soon as support arms contact vehicle lift points.

•Lifts with wheel-free jack: secure engagement of the vehicle must be ensured

by using appropriate means (e.g. lashing straps).

•After raising the vehicle briefly, stop and check the lift supports for secure con-

tact.

•Make sure the vehicle doors are closed during raising and lowering cycles.

•Make sure the parking brake is applied during raising and lowering cycles.

•Closely watch lift and vehicle during raising and lowering cycles.

•Do not allow anyone to stay in lift area during raising and lowering cycles.

•Lifts with support arms or wheel-free jack: after setting down the vehicle, check

the lift supports for secure contact before raising the vehicle again.

•Axle lift (if present): observe the installation instructions. Use both hands when

moving the axle lift. The axle lift must be in park position during raising and low-

ering cycles.

•Axle lift (if present): the vehicle must be additionally secured against rolling off

while one axle is in a raised position.

•Do not allow anyone to climb up the lift or the raised vehicle.

•Before leaving the lift, fully lower the vehicle or secure it against accidental low-

ering.

•Keep lift and vehicle free of tools and parts.

•Keep the lift and lift area clean. Risk of slippage on oily floors!

BA082901-en

•The main switch serves as emergency stop switch. In case of emergency turn it

to "0".

•Protect the lift against unauthorized usage by padlocking the main switch.

•Protect all parts of the electrical equipment from humidity.

•Use caution with operating vehicle engines. Danger of poisoning!

•When removing heavy vehicle components, the centre of gravity can change. In

such circumstances appropriate action must be taken as required.

•Residual risk: Tripping over runways of surface mounted lifts, tripping over

tools.

Pos: 2 2 / Techn ische Dokume ntatio n/Alle Ger äte/Übers chriften/ Überschri ften 1.1/S/Über schrif t 1.1:S icherheit svorschr iftenf ür Servicear beiten @ 6\mod_1174482270640_75.docx @ 76850@ 2 @ 1

1.8

Safety Instructions for Servicing

Pos: 2 3 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 00 H eb etech nik -Al le/I n ha lte/I nha lt: S ic her he itsv ors chri fte n f ür Servi cear b e iten H BZ_ 12p t @ 46\mod_1481283945452_75.docx @ 2797338@ @ 1

•Use personal protective equipment.

•Service work must be done by authorized service technicians.

•Turn off and padlock the main switch before doing any repair, maintenance or

setup work.

•The system must be unpressurized during maintenance work.

•Work on pulse generators or proximity switches must be done by authorized

service technicians.

•Work on the electrical equipment must be done by service technicians or quali-

fied electricians.

•Ensure that ecologically harmful substances are disposed of in accordance with

the appropriate regulations.

•Do not use high pressure or steam jet cleaners. Do not use caustic cleaning

agents.

•The lift's safety devices must be set by authorized service technicians.

•Do not replace or override the safety devices.

Pos: 2 4 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/S/Über sc hrif t 1. 1: S icherhe its vorschr ift en f ür d en Um ga n g m i t H yd r au lik öl @ 1 6\mod _1 24660 77295 23_75.d ocx @ 4 01284 @ 2 @ 1

1.9

Safety Instructions for Handling Hydraulic Fluid

Pos: 2 5 / Techn ische Dokume ntatio n/Alle Geräte/ Inhal te/Si cher heit/In halt: Sicher heitsvor schr iften für de n Umg ang m it H ydr aul iköl_ 12p t @ 25\m od_ 1324456399127_75.docx @ 1139012@ @1

•Neutralize hydraulic fluid spills with binder.

•Remove contaminated clothing immediately.

•Inhalation: If symptoms persist, seek medical treatment.

•Skin contact: Wash skin immediately with soap and water. If skin irritation per-

sists, seek immediate medical advice.

•Eye contact: Rinse thoroughly with water and seek medical advice.

•Ingestion: Do not induce vomiting. Seek immediate medical attention.

Pos: 2 6 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1.1/V /Übersc hrift 1.1: Verhal ten im Störfall @ 6\mod_1178097008375_75.docx @ 90829@ 2 @ 1

BA082901-en

1.10

What to Do in the Event of Defects or Malfunctions

Pos: 2 7 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 00 H ebet echni k -Al le/In halte/I nha lt: Ver hal ten im St ör fa ll H BZ _1 2p t @ 2 6\mod_1325513682583_75.docx @ 1143723@ @ 1

•In case of defects or malfunctions such as uncontrolled lift movement or defor-

mation of the superstructure, support or lower the lift immediately.

•Turn off the main switch and secure it against unauthorized usage. Contact

service.

Pos: 28 /Techn ische Dokume ntation/Al le Geräte/Über schrift en/Überschr iften 1.1/V /Überschr ift 1.1: Verhal tenb ei Unfällen @ 1 9\mod_12 67177 2453 37_7 5.docx @ 794 600 @ 2 @ 1

1.11

What to Do in the Event of an Accident

Pos: 29 /Techn ische Dokume ntation/Al leG eräte/Inh alte/Sicher heit/Inhalt: V erhalten bei U nfällen_12p t @34\mod_1381128863435_75.docx@ 1837175@ @ 1

•The injured person is to be removed from the danger area. Find out where

dressing and bandages are kept. Seek first-aid.

•Provide first-aid (stop bleeding, immobilise injured limbs), report the accident

and seal off the accident site.

•Immediately report any accident to your supervisor. Make sure a record is kept

of every occasion first-aid is provided, e.g. in an accident book.

•Remain calm and answer any questions that may arise.

Pos: 3 0 / Tec hn isch e Dokume nt at ion/ Al le Gerät e/Üb er sc hr ifte n/ Übe rs chri fte n 1.1/S/ Übe rs c hrif t 1.1: S ic her he it sei nr icht un ge n @ 6\m od_11 74483 32476 5_75. docx @ 77 103 @ 2 @ 1

1.12

Safety Features

Pos: 31 /Techn ische Dokume ntation/Heb etechnik/ DUO/0829 01 DUO CM/BA/ Inhalt: 0829 Sic herheitse inrichtunge n @ 26\mod_1325749673535_75.docx@ 1146455@ @ 1

Dead Man's Type Control

The operator is required to hold the control in the engaged position to initiate and

maintain a particular operation.

Roll-off Protection

Once the runways are raised, the approach ramps rise and act as chocks.

Longitudinal Light Barriers as Pinch Point Protection (Option)

The outside edges of the runways are equipped with light barriers. Once the light

beam is interrupted, the lift stops immediately.

After the error has been corrected, the hazard point is always enabled first by

raising the lift.

CE Stop

The lift stops shortly before reaching bottom position. The lift can be lowered

completely by pressing the LOWER button again. An audible signal sounds until

the lift has reached its lower end position.

Measuring System for Runway Synchronization

Synchronization is achieved through a magnetostrictive measuring system

monitoring the level difference between both runways. Once a preset level

difference is exceeded, the lift stops immediately.

Pressure Relief Valve

The working pressure of the hydraulic system is limited by the pressure relief valve.

Seat Valves

Positive-control seat valves at the hydraulic cylinders prevent sudden lowering

movements of the lift in the event of a rapid pressure drop in the hydraulic system,

e.g. due to line break.

BA082901-en

Safety Latch

The safety latch prevents sudden lowering movements caused by a pressure drop

in the hydraulic system or cylinder leakage.

Pos: 3 2 /----- Form a t-----/ MA N UE L LE R UM BR UC H S e i ten um b r uch @ 0 \mod_1134403577687_0.docx@ 1277 @ @ 1

BA082901-en

Pos: 3 3 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1/B/ Über schri ft 1: Beschre ibun g @ 6\mod_1174482271453_75.docx @ 76889 @2 @ 1

Description

Pos: 3 4 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/A/Über sc hrif t 1. 1: A llgem eines @ 6\mod_1182865005781_75.docx @ 97736@ 2 @ 1

2.1

General Information

Pos: 3 5 / Technisch e Dokument ation/Hebet echnik/ DUO/0829 01 DUO CM/ BA/Inhalt: 0 823/28/29 Bes chreib ung Allgemei nes @ 26\mod_1325749870327_75.docx @ 1146487@ @ 1

The lifts of this series are equipped with two runways supported by a scissors

structure. The drive system consists of two hydraulic cylinders with hydraulic

power unit. The lift is operated via an electric dead man's type control using

pushbuttons, synchronization is achieved through a magnetostrictive measuring

system.

Pos: 3 6 / Tec hn is ch e Dokume ntat ion/Al le Ger äte/ Übersc hrift en/ Überschr ifte n 1. 1/T/ Überschr ift 1.1: Te chnis che D aten @ 7\mod_1184075526343_75.docx @ 99711@ 2 @ 1

2.2

Specifications

Pos: 37 /Techn ische Dokume ntation/H ebetechnik/ DUO/0829 01 DUO CM/BA/ Inhalt: 082 9Te chnische Date n D UO C M ( Tab e ll en) @ 3 6\mod_1395668538654_75.docx @ 1927439@ @ 1

DUO CM 4.2 A DUO CM 4.2 U

Fuse (time-delay) 16 A

Working temperature range 5…40 °C

Drive-on height (surface-mounted),

w/o accessories 240 mm ---

Working pressure 190 bar

Installation depth --- 250 mm

Runway width 617 mm

Runway height 126 mm

Runway length 4400 mm

Overall width 2075 mm

Overall length 5900 mm 4400 mm

Weight including power unit 2650 kg

Shipping weight 2700 kg

Lifting height max. 2075 mm

Full travel 1850 mm

Raising time, load-dependent approx. 40 s

Hydraulic power unit 2.5 kW

Hydraulic fluid qty. 40 l

Noise emission < 70 dB(A)

Mains frequency 50 Hz

BA082901-en

DUO CM 4.2 A DUO CM 4.2 U

Mains voltage 400 V

Phases 3

Pinch point protection Audible signal "CE Stop"

Lowering time, load-dependent approx. 40 s

Load capacity 4200 kg

Load capacity of wheel-free jack 3500 kg

Shipping dimensions W x H x L 800 x 800 x 4500 mm

DUO CM 5.0 A DUO CM 5.0 U

Fuse (time-delay) 16 A

Working temperature range 5…40 °C

Drive-on height (surface-mounted),

w/o accessories 290 mm ---

Working pressure 190 bar

Installation depth --- 300 mm

Runway width 630 mm

Runway height 176 mm

Runway length 5200 mm

Overall width 2210 mm

Overall height 290 mm

Overall length 6800 mm 5200 mm

Weight including power unit 3000 kg

Shipping weight 3200 kg

Lifting height max. 2140 mm

Full travel 1850 mm

Raising time, load-dependent approx. 50 s

Hydraulic power unit 2.5 kW

Hydraulic fluid qty. 40 l

Noise emission < 70 dB(A)

BA082901-en

DUO CM 5.0 A DUO CM 5.0 U

Mains frequency 50 Hz

Mains voltage 400 V

Phases 3

Pinch point protection Audible signal "CE Stop"

Lowering time, load-dependent approx. 40 s

Load capacity 5000 kg

Load capacity of wheel-free jack 3500 kg

Shipping dimensions W x H x L 800 x 800 x 5300 mm

Pos: 3 8 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/T/ Überschr ift 1.1: Typ ens child-M us ter @ 1 1\mod_ 122 76222 06096_ 75.do cx @ 275 574 @ 1 @ 1

2.3

Sample Nameplate

Pos: 3 9 / Techn ische Dokume ntatio n/Heb etech nik/ DUO/0 82901 DUO C M /B A/ In ha lt: 082 3/ 2 8/2 9 Type ns ch ild -Pos it io n @ 26\mod_1325750609837_75.docx @ 1146551@ @1

Lifts of this series have one large and one small nameplate each at the control

desk and at the hydraulic power unit. In the event of customer complaints, hotline

requests or spare parts orders, serial number and YoM of the lift should always be

indicated.

Pos: 4 0 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 08 Scheren-H eb eb ühne n/ 0 001 S che re n-H eb eb üh nen Alle/I n ha lte/I nha lt : Typensc hi ld-M us ter MAHA Sc heren-HBZ @ 24\mod_1305811444728_75.docx @ 1010345@ @ 1

SCISSORS LIFT

Ser. No. / Date of Production: ***

Project: ***

Model and Version: ***

Supply Voltage: ***

Frequency: ***

Rated Current: ***

Fuse Protection: ***

Load Capacity: ***

Pos: 4 1 /----- Form a t-----/ MA N UE L LE R UM BR UC H S e i ten um b r uch @ 0 \mod_1134403577687_0.docx@ 1277 @ @ 1

BA082901-en

Pos: 4 2 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1/T/ Über schri ft 1: Transpor t und Lageru n g @2 0\mod_1268732488860_75.docx@ 826153@ 1 @ 1

Transport and Storage

Pos: 43 /Techn ische Dokume ntation/ Alle Geräte/ Inhalte/Inh alt: Transp ort und Lageru ng_12pt @ 2 6\mod_1324468980166_75.docx@ 1141285@ @ 1

Check package to ensure it is complete, in accordance with the order

confirmation. Report any transport damage to the carrier immediately.

During loading, unloading and transport always use suitable lifting equipment,

material handling equipment (e.g. cranes, forklifts, etc.) and the right load handling

attachments and slings. Always ensure that the parts to be transported are

suspended or loaded properly so that they cannot fall, taking into account size,

weight and the centre of gravity.

Store the packages in a covered area, protected from direct sunlight, at a low

humidity and with temperatures between 0...+40 °C (32…104 °F). Do not stack

packages.

When unpacking, take care to avoid any possibility of injury or damage. Keep at a

safe distance when opening the package strapping, do not allow any parts to fall

out.

Pos: 4 4 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1/M /Über sc hrift 1 : M ontag e und Er st inbetr iebnahm e @18\mod_1255417443299_75.docx @ 463797@ 1 @ 1

Installation and Initial Operation

Pos: 4 5 / Tec hn is ch e Dokum e nt a tio n/Alle Geräte/I nhalte/Inh alt:M ontage und Er stinbetrieb nahme_12p t @ 26\mod_1324468562877_75.docx@ 1141153@ @ 1

Installation and initial operation of the equipment may be done only by authorized

and trained service technicians provided by the manufacturer, licensed dealers or

service partners.

Pos: 4 6 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1/B/ Über schri ft 1: Bedienu ng @ 6\mod_1174482271218_75.docx@ 76877 @1 @ 1

Operation

Pos: 47 /Techn ische Dokument ation/Alle Ger äte/Übersc hrift en/ Überschr ifte n 1. 1/H/ Überschr ift 1.1: H aupts chal ter @ 6\mod_ 11775 92858 312_ 75.do cx @ 90635 @ 1 @ 1

5.1

Main Switch

Pos: 48 /Techn ische Dokument ation/Alle Ger äte/Inhal te/Inhalt: Haup tschalter v2 - A lle Ger ä te_1 2pt @ 30\mod_1351692594628_75.docx @ 1671389 @ @ 1

•Main switch in position 0: Power supply OFF

•Main switch in position 1: Power supply ON

•When in position 0, the main switch can be protected against

tampering by means of a padlock.

Pos: 4 9 /----- Form a t-----/ MA N UE L LE R UM BR UC H S e i ten um b r uch @ 0\m od_1134403577687_0.docx @ 1277@ @ 1

BA082901-en

Pos: 5 0 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/B/ Übers chrift 1.1: Bed ien - und A nzeigeel emente @ 2 3\mod_ 12962 20301 443_7 5.doc x @ 96810 7 @ 2 @ 1

5.2

Controls and Indicators

Pos: 5 1 / Techn ische Dokume ntat ion/Heb etech nik/ - Ar ch iv -/ 00 H ebet echni k -A lle /I n ha lte/ I nha lt : Bedie ne in he it gro ß H BZ (Bild ) @ 2 3\mod _ 12 971 59 153 5 79_ 0.d ocx @ 9 72 013 @ @ 1

Pos: 52 /Techn ische Dokume ntation/H ebetechnik/ DUO/0829 01 DUO CM/BA/ Inhalt: 082 9Bed ieneinh eit( Text) @ 26\mod_1325750751868_75.docx @ 1146583@ @ 1

Function

Short Form

Raise lift LIFT UP

Lower lift LIFT DOWN

Raise wheel-free jack WFJ UP

Lower wheel-free jack WFJ DOWN

Lower onto locks LOCK

Hydraulic inclination (DUO CM only) F2

Unlock sliding plate (DUO UC only) F1

LED red (Malfunction or Error code)

LED yellow (Warning or Error code)

LED green (Ready for operation)

Illumination

Pos: 5 3 /----- Form a t-----/ MA N UE L LE R UM BR UC H S e i ten um b r uch @ 0 \mod_1134403577687_0.docx@ 1277 @ @ 1

BA082901-en

Pos: 54 /Techn ische Dokument ation/Alle Ger äte/ Übersc hrift en/ Überschr ifte n 1. 1/D/ Überschr ift 1.1: D ispl ay-Cod es @ 20\m od_12 70028 8306 05_75. docx @ 83 2653 @ 1 @ 1

5.3

Display Codes

Pos: 5 5 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 08 Scheren-H eb eb ühne n/ 0 001 S che re n-H ebeb ühnen Alle/In ha lte/I nha lt: LED-C ode Bed iene inhe it Sc heren-H BZ _ 12p t @ 35\mod_1390319941545_75.docx@ 1876892@ @ 1

LED Code

RED

YELLOW

GREEN

--- --- Lighting Ready for operation

--- --- Flashing Service interval expired

--- Flashing Lighting Information message; count

flash code, contact service

Lighting Flashing --- Error message; count flash

code, contact service

Flashing --- Lighting Emergency operation, service

mode enabled

Flashing Flashing Lighting

Emergency operation, service

mode enabled, position sensor

disabled

Flashing Flashing Flashing Lighting up briefly: Control unit

not (yet) enabled

Pos: 5 6 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/A/Über sc hrif t 1. 1: A ufnahm ekl ötze v erwe nden @ 44\mod_1459263520420_75.docx @ 2427031@2 @ 1

5.4

Using Support Blocks

Pos: 57. 1 /T echn ische Dokument ation/H ebet echnik/ - Ar ch iv -/ 00 H ebete ch nik -A lle/ In ha lte/ In ha lt : A uf na hmek l ötze HBZ - Vorg ehensweise (Text) @ 44\mod_1461682559816_75.docx @ 2437527 @ @ 1

1 The support blocks are approved for usage on lifts with a rated load capacity of

3,500 kgs.

2 Always use four original MAHA support blocks of identical size and shape.

3 Do not use support blocks with cracks, broken-off pieces or other damage.

4 Check that all support blocks and rubber pads are free of oil, grease, dirt or

debris.

5 Place the support blocks under the vehicle manufacturer‘s recommended lift

points.

6 Note correct positioning of the support blocks.

7 Raise the vehicle until the tyres clear the floor. Stop and recheck the lift

supports for secure contact with the vehicle body.

Pos: 5 7. 2 / ----- Forma t-----/ M AN UE L LER UM BR UCH Se ite n um br uc h @ 0\mod_1134403577687_0.docx@ 1277@ @ 1

BA082901-en

Pos: 57. 3 /T echn ische Dokument ation/H ebet echnik/ - Ar ch iv -/ 00 H ebete ch nik -A lle/ In ha lte/ In ha lt : A uf na hmek l ötze HBZ - Z ulässiger Ber eich (Text) @ 4 4\mod_1459257598516_75.docx@ 2426593@ 3 @ 1

The support block must be placed fully on the surface without extending byond

the edges.

A Extension B Support surface; available are:

– Granulate coating

– Granulate foil

– Rubber plate

C Support block

Pos: 57. 4 /T echn ische Dokument ation/H ebet echnik/ - Ar ch iv -/ 00 H ebete ch nik -A lle/ In ha lte/ In ha lt : A uf na hmek l ötze HBZ - Z ulässiger Ber eich (Bilder) @ 44\mod_1459255428157_0.docx @ 2425779@ @ 1

Pos: 5 7. 5 / ----- Forma t-----/ M AN UE L LER UM BR UCH Se ite n um br uc h @ 0\mod_1134403577687_0.docx@ 1277@ @ 1

BA082901-en

Pos: 57. 6 /T echn ische Dokument ation/H ebet echnik/ - Ar ch iv -/ 00 H ebete ch nik -A lle/ In ha lte/ In ha lt : A uf na hmek l ötze HBZ - D ia go na l ( Tex t) @ 4 4\mod_1459259263636_75.docx@ 2426639@ 3 @ 1

Diagonal positioning is permissible only with granulate coated surfaces (a). If

knobbly pads are used, these must mesh with the support blocks (b).

Pos: 57. 7 /T echn ische Dokument ation/H ebet echnik/ - Ar ch iv -/ 00 H ebete ch nik -A lle/ In ha lte/ In ha lt : A uf na hmek l ötze HBZ - D ia go na l ( Bi ld er ) @ 44\mod_1459256609357_0.docx@ 2425825@ @ 1

Pos: 5 7. 8 / ----- Forma t-----/ M AN UE L LER UM BR UCH Se ite n um br uc h @ 0\mod_1134403577687_0.docx@ 1277@ @ 1

BA082901-en

Pos: 57. 9 /T echn ische Dokument ation/H ebet echnik/ - Ar ch iv -/ 00 H ebete ch nik -A lle/ In ha lte/ In ha lt : A uf na hmek l ötze HBZ - St apel n ( Text) @ 44\mod_1459262938946_75.docx @ 2426985@ 3 @ 1

5.4.1

Stacking Two Blocks on Top of Each Other

Only the “DUO“ hard rubber blocks (VZ 975074) and the ductile plastic blocks (VZ

970045) may be stacked on top of each other, but not more than two blocks per

lifting point.

Pos: 5 7. 10 /Te ch nis che Dok um en ta ti on/ He be te c hn ik/- A r ch iv -/ 00 Hebe techn ik-A ll e/Inh al te/In halt: Aufnahm ek lötze H BZ -S tap e ln (Bild er ) @ 4 4\m od_ 14 59 252 03898 1_0.d ocx @ 242 4947 @ @ 1

Pos: 5 8 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/H/ Überschr ift 1.1: H ebe n @ 6\m od_1180960375312_75.docx@ 95073 @ 2 @ 1

5.5

Raising

Pos: 5 9 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 08 Scheren-H eb eb ühne n/ 0 001 S che re n-H ebeb üh nen Al le/In halte/I nha lt: Heb en S chere n-H BZ_ 1 2p t @ 26\mod_1325751028147_75.docx @ 1146647@ @1

•Lift is in bottom position.

1 Center the vehicle on the lift.

2 Protect the vehicle against roll-off (parking brake, chocks).

3 Leave vehicle and stay clear of lift.

4 Press LIFT UP button until the desired height is reached.

•Lift stops once button is released or upper limit stop is reached.

When the lift is below the pinch point, it can be raised only with the wheel-

free jack

in its defined park position.

Pos: 6 0 /----- Form a t-----/ MA N UE L LE R UM BR UC H S e i ten um b r uch @ 0 \mod_1134403577687_0.docx@ 1277 @ @ 1

BA082901-en

Pos: 6 1 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 00 H ebet echni k -Al le/ In ha lte/I nfo!/ In ha lt : Inf o - Z en trier u ng d es FZGs a uf FF_1 2pt @ 26\mod_1325751816178_75.docx @ 1146689@ @ 1

Make sure to center the vehicle on the lift

. Eccentric positioning may result in faulty

measurement.

Pos: 6 2 / Tec hn is ch e Dokume ntation/ Hebetech nik/- A rc h iv -/ 00 H ebet echni k -Al le/ In ha lte/I nha lt: Z e ntr ier un g des FZGs auf FF (B ild ) @ 1 3\mod _ 12 380 74 176 5 49_ 0.d ocx @ 3 59 471 @ @ 1

Pos: 6 3 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/S/Über sc hrif t 1. 1: S enk en @ 6\mod_1180960432671_75.docx@ 95086@ 2 @ 1

5.6

Lowering

Pos: 64 /Techn ische Dokume ntation/H ebetechnik/ DUO/0829 01 DUO CM/BA/ Inhalt: 082 9S enken @ 35\mod_1390376446311_75.docx @ 1876939@ @1

•

1 To lower the lift press the LIFT DOWN button until the desired height is

reached.

•Lift briefly raises to disengage the latches from the mechanical locks.

•Lift stops once button is released or lower limit stop is reached. The lift always

stops shortly before bottom position.

2 To lower the lift completely, release the LIFT DOWN button and push it again.

•During lowering of lift an audible signal sounds.

3 Release parking brake, remove chocks and drive the vehicle off the lift.

•When completely lowering the lift, be sure to push the LIFT DOWN button until

the LED of the LOCK button lights up.

•The lift can be fully lowered only when the axle lift is in its home position.

Pos: 6 5 / Techn ische Dokume ntatio n/Alle Geräte/ Übersc hrift en/ Überschr ifte n 1. 1/R/ Übers chrift 1.1: Rad fre iheb er (O ptio n) @ 15\mod_1245830680737_75.docx @ 394246@ 2 @ 1

5.7

Wheel-Free Jack (Optional)

Pos: 6 6 / Techn ische Dokume ntatio n/Heb etech nik/ - Arc h iv -/ 00 H ebet echni k -Al le/ In ha lte/I nha lt: Radfr ei heber Hebe n/ Se nke n H BZ_ 1 2p t @ 26\mod_1325751975859_75.docx @ 1146753@ @ 1

Raising

•Vehicle must be centered over the wheel-free jack.
