Mainstays MSW-10001 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2019-06-03 Rev. 0001-A
Media Fireplace with 4 shelves-Black
Stock # MSW-10001
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Media Fireplace with 4 shelves-Black
MODEL # MSW-10001
MADE IN CHINA

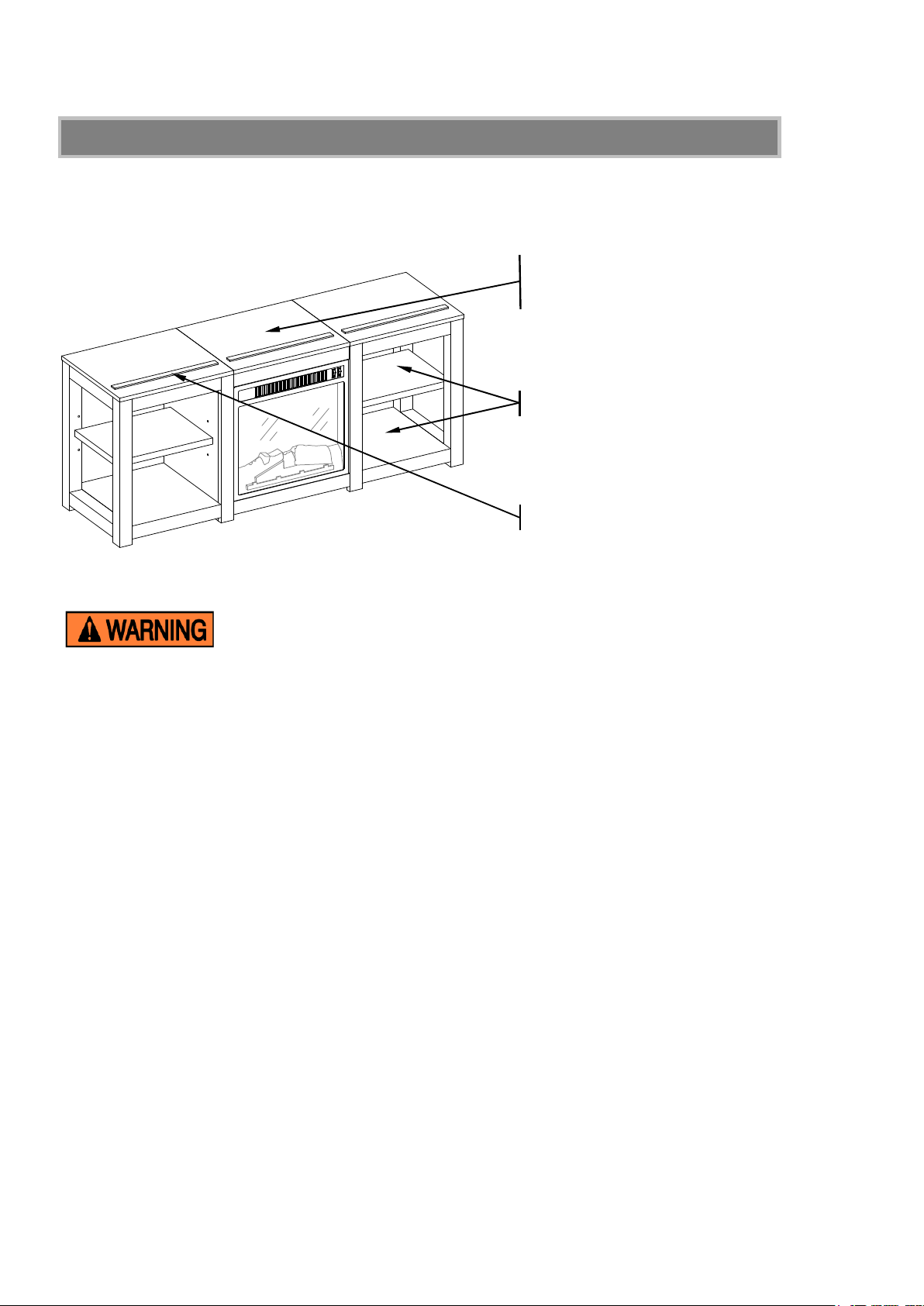

M A X I M U M R E C O M M E N D E D W E I G H T L O A D S
FITS UP TO MOST 165.1 cm / 65”
DIAGONAL FLAT PANEL TVs
MAXIMUM LOAD 61.2 kg / 135 lb
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT
LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR
EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE
BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE
UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR
FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND
WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
FOR USE WITH TELEVISIONS WEIGHING 135LBS (61.2 KG) OR LESS. USE WITH HEAVIER
TELEVISIONS MAY RESULT IN INSTABILITY CAUSING TIP OVER RESULTING IN DEATH OR
SERIOUS INJURY.
MAXIMUM LOAD 22.7 kg / 50 lb
PLACE TV BEHIND THE STOPPER

3
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.

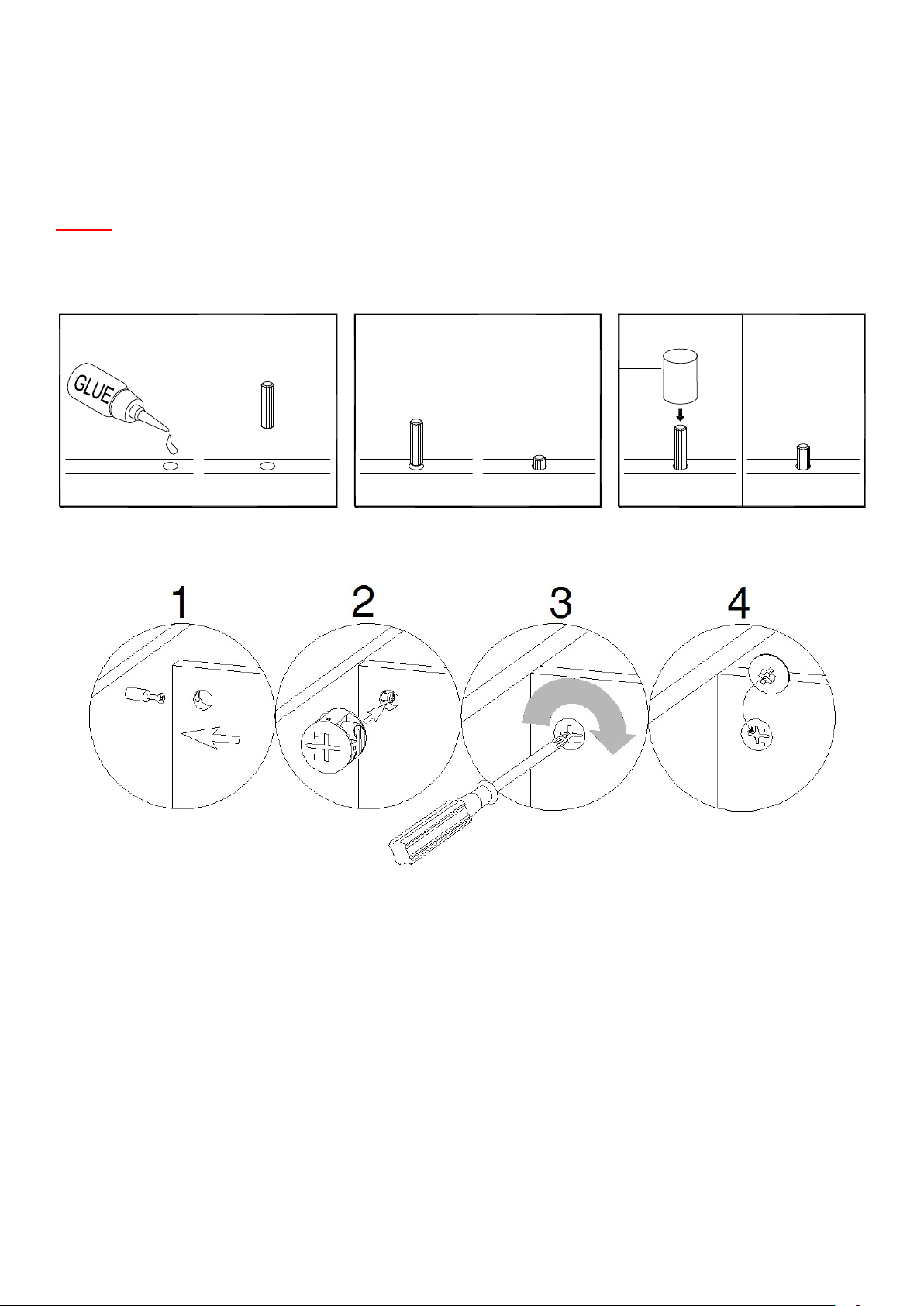

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert the Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
4. Plug the Cam Lock Cover into the cross slot of the Cam Lock to conceal the Cam.
You are now ready to assemble the fireplace.
XX
FINAL
1 2 43

4

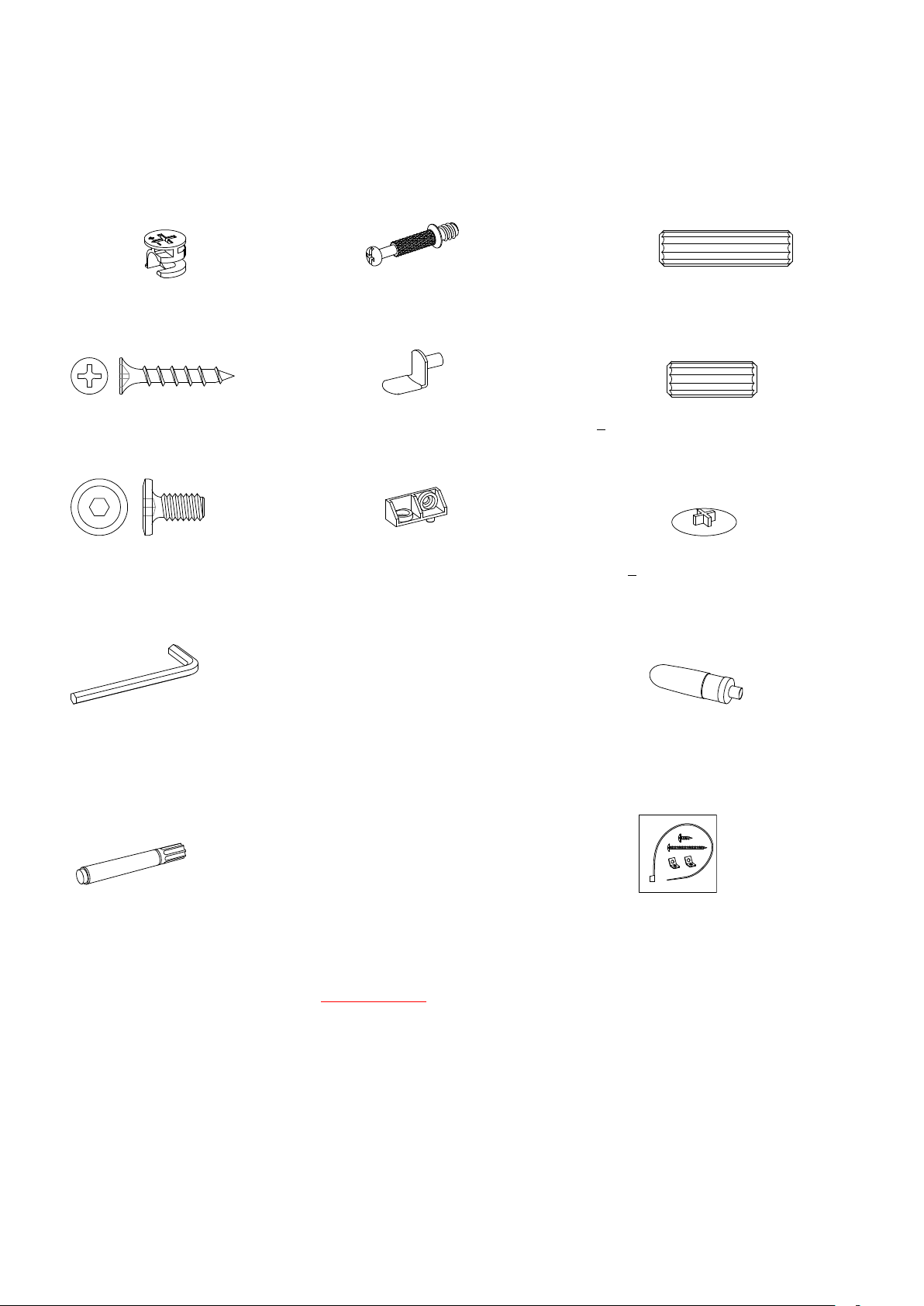

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Left Top Panel (Qty. 1) B- Middle Top Panel (Qty. 1) C- Right Top Panel (Qty. 1)
D- Middle Top Front Stretcher E- Side Top Stretcher F- Side Frame
(Qty. 1) (Qty. 4) (Qty. 2)
G- Left Partition Panel (Qty. 1) H- Left Middle Post (Qty. 1) I- Right Partition Panel (Qty. 1)
J- Right Middle Post K- Middle Bottom Panel L- Middle Front Bottom Stretcher
(Qty. 1) (Qty. 1) (Qty. 1)
M- Middle Back Bottom Stretcher (Qty. 1) N- Side Bottom Panel (Qty. 2) O- Adjustable Shelf (Qty. 2)
P- Middle Top Back Stretcher (Qty. 1) Q- Middle Top Side Stretcher (Qty. 2)
R- Stop Rail (Qty. 3) Fireplace Insert (Qty. 1)

5
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(Qty. 46+2 extra) (Qty. 46+2 extra) (Qty. 34+1 extra)
(4) M4 x 25 mm Screw (5) Shelf Support (6) M8 x 20 mm Wood Dowel
(Qty. 21+1 extra) (Qty. 8+1 extra) (Qty. 6+1 extra)
(7) 1/4" x 1/2" Bolt (8) Plastic Connector (9) Cam Lock Cover
(Qty. 8+1 extra) (Qty. 4) (Qty. 4+1 extra)
Hex Wrench (Qty. 1) Glue (Qty. 2)
Touch-up Pen (Qty. 1) Tipping Restraint Hardware Kit (Qty. 2)
(Included in plastic bag)
Tools required: Hex wrench (provided).

6
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panels (A, B and C) and
Side Frames (F) using a Phillips screwdriver.
2
F
F
C
B
A
② x 26

7
Assembly Instructions
3. Securely screw the Cam Bolts (2) into the designated small holes on the Partition Panels (G and I),
Middle Posts (H and J) and Middle Bottom Stretchers (L and M) using a Phillips screwdriver.
② x 20
2
I
G
JH
L
M

8
Assembly Instructions

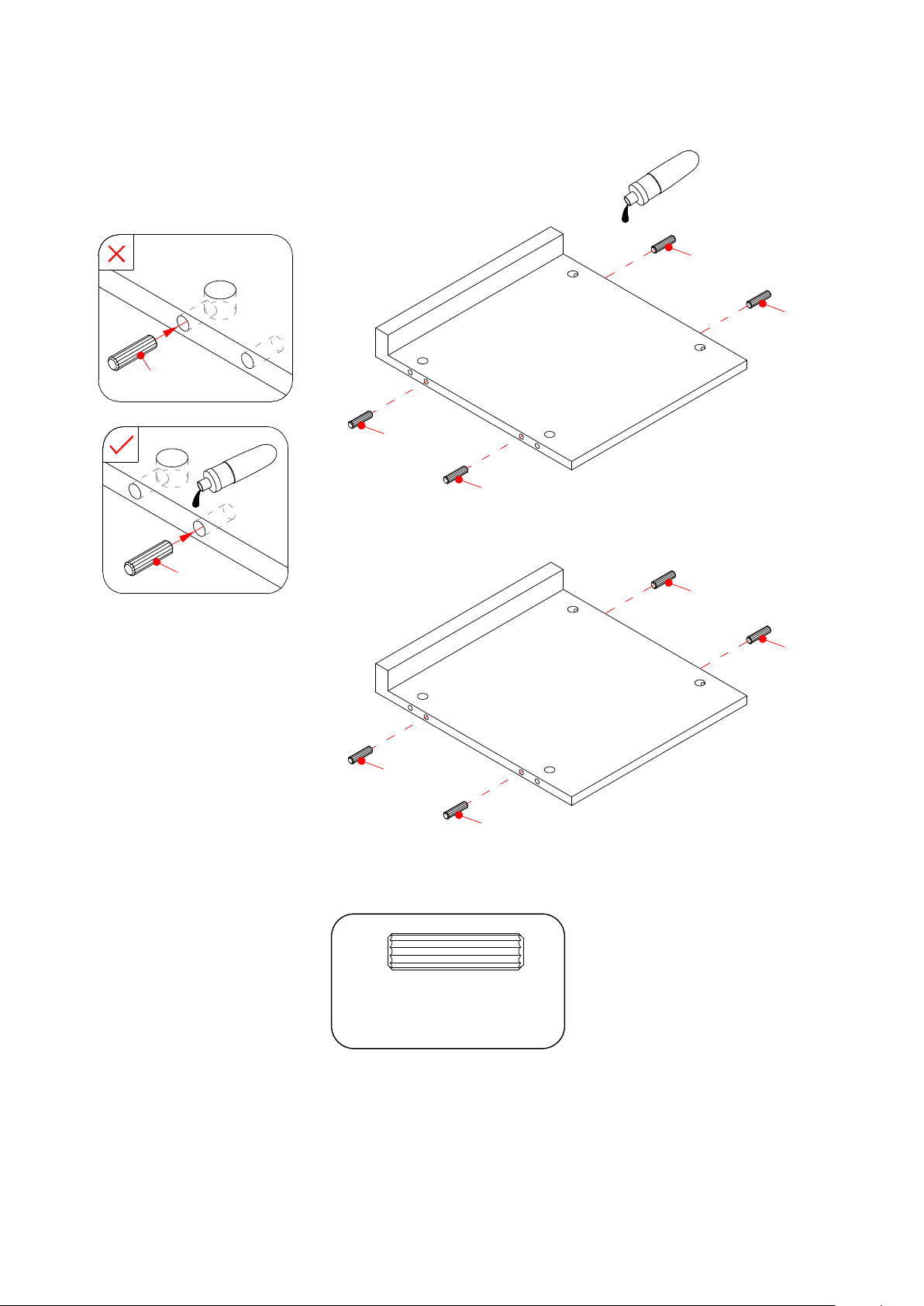

4. Glue eight 30 mm Wood Dowels (3) into side holes of Side Bottom Panels (N).
③ x 8
N
3
3
3
3
3
3
N
3
3
3
3

9
Right Side Assembling
5. Glue two 30 mm Wood Dowels (3) into side holes of Right Partition Panel (I).
③ x 2
I
3
3
3
3

10
Right Side Assembling

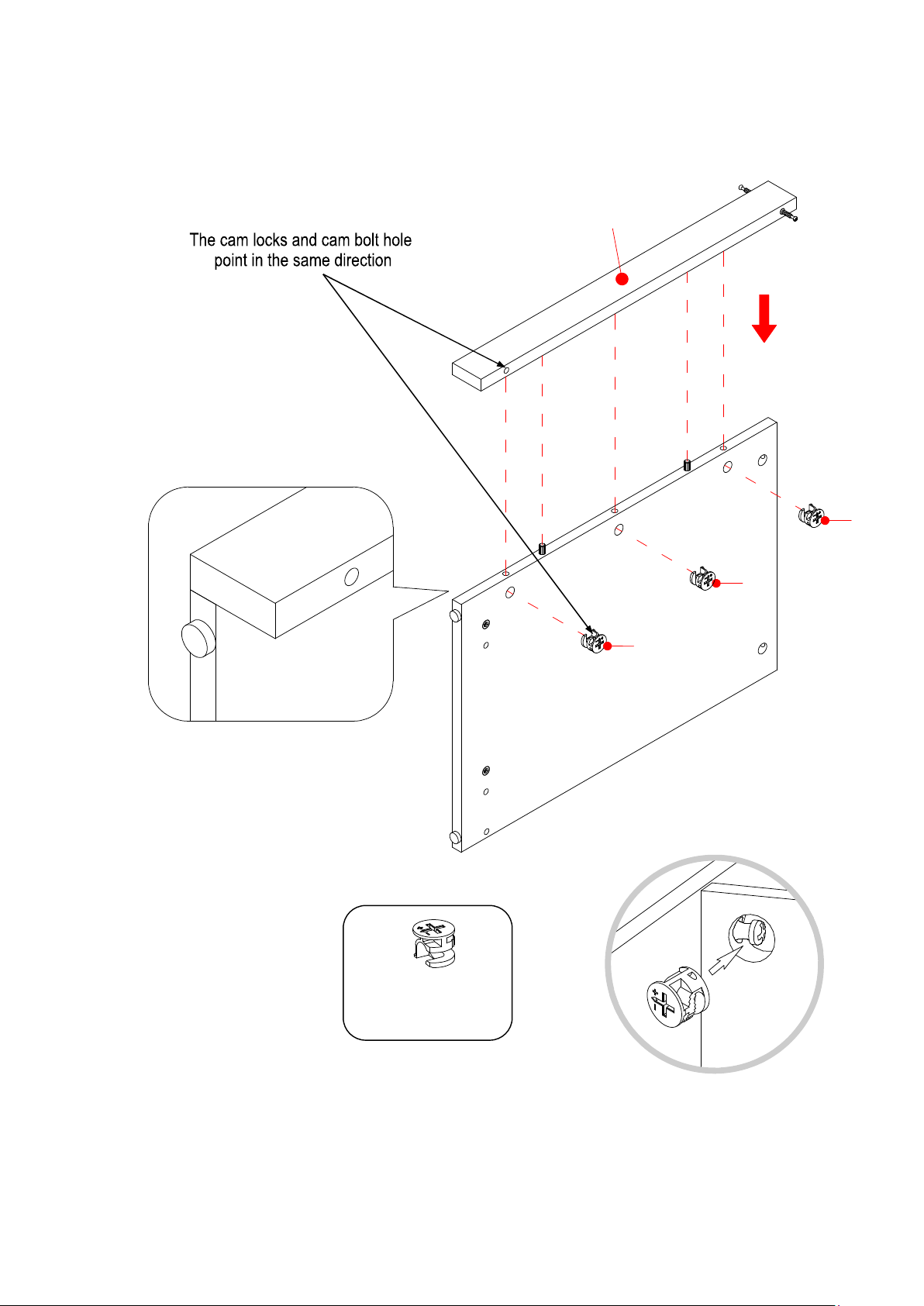

6. Align and attach the Right Middle Post (J) to the Right Partition Panel (I) by engaging three Cam Locks
(1) (Refer to page 3 on Cam Lock system operation supplement).
J
1
1
1
I
① x 3

11
Right Side Assembling
7. Attach one Side Bottom Panel (N) to one Side Frame (F) by engaging two Cam Locks (1).
1
1
F
N
① x 2

12
Right Side Assembling

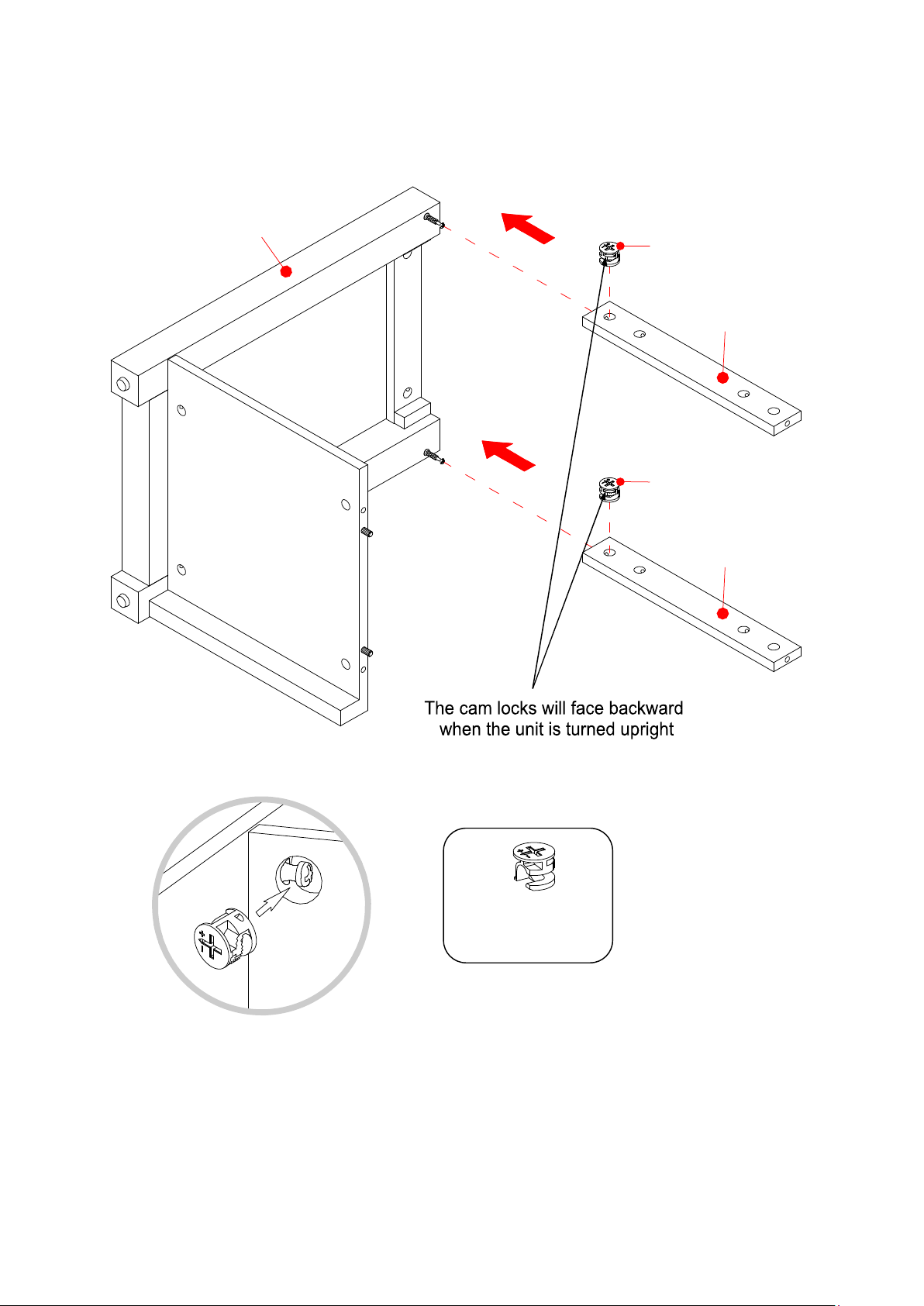

8. Attach two Side Top Stretchers (E) to the Side Frame (F) by engaging two Cam Locks (1).
F
E
1
1
E
① x 2

13
Right Side Assembling

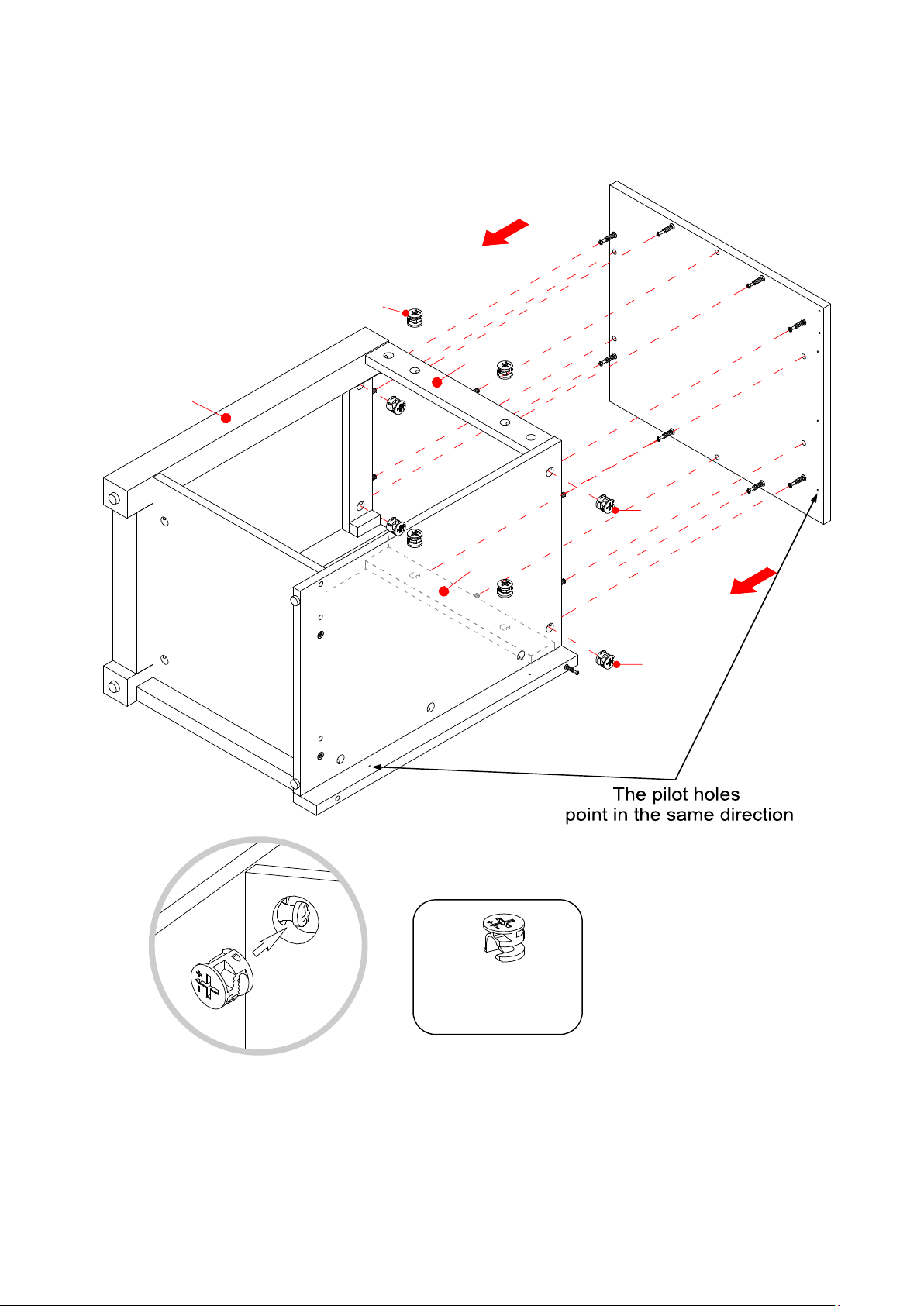

9. Attach the Right Partition Panel (I) to the Side Top Stretchers (E) and Bottom Panel (N) by engaging four
Cam Locks (1).
① x 4
N
1
1
I
E
E
1
1

14
Right Side Assembling
10. Glue six 30 mm Wood Dowels (3) into top holes of the previous assembly.
③ x 6
3
3
E
F
E
I
33
3
3
3
3

15
E
E
F
C
1
1
1
I
Right Side Assembling

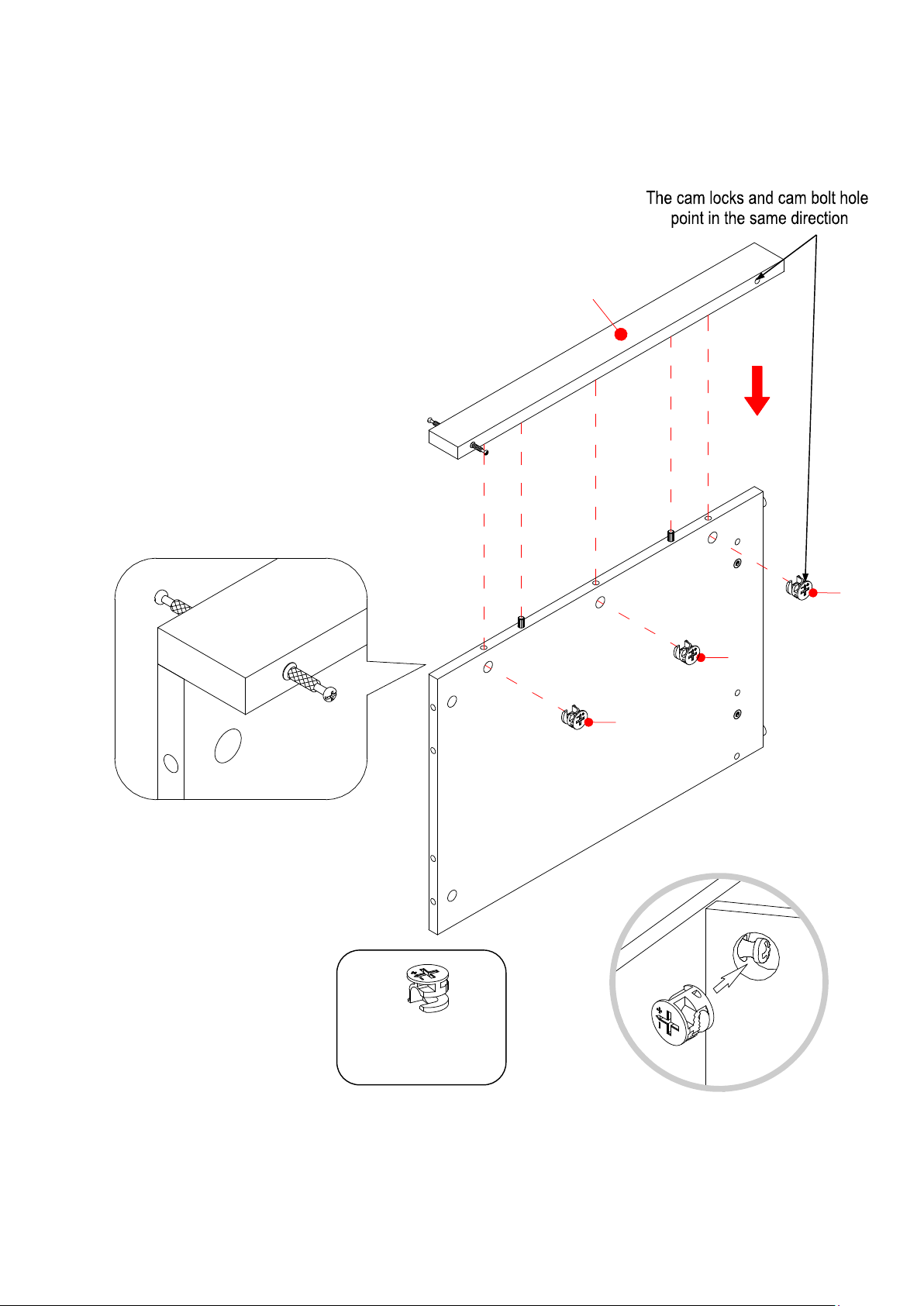

11. Position the Right Top Panel (C) onto the inserted Wood Dowels (3) and fasten it in place by engaging
the Cam Locks (1).
① x 8

16
Left Side Assembling
12. Glue two 30 mm Wood Dowels (3) into side holes of Left Partition Panel (G).
③ x 2
G
3
3
3
3

17
Left Side Assembling
13. Attach the Left Middle Post (H) to the Left Partition Panel (G) by engaging three Cam Locks (1).
H
1
1
1
G
①
x 3

18
Left Side Assembling

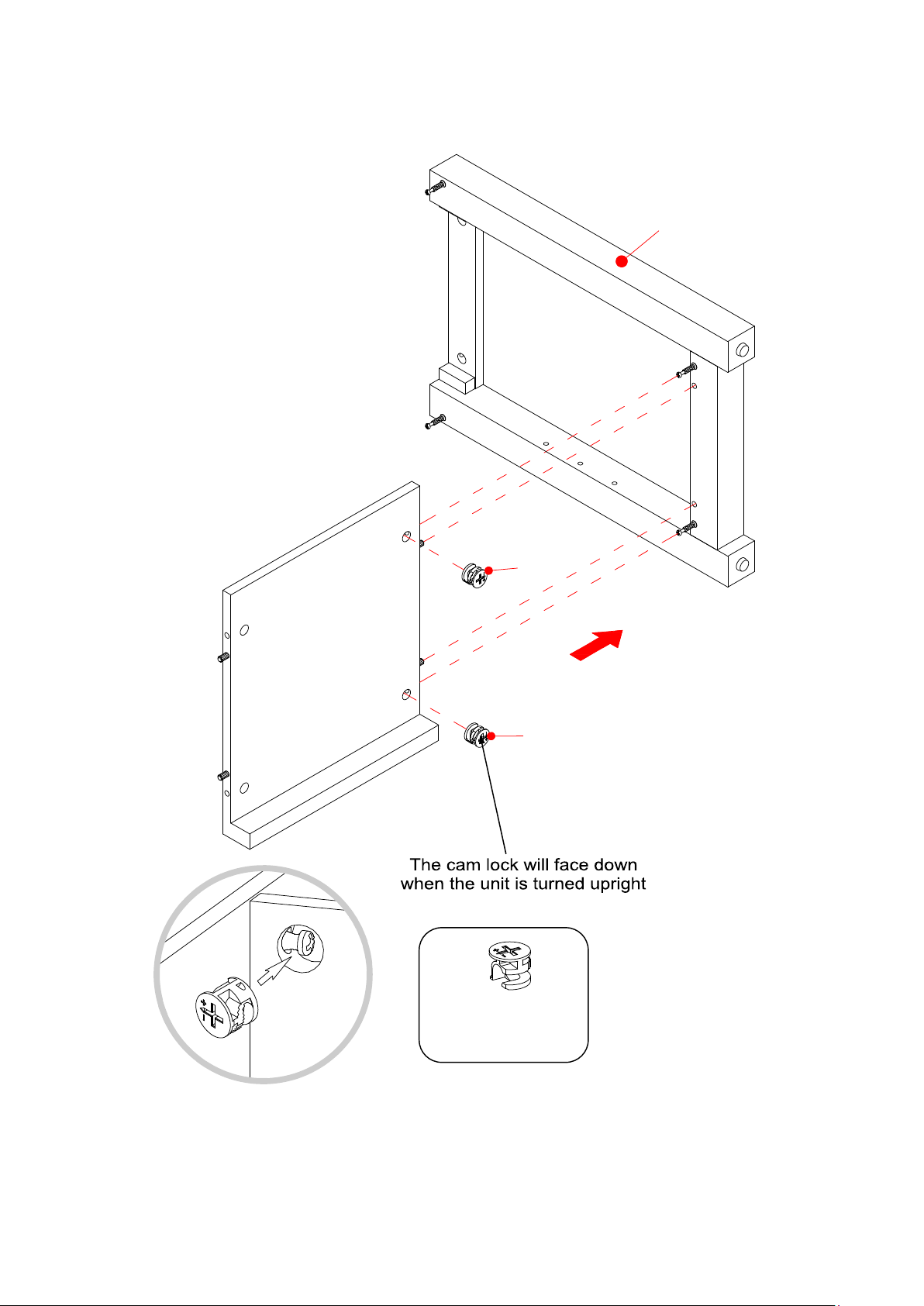

14. Attach the remaining Side Bottom Panel (N) to the other Side Frame (F) by engaging two Cam Locks
(1).
1
1
F
N
① x 2

19
Left Side Assembling
15. Attach the remaining Side Top Stretchers (E) to the other Side Frame (F) by engaging two Cam Locks
(1).
① x 2
E
1
1
E
F

20
Left Side Assembling

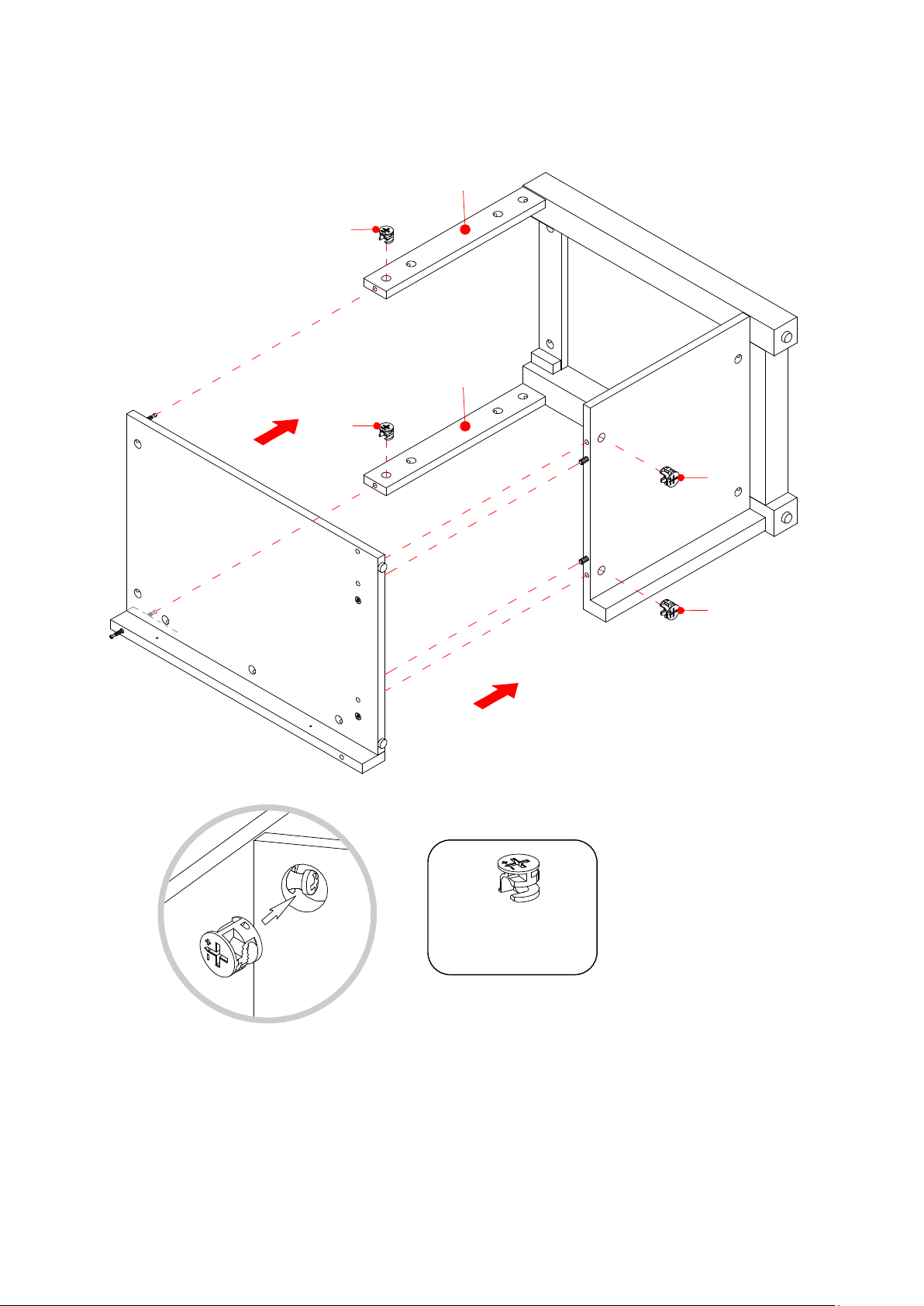

16. Attach the Left Partition Panel (G) to the Side Top Stretchers (E) and Bottom Panel (N) by engaging
four Cam Locks (1).
① x 4
N
1
1
E
E
1
1
G
