Mainstays GYM-80004 User manual

DANGER ·FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILY INJURY OR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSAL OF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING ·FOR OUTDOOR USE ONLY.*
DO NOT USE OR STORE CYLINDER IN A BUILDING,
GARAGE OR ENCLOSED AREA.
WARNING:
Know the odor of LP-gas. If you hear, see or smell
leaking LP-gas, immediately get everyone away
from the cylinder and call the Fire Department.
Do not attempt repairs.
Caution your LP-gas supplier to:
Be certain cylinder is purged of trapped air prior
to first filling.
Be certain not to over fill the cylinder.
Be certain cylinder requalification date is checked.
LP-gas is heavier than air and may settle in low
places when dissipating.
Contact with the liquid contents of cylinder will
cause freeze burns to the skin.
Do not allow children to tamper or play with cylinder.
When not connected for use, keep cylinder valve
turned off. Self contained appliances shall be limited
to a cylinder of 30 lb capacity or less.
Do not use, store or transport cylinder where it would
be exposed to high temperatures. Relief valve may
open allowing a large amount of flammable gas to
escape.
When transporting, keep cylinder secured in
an upright position which cylinder valve turned off.
DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL
*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.
DANGER. Do not store a spare LP cylinder under or near a barbecue grill, or other
heat sources. NEVER fill an LP cylinder beyond 80% full: a fire causing death or
serious injury may occour.
WHEN CONNECTING FOR USE:
Use only in compliance with appliable codes.
Read and follow manufacturer’s instructions.
Consult manufacturer’s instructions
concerning the cylinder connection provided
with your appliance.
Be sure regulator vent is not pointing up.
Turn off all valves on the appliance.
Do not check for gas leaks with a match or
open flame. Apply soapy water at areas
marked ”X”. Open cylinder valve. If bubble
appears, close valve and have LP-gas
service person make needed repairs. Also,
check appliance valves and connections to
make sure they do not leak before lighting
appliance.
Light appliance(s) following manufacturer’s
instructions.
When appliance is not is use, keep the
cylinder valve closed.
X
X
X
X
X
Cylinder
Pressure relief valve
Cylinder valve hand wheel
Point of connection
Liquid level indicator
(optional)
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Please keep this instruction manual for future reference
CUS
R
Assembly Instructions
32 Inch Gas Fire Pit
WARNING
READ INSTRUCTION MANUAL BEFORE ATTEMPTING ASSEMBLE OR
OPERATE THIS PRODUCT
Keep the screws and parts out of reach of children.
ITEM NO.：GYM-80004
(Made in China)
Contact the Customer Service Team at e-mail: [email protected]

DANGER:
•Shut off gas to the appliance.
•Extinguish any open flame.
•If odor continues, leave the area immediately
After leaving the area, call your gas supplier
or fire department.
WARNING: For Outdoor Use Only!
WARNING:
FOR YOUR SAFETY:
If the information in this manual is not
followed
exactly, a fire or explosion may
Do not store or use gasoline, or other flammable
vapors and liquids, in the vicinity of this or any
An LP-cylinder not connected for
shall not be stored in the vicinity of this or
any other appliance.
2
FIRE OR EXPLOSION HAZARD
If you smell gas:
•
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
Safety Information
DANGERCARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has no
odor.
Using it in an enclosed space
can kill you.
Never use this appliance in an
enclosed space such as a
camper, tent, car or home.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier
INSTALLER: leave this manual with the appliance.
CONSUMER: Retain this manual for future
reference.
WARNING:
result causing property damage,
personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
Do not try lighting any appliance.
Do not touch any electrical switch; do
NOT use any phone in your building.
Immediately call your gas supplier from
a neighbor’s phone.
Fllow the gas supplier’s instructions.
If you cannot reach your gas supplier.
Call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or gas supplier. Save these
instructions for future reference. If you
are assembling this unit for someone
else, give this manual to him or her to
read and save for future reference.
other appliance.
use
Read the instruction before use. This appliance must be installed in accordance
with such regulations as are enforced.
Safety Information.. .........................................................2-4
Pre-Assembly...……………………...…………………….
5
Operating Instructions .........................................11-13
Maintenance...........................................................14
Care and Cleaning ................................................14
Troubleshooting
....................................................15
Table of Contents
Package Contents ..………………...……………………. 6
Assembly..………………………………………............…7-10
Table of Contents ................................
..........................2
Factory Information................
......................
16
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, personal injury
Read this installation, operating, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
or loss of life.

3
Safety Information (continued)
.
WARNING:
You must provide propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only.
Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and
Handling of Liquefied Petroleum Gas, ANS/NFPA 58. Your local library or fire department should have this book.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with National Fuel Gas Code, ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier.
Never use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. Department of Transportation
(D.O.T) Specifications for LP-Gas Cylinders, or the standard for Cylinders, Spheres and Tubes for Transportation of
Dangerous Good and Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device compatible with the connection for the
appliance.
The cylinder used must include a collar to protect the cylinder valve.
The LP-gas supply cylinder must be provided with a listed overfill protection device (OPD).
Do not store a spare LP gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA No. 791IQCC connection.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Note: Gas supply pressure: 25 PSI to 250 PSI.
Standard 20 lbs. tank
WARNING: FUELS USED IN LIQUIFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF
COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM.
WARNING:z Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.

4
Safety Information (continued)
WARNING:
Solid fuels shall not be burned in this appliance.
The installation must conform with local codes or, in the absence of local codes, ANSIZ223. 1/NFPA54, NFPA58 Natural
Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
Prior to use, check for damaged parts such as hoses, regulators, pilots, or burners.
Inspect the fuel supply connection for signs of leakage (including the hose for the LP models) before each use of the
appliance.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the
appliance to avoid burns or clothing ignition. This appliance comes with a heat shield which is an important safety
component preventing contact with the fire bowl when adjusting the propane valve.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should be not be hung from the heater, or placed on or near the heater.
Any guard or other protective device removed for servicing the heater, must be replaced prior to operating the heater.
Installation and repair should be done by a qualified service person. The heater should be inspected before use and at
least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and
circulating air passageways of the heater be kept clean.
Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
DO NOT OBSTRUCT the combustion process or air ventilation flow.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
The appliance should be used in a well-ventilated space and not in a building, garage or any other enclosed area.
An appliance may be installed within a shelter if the shelter meets one of the following conditions:
The shelter has walls on all sides, but with no overhead cover.
The shelter is within a partial enclosure which includes side walls. These side walls may be parallel, as in a breezeway,
or at right angles to each other.

5
Pre-Assembly
NOTE: Please read and understand the entire
manual before you assemble, operate, or install
the fire pit.
PLANNING ASSEMBLY
Carefully remove all pieces from the carton and make sure that you have all parts (refer to the hardware and package contents list).
If you are missing parts, please contact after-services for further assistance.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference. It contains important instructions and procedures for safety and
maintenance.
TOOLS REQUIRED
Phillips
screwdriver M6 Wrench
(NOT INCLUDED)
Part Description Quantity
AA M6 x mm Bolt
BB
HARDWARE INCLUDED
Mx mm Bolt
CC 4
DD
AA BB
Warranty
1 YEAR LIMITED WARRANTY
WHAT IS NOT COVER
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty
does not cover commercial use, acts of nature, fire, freezing and abusive use. In addition, purchased parts are not
covered under this warranty. We reserve the right to make substitutions with similar merchandise, i f the model in
question is no longer in production.
•We warrant the metal frame and burner to be free of manufacturing defects to the original purchaser for one years.
•Proof of purchase (dated register receipt) is required for warranty claims.
16
2
M6 x 16 mm Bolt
CC DD

6
Package Contents
Part Quantity
A1
B1
C1
D1
E1
F1
G
H
1
1
E
G
B
C
H
A
D
F
Description
Side Panel with Window
Side Panel
Door
Back Panel
Fire Glass
Table Top with Burner
Gas tank support

7
1
Assembling the side panels
□
□
2
Assembling the side panel with window
□
□
Do not tighten the bolts at this step.
Assembly
Don’t tighten the hardware.
□A
CC HOSE
AA
BB
B
C
Connect the side panel (B) to the door(C)
by using one M6x16 bolt(BB).
Connect the side panel with window(A)to the table top(G) by using four M6x10 mm bolts(AA).
Attach the control panel to the side panel with window (A) by using four M5x12 mm bolts(CC) and tighten them.

8
3
□
□
4

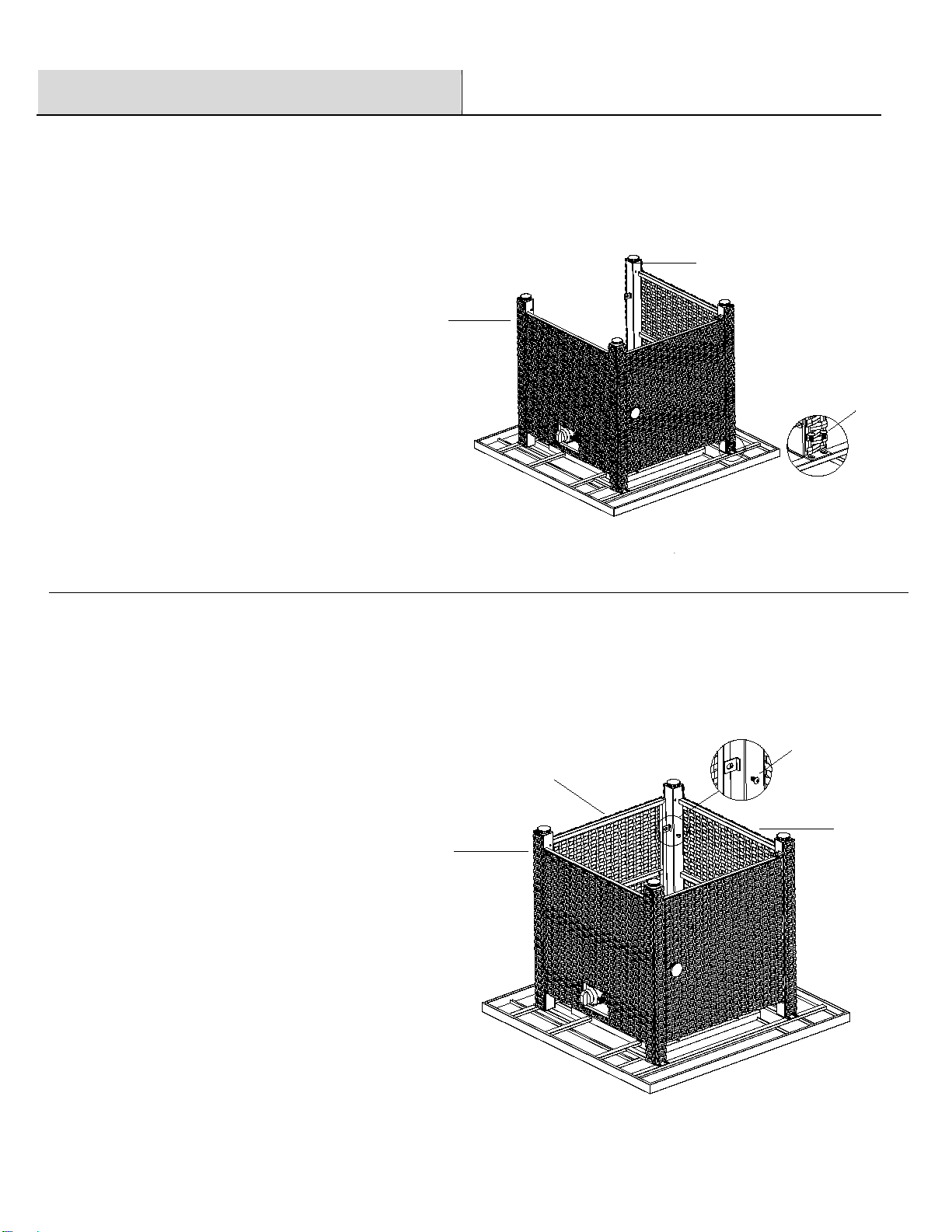

Assembling the back panel
□
□Tighten all bolts (AA) with a Phillips screwdriver (not
included).
Assembly (continued)
Assembling the side panel
Do not tighten the bolts at this step. A
B
AA
AA
A
B
D
Connect the side panel (B）and door(C) to the table top (G) by using four M6x10 mm bolts(AA)
Connect the back panel(D) to the side panel with window (A) and side panel (B) by using four M6x10 mm bolts(AA)
□Do not tighten the bolts at this step.

9
6
Assembly (continued)
□
□
5
Assem b ling the Door
□
Ignition
E
F
AA
A
B
D
C
Connect gas tank support (H) to the semi-assembled body
by using four M6x10 mm bolts(AA)
Tighten all bolts (AA) with a Phillips screwdriver (not
included).
□
Place the fire glass
Place the fire glass (F) into the fire bowl.
fire glass is

10
Assembling the cylinder
Assembly (continued)
Installing the AAA battery
□Open the igniter and place the AAA battery (DD) into
the igniter. Then tighten clockwise.
NOTE: The propane cylinder is sold separately.
Use a standard 20 lb. propane cylinder only.
Put the hose away from the bowl base during
connect the propane cylinder.
□
secure the cylinder by tightening the screw in the gas
tank support. Connect the hose and regulator to cylinder.
AAA Battery
Connect: Hand-tighten the coupling nut clockwise until
it comes to a full stop. Firmly tighten by hand only.
□
□To Disconnect: Fully close the tank valve by turning
clockwise. Turn the coupling nut counterclockwise until
the regulator assembly detaches.
H ,

Operating
WARNING: Never use this appliance for other than the intended use. DO NOT use this appliance to prepare
food.
WARNING:
Initial Lighting: When lit for the first time, the appliance emits a slight odor. This is a normal temporary condition caused
by the “burn-in ” of internal paints and lubricants used in the manufacturing process and does not occur again. Simply run
the main burner on high for approximately one-half hour.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the
appliance to avoid burns or clothing ignition. The appliance comes with a heat shield which is an important safety
component preventing contact with the fire bowl when adjusting the propane valve.
Children should be carefully supervised when they are in the area of the appliance.
Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance. The
area above the fire pit may be extremely hot. Direct contact with these surfaces should be avoided in order to prevent
burns or clothing ignition.
Any guard or protective device removed for servicing the appliance must be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person.
The appliance should be inspected before each use and at least annually by a qualified service person. More frequent
cleaning may be required necessary. It is imperative that the control compartment, burners and circulating air
passageways of the appliance be kept clean.
WARNING:
Never use the appliance while it is raining. Always turn the appliance off when raining.
Never use the appliance if the burner is damaged. Inspect the burner before each use. Ensure that no debris such as
leaves; grass or other objects have entered or are on the appliance. If the burner is damaged it must be replaced prior
to using this appliance with a replacement burner specified by your dealer.
Inspect the hose assembly before each use. If there is evidence of excessive abrasion or wear, or if the hose is
damaged it must be replaced prior to using the appliance with a replacement hose assembly specified by your dealer.
WARNING: Any modification to the appliance may compromise the safety of this appliance.
Special concern is as follows:
Do not bypass the thermocouple safety.
Do not operate the appliance if any parts have been under water. Immediately call a qualified service technician to
inspect the appliance and replace any part of the control system, and any gas control, which has been under water.
11

12
Operating (continued)
WARNING: A leak test must be performed annually or if a part of the gas system is replaced.
LEAK TESTING OPERATION
WARNING: Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area
while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious
bodily injury, or death.
LEAK TESTING:
1, Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts water.
2, Make sure all fire pit and light valves are OFF
3, Apply several drops of solution where hose attaches to regulator.
4, Apply several drops of solution where regulator connects to cylinder.
5, Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1, Turn cylinder valve OFF.
2, If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles continue appearing,
pls contact after-services for assistance.
3, If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak test. If you continue
to see bubbles after several attempts, cylinder valve is defective, and contact after services for assistance.
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test .
Hose/Regulator
Connection Regulator/Cylinder
Connection

Operating (continued)
CAUTION: Keep the outdoor gas appliance area clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
LIGHTING
1. Make sure all labels, packaging and protective films have been removed from the outdoor fire pit.
2. Control knob must be in the “OFF” position (Figure 1).
5. Press the control knob, turn counterclockwise to “Low” position, press and hold. When the burner lights, release the
electronic igniter button (Figure 2).
6. Continue to depress the gas control knob for 30 seconds and then release. If the flame goes out, repeat the procedure.
CAUTION: Do NOT obstruct the flow of combustion and ventilation air.
CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to
a fire.
WARNING: If the burner does not light within 10 seconds, turn the valve off and wait 5 minutes for gas
to dissipate before repeating the procedure
Shut Down
1. To extinguish burner depress control knob and continue to turn it clockwise to “OFF”
2. Turn cylinder valve clockwise to “OFF” and disconnect regulator when fire pit is not in use.
Figure 1
13
Figure 2
3. Full open LP cylinder valve.
4. Press and hold electronic igniter button.
7. Adjust the flame to the desired height with the gas control knob. Visually check the burner flames as picture below
(Figure 3).
WARNING: Surface of the fire pit can remain extremely hot for a period after use. Allow 45 minutes to
cool to dissipate before repeating the procedure.
8. If the burner will not light with the electronic igniter, hold a lit long match or lit long butane lighter to the ignition area of
the burner and continue with step 5.
Figure 3
Improper operation, can cause injury or property damage.

14
Maintenance
Storage between uses:
□Turn the control knob to “OFF” position.
□Disconnect LP source.
□Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust
and debris).
□If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages.
Storage during periods of extended inactivity or when transporting:
□Turn the control knob to “OFF” position.
□Disconnect LP source and move to a secure, well ventilated location outdoors. DO NOT store in a location that will
exceed 125℉.
□Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust
and debris).
□If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages.
Care and Cleaning
To enjoy years of outstanding performance from your heater, make sure you perform the following
maintenance activities on a regular basis:
□Keep exterior surface clean.
□Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
□While washing your unit, be sure to keep the area around the burner dry at all times. If the gas control is exposed to
water, do NOT try to use it. It must be replaced.
□Keep the appliance area free and clean from combustible materials, gasoline or other flammable vapors and liquids.
□At least once a year, the unit should be inspected for the presence of spiders, spider webs or other insects.
□Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heat glow is excessively uneven.
Heat makes popping noises.
□Spider and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for
use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
□Carbon deposits may create a fire hazard. Clean reflector, thermocouple, and emitter screen with a dry cloth if any
carbon deposits develop.
□The burner is made from stainless steel, but extreme heat and a corrosive environment can cause surface corrosion to
occur. This can be removed with a brass wire brush. Inspect the burner at least annually for cracks, insect nests,
excessive corrosion or any other damage. If the burner is damaged, it must be replaced with a burner specified by the
manufacturer before the appliance is put into operation.
NOTE: Wait until heater is cool before covering.
NOTE: Wait until heater is cool before covering.
□
Whenever conduct hose/regulator inspection, pull out the door using handle on the door panel to gain access.

Troubleshooting
PROBLEM PROBLEM CAUSE SOLUTION
The flame and heat are
low when the valve is
turned to high.
The propane lighting
procedure was not followed
correctly.
Ensure lighting procedure is followed carefully. The valve
must be in the off position when the tank valve is turned on.
Turn the tank on slowly to allow pressure to equalize. See
Lighting Instructions in the Operating section.
Burners burn with yellow
flame, accompanied by
the smell of gas.
There is possibly a spider web
or other debris.
Thoroughly clean the burner venturi. See the Maintenance
section.
The burner will not light
with the igniter, but will
light with a match.
The battery is either dead or
installed incorrectly.
There is a loose electrode wire
or switch terminal wires.
Check the installation or replace with a new battery.
Check that the electrode wire is firmly pushed onto the
terminal on the back of the igniter. Check that the lead wires
from the module to the ignition switch (if equipped) are firmly
pushed onto their respective terminals.
The burner will not stay lit
when control knob is
released.
The knob is not being held in
long enough.
It is too windy outside.
Lava rock or debris are in the
ignition area of the burner
preventing the thermocouple
from being fully engulfed in
flame.
Either the thermocouple or
thermocouple connection is
dirty.
Either the thermocouple or
valve is faulty.
The thermocouple must have time to heat up. Hold the knob
in for 30 seconds after the burner lights, then release.
The unit will shut down if winds are greater than 10 mph
(16 km/h). Either locate the fire pit to a different area or use
when it is less windy.
Ensure there is no lava rock or other debris in the ignition
area, and that the small hole below the thermocouple is
unobstructed.
Clean the thermocouple and clean the connection between
the valve and thermocouple. Ensure the connection is
properly tightened.
Replace thermocouple and/or valve.
The regulator is humming. This is a normal occurrence
on hot days.
This is not a defect. It is caused by internal vibrations in the
regulator and does not affect the performance or safety of
the gas heater.
Humming regulator will not be replaced.
The valve is set to high
but there is low heat
output. There is also a
rumbling noise and a
fluttering blue flame at the
burner surface.
There is not enough gas.
The supply hose is pinched.
The burner orifice is either
dirty or clogged.
There are spider webs or other
matter in venturi tube.
The propane regulator is in a
“low flow” state.
Check the gas level in the propane cylinder.
Reposition the supply hose as necessary.
Clean the burner orifice.
Clean out the venturi tube.
Ensure the lighting procedure is followed carefully. All
valves must be in the off position when the tank valve is
turned on. Turn tank on slowly to allow pressure to
equalize. See the Lighting Instructions in the Operating
section.
15
