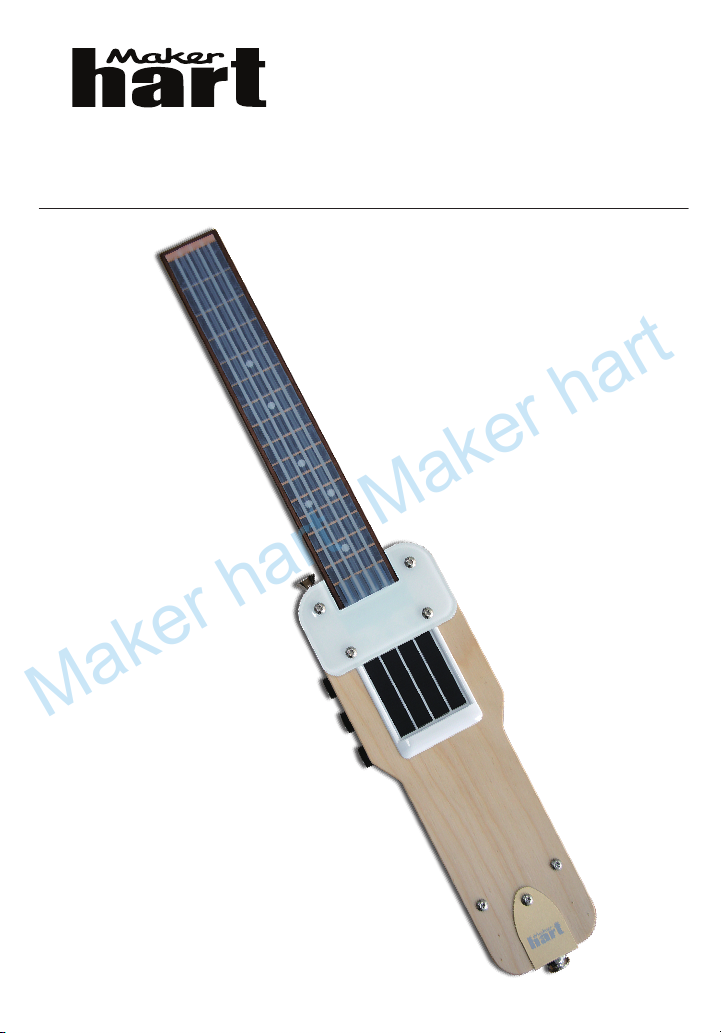

ELECTRONIC UKULELE
Owner’s Manual
G6037078R0-01
EU-ONE
*G6037078R0-01*
Maker hart Maker hart

RUBBER SHEETx1, MINI USB CABLEx 1
Thank you for purchasing the EU-ONE. To take full advantage of the EU-ONE ,and to ensure Proper
operation, please read this owner＇s manual carefully.
■FEATURES
Built-in 25 tones, 5 special performance mode
Easy to carry foldable.
Built-in Bluetooth, be used as Bluetooth MIDI device. (BLE MIDI)
Functions adjustment can be done with APP.
■SPECIFICATIONS
25 Tones
5 Play mode
4 Rhythm sets
Stereo aux input
6.3mm Mono Out
EU TOOL APP
9V or Power bank
Accessory：Owner’s Manual, 9V Batteryx 1
Dimensions：527 x 94 x 34mm
Folded：282 x 94 x 34mm
Weight：682g (no battery)
Bluetooth Low Energy
3.5mm Phone Out
RUBBER SHEET STICK
Remove adhesive backing
Stick
Maker hart Maker hart

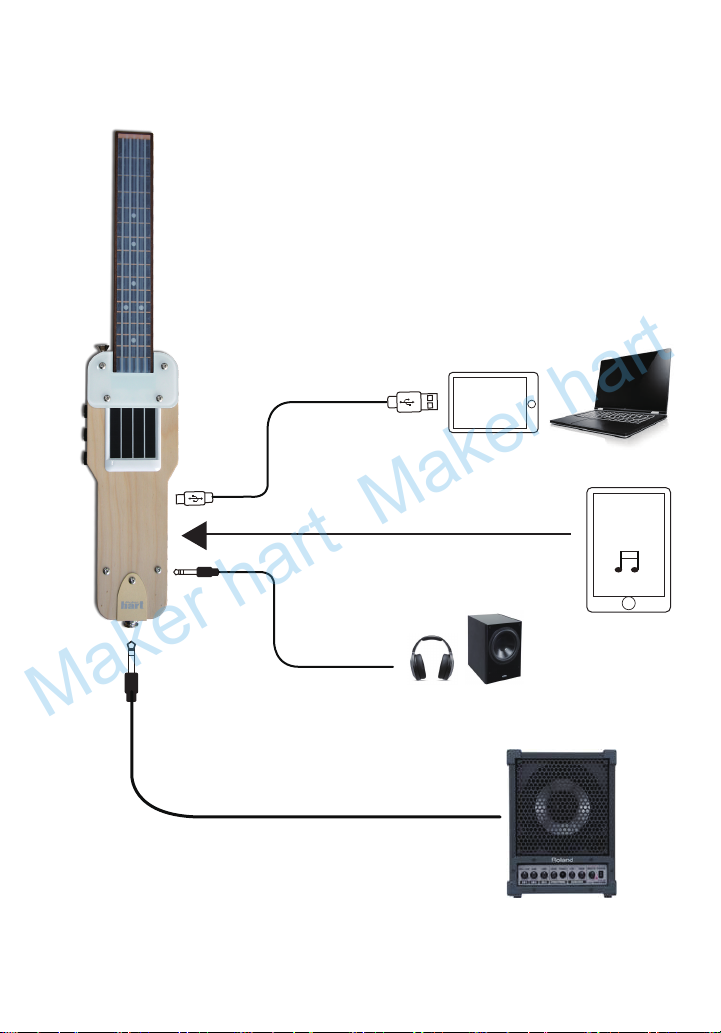

■CONNECTIONS
AMP
AUX-IN
SPEAKER / PHONES
Power bank
APP
Mini USB
Maker hart Maker hart

■PANEL DESCRIPTIONS
1. POWER VOLUME
2. 10 x TONE
3
3. 5 x PLAY MODE
4. SECURITY HOLE
5. PHONE
6. AUX- IN
7. U SB
9. FORCE SENSOR
10. PIEZO SENSOR
8. POSITION SENSING PLATE
11. 4 x RHYTHM BUTTON
12. POWER INDICATOR
13. OUTPUT(MONO)
14. 9V BATTERY
1. POWER VOLUME
Adjust overall volume output of EU-ONE.
While counterclockwise rotation in the end, there will be a level difference Click , it means the power
(on/off).
2. 10 x TONE
Ac.Guitar (nylon) EI.Guitar Synth Bass Piano Trombone 6
5
7
24
13
8910
Synth Strings (Tone 1)
Blown Bottle (Tone 2) Synth Brass (Tone 3) Shamisen (Tone 4) Orchestral Harp (Tone 5)
Maker hart Maker hart

3. 5 x PLAY MODE
Normal Picking Aftertouch Drum Chord ＊( please refer to page 6 )
4. SECURITY HOLE
To fix for the exhibition.
5. PHONE
EU-ONE 3.5mm stereo output can be connected with general headphones or amplified speakers.
＊The phone hole 6.3mm output is a second election, when connected to the hole 3.5mm, the hole
6.3mm is disconnects.
6. AUX-IN
Connecting external audio sources such as mobile music, MP3, a synchronization output will be mixed
into EU-ONE.
＊The volume of external audio can be controlled by external input only.
7. USB
Connecting to a computer or general power bank as power supply.
8. POSITION SENSING PLATE
Depending on your pressing Position sensing plate with corresponding Force Sensor, it will issue
corresponding pitch.
＊When press, please pressed on four vertical lines exactly, each horizontal grid represents a different
pitch, outside-in sound is getting higher and higher, and the starting sounds and position is the same
as the real Ukulele.
9. FORCE SENSOR
The FORCE SENSOR major area is four black rectangular blocks, when triggering will issue
corresponding pitch detect position by Position sensing plate.
10. PIEZO SENSOR
When mode is switched to "Drum", it will issue corresponding drum according to the drum percussion
intensity of the size.
11. 4 x RHYTHM BUTTON
Built-in 4 kinds of drum rhythms, which set in the rearmost Position Sensing Plate of 4 block protruding
portion. Press once to turn on rhythm again closed.
＊The set of drum rhythm can be changed by APP.
12. POWER INDICATOR
This indicator lights when EU-ONE is turned on.
13. OUTPUT(MONO)
You can use 6.3mm external terminal to connect general amplifier or mixer.
＊This hole 3.5mm is a second election,when connecting to 6.3 mm hole, the output for 3 .5mm hole
disconnects.
14. 9V BATTERY
General 9V battery as power supply
Maker hart Maker hart

■OPERATION
1. Make sure the 9Vpower or Mini USB has been connected.
2. The rotary volume knob clockwise to turn on the power, and then adjust the volume needs.
3. Using headphone or external speaker to connect 3.5 / 6.3mm output.
4. In normal model, press Position Sensing Plate by left hand and press corresponding Force Sensor
by right hand for starting performance.
6. The explanation for different modes as follows:
Normal Picking Aftertouch Drum Chord
＊Position Sensing Plate hereinafter referred to as "A”; Force Sensor hereinafter referred to as "B”,
marked start tone following a top-down, each cell is raise /lower semitone.
Normal
At first press position A does not move, then press corresponding position B,
the sound can be come out.
[While playing] press position A does not move, the sound will sustain effect by itself, gradually
weakened to disappear. Move or release position A, the sound will stop immediately interrupted.
Picking
[While playing] long play B to give continuous playing effect in the meantime, it will be able to
change in accordance with the strength of pressing B.
6
5
7
Sol (G)
La (A)
Si (B)
2
4
1
3
Do (C)
Re (D)
Mi (E)
Fa (F)
5. Tuning:
BA
volume
1
6
5
3
1
2
5
4
3
1
2
2
4
5
7
1
2
1
2
3
5
＊
Maker hart Maker hart

7. Fold
Aftertouch
Drum
In this mode, function of position A will be shut down.
Press position B can be triggered four different drums sound.
Also you can trigger the fifth drum sound by strike the body of EU-ONE, the striking force will be
reflected in the volume.
Chord
In this mode, the fourth string (on top piece) will be automatically changed to the preset chord
group then pressed each grid; the following three tones will be replaced by the chord group.
And it will have climb tone play according to the note you pressed.
1. Low-Bongo
2. Hi-Conga
3. Splash Cymbal
4. Crash
5. Low-Conga
DIAL
3
4
5
＊Chord preset is C.D.E.F.G.A.B.
D
FCE
AGB
Maker hart Maker hart

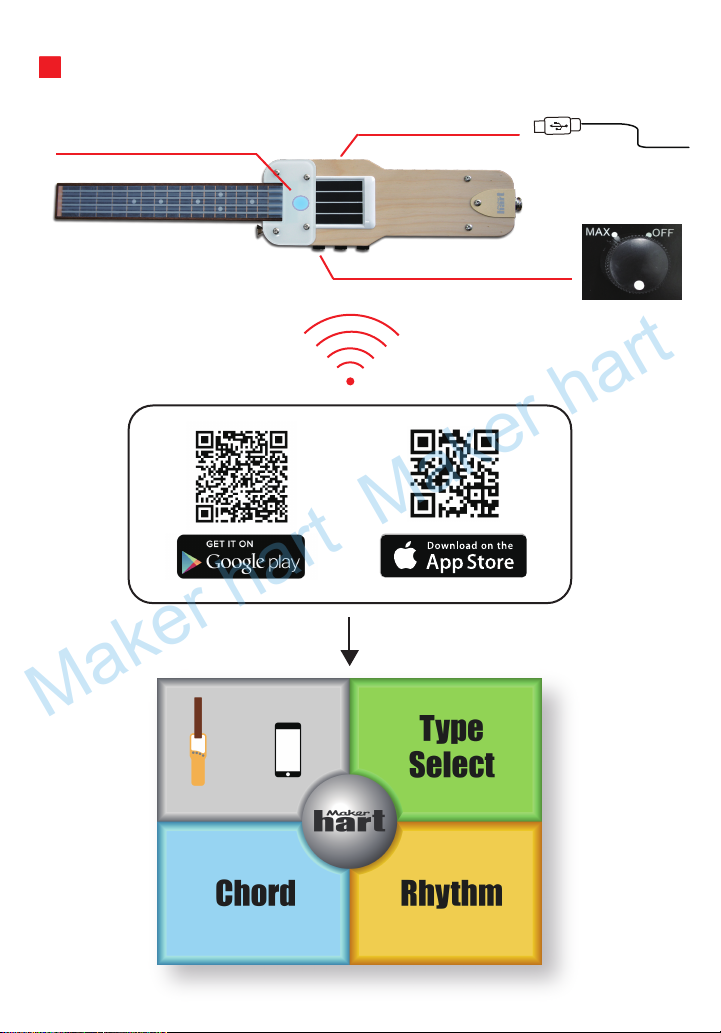

■APP
BLE
When EU-ONE power turn on. light is blue.
b. Turn on POWER VOLUME button
a. Please supply power
Maker hart Maker hart

Type Select
1
You can select Ukulele,Guitar
or Bass.
Ukulele
Guitar
Bass
2
Select APP ”Type Select” mode
3
Choose“ Back” to the Home screen
Connect with APP by Bluetooth
Bluetooth
Bluetooth search Start up EU-ONE Bluetooth
connection
No Bluetooth devices
a. Please turn off the EU-ONE and APP.
b. Turn on APP first, and Open Bluetooth search.
c. Then power on EU-ONE and use APP connect it.
Turn on Bluetooth connection
In connection
4
12
NG
3
5
Maker hart Maker hart

Rhythm
Tempo:60~220 1-4 to select the type of Rhythm
3
Select APP ”Rhythm” mode
2
Press once to turn on rhythm again closed.
5
Select “Reset” is initial mode
Chord
Press Reset and turn all to C Chord.
Select the Chord you need
Initial mode
1
Select “Chord” mode
34
5
The front 7 grids of the fourth chord is Force sensor.
The sensor 3 chords are changed to chord composition
automatically.
Select APP “Chord” mode
2
5
Chord
DF
CEA
GB
6
4
1
Maker hart Maker hart

IMPORTANT NOTES
POWER SUPPLY
Please note that this product can use 9V batteries only or MINI USB as power supply.
When disconnecting the USB from the power outlet, grasp the plug itself; never pull on the cord.
If the unit is to remain unused for an extended period of time, unplug the power cord.
PLACEMENT
Do not subject the unit to temperature extremes (eg., direct sunlight in an enclosed vehicle).
Avoid using or storing the unit in dusty or humid areas, or areas that are subject to high levels of
vibration.
Using the unit near power amplifiers (or other equipment containing large power transformers) may
induce hum.
MAINTENANCE
For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with
water. To remove stubborn dirt, use a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit
thoroughly with a soft, dry cloth. Never use benzene, thinners, alcohol or solvents of any kind, to avoid
the possibility of discoloration and/or deformation.
ADDITIONAL PRECAUTIONS
When the following condition occurs, please turn off the power immediately and remove the batteries
USB from electric outlet.
When the batteries or USB have been damaged; smoke or emitted an odor.
Objects have fallen into, or liquid has been spilled onto the unit; or The unit has been exposed to
rain(or otherwise has become wet);or The unit does not appear to operate normally or exhibits a
marked change in performance.
■
NOTES CONCERNING BATTERIES
The life of the supplied batteries may be limited, since its
primary purpose was to enable testing.
When installing or replacing batteries, always turn this unit off and disconnect any other devices
you may have connected. This way, you can prevent malfunction and damage.
I f used improperly, batteries or rechargeable batteries may explode or leak and cause damage or
injury. In the interest of safety, please read and observe the following precautions.
Carefully follow the installation instructions for batteries, and make sure you observe the
correct polarity.
Remove the batteries whenever the unit is to remain unused for an extended period of time.
Used batteries must be disposed of in compliance with whatever regulations for their safe
disposal that may be observed in the region in which you live.
Maker hart Maker hart

2
E
ht
ht
■CONTACT
MAKER HART INDUSTRY CORP.
F., NO.3, LN. 263, CHONGYANG RD., NANGANG DIST., TAIPEI CITY 11573, TAIWAN (R.O.C.)
mail：[e-mail]
tp://www.makerhart.com
tps://www.facebook.com/Makerhart2015/
