Makita 5014NB User manual

Chain Saw
MODEL
5014NB
5016NB
340 mm (13-3/8”) MODEL 5014NB
375 mm (14-3/4”) MODEL 5016NB
Overall Net
Chain
speed Length of Saw chain
Gauge length weight
IFPM) guide bar Pitch
1,300 6 kg
340
mm
9.5 mm
1.27 mm 760 mm
(13-318”) (318”)
(0.050”) 130”) (13.2 Ibs)
375 mm
9.5 mm
1.27 mm 795 mm
(3/8”l (0.050”) (31-114”) 113.9 Ibs)
(14-314”) 6.3 kg
1,300
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPEC IF I CAT IONS
I I I
* Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
WARNING: WHEN USINGAN ELECTRICCHAIN SAW, BASIC
SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY
TO PERSONS, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
I.
2.
3.
4.
5.
6.
7.
8.
2
Keep Work Area Clean
Clutteredareas invite injuries. Do notstart cutting untilyou have a clear work
area, secure footing, and a planned retreat path from the falling tree.
Consider Work Area Environment
Use extreme caution when cutting small size brush and saplings because
the slender material may catch the saw chain and be whipped toward you
or pull you off balance. Do not operate a chain saw in a tree unless specifi-
cally trained todo so. When cutting a limb that isunder tension be alert for
spring back
so that you will not be struck when the tension in the wood
fibers is released. Don't expose chain saw to rain. Don't use chain saw in
damp or wet locations. Do not use chain saw in presence of flammable
liquids or gases.
Guard Against Electric Shock
Preventbody contact with grounded surfaces. For example: metalpipes, wire
fences.
Keep Children Away
Do not let visitors contact chain saw or extension cord. All visitors should
be kept away from work area.
Store Idle Chain Saw
When not in use, chain saws should be stored in a dry, and high or locked-
up place
- out of the reach of children. When storing saw, use a scabbard
or carrying case.
Don't Force Chain Saw
It will do the job better and safer at the rate for which it was intended.
Use Right
Tool
Cut wood only. Don't usechain saw for purpose not intended - for example
- Don't use chain saw for cutting plastic, masonry non-wood building
materials.
Dress Properly
Do notwear loose clothing or jewelry. They can get caught in movingparts.
Rubber gloves and non-skid footwear are recommended when working
outdoors. Wear protective hair covering to contain long hair.

9. Use Safety Glasses
Also use safety footwear; snug fitting clothing; protective gloves; hearing
and head protection.
Carry the chain saw by the front handle with the saw stopped, finger off
the switch, the guide bar and saw chain to the rear.
11. Maintain Chain Saw With Care
Inspect chain saw cords periodically and if damaged, have repaired by
authorized service facility. Keep cord clear
of the chain and operator at all
times. Never carry saw by the cord or pull it todisconnect from receptacle.
Keep cordfrom oil and sharp edges. Inspectextension cords periodically and
replace if damaged. Keep tools sharp and clean for better and safer perfor-
mance. Follow instructions for lubricating and changing accessories. Keep
handles dry, clean, and free from oil and grease.
Disconnectchainsaw when not
in use, beforeservicing, and when changing
accessories and attachments, such as saw chain and guard.
Use only extension cords intended for use outdoors and
so marked.
Watch what you are doing. Use common sense. Do not operate chain saw
when youare tired. Keepallparts of the bodyaway fromthe saw chainwhen
the motor is operating. Before you start the saw, make sure the saw chain
is not contacting anything.
Before further use of the chain saw, a guard or other part that isdamaged
should be carefully checked to determine that
it will operate properly and
perform itsintended function. Checkfor alignment of moving parts, binding
of movingparts, breakage of parts, mounting, andany other conditions that
may affect its operation. A guard or other part that is damaged should be
properly repaired or replaced by an authorized service center unless other-
wise indicatedelsewhere
in this instructionmanual. Havedefective switches
replaced by authorized service center. Do not use chain saw if switch does
notturn
it onand off. Donotoperate a chainsaw that is damaged, improperly
adjusted, or is not completely and securelyassembled. Be sure that the saw
chain stops moving when the trigger is released.
WARNING: KICKBACK may occur when the nose or tip of the guide bar
touches an object, or when the wood closes
in and pinches the saw chain
in the cut. Tip contact in some cases may cause a lightning fast reverse
reaction, kicking the guide bar upand back towards the operator. Pinching
the saw chain along the top of the guide bar may pushthe guide bar rapidly
back towards the operator. Either of these reactions may cause you tolose
control ofthe saw which could result
in seriousinjury to user. The following
precautions should be followed to minimize kickback.
IO. Carrying Saw
12. Disconnect Chain Saw
13. Outdoor Use Extension Cords
14. Stay Alert
15. Check Damaged Parts
16. Guard Against Kickback
3

(1) Grip saw firmly. Hold the chain saw firmly with both hands when the
motoris running. Use afirm grip withthumbs andfingers encircling the
chain saw handles.
(2) Do not over reach.
(3) Keep proper footing and balance at all times.
(4) Don't letthe noseof the guide barcontact a log, branch, ground, or other
(5) Don't cut above shoulder height.
(6) Use devices suchas low kickback chain, chain brakes and special guide
(7) Only use replacement bars and chains specified by the manufacturer.
Connect chain saw to correct voltage, that is, be sure that the voltage
supplied is the same as that specified on the nameplate of the tool.
When servicing use only identical replacement parts.
obstruction.
bars that reduce the risks associated with kickback.
17. Power Supply
18. Replacement Parts
19. Wear ear protectors during operation.
20. Before making a felling cut, remove dirt, stones, loose bark, nails, staples
21. Secure the log
so that it will not roll or move suddenly during operation.
22. AVOID UNINTENTIONAL STARTING. Don't carry plugged-intool with finger
23. Attention! Do not expose this tool to rain and pull plug immediately if the
24. The chainsaw must not beleft outdoors during rain and it must notbe used
and wire from the tree.
on switch. Be sure switch is
OFF when plugging in.
supply cable be damaged or cut.
when wet.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result inSERIOUS INJURY to the user
- as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
4

Use Of Extension Cord
Ampere rating
(on nameplate1
Ext.
Cord Length
25 Ft.
50 Ft.
75 Ft.
100 Ft.
125 Ft.
150 Ft.
0 - 5.0 5.1 - 10.0 10.1 - 13.0 13.1 - 15.0
Wire Size (American Wire Gauge)
18 18 16 14
18 16 16 14
18 16 14 14
16 14 12 12
16
12 12 12
16 12 12
-
SAVE THESE INSTRUCTIONS.
5

Chain Saw Nomenclature
LEFT SIDE
Front handle
-
/
Trigger switch
RIGHT SIDE
Oil cap Guide bar nose
\
I
____-----
Guide bar
Sprocket mounting pad
Bar Tip Guard - An attachment that may be provided on the end of the guide
bar to prevent the chain at the end of the guide bar from contacting the wood.
Bucking
- The process of cross cutting a felled tree or log into lengths.
Chain Brake
- A device used to stop the chain saw.
Chain Saw Powerhead
- A chain saw without the saw chain and guide bar.
Clutch
- A mechanism for connecting and disconnecting a driven member to
and from a rotating source of power.
Drive Sprocket or Sprocket - The toothed part that drives the saw chain.
Felling
- The process of cutting down a tree.
FellingBack Cut
- The final cut in a tree felling operation made onthe opposite
side of the tree from the notching undercut.
Front Handle
- The support handle located at or toward the front of the chain
saw.
6

Front Handle Guard - A structural barrier between the front handle of a chain
saw and the guide bar, typically located close tothe hand position on the front
handle and sometimes employed as an activating lever for a chain brake.
Guide Bar
- A solid railed structure that supports and guides the saw chain.
Kickback
- The backwardor upwardmotion, or bothof theguide bar occurring
when the saw chain near the nose of the top area of the guide bar contacts any
object suchas a logor branch, or whenthe wood closes
in and pinches the saw
chain in the cut.
Kickback, Pinch
- The rapid pushback of the saw which can occur when the
wood closes in and pinches the moving saw chain in the cut along the top of
the guide bar.
Kickback, Rotational
- The rapidupward and backward motion of the saw which
can occur when the moving saw chain near the upper portion of the tip of the
guide bar contacts an object, such as a log or branch.
Low-Kickback Chain
- A chain that complies with the kickback performance
requirements of ANSI B175.1 when tested on a representative sample of chain
saws.
Normal Cutting Position
- Those positions assumed in performing the bucking
and felling cuts.
Notching Undercut
- A notch cut in a tree that directs the tree's fall.
Oiler Control
- A system for oiling the guide bar and saw chain.
Rear Handle
- The support handle located at or toward the rear of the saw.
Reduced Kickback Guide Bar
- A guide bar which has been demonstrated to
reduce kickback significantly.
ReplacementSaw Chain
- A chain that complies withthe kickback performance
requirements of ANSI 8175.1 when tested with specific chain saws. It may not
meet the ANSI performance requirements when used with other saws.
Saw Chain - A loop of chain having cutting teeth, that cut the wood, and that
is driven by the motor and is supported by the guide bar.
Spiked Bumper (Spike)
- The pointed tooth or teeth for use when felling or
bucking to pivot the saw and maintain position while sawing.
Switch
- A device that when operated will complete or interrupt an electrical
power circuit to the motor
of the chain saw.
Lock-Off Button - A movable stop that prevents the unintentionaloperation of
the switch until manually actuated.
7

Installingsaw chain and guide bar
CAUTION
:
Always be sure that the tool is switched off and unpluggedbefore installingsaw chain and
guide bar.
Use the socket wrench to loosen the hex
bolt holding the chain cover. Remove the
chain cover.
1
Fig. 2
Fit one end of the chain over the sprocket
and the other over the end of the guide
bar. Notice that the cutters must be inthe
direction of the arrow in Fig.
3 and 4.
Keep the chain in the guide bar grooves.
Adjust pin
Sprocket
\
Fig. 3
Cutter
dT--
Install the guide bar so that the lower hole inthe guide bar is just over the adjustingpin.
Install the chain cover and tighten the hex bolt only tight enough to hold the guide bar
temporarily.
8

Adjusting saw chaintension
CAUTION
:
Always be sure that the tool is switched off and unpluggedbefore adjustingchain tension.
Grasp the chain in the middle of the guide
bar and lift up. The gap between the side
link of the chain and the guide bar should
be about
3 mm to 4 mm (1/8" - 5/32").
If the gap is not about 3mm to 4 mm
(1/8" - 5/32"), adjust the chain tension.
Use
a screwdriver toturn the chain tension
adjustingscrew clockwisefor more tension,
or counterclockwise for
less tension. When
adjusting the chain tension, lift the end of
the guide bar slightly.
After adjusting the chain tension,
use the
socket wrench to tighten the hex bolt
securely.
Fig. 5
Fig. 6
I J
Fig. 7
CAUTION :
When breaking in a new chain, adjust the tension often, since it tends to 'stretch'.
9

Lubrication
This tool
is equipped with an automatic lubrication system, so the chain is lubricated
automatically when the motor
is running.
Gear housing cover \ I Window
Fig. 8
To replenish the oil, take off the cap on
the tank and fill with the oil supply. The
oil tank capacity
is 170 cc (5.5 oz).
CAUTION :
Turbine oil #200 or machine oil is recommended. A special oil or one of high viscosity
is neither needed nor advisable, since the aim is to lubricatethe chain and the guide bar.
Do notuse dirty oil nor volatile oil.
Switch action
To prevent the trigger from being acciden-
tally pulled, a lock-off button is provided
as a safety feature.
To start the tool, press in the lock-off
button and pull the trigger. Release the
trigger tostop.
Trigger switch
Lock-off button
Fig. 10
CAUTION :
Before plugging in the tool, always check to see that the trigger switch actuatesproperly
and returns tothe "OFF" position when released.
10

Hook
When using
an extension cord, secure it
to the tool's cord with the hook provided.
Attach the hook about 100-200 mm (4"-
8") from the extension cord connector.
This will help prevent unintentional dis-
connection.
I
Power cord
I
Power cord
Extension
cord
Fig. 11
Cutting operation
Turn the tool on and allow the chain to reach full speed before
it contacts the wood.
Be sure the chain is adequately lubricated.
Use the spike
as a pivot pointand ease the
tool into the wood, rocking
it in gently.
Do not force the guide bar in, as this may
cause overload
- and overheating.
Fig. 1:
Instantchain brake
This tool
is equipped with an instantchain brake toreduce the risk caused by kickback.
To actuate the instant chain brake, push
the protector forward.
Fig. 13
CAUTION :
As soon as the instantchain brake actuates, turn the tool off. Keeping the motor running
with the chain brake actuated may cause damage tothe tool.
11

To release the chain brake,
tector to the exact original
turningthe tool off.
Holding the chain saw
Always grip each handle with the thumb
and fingers encircling the handle
as shown
in Fig.
15.
reset the pro-
position after
Use this grip
thumb below
WARNING:
0 Under normal circumstances, it should never be necessary to intentionally release the
chain brake while the tool is running. Occasionally, after the brake has been actuated,
the protector may not reset tothe exact originalposition. Ifthis happens, placethe tool
on
a flat surface in a clear area (away from other persons or objects that might contact
the saw chain). Then turn the tool on. After running the tool for
a couple of seconds,
turn the tool off. While the motor
is coasting, reset the protector with the same hand
you used toturn the tool on. Holdthe tool firmly by grasping the front handlewith the
other hand.
Careless handling of the tool
at this time could result in serious injury, therefore use
extreme caution when resettingthe chain brake inthis manner.
e Before operation, always check to see that the chain brake actuatesproperly.
L
Fig. 1
12

Usingthe chain saw
Always be sure of your footing and hold the chain
saw firmly with both hands while the
motor is running.
Felling a tree
When bucking and felling operations are beingperformedby
two or more persons, at the
same time, the felling operation should be separated from the bucking operation by
a
distance of at least twice the height of the tree beingfelled. Trees should notbe felled in
a manner that would endanger any person, strike any utility line or cause any property
damage. If the tree does make contact with any utility line, the utility company should
be notified immediately.
The chain saw operator should keep on the uphill side of the terrain as the tree is likely
to roll or slide downhill after
it is felled.
A retreat path should be planned and
cleared
as necessary before cuts are started.
The retreat path should extend back and
diagonally to the rear of the expected line
of fall
as shown in Fig. 16.
Retreat
Direction
of fall
__ - -
Before felling is started, consider the natural lean of the tree, the location of larger
branches and the wind direction tojudge which way the tree will fall. Removedirt, stones,
loose bark, nails, staples, and wire from the tree where fellingcuts are to be made.
Notchingundercut
Make the notch 1/3 the diameter of the tree, perpendicular to the direction of fall as
shown in Fig. 17. Make the lower horizontal notching cut first. This will help to avoid
pinchingof either the saw chain or the guide bar when the second notch is beingmade.
13

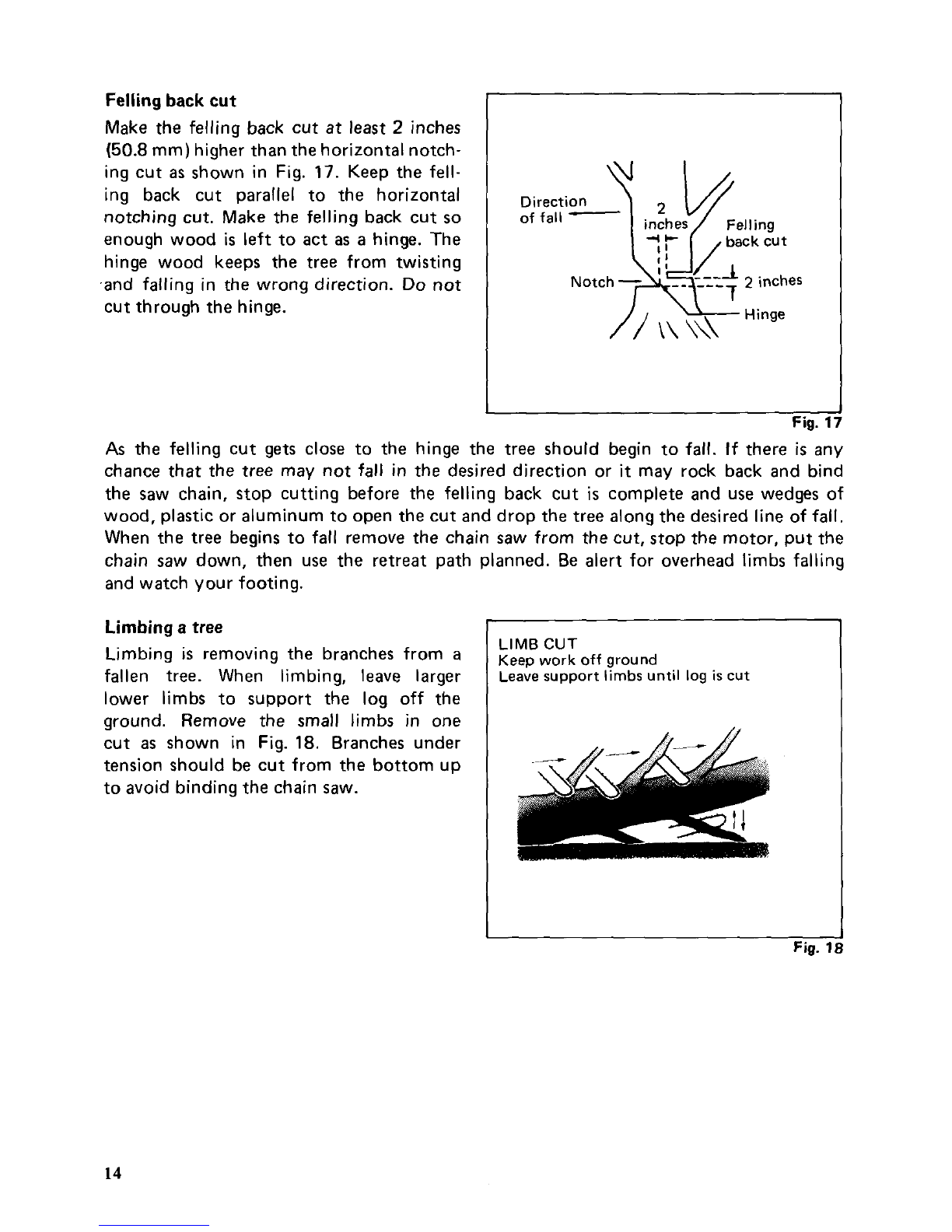

Felling back cut
Make the felling back cut at least 2 inches
(50.8 mm)higher than the horizontal notch-
ing cut as shown in Fig. 17. Keep the fell-
ing back cut parallel to the horizontal
notching cut. Make the felling back cut
so
enough wood is left to act as a hinge. The
hinge wood keeps the tree from twisting
.and falling in the wrong direction.
Do not
cut through the hinge.
Limbing
a tree
Limbing
is removing the branches from a
fallen tree. When limbing, leave larger
lower limbs to support the log off the
ground. Remove the small limbs in one
cut
as shown in Fig. 18. Branches under
tension should be cut from the bottom up
to avoid binding the chain saw.
I
Fig. 1
LIMB CUT
Keep work off ground
Leave support limbs until log is cut
1
As the felling cut gets close to the hinge the tree should begin to fall. If there is any
chance that the tree may not fall in the desired direction or it may rock back and bind
the saw chain, stop cutting before the felling back cut
is complete and use wedges of
wood, plastic or aluminum to open the cut and drop the tree along the desired line of fall.
When the tree begins to fall remove the chain saw from the cut, stop the motor, put the
chain saw down, then use the retreat path planned. Be alert for overhead limbs falling
and watch your footing.
14

Bucking a log
Bucking is cutting a logintolengths. It is importantto make sure your footing is firm and
your weight
is evenly distributed on both feet. When possible, the log should be raised
and supported by the use
of limbs, logs or chocks. Follow the simple directions for easy
cutting.
When the log
is supported along its entire
length
as shown in Fig. 19, it is cut from
the top (overbuck).
When the log is supported on one end, as
shown in Fig. 20, cut 1/3 the diameter
from the underside (underbuck). Then
make the finished cut
by overbucking to
meet the first cut.
When the
log is supported on both ends, as
shown in Fig. 21, cut 1/3 of that diameter
from the top overbuck. Then make the
finished cut by underbuckingthe lower
2/3
tomeet the first cut.
I
Cutfrom top (overbuck)
avoid cuttingearth
Fig. 1
2nd cutoverbuck
(2/3diameter)
to meet 1st cut
1'0 avoid Dinchina)
i Fig. 24
1st cut overbuck
(113 diameter)
(toavoid splintering)
~- -
2nd cutunderbuck
(2/3 diameter) to
meet 1st cut
(toavoid pinching)
Fig. 2'
15

When bucking on a slope, always stand on
the uphill side of the log,
as shown in Fig.
22. When "cutting through", to maintain
complete control, release the cutting pres-
sure near the end of the cut without re-
laxing your grip on the chain saw handles.
Don't
let the chain contact the ground.
After completing the cut, wait for the saw
chain to stop before you move the chain
saw. Always stop the motor before moving
from tree to tree.
1
log may roll.
Fig. 2:
I
Carrying tool
Carry the tool by the front handle with the
tool turned off, finger off the switch, the
guide bar and the saw chain to the rear.
Use the scabbard to cover the guide bar
and the saw chain.
16

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting toperform
inspection or maintenance.
Filling saw chain
To get the most in cutting performance from your tool, you must keep the cutter sharp
and filed properly
as shown below.
TOP PLATE ANGLE SIDE PLATE ANGLE TOP FILING ANGLE
A
top plateangle of
If you have filed the top
30” is ideal. 85’. and side platecorrectly
the topfilling angle will
be
60” -automatically.
Filetheside plateto
Fig. 2d
To file the saw chain, push the file in the
direction of the arrow. When pulling it
back, be careful not to touch the cutters
with the file.
Saw chain
File
After a saw chain has been filed two or three times, the “raker” (see Fig. 24) may need
to be filed down slightly. This is because the raker acts as a depth gauge for the cutters.
As the cutters are filed, they lose some height due totheir angled shape. Eventually, the
cutters will become lower than the depth gauge and consequently, will not be able to
cut.
To remedy this, use a flat file to file the tops of the rakers so that they are about
0.5 mm (0.025”) below the tips of the cutters (see Fig. 24). Be careful not to file the
rakers excessively or the cutters will be allowed to take too large of
a “bite”, causing
the tool to
stall or snag in the cut.
17

Removingchip buildup
Chips and sawdust will build up in the guide bar groove and oil hole, cloggingthem and
impairing oil flow. Removethe guide bar and clean them out.
Clean out
r
I Fig. 2
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at the
same time.
Use only Makita carbonbrushes.
I / I
Limit mark
-
Fig. 28
Use a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure the
brush holder
caps.
Fig. 29
Storingthe tool
Beforestoring the tool, be sure
t6 dothe following:
0 Remove the chain cover. Remove any chips and sawdust from the tool.
0 Install the chain cover. Turn the tool on and depress the oil button 4 or 5 times.
eCover the saw chain and the guide bar with the scabbard.
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
alwaysusingMakita replacementparts.
18

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessoriesor attachmentsmight present
a risk of injury to persons.The
accessories or attachmentsshould be used only in the proper and intended manner.
Socket wrench 13 Screwdriver File
Part No.782212-4 Part No.783001-0 Part No.744003-1
Scabbard Oil supply 0 Cap for oil supply
Part No. 414593-5 Part No. 181 117-9
Part No.242012-9
Saw chain
Part No.713014-7 (For 5014NB)
Part No.713015-5 (For 5016NB)
Hook
Part No. 158024- 1
19

Aug.-25-'88 US
CHAIN SAW
340 mm (13-3/8") Model 5014NB
375 mm (14-3/4') Model 5016NB
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
20
