Makita DCS9000-PH User manual

04-2003
1024 130 300 1Cylinder/Piston Assy ?52
2024 130 400 1Cylinder/Piston Assy for
Decompressed
3166 131 070 1Decompressed Valve CPL
4024 132 020 1Piston CPL?52
5133 132 050 2Piston Ring ?52
6031 132 020 1Piston Pin
7119 132 060 2Spring Ring
8908 005 205 4Fillister Head Screw M5x20
9965 525 060 1Gasket
10 024 120 024 1Crankshaft (Old 024 120 022)
11 962 210 028 1Needle Cage
12 939 630 370 1Key
13 960 102 173 2Ball Bearing (Type 1)
960 102 179 2Ball Bearing (Type 2)
15 024 111 621 1Crankcase, Magneto Side
16 024 111 640 1Crankcase, Clutch Side
17 965 525 070 1Gasket
18 962 900 054 2Radial Ring
20 965 605 400 1Stop Switch
21 965 605 131 1Rubber Bush
22 965 605 120 1Nut
23 010 114 050 1Oil Tank Plug CPL
24 963 228 030 1Gasket
25 965 403 370 1Shock Absorber
26 936 430 160 2Spiral Clamping Pin
28 010 245 010 1Vent Valve (Type 2)
29 024 232 030 2Bolt
31 024 111 070 1Guide Plate (Type 1)
024 111 071 1Guide Plate (Type 2)
33 915 635 100 2Screw 3.5x9.5 (Type 1)
915 135 100 2Screw 3.5X9.5(Type 2)
34 001 213 160 1Tensioning Screw
35 001 213 170 1Nut with Pivot
36 024 111 100 1Safety Plate
38 963 204 015 1O Ring
39 908 005 305 7Fillister Head Screw M5x30
40 024 111 050 1ChainCatch
41 024 250 030 1SpikeBar
42 908 006 145 2Fillister Head Screw M6x14
Special Equipment for USA and CANADA
30 024 232 040 2Bolt
32 024 111 031 1Guide Plate(F/Husqvarna Guide Bar)
Item Part No.
No. No. Used Description Item Part No. No. No. Used Description
90cc CHAINSAW Model DCS9000-PH
90cc CHAINSAW Model DCS9010-PH
Cylinder, Piston, Crankshaft, Crankcase

2 Model DCS9000-PH
2 Model DCS9010-PH
45 024 310 010 1Tubular Handle Assy (DCS9000)
024 310 040 1Tubular Handle Assy (DCS9010)
46 024 310 100 1Wrap around Handle Assy
47 965 551 250 1Pot
48 965 403 430 1Rubber Buffer
49 908 005 165 1Fillister Head Screw M5x16
50 913 455 304 6Fillister Head Screw 5.5x30
53 913 455 204 6Fillister Head Screw 5.5x20
54 024 114 612 1Tank Assy (Old 024 114 630)
55 965 451 750 1Button
56 965 551 160 1Pressure Spring
57 935 930 450 1Cylindrical Pin ?3x45
58 935 930 280 1Cylindrical Pin ?3x28
59 024 117 020 1CatchLever
60 965 551 150 1Stop Pin
61 024 117 031 1Spring
62 024 117 010 1Throttle Lever
63 965 725 041 1Bowden Cable
64 957 114 020 1Air Valve CPL (Type 1)
957 114 010 1Air Valve CPL (Type 2)
65 963 601 120 1Suction Head (Fuel)(Types 1 & 3)
(Old 963 601 130 - Type 2)
66 963 601 240 1Felt Filter
67 965 404 700 1Fuel Line
68 965 404 520 1Gasket
69 965 451 901 1Tank Plug CPL (Type 2)
(Old 965 451 900)
70 963 232 045 1ORing ?31X4.5
71 965 404 720 4Bush
72 965 403 461 4Rubber Buffer
74 965 404 740 4Plug
Item Part No.
No. No. Used Description
Fuel Tank, Tubular Grip, Rubber Buffer
190 024 174 011 1Muffler Assy (DCS9000)
024 174 151 1Muffler Assy (DCS9000) (USA)
024 174 153 1Muffler Assy (DCS9010)
192 024 174 020 3Special Screw M6
193 965 525 101 1Gasket
194 024 174 040 1Cover Plate
195 024 174 160 1Screen
196 024 174 170 1DeflectorPlate(DCS9000)
024 174 171 1DeflectorPlate(DCS9010)
197 915 142 090 1Screw 4,2x9,5(Old 915 042 090)
Item Part No.
No. No. Used Description
Muffler

Item Part No.
No. No. Used Description

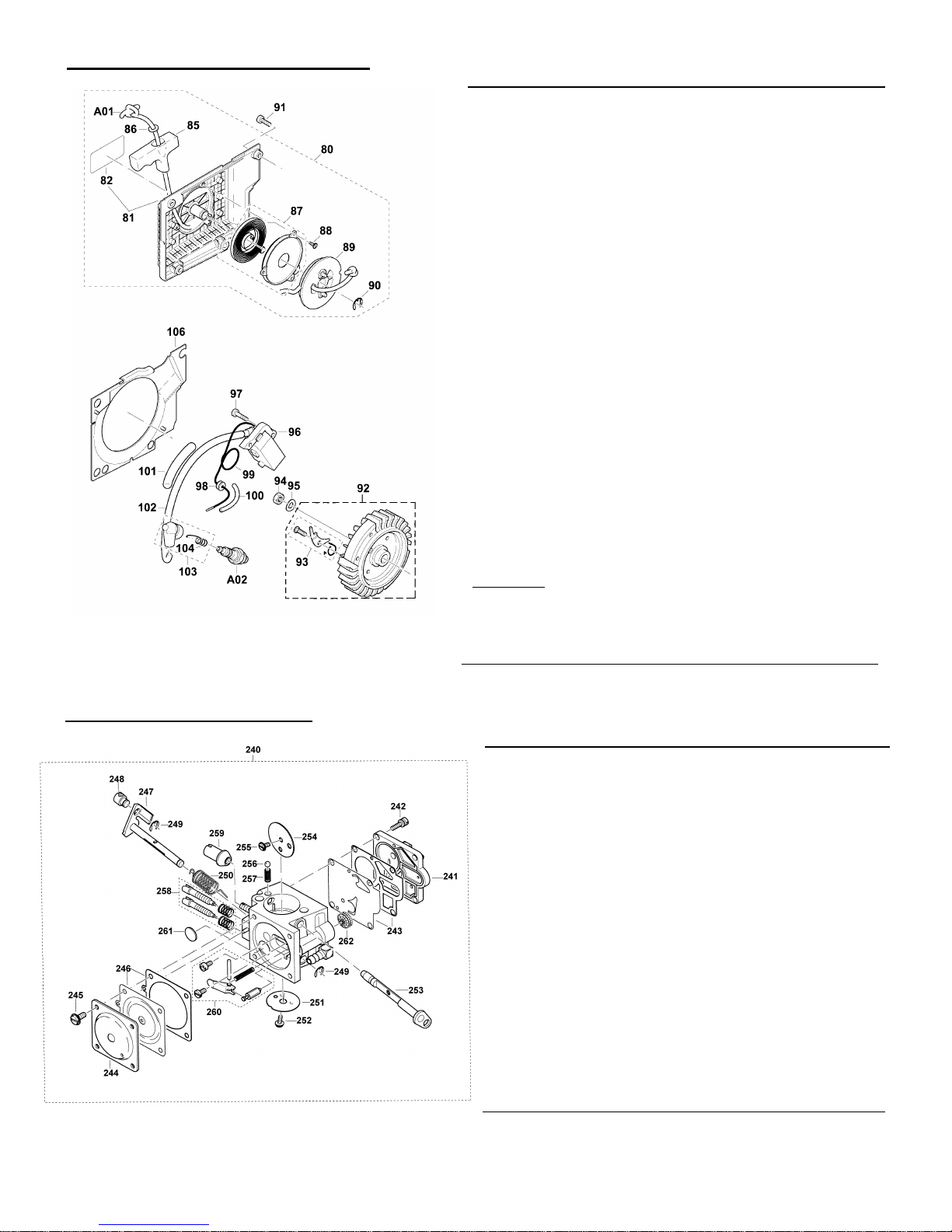

80 024 112 630 1Starter Assy
81 024 112 680 1Fan Housing
82 980 114 217 1Label
85 965 402 262 1Starter Grip
86 928 405 000 1Disc
87 020 163 031 1Rewind Spring CPL
88 915 135 100 3Screw 3.5x9.5
89 024 162 082 1Cable Drum (Old024 162 081)
90 929 314 100 1Snap Ring
91 908 005 165 4Fillister Head Screw M5x16
92 024 141 200 1Flywheel Assy (DCS9000)
024 141 210 1Flywheel Assy (DCS9010)
93 031 166 010 2Starter Ratchet CPL
94 920 208 024 1Hexagonal Nut M8x1(Old 920 308 024)
95 928 308 001 1Spring Washer (Type 1)
926 208 001 1Spring Washer (Type 2)
96 024 143 020 1Ignition Coil (DCS9000)
024 143 051 1Ignition Coil (DCS9010)(Old 024 143 050)
97 908 605 205 2Fillister Head Screw M5x20
98 965 401 011 1Rubber Bush
99 024 147 010 1Short-CircuitCable
100 970 502 050 1Insulating Hose 100mm (Sold by Meter)
101 970 502 110 1Insulating Hose 100mm (Sold by Meter)
102 970 310 200 1Ignition Cable 200mm (Sold by Meter)
103 957 604 260 1Plug Cap CPL
104 965 604 180 1Spring
106 024 112 021 1Air Duct
Accessories
A01 122 164 010 1Starter Rope ??4.0x1M
SD41005.0 1Starter Rope 5/32” x 250’
A02 965 603 014 1SparkPlug
3 Model DCS9000-PH
3 Model DCS9010-PH
Ignition electronics, Flywheel, Starter
240 024 152 011 1Carburetor BING 49-B (Includes Items
241 - 262)
241 024 152 160 1Pump Cover
242 114 152 170 4Screw
243 024 152 910 1Pump Diaphragm with Gasket
244 024 152 120 1Diaphragm Cover
245 024 152 140 4Screw
246 024 152 930 1Control Diaphragm with Gasket
247 024 152 300 1Throttle Shaft
248 024 152 500 1Holder for Bowden Cable
249 114 152 350 2Safety Washer
250 024 152 310 1Spring
251 024 152 320 1Throttle Shutter
252 114 152 370 1Screw
253 024 152 250 1Choke Shaft
254 024 152 260 1Choke Shutter
255 114 152 370 1Screw
256 114 152 380 1Ball
257 114 152 080 1Spring
258 024 152 920 1Adjustment Screws With Springs
259 024 152 240 1Adjustment Nut
260 024 152 900 1Set of Control Parts CPL
261 024 152 040 1Cover Disc
262 024 152 180 1Screen
Item Part No.
No. No. Used Description
DCS9000 (BING) - Carburetor

4 Model DCS9000-PH
4 Model DCS9010-PH

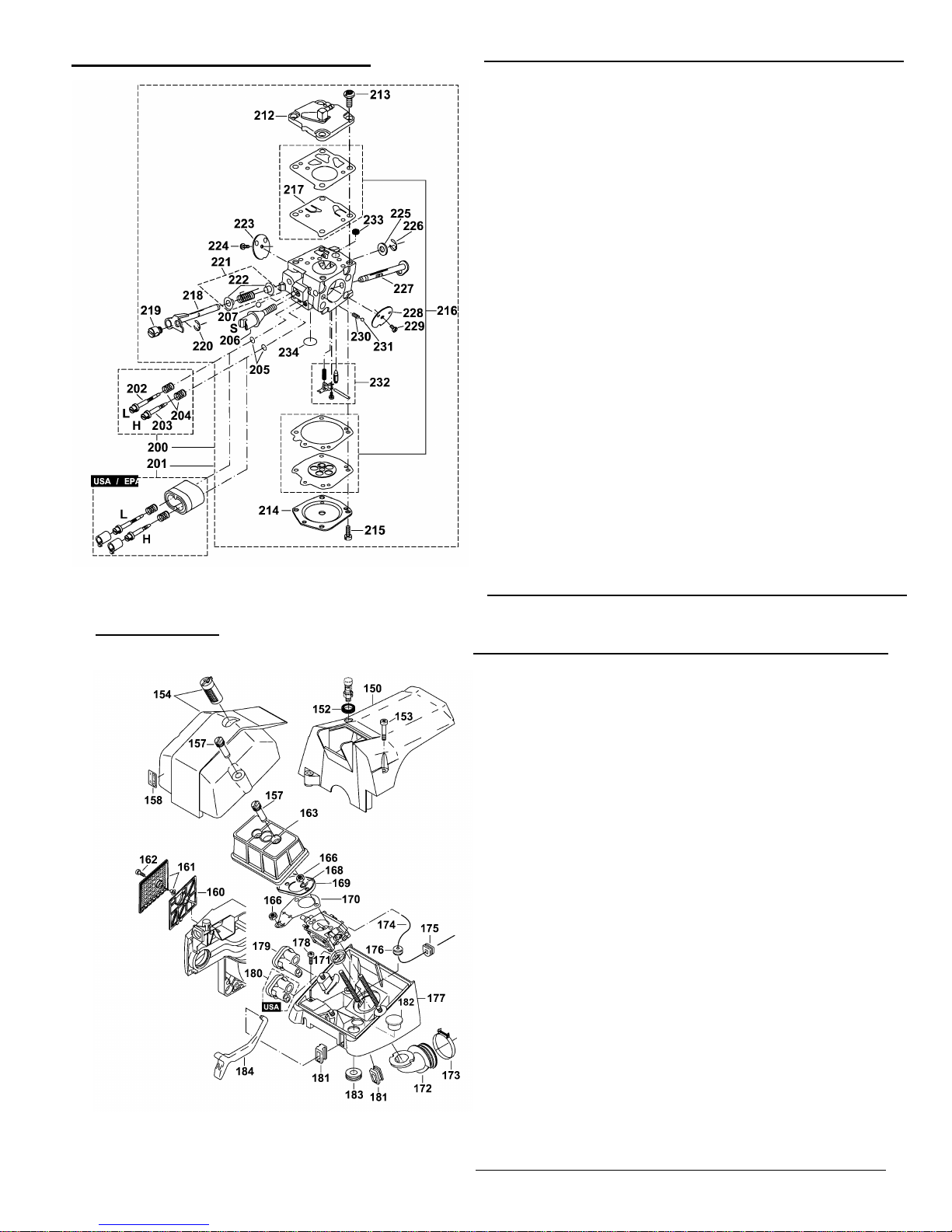

200 024 150 010 1Carburetor TILLOTSON HS-294 A
(Includes Items 202 - 207 & 212 - 234)
201 024 150 030 1Carburetor HS-295 A (LC)(Includes
Items 202 - 207 & 212 - 234)
202 024 150 470 1Idle Adjustment Screw (L)
203 024 150 510 1Main Adjustment Screw (H)
204 144 151 480 2Spring
205 394 150 500 2Packing Ring
206 394 150 570 1Idle Stop Screw (S) (HS-294 A)
024 150 570 1Idle Stop Screw (S) (HS-295 A)
207 001 150 510 1Locking Ball
212 024 150 160 1PumpCoverCPL
213 394 150 170 4Screw
214 122 151 121 1Diaphragm Cover
215 001 150 520 4Screw
216 957 150 100 1Set Diaphragm with Gasket
217 113 150 150 1Pump Diaphragm, Rubber
218 024 150 300 1Throttle Shaft
219 024 150 100 1Holder for Bowden Cable
220 024 150 110 1Safety Washer
221 957 150 110 1Spring CPL (Old 001 150 310)
222 144 151 315 2Bushing
223 024 150 320 1Throttle Shutter
224 001 150 650 1Screw
225 122 151 400 1Disc
226 100 150 350 1Safety Washer
227 024 150 250 1Choke Shaft
228 113 150 261 1Choke Shutter
229 001 150 650 1Screw
230 101 150 080 1Locking Spring
231 113 150 380 1Locking Ball
232 957 150 190 1Set of Control Parts
233 394 150 180 1Screen
234 113 150 040 1CoverDisc
Item Part No.
No. No. Used Description
Hood, Air Filter
150 024118121 1Hood
152 030404460 1Gasket (For Deco)
153 908305255 3Fillister Head Screw M5x10x25
154 024118111 1CoverAssy
157 024173200 4Nut
158 980113841 1Label
160 024173081 1Pre-Filter
161 024173610 1CoverforPre-Filter
162 908605145 1Fillister Head Screw M5x14 (Type 2)
163 024173230 1Air Filter CPL (Robkoflok)
024173190 1Air Filter CPL (Nylon)
166 920205000 3Hexagonal Nut M5
168 928105000 2SafetyWasher
169 024173160 1Holder for Air Filter
170 024150170 1Sheet-Metal Holder
171 024131031 1Insert for Suction Hose
172 024131021 1Suction Hose (Type 1)
024131022 1Suction Hose (Type 2)
173 965603050 1Clamp
174 965452060 1Ventilations Line 160mm (Sold by Meter)
175 965401016 1Rubber Bush
176 965401011 1Rubber Bush
177 024118032 1Bottom CPL (Old 024 118 090)
178 908005165 4Fillister Head Screw M5x16
179 024118051 1Adjusting Guide (Standard Carburetor)
180 024118160 1Adjusting Guide (Limiter Cap Version)
(DCS9010)
181 965401021 2Rubber Bush
182 965451495 1Plug (Old) (DCS9000)
183 965401024 1Rubber Bush
184 024150020 1Choke Shaft
Item Part No.
No. No. Used Description
DCS9010 (TILLOTSON) - Carburetor

110 024 245 100 1Oil Pump Assy
111 957 245 360 1Repair Kit
112 963 608 100 1Angular Nipple
113 908 005 125 2Fillister Head Screw M5x12
114 024 245 200 1Oil Suction Line Assy
115 900 005 066 1Distance Ring
116 963 601 100 1Screen
117 024 213 180 1Hand Protection CPL
118 980 114 237 1Label
119 024 213 500 1Braking Mechanism (Type 1)
010 213 021 1Braking Mechanism (Type 2)
120 927 304 000 1Safety Washer
121 927 306 000 1Safety Washer
122 900 004 364 1Spacer
123 024 111 061 1Spring Guiding Head
124 024 213 321 1Pressure Spring
125 024 213 351 1Brake Spring
126 024 213 101 1Plate
127 965 404 800 1Cover Foam Plate
128 908 005 125 4Fillister Head Screw M5x12
129 010 180 110 1Clutch Assy
130 024 184 021 3Tension Spring
131 001 182 041 1Guide Disc (Old 024 182 060)
132 024 223 041 1Clutch Drum
133 962 210 024 1Needle Cage
134 031 224 010 1Rim Sprocket 3/8", Z=8(DCS9000)
119 224 070 1Rim Sprocket 3/8”. Z=7 (DCS9010)
135 133 224 010 1Rim Sprocket .404", Z=7
136 001 224 011 1Disc
137 021 224 010 1Disc
138 927 308 000 1Safety Washer
139 024 213 680 1Sprocket Guard CPL (Old 024 213 650)
140 024 213 690 1Sprocket Guard CPL (F/Husqvarna
Guide Bar)
141 024 250 030 1Spike Bar
142 908 006 145 2Fillister Head Screw M6x14
143 001 213 150 2Hexagonal Nut M8 (Type 1)
923 208 004 2Hexagonal Nut M8 (Type 2)
144 980 114 183 1Label (DCS9000)
980 114 739 1Label (DCS9010)
145 922 606 000 2Hexagonal Nut M6
146 024 213 240 2Chain Guide
147 915 635 100 3Screw 3.5X9.5 (Type 1)
915 135 100 3Screw 3.5X9.5(Type 2)
148 024 213 221 1Chip Guide
149 965 404 760 1Rubber Plate (Type 1)
965 404 761 1Rubber Plate (Type 2)
Item Part No.
No. No. Used Description Item Part No. No. No. Used Description
Oil Pump. Clutch, Chain Brake
5 Model DCS9000-PH
5 Model DCS9010-PH

6 Model DCS9000-PH
6 Model DCS9010-PH
Accessories
A01 122 164 010 1Starter Rope ?4x1M
SD 4100 5.0 1Starter Rope 5/32” x 250’
A02 965 603 014 1Spark Plug
A03 445 045 652 118” Sprocket Nose Bar 3/8”, 58G
412 310 600 120” Sprocket Nose Bar 3/8”, 58G
208SLHD005 120” Pro-Lite Bar 3/8”, 58G
445 050 652 120” Sprocket Nose Bar 3/8”, 58G
412 312 600 124” Sprocket Nose Bar 3/8”, 58G
415 060 652 124” Sprocket Nose Bar 3/8”, 58G
445 060 652 124” Sprocket Nose Bar 3/8”, 58G
268RNDD009 126” Sprocket Nose Bar 3/8”, 58G
445 070 652 128” Sprocket Nose Bar 3/8”, 58G
A04 412 308 700 1Sprocket Nose CPL 3/8”, 58G
A05 523 099 068 13/8” Chisel Chain 58 Gauge 18”
523 099 064 13/8” Chisel Chain 58 Gauge 18”
523 099 072 13/8” Chisel Chain 58 Gauge 20”
523 099 080 13/8” Chisel Chain 58 Gauge 24”
523 099 084 13/8” Chisel Chain 58 Gauge 24”
523 099 092 13/8” Chisel Chain 58 Gauge 28”
A06 952 100 643 1Chain Protection 15” - 18”
952 100 653 1Chain Protection 20” - 24”
952 100 171 1Chain Protection 25” - 33”
A07 957 004 002 1Tool CPL
A08 941 719 131 1UniversalWrench19/13
A09 941 719 171 1UniversalWrench19/17
A10 940 827 000 1Torx Wrench
A11 944 340 001 1Screwdriver
A12 950 004 002 1Plastic Bag (Old 950 004 001)
Item Part No.
No. No. Used Description
Accessories
