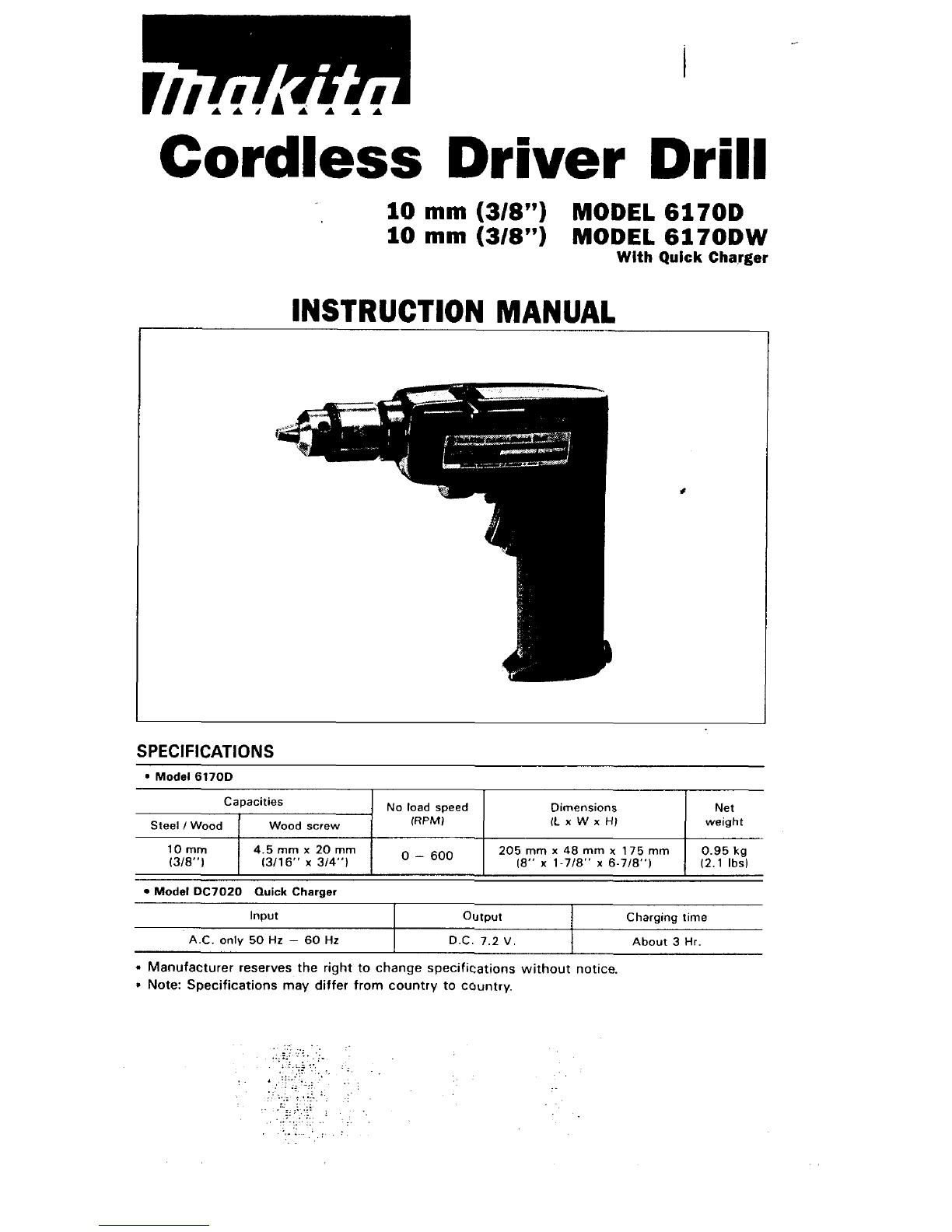

Makita 6170D User manual

Cordless Driver Drill
No load speed
IRPMt
Capacities
Steel/Wood
I Wood screw
10 mm (3/8”) MODEL 6170D
10 mm (3/8”) MODEL 6170DW
With Quick Charger
Dimensions Net
IL x W x HI
weight
INSTRUCTION MANUAL
Input
SPECIFICATIONS
Output Charging time
A.C. only 50 Hz - 60 Hz D.C. 7.2 V.
10mm 0.95 kg
l3/8“) I (3/16” x 3/4”) I - ‘O0 18” x 1-7/8” x 6-7/8”1 I 12.1 Ibs)
4.5 mm x 20 mm
I 205 mm x 48 mm x 175 mm
About 3 Hr.
I I
Model DC7020 Quick Charger

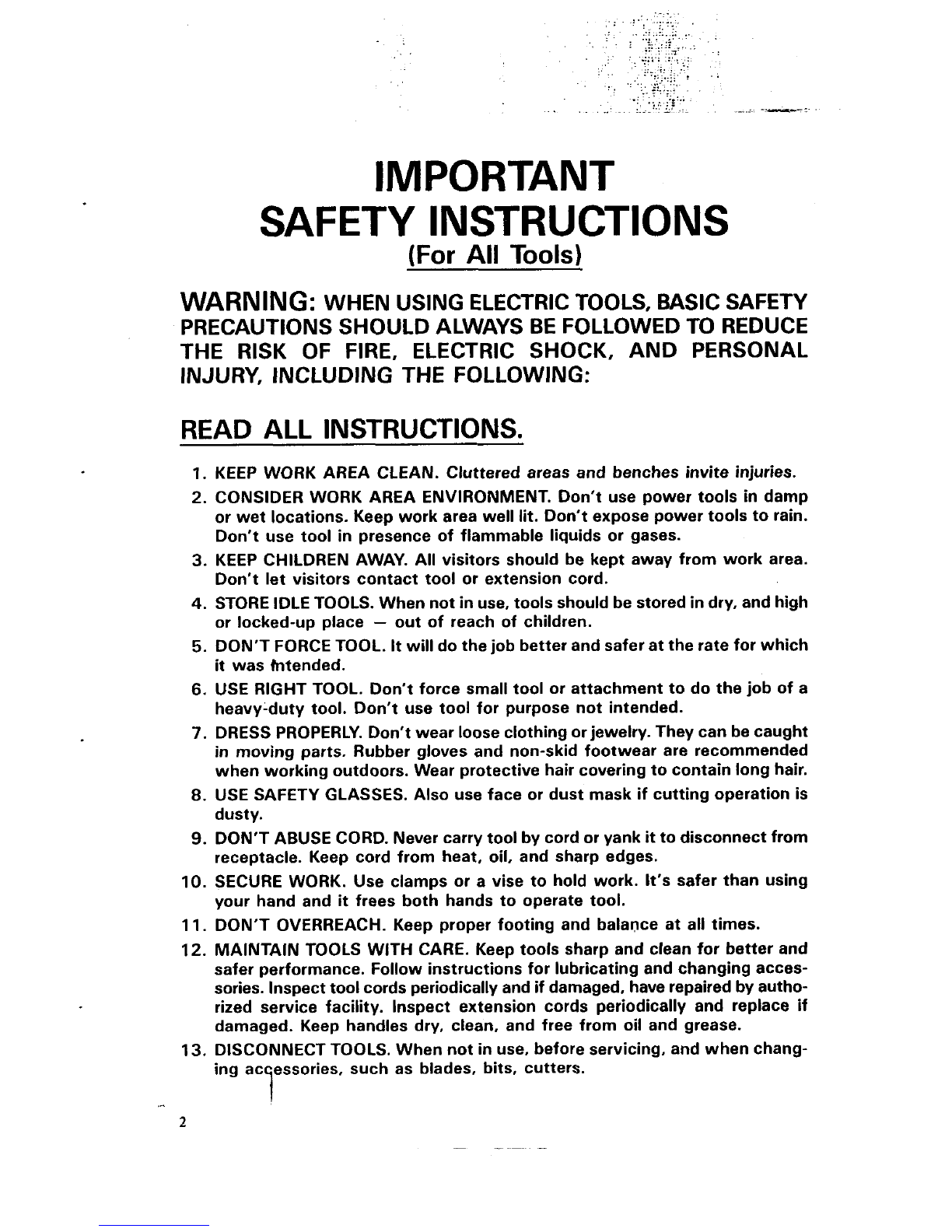

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULD ALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well
lit. Don't expose powertoolstorain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, tools should bestored in dry, and high
or locked-up place - out of reach of children.
DON'T FORCETOOL.
It willdothejob better andsafer attheratefor which
it was Wended.
USE RIGHT TOOL. Don't force small tool or attachment to do thejob of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESSPROPERLY. Don't wear loose clothingorjewelry. They canbecaught
in moving parts. Rubber gloves and non-skid footwear are recommended
whenworking outdoors. Wear protective hair coveringtocontain longhair.
USE SAFETY GLASSES. Also use face or dust mask if cuttingoperation is
dusty.
DON'T ABUSE CORD. Never carry toolbycordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAINTOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspecttoolcords periodically and
if damaged, haverepaired byautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, beforeservicing, and when chang-
essories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removedfromtool beforeturning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intool with finger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When tool is usedoutdoors, useonly
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, usecommon sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Beforefurther use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operateproperly and perform its intendedfunction. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired
or replaced by an authorized
service center unless otherwise indicated elsewhere
in this instruction
manual. Havedefectiveswitches replacedby authorizedservice center. Don’t
use tool if switch does not turn it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Beforeconnectingthe toolto a power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof
the tool. A power source with voltage greater than that specified
for the tool can result inSERIOUS INJURY to the user
- as well as damage to
the
tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to
the motor.
3

IMPORTANT SAFETY INSTRUCTIONS
I. SAVE THESE INSTRUCTIONS - This manual
contains important safety and operating instructions for battery charger.
2. Beforeusing battery charger, read all instructions and cautionary markings
on
(11 battery charger, (2) battery, and (3) product using battery,
3. CAUTION - To reduce risk of injury, charge only MAKITA type recharge-
able batteries. Other types of batteries may burst causing personal injury
and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer mayresult
in arisk of fire, electricshock, or injurytopersons.
6. To reduce risk of damage to electric plug and cord, pull by plug rather than
cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over,
or otherwise subjected to damage or stress.
8. Do not operate charger with damaged cord or plug - replace them im-
mediately.
9. Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged
in any way; take it to a qualified serviceman.
10. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
11. To reducerisk of electric shock, unplugcharger from outletbeforeattempting
any maintenance or cleaning. Turning
off controls will not reduce this risk.
4
..

ADDITIONAL SAFETY RULES
FOR CHARGER AND TOOL
1. The Charger and the toolare specifically designed to work together. Do not
attempttochargeany other cordless tool
with this Charger. Do not attempt
to charge the tool with any other charger.
2. Do notcharge the tool when temperature is BELOW 10°C (5OOF)or ABOVE
45OC (113OF).
3. Do not use charger in damp or wet locations.
4. Donotattempttousea step-uptransformer, anengine generator or DCpower
5. Donotstore thetool
in locations where thetemperature may reachor exceed
6. Donotincineratethetooleven if it isseverely damaged or is completely worn
receptacle.
5OoC (122OF).
out. The tool can explode
in a fire.
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be
encountered, DO NOT TOUCH ANY METAL PARTS
OF THE TOOL!
Holdthetoolonly bytheinsulatedgrasping surfaces toprevent electric shock
if you drill into a "live" wire.
not have to be plugged into an electrical outlet.
Be sure no one is below when using the tool
in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Donot touch the drill bitor the workpiece immediately after operation: they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

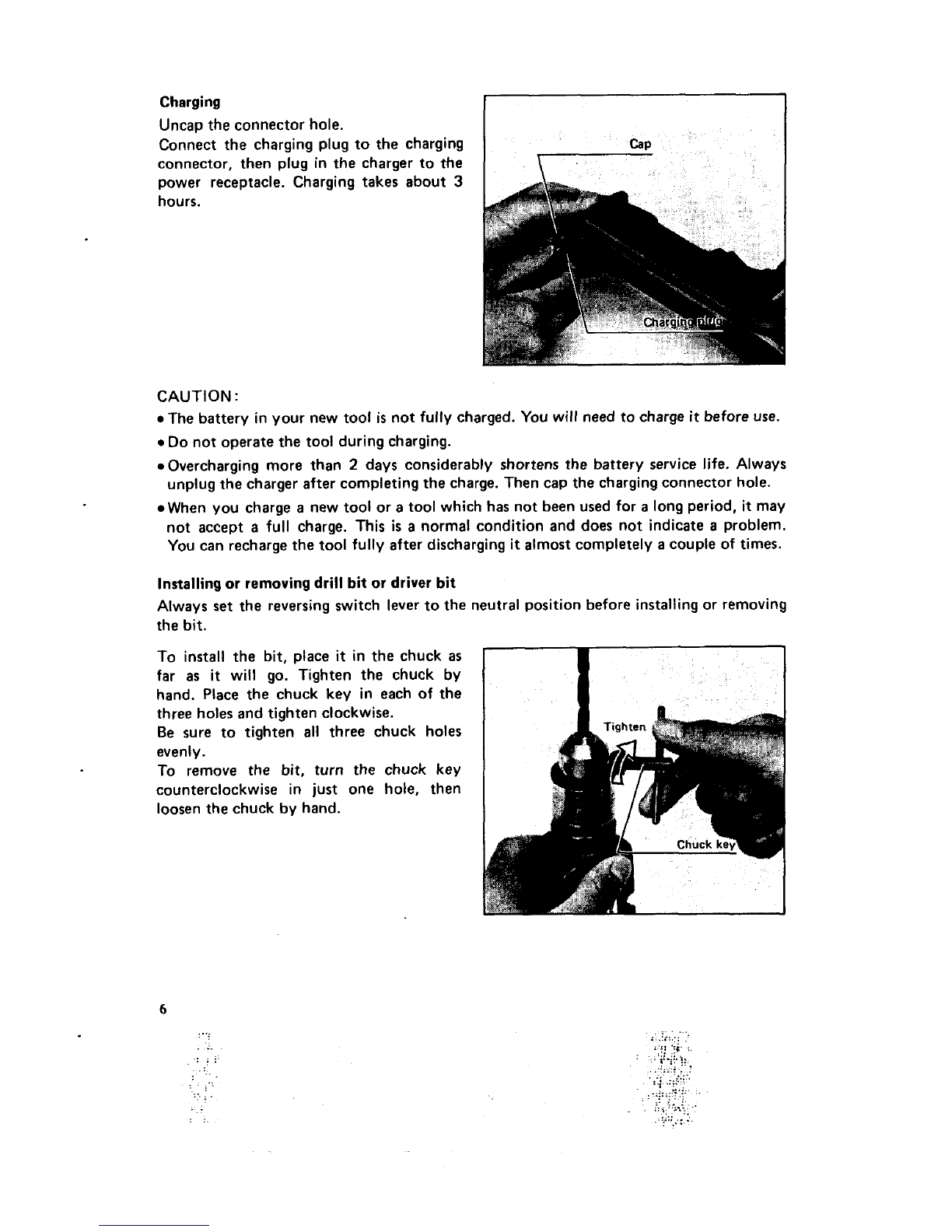

Charging
Uncaothe connector hole.
Connect the charging plug to the charging
connector, then plug in the charger to the
CAUTION
:
The battery inyour new tool is notfully charged. You will need to charge it beforeuse.
Do not operate the tool during charging.
Overcharging more than 2 days considerably shortens the battery service life. Always
unplugthe charger after completingthe charge. Then cap the chargingconnector hole.
When you charge a new tool or a tool which has not been used for a longperiod, it may
not accept
a full charge. This is a normal condition and does not indicate a problem.
You can recharge
the tool fully after discharging it almost completely a couple of times.
Installingor removingdrillbitor driver bit
Always
set the reversingswitch lever tothe neutral position before installingor removing
the bit.
To install the bit, place it in the chuck as
far as it will go. Tighten the chuck by
hand. Place the chuck key in each of the
three holes and tighten clockwise.
Be sure to tighten
all three chuck holes
evenly.
To remove the bit, turn the chuck key
counterclockwise in just one hole, then
loosen the chuck by hand.
6

Switch action
Move the reversing switch lever to the
"FWD" position for colckwise rotation or
the
"REV" positionfor counterclockwise.
Tool speed is increased by increasingpres-
sure on the tigger.
To start the tool, simply
pull the trigger.
Release the trigger to stop.
When the reversing switch lever
is in the
neutral position, the tool will not start
even ifyou pull the trigger.
CAUTION
:
a Always check the direction of rotationbefore drilling.
*Use the reversing switch lever only when the tool comes to
a complete stop. Changing
a When notoperating the tool, keepthe reversingswitch lever in the neutralposition.
the direction of rotationbeforethe tool stops may ruinthe tool.
7

Drillingoperation
Drillinginwood
When drilling in wood, best results are obtained with wood drills equippedwith
a guide
screw. The guidescrew makes drilling easier by pulling the bit into the workpiece.
To prevent the bit from slippingwhen starting
a hole, makean indentationwith a center-
punch and hammer
at the point to be drilled. Place the point of the bit inthe indenta-
tionand start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilleddry.
Drillingin metal
CAUTION
:
*Pressing excessivelyon the tool will not speed up the drilling. Infact, this excessive pres-
sure will only serve to damage the tip
of your bit, decrease the tool performance and
shorten the service life of the tool.
*There
is a tremendous force exerted on the tool/bit at the time of hole breakthrough.
Hold the tool firmly and exert care when the bit begins to break through the workpiece.
A stuck bit can be removed simply by settingthe reversingswitch to reverse rotation in
order to back out. However,the tool may back out abruptly if
you do nothold it firmly.
Always secure small workpieces in a vise or similar hold-downdevice.
Screwdrivingoperation
Place the p6int of the driver bit in the
screw head and apply pressure to the tool.
Start the tool.
Release the trigger just as
the screw bottoms out. If the trigger is not
released, the screw may strip out the hole
or the screw and/or bit may be damaged.
-
When driving wood screws, oredrill Pilot
holes to make driving easier and to pre-
vent splitting
of the workpiece. See the
chart.
Nominaldiameter
of wood screw (mml
3.1 (1/8")
3.5 (9/64")
3.8(5/32")
Recommended size
of pilot hole (mm)
2.0 - 2.2
(5/64" - 3/32")
2.2
- 2.5
(3/32"
- 3/32")
2.5
- 2.8
(3/32"
- 7/64")

Overloadprotector
The overload protector automatically cuts out to break the circuit whenever heavy work
is prolonged. Wait 20-30 seconds beforeresumingoperation.
MAINTENANCE
CAUTION :
Always be sure that the tool is switched off before attempting to perform inspectionor
maintenance.
To maintain product SAFETY and RELlABl LITY, repairs, maintenance or adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacement parts.
9

ACCESSOR I ES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present a risk of injury to persons.
The accessoriesor attachments should
be used only in the proper and intended manner.
Bits
I Size I Part NO.
~
Phillips
111R
I I
0 Rubber padassembly
Part
No. 123001-2
J.0 40
Wool bonnet
Part No. 743401-6
Quick charger DC7020
(A.C. only)
12-volt Quick charger DC7022
*Chuck keys10
Part No. 763419-1
Tool holster
has some bits storage space.
Use holster to carry drill only after removing
bit. Also keep the reversingswitch lever in
neutral position when carrying in the holster.
Part No 823033-3A
Part No 823033-3E (Genuine leather)
0 Foam polishingpad
Part
No. 743023-2
10

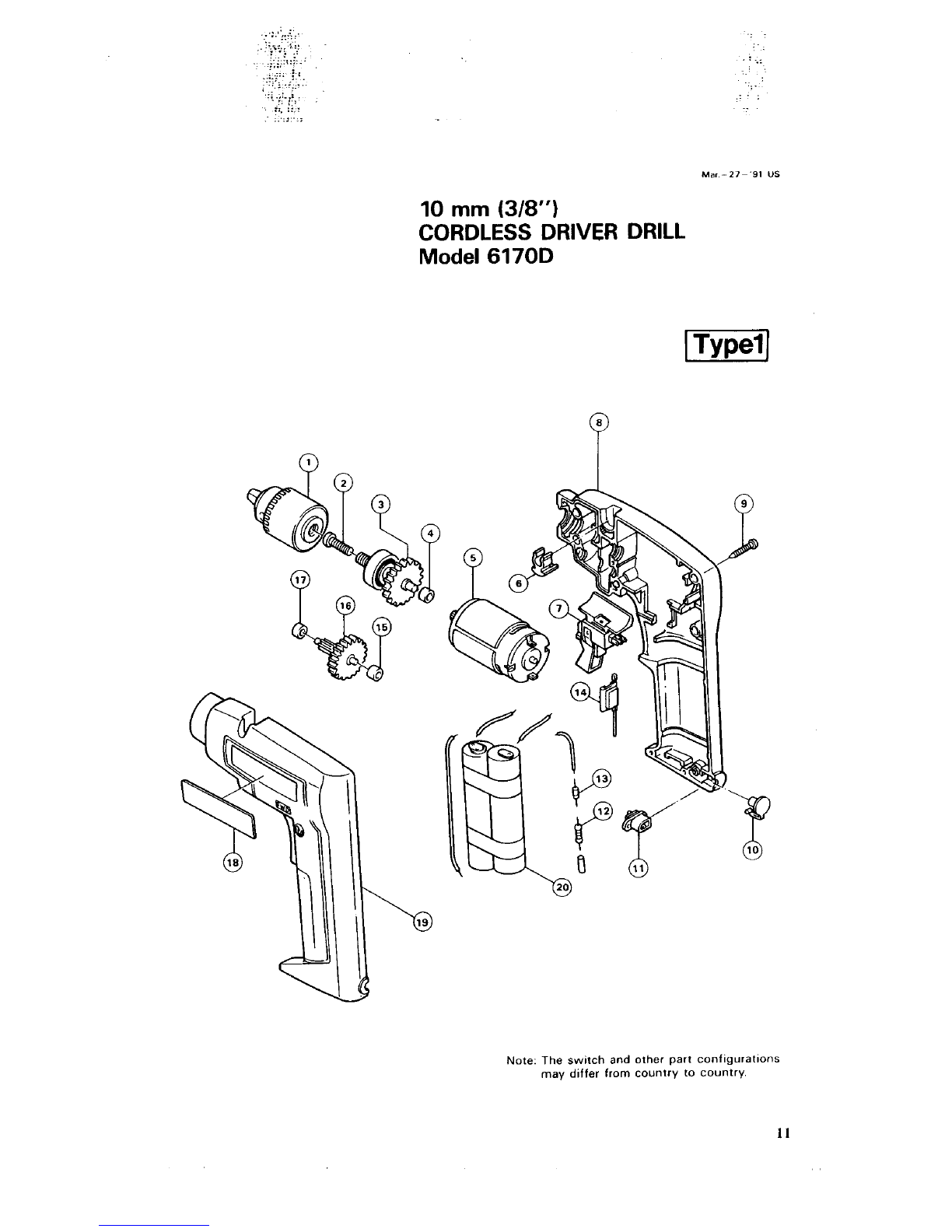

10 mm (318")
CORDLESS DRIVER DRILL
Model 6170D
Mar - 27- 91 US
Q
Note. The switch and other part configurations
may differ from country
to country

MODEL 61700
1 1
2 1
3 1
4 1
5 1
6 1
7 1
E 1
9 6
IO 1
Mar.-27-'91 US
DrdlChuek SI0
Pan Head Screw M5x1E
Gear
Plans Bearing 5
Motmi
Holder 6
Switch
Housing
R
Tapping Screw 3x20
can
'LiM $:D DESCRIPTION
11
I2
13
14
I5
I6
17
IE
19
20
1
1
1
1
1
1
1
1
1
1
r f
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thorou ly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workanshlpand materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period return the COMPLETE
tool. freight prepaid, loone of Makita's Factory or Authorized Service
Ce&. If inspection shows
the trouble is caused by defective workmanship
or material. Makita will repair (or at our option.
replace) without charge.
This Warranty does not apply where:
repairs have been made or attemptedby others:
npainare required because of normal wear md tear:
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKlTA BE LIABLE FOR ANY INDIRECT INCIDENTAL
OR CON-
APPLIESBOTH DURING ANDAFTER THETERM OF
THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES INCLUDING IMPLIED
WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A' SPECIFIC PURPOSE."
AFTER THEONE-YEAR TERMOF
THIS WARRANTY.
SEQUENTIAL
DAMAGES FROM THE SALE OR USE OF THE PROD~JCT. THIS DISCLAIMER
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion
or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation
on how long an implied warranty lasts. so the above limitationmay not apply toyou.
3. f
Makita Corporation of America
2650 Gainesville Hwy., Buford, GA 30518
883748 - 994
PRINTED IN USA
1991 - 5 - 4D
