Makita 6404 User manual

Drill
Steel
10 mm (3/8”) MODEL 6404
Variable speedlReversIng
(RPM)
Wood
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPECIFICATIONS
10 mm (3/8”) I 15 mm (5/8”) 1 0 - 2,100 1 242 mm 19-9/16’,) I 1.4 kg (3.1 Ibs)
* Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keepwork area well
lit. Don't expose power tools torain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. Whennot
in use, toolsshould be stored indry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will dothejob betterandsafer atthe ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear loose clothingorjewelry. They can be caught
in moving parts. Rubber gloves and non-skidfootwear are recommended
when workingoutdoors. Wear protectivehair covering to contain long hair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
9. DON'T ABUSE CORD. Nevercarry tool by cord or yank it todisconnect from
IO. SECURE WORK. Use clamps or a vise to hold work. It's safer than using
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricatingand changing acces-
sories. Inspecttoolcords periodicallyand
if damaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When notinuse, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.
dusty.
receptacle. Keep cord from heat, oil, and sharp edges.
your hand and
it frees both hands to operate tool.
L

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysandadjusting wrenches are removed from toolbefore turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intool with finger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOORUSEEXTENSIONCORDS. When tool is used outdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what youaredoing, usecommonsense. Don‘t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform its intended function. Check for alignment of
movingparts, bindingof movingparts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard
or other part that
is damaged should be properly repaired or replaced by an authorized serv-
icecenter unless otherwise indicatedelsewhere
in this instruction manual.
Have defective switches replaced by authorized service center. Don’t use
tool
if switch does not turn it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Preventbody contact withgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. Whenservicing, useonly identical replacementparts.
VOLTAGE WARNING: Before connectingthe tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool.
A power source withvoltage greater than that specified
for the tool can result inSERIOUS INJURY tothe user
- as well as damage to
the tool.
If in doubt, DO NOT PLUG INTHE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

ADDITIONAL SAFETY RULES
1. Always be sure you have a firm footing.
2. Hold the tool firmly.
3. Keep hands away from rotating parts.
4. When drilling into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Holdthe tool by the insulated grasping surfaces to prevent electric shock if
you drill into a "live" wire.
Be sure no one is below when using the tool
in high locations.
5. Do not leave the tool running. Operate the tool only when hand-held.
6. Do not touch the drill bit or the workpieceimmediatelyafter operation; they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

Installingor removingdrill bit
CAUTION :
Always be sure that the tool is switched off and unplugged before installingor removing
the bit.
To install the bit, place it in the chuck as
far as it will go.Tightenthe chuck by hand.
Place the chuck key in each of the three
holes and tighten clockwise. Be sure to
tighten
all three chuck holes evenly.
To remove the bit, turn the chuck key
counterclockwise in just one hole, then
loosen thechuck byhand.
Switchaction
Move the reversing switch lever to the
"FWD" position for clockwise rotation or
the
"REV" position for counterclockwise.
The trigger switch does not actuate if the
reversingswitch lever
is inthe neutral posi-
tion.
Tool speed is increased by increasing pres-
sure on the trigger.
To start the tool,
simply pull the trigger.
Release the trigger
to stop. For continuousoperation, pullthe
trigger and then push in the lock button.
To stop the tool from the locked position,
pull the trigger fully, then release it. A
speed control screw
is provided so that
maximum tool speed can be limited (vari-
able). Turn the speed control screw clock-
wise for higher speed, and counterclock-
wise for lower speed.
5

CAUTION :
0 Before plugging inthe tool, alwayscheck to see that the trigger switch actuatesproperly
*Always check thedirection of rotation beforedrilling.
0 Use the reversing switch lever only when the tool comes to a complete stop.Changing
When not operatingthe tool, keep the reversingswitch lever inthe neutral position.
*Pulling the trigger hard when the reversing switch lever
is inthe neutral position can
and returnstothe
"OFF" positionwhen released.
thedirection
of rotation beforethe tool stops may ruin the tool.
cause switch breakage.
Drillingoperation
0 Drilling inwood.
When drilling holes in the wood, use
a wood drill with a guide screw. The guide screw
makes
it bore naturally by itself, so you do not need to apply any pressureto the tool.
Drilling in metal
To preventthe bitfrom slippingwhen starting
a hole, makean indentationwith a center-
punch and hammer
at the point to be drilled. Place the point of the bitinthe indenta-
tionand start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilled dry.
CAUTION
:
*Pressing excessively on the tool will not speed up the drilling. Infact, this excessive
pressure will only serve to damage the tip of your bit, decrease the tool performance
and shorten the service life
of the tool.
*There
is a tremendous force exerted on the tool/bit at the time of hole break through.
Hold the tool firmly and exert care when the bitbegins to break through the workpiece.
0 Always gripthe small workpiece firmly with a vise or a holdingmeans.
*A stuck bit can be removed simply by setting the reversing switch to reverse rotation
in order to back out. However, the tool will pull away easily unless you hold
it firmly
beforestartingthetool.
6

MA1NTENANCE
CAUTION :
Always be sure that the tool is switchedoff and unpluggedbeforeattempting to perform
inspectionor maintenance.
The tool will stop when the carbon brushes wear to
a certain length.
When thisoccurs, bothcarbon brushesshouldbe replaced.
To maintain product SAFETY and
RELl AB1 LITY, repairs, carbon brush inspectionand
replacement, any other maintenance or adjustment should be performed by Makita
Authorized or FactoryService Centers, a!ways usingMakita replacementparts.

OPTIONAL ACCESSORIES
The accessorieslisted inthis manualare available at an extra cost from your Makita distributoror Makita factory
Service center Servicecenters are listedon the warranty card packedwith your tool
CAUTION
These accessories or attachments are recommendedfor use with your Makita tool specified in this manual
The use
of any other accessories or attachments might present a risk of injury to persons The accessories
or attachments should
be used only in the proper and intended manner
Chuck key
Part No 763423-0
9

2 1 DrillChuckS 10 10
3 1 Gear 11
4 1 BallBaaring6272 12
5
1 Housing Sol (With Ibm17) 13
6 1 TerminslBaseCwnplsle 14
7 1 FIELDASSEMBLY 15
8 1 Bell Beadng626Z 16
Q 1 ARMATUREASSEMBLY 17
(withitem
8-1 I) 18
10
1 Fan52
1 BallBearing627Z
1 SwilCh
2 CabnBNlh
1 cwd
1 DuslCover
7 Tapping
Screw BT 4r25
1
1
NanwPlale
Housing Set (Wiih Item 5)

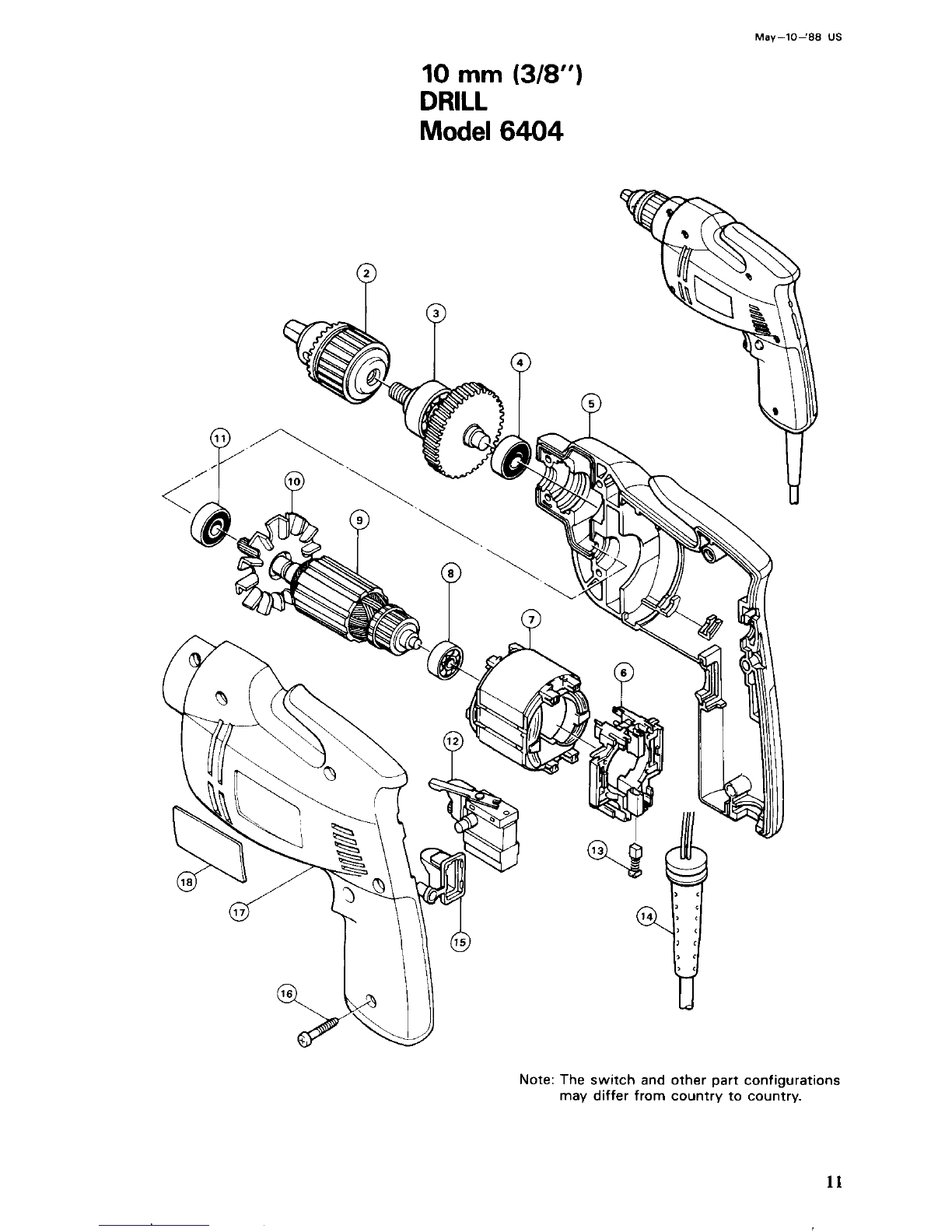

May-l0-'88 US
10 mm (318")
DRILL
Model 6404
Note: The switch and other part configurations
may differ from country to country.
11

MAKITALIMITEDONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date
of
original purchase. Should any trouble develop during this one-yearperiod, retum the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters.
If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at
our option,
replace) without charge.
ThisWarranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterationshave been made tothe tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEOUENTIAL DAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APFLIESBOTH
DURING AND AFTER THE TERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERMOFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidentalor consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow long an implied warranty lasts,
so the above limitation may not apply to you.
MCA-4/94
MakitaCorporation of America
Buford, GA
PRINTED IN USA
8636658063 1994-7-40
