Makita UNI-DRILL 6000LR User manual

a
Machine & wood screws
Bolts
& Nuts, Tapper
~~~~~ Self drilling screws
(steel)
Uni-Drill
Overall Net
No load
~~~~ 1 length I weight

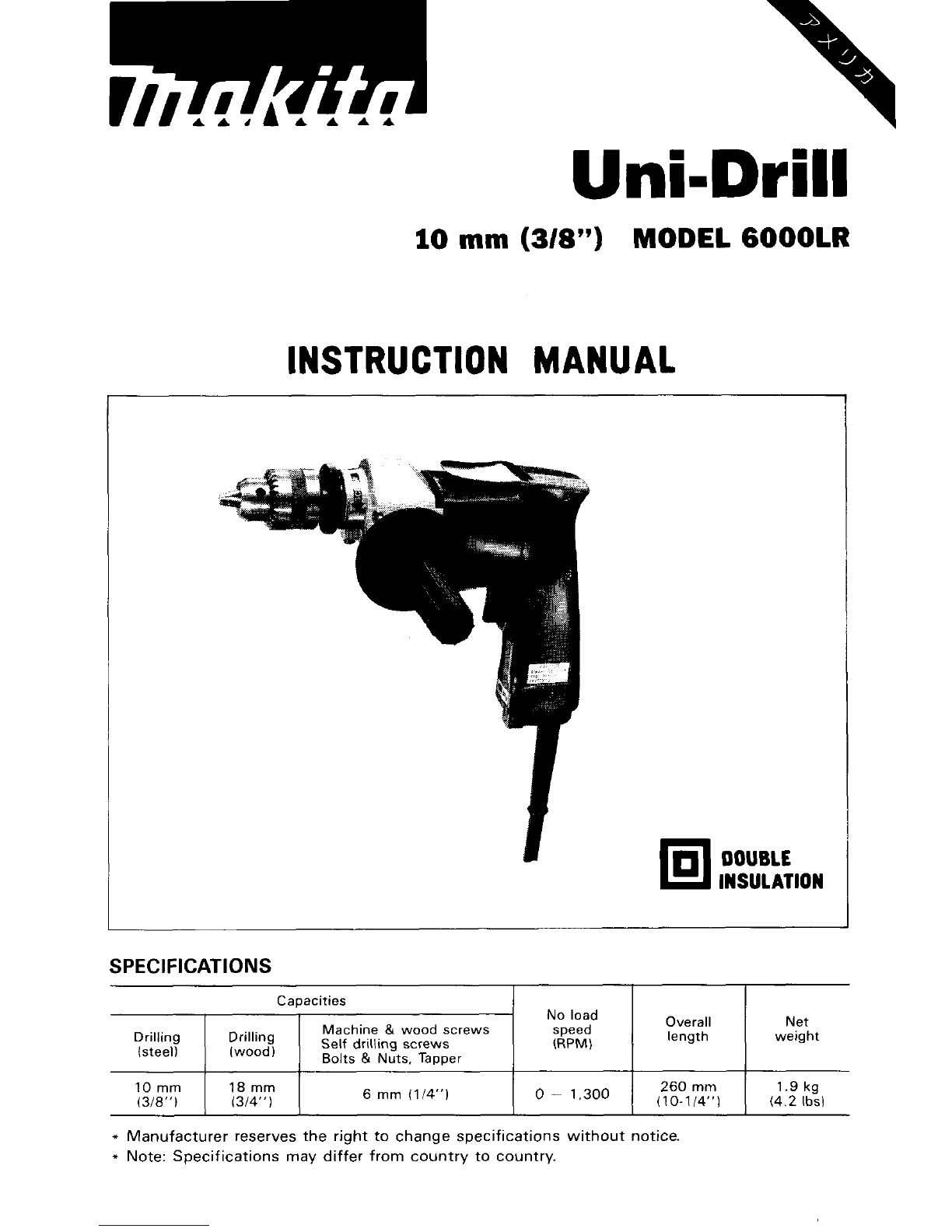

10 mm (3/8") MODEL 6000LR
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPEC I FI CATIO N S
CaDacities
* Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, tools shouldbestored in dry, andhigh
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will dothejob better and safer atthe ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing orjewelry. They can becaught
in moving parts. Rubber gloves and non-skidfootwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricating and changing acces-
sories. Inspecttoolcordsperiodicallyandif damaged, have repaired byautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.

13. DISCONNECTTOOLS. When not inuse, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.
14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intoolwithfinger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When tool is used outdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, usecommon sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform its intended function. Check for alignment of
movingparts, bindingof moving parts, breakageof parts, mounting, andany
other conditions ?hat may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicatedelsewhere inthis instruction manual.
Have defective switches replaced by authorized service center. Don’t use
tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identical replacementparts.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result inSERIOUS INJURYto the user
- as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

ADDITIONAL SAFETY RULES
1. Always be sure you have a firm footing.
2. Hold the tool firmly.
3. Keep hands away from rotating parts.
4. When drilling into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Hold the tool by the insulated grasping surfaces to prevent electric shock if
you drill into a "live" wire.
Be Sure no one is below when using the tool in high locations.
5. Do not leave the tool running. Operate the tool only when hand-held.
6. Do not touch the drill bitor the workpiece immediately after operation: they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

Selectingaction mode 1
For drilling, turn the change ring so that
the red dot
is aligned with the DRILL
marking on the collar. If the change ring
will not come all the way, grasp the chuck
and turn the change ring again. Do not
move the red dot beyond the DRILL mark-
ing.
For screwdriving, turn the change ring
so
that the red dot is aligned with the SCREW
marking on the collar. Do not move the red
CAUTION :
If you use the toolwhen the red dot is not
aligned with either marking, tool damage
may result. Be sure to align properly with
either marking before operation.
I
I I
5

Installingor removingdrill bit or driver bit
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore installing or removing
the bit.
To install the bit, place it in the chuck as
far as it will go. Tighten the chuck by hand.
Place the chuck key in each of the three
holes and tighten clockwise. Be sure to
tighten
all three chuck holes evenly.
To remove the bit turn the chuck key
counterclockwise in just one hole, then
loosen the chuck by hand.
Chuck key
Tiahten
Switch action
Tool speed is increased by increasing pres-
sure on the trigger.
To start the tool, simply
pull the trigger.
Release the trigger tostop.
For continuous operation, pull the trigger
and then push in the lock button.
To stop
the tool from the locked position, pull the
trigger fully, then release
it.
CAUTION :
Before plugging in the tool, always check to see that the trigger switch actuates properly
and returns tothe "OFF" positionwhen released.
6

Reversing switch action
This tool has
a reversing
the direction of rotation.
ing switch lever to the
clockwise rotation or the
counterclockwise.
switch to change
Move the revers-
"F" position for
"R" position for
Reversing switch lever
I
CAUTION :
0 Always check the direction of rotation before drilling.
Use the reversing switch only when the tool comes to a complete stop. Changing the
direction of rotation before the tool stop may ruinthe tool.
Drilling operation
Turn the change ring
so that the red dot is aligned with the DRILL marking.
0 Drilling in wood
When drilling holes in the wood,
use a wood drill with a guide screw. The guide screw
makes
it bore naturally by itself, so you do not need to apply any pressure to the tool.
0 Drilling in metal
To prevent the bitfrom slipping when starting
a hole, make an indentation with a center-
punch and hammer
at the point to be drilled. Place the point of the bit in the indenta-
tion and start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilled dry.
CAUTION
:
.Pressing excessively on the tool will not speed up the drilling. In fact, this excessive
pressure will only serve to damage the tip of your bit, decrease the tool performance
and shorten the service life of the tool.
.There is
a tremendous force exerted on the tool/bit at the time of hole break through.
Hold the tool firmly and exert care when the bit begins
to break through the workpiece.
0 Always grip the small workpiece firmly with a vise or a holding means.
0A stuck bit can be removed simply by setting the reversing switch to reverse rotation
in order to back out. However. the tool will pull away easily unless
you hold itfirmly
before starting the tool.
7

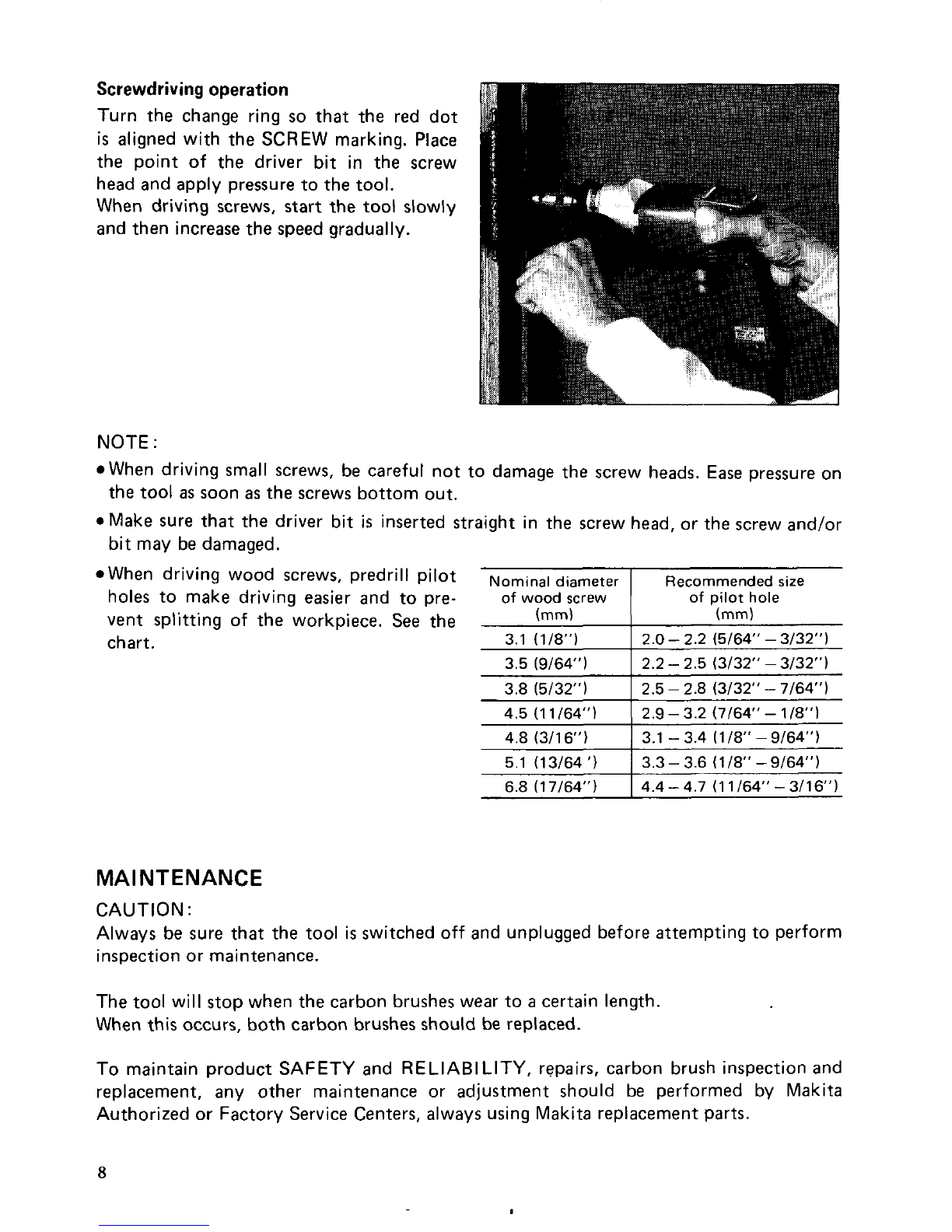

Screwdriving operation
Turn the change ring so that the red dot
is aligned with the SCREW marking. Place
the point of the driver bit in the screw
head and apply pressure tothe tool.
When driving screws, start the tool slowly
and then increase the speed gradually.
4.5 (1 1/64")
4.8 (3/16")
5.1 (13/64
')
6.8 (17164")
NOTE :
2.9 - 3.2 (7164" - 1/8"1
3.1 -3.4 (1/8"-9/64")
3.3-3.6 (1/8"-9/64")
4.4-4.7 (11/64"-3/16")
When driving small screws, be careful not to damage the screw heads. Ease pressure on
0 Make sure that the driver bit is inserted straight in the screw head, or the screw and/or
the tool
as soon as the screws bottom out.
bit may be damaged.
When driving wood screws, predrill Pilot
holes to make driving easier and to pre-
of wood screw of pilot hole
3.8 (5/32") 2.5
- 2.8 (3/32" - 7/64")
vent splitting of the workpiece. See the
chart.
MA1NTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection or maintenance.
The tool will stop when the carbon brushes wear to
a certain length.
When this occurs, bothcarbon brushes should
be replaced.
To maintain product SAFETY and RELlABlLITY, repairs, carbon brush inspection and
replacement, any other maintenance or adjustment should be performed by Makita
Authorized or Factory Service Centers, always using Makita replacement parts.
8

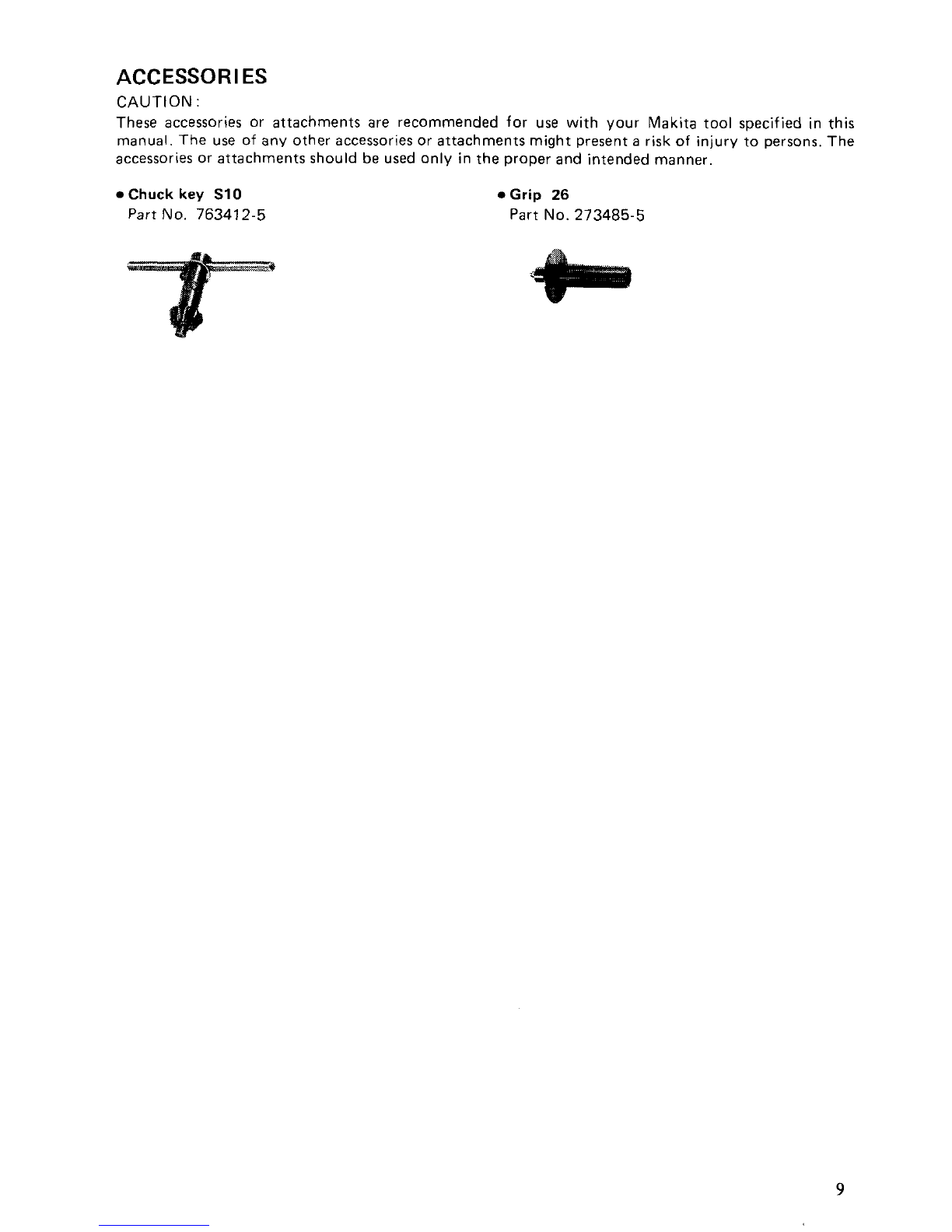

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachmentsmight present a risk of injury to persons. The
accessories
or attachmentsshould be used only in the proper and intended manner.
0 Chuck key SI0
Part No. 763412-5
0Grip 26
Part No. 273485-5
9

Oec.-20-83 US
10 mm (3/8")
Model 6000LR
UNI-DRILL
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
10
