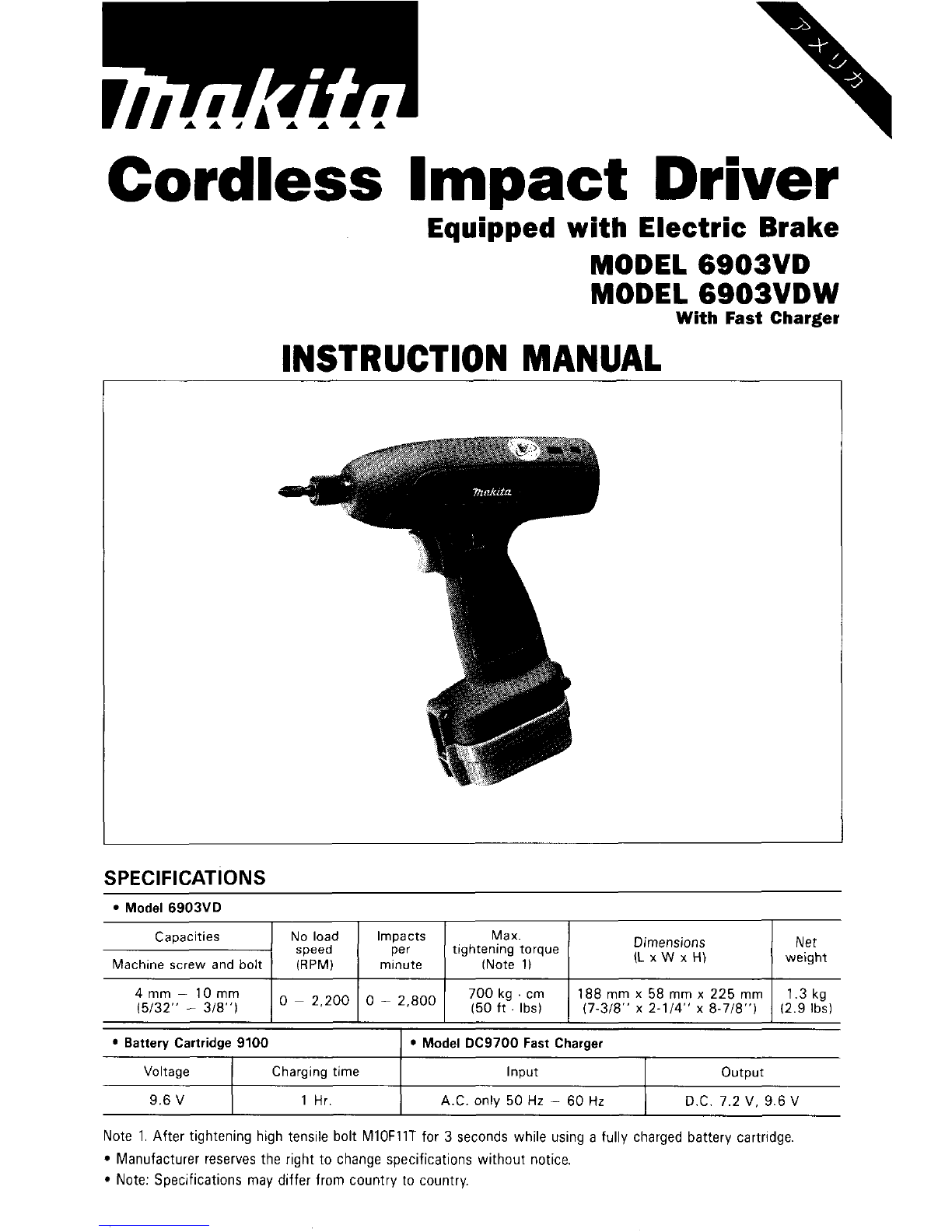

Makita 6903VD User manual

Cordless Impact Driver
Dimensions
(L x W x H)
Capacities No load Impacts Max.
speed per tightening torque
Machine screw and bolt (RPM) minute (Note
1)
Equipped with Electric Brake
MODEL 6903VD
MODEL 6903VDW
With Fast Charger
Net
weight
INSTRUCTION MANUAL
4 mm - 10 mm
15/32“ - 318”)
SPEC IF I CAT I 0 N S
~ 2,200 - 2,800 700 kg . cm 188 mm x 58 mm x 225 mm 1.3 kg
(50 ft . Ibs) (7-318” x 2-114” x 8-718”) 12.9 Ibs)
Battery Cartridge 9100 Model DC9700 Fast Charger
Voltage
9.6 V 1 1 Hr. 1 A.C. only 50 Hz - 60 Hz 1 D.C. 7.2 V, 9.6 V
Charging time Input output
Note
1. After tightening high tensile bolt MlOFllT for 3 seconds while using a fully charged battery cartridge.
Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USINGELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, toolsshould be stored indry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It willdothejob better and safer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear loose clothingorjewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair coveringtocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carrytool by cord or yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspect toolcords periodicallyand
if damaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not inuse, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool with finger
on switch. Be sure switch is
OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When tool is used outdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use commonsense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation.
A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Havedefective switches replacedby authorized servicecenter. Don't
use tool
if switch does not turn it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact withgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENT PARTS. When servicing, useonly identical replacementparts.
VOLTAGE WARNING: Before connecting the tool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY to the user
- as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

I. SAVE THESE INSTRUCTIONS - This manual
Length of Cord (Feet)
AWG Size of Cord
contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings
on
(11 battery charger, (2) battery, and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA Battery 7000,
9000 or 9100. Other types of batteries may burst causing personal injury
and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer may result ina riskof fire, electric shock, or injurytopersons.
6. To reduce risk of damage toelectric plug and cord, pullby plug rather than
cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over,
or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plugof extensioncord are
the same number, size, and shape
b. That extension cord isproperly wired and ingoodelectrical condition; and
c. That wire size is at least as large as the one specified inthe table below.
TABLE
1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
as those of plug on charger;
25 50
100 150
18 18 18 16
4

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (50OFI
or ABOVE 4OoC (104OF).
2. Donot attempt touseastep-uptransformer, an enginegenerator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Do not short the battery cartridge:
receptacle.
(1) Do not touch the terminals with any conductive material.
(2) Avoidstoring battery cartridge ina container with other metalobjects such
(3) Do not expose battery cartridge to water or rain.
as nails, coins, etc.
A batteryshort can cause a large current flow, overheating, possible burns
and even a breakdown.
5. Do not store the tool and Battery Cartridge in locations where the tempera-
6. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ture may reach or exceed 5OoC
(122OF).
completely worn out. The battery cartridge can explode in a fire.
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Wear ear protectors.
3. Hold the tool firmly.
4. Always be sure you have a firm footing.
Be sure no one is below when using the
tool in high locations.
5. When driving into
walls, floors or wherever "live" electrical wires may be
encountered, DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Holdthe toolonly
by the insulatedgrasping surfaces toprevent electric shock
if you drive into a "live" wire.
not have to be plugged into an electrical outlet.
SAVE THESE INSTRUCTIONS.
5

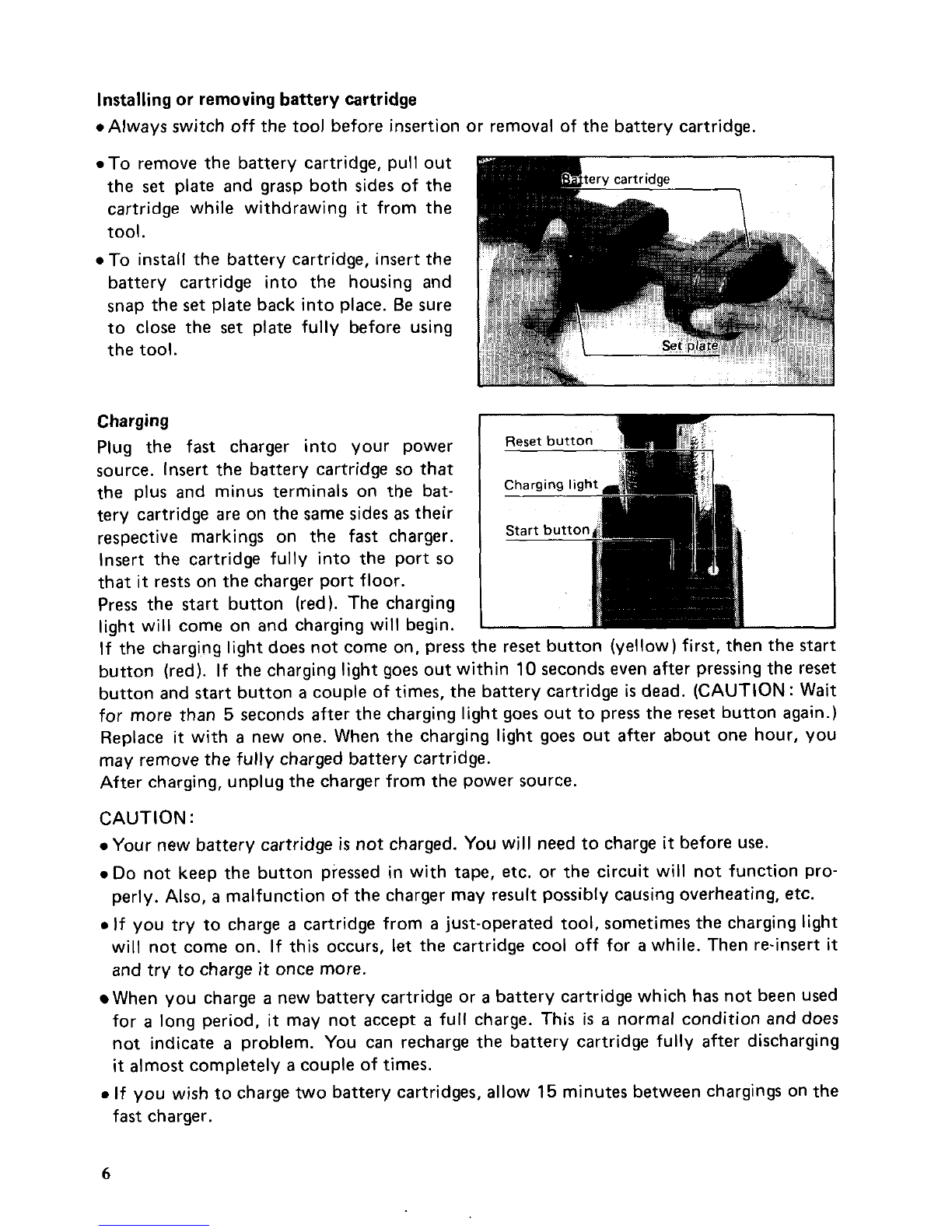

Installingor removing battery cartridge
.Always switch off the tool before insertion or removal of the battery cartridge.
.To remove the battery cartridge, pull out
the
set plate and grasp both sides of the
cartridge while withdrawing it from the
tool.
0 To install the battery cartridge, insert the
battery cartridge into the housing and
snap the
set plate back intoplace. Be sure
to close the set plate fully before using
the tool.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides as their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that it rests on the charger port floor.
Press the start button (red). The charging
light will come on and chargingwill begin.
If the charginglightdoes not come on, press the reset button (yellow)first, then the start
button (red). If the charginglightgoes out within
10 seconds even after pressing the reset
button and start button a couple of times, the battery cartridge is dead. (CAUTION : Wait
for more than
5 seconds after the charginglight goes out to press the reset button again.)
Replace it with a new one. When the charging light goes out after about one hour, you
may removethe fully chargedbattery cartridge.
After charging, unplugthe charger from the power source.
CAUTION
:
0Your new battery cartridge is notcharged. You will need to charge it before use.
0 Do not keep the button pressed inwith tape, etc. or the circuit will not function pro-
perly. Also,
a malfunction of the charger may result possibly causing overheating,etc.
0 If you try to charge a cartridge from a just-operated tool, sometimesthe charginglight
will not come on, If this occurs, let the cartridge cool off for a while. Then re-insert it
and try tocharge it once more.
When you charge a new battery cartridge or a battery cartridgewhich has not been used
for a long period, it may not accept a full charge. This is a normal condition and does
not indicate a problem. You can recharge the battery cartridge fully after discharging
it almost completely a couple of times.
0 If you wish tocharge two battery cartridges,allow 15 minutes betweenchargings on the
fast charger.
6

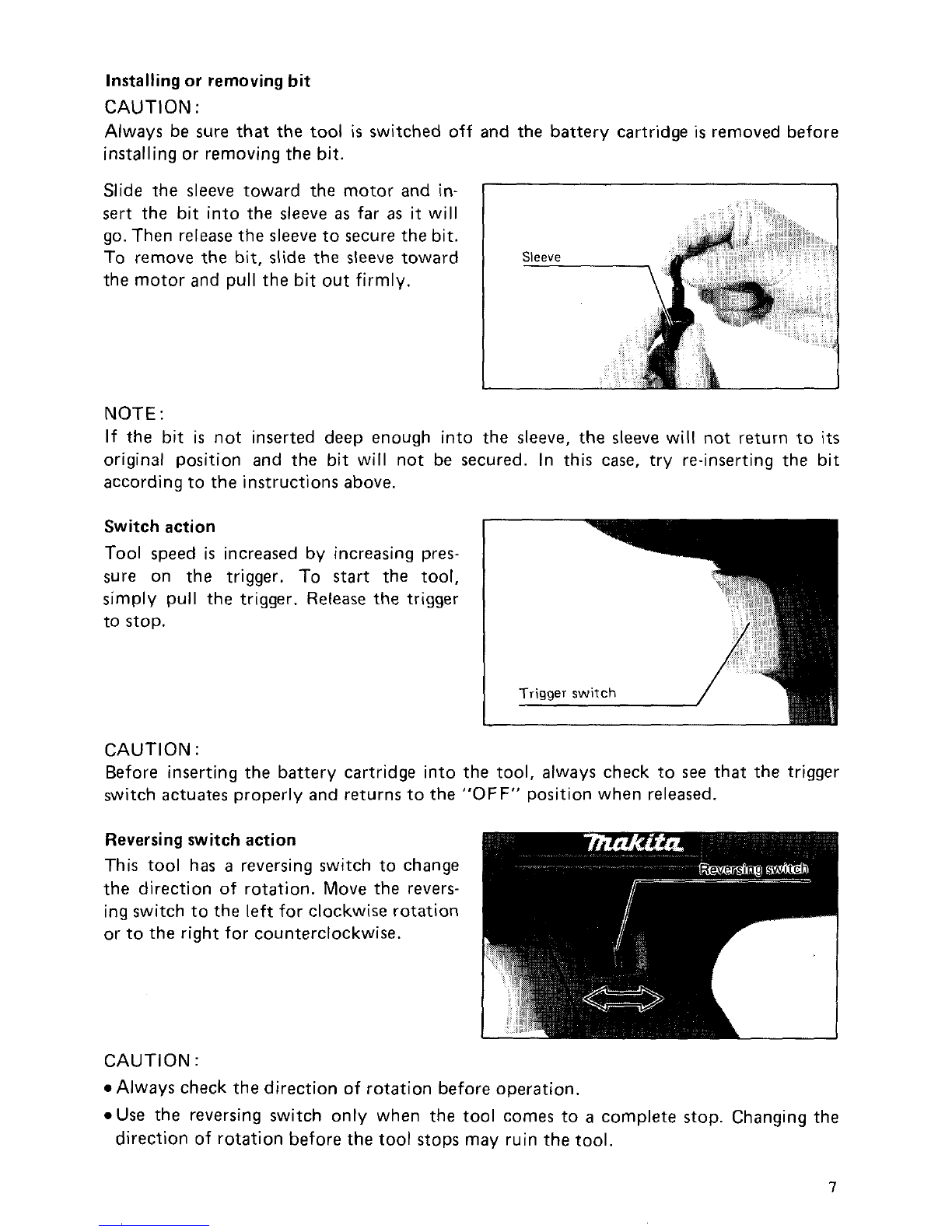

Installing or removing bit
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
installing or removing the bit.
Slide the sleeve toward the motor and in-
sert the bit into the
sleeve as far as it will
go.Then release the sleeve to secure the bit.
To remove the bit, slide the sleeve toward
the motor and pull the bit out firmly.
NOTE :
If the bit is not inserted deep enough into the sleeve, the sleeve will not return to its
original position and the bit will not be secured. In this
case, try re-inserting the bit
accordingto the instructions above.
Switch action
Tool speed is increased by increasing pres-
sure on the trigger.
To start the tool,
simply pull the trigger.
Release the trigger
to stop.
CAUTION
:
Before inserting the battery cartridge into the tool, always check to see that the trigger
switch actuates properly and returnsto the
"OFF" position when released.
CAUTION :
0 Always check the direction of rotation before operation.
.Use the reversing switch only when the tool comes to
a complete stop. Changing the
direction of rotationbefore the tool stops may ruin the tool.
7

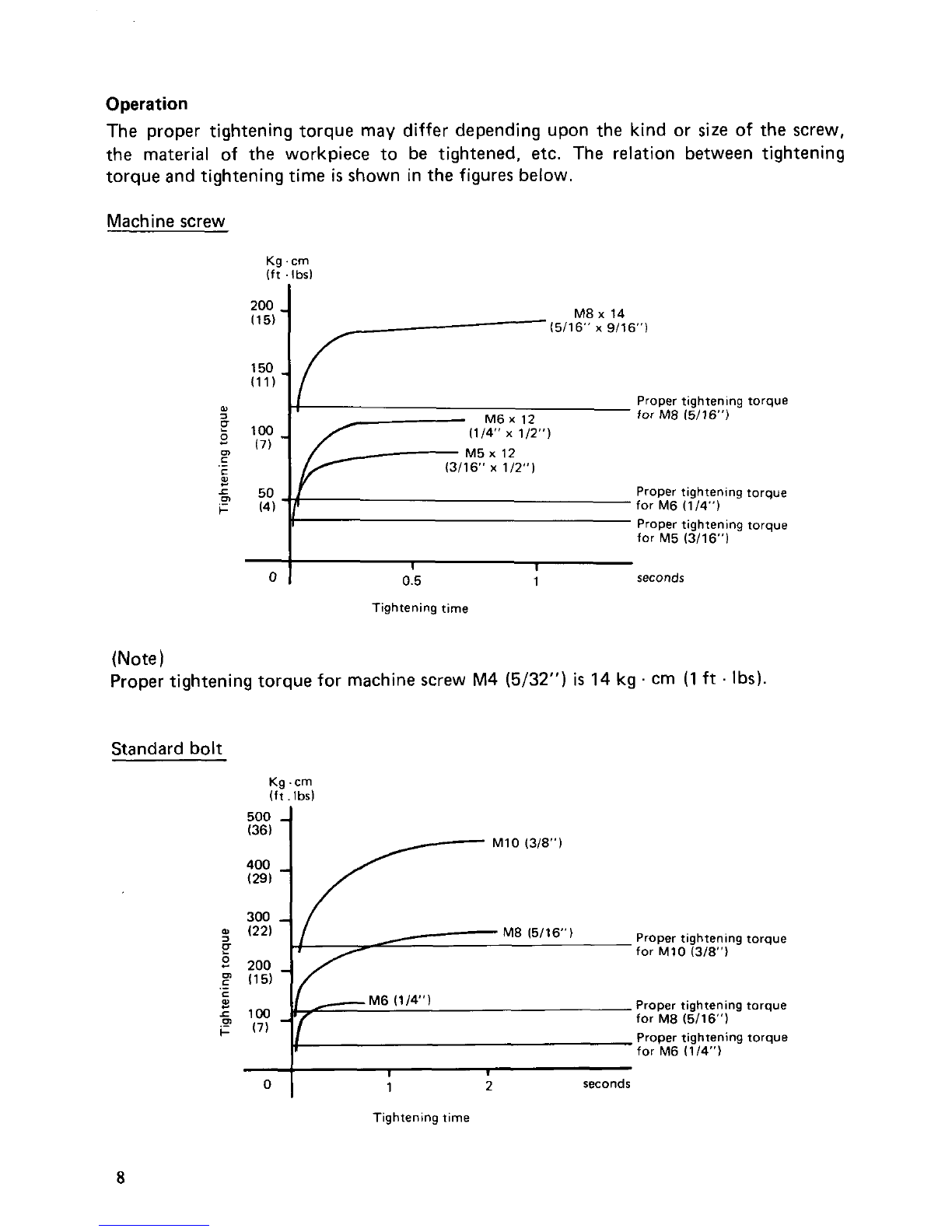

Operation
The proper tightening torque may differ depending upon the kind or size of the screw,
the material of the workpiece to be tightened,
etc. The relation between tightening
torque and tightening time
is shown in the figures below.
Machinescrew
Kg . cm
(ft . lbsl
M8x 14
(5/16" x 9/16")
200 -
(15)
150
-
(11)
Proper tightening
*
3 M6x 12 for M8 15/16")
E (3/16" x 1/2")
g loo- (1/4" x 1/2")
M5x 12
(7)
m
._
E
6 50 Proper tightening
F (4) for M6 (1/4")
Proper tightening
for
M5 (3/16")
-
I I
0 0.5 1 seconds
(11)
150
i
/
Proper tightening
for
M8 15/16")
(1/4"
x 1/2")
M5x 12
50
Proper tightening
II" (4) for M6 (1/4")
Proper tightening
for
M5 (3/16")
I I
0 0.5 1 seconds
torque
torque
toraue
Tightening time
(Note)
Proper tightening torque for machine screw M4 (5/32") is 14 kg . cm (1 ft . Ibs).
Standard bolt
Kg . cm
(ft . Ibs)
500
(361
400
(29)
300
f (22)
P
200
c" 115)
loo
.-
c El
F (7)
Proper tightening torque
for
M10 (3/8")
Proper tightening torque
for M8 (5/16")
Proper tightening torque
for
M6 (1/4")
I
1
0 1 2 seconds
Tightening time
8

Hold the tool firmly and place the point of the driver bit in the screw head. Apply for-
ward pressuretothe
tool to the extent that the bitwill not slip off the screw and turn the
tool on tostart operation.
NOTE :
0 Use the proper bitfor the head of the screw that you wish to use.
0 Hold the tool pointed straight at the screw.
0 If you tighten the screw for a time longer than shown in the figures above, the screw or
the point of the driver bit may be overstressed, stripped, damaged,
etc. Before starting
your job, always perform a test operation to determine the proper tightening time for
your screw. When tightening a standard screw in a steel plate, the proper tightening
torque can be obtained in an extremely short time (approx.
0.1 - 0.2 seconds). Turn
the tool off
as soon as the impact sound is heard.
0 When tightening screw M6 (1 /4") or smaller, carefully adjust pressure on the trigger
switch
so that the screw is not damaged.
The tightening torque
is affected by a wide variety of factors including the following.
After tightening, always check the torque with
a torque wrench.
1. When the battery cartridge is discharged almost completely, voltage will drop and the
tightening torque will be reduced.
2. Driver bitor socket bit
*Failure to use the correct
size driver bit or socket bit will cause a reduction in the
tightening torque.
3. Bolt
*Even though the torque coefficient and the
class of bolt are the same, the proper
*Even though the diameters of bolts are the same, the proper tightening torque will
4. The manner of holding the tool or the material of driving position to be tightened will
5. Operatingthe tool at low speed will cause a reduction in the tightening torque.
tightening torque will differ accordingto the diameter of bolt.
differ accordingto the torque coefficient, the class of bolt and the bolt length.
affect the torque.
CAUTION :
If the tool is operated continuously until the battery cartridge has discharged, allow the
tool to rest for
15 minutes before proceedingwith a fresh battery.
9

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting to perform inspection
or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacement parts.
10

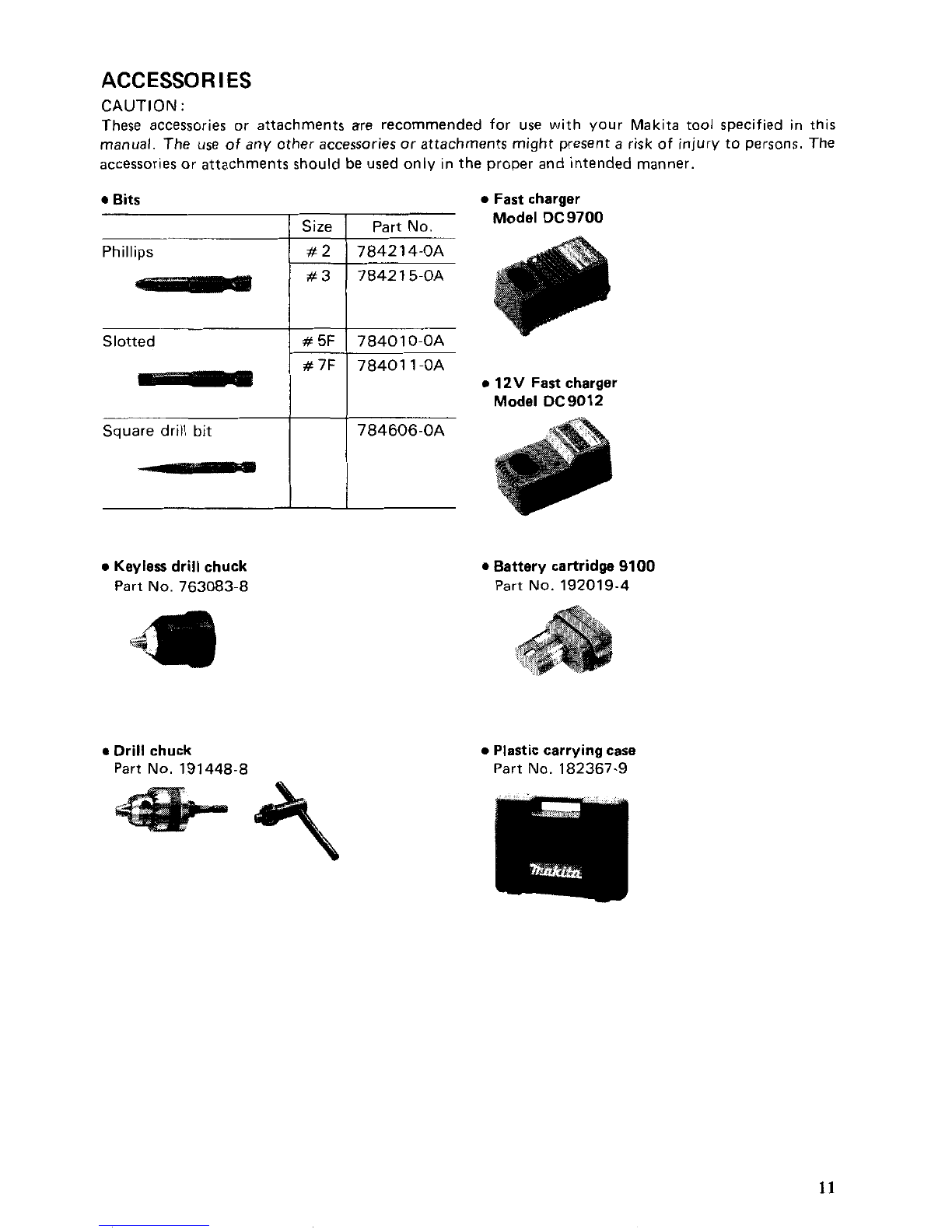

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present
a risk of injury to persons.The
accessories or attachments should be used only in the proper and intended manner.
0 Bits
Slotted
0 Keyless drill chuck
Part No. 763083-8
0 Drill chuck
Part No. 191448-8
0 Fast charger
Model DC9700
0 12V Fast charger
Model DC9012
0 Battery cartridge 9100
Part No. 192019-4
0 Plasticcarrying case
Part No. 182367-9
11

Apr -04-'91 EN
CORDLESS IMPACT DRIVER
Model 6903VD
Note: The switch and other part configurations
may differ from country to country.
12

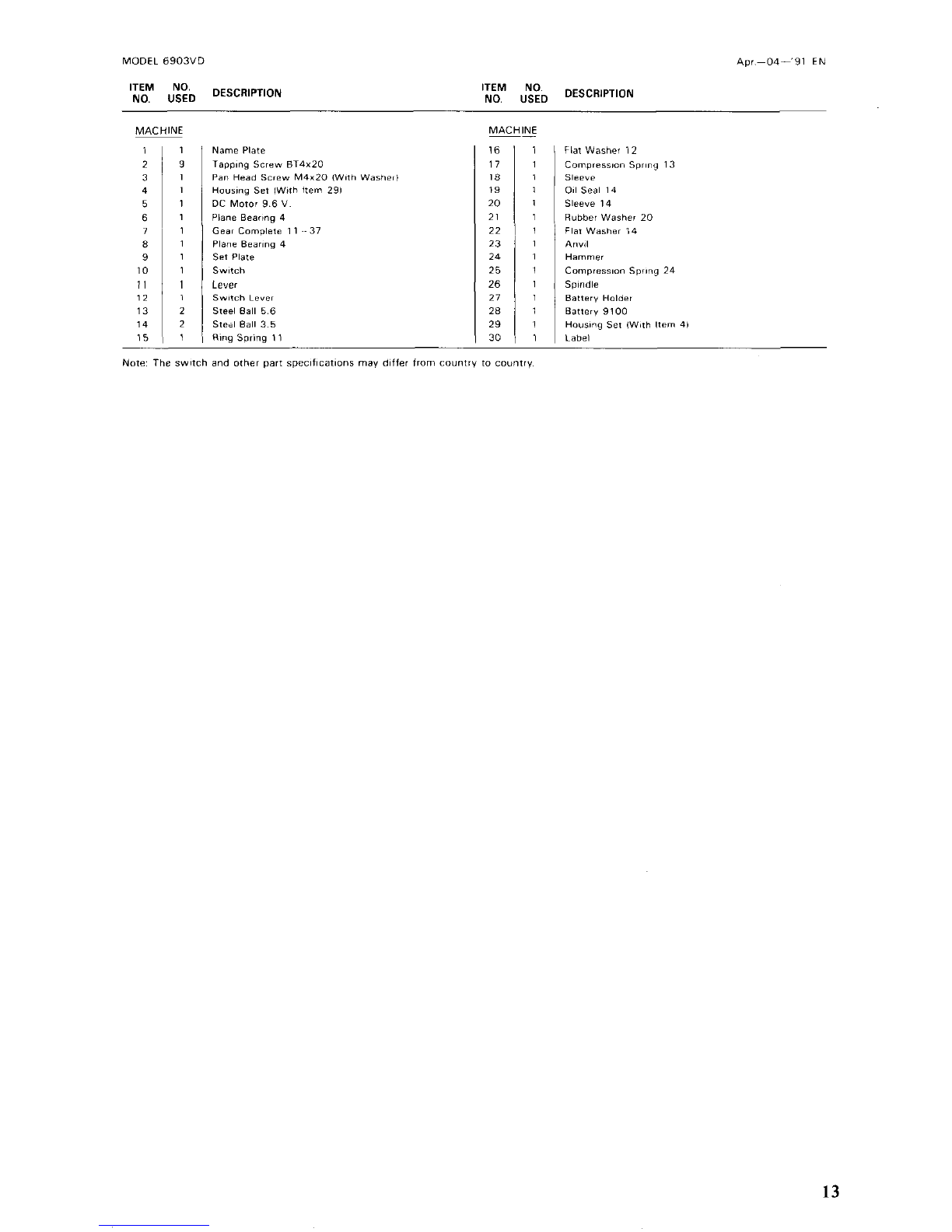

MODEL 6903VD
'zM sD DESCRIPTION
Apr-04-91 EN
""0" $:D DESCRIPTION
MACHINE
~
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
~
t
9
1
1
1
t
t
1
1
t
1
2
2
1
i
-
Name Plate
Tapping
Screw BT4x20
Pan Head Screw M4x2O IWith Washer1
Housing Sef lWifh Item 291
DC Motor 9 6 V
Plane Bearing 4
Gear Complete 11 37
Plane Bearing 4
Set Plate
Switch
LWW
Switch Lever
Steel Ball 5 6
ste.1 Ball 3 5
Ring Spring 11
E "E
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
-
1
1
1
1
I
1
t
1
1
I
1
1
1
1
1
-
Flat Washer 12
Compression
Sprinq 13
Sleeve
011 Seal 14
Sleeve 14
Rubber Washer 20
Flat Washer 14
Anvil
Hamme,
Compression Spring 24
Spindle
Battery Holder
Battery 9100
Housing Sei IWith lfem 41
Label
Note The switch and other part specifications may differ from country to country
13

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period
of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the
COMPLETE
tool freight prepaid, to one of Makita’sFactory or Authorized Service Centers. If inspection shows
the irouble is caused by defective workmanship or material, Makita will repair (or at
our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
e Thetool has been abused, misused or improperly maintained;
e alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM
OF THIS WARRANTY.
This
Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or Limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883754 - 064
PRINTED INJAPAN
1991 - 7 - N
