Makita G SERIES User manual

3ZZ9990181
GENERATOR
INSTRUCTIONS FOR USE
カナダ
3ZZ9990181
GÉNÉRATEUR
MANUEL D'UTILISATION
カナダ
sériesséries
MODELE

ENGLISH
FEDERAL EMISSIONS COMPONENT DEFECT WARRANTY
EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE - This emission warranty is
applicable in all States, except the State of California
Makita U.S.A. Inc., La Mirada, California, (herein "MAKITA") warrant(s) to the initial retail purchaser
and each subsequent owner, that this Nonroad engine (herein "engine") has been designed, built,
and equipped to conform at the time of initial sale to all applicable regulations of the U.S.
Environmental Protection Agency (EPA), and that the engine is free of defects in materials and
workmanship which would cause this engine to fail to conform with EPA regulations during its
warranty period.
For the components listed under PARTS COVERED, the Makita Factory Service Center or Service
Center authorized by MAKITA will, at no cost to you, make the necessary diagnosis, repair, or
replacement necessary to ensure that the engine complies with applicable U.S. EPA regulations.
EMISSION COMPONENT DEFECT WARRANTY PERIOD
The warranty period for this engine begins on the date of sale to the initial purchaser and continues
for a period of 2 years.
PARTS COVERED
Listed below are the parts covered by the Emission Components Defect Warranty. Some of the parts
listed below may require scheduled maintenance and are warranted up to the first scheduled
replacement point for that part.
(1) Fuel Metering System
(i) Carburetor and internal parts (and/or
pressure regulator or fuel injection
system).
(ii) Air/fuel ratio feedback and control system,
if applicable.
(iii) Cold start enrichment system, if
applicable.
(iv) Regulator assy (gaseous fuel, if
applicable)
(2) Air Induction System
(i) Intake manifold, if applicable
(ii) Air filter.
(3) Ignition System
(i) Spark plugs.
(ii) Magneto or electronic ignition system.
(iii) Spark advance/retard system, if
applicable.
(4) Exhaust manifold, if applicable
(5) Miscellaneous Items Used in Above Systems
(i) Electronic controls, if applicable
(ii) Hoses, belts, connectors, and
assemblies.
(iii) Filter lock assy (gaseous fuel, if
applicable)
OBTAINING WARRANTY SERVICE
To obtain warranty service, take your engine to the nearest Makita Factory Service Center or Service
Center authorized by MAKITA. Bring your sales receipts indicating date of purchase for this engine.
The Makita Factory Service Center or Service Center authorized by MAKITA will perform the
necessary repairs or adjustments within a reasonable amount of time and furnish you with a copy of
the repair order. All parts and accessories replaced under this warranty become the property of
MAKITA.EPA - MAKITA FEDERAL EMISSIONS COMPONENT DEFECT WARRANTY-continued
WHAT IS NOT COVERED
*Conditions resulting from tampering, misuse, improper adjustment (unless they were made by the
Makita Factory Service Center or Service Center authorized by MAKITA during a warranty repair),
alteration, accident, failure to use the recommended fuel and oil, or not performing required
maintenance services.
G12000R(CSA)GU204405.1.201:29PMページ01

*The replacement parts used for required maintenance services.
*Consequential damages such as loss of time, inconvenience, loss of use of the engine
orequipment, etc.
*Diagnosis and inspection charges that do not result in warranty-eligible service being performed.
*Any non-authorized replacement part, or malfunction of authorized parts due to use of non-
authorized parts.
OWNER'S WARRANTY RESPONSIBILITIES
As the engine owner, you are responsible for the performance of the required maintenance listed in
your owner's manual. MAKITA recommends that you retain all receipts covering maintenance on
your engine, but MAKITA cannot deny warranty solely for the lack of receipts or for your failure to
ensure the performance of all scheduled maintenance.
As the engine owner, you should however be aware that MAKITA may deny warranty coverage if
your engine or a part has failed due to abuse, neglect, improper maintenance or unapproved
modifications.
You are responsible for presenting your engine to the nearest Makita Factory Service Center or
Service Center authorized by MAKITA when a problem exists.
If you have any questions regarding your warranty rights and responsibilities, you should contact
the Makita Warranty Department at 1-800-4-MAKITA for the information.
THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY
MAINTENANCE AND REPAIRS
You are responsible for the proper maintenance of the engine. You should keep all receipts and
maintenance records covering the performance of regular maintenance in the event questions
arise. These receipts and maintenance records should be transferred to each subsequent owner of
the engine. MAKITA reserves the right to deny warranty coverage if the engine has not been
properly maintained. Warranty claims will not be denied, however, solely because of the lack of
required maintenance or failure to keep maintenance records.
MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION CONTROL DEVICES AND
SYSTEMS MAY BE PERFORMED BY ANY REPAIR ESTABLISHMENT OR INDIVIDUAL ;
HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED BY THE MAKITA FACTORY
SERVICE CENTER OR SERVICE CENTER AUTHORIZED BY MAKITA. THE USE OF PARTS
THAT ARE NOT EQUIVALENT IN PERFORMANCE AND DURABILITY TO AUTHORIZED PARTS
MAY IMPAIR THE EFFECTIVENESS OF THE EMISSION CONTROL SYSTEM AND MAY HAVE
A BEARING ON THE OUTCOME OF A WARRANTY CLAIM.
If other than the parts authorized by MAKITA are used for maintenance replacements or for the
repair of components affecting emission control, you should assure yourself that such parts are
warranted by their manufacturer to be equivalent to the parts authorized by MAKITA in their
performance and durability.
HOW TO MAKE A CLAIM
All repair qualifying under this limited warranty must be performed by a Makita Factory Service
Center or Service Center authorized by MAKITA. In the event that any emission-related part is
found to be defective during the warranty period, you shall notify Makita Warranty Department at
1-800-4-MAKITA and you will be advised of the appropriate warranty service dealer or service
providers where the warranty repair can be performed.
G12000R(CSA)GU204405.1.201:29PMページ02

ENGLISH
FACTORY SERVICE CENTERS IN CANADA
BRITISH COLUMBIA
RICHMOND
(Vancouver Regional Office)
11771 Hammersmith Way, Richmond, V7A.5H6
Tel. [phone] or 604.272.3104
Fax.[phone]
COQUITLAM
Unit 103. 2131 Hartley Avenue, Coquitlam, V3K.2Z3
Tel. [phone] or 1.800.266.7738
Fax.[phone]
ALBERTA
CALGARY
#8-6115 Fourth Street S.E., Calgary, T2H.2H9
Tel. [phone] or 403.243.3995
Fax.[phone]
EDMONTON
11614-149 Street, Edmonton, T5M.3R3
Tel. [phone] or 780.455.6544
Fax.[phone]
SASKATCHEWAN
SASKATOON
206A-2750 Faithful Avenue, Saskatoon, S7K.6M6
Tel. [phone] or 306.931.0111
Fax.[phone]
MANITOBA
WINNIPEG
1670 St. James Street, Winnipeg, R3H.0L3
Tel. [phone] or 204.694.0402
Fax.[phone]
ONTARIO
LONDON
317 Adelaide Street S., Unit 117, London, N5Z.3L3
Tel. [phone] or 519.686.3115
Fax.[phone]
MISSISSAUGA
6350 Tomken Road, Unit 8 Mississauga, L5T.1Y3
Tel. [phone] or 905.670.7255
Fax.[phone]
OTTAWA (Nepean)
210 Colonnade Road S, Unit #10, Ottawa (Nepean),
K2E.7L5
Tel. [phone] or 613.224.5022/5088
Fax.[phone]
WHITBY
(Toronto Head Office)
1950 Forbes Street, Whitby, L1N.7B7
Tel. [phone] or 905.571.2200
Fax.[phone]
QUÉBEC
ST. LEONARD
(Montréal Bureau Régional)
6389 Boul, Couture, St. Leonard, H1P.3J5
Tél. [phone] or 514.323.1223
Fax.[phone]
VILLE ST. LAURENT
1140 Rue Bégin, Ville St. Laurent, H4R 1X1
Tél. [phone] or 514.745.5025
Fax.[phone]
LES SAULES
1200 St. Jean Baptiste, Unit 106, Québec (Les Saules),
G2E.5E8
Tél. [phone] or 418.871.5720
Fax.[phone]
NOVA SCOTIA
DARTMOUTH
202 Brownlow Avenue, Dartmouth,B3B.1T5
Tel. [phone] or 902.468.7064
Fax.[phone]
G12000R(CSA)GU204405.1.201:29PMページ03

ENGLISH
Thank you for purchasing a Makita generator.
This manual covers operation and maintenance of the Makita generators.
All information in this publication is based on the latest production
information available at the time of approval for printing.
Pay special attention to statements preceded by the following words:
■The generator is designed to give safe and dependable service if
operated according to instructions.
■Do not operate the generator before you have read and
understood the instructions. Failure to do so could result in death,
personal injury or equipment damage.
WARNING
Indicates a strong possibility of severe personal injury, loss of life and
equipment damage if instructions are not followed.
［CAUTION］
Indicates a possibility of personal injury or equipment damage if instructions
are not followed.
NOTE:
Gives helpful information.
If a problem should arise, or if you have any questions about the generator,
consult an authorized dealer or factory service center.
WARNING
FOREWORD
G12000R(CSA)GU204405.1.201:29PMページ05

CONTENTS
1. SAFETY PRECAUTIONS ・・・・・・・・・・・・・・・・・・・・・・1
2. SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・3
3. COMPONENTS ・・・・・・・・・・・・・・・・・・・・・・・・・・・4
4. PRE-OPERATION CHECKS ・・・・・・・・・・・・・・・・・・・・6
5. OPERATING PROCEDURES ・・・・・・・・・・・・・・・・・・・・ 11
6. WATTAGE INFORMATION ・・・・・・・・・・・・・・・・・・・・・ 19
7. SPARK ARRESTER ・・・・・・・・・・・・・・・・・・・・・・・・・
21
8. MAINTENANCE SCHEDULE ・・・・・・・・・・・・・・・・・・・・
22
9. "HOW-TO" MAINTENANCE ・・・・・・・・・・・・・・・・・・・・
24
10. PREPARATION FOR STORAGE・・・・・・・・・・・・・・・・・・
28
11. TROUBLESHOOTING ・・・・・・・・・・・・・・・・・・・・・・・ 29
12. WIRING DIAGRAM ・・・・・・・・・・・・・・・・・・・・・・・・・ 30
G12000R(CSA)GU204405.1.201:29PMページ06

1. SAFETY PRECAUTIONS
−1−
ENGLISH
Please make sure you review each precaution carefully.
Do not operate the generator near gasoline or gaseous fuel because of the
potential danger of explosion or fire.
Do not fill the fuel tank with fuel while the engine is running. Do not smoke or
use open flame near the fuel tank. Be careful not to spill fuel during refueling.
If fuel is spilt, wipe it off and let dry before starting the engine.
WARNING
Do not operate the generator inside a room, cave, tunnel, or other
insufficiently ventilated area. Always operate it in a well-ventilated area,
otherwise the engine may become overheated, and the poisonous carbon
monoxide gas contained in the exhaust gases will endanger human lives.
Keep the generator at least 1 meter (3 feet) away from any structure or
building during use.
If the generator must be used indoors, the area must be well-ventilated and
extreme caution must be taken regarding the discharge of exhaust gases.
WARNING
Do not place in flammables near the generator.
Be careful not to place fuel, matches, gunpowder, oily cloths, straw, trash, or any other in flammables
near the generator.
WARNING
Do not enclose the generator nor cover it with a box.
The generator has a built-in forced air cooling system, and may become overheated if it is enclosed.
If generator has been covered to protect it from the weather during non use, be sure to remove it and
keep it well away from the area during generator use.
WARNING
1m
1m
Operate the generator on a level surface.
It is not necessary to prepare a special foundation for the generator.
However, the generator will vibrate on an irregular surface, so choose a level place without surface
irregularities.
If the generator is tilted or moved during operation, fuel may spill and / or the generator may tip over,
causing a hazardous situation.
Proper lubrication cannot be expected if the generator is operated on a steep incline or slope. In such
a case, piston seizure may occur even if the oil is above the upper level.
WARNING
Pay attention to the wiring or extension cords from the generator to the connected device.
If the wire is under the generator or in contact with a vibrating part, it may break and
possibly cause a fire, generator burnout, or electric shock hazard.
Replace damaged or worn cords immediately.
WARNING
G12000R(CSA)GU204405.1.201:29PMページ1

−2−
Do not contact the generator to a commercial power line. Connection to a commercial
power line may short circuit the generator and ruin it or cause electric shock hazard.
Use the transfer switch for connecting to domestic circuit.
WARNING
Engine becomes extremely hot during and for some time after operation.
Keep combustible materials well away from generator area.
Be very careful not to touch any parts of the hot engine especially the muffler area
or serious burns may result.
WARNING
No smoking while handling the battery. The battery emits flammable hydrogen gas,
which can explode if exposed to electric arcing or open flame.
Keep the area well-ventilated and keep open flames/sparks away when handling the battery.
WARNING
Do not operate in rain, in wet or damp conditions, or with wet hands.
The operator may suffer severe electric shock if the generator is wet due to rain or snow.
WARNING
Keep children and all bystanders at a safe distance from work areas.
WARNING
If wet, wipe and dry it well before starting. Do not pour water directly over the generator, nor wash it
with water.
WARNING
Be extremely careful that all necessary electrical grounding procedures are followed during each and
every use. Failure to do so can be fatal.
WARNING
It is absolutely essential that you know the safe and proper use of the power tool or appliance that
you intend to use. All operators must read, understand and follow the tool/appliance owners manual.
Tool and appliance applications and limitations must be understood. Follow all directions given on
labels and warnings. Keep all instruction manuals and literature in a safe place for future reference.
WARNING
Use only "LISTED" extension cords.
When a tool or appliance is used outdoors, use only extension cords marked "For Outdoor Use".
Extension cords, when not in use should be stored in a dry and well ventilated area.
WARNING
Always switch off generator's AC circuit breaker and disconnect tools or appliances when not in use,
before servicing, adjusting, or installing accessories and attachments.
WARNING
Make sure the engine is stopped before starting any maintenance, servicing or repair.
［CAUTION］
NOTE :
Make sure maintenance and repair of the generator set are performed by properly trained personnel only.
G12000R(CSA)GU204405.1.201:29PMページ2

2. SPECIFICATIONS
−3−
ENGLISH
Model G12000R
Alternator
Type Brush, Self-exciting, 2-pole, Single-phase
Rated voltage 120V / 240V
9500 VA
A.V.R type
Engine
Model EH65D
Type Twin cylinder, Air-cooled, 4-stroke, Overhead valve engine
Displacement 653 cm3
Fuel Automotive unleaded gasoline
Oil capacity 1.55 liters
Starting system Electric starter
Fuel tank capacity 44 liters
Rated continuous
operation per a
tankful of fuel
Rated Approx. 8.2 hours
Dimension
826 mm
Dry weight 141 kg
611 mm
771 mm
Length
Width
High
60 Hz
12000 W
1.0
Rated frequency
Voltage regulator
Power factor
Rated output
Maximum output
Remote controller terminal
(Auto choke) Standard
Valve Clearance
(Intake & Exhaust)
0.1 ± 0.02 mm
Note : Adjust the valve clearance while the engine is cold.
Specifications are subject to change without notice.
G12000R(CSA)GU204405.1.201:29PMページ3

3. COMPONENTS
−4−
SPARK PLUG CAP
FUEL COCK
BATTERY
TANK CAP
SPARK PLUG
CAP
OIL FILLER CAP
MUFFLER
OIL GAUGE
CONNECTOR
FOR REMOTE
CONTROL
ELECTRIC STARTER
OIL DRAIN PLUG
FUEL TANK
CONTROL
PANEL
AIR CLEANER
COOLING AIR
INLET PORT
OIL FILTER
G12000R(CSA)GU204405.1.201:29PMページ4

−5−
ENGLISH
CONTROL PANEL
AC CIRCUIT
BREAKER VOLTMETER
PILOT LAMP
HOUR METER
KEY SWITCH
AC CIRCUIT BREAKER
OIL PRESSURE
WARNING
LAMP
IDLE
CONTROL
SWITCH
EARTH (GROUND)
TERMINAL
AC RECEPTACLE
CONNECTOR
FOR REMOTE CONTROL
G12000R(CSA)GU204405.1.201:29PMページ5

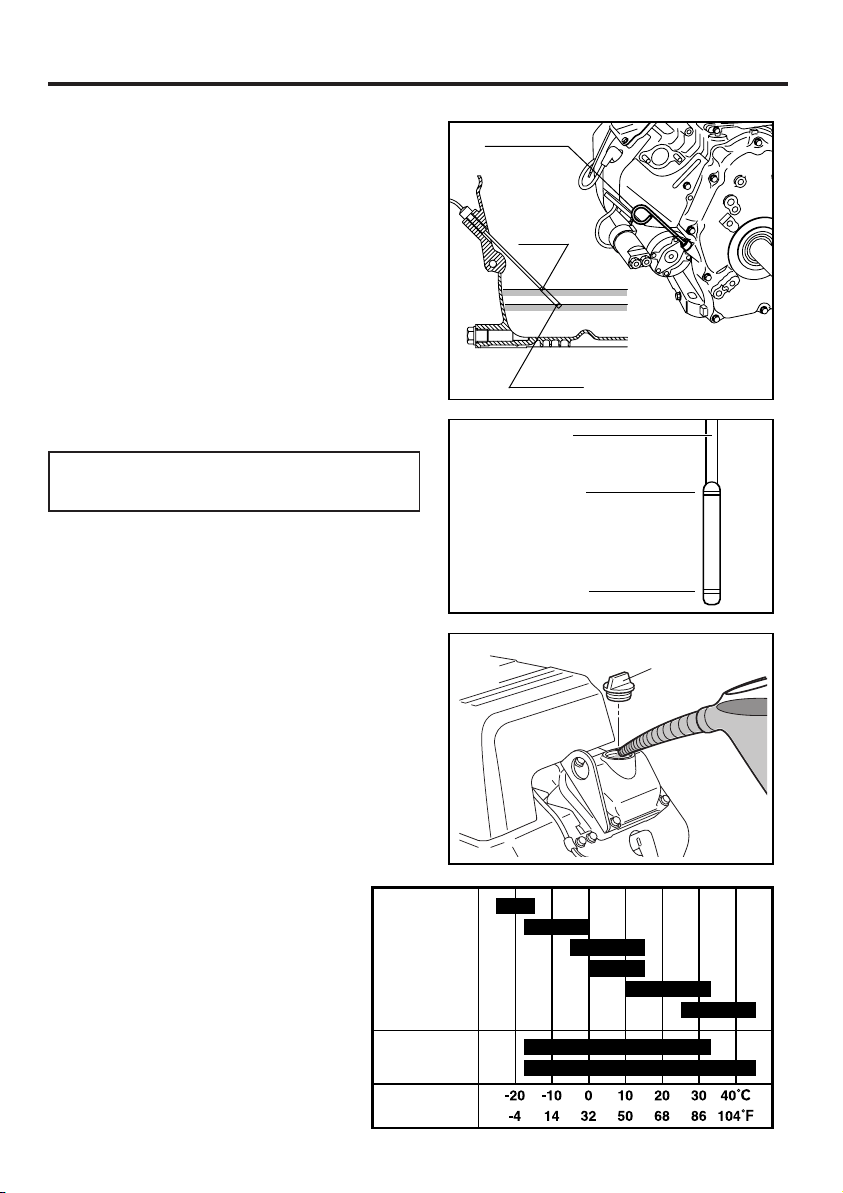

4. PRE-OPERATION CHECK
−6−
UPPER
LEVEL
LOWER
LEVEL
OIL GAUGE
Oil gauge
Upper level
Lower level
CHECK ENGINE OIL
Before checking or refilling oil, be sure
generator is located on stable and level
surface with engine stopped.
1) Remove oil level gauge and check the
engine oil level.
2) If oil level is below the lower level "L"
refill with suitable oil (see table) to upper
level "F" after removing the engine oil
filler cap.
3) Change oil if contaminated.
(See "How-To" Maintenance.)
Recommended engine oil :
Use 4-stroke automotive detergent oil
of API service class SE or higher
grade
(SG, SH or SJ is recommended).
SAE 10W-30 or 10W-40 is
recommended for general, all-
temperature use. If single viscosity oil
is used, select the appropriate
viscosity for the average temperature
in your area.
Oil capacity :
1.55 liters (Upper level)
NOTE :
■The engine is equipped with an oil sensor
unit (hydraulic pressure detection type)
that will automatically stop the engine if
oil in the crank case is reduced below the
specified level. Should the engine be
automatically stopped, be sure to check
the amounts of fuel and oil.
■When the oil is reduced below the
specified level, add new oil to the upper
limit. Since the oil sensor will not detect
the deterioration of oil, visually check the
quality or determine it by the specified
time and then change the oil if necessary.
(Refer to page 24.)
OIL FILLER CAP
Ambient
temperature
Single grade
Multigrade
5W
10W
20W
#20
#30
#40
10W
- 30
10W
- 40
G12000R(CSA)GU204405.1.201:29PMページ6

−7−
ENGLISH
1) Check fuel level at fuel level gauge.
2) If fuel level is low, refill with automotive
unleaded gasoline only.
This engine is certified to operate on
automotive unleaded gasoline.
3) Be sure to use the fuel filter screen on
the fuel filter neck.
Fuel filter screen
Tank cap
Fuel gauge
EMPTY FULL
EF
Do not refuel while smoking or near open flame or other such
potential fire hazards. Otherwise fire accident may occur.
CHECK ENGINE FUEL
WARNING
;;;
;;;;
;
;
;;
;;
"LEVEL" Mark
Fuel level line
Fuel tank capacity : 44 liters
NOTE :
■The full level of fuel is the upper
surface of the fuel filter.
G12000R(CSA)GU204405.1.201:29PMページ7

−8−
Make sure you review each warning in order to prevent fire hazard.
■Do not refill tank while engine is running or hot.
■Close fuel cock before refueling with fuel.
■Be careful not to admit dust, dirt, water or other foreign objects into
fuel.
■Do not fill above the top of the fuel filter (marked "LEVEL") or the fuel
may overflow when it heats up later and expands.
■Wipe off spilt fuel thoroughly before starting engine.
■Keep open flames away.
WARNING
BATTERY INSTALLATION
Recommended Battery
Lead-acid battery : A capacity of 12V-32A・h or larger.
For the generators used in low temperature (below -5℃),
12V-40A
・h or larger battery is recommended.
1)Attach terminals to a lead-acid battery already charged. Mount the battery onto
the position as specified below, with its terminals facing inward.
2) Insert each long bolt through the specified hole, its tip pointing outward.
3) Put the supporting arm on the long bolts and tighten with the butterfly nuts.
(Push the lead-acid battery all the way inward.)
4) Arrange the wiring so that it won't be damaged by possible vibration caused by
the engine.
5) Only after checking that the engine's starter key is in the "OFF" position,
securely connect the red cable, to the positive (+) terminal. And then connect
the other cable to the negative (-) terminal.
Red cable : to the (+) terminal
Black cable : to the (-) terminal
G12000R(CSA)GU204405.1.201:29PMページ8

−9−
ENGLISH
RED CABEL
RED CABEL
LESS THAN
260 mm
LESS THAN
170 mm
LESS THAN
205 mm
①Butterfly nut ┓
②Long bolt ┣Accessory
③Supporting arm
┛parts
④Terminals and nut
④
①
③
②
Should the connection be made in incorrect manner, the engine will be broken.
［CAUTION］
Death, personal injury and/ or property damage may occur unless
instructions are followed carefully.
■Disconnect battery cables when charging battery.
■Use battery of specified capacity listed in the owner's manual.
■Turn the starter switch to the "STOP" position when mounting or
dismounting battery. Connect positive (+) terminal first when mounting
battery, and disconnect negative (-) terminal first when dismounting.
RED CABLE : To positive (+) terminal
BLACK CABLE : To negative (-) terminal
WARNING
G12000R(CSA)GU204405.1.201:29PMページ9

−10−
CHECK COMPONENT PARTS
Check following items before starting engine:
■Fuel leakage from fuel hose, etc.
■Bolts and nuts for looseness.
■Components for damage or breakage.
■Generator not resting on or against any adjacent wiring.
CHECK GENERATOR SURROUNDINGS
Make sure you review each warning in order to prevent fire hazard.
■Keep area clear of inflammables or other hazardous materials.
■Keep generator at least 1 meter away from buildings or other
structures.
■Only operate generator in a dry, well ventilated area.
■Keep exhaust pipe clear of foreign objects.
■Keep generator away from open flame. No smoking!
■Keep generator on a stable and level surface.
■Do not block generator air vents with paper or other material.
WARNING
G12000R(CSA)GU204405.1.201:29PMページ10

5. OPERATING PROCEDURES
−11−
ENGLISH
(1) Make sure that the AC circuit breaker
is off.
(2) Turn the fuel cock to the vertical
(open) position
(3) Turn the key switch to the "START"
position.
If the engine won't start, turn the
switch back to "RUN" position and then
wait for approximately 10 seconds to
try it again.
NOTE :
■You might have to keep the starter
running for at least 3 to 5 seconds,
since the engine incorporates the
mechanism in it where the ignition
circuit is activated by the increase of
hydraulic pressure.
■In the following occasion, two or three
trials may be required for starting the
engine :
a. The very first starting of a new
generator.
b. After the refueling of the engine
which has been stopped due to fuel
shortage.
c. Starting after the oil filter change.
d. Warm the engine up for a minute or
two. Longer time would be needed in
cold weather.
START
RUN
START
STOP
RUN
STOP
STARTING
CLOSE
CLOSE
OPEN
■Check the oil level before each operations. (See page 6)
■Perform the specified Daily Inspection to see if it is in normal condition.
［CAUTION］
ON
OFF
G12000R(CSA)GU204405.1.201:29PMページ11

−12−
USING ELECTRIC POWER
■Make sure that the appliance is switched OFF before connecting it to
the generator.
■Do not move the generator while it is running.
■Be sure to ground the generator if the connected appliance is
grounded. Failure to ground unit may lead to electrical shock.
WARNING
(1) AC APPLICATION
(1) Ground the generator, using the
ground terminal located at the side of
the panel.
(2) Before starting the engine, check that
the AC circuit breaker of the generator
and the power switches of the
appliances are turned off.
(3) Connect the plugs of the appliances to
the receptacles before starting the
engine. If you wish to use for a long
period of time, connecting to the
output terminal is recommended.
(4) Start the engine and check that the
voltage meter is indicating correct
voltage.
ON
OFF
Grounding spike
G12000R(CSA)GU204405.1.201:29PMページ12

−13−
ENGLISH
up to 30A
up to 30A
up to 20A NEMA
L5-20R
NEMA
L5-30R
NEMA
L14-30R
NEMA
L5-20P
NEMA
L5-30P
NEMA
L14-30P
(REC1)
Locking Receptacle
(REC2)
Locking Receptacle
(REC3)
Style Ampere Receptacle AC plug Description
up to 50A
Locking Receptacle
(REC4)
TABLE 1
■Check the amperage of the receptacles used referring to TABLE 1, and be
sure not to take a current exceeding the specified amperage.
■Be sure that the total wattage of all appliances dose not exceed the rated
output of the generator.
■To take power out from the TWIST
LOCK RECEPTACLE, insert the
plug into the receptacle, and turn
it clockwise to the lock position.
■Be sure to ground the generator if
the connected electrical device Is
grounded.
WARNING
TWIST
NOTE :
When the AC circuit breaker turns off during operation, the generator is over
loaded or the appliance is defective. Stop the generator immediately, check the
appliance and / or generator for overloading or detect and have repaired as
necessary by Makita factory or authorized service center.
G12000R(CSA)GU204405.1.201:29PMページ13

−14−
The duplex 120V receptacle is protected by a GFCI (Ground Fault Circuit
Interrupter). GFCI shuts off the output current from the duplex 120V
receptacle when a ground fault occurs in the generator or the appliance.
Please note that other receptacles are not protected by GFCI.
［CAUTION］
GFCI RECEPTACLE
After starting the engine, check the GFCI for proper functioning by the following
test procedure.
■Push blue TEST button, The red RESET button will pop out exposing the word
TRIP. Power is now off at the outlets protected by the GFCI, indicating that the
device is functioning properly.
■If TRIP dose not appear when testing, do not use the generator.
Call a qualified electrician.
■To restore power, push RESET button.
If the RESET button pops out during operation, stop the generator
immediately and call a qualified electrician for checking generator and
the appliances.
WARNING
(6) Turn on the switch of the appliance.
PILOT LAMP
(5) Turn the AC circuit breaker ON, and
check if the pilot lamp lights up. ON
OFF
G12000R(CSA)GU204405.1.201:29PMページ14
