Makita G1100 Quick start guide

Parts Breakdown G1100
Page 1 of 20 2/8/2008

Parts Breakdown G1100
Page 2 of 20 2/8/2008

Parts Breakdown G1100
Page 3 of 20 2/8/2008

Parts Breakdown G1100
Page 4 of 20 2/8/2008

Parts Breakdown G1100
Page 5 of 20 2/8/2008

Parts Breakdown G1100
Page 6 of 20 2/8/2008

Parts Breakdown G1100
Page 7 of 20 2/8/2008

Parts Breakdown G1100
Page 8 of 20 2/8/2008

Parts Breakdown G1100
Page 9 of 20 2/8/2008

Parts Breakdown G1100
Page 10 of 20 2/8/2008

Parts Breakdown G1100
Page 11 of 20 2/8/2008

Parts Breakdown G1100
Page 12 of 20 2/8/2008

Parts Breakdown G1100
Page 13 of 20 2/8/2008

Parts Breakdown G1100
Fig # Part ID Part Name Quantity
1 2841010301 CRANKCASE CPL., G1100 1
2 2371420203 VALVE GUIDE(OVER SIZE), G2800R 2
3 2771601001 STEM SEAL, G1100 1
4 0440200070 OIL SEAL, G1100 1
5 0600200140 BALL BEARING, G1100 1
6 0310060020 DOWEL PIN, G2800R 2
7 0105060420 STUD, G1100 2
8 0440060020 OIL SEAL, G1100 1
9 0401140030 PLUG, G2800R 1
10 0211140020 GASKET, G2800R 1
11 2841120101 MAIN BEARING COVER CPL.,G1100 1
11 2841120111 MAIN BEARING COVER CPL., G1100 1
12 2301710203 PLUG (RUBBER), G1100 1
13 0600200140 BALL BEARING, G1100 1
14 2844500301 GOVERNOR GEAR CPL.,G1100 1
15 2054190103 GOVERNOR SLEEVE, G2800R 1
16 2306360101 OIL GAUGE CPL.,G1100 1
17 X213160020 N/A 1
17 0213160020 GASKET, G2800R 1
18 2841600303 GASKET(ERING COVER), G1100 1
19 0110060101 FLANGE BOLT, G1100 8
20 2841300301 CYLINDER HEAD CPL.,G1100 1
21 2841500103 GASKET (HEAD), G1100 1
21 2841500113 GASKET (HEAD), G1100 1
22 0110080210 FLANGE BOLT, G1100 3
22 0110080210 FLANGE BOLT, G1100 2
23 0110080301 FLANGE BOLT, G1100 1
24 2841550103 ROCKER COVER, G1100 1
25 2841600403 GASKET (ROCKER COVER), G1100 1
26 2771501103 PIPE KNOCK, G1100 2
27 0110060420 FLANGE BOLT, G1100 4
28 2841430101 BREATHER COVER CPL.,G1100 1
29 2841440101 BREATHER PLATE CPL.,G1100 1
30 2301600613 GASKET, G1100 1
31 2301600703 GASKET, G1100 1
32 0110060020 FLANGE BOLT, G2800R 2
33 33K5831703 SPONGE CRANK, G1100 1
34 2849900207 GASKET SET, G1100 1
34 2849900217 GASKET SET, G1100 1

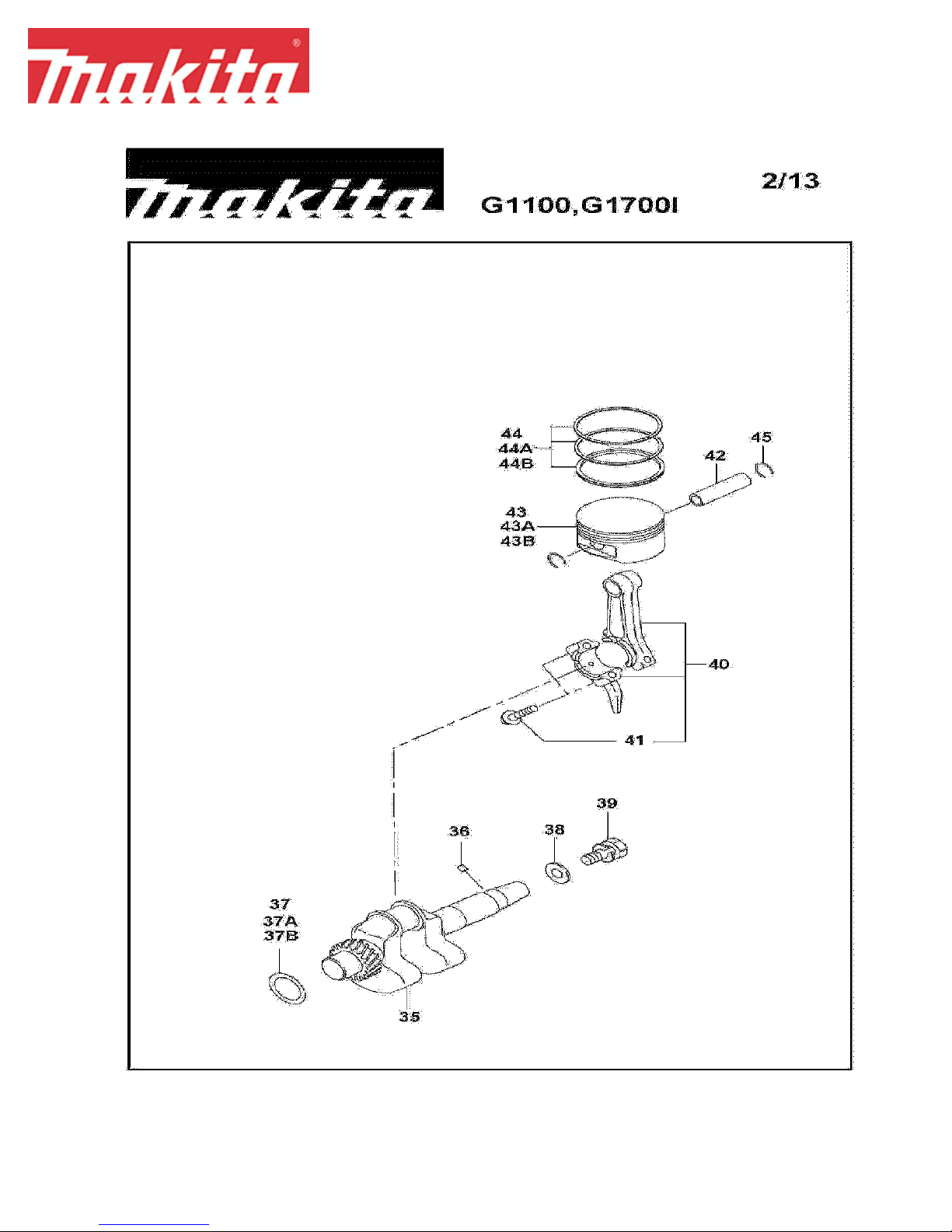

35 2842050101 CRANKSHAFT CPL.,G1100 1
35 2842050111 CRANKSHAFT, G1100 1
36 0310040010 DOWEL PIN, G1100 1
37 0230200100 SPACER T=0.8, G1100 1
37 0230200110 SPACER T=1.0, G1100 1
37 0230200120 SPACER T=1.2, G1100 1
38 0200080030 WASHER, G2400R 1
39 0011108250 BOLT & WASHER ASS'Y, G1100 1
39 0011408250 BOLT & WASHER ASSY(M8X25),EW210TR 1
40 2842250120 CONNECTING ROD ASS'Y, G1100 1
41 2842300103 CONNECTING ROD BOLT, G1100 2
42 2302330103 PISTON PIN, G1100 1
43 28423401H3 N/A 1
43 28423402H3 N/A 1
43 28423403H3 N/A 1
43 2742340103 PISTON 51DX31H, G1100 1
43 2742340203 PISTON 0.25, G1100 1
43 2742340303 PISTON 0.50, G1100 1
44 2742350207 PISTON RING SET 0.25, G1100 1
44 2742350307 PISTON RING SET 0.50, G1100 1
44 2842350107 PISTON RING SET STD.,G1100 1
Page 14 of 20 2/8/2008

Parts Breakdown G1100
45 0565110010 CLIP, G1100 2

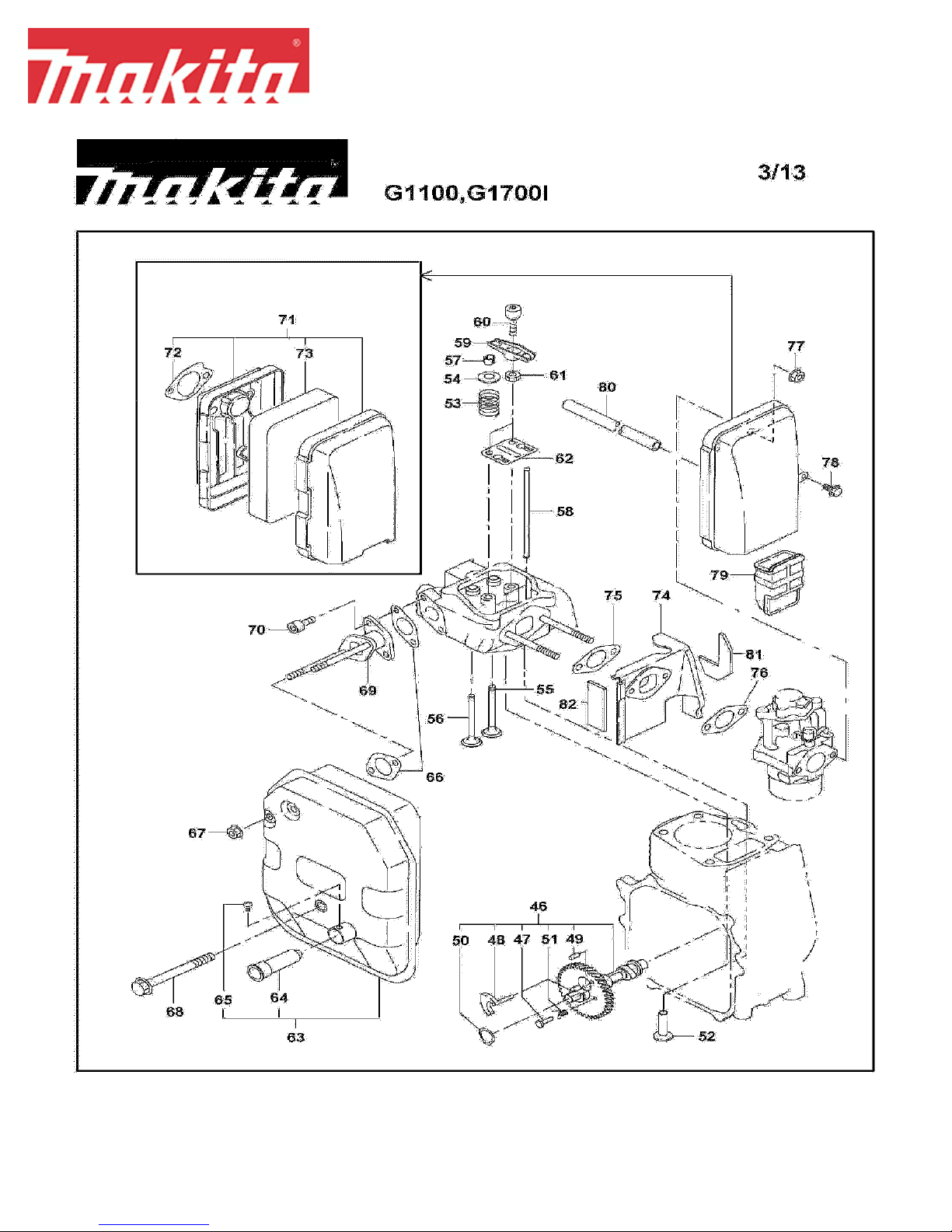

46 2843170111 CAMSHAFT CPL.,G1100 1
47 2273860123 PIN, G1100 1
48 2843640103 RELEASE LEVER, G1100 1
49 0051904100 SPRING PIN, G5710R 1
50 0031517000 OUTER SNAP RING, G1100 1
51 2743870123 RETURN SPRING, G1100 1
52 2743330103 TAPPET, G1100 2
53 2743360103 VALVE SPRING, G1100 2
54 2743370203 SPRING RETAINER, G1100 2
55 2743340103 INTAKE VALVE, G1100 1
56 2743350103 EXHAUST VALVE, G1100 1
57 13210KA031 COLLET VALVE, G2800R 4
58 2743530103 PUSH ROD, G1100 2
59 2743600303 ROCKER ARM, G1100 2
60 2693580103 BOLT (PIVOT), G4100R 2
61 0170060090 NUT, G4100R 2
62 2743650103 GUIDE PLATE, G1100 1
63 2843020100 MUFFLER ASS'Y, G1100 1
63 2843020110 MUFFLER ASS'Y, G1100 1
63 2843020120 N/A 1
64 2693760101 SPARK ARRESTER COMPL., EW210TR 1
65 0150040060 TAPPING SCREW, G5710R 1
66 2303520401 GASKET CPL.,(EXHAUST), G1100 2
67 0180060030 FLANGE NUT M6, G1100 2
67 0023806000 FLANGE NUT, G6101R 2
68 0110080110 FLANGE BOLT (M8X80MM), G12000R 1
69 2843410103 EXHAUST PIPE, G1100 1
70 0011406160 BOLT & WASHER, G2800R 2
70 0119060020 S.H. BOLT, G1100 2
71 2843263000 AIR CLEANER ASS'Y, G1100 1
72 2273600413 GASKET, G1300R 1
73 2843263108 ELEMENT, G1100 1
74 2843290303 INSULATOR, G1100 1
75 2823590103 GASKET, G1100 1
75 2273590203 GASKET 2 INSULATOR, G1100 1
76 1573500103 N/A 1
76 2363590303 GASKET 2 (INSULATOR), G2800R 1
77 0023806000 FLANGE NUT, G6101R 2
78 0110060180 FLANGE BOLT, G2410R 1
79 2843210103 DUCT, G1100 1
80 0851080000 RUBBER PIPE, G2800R 1
81 33K5831503 SPONGE INS, G1100 1
81 33K5831513 SPONGE INSULATOR, G1100 1
82 33K5832103 SPONGE INS 2, G1100 1
82 33K5832113 SPONGE INSULATOR 2, G1100 1

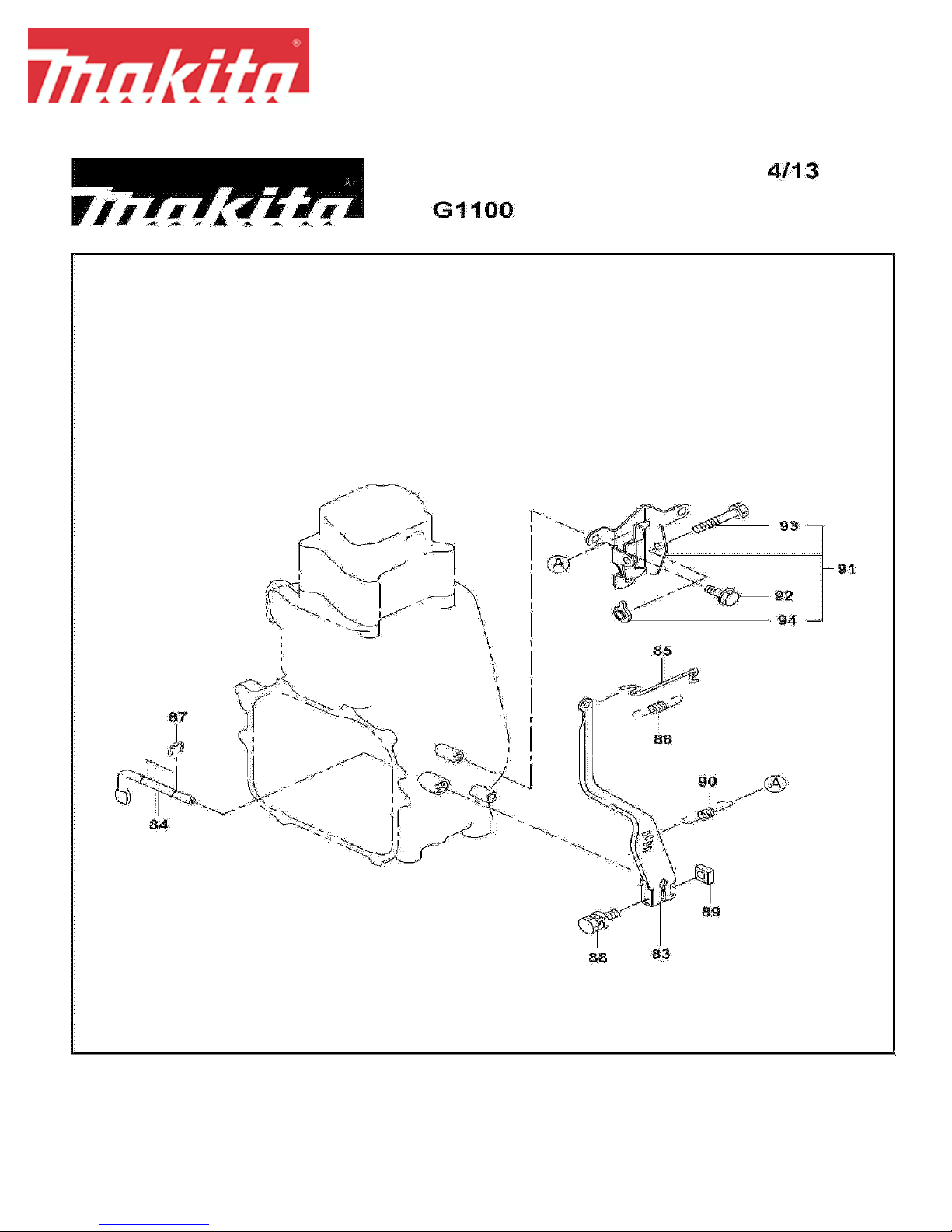

83 2844230201 GOVERNOR LEVER, G1100 1
83 2844230221 GOVERNOR LEVER, G1100 1
84 2304220103 GOVERNOR SHAFT, G1100 1
85 1054270111 GOVERNOR ROD, G1100 1
85 2344270311 GOVERNOR ROD, G1100 1
86 2274280103 ROD SPRING, EW200R 1
86 2844280303 ROD SPRING, G1100 1
87 0031305000 CLIP, G1100 2
88 0011406250 BOLT & WASHER, G2800R 1
89 0186060020 NUT, G2800R . 1
90 2844250113 GOVERNOR SPRING, G1100 1
90 2844250403 GOVERNOR SPRING, G1100 1
91 2844620000 CONTROL BRACKET, G1100 1
92 0110060010 FLANGE BOLT, G2800R 2
93 0010606350 BOLT, G1100 1
Page 15 of 20 2/8/2008

Parts Breakdown G1100
93 0016506350 BOLT, G1100 1
94 2304900201 ADJUSTING NUT, G1100 1
95 2845120103 BLOWER HOUSING, G1100 1
96 2845550103 GROMMET, G1100 1
97 0110080160 FLANGE BOLT, G1100 1
98 0110080302 FLANGE BOLT, G1100 3
99 2845360101 CYLINDER BAFFLE CPL.,G1100 1
100 0010306120 FLANGE BOLT, G1100 1
100 0010308160 FLANGE BOLT, G1100 3
100 0110060440 FLANGE BOLT, G1100 1
101 0110080150 FLANGE BOLT, G2800L 3
101 0010306120 FLANGE BOLT, G1100 1
103 0566000260 CLAMP, G5710R 1

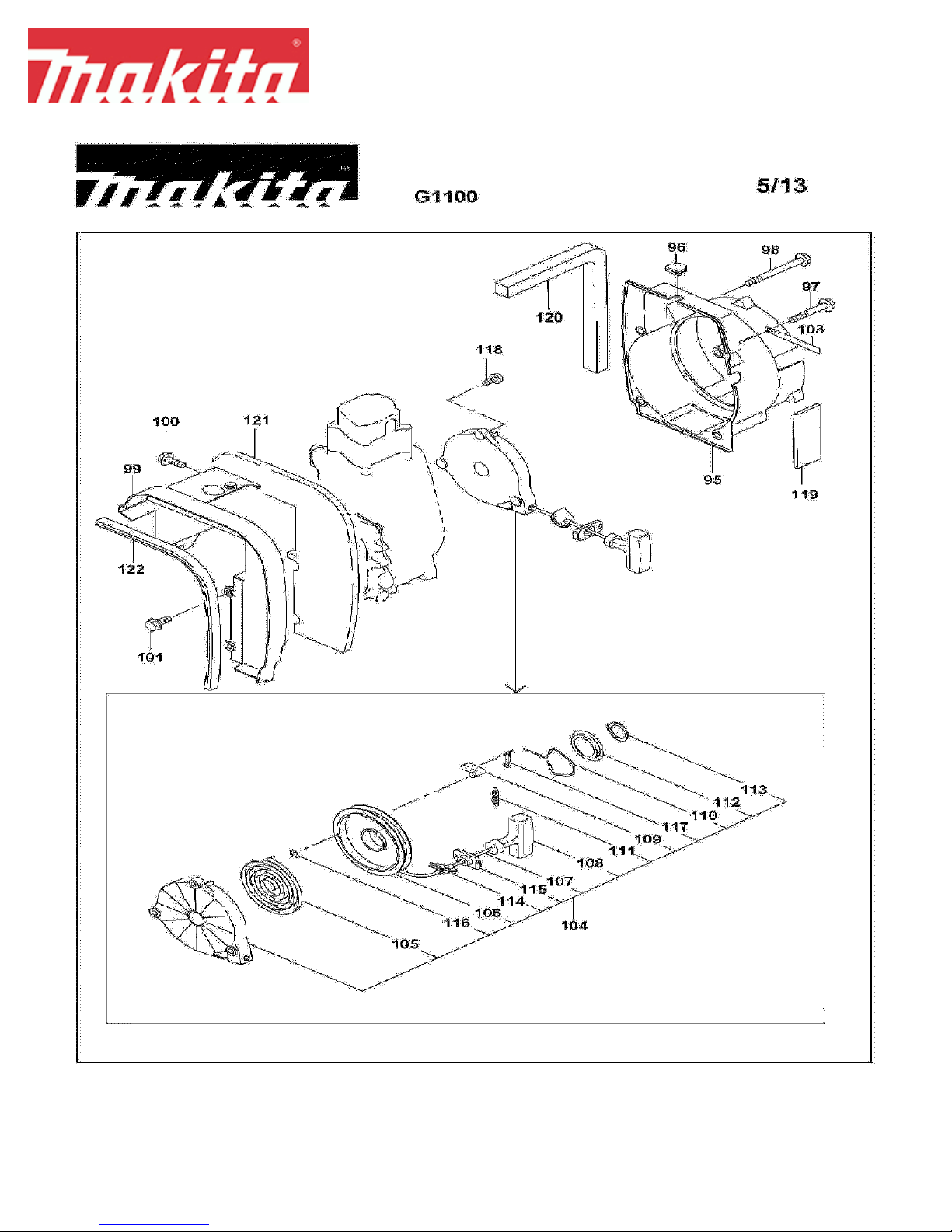

104 2845022100 RECOIL STARTER ASS'Y, G1100 1
104 2845022110 N/A 1
105 2845022408 SPIRAL SPRING, G1100 1
106 2845022208 REEL, G1100 1
107 2845023308 ROPE, G1100 1
108 5305002110 STARTER KNOB, RBC260 1
109 2845022308 RACHET, G1100 1
110 2845022608 FRICTION SPRING, G1100 1
111 2845022708 RETURN SPRING, G1100 1
112 2845022508 FRICTION PLATE, G1100 1
112 2845022518 FRICTION PLATE, G1100 1
113 2845023108 RETAINING RING C TYP, G1100 1
114 2845610103 ROPE GUIDE, G1100 1
115 33K5300103 GUIDE CPL.,G1100 1
116 2845022908 RETAINING RING E TYP, G1100 1
117 2845022808 RACHET GUIDE, G1100 1
118 0110060140 FLANGE BOLT, G2410R 3
119 34K4010203 SEAL PLATE, G1100 2
120 2845120303 DEAL SPONGE B/H, G1100 1
120 33K5831203 SPONGE BAFFLE, G1100 1
121 33K5831303 SPONGE BAFFLE 2, G1100 1
121 2845360613 INSULATION SEAT B1, G1100 1
122 2845360503 SEAL RUBBER, G1100 1

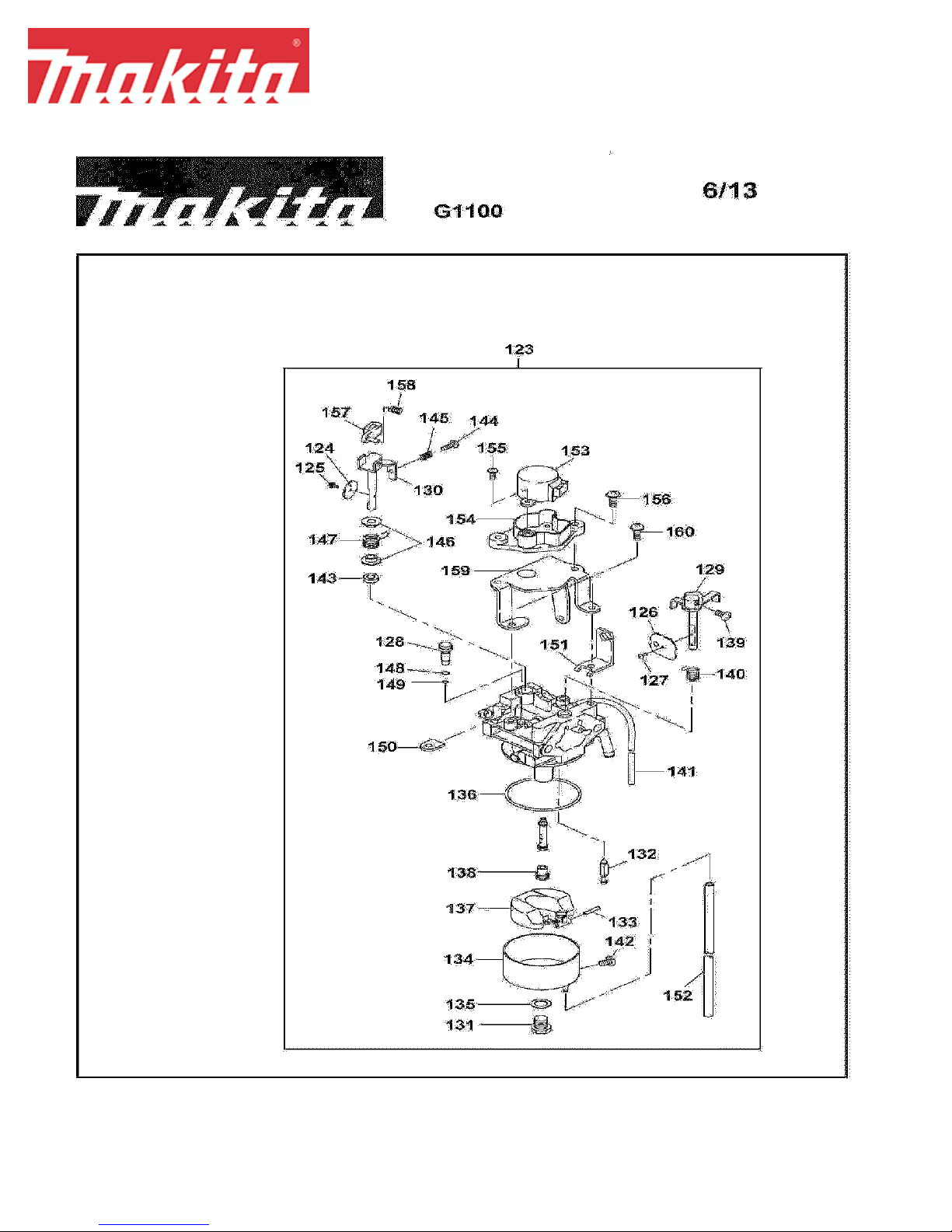

123 2846230100 CARBURETOR ASS'Y, G1100 1
124 2846253508 THROTTLE VALVE, G1100 1
125 2846245508 SCREW, G1100 1
126 2846252508 CHOKE VALVE, G1100 1
127 2846245508 SCREW, G1100 1
128 2846242008 SLOW JET, G1100 1
129 2846252008 CHOKE LEVER, G1100 1
130 2846253008 THROTTLE SHAFT, G1100 1
131 2846235508 BOLT, G1100 1
132 2796250008 VALVE ASS'Y, G1100 1
133 2846251508 PIN, G1100 1
134 2846255008 FLOAT BODY, G1100 1
135 2516235008 GASKET, G1100 1
136 2846254008 CHAMBER PACKING, G1100 1
137 2846250508 FLOAT ASS'Y, G1100 1
138 2846240008 MAIN JET, G1100 1
139 2846245608 SCREW, G1100 1
140 2846244508 CHOKE SPRING, G1100 1
141 2846256508 VINYL PIPE, G1100 1
142 2516266108 DRAIN SCREW, G1100 1
143 2516255908 BUSH, G1100 1
144 2846235308 ADJUST SCREW, G1100 1
145 2796244508 SPRING, G1100 1
146 2846256008 COLLAR, G1100 1
147 2846231508 SPRING, THROTTLE, G1100 1
Page 16 of 20 2/8/2008

Parts Breakdown G1100
148 2846245108 O RING, G1100 1
149 2846245008 O RING, G1100 1
150 2846257108 STOPPER PLATE, G1100 1
151 2846257008 BRACKET, G1100 1
152 2846256608 VINYL PIPE, G1100 1
153 2846258008 MOTOR, G1100 1
154 2846257608 BRACKET (MOTOR), G1100 1
155 2846245808 SCREW, G1100 2
156 2846245708 SCREW, G1100 2
157 2846255508 JOINT LEVER, G1100 1
158 2846244608 SPRING, G1100 1
159 2846257508 BRACKET, G1100 1
160 2846245608 SCREW, G1100 2

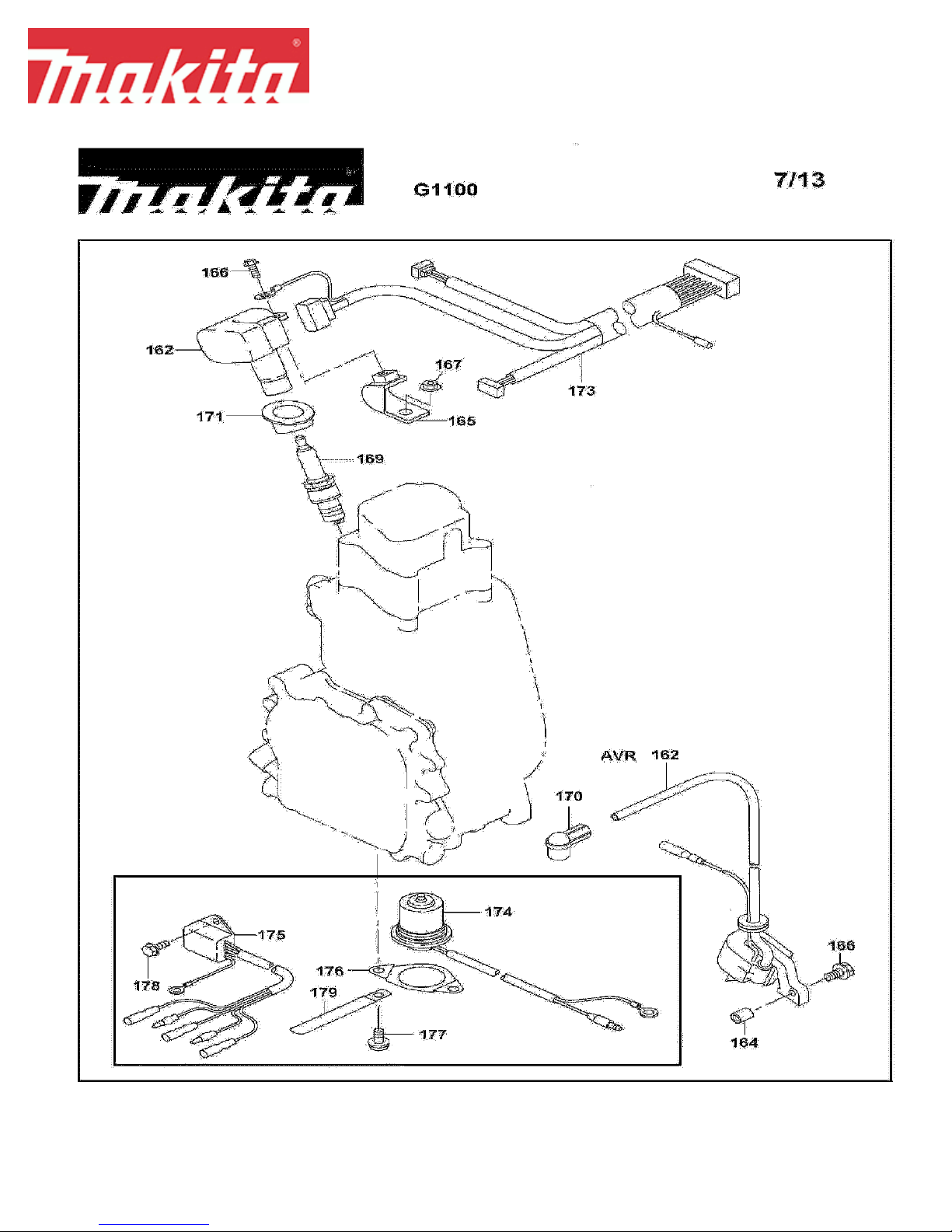

162 2847943021 IGNITION COIL, G1100 1
162 2847945101 IGNITION COIL CPL.,G1100 1
164 0230060360 SPACER, G1100 2
165 2847956103 IGNITION COIL BRACKET, G1100 1
166 0011406450 BOLT & WASHER ASS'Y, G1100 2
167 0023808000 FLANGE NUT, G2800R 1
169 0650140380 SPARK PLUG NGK BMR4A, G1100 1
170 0655000051 SPARK PLUG CAP, EW310TR 1
171 2847550103 GROMMET (PLUG), G1100 1
173 34K2110103 ENGINE HARNESS, G1100 1
174 2307630111 OIL SENSOR, G1100 1
175 KU31104101 FLOAT C/U CPL., G1100 1
175 KU31104401 FLOAT C/U CPL., G1100 1
176 2307580103 SENSOR RETAINER, G1100 1
177 0043506100 SCREW & WASHER, G1300R 2
178 0110060020 FLANGE BOLT, G2800R 1
179 2267510103 CLAMP, G3510R 1
180 33K2235108 STATOR CPL.,G1100 1
182 33K2090208 ROTOR CPL.,G1100 1
183 33K2090608 BOLT, G1100 1
185 33K2090703 RING, G1100 1
186 33K2090508 FLANGE BOLT, G1100 2
187 33K2090308 REAR COVER, G1100 1
188 33K2090408 FLANGE BOLT, G1100 3
189 32B2310101 BRUSH CPL.,G1100 1
190 32B2105108 SCREW, G1100 1
192 32B2300100 AVR ASS'Y, G1100 1
193 32B2105108 SCREW, G1100 2
194 32B2312101 DIODE STACK, G1100 1
195 32B2105208 SCREW, G1100 4
197 32D2106008 CLAMP, G1100 3
198 32B2105308 SCREW, G1100 1

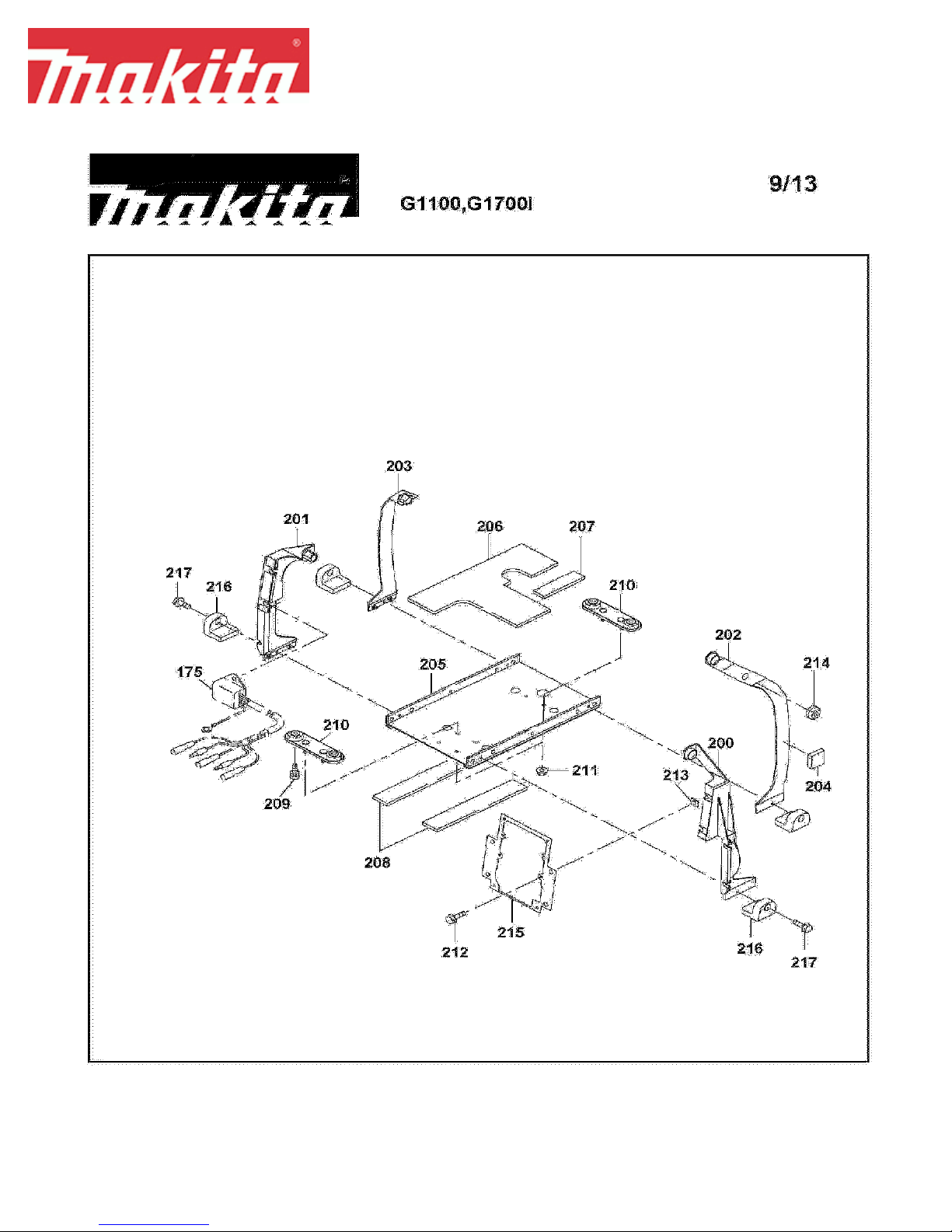

200 33K3710103 FRONT FRAME (R), G1100 1
201 33K3720103 FRONT FRAME (L), G1100 1
202 33K3730103 REAR FRAME (R), G1100 1
203 33K3740103 REAR FRAME (L), G1100 1
204 33K5841303 N/A 1
205 33K3060103 BASE, G1100 1
205 33K3060113 BASE, G1100 1
206 33K5831003 SPONGE BASE, G1100 1
207 33K5831103 SPONGE BASE 2, G1100 1
208 33K5832003 SPONGE BASE 3, G1100 2
209 0011408200 BOLT & WASHER, G2800R 4
210 33K3010101 MOUNT BASE CPL.,G1100 2
211 0023806000 FLANGE NUT, G6101R 4
212 0110060020 FLANGE BOLT, G2800R 4
213 33K3800103 NUT, G1100 8
214 33K3800503 GROMMET (REAR FRAME), G1100 2
Page 17 of 20 2/8/2008

Parts Breakdown G1100
215 33K3760103 BACK PANEL CPL.,G1100 1
216 33K3610101 MOUNT CPL.,G1100 4
217 0110060180 FLANGE BOLT, G2410R 4
218 0140050100 SCREW, G1100 4

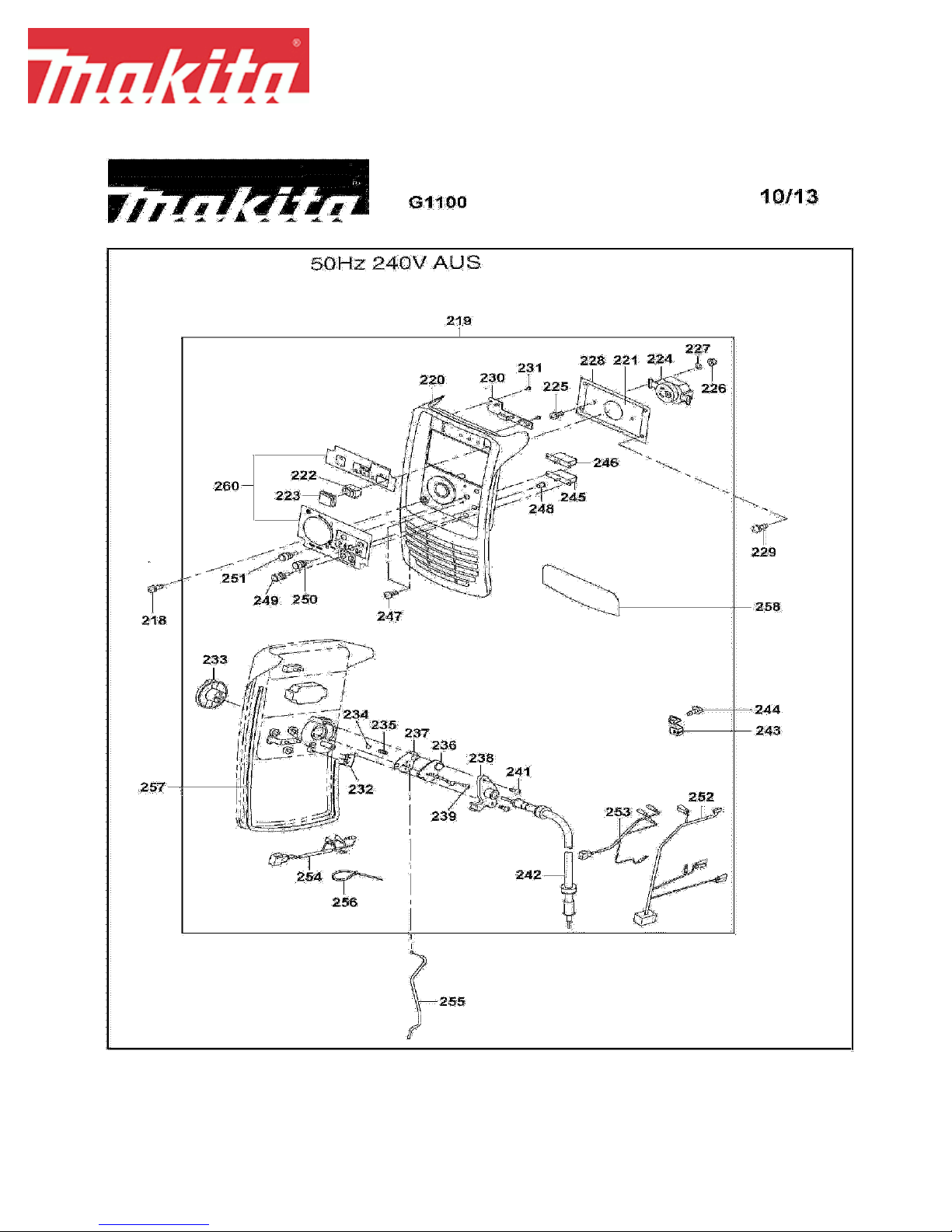

219 33K4809100 CONTROL PANEL ASS'Y, G1100 1
219 33K4809140 CONTROL PANEL ASS'Y, G1100 1
220 33K4010103 FRONT PANEL, G1100 1
221 33K4890603 FILM, G1100 1
222 34K4181203 ROCKER SWITCH, G1100 1
223 33K4181003 SWITCH COVER, G1100 1
224 3888500301 AC RECEPTACLE (125V-20A),G6101R 1
225 3514992008 SCREW & WASHER ASSY(M4X10MM)G12000R 2
226 0021704000 NUT, G2800R 2
228 33K4070603 CONSENT BRACKET, G1100 1
228 33K4070613 CONSENT BRACKET, G1100 1
229 0131040060 SCREW & WASHER ASS'Y, G1100 4
230 KD31101101 LED INDICATOR CPL.,G1100 1
230 KD31101111 LED INDICATOR CPL., G1100 1
231 0150030020 TAPPING SCREW, G1100 2
232 33K4181103 MICRO SWITCH, G1100 1
233 33K4201003 CONTROL DIAL, G1100 1
234 33K4207103 BALL (DIAL), G1100 1
235 33K4207303 SPRING (DIAL), G1100 1
235 33K4207403 SPRING (DIAL), G1100 1
236 33K4202003 CHOKE REEL, G1100 1
237 33K4203003 PLATE, G1100 1
237 33K4203013 PLATE, G2800L 1
237 33K4203023 PLATE, G2800L 1
238 33K4204003 WIRE PLATE, G1100 1
239 0150030010 TAPPING SCREW, G3501R 2
239 0150040070 TAPPING SCREW, G2800R 2
240 0150040090 TAPPING SCREW, G3510R 2
240 33K4181408 TAPPING SCREW, G2800L 2
242 33K4205001 ROLLING WIRE CPL.,G1100 1
242 33K4205011 ROLLING WIRE CPL., G1100 1
243 33K4208003 CHOKE BRACKET, G1100 1
244 0110060010 FLANGE BOLT, G2800R 1
245 33K4183303 CIRCUIT BREAKER (DC), G1100 1
245 3524562008 CIRCUIT BREAKER (10A), G2400R 1
246 33K4183103 CIRCUIT BREAKER, G1100 1
247 0131030010 SCREW & WASHER ASS'Y, G1100 4
248 33K4181703 BREAKER CAP, G1100 2
249 33K4209001 TERMINAL BOLT BLK/RED,G1100 1
249 33K4209001 TERMINAL BOLT BLK/RED,G1100 1
250 3634570108 TERMINAL BOLT(RED), G2800R 1
251 3634570008 TERMINAL BOLT (BLK),G2800R 1
252 33K4182103 PANEL HARNESS, G1100 1
252 33K4182501 PANEL HARNESS, G1100 1
253 33K4181501 CONSENT HARNESS, G1100 1
253 33K4181503 CONCENT HARNESS, G1100 1
254 34K4181603 DC OUT HARNESS, G1100 1
254 34K4181613 DC OUT HARNESS, G1100 1
255 33K4206001 CHOKE WIRE CPL.,G1100 1
255 33K4206021 CHOKE WIRE CPL., G1100 1
256 0563000020 WIRE BAND, G2400R 4
257 33K5841103 SEAL SPONGE F, G1100 1
258 33K9305003 LABEL (FRONT), G1100 1
259 34K9510203 LABEL 2(FRONT), G1100 1
260 33K4023003 FILM INVERTER, G1100 1
260 33K4027003 FILM AVR, G1100 1
262 33K5020103 REAR COVER, G1100 1
Page 18 of 20 2/8/2008

Parts Breakdown G1100
263 0131060030 SCREW & WASHER ASS'Y, G1100 4
264 33K5020501 NUT, G1100 4
264 33K5020503 NUT, G1100 4
265 33K5831803 REAR COVER SPONGE 1, G1100 2
265 33K5831813 REAR COVER SPONGE 1, G1100 2
266 33K5831903 REAR COVER SPONGE 2, G1100 1
266 33K5831913 REAR COVER SPONGE 2, G1100 1
267 33K5130103 CASE BODY R, G1100 1
267 33K5130113 CASE BODY L, G1100 1
268 33K5131103 SIDE PANEL L, G1100 1
269 33K5140103 CASE BODY L, G1100 1
269 33K5140113 CASE BODY R, G1100 1
270 33K5141103 SIDE PANEL R, G1100 1
271 0043606250 SCREW & WASHER ASS'Y, G1100 2
272 0043606200 SCREW ASSEMBLY, RBL500 1
273 33K5050103 BOLT (PANEL), G1100 1
274 33K5050103 BOLT (PANEL), G1100 1
275 33K5830103 SPONGE CASE L, G1100 1
276 33K5830703 SPONGE CASE L 5, G1100 1
277 33K5830503 SPONGE CASE L 3, G1100 1
277 33K5830513 N/A 1
278 33K5830403 SPONGE CASE R 2, G1100 1
278 33K5830403 SPONGE CASE R 2, G1100 1
279 33K5830803 SPONGE CASE L 6, G1100 1
280 33K5830903 SPONGE CASE L 7, G1100 1
281 33K5840803 SPONGE CASE R 6, G1100 1
282 33K5840903 SPONGE CASE R 7, G1100 1
283 33K5830603 SPONGE CASE L 4, G1100 1
284 33K5830203 SPONGE PANEL L, G1100 1
285 33K5830303 SEAL SPONGE L, G1100 1
286 33K5840103 SPONGE CASE R, G1100 1
287 33K5840603 SPONGE CASE R 4, G1100 1
288 33K5840903 SPONGE CASE R 7, G1100 1
289 33K5840803 SPONGE CASE R 6, G1100 1
290 33K5840703 SPONGE CASE R 5, G1100 1
291 33K5840403 SPONGE CASE R 2, G1100 1
292 33K5840503 SPONGE CASE R 3, G1100 1
292 33K5840513 N/A 1
293 33K5840203 SPONGE PANEL R, G1100 1
294 33K5840303 SEAL SPONGE R, G1100 1
295 33K5841003 SEAL SPONGE R 2, G1100 1
296 33K5510103 TANK CAP COVER, G1100 1
296 33K5510113 TANK CAP COVER, G1100 1
297 0031306000 CLIP, G2800R 1
298 0150040090 TAPPING SCREW, G3510R 1
299 33K5300203 SCREW GROMMET, G1100 1
300 33K9004003 LABEL R (MODEL), G1100 1
300 33K9004013 LABEL (MODEL), G1100 1
301 33K9104003 LABEL L (MODEL), G1100 1
301 33K9104013 LABEL MODEL (L), G1100 1
302 33K9204003 LABEL SPEC, G1100 1
303 33K9400403 CAUTION LABEL, G1100 1
303 33K9400413 LABEL (CAUTION), G1100 1
304 0732004520 LABEL(OIL CAUTION), EW210TR 1
305 0732004510 LABEL(SUMBOL-TANK),G1100 1
306 0732004500 LABEL (HOT & GAS), G1100 1
307 34K9211003 LABEL E-CON, G1100 1

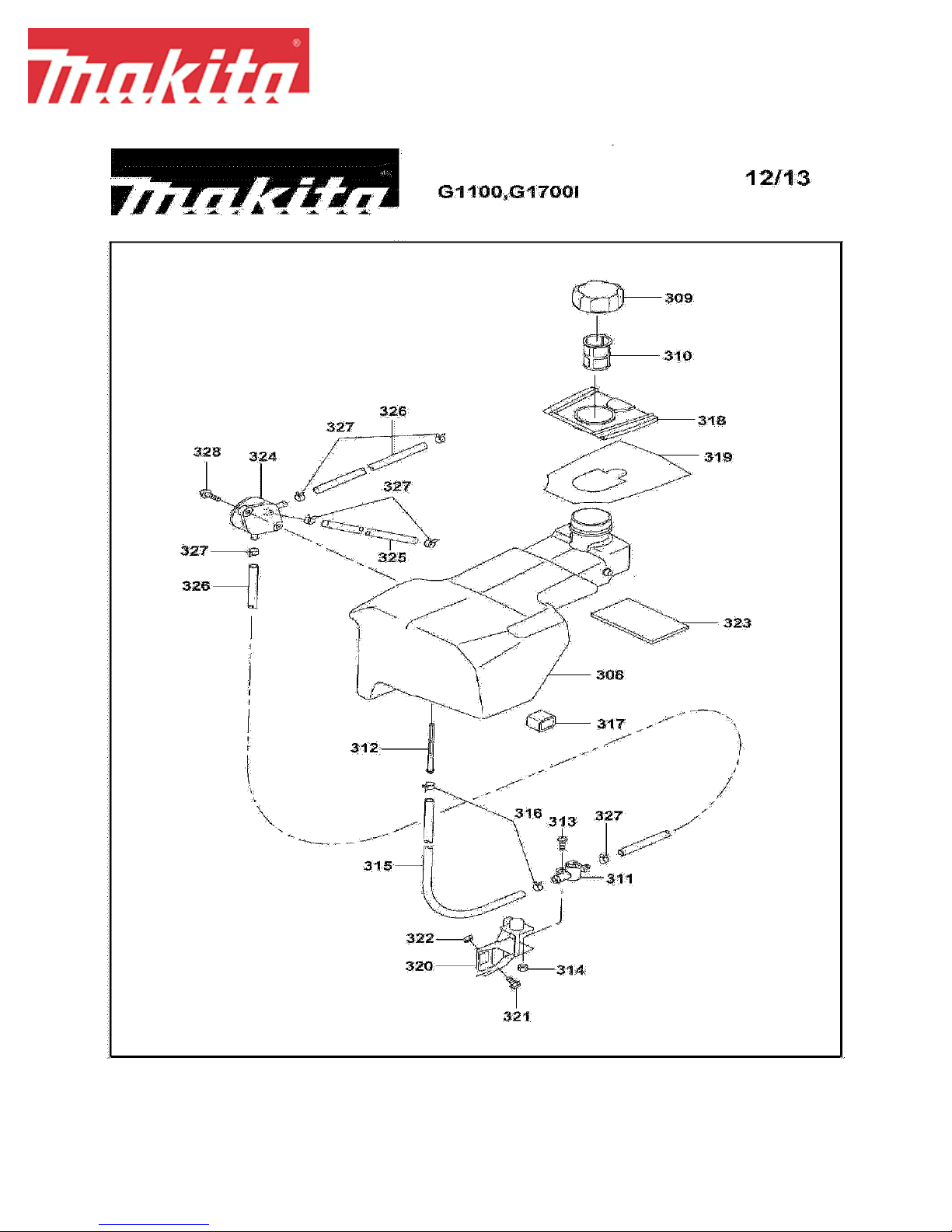

308 33K6110102 FUEL TANK UNIT, G1100 1
308 33K6110112 FUEL TAND UNIT, 1
308 33K6110122 FUEL TANK, G1100 1
309 33K6500101 FUEL TANK CAP CPL.,G1100 1
Page 19 of 20 2/8/2008

Parts Breakdown G1100
309 33K6501000 FUEL TANK CAP CPL., G1100 1
310 33K61201H1 FUEL FILTER CPL.,G1100 1
310 33K61201J1 FUEL FILTER CPL., G1100 1
311 33K6300100 FUEL COCK ASS'Y, G1100 1
311 33K6300110 FUEL COCK ASS'Y, G1100 1
312 33K6140101 FUEL STRAINER, G1100 1
313 0043605120 SCREW ASSEMBLY M5X12, RBC230 1
314 0021805000 NUT, RBC225 1
315 33K6225003 RUBBER PIPE, G1100 1
316 0561130010 HOSE CLAMP, G1100 2
317 33K6410103 TANK MOUNT, G1100 2
318 33K6400103 NECK RUBBER, G1100 1
318 33K6400113 NECK RUBBER, G1100 1
319 33K6420103 NECK RUBBER 2, G1100 1
320 33K6300203 FUEL COCK BRACKET, G1100 1
321 0110060020 FLANGE BOLT, G2800R 1
321 0110060030 FLANGE BOLT, G2800R 1
322 0021706000 NUT, G3511R 1
322 0021906000 NUT, G2400R 1
323 33K5841203 TANK SPONGE, G1100 1
323 33K5841213 TANK SPONGE 80X45X5, G1100 1
324 33K6220100 FUEL PUMP CPL.,G1100 1
325 0851060000 RUBBER PIPE, G2410R,1M 1
326 0851060000 RUBBER PIPE, G2410R,1M 2
327 0561110020 HOSE CLAMP, G2800R 6
327 0561110020 HOSE CLAMP, G2800R 5
328 0150060020 TAPPING SCREW, G1100 2
329 0100080420 BOLT, G1100 1
330 0200080210 WASHER, G1100 1
331 2843290401 STAY BAFFLE CPL., G1100 1
332 2774670103 GASKET (CHOKE), G2800L 1
333 0230060370 SPACER, G1100 1
334 2845360303 CYLINDER BAFFLE (E/G), G1100 1
335 2845360903 SEAL SPONGE BAFFLE 2, G1100 1
336 2845361003 SEAL SPONGE BAFFLE 3, G1100 2
337 33K5832303 SPONGE BAFFLE 4, G1100 1
338 2845360803 SEAL SPONGE BAFFLE, G1100 1
339 0850930000 VINYL PIPE, G1100 1
340 0850930000 VINYL PIPE, G1100 1
341 0850930000 VINYL PIPE, G1100 1
342 2846710103 Y CONNECTOR, G1100 1
343 0569000020 PURSE LOCK ASS'Y, G1100 1
344 2847959111 OIL SENSOR HARNESS CPL., G11OO 1
346 33K5832203 REAR COVER SPONGE 3, G1100 1
347 33K5832403 REAR COVER SPONGE 4, G1100 1
348 0131040091 SCREW WASHER AY, G1100 1
349 0180040000 FLANGE NUT, G1100 1
351 0561100030 HOSE CLAMP, G2400R 1

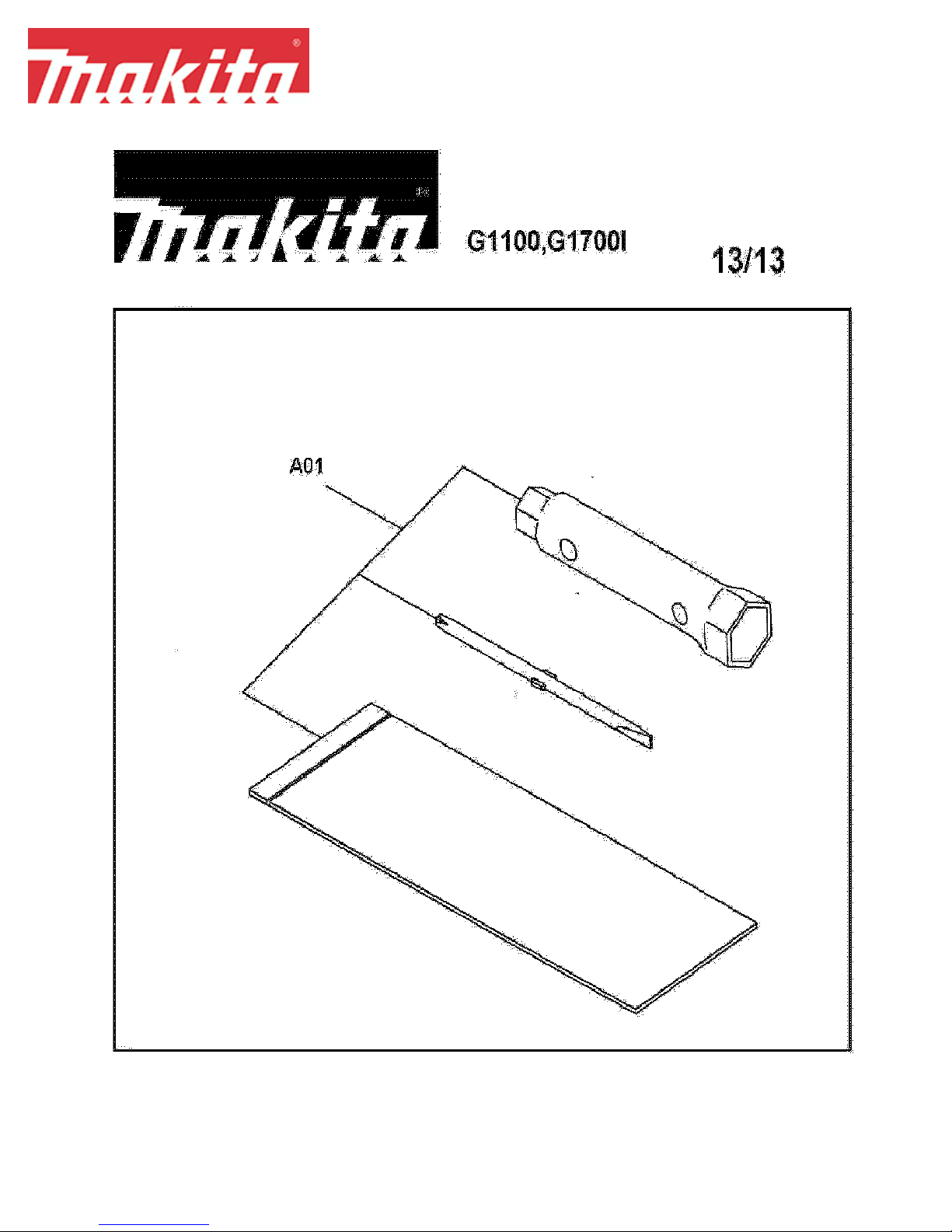

1,001 33K9900100 ACC'Y TOOL KIT, G1100 1
Page 20 of 20 2/8/2008
