Makita G6101R Quick start guide

Parts Breakdown G6101R
Page 1 of 22 2/8/2008

Parts Breakdown G6101R
Page 2 of 22 2/8/2008

Parts Breakdown G6101R
Page 3 of 22 2/8/2008

Parts Breakdown G6101R
Page 4 of 22 2/8/2008

Parts Breakdown G6101R
Page 5 of 22 2/8/2008

Parts Breakdown G6101R
Page 6 of 22 2/8/2008

Parts Breakdown G6101R
Page 7 of 22 2/8/2008

Parts Breakdown G6101R
Page 8 of 22 2/8/2008

Parts Breakdown G6101R
Page 9 of 22 2/8/2008

Parts Breakdown G6101R
Page 10 of 22 2/8/2008

Parts Breakdown G6101R
Page 11 of 22 2/8/2008

Parts Breakdown G6101R
Page 12 of 22 2/8/2008

Parts Breakdown G6101R
Page 13 of 22 2/8/2008

Parts Breakdown G6101R
Page 14 of 22 2/8/2008

Parts Breakdown G6101R
Page 15 of 22 2/8/2008

Parts Breakdown G6101R
Fig # Part ID Part Name Quantity

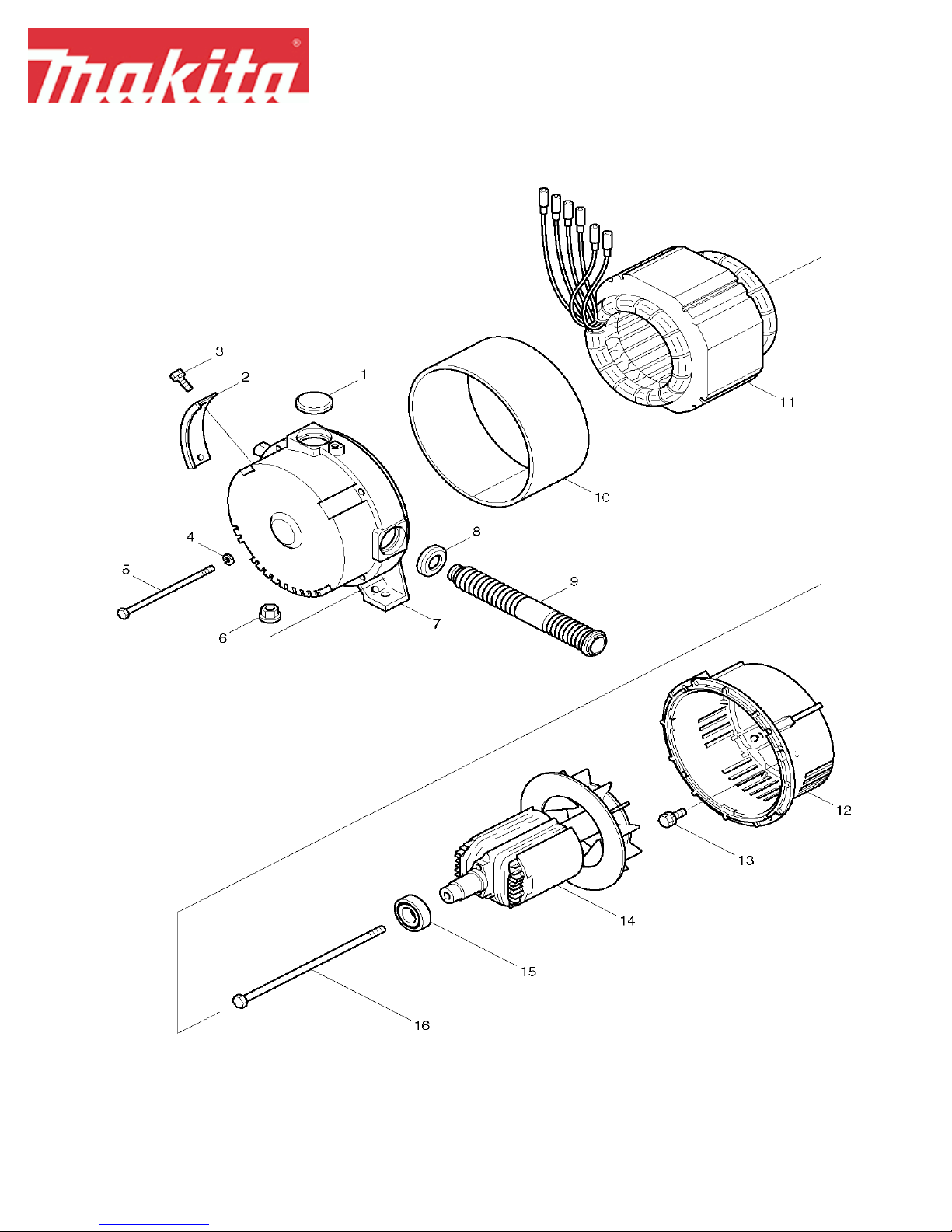

1 3545451408 CAP, G6101R 1
2 3545451308 BRUSH COVER, G6101R 1
3 0152050010 TAPPING SCREW, G3511R 2
4 0032008000 SPRING WASHER, G2800R 4
5 31D5102501 COVER BOLT (M8X160MM),G6101R 4
6 0023808000 FLANGE NUT, G2800R 2
7 31D5102201 REAR COVER, G6101R 1
8 31D5102401 CAP, G6101R 1
9 3912900013 BUSHING, G2800R 1
10 31D5102301 STATOR COVER, G6101R 1
11 31D5112101 STATOR CPL., G6101R 1
12 3545411608 FRONT COVER, G6101R 1
13 0011408200 BOLT & WASHER, G2800R 4
14 3905551101 ROTOR CPL., G6101R 1
15 3545820408 B. BEARING, G5711R 1
16 3555800908 THROUGH BOLT, G6101R 1
17 31D6910101 STOPPER PLATE, G6101R 1
18 31D3130101 PIPE FRAME CPL.,G6101R 1
19 3763910001 SCREW & WASHER, G2800R 1
20 3905441601 EARTH CORD, G5710R 1
21 0021904000 NUT, G5710R 1
22 0032004000 SPRING WASHER, G5711R 1
23 0023808000 FLANGE NUT, G2800R 2
24 0023808000 FLANGE NUT, G2800R 2
25 31C6900103 SPACER, G6101R 2
26 31D3500101 MOUNT, GENERATOR SIDE, G5710R 2
27 31D3500201 MOUNT, ENGINE SIDE, G5710R 2
28 0021706000 NUT, G3511R 2
29 0032006000 SPRING WASHER, G2800R 2
30 3913300321 BATTERY RETAINER, G3511R 1
31 3905445508 BATTERY CORD (+), G5711R 1
32 3895445308 BATTERY CORD (-), G3511R 1
33 3913300411 BATTERY BOLT, G5711R 2
34 0011408200 BOLT & WASHER, G2800R 1
35 3905607618 BATTERY FRAME CPL.,G6101R 1
36 0021706000 NUT, G3511R 2
37 3913300831 BATTERY BASE CPL.,G6101R 1
38 0011106350 BOLT & WASHER, G3511R 2
39 0011106350 BOLT & WASHER, G3511R 2
40 0011408200 BOLT & WASHER, G2800R 1
41 3905607618 BATTERY FRAME CPL.,G6101R 1
42 0021706000 NUT, G3511R 2
43 0011408200 BOLT & WASHER, G2800R 1
44 0011408200 BOLT & WASHER, G2800R 1
45 31D4210101 CONTROL BOX CPL., G6101R 1
46 0241150010 GROMMET, G5500R 1
47 0016505120 BOLT, G5501R 2
48 2147700210 MAGNETIC SWITCH, G6101R 1
49 0021704000 NUT, G2800R 2
50 0011406160 BOLT & WASHER, G2800R 2
51 3888700201 CIRCUIT BREAKER (10A), G5710R 1
52 3634570108 TERMINAL BOLT(RED), G2800R 1
53 3634570008 TERMINAL BOLT (BLK),G2800R 1
54 3534990308 WASHER, G2800R 1
55 3320005008 SPRING WASHER, G2800R 1
56 3534990208 NUT, G2800R 1
57 3320005008 SPRING WASHER, G2800R 1
58 3534990108 WING NUT, G2800R 1
59 0033005000 LOCK WASHER, G2800R 1
60 3888800103 SCREW (M5), G5711R 1
Page 16 of 22 2/8/2008

Parts Breakdown G6101R
61 3534580408 DIODE STACK, G2800R 1
62 0150040070 TAPPING SCREW, G2800R 1
63 0011406160 BOLT & WASHER, G2800R 1
64 3634580308 DIODE STACK, G3511R 1
65 0150030010 TAPPING SCREW, G3501R 1
66 31104701KU N/A 1
67 0043506200 SCREW & WASHER,G5711R . 2
68 0031004000 WASHER, G6101R 2
69 0043504100 SCREW & WASHER, G2800R 1
70 0043504100 SCREW & WASHER, G2800R 1
71 3895998908 SCREW & WASHER, G5711R 1
72 3804753108 CONDENSER BRACKET, G5711R 2
73 0043504100 SCREW & WASHER, G2800R 1
74 3804753108 CONDENSER BRACKET, G5711R 2
75 3904755308 CONDENSER, G6101R 1
76 0660000330 KEY SWITCH, G3511R 1
79 31D4310103 CIRCUIT BREAKER (20A),G6101R 1
80 31D4310203 CIRCUIT BREAKER (30A),G6101R 1
81 3534572408 AC RECEPTACLE, G3510R 1
82 0021704000 NUT, G2800R 2
83 3888500301 AC RECEPTACLE (125V-20A),G6101R 1
84 0033004000 LOCK WASHER,G6101R 1
85 0021703000 NUT, G2800R 2
86 3554561311 SWITCH, G5500R 1
87 3444561508 SWITCH, G3510R 1
88 3898500101 AC RECEPTACLE, G5711R 1
89 3564571108 AC RECEPTACLE, G3510R 1
90 31D4220401 CONTROL PANEL CPL.,G6101R 1
91 3260033508 SPRING WASHER, G3510R 2
92 3565993708 SCREW, G3510R 2
93 3260033508 SPRING WASHER, G3510R 2
94 3565993708 SCREW, G3510R 2
95 3914790011 AC VOLT METER, G5710R 1
96 0043504100 SCREW & WASHER, G2800R 2
97 0031004000 WASHER, G6101R 2
98 3207517308 NEON LAMP (RED), G2800R 1
99 3565993708 SCREW, G3510R 2
100 3260033508 SPRING WASHER, G3510R 2
101 0043703051 SCREW AND WASHER, G6101R 6
103 3534990408 TAPPING SCREW, G2800R 8
104 0145050040 COUNTER HEAD SCREW, G2800R 2
105 0648000300 FUEL GAUGE, G5501R 1
106 0430590010 FUEL TANK CAP, G3510R 1
106 0430590011 FUEL TANK CAP COMPL., G2800R 1
107 0641540011 FUEL FILTER, G6101R 1
108 0110060220 FLANGE BOLT, G2800R 4
109 31D3601301 FUEL TANK CPL., G6101R 1
110 3913900013 RUBBER WASHER, G2800R 4
111 3779250003 LABEL (CAUTION), G2800R 1
112 3889300203 LABEL (STOPPING), G2800R 1
113 0642003601 FUEL STRAINER ASS'Y, EW400TR 1
114 0642000220 FILTER, G2400R 1
115 0642003030 RUBBER PACKING, EW400TR 1
116 0642003610 CAP, EW400TR 1
117 0561110020 HOSE CLAMP, G2800R 1
118 0851060000 RUBBER PIPE, G2410R,1M 1
119 0561110020 HOSE CLAMP, G2800R 1
120 0110060030 FLANGE BOLT, G2800R 1
121 0561110020 HOSE CLAMP, G2800R 1
122 0851060000 RUBBER PIPE, G2410R,1M 1
123 0561110020 HOSE CLAMP, G2800R 1
Page 17 of 22 2/8/2008

Parts Breakdown G6101R
124 31D1200101 MUFFLER COVER 1 CPL.,G6101R 1
125 0011106100 BOLT & WASHER, G2800R 4
126 0150040040 TAPPING SCREW, G2800R 4
127 31D1400101 SPARK ARRESTER, G6101R 1
128 31D1100401 MUFFLER CPL., G6101R 1
129 2343520101 GASKET, COMPL., EXHAUST, EW300TR 1
130 0032008000 SPRING WASHER, G2800R 2
131 0170080030 NUT, STAINLESS STEEL, G2800R 2
132 0011508200 BOLT & WASHER, G2800R 4
133 31D1300103 MUFFLER COVER 2 CPL.,G6101R 1
134 0011106100 BOLT & WASHER, G2800R 4
135 31D1510101 MUFFLER STAY, G6101R 1
135 31D6112501 N/A 1
136 0110100040 FLANGE BOLT, G3510R 4
137 0110060020 FLANGE BOLT, G2800R 4
138 2461550101 ROCKER COVER, G6101R 1
139 2461600203 GASKET (ROCKER COVER), G5710R 1
140 2471310111 CYLINDER HEAD CPL., GE5800 1
140 2471310141 CYLINDER HEAD CPLT., G6100R 1
140 2471310421 CYLINDER HEAD CPL.,G6101R 1
141 2461420203 VALVE GUIDE, G3510R(OVERSIZE) 1
142 2461420203 VALVE GUIDE, G3510R(OVERSIZE) 1
143 0105080290 STUD, G2800R 2
144 0110100020 FLANGE BOLT, G5710R 1
145 0310060020 DOWEL PIN, G2800R 2
146 2471500113 GASKET (HEAD), G5710R 1
146 2471500123 HEAD GASKET, G6100R 1
149 0401140030 PLUG, G2800R 1
150 0211140020 GASKET, G2800R 1
151 2471010221 CRANKCASE, G5710R 1
151 2471010231 N/A 1
152 0310060020 DOWEL PIN, G2800R 1
153 0440350090 OIL SEAL, G5710R 1
154 0600350010 BEARING BB6207C3, G5711R 1
155 0310060020 DOWEL PIN, G2800R 1
156 0600150010 BALL BEARING (BB6202C3), G5710R 1
156 0600150060 BALL BEARING, RBL500 1
157 2461510103 GASKET (BEARING COVER), G5710R 1
158 2054190103 GOVERNOR SLEEVE, G2800R 1
159 2464500101 GOVERNOR GEAR CPL., G5710R 1
160 2246360101 OIL GAUGE CPL., G5711R 1
160 2246360103 OIL GAUGE, G5711R 1
161 0213200050 GASKET, G4300L 1
162 0011308400 BOLT & WASHER ASS'Y, G5710R 7
163 2461100141 MAIN BEARING COVER CPL., G5710R 1
164 0600350010 BEARING BB6207C3, G5711R 1
165 0600150060 BALL BEARING, RBL500 1
165 0600150010 BALL BEARING (BB6202C3), G5710R 1
166 0440350090 OIL SEAL, G5710R 1
167 0401140030 PLUG, G2800R 1
168 0211140020 GASKET, G2800R 1
169 0023808000 FLANGE NUT, G2800R 2
170 0110060030 FLANGE BOLT, G2800R 2
171 2461080103 RUBBER PIPE, G5710R 1
171 2461080113 N/A 1
172 2461430101 BREATHER COVER CPL., G5710R 1
173 2461600603 GASKET (BREATHER COVER), G5710R 1
174 2461440101 BREATHER PLATE CPL., G5710R 1
175 2461600703 GASKET (BREATHER PLATE), G5710R 1

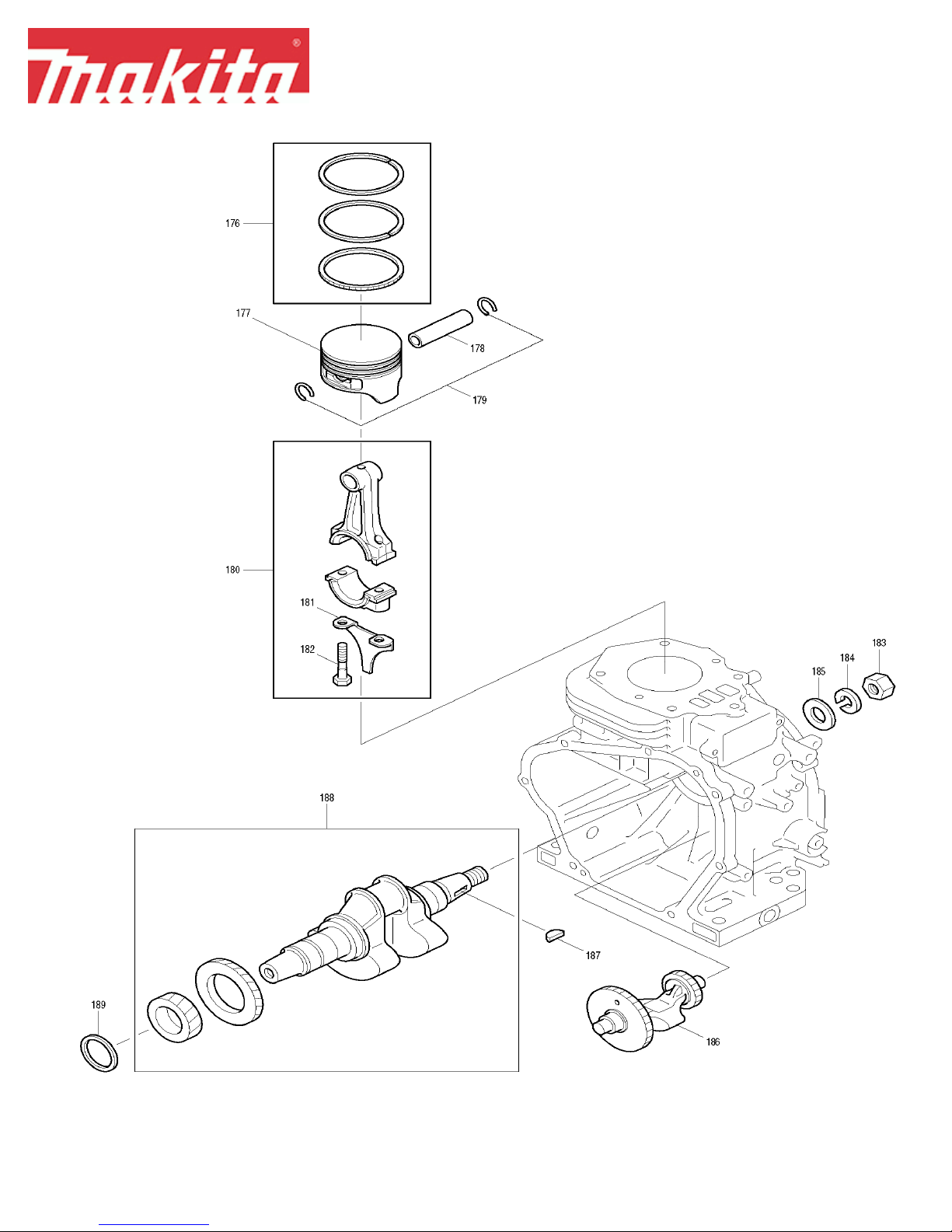

176 2472350117 PISTON RING SET (STD), G5710R 1
176 2472350217 PISTON RING SET (0.25MM), G5710R 1
Page 18 of 22 2/8/2008

Parts Breakdown G6101R
176 2472350317 PISTON RING SET (0.50MM),G5710R 1
177 2472340113 PISTON (FOR STD), G5710R 1
177 24723401H3 PISTON (STD), G5710R 1
177 2472340213 PISTON (OVER SIZE 0.25MM), G5710R 1
177 24723402H3 PISTON (OVER SIZE 0.25MM), G5710R 1
177 2472340313 PISTON (OVER SIZE 0.50MM),G5710R 1
177 24723403H3 N/A 1
178 2462330103 PISTON PIN, G5710R 1
179 0565210020 CLIP, G5710R 2
180 2462250100 CONNECTING ROD ASS'Y, G5710R 1
181 2462310113 OIL SCRAPER, G5710R 1
182 2462300103 CONNECTING ROD BOLT, G3510R 2
182 2462300113 N/A 2
183 0021818000 FLYWHEEL NUT 18MM, G3510R 1
184 0032018000 SPRING WASHER, G3510R 1
185 0031018000 WASHER, G5711R 1
186 2462410223 BALANCER SHAFT, G5710R 1
187 0053205401 WOODRUFF KEY, G5710R 1
188 2462070101 CRANKSHAFT CPL., G5710R 1
189 0230350160 SPACER (T=0.6), G5710R 1
189 0230350170 SPACER (T=0.8), G5710R 1
189 0230350180 SPACER (T=1.0), G5710R 1

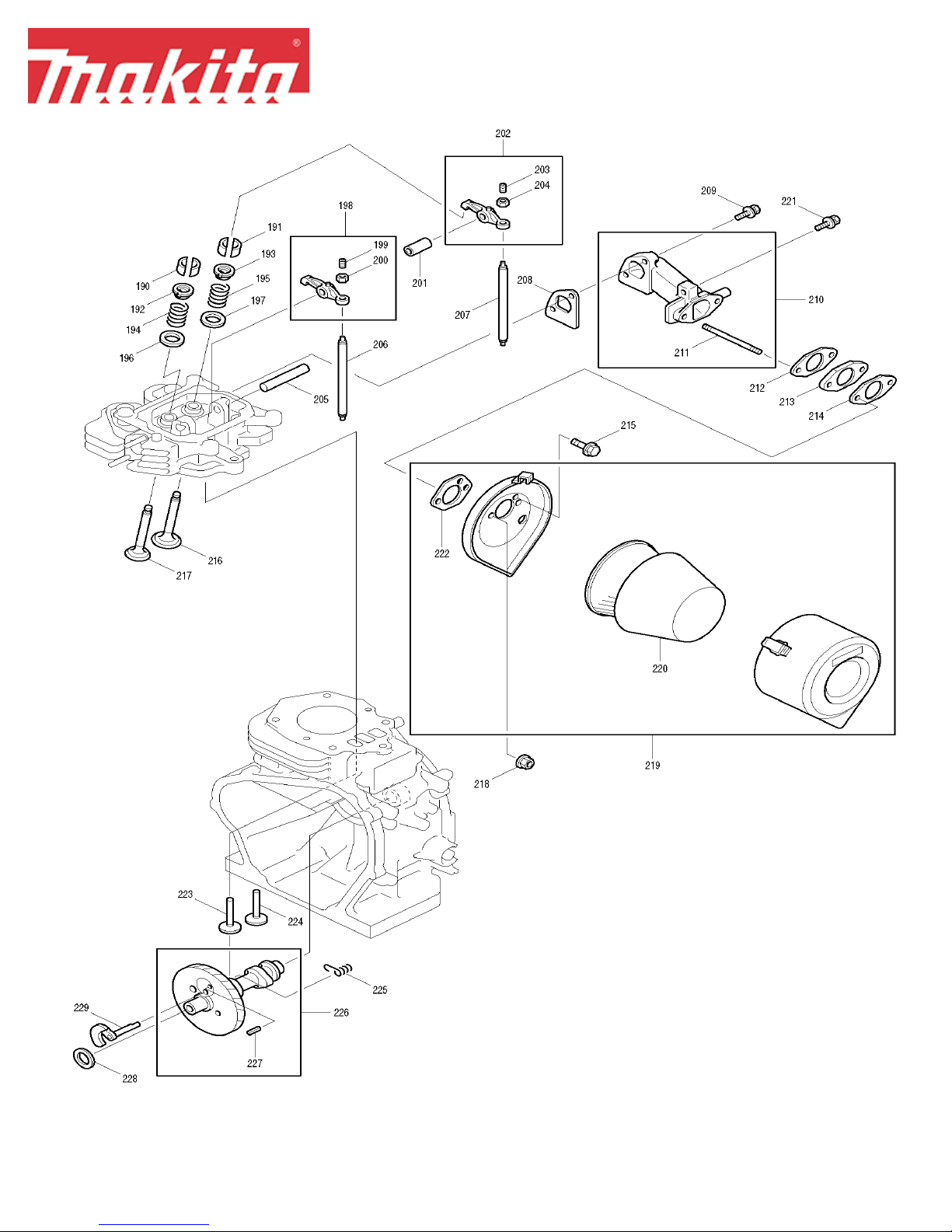

190 2463550103 COLLET VALVE, G5710R 2
191 2463550103 COLLET VALVE, G5710R 2
192 2463371103 SPRING RETAINER, G5710R 1
193 2463371103 SPRING RETAINER, G5710R 1
194 2463361103 VALVE SPRING, G5710R 1
195 2463361103 VALVE SPRING, G5710R 1
196 0200200010 WASHER, G5710R 1
197 0200200010 WASHER, G5710R 1
198 2463610110 ROCKER ARM ASS'Y, G5710R 1
199 0149080021 ADJUSTING SCREW, G5710R 1
200 0170080090 NUT, G5710R 1
201 2463612013 SPACER (ROCKER SHAFT), G5710R 1
202 2463610110 ROCKER ARM ASS'Y, G5710R 1
203 0149080021 ADJUSTING SCREW, G5710R 1
204 0170080090 NUT, G5710R 1
205 2393500103 ROCKER SHAFT, G5710R 1
206 2463530111 PUSH ROD CPL., G5710R 1
207 2463530111 PUSH ROD CPL., G5710R 1
208 2463600113 GASKET (INTAKE PIPE), G5710R 1
209 0011308280 BOLT & WASHER, G3510R 2
210 2463300101 INTAKE PIPE CPL., G5710R 1
211 0105060230 STUD, G5710R 2
212 2343590203 INSULATOR GASKET 2, G3510R 1
213 2463290103 INSULATOR, G5710R 1
214 2343590203 INSULATOR GASKET 2, G3510R 1
215 0011006120 BOLT & WASHER, G3510R 1
216 2463341103 INTAKE VALVE, G5710R 1
217 2463351103 EXHAUST VALVE, G5710R 1
218 0023806000 FLANGE NUT, G6101R 2
219 2543261210 AIR CLEANER ASS'Y, G5710R 1
220 2343260407 CLEANER ELEMENT SET, G3510R-T2 1
221 0011308280 BOLT & WASHER, G3510R 1
222 2343600308 GASKET, G3510R 1
223 2463330103 TAPPET, G5710R 1
224 2463330103 TAPPET, G5710R 1
225 2463670103 RETURN SPRING, G5710R 1
226 2463170101 CAMSHAFT, G5710R 1
227 0051904100 SPRING PIN, G5710R 1
228 0230220050 SPACER (T=0.6), G5710R 1
Page 19 of 22 2/8/2008

Parts Breakdown G6101R
228 0230220060 SPACER (T=0.7), G5710R 1
228 0230220070 SPACER (T=0.8), G5710R 1
229 2463620101 RELEASE LEVER CPL., G5710R 1
229 2463620111 N/A 1
230 2464220123 GOVERNOR SHAFT, G6101R 1
231 0031306000 CLIP, G2800R 2

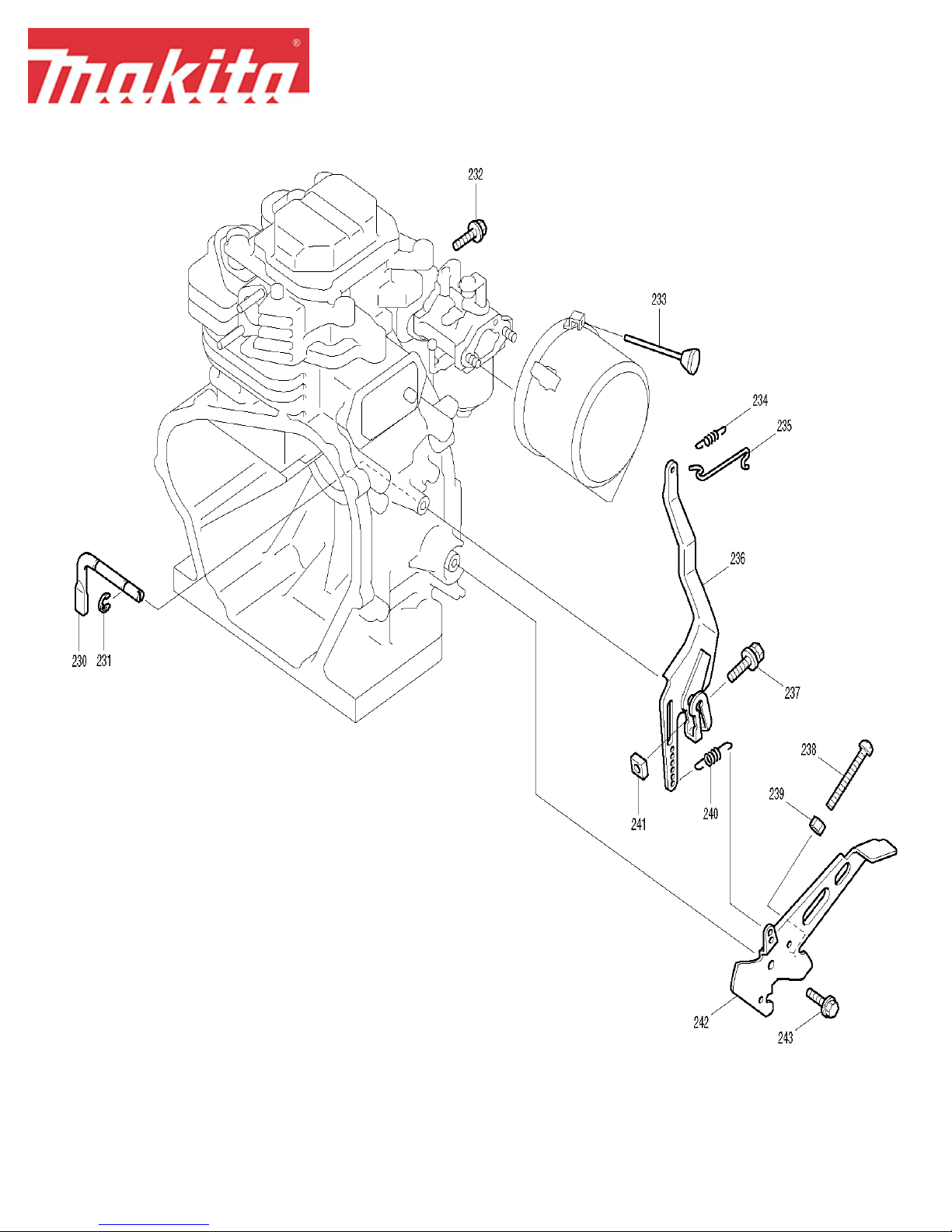

232 0110060010 FLANGE BOLT, G2800R 1
233 2464500601 KNOB CPL., G5710R 1
234 2464280113 ROD SPRING CPL., G5710R 1
235 2344270301 GOVERNOR ROD, G5710R 1
236 2464230401 GOVERNOR LEVER CPL., G5710R 1
236 2464230411 N/A 1
237 0011406250 BOLT & WASHER, G2800R 1
238 0043105350 P.H. SCREW, G5710R 1
239 0021705000 NUT M5, EW110R 1
240 2464250123 GOVERNOR SPRING, G5710R 1
241 0186060020 NUT, G2800R . 1
242 2464330113 SPEED CONTROL CPL.,G6101R 1
242 2464331003 N/A 1
243 0011008160 BOLT & WASHER, G2800R 1

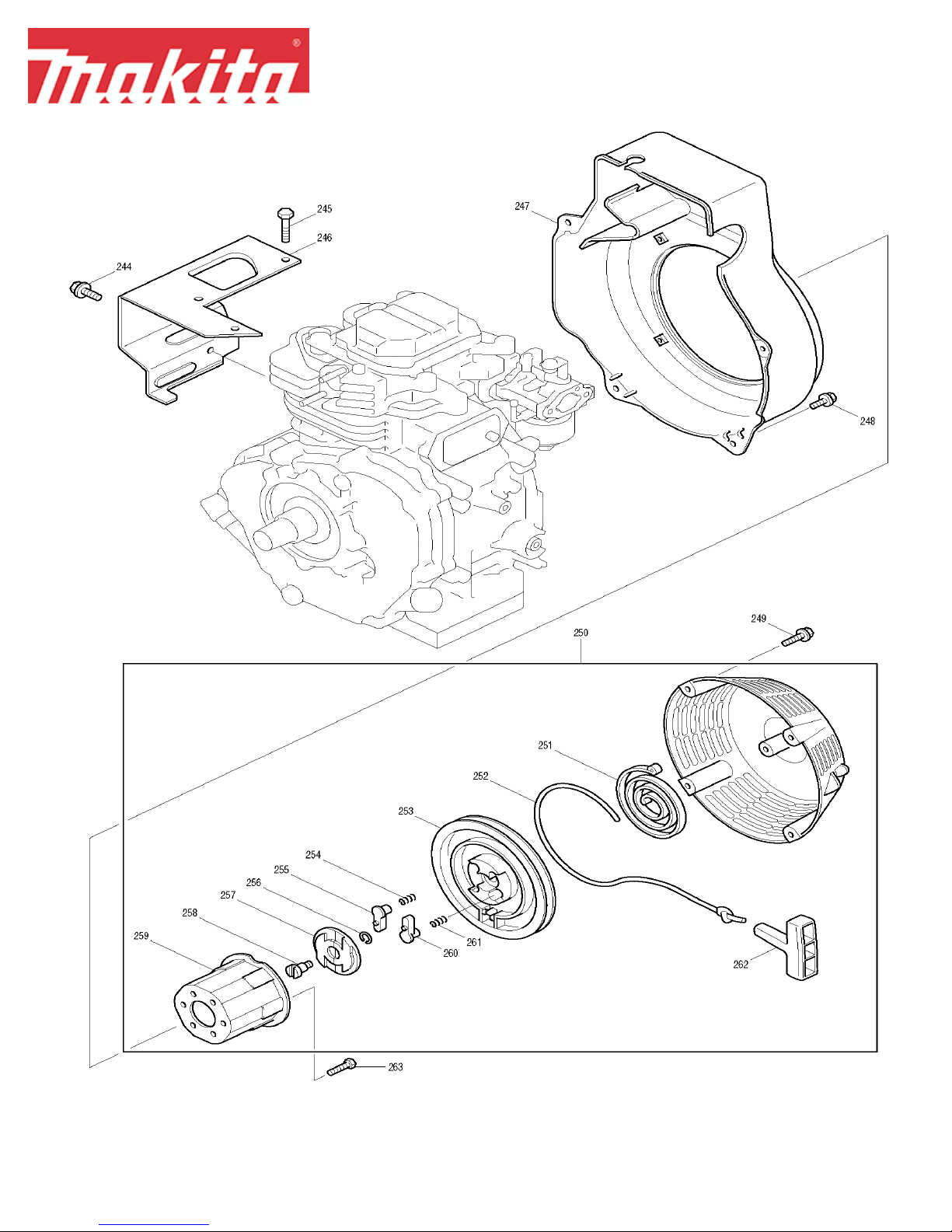

244 0110060010 FLANGE BOLT, G2800R 2
245 0016510160 BOLT, G5710R 2
246 2465270603 CYLINDER BAFFLE, G6101R 1
247 2465121501 BLOWER HOUSING CPL., G5710R 1
248 0110060010 FLANGE BOLT, G2800R 4
249 0110060010 FLANGE BOLT, G2800R 4
250 2465020120 RECOIL STARTER ASS'Y, G5710R 1
250 2465020130 N/A 1
251 2615011508 SPIRAL SPRING, GE5800 1
251 2465011508 SPIRAL SPRING, G6101R 1
252 2355011008 STARTER ROPE, G6101R 1
252 1065011308 ROPE, G3511R 1
253 2465012008 REEL, G6101R 1
254 2275013508 RETURN SPRING, G2410R 1
255 2465012508 RATCHET, G6101R 1
256 2465013008 FRICTION SPRING, G6101R 1
257 2465016008 RATCHET GUIDE, G6101R 1
258 2275015208 SET SCREW, G2800R 1
259 2465014708 STARTER PULLEY, G6101R 1
260 2465012508 RATCHET, G6101R 1
261 2275013508 RETURN SPRING, G2410R 1
262 2365010108 STARTER KNOB, G2410R 1
262 2615010008 STARTER KNOB, G4100R 1
263 0016508120 HEX BOLT, G5711R 3
264 2466245508 BOLT, G6101R 1
265 2346252508 CHOKE VALVE, G3500R 1
266 2376245108 SCREW, G6101R 2
267 2346252108 CHOKE LEVER, G3510R 1
268 2396256008 RING (CHOKE), G5710R 1
269 2366268008 SEAL, G5710R 1
270 2476255008 CAP, G5710R 1
271 2266255008 RING, G2410R 1
272 2466255108 CAP, G5710R 1
273 2466243608 PILOT SCREW, G5710R 1
274 2096244508 SPRING, G2800R 1
275 2476242008 PILOT JET (#42.5), G5710R 1
276 2096235108 SCREW ASS'Y, G5711R 2
277 2136253508 THROTTLE VALVE, G5710R 1
278 2466253108 THROTTLE SHAFT ASS'Y, G5710R 1
279 1566235108 PACKING, G5710R 1
280 1066239208 SEAL, G5710R 1
Page 20 of 22 2/8/2008
