Makita 3703 User manual

TLimmer
Collet chuck capacity
114”
1/4” MODEL 3703
Overall length Net weight
No load speed
(RPMI
30,000 247 mm (9-23132”) 1.5 kg (3.3 lbsl
INSTRUCTION MANUAL
DOUBLE
INSULATION

IMPORTANT
SAFETY INSTRUCTI
0 N S
(For All Tools)
WARNING: WHEN USINGELECTRICTOOLS, BASIC SAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDINGTHE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
a.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well
lit. Don't expose power tools torain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, tools should be stored indry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will dothejob better andsafer atthe ratefor which
it was intended.
USE RIGHT TOOL. Don't force
small tool or attachment todo the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothingorjewelry. They canbecaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask
if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise
to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspecttool cords periodicallyand
if damaged, have repairedbyautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, beforeservicing, andwhen changing
accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removed from tool beforeturning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool with finger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When toolis usedoutdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintendedfunction. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual.Havedefective switchesreplacedby authorized service center. Don't
use tool
if switch does not turn it on and off.
19. GUARD AGAINST ELECTRICSHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENT PARTS. When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Beforeconnecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY to the user
- as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

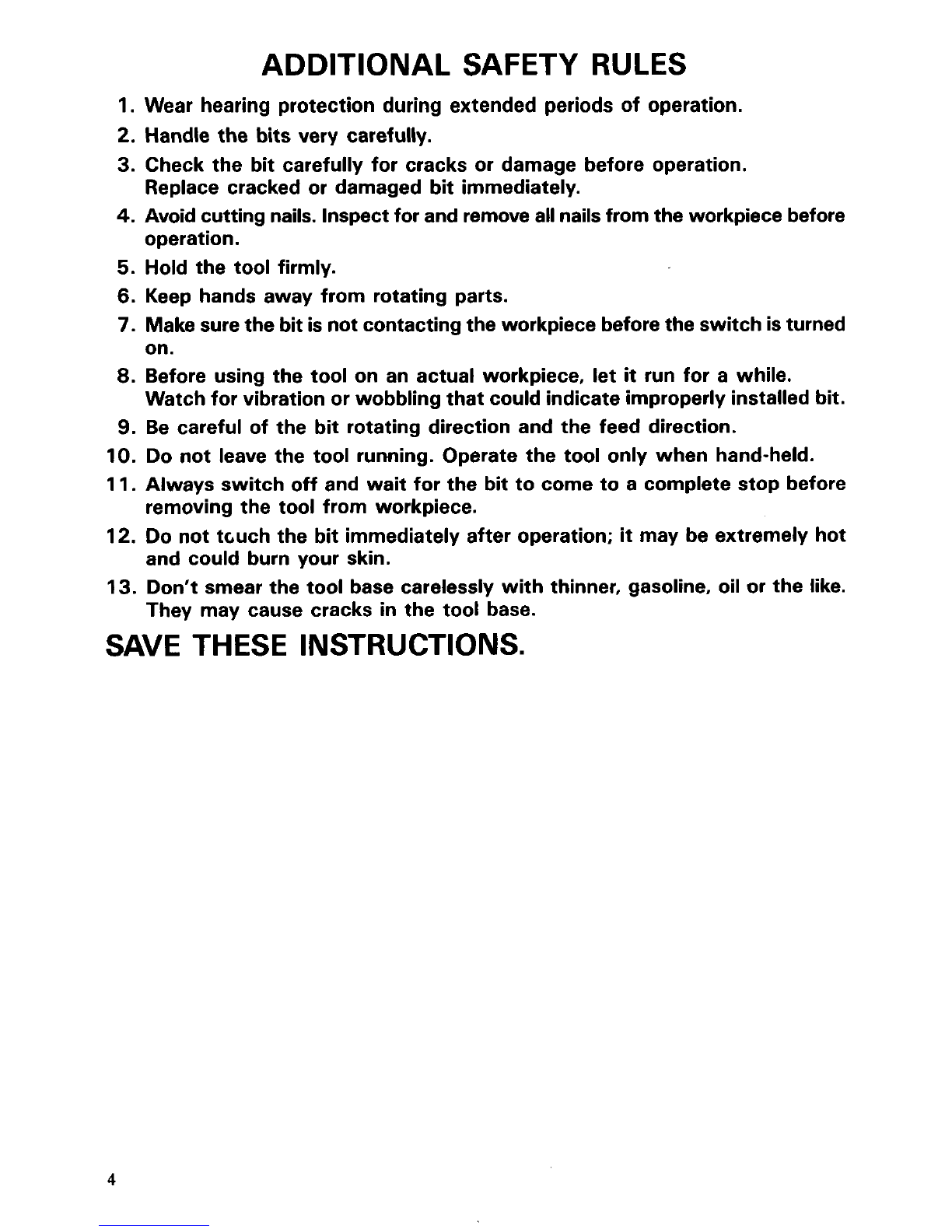

ADDITIONAL SAFETY RULES
1. Wear hearing protection during extended periods of operation.
2. Handle the bits very carefully.
3. Check the bit carefully for cracks or damage before operation.
4. Avoid cutting nails. Inspectfor and removeall nailsfrom the workpiece before
5. Hold the tool firmly.
6. Keep hands away from rotating parts.
7. Makesurethe bit isnotcontactingtheworkpiece beforethe switch isturned
8. Before using the tool on an actual workpiece, let it run for a while.
9. Be careful of the bit rotating direction and the feed direction.
Replace cracked or damaged
bit immediately.
operation.
on.
Watchfor vibration or wobblingthat couldindicateimproperly installed
bit.
IO. Do not leave the tool running. Operate the tool only when hand-held.
11. Always switch off and wait for the bit to come to a complete stop before
12. Do not tcuch the bit immediately after operation; it may be extremely hot
13. Don’t smear the tool base carelessly with thinner, gasoline, oil or the like.
removing the tool from workpiece.
and could burn your skin.
They may cause cracks
in the tool base.
SAVE THESE INSTRUCTIONS.
4

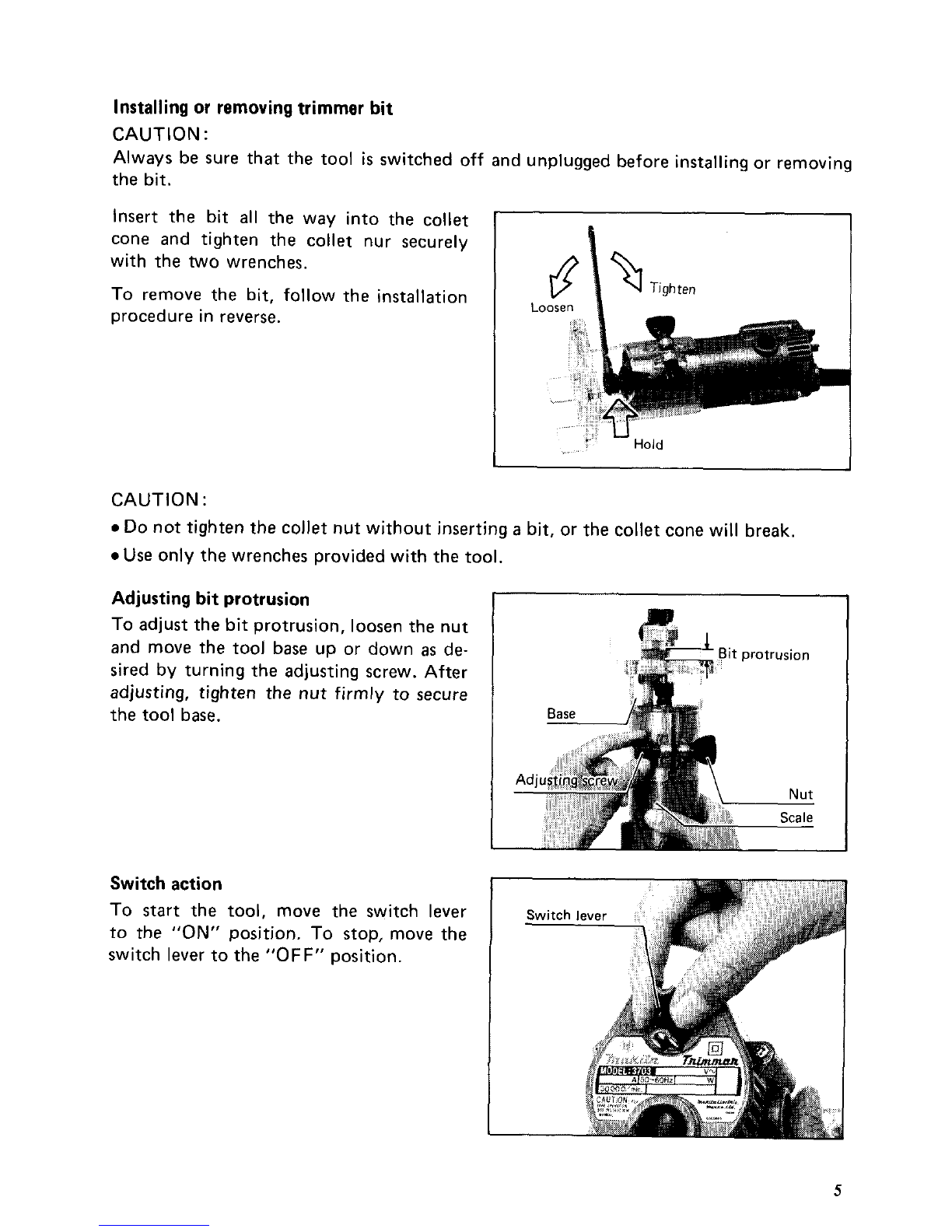

Installing or removingtrimmer bit
CAUTION :
Always be sure that the tool is switched off and unplugged before installing or removing
the bit.
Insert the bit all the way into the collet
cone and tighten the collet nur securely
with the
two wrenches.
To remove the bit, follow the installation
procedure in reverse.
CAUTION
:
0 Do nottighten the collet nut without inserting a bit, or the collet cone will break.
0 Use only the wrenches providedwith the tool.
Adjustingbit protrusion
To adjust the bitprotrusion, loosen the nut
and move the tool
base up or down as de-
sired by turning the adjusting screw. After
adjusting, tighten the nut firmly to secure
the tool base.
Switch action
To start the tool, move the switch lever
to the "ON" position. To stop, move the
switch lever tothe
"OFF" position.
5

Operation
.Set the tool base on the workpiece to be cut without the bit makingany contact. Then
turn the tool on and wait until the bitattainsfull speed. Move the tool forward over the
workpiece surface, keepingthe tool base flush and advancing smoothly until the cutting
is complete.
0 When doing edge cutting, the workpiece surface should be on the left side of the bit in
the feed direction.
(See the figure below)
Feed direction
Bit revolvingdirection
(View
from the top of the tool)
Bit revolving
I
Correct bit feed direction
NOTE :
0 Moving the tool forward too fast may cause a poor quality of cut, or damage tothe bit
or motor. Moving the tool forward too slowly may burn and mar the cut. The proper
feed rate will depend on the bit
size, the kind of workpiece and depth of cut. Before
beginning the cut on the actual workpiece,
it is advisable to make a sample cut on a
piece of scrap lumber. This will show exactly how the cut will look as well as enable you
to check dimensions.
0 When using the trimmer shoe, the straightguide or the trimmer guide, be sure tokeep it
on the rightside in the feed direction. This will help to keep it flush with the side of the
workpiece.
Bit revolvingdirection
I
Workpiece
Feed direction
Trimmer shoe,
straight guideor
trimmer guide
I
CAUTION :
Since excessive cutting may cause overload of the motor or difficulty in controlling the
tool, the depth of cut should not be more than
3 mm (1/8") at a pass when cutting
grooves. When you wish to cut grooves more than
3 mm (1/8") deep, make several passes
with progressively deeper bitsettings.
6

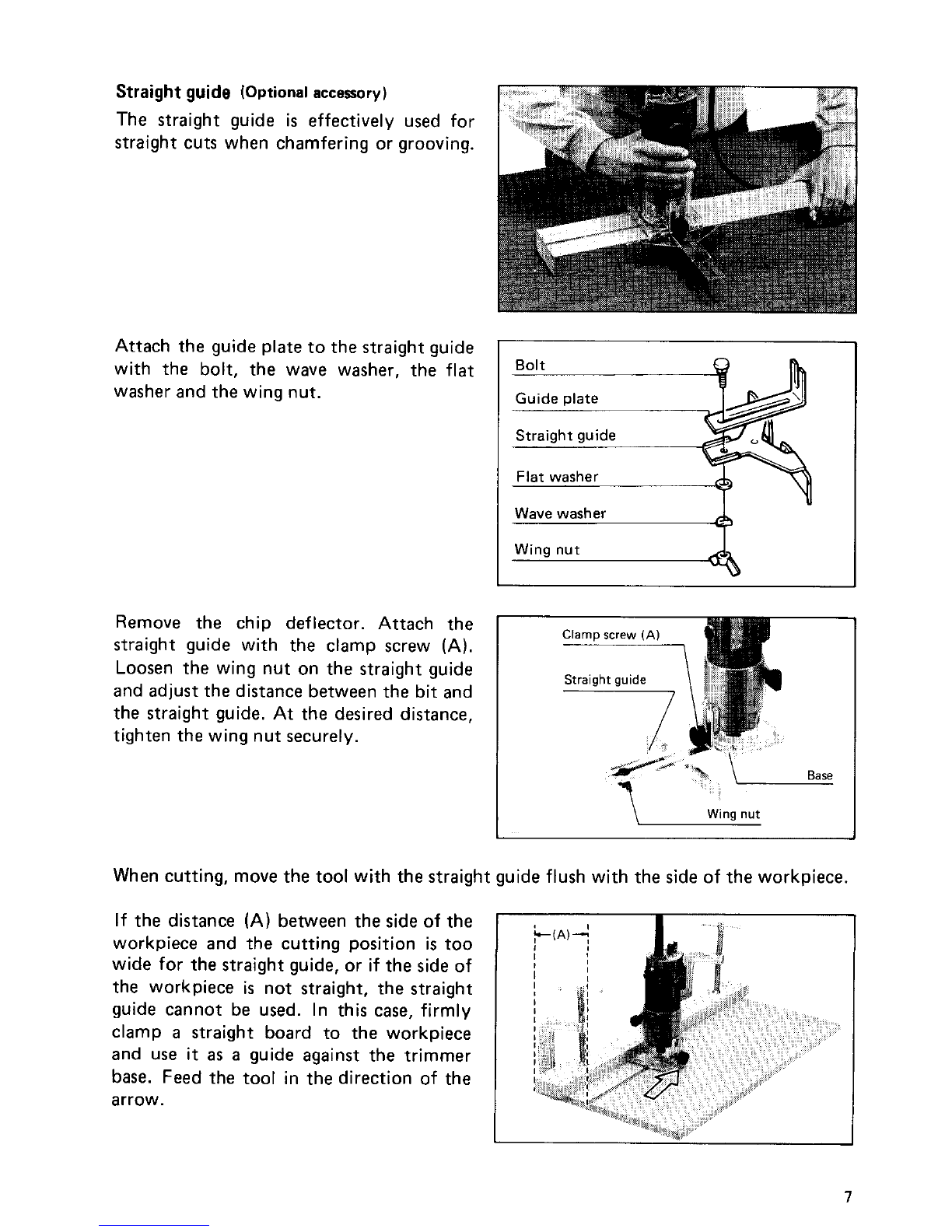

Straight guide (Optional accessory)
The straight guide is effectively used for
straight cuts when chamfering or grooving.
Attach the guide plate tothe straight guide
with the bolt, the wave washer, the flat
washer and the wing nut.
Remove the chip deflector. Attach the
straight guide with the clamp screw (A).
Loosen the wing nut on the straight guide
and adjust the distance between the bit and
the straight guide. At the desired distance,
tighten the wing nut securely.
Wave washer
1~Ki-i -
\ Wing nut
I
When cutting, movethe tool with the straight guide flush with the side of the workpiece.
If the distance
(A) between the side of the
workpiece and the cutting position
is too
wide for the straight guide, or ifthe side of
the workpiece
is not straight, the straight
guide cannot be used. In this case, firmly
clamp
a straight board to the workpiece
and use
it as a guide against the trimmer
base. Feed the tool in the direction of the
arrow.
7

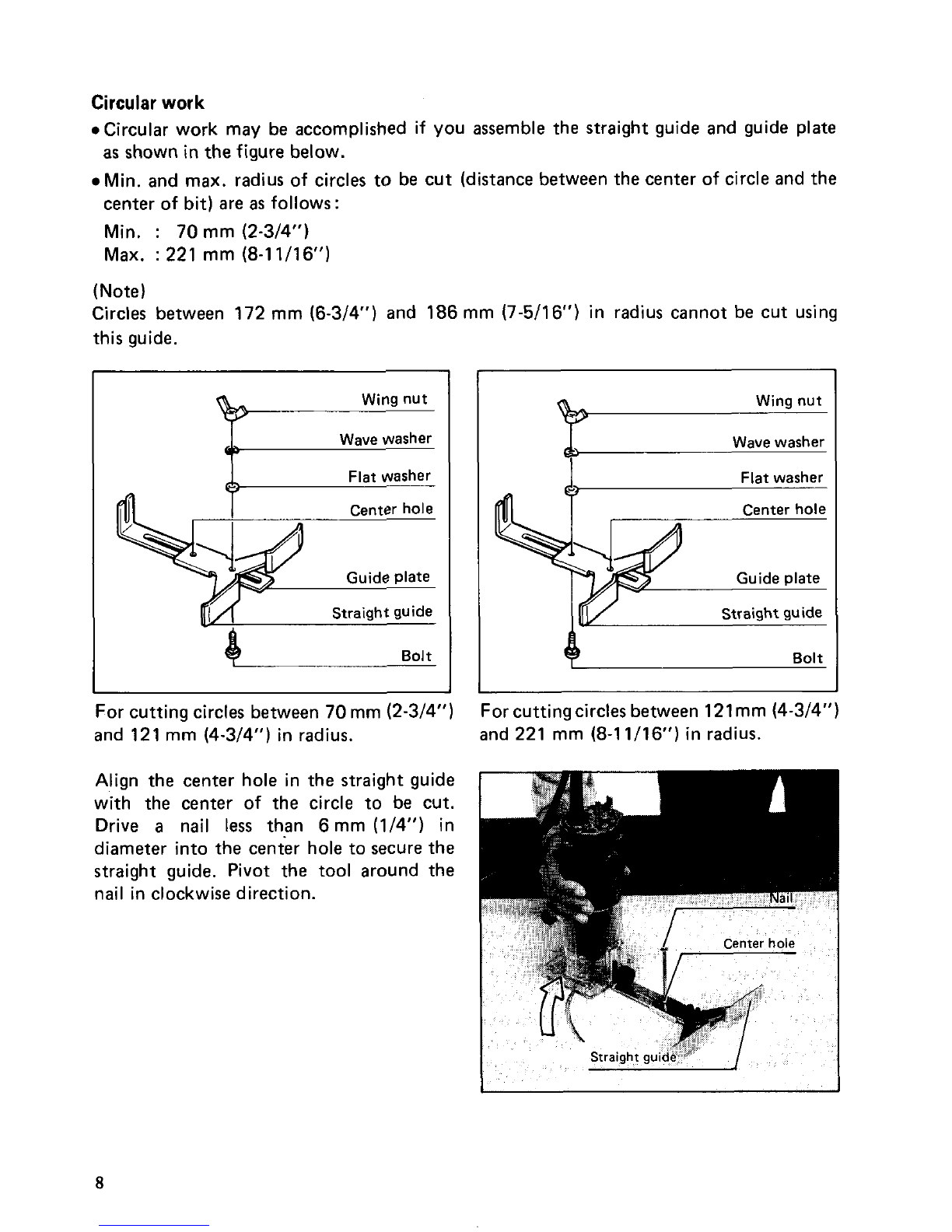

Circular work
0 Circular work may be accomplished if you assemble the straight guide and guide plate
0 Min. and max. radius of circles to be cut (distancebetweenthe center of circle and the
as shown in the figure below.
center of bit)are
as follows :
Min. : 70mm (2-3/4")
Max.
: 221 mm (8-11/16")
(Note)
Circles between 172mm (6-3/4") and 186mm (7-5/16") in radius cannot
be cut using
this guide.
A
Flat washer
Center hole
Guide plate
Straight guide
Bolt
Wing nut
Wave washer
Center hole
For cuttingcircles between70mm (2-3/4")
and 121mm (4-3/4") in radius. Forcuttingcirclesbetween121" (4-3/4")
and 221 mm (8-11/16") inradius.
Align the center hole in the straight guide
with the center of the circle to be cut.
Drive
a nail less than 6 mm (1/4") in
diameter into the center hole to secure the
straight guide. Pivot the tool around the
nail in clockwise direction.
8

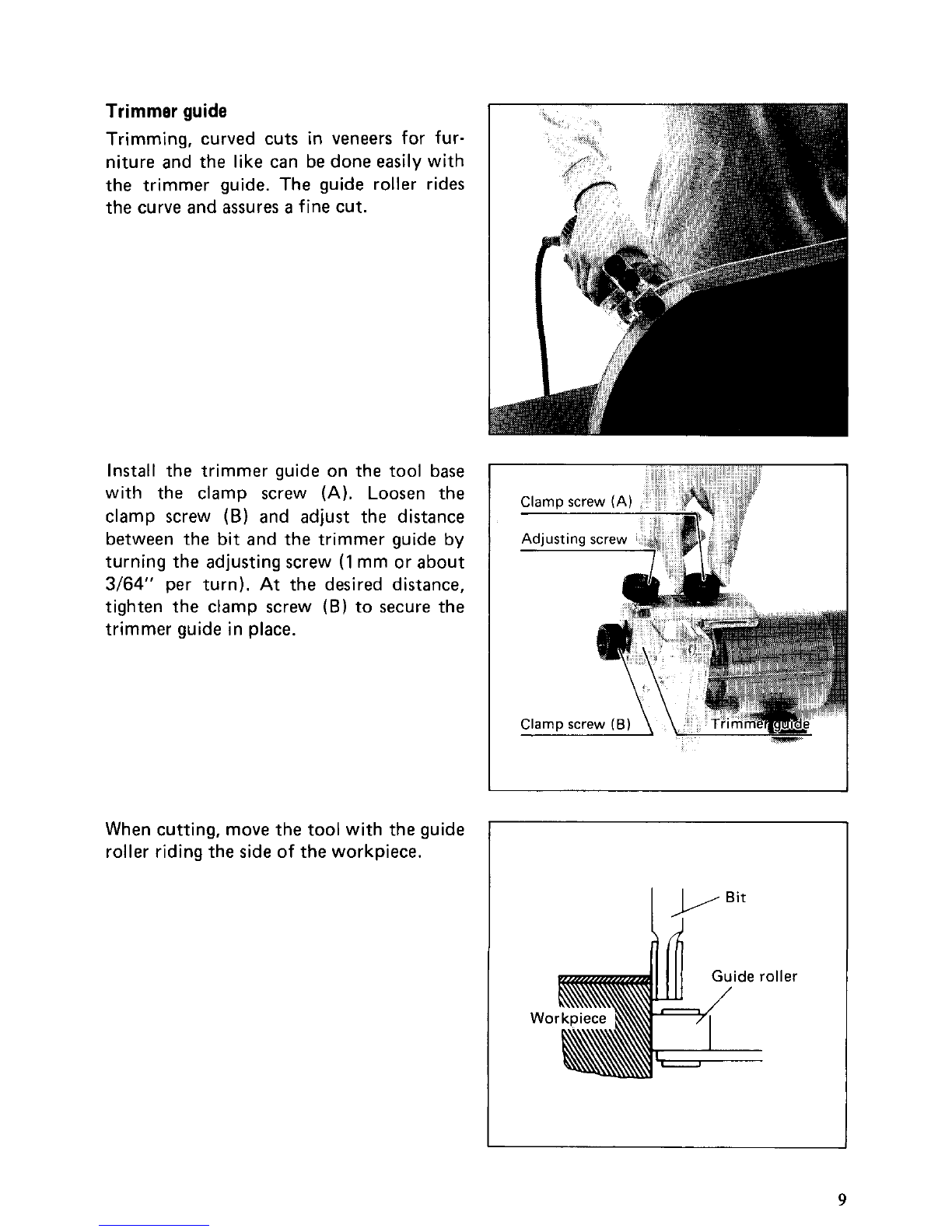

Trimmer guide
Trimming, curved cuts in veneers for fur-
niture and the like can be done easilywith
the trimmer guide. The guide roller rides
the curve and assures
a fine cut.
Install the trimmer guide on the tool base
with the clamp screw (A). Loosen the
clamp screw
(B) and adjust the distance
between the bit and the trimmer guide by
turning the adjusting screw
(1 mm or about
3/64" per turn). At the desired distance,
tighten the clamp screw
(B) to secure the
trimmer guide inplace.
When cutting, move the tool with the guide
roller ridingthe side of the workpiece.
9

Templet guide
The templet guideprovides a sleeve through
which the bit passes, allowing use of the
trimmer with templet patterns.
Remove the chip deflector. Loosen the
screws and remove the base protector.
Place the templet guide on the base and re-
place the base protector. Then secure the
base protector by tightening the screws.
Secure the templet tothe workpiece. Place
the tool on
the templet and movethe tool
with the templet guide sliding along the
side of the templet.
Base Drotector
1 Straight bit
4 I Templet guide 10
Distance (X)
Workpiece 10 mm
lL (25/64")
NOTE :
The workpiece will be cut a slightly different size from the templet. Allow for the dis-
tance
(X) between the router bit and the outside of the templet guide. The distance (X)
can be calculated by usingthe followingequation :
Distance (X) =
outside diameter of the templet guide - router bitdiameter
2
10

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection or maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
I
regularly. Replacewhen they wear downto
the limit mark. Keep the carbon brushes
clean and free to slip in
the holders. Both
carbon brushes should be replaced
at the
same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brush holder caps.
/
Limit mark
Screwdriver
Brush holder cap
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
always using Makita replacement parts.
11

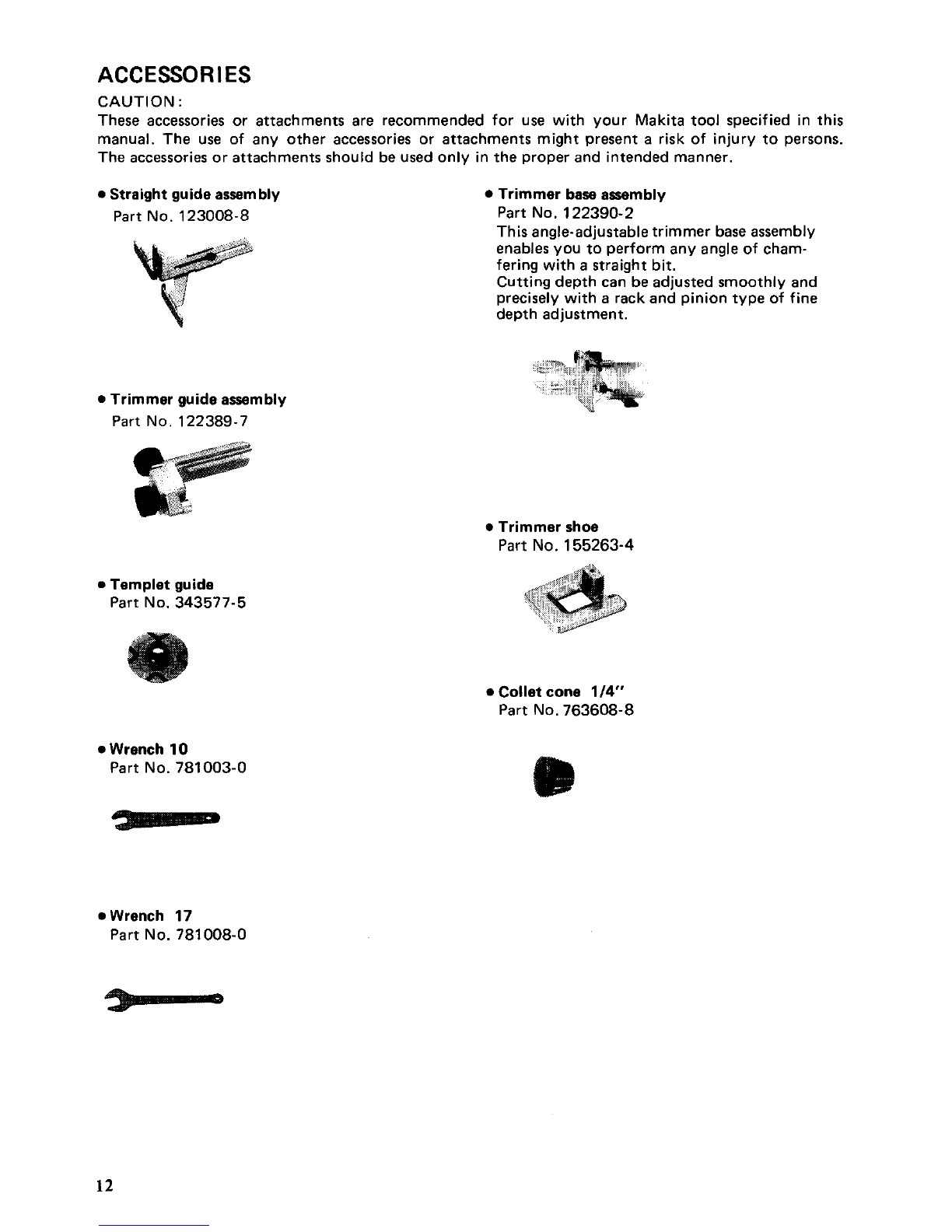

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should be used only in the proper and intendedmanner.
0 Straight guide assembly
Part No. 123008-8
0 Trimmer guide assembly
Part
No. 122389-7
0 Templet guide
Part
No. 343577-5
0 Wrench 10
Part No. 781003-0
*Wrench
17
Part No. 781008-0
Trimmer base assembly
Part
No. 122390-2
Thisangle-adjustabletrimmer base assembly
enables
you to performany angle of cham-
fering with
a straight bit.
Cuttingdepth can
be adjusted smoothly and
precisely with
a rack and pinion type of fine
depth adjustment.
0 Trimmer shoe
Part
No. 155263-4
0 Collet cone 1 /4"
Part No. 763608-8
12

Bits
STRAIGHT -Single Flute
HIGH SPEED STEEL
PART NO. A
B
C D E
7332328A 1
/8 5/16 1-1/8 1/4 1-518
STRAIGHT - 2 Flute
CARBIDE TIPPED
PART
NO. A B C D E
733003-2A 3/16 7/16 1-3/8 114 2
733003-4A 114 3/4 1-3/16 114 2-1/8
733003-EA 5/16 1 1-1/8 114 2-3/16
HIGHSPEED STEEL (STRAIGHT
- 2 Flute)
PART NO. A B
C D E
7332334A 5/16 7/8 1-3/16 1/4 2-1/8
HINGE MORTISING
CARBIDE TIPPED
PART NO. A
B
C D E
733006-9A 1 /2 1 /2 1-1/16 1/4 1-13/16
I I
VEINING -Single Flute
SOLID CARBIDE
I PARTNO A B C D E I
I 733007-8A 3/16 7/32 1-114 114 1-112 I
13

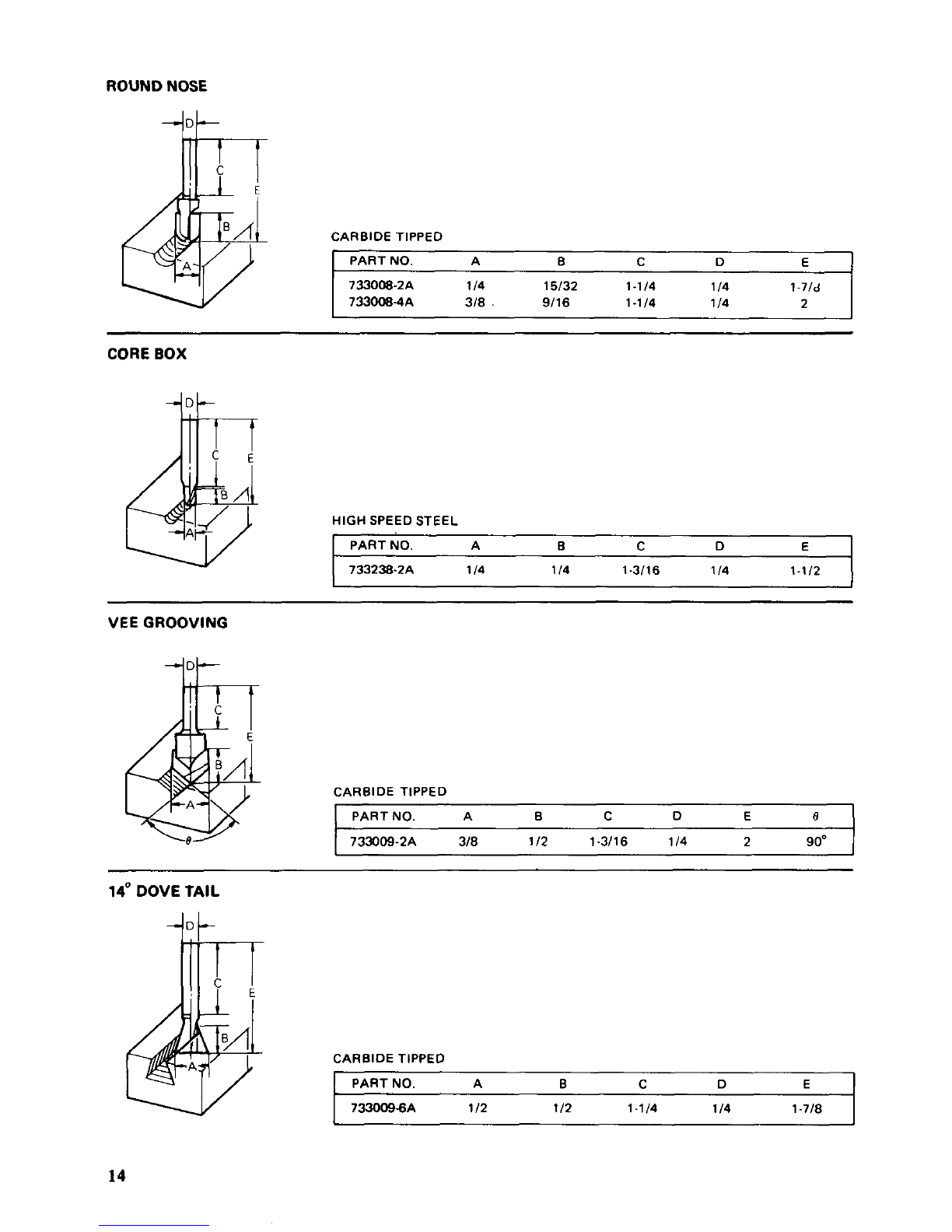

ROUNDNOSE
-I+
CARBIDE TIPPED
PART
NO.
A B
C D E
733008-2A
1 I4 15/32 1-114 114 1-7lJ
7330084A 318 9/16 1-114 1I4 2
CORE BOX
4DC
HIGH SPEED STEEL
PART NO. A
B C
D E
733238-2A
1 I4 114 1-3116
1 I4 1-112
VEE GROOVING
CARBIDE TIPPED
PART
NO. A E C D E e
733009-2A 318 112 1-3/16 114 2 90"
14' DOVE TAIL
4DC
CARBIDE TIPPED
PART NO. A
B C D E
7330096A 112 112 1-114
1 I4 1-718
14

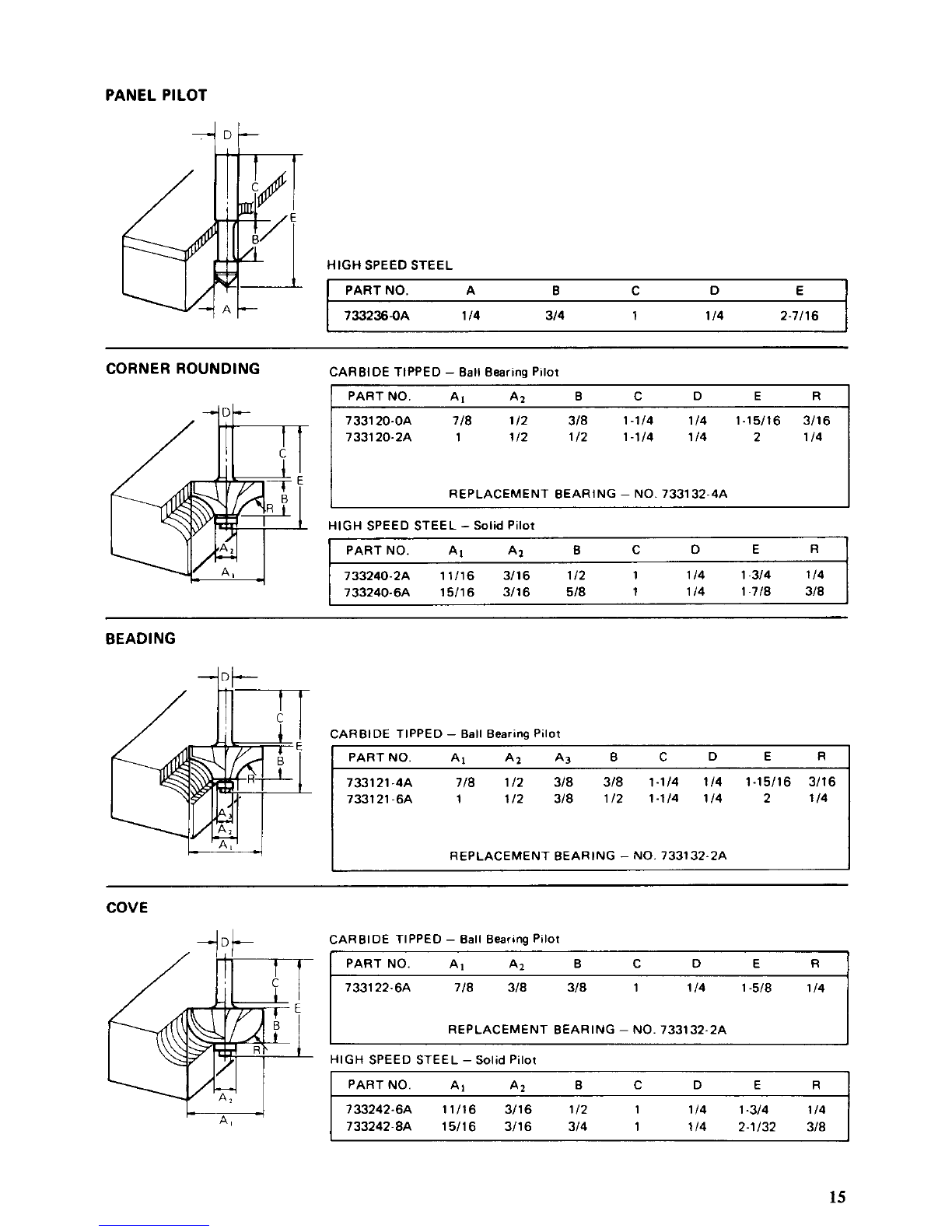

PANEL PILOT
HIGH SPEED STEEL
PART NO. A B C
D E
733236-0A 1/4 3/4 1 1/4 2-7/16
CORNER ROUNDING
CARBIDE TIPPED - Ball Bearing Pilot
733120-OA 718 1/2 3/8 1-1/4 1-15/16 3/16
733120-2A 112 1/2 1-1/4 1/4 1/4
REPLACEMENT BEARING
- NO 733132-4A
HIGH SPEED STEEL
- Solid Pilot
PARTNO. Ai AI
8
C D
E R
733240-2A 11/16 3/16 112 1 1/4 1-3/4 1/4
733240-6A 15/16 3/16 5/B 1 1/4 1-7B 3/8
BEADING
CARBIDE TIPPED - Ball BearingPilot
733121-4A 7/8 1/2 3/8 318 1-1/4 1/4 1-15/16 3/16
733121-6A 1/2 3/8 l/Z 1-1/4 1/4 1/4
REPLACEMENT BEARING
- NO. 733132-2A
COVE
CARBIDE TIPPED - Ball BearingPilot
PARTNO A1 A2
B
C D
E R
733122-6A 7/8 3/8 3/8 1 1/4 1-5/8 1/4
REPLACEMENT BEARING
- NO 733132-2A
HIGH SPEED STEEL - Solid Pilot
PARTNO A1 A2 B C
D E R
733242-6A 11/16 3/16 1/2 1 1/4 1-3/4 1/4
733242 EA 15/16 3/16 3/4 1 1/4
2 1/32 3/8
15

ROMAN OGEE
-ID!?
CARBIDE TIPPED
- Ball Bearing Pilot
B
D
PARTNO. A1 A1 C E
R
2 5/32
733123-2A 1 3/8 15/32 1-1/4 1/4
REPLACEMENT BEARING
- NO. 733132-2A
FLUSH TRIMMER -Self Piloting
CARBIDE TIPPED - Ball Bearing Pilot
B
D
PARTNO. A1 A1 C E
R
2 5/32
733123-2A 1 3/8 15/32 1-1/4 1/4
REPLACEMENT BEARING
- NO. 733132-2A
FLUSH TRIMMER -Self Piloting
SOLID CARBIDE
A
PART
NO.
B C
D E
733128-OA
1 I4 114 1-1/16
1 14 1-9/16
7" BEVEL TRIMMER - Self-piloting
SOLID CARBIDE
PART NO. A B C
D E
733128-2A 3/16 1/4 1-1/16 114 1-9/16
2 FLUTE FLUSH TRIMMER
CARBIDE TIPPED
PART NO.
733126-8A 1-1/4 2-1/16
733128-9A
1 /2 1 /2 1-114 1/4 2-1/16
733129-OA 1
/2 1-1/4 2-5/8
3/B" REPLACEMENT BEARING - NO. 733132-2A
112" REPLACEMENT BEARING - NO. 7331324A
16

COMBINATION FLUSH/22" BEVEL TRIMMER
2
CARBIDE TIPPED
733129-2A
518 318 1-1/4 1/4 2-318
REPLACEMENT BEARING - NO. 733132-6A
PART NO. A
BI 82 C D E
733128-6A 7/16 1
/2 3/16 1-1/4 1/4 1-3/4
3 FLUTE FLUSH TRIMMER ASSEMBLY -Self Piloting
4DC
SOLID CARBIDE CUTTER
PART NO A B C D
E
1
3 FLUTE 22" BEVELTRIMMER ASSEMBLY -Self Piloting
SOLID CARBIDE CUTTER
PART NO AI A2
B C D E
733129-4A 7/8
518 3/8 1.114 114 2.318
REPLACEMENT BEARING
- NO 733132-6A
3 FLUTE FLUSH REPLACEMENT CUTTER
SOLID CARBIDE
1 PARTNO A E D I
733129-6A 518 318 114
FOR FLUSH TRIMMER ASSEMBLY
NO 733129 2A
17

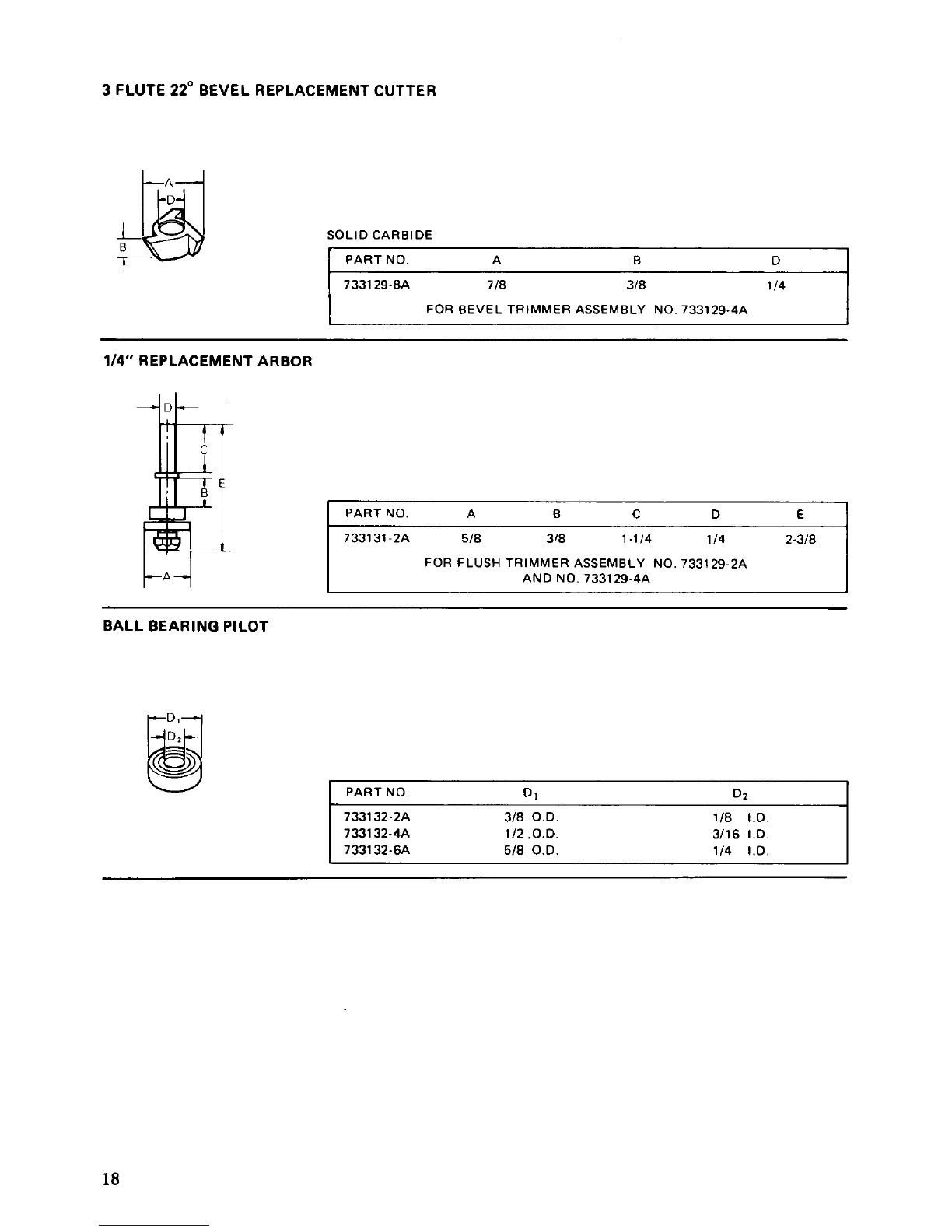

3 FLUTE 22' BEVEL REPLACEMENTCUTTER
L B pj
I
SOLID CARBIDE
I PARTNO. A B D I
733129-8A 7/8 318 114
FOR BEVEL TRIMMER ASSEMBLY NO. 733129-4A
~~ ~~
1/4" REPLACEMENT ARBOR
I PARTNO. A B C D El
I 733131-2A 518 318 1-1/4 1 I4 2-318 I
FOR FLUSH TRIMMER ASSEMBLY NO.733129-2A
AND NO. 733129-4A
BALL BEARING PILOT
I PARTNO. D1 D, 1
733132-2A 3/8 O.D.
733132-4A 112 .O.D.
733132-6A 518 O.D.
1/B I.D.
3/16
I.D.
1/4 I.D.
18

Mar.-26-'90 US
114"
TRIMMER
19

MODEL 3703 Mar.-26-'90 US

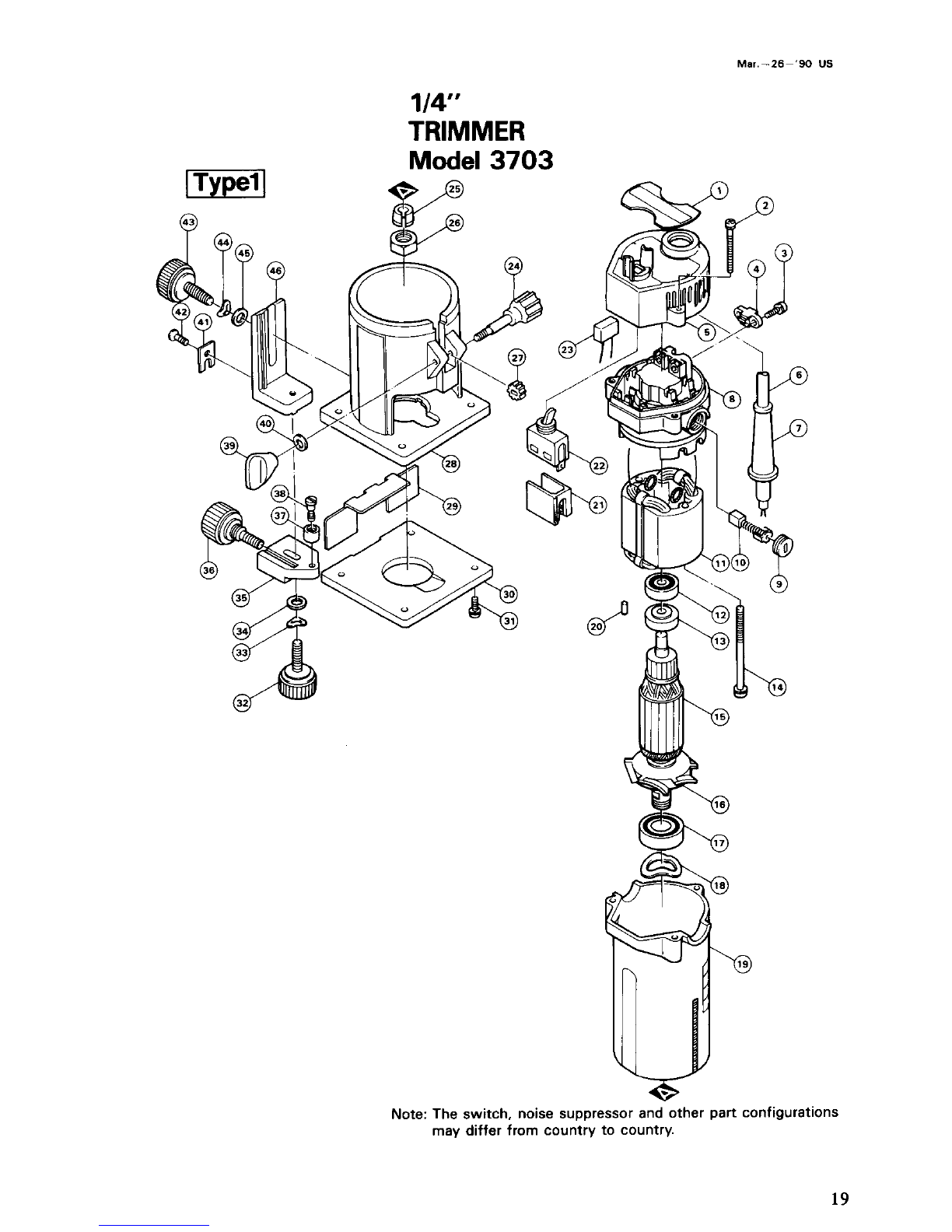

p.. ITEM AtD DESCRIPTION
'iiM GtD DESCRIPTION
.
MACHINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
3
2
1
1
1
1
1
2
2
1
1
1
2
1
1
1
1
1
1
1
1
-
Name Plate
Pan
Head Screw M4x40 (WithWasher)
Pan Head Screw M4x14 IWith Washed
Strain Relief
Rear Cover
Cord
Cord Guard
Motor Rear Housing
Brush Holder Cap
Carbon Brush
FIELDASSEMBLY
Ball Bearing 627LB
Insulation Washer
Pan Head Screw M4x70 (With Washer & Bond1
ARMATURE ASSEMBLY
IWith Item 12. 13 & 15 - 171
Fan 52
Ball Bearinp 6002LLUX
Wave Washer 23
Motor Housing
Rubbsr Pm 4
Switch Holder
Switch
MACHINE
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
-
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
Note: The switch and other part specifications may differ from country to Country.
Screw M5x33
Collet cone
Collet Nut
Spur Gear 16
Bass
Chip Deflector
Base Protector
Pan Head Screw M4x10
Screw M6x25
Wave Washer 6
Flat Washer 6
Trimmer Guide
Screw M6
Roller 11
Flat Head Screw M5
Wing Nut M5
Flat Washer 5
Hook
Countersunk Head Screw M4x12
Screw M6x25
Wave Washer 6
Flat Washer 6
Guide Holder
MAKIIA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspectedand tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid,
to one of Makita's Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
a repairs have been made or attemptedby others:
repairs are required because of normal wear and tear:
a The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTALOR CON.
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF "MERCHANTABILITY"
AND "FITNESS FOR A SPECIFIC PURPOSE,"
AFTER THEONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or Limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty
lasts, so the above limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883737 - 064
PRINTED IN JAPAN
1991 - 6 - N
