Makita DUR187U User manual

DUR187U
DUR187L
DUR188U
DUR188L
EN Cordless Grass Trimmer INSTRUCTION MANUAL 10
ID Alat Potong Rumput Tanpa
Kabel PETUNJUK PENGGUNAAN 20
VI Máy cắt cỏ chạy pin TÀI LIỆU HƯỚNG DẪN 30
TH   40

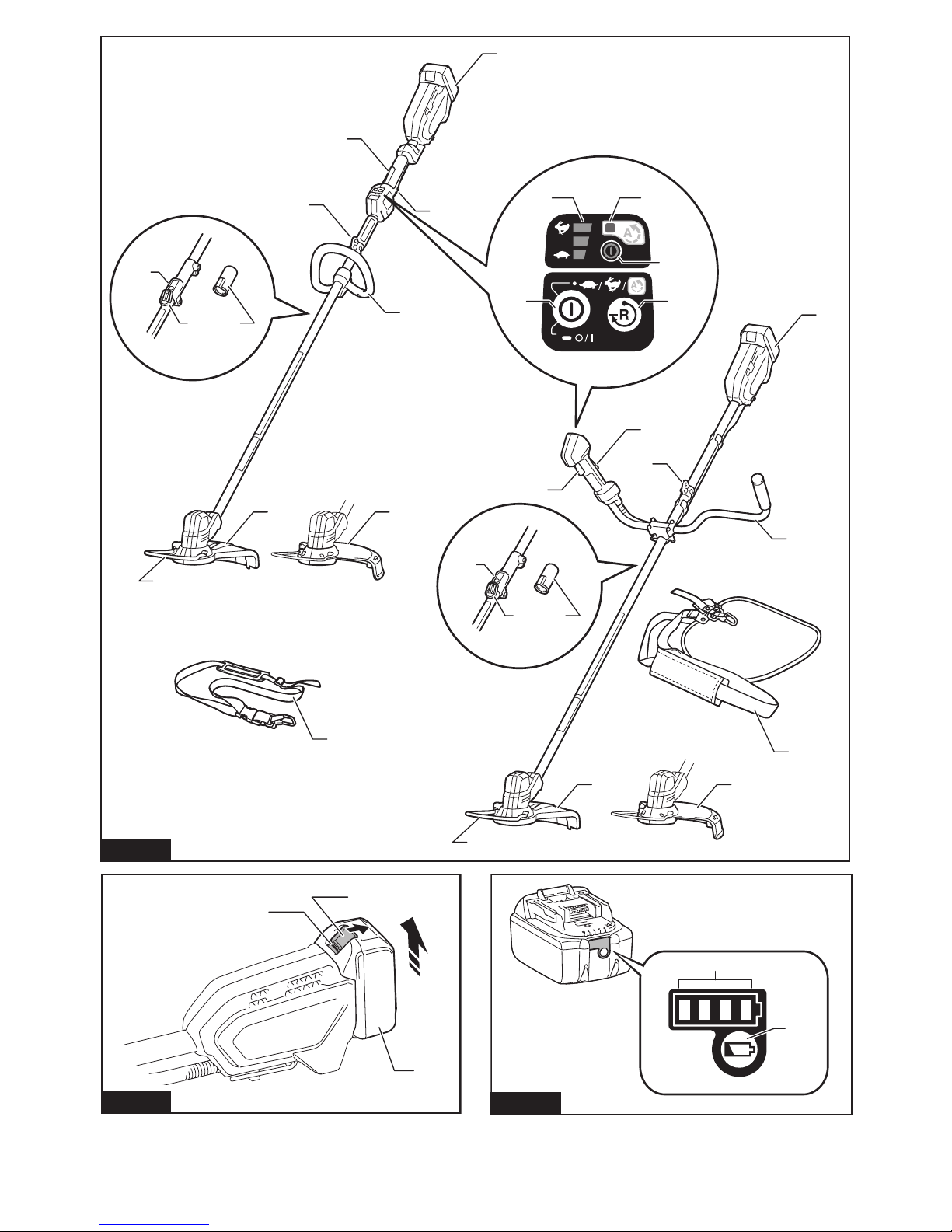

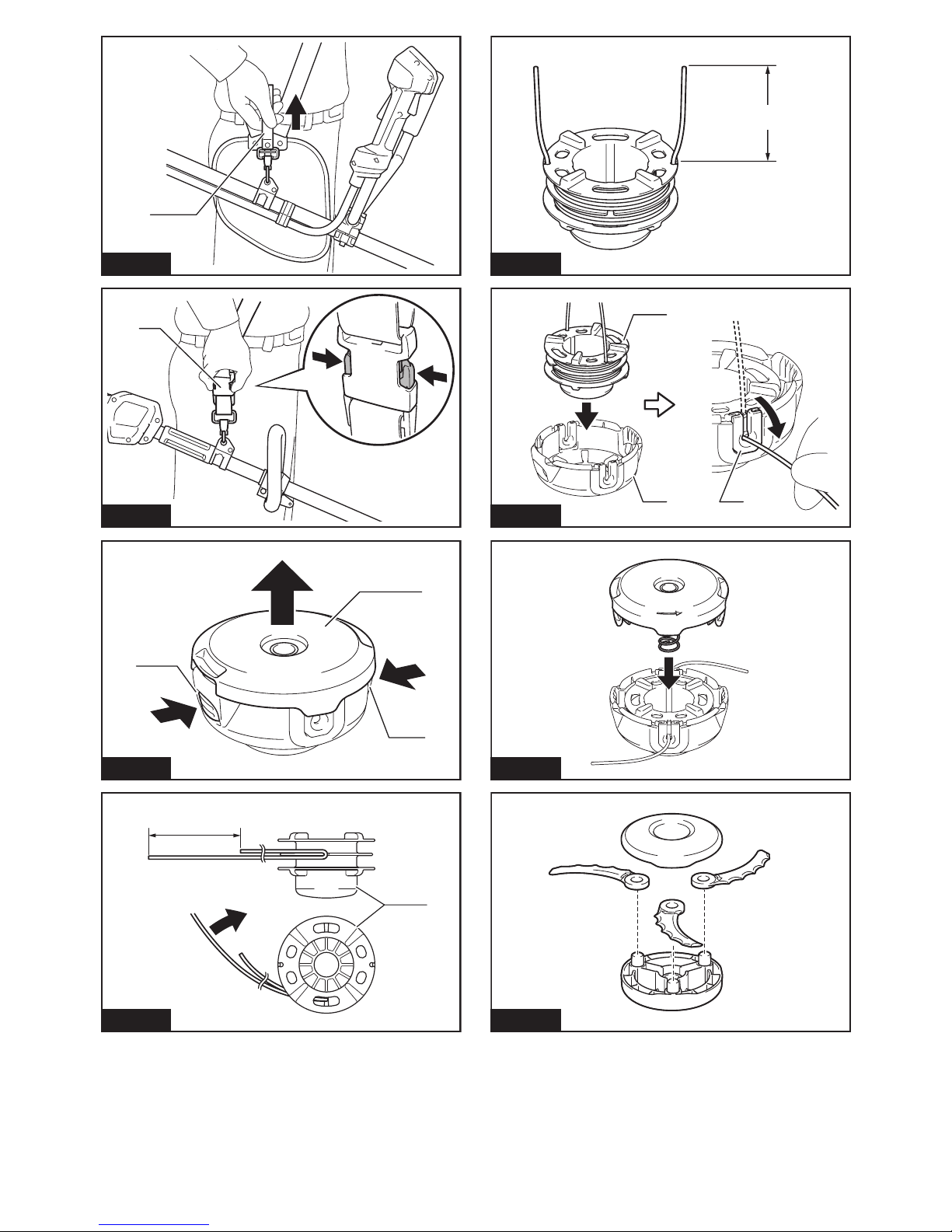

Fig.1
Fig.2
Fig.3
2

1
1
2
3
4
4
2
3
5
5
6
6
8
9
11 12
13
14 15
7
7
10
8
910
16
16
6
6

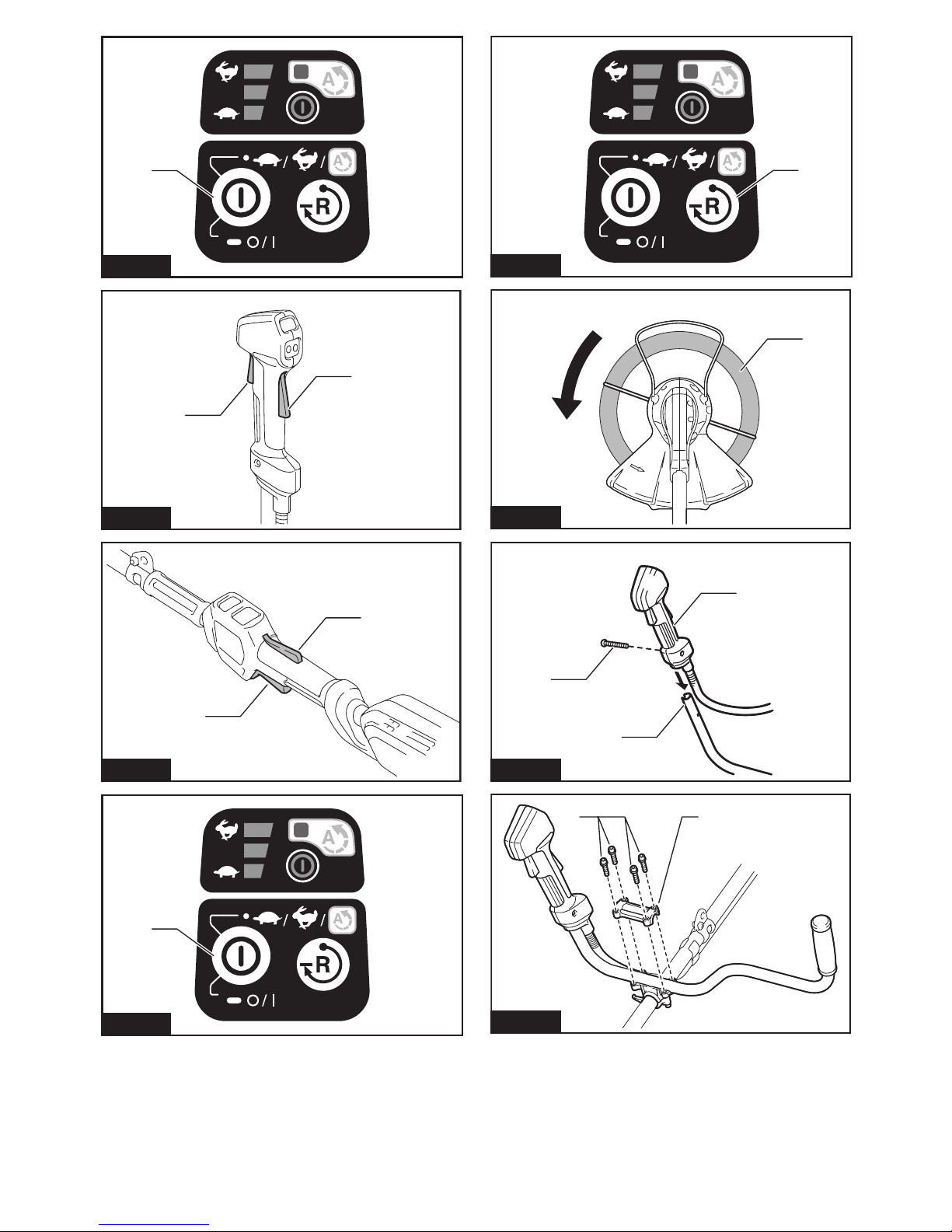

Fig.4
1
3
2
Fig.5
1
2
Fig.6
3

1
Fig.7
2
1
Fig.8
2
1
Fig.9
1
Fig.10
1
Fig.11
1
Fig.12
1
3
2
Fig.13
12
Fig.14
4

1
Fig.15
2
1
3
Fig.16
1
Fig.17
1
2
3
Fig.18
12
3
12
3
Fig.19
1
2
Fig.20
1
2
1
2
Fig.21
5

Fig.22
1
Fig.23
Fig.24
1
2
3
4
Fig.25
1
2
3
Fig.26
1
2
3
Fig.27
1
2
Fig.28
6

21
Fig.29
1
2
Fig.30
1
Fig.31
1
2
Fig.32
Fig.33
Fig.34
12
Fig.35
1
2
Fig.36
7

1
Fig.37
1
Fig.38
1
1
2
Fig.39
1
80 mm (3-1/8”)
Fig.40
100 mm (3-15/16”)
Fig.41
2
1
3
Fig.42
Fig.43
Fig.44
8

9
1
2

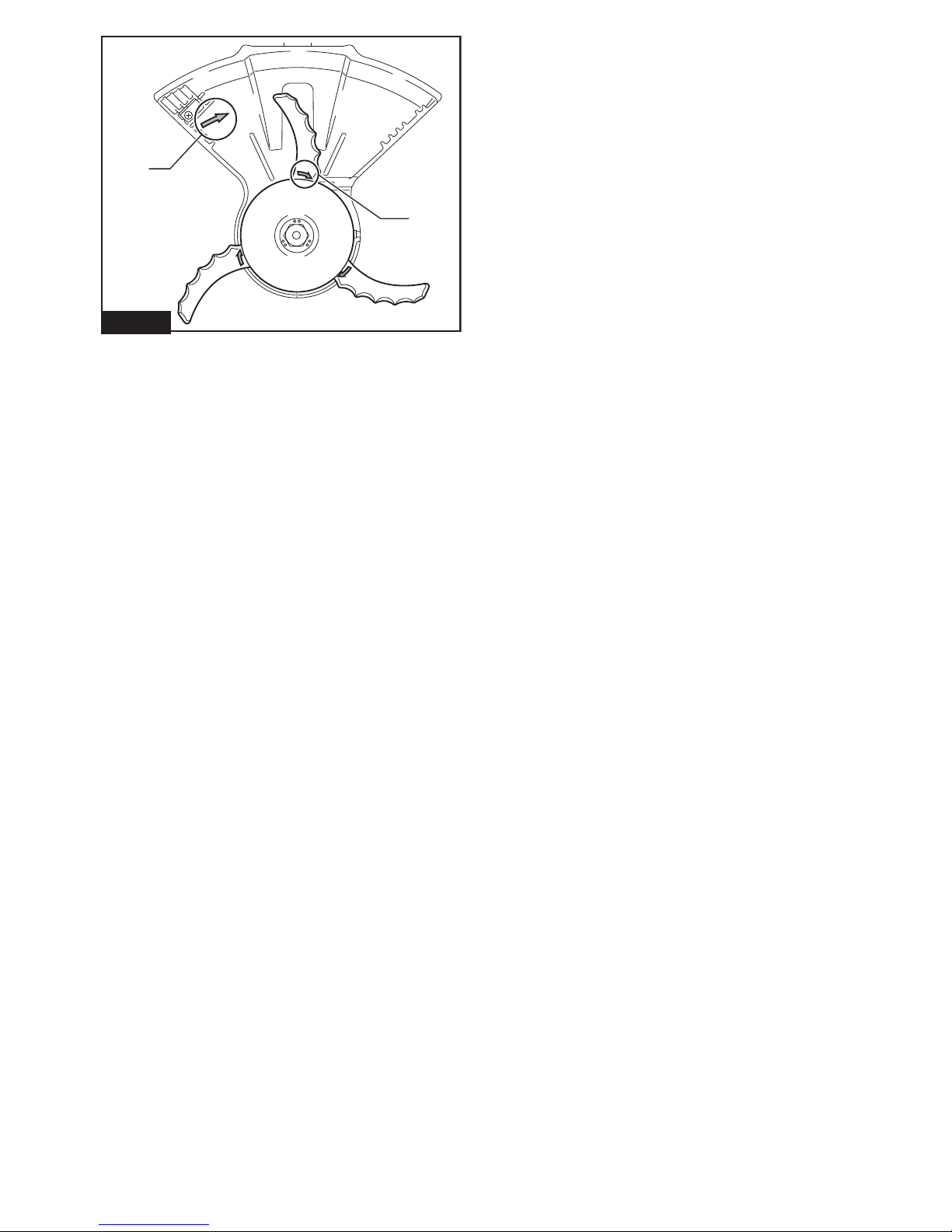

Fig.45

10 ENGLISH
ENGLISH (Original instructions)

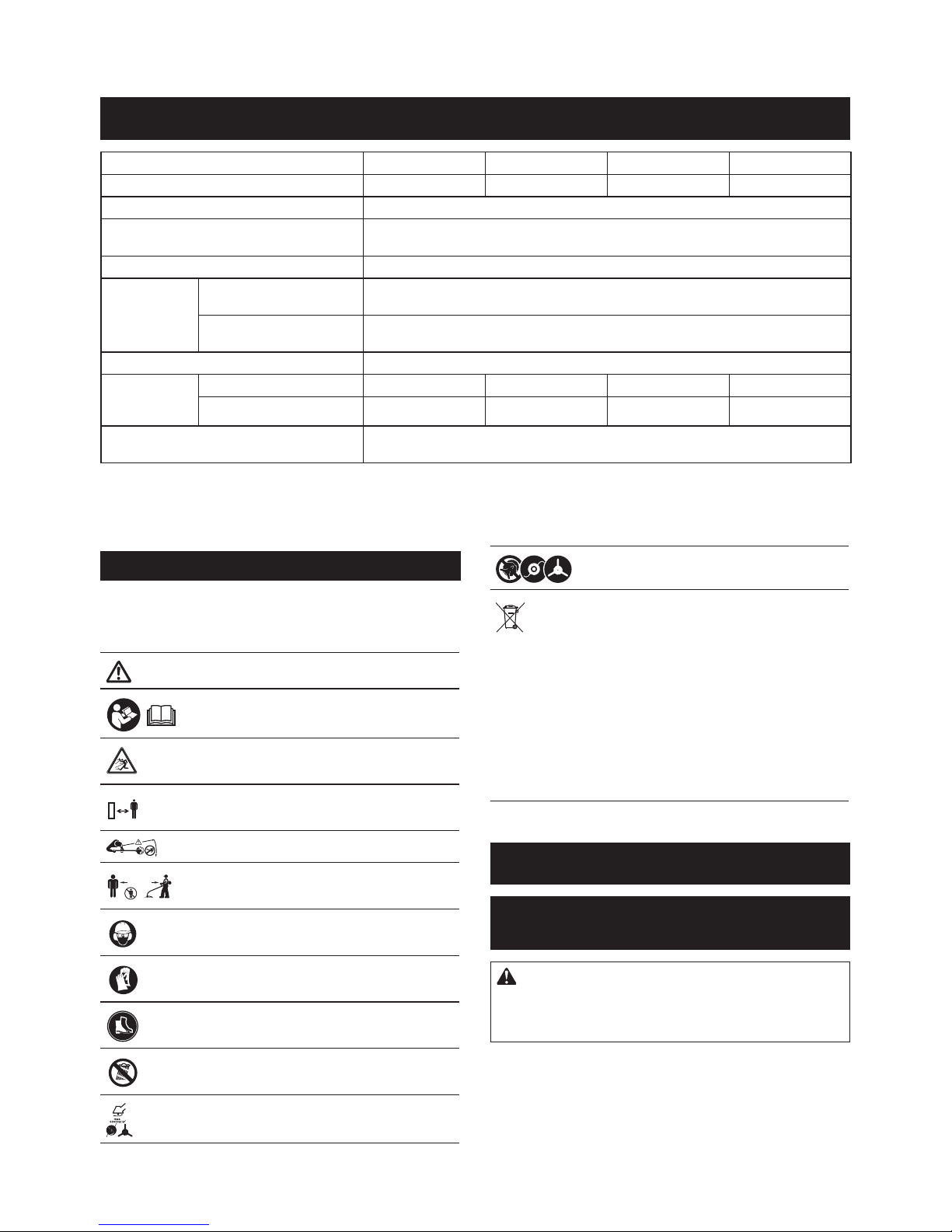

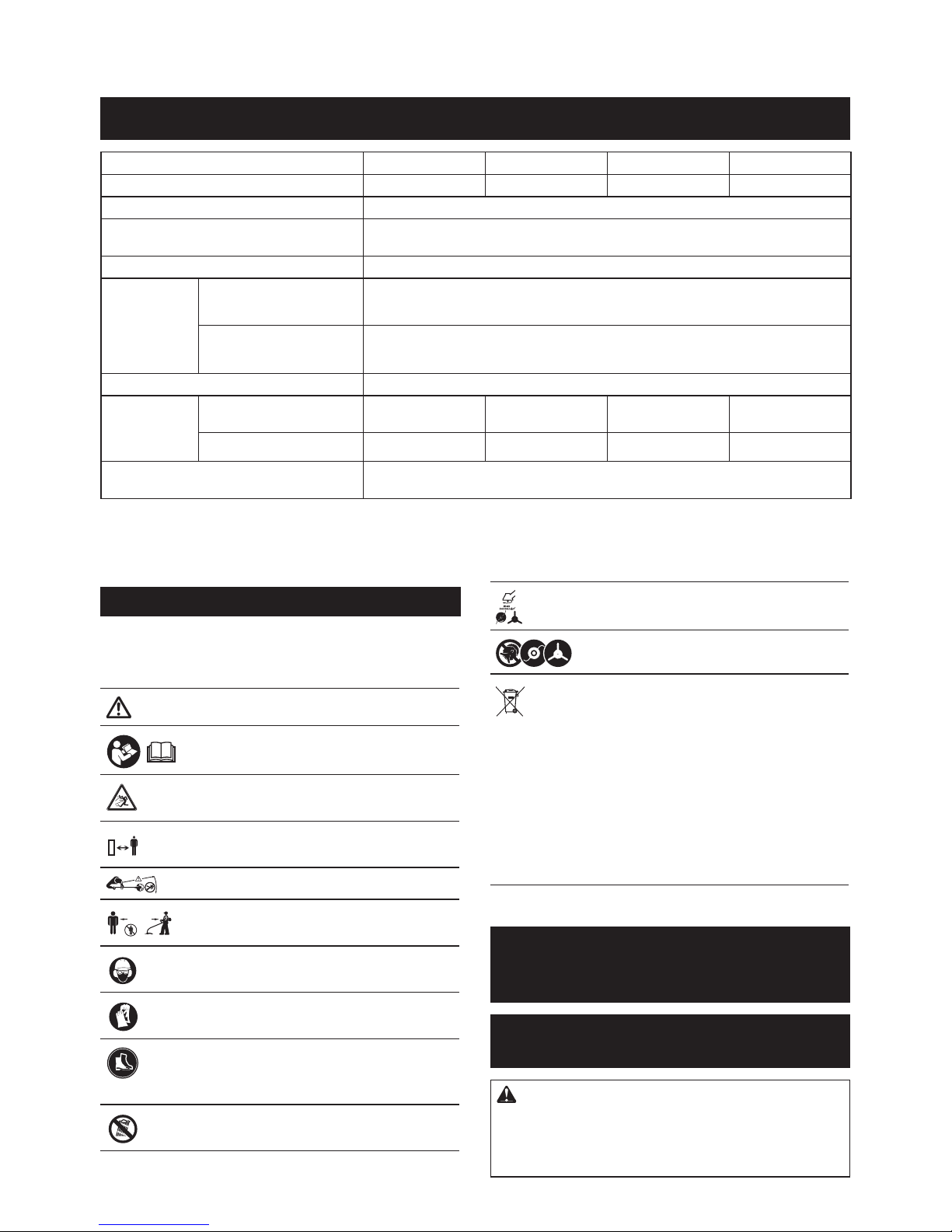

SPECIFICATIONS
Model: DUR187U DUR187L DUR188U DUR188L
Type of handle Bike handle Loop handle Bike handle Loop handle
No load speed 4,000/5,000/6,000 min-1
Overall length
(without cutting tool)
1,791 mm
Nylon cord diameter 2.0 - 2.4 mm
Applicable
cutting tool
and cutting
diameter
Nylon cutting head (P/N
123932-5)
300 mm
Plastic blade (P/N
123954-5)
255 mm
Rated voltage D.C. 18 V
Net weight
(when using
BL1830B)
with nylon cutting head 3.8 kg 3.6 kg 4.1 kg 3.9 kg
with plastic blade 3.9 kg 3.6 kg 4.1 kg 3.9 kg
Battery cartridge BL1815N, BL1820, BL1820B, BL1830, BL1830B, BL1840, BL1840B, BL1850,
BL1850B, BL1860B
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydifferfromcountrytocountry.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Take particular care and attention.
Read instruction manual.
Danger;beawareofthrownobjects.
The distance between the tool and
bystanders must be at least 15 m.
360°
Keep bystanders away.
15m(50FT)Keep distance at least 15 m.
Wear a helmet, goggles and ear protection.
Wear protective gloves.
Wear sturdy boots with nonslip soles.
Steeltoed safety boots are recommended.
Do not expose to moisture.
Top permissible tool speed.
Never use metal blade.
Cd
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household
waste material! In observance of the
European Directives, on Waste Electric
and Electronic Equipment and Batteries
and Accumulators and Waste Batteries and
Accumulators and their implementation
in accordance with national laws, electric
equipment and batteries and battery
pack(s) that have reached the end of
their life must be collected separately and
returned to an environmentally compatible
recycling facility.
SAFETY WARNINGS
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
1. Be familiar with the controls and proper use of
the equipment.
2. Cutting elements continue to rotate after the
motor is switched off.
