Maktek 25 MKB-S Quick start guide

®

 P 


kk 07
CE
TS EN ISO 9001:2015
rev. na: 04
Please read.
Please keep.

2
CONTENT
Page 4
Page 5
Page 6
Page 7
Page 9
Page 10
1. GENERAL WARNINGS BEFORE OPERATING THE UNIT................................................
2. FEATURES OF THE BOILER..............................................................................................
3. SECTIONS OF THE BOILER...............................................................................................
4. INSTALLATION.....................................................................................................................
4.1 INSTALLATION AND WATER FLOOD..........................................................................
BOILER INSTALLATION SCHEMA.....................................................................................
4.2 AIR CONNECTION........................................................................................................
4.3 CHIMNEY......................................................................................................................
CHIMNEY CONNECTION SCHEMA...................................................................................
5. TECHICAL FEATURES.......................................................................................................
6. CONTROL PANEL...............................................................................................................
7. FIRST OPERATION AND USE............................................................................................
7.1 FIRST BURNING............................................................................................................
7.2 WARNINGS FOR USE...................................................................................................
8. CLEANING AND MAINTAINANCE......................................................................................
9. ELECTRICAL SCHEME.......................................................................................................
10. TROUBLE SHOOTING........................................................................................................
11. CARRIAGE AND TRANSPORT...........................................................................................
Page 11
Page 11
Page 12
Page 13
Page 14
Page 15
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20

PREFACE
MAKTEK is one the leading institutions in Turkey in heating industry since its
foundation in 1977.Inconsideration of monitoring technological developments
closely, MAKTEK takes the pride of presenting MAKTEK Solid Fuel Boilers in Turkey
and World market.
Our company, which has acquired advanced technology and superior quality, stands on
in accordance with these principles. This handbook is a helpful guide during operation
and maintenance of the user boiler assembly. For malfunctions and maintenance,
please contact our authorized service.
Our after sales service network is always at your service with abundant spare parts and
widespread service organization.
MAKTEK A.Ş.

1.GENERAL WARNING BEFORE OPERATING THE UNIT
Please check the conformity of waste gas , water and electric infrastucture of the area to the
necessary technical parameters where the boiler will be installed.
For safe use of electricity , make sure that the grounding of the installation is isolated and
there is no phase.
Your boiler is under guarantee for 2 years against component and production defects as long
as it is used in line with the suggestions in this manual. Our company cannot be held liable
for any misuse of the product.
Please do not use the boiler out of its purpose. The boiler is designed to supply hot water
(maximum 90°C) to your heating system.
Clean air must always be provided in the area where the boiler is installed. Due to reasons of
security, the installation of the boiler to closed areas with human presence is strictly
forbidden.
Please do not operate the boiler without water. Do not feed cold water to hot boiler. If,for any
reason the boiler temprature is over 90°C do not attempt to feed cold water to the boiler until
the boiler temprature drops down to 40°C. The best solution for over heated boiler is to take
out burning coal outside of the boiler
Please do not drain the system water except repairing or during times of frost. Antifreeze
material can be added to sytem water up to 15%
During operation, the temprature difference between return and flow can be maximum 20 °C.
Water with high calcer rate is extremely dangerous for boiler and installation. In this case,
please use water softeners.Product failures as a result of blocked water passes is out of
scope of factory guarantee.
Each year,before start of heating season,the boiler’s chimney connection and internal parts
must be checked and cleansed. This will enable efficient operation of the boiler.
Please do not take hot water out of the boiler for domestic use purposes.
4

FEATURES OF THE BOILER
Capacity between 25.000 kcal-250.000 kcal/h
Burns the fuel which is up to 20mm diameter with high energy thanks to automatic
fuel feeding.
Heating with high efiiciency for coal and all solid fuels
Opportunity for watching and setting the temperature of heating water on digital
screen
Electronic control panel
Safe usage with safety termostad against overheating
Energy saving thanks to special body design
Burning air which comes from the hot bulb surface, ensures homogene burning of the
coal.
Opportunity for using nut coal, prina, nut shell
Elektronik kumanda panelinden yükleme ve bekleme sürelerini dijital
ekrandan ayarlayarak izleme imkanı Opportunity for watching and setting feeding and
waiting time on the electronic panel control.
Detritions on heating are minimised with the cast burning bunker
Fan with quiet running cycle period and clap ensures the maximum efficiency
Automatic feeding makes ash to fall down in ash drawer.
Wet rotor, 3 level circulation pump makes the intended circulation flow and energy
saving provided.
When the fuel totally finished in the fuel feeding tank and system temperature
decreased under 25 degrees boiler shuts down automaticly and extra running of the
fan, pump and feeding engine stops.
Boiler has three pass burning tank design and uses the acquired heat from fuel
withhigh level, increases the boiler efficiency.
2 years warranty
CE Certificate
Economic life cycle of the boiler is estimated to be 15 years.
5

3. SECTIONS OF THE BOILER
*See techic table for dimensions stated with letters
6

SECTIONS OF THE BOILER
1. Control Panel
2. Top (cleaning) cover
3. Bottom (ignition) cover
4. Fan
5. Burning Tank
6. Sieve
7. Bunker
8. Engine with Reductor
9. Shaft with Reductor and Helezon
10. Boiler Water In
11. Safety Water In
12. Chimney
13. Smoke Case
14. Boiler Water Out
15. Safety Water Out
16. Filling and Draining
4. INSTALLATION
Boiler must be installed evenly and must be placed on 10 cm high place in boiler room
installations.
Boiler must be connected to a good drawing chimney and minimum quantity elbows
should be used between chimney and boiler.
Boiler must be placed where has enough air for an efificient burning. It is required to use
open expansion tank in installation MAKTEK MKK-S series boilers.
Boiler- expansion tank return pipes must be absolutely isolated in extreme cold regions.
Warning line should be installed for taking the overflow water from the expansion tank.
There shouldn't be any valves, nonreturn valves on the pipes between boiler expansion
tank
Expansion tank volumes based on capacity are shown below:
7

TYPE CAPACITY EXPANSION TANK
25 MKBS 25.000 kcal/h 50 lt
40 MKBS 40.000 kcal/h 75 lt
60 MKBS 60.000 kcal/h 100 lt
25 MKBC
40 MKBC
60MKBC
8
In first installation of the boiler, inside of the plant should ce cleaned up before the
connection. The most appropriate way is to send water with one of the pipes and to drain
off other side.
Circulation pump must be installed on boiler water return pipe.
Attention should be paid to leave enough working space for service intervention, boiler
control, and fuel feeding while installation.
Valve connection should be made on boiler water entrance and return lines.
Chimney connections should be leakproof, same diameter pipes without any tighten in
sections should be used from the exit of boiler to chimney hole.
Grounding connections should be done, electricity connection of circulation pump should be
done correctly and authorized service should be called.
50 lt
75 lt
100 lt
25.000 kcal/h
40.000 kcal/h
60.000 kcal/h

4.1 INSTALLATION AND WATER FLOOD
Please use open expansion tank for MAKTEK Solid Fuel Boilers. Closed expansion tank
systems may trigger steaming of the boiler when there is an electric cut out or when the
pump is not functioning.
Please connect open expansion tanks according to standarts.
No valve or similar materials must be installed on safety return or flow line of the open
expansion tank.
In order to increase safety if the pump does not function,a by pass line must be secured
between inlet and outlet spot of circulation pump as show in installation schema. The valve
on by pass line should be kept closed during normal functioning . ıf there is an electricity cut
and a risk of overheating appears, the valve must be open and the evacuation of hot water
must be provided by natural circulation. The diameter of the pipe to be used at by pass line
should be the same diameter size with the pipe used in installation at minimum.
As an extra security measure, an infinite power source may be used for electricty cut.
Please mount 3 bar security valve on the boiler for safety against over pressure in open
expansion systems.
We suggest the mounting of the pump on return line in order to protect from over heating
(steam).
All connections and valve positions must be checked after the installation of the boiler is
complete.
Operations like water flooding or evacuation must be done while the boiler is not working
and cold.
Please flood water to the system until water comes out of warning pipe. Please close the
valves when the filling is complete.
Please purge air in the system where necessary. Avoid any installation that might block air in
the system, if any doubt, please use automatic purger.
9

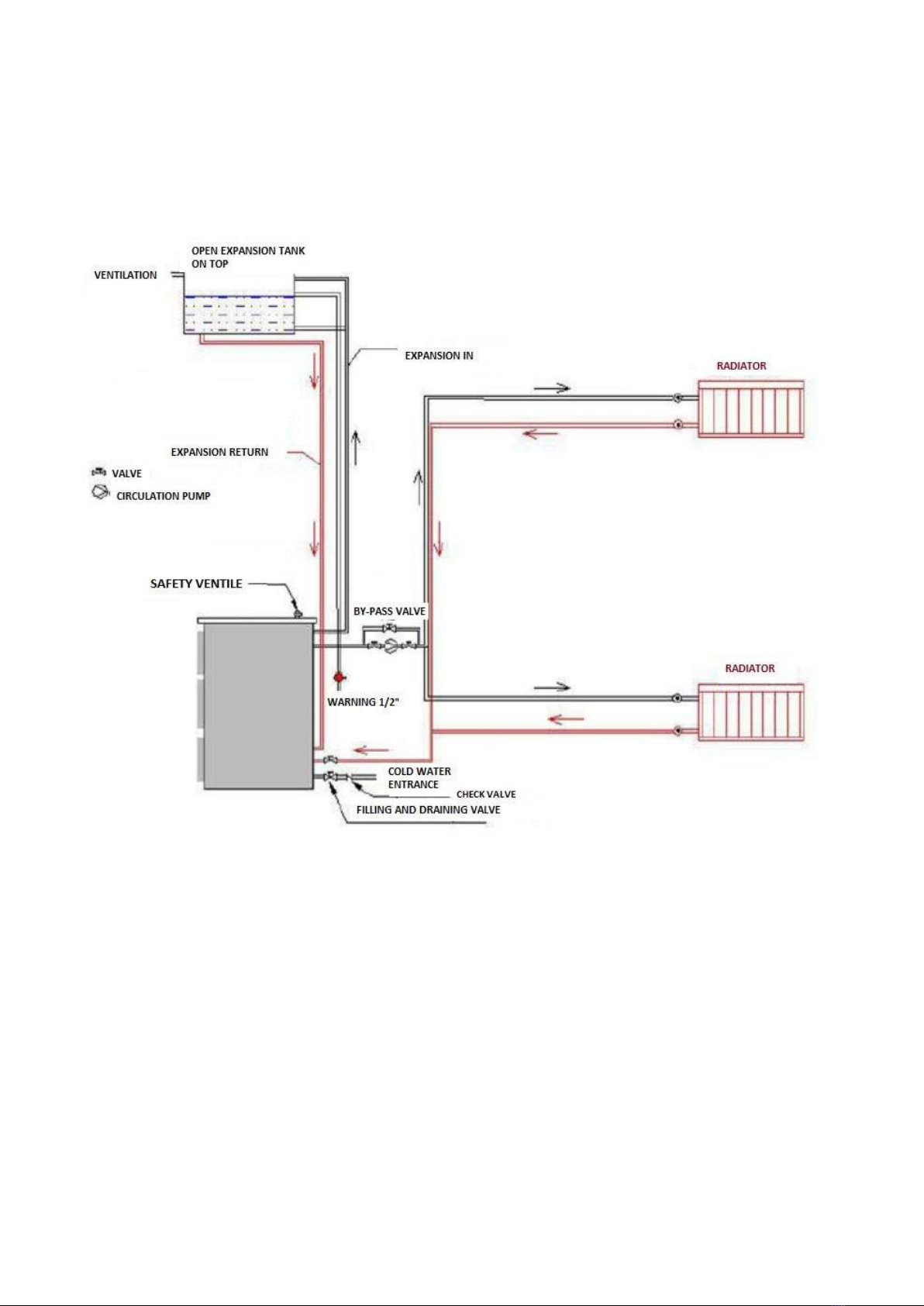

BOILER INSTALLATION SCHEMA
10

4.2 AIR CONNECTION
The area where the boiler is installed must always be suppplied with fresh air by using a
window or a duct. In order for a boiler to burn safely and efficiently, fresh air is required.
Otherwise once the burning starts, the oxygen level will drop causing the burning to be
inefficient. In turn, this will result in formation of soot in the boiler and chimney and will require
frequent cleaning.
4.3 CHIMNEY
The chimney that will be connected to the boiler must be private. The chimney must be
connected to provide minimum draught. A boiler without chimney connection should not be
operated.
Chimney connection pipe and pipe systematic should be installed and checked by authorized
people only. May we remind you that the biggest factor in boiler efficiency is chimney design
and draught.
Proper chimney connection pipe should not smaller than the boilers chimney diameter, vertical
length must not be shorter than 60 cm and longer than 2 meters and pipe must be connected
to the chimney with minimum 10 degree of angle.
We suggest not to use enamel stove pipes as it creates tar in chimney connection pipe or
chimney system.
In case of an elbow use in chimney connection, the elbows must be round with a wide angle.
Quantity of an angle must be minimum 2 pieces.
Chimney connection must be installed to allow demounting from the boiler and avoid gas
leaking.
Chimney connection pipe must not be extended to the outside and must be connected to a
pipe.
The contact of chimney connection pipe with flammable material must be avoided.
Chimney connection pipe must not be pushed inside the chimney.
The direction of the pipe should not be changed, should there is a need ,it must be
positioned by 60 degrees.
The chimney must be leak proof and air transperancy from inside and outside must be
avoided.
No other boiler or device must be connected to same chimney. This would decrease chimney
draught and decrease boiler efficiency.
Parallel chimneys should have no inter connection.
11

There should be no sectional narrow down in any place of the chimney.
Main walls of the building should never be used as chimney wall element. The chimney must be
inside the building, if the chimney must pass from outside, the isolation must be done properly.
The chimney must be frequently cleaned in order to avoid tar and soot and clogs.
Please avoid foreign objects, cement or surface flow inside the chimney, as these will increase
the risk of narrow chimney section and will result in decrease on chimney draught.
CHIMNEY CONNECTION SCHEMA
12

5. TECHNICAL SPECIFICATION
13

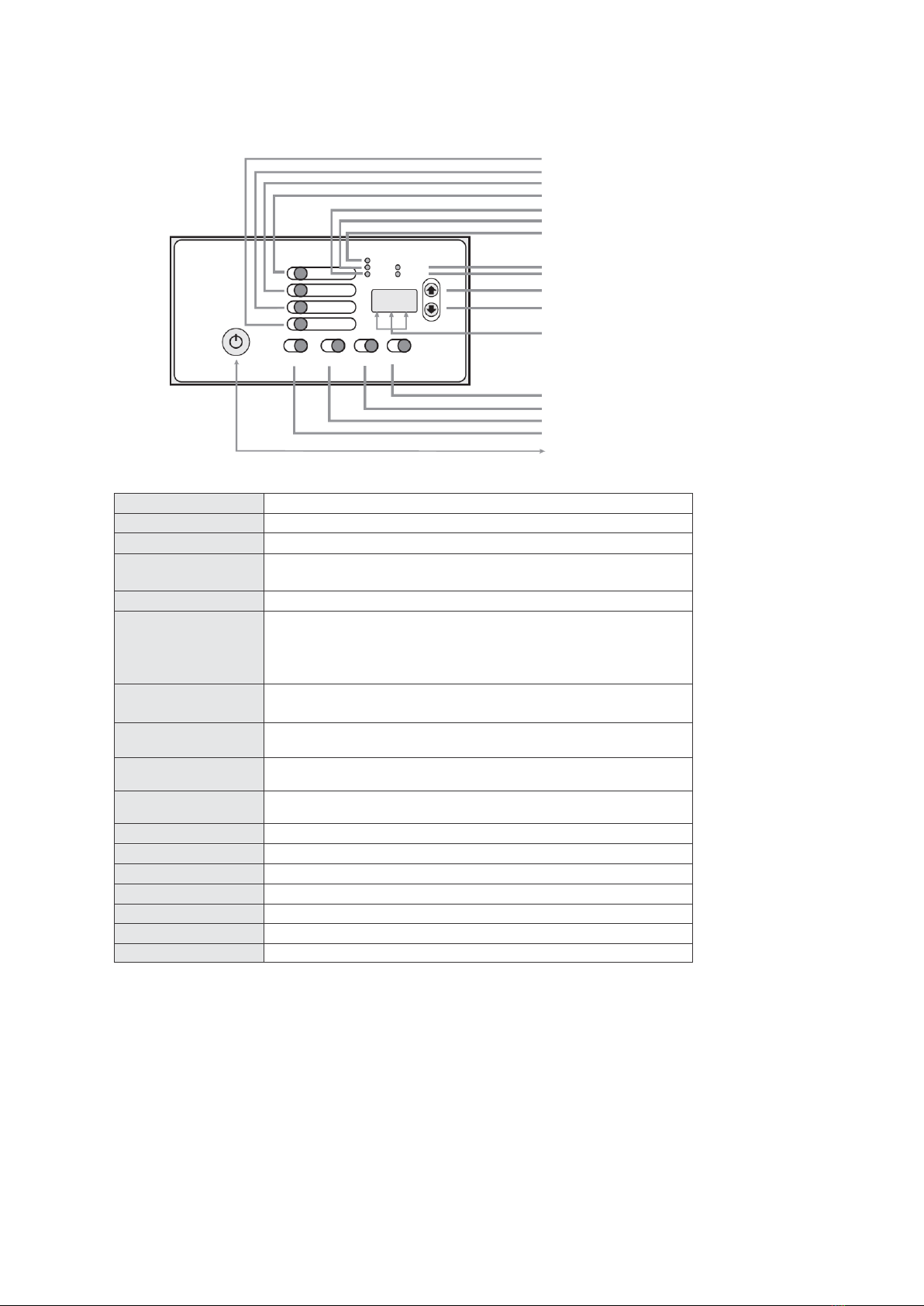

6. BOILER WITH STOCKER CONTROL PANEL
Fuel Feed Button Feeds the fuel manually when fuel feed button is pushed
Reductor Button Reductor becomes ON or OFF when Reductor button is pushed.
Fan Button Fan becomes ON or OFF when Fan button is pushed
On/ Off Button System becomes ON or OFF ( Button should be pushed 2 seconds for
both position)
Alarm Button Alarm becomes closed when button is pushed while it is ringinig.
Increasing Button Enter the menu that is wanted to change and increase the value (firtsly
push the button of the position which will be used)
Decreasing Button Enter the menu that is wanted to change and decrease the value (firstly
push the button of the position which will be used)
Digital Display Shows the temperature measured in normal conditions. In setting
condition, setting value is shown in screen.
Fuel Waiting time
setting button Sets the waiting period after fuel loading (04-255 sec)
Fuel feeding Time
setting button
Sets fuel loading period. (04-60 sec)
Fan Setting Button Sets speed level of fan ( From 1' to 5 )
Temperature Setting Button Adjust the intended temperature ( from 35 °C' to to 90 °C)
Fan led Shows fan activation
Pump led Shows pump activation
Reducerled Shows reducer activation.
Fuel is over warning led Shows lack of fuel
Reducer motor jamming led Shows reducer jamming
Failure Codes
( H1 ) No Fuel
( H2 ) Heating sensor is not connected or broken
( H3 ) Temperature of the boiler water is very high
( H4 ) Fuel is jammed in reducer
14
Fuel waiting time
Fuel loading time
Fan setting
Temperature setting
Fan indicator led
Pump indicator led
Reducer indicator led
Fuel is over warning
Reducer motor jamming
Increase
Decrease
Digital display
Reducer button
Fan button
Fuel feeding button
Alarm button
On-off button

15
ATTENTION !!! Fuel loading and feeding values are in Table 1. Loading and feeding settings
belongs to the fuel only which one used in. It is necessary to do new settings when the fuel type
is changed
SAFETY TERMOSTAT Safety termostat is placed behind the control panel and steps in
breakdown of boiler water setting termostat and prevents the increase of boiler water
temperature. Ensures secondary safety and protects the boiler. Recommended to be set at
80 °C.
IMPORTANT!!!
When any adjustment is not being made on digital display, it shows the boiler water temperature
at that time.
7. FIRST OPERATION AND USE
7.1 First Burning
In first burning, system water must be full and system air must be vented.
Fuel loading must be done over the grate. Grate prevents entrance of foreign materials, big
sized coal pieces inside the bunker and prevents damage to the reducer and loading spiral.
Also passes the proper size of coal which will burn easily and efficiently into the bunker.
Small wood pieces must be ignited with gas and paper for burning the fuel in boiler. Then boiler
gates must be closed and fan must be runned in low speed till full ignition of coal. If fan blows
too much air, slagging of the fuel occurs because of the cooling affect of the combustion
chamber.

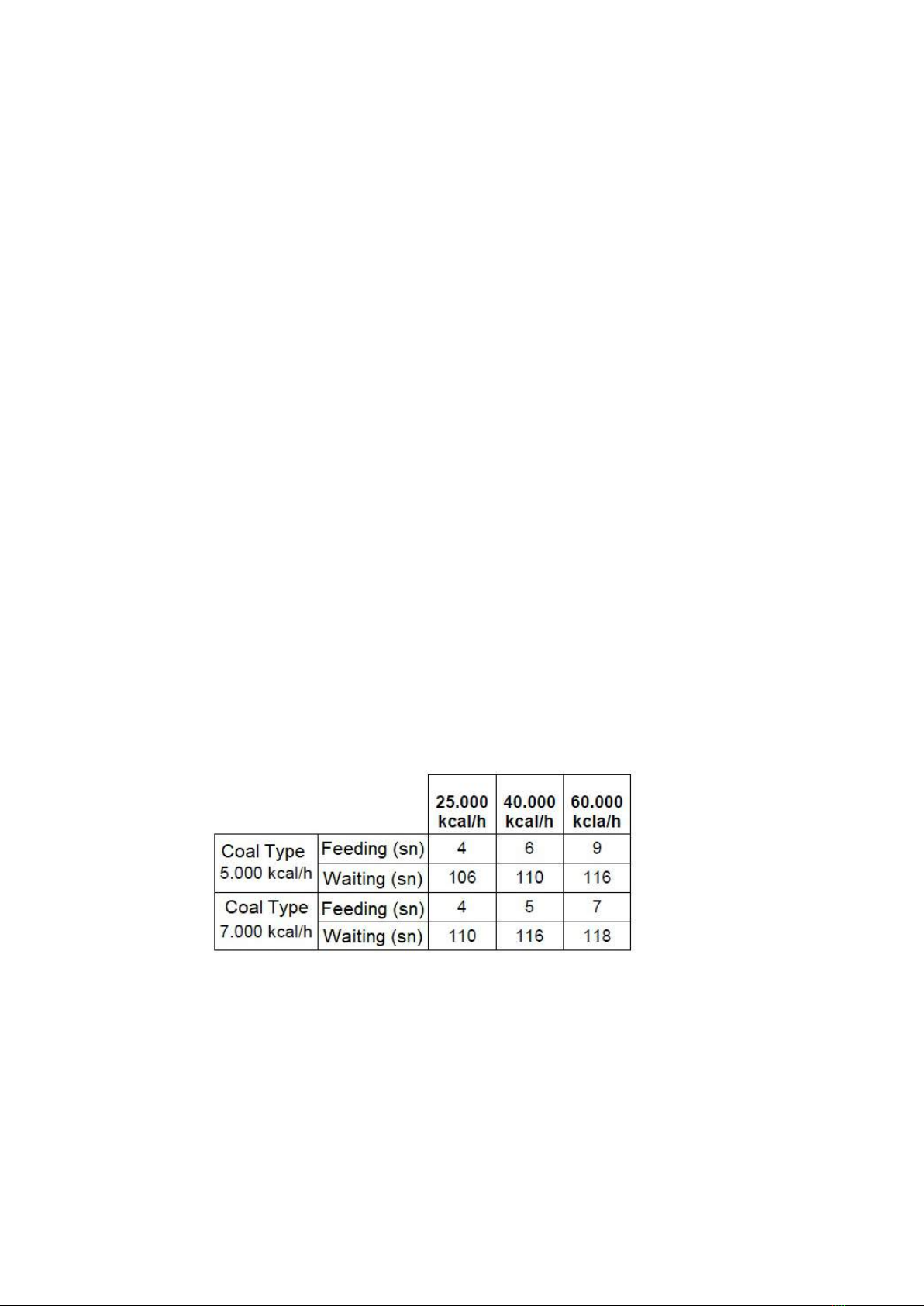

Make the fuel feeding and waiting settings according to boiler and fuel type from the
Table 1:
When the ignition is complete, make the reductor button on and make the boiler run with
settings you desire.
Increase the fan speed after ignition and provide the fuel efficiently.
It would be good to set the boiler water temperature at a high degree (70°C) from control panel.
Afterwards this temperature can be set to desired degree.

7.2 WARNINGS FOR USE
Circulation pump will start running when the burning continues and boiler water
temperature comes to 35°C. This prevents extra electric consumption and heats boiler
immediately so prevents damages from sweat of steam. Prevents sending water, which
wasn't heated completely, to the raditaor.
Boiler water temperature decreases when the fuel is finished and when it is 30°C,
circulation pump stops running. When the boiler water temperature decreases to 25°C all
functions stops.
Fan automatically stops running when the boiler water temperature comes to set termostat
degree. Fan starts running when the boiler water decreases 5°C below set degree.
Running and stopping of circulation pump and fan can be followed by blinking leds on
digital display on control panel.
Circulation pump will run automatically 3 seconds in every 24 hours as long as boiler
unpluged. This prevents the failues on pump that can be occurred from long time unuse.
CAUTION!!! If the electricity power goes off, the circulation pump will stop working so the
high heat trapped in the boiler and it will increase the boiler water to the boiling point. In this
case you should do as following;
1. Close the air inlet of the fan completely.
2. DO NOT open the lids of the boiler.
3. If there are by-pass valves installed on the system, open them.
4. When the power comes back, return to your previous adjustments. Follow the steps to
start combustion to start burning in the boiler.
16

8. CLEANING AND MAINTAINENCE
Following instructions should be followed in order to keep boiler working safe and efficient for
long time.
Quality of the fuel used, would effect the boiler cleaning time, consumption amount of fuel
and efficiency of boiler.
Nut coal is burned in boiler. Do not burn Dust and coke coal. Ash drawers should be cleaned
up every day.
High quality, with high calorie and dry coal should be used in order to get high efficiency.
Smoke pipes inner surface should be cleaned up with a brush and turbulators shoud be
cleaned up with a fabric in every 15 days. Air inflow in burning pot air holes, should be
checked.
Holes which don't have air flow should be opened. Air holes should be cleaned up by running
fan free.
Electricity connection shoul be cut off before the maintainance.
Electricity, chimney, installation connections should be done before winter time.
9. OFFERS FOR ECONOMIC USE
In order to properly air the residence, please open the windows for short period of time
while the radiator valves are closed.
Pay attention not to heat up too much: room temprature must be kept at 20 degrees.
Each 1 degree less makes a 6% economy on heating costs.
When the weather is dark, please close the shuttters if available.
Do not cover your radiators with objects.
Make use of special setting of the control panel, set the using water from control panel.
Consume hot water considerably. You will consume less water and energy during
shower in comparison to taking a bath.
17

10. ELECTRICITY SCHEMA
18

11. TROUBLE SHOOTING
Problem Reason Solution Offer
Reductor doesn't work
There is H4 warning
on control panel
digital screen.
Electricity connection can be loosen Check the connection.
Tighten the klemens cables.
Check the fuel squeezed led. If it doens't work call service.
Push ON-OFF button 2 seconds.
Engine can be broken. Call service.
Reductor runs but fuel
can not reach to burning
cell.
Burning efficiency is low.
Fuel is not well quality.
Make the proper settings
from table 1
Chimney draught is weak. Chimney should be cleaned up.
There is H2 warning on
control panel digital
screen.
Heat sensor or card can be
broken. Call service
Chimney draught is weak. Clean up the chimney.
Fan doesn't run
Fuel can be finished.
Fan button can be off.
Boiler water temperature is
very high.
Fuel can be finished or squeezed.
•Check the fuel in bunker.
Complete the fuel if it is lack
and carry out the procedure in
first use.
•If the fuel wet spilled, stucked
and can not be loaded. Fuel is
pumped down by applying
pressure with an object.
Smoke comes from
chimney connections.
There is H3 warning
on control panel
digital screen.
H1 warning on control
panel digital screen.
Set termostat temperature is
catched up.
Boiler Chimney connections
can be loosen.
Air holes which are inside the boiler,
can be blocked.
Boiler settings are not made
according to the fuel type.
Bunker – fuel tank connection can
be blocked.
Shaft comes from the reductors can
be squeezed.
•Check the water boiler.If it is
lack, complete.
•Circulation pump is squeezed.
•Boiler valves can be off.
•There is air in system and
there is no circulation.Get the
air.
Open main fan button.
Make fuel loading.
Fan stops running when the boiler
water catches up the termostat
temperature. When set
temperature decreases 5 degrees
it starts running again.
Check the boiler chimney
exit and pipe connections.
Clean up the shaft bearing
helezon entrance hole
Fuel should be pour from a
siever and dry fuel should be
burned.
Use high quality, dry and
proper size fuel.
Clean up holes and smoke
pipes regularly.
19

12. CARRYING AND TRANSPORT
A) PLACING THE BOILER ON VEHICLE
*When the boiler places on vehicle, loading should be with crane.
*Gates of the wehicle should be opened previously.
*Make use of the supporting ring while loading boiler with crane.
*Pass the crane buum hook from the supporting ring.
*Make sure that hook pim is in safety.
*Uphold the crane buum and take the space.
*Slowly uphold the boiler that bottom level should be 30-40cm up from the ground.
*Keep away from sudden moves that would cause boiler to shake.
*Move the boiler next to vehicle in this way.
*Lift the boiler from 30-40cm higher than the vehicle body and and take it down on
vehicle body correctly.
*Remove the hook from crane supporting ring.
Attention : Boiler must be carried in vertical position, make use of the supporting ring.
When the boiler lifted up with crane, there shouldn't any living being under the boiler.
Boiler must
be carried with its accessories installed on it.
B) CARRYING BOILER ON VEHICLE
When the boiler is carrying with vehicle, it should be tied to vehicle strictly, supporting
stuff which would prevent slipping, should be put around. Boiler should not carry with
fragile, smashable and living beings. Top of the vehicle should be covered with canvas
after placing boiler. Driver should keep away from the sudden moves that would cause
danger.
C) UNLOADING THE BOILER TO THE PLACE OF USE
Boiler should not be placed in work or residence places, should be placed in a seperate
boiler room.
When unloading the boiler to boiler room, crane must be used again, points that stated in
Clause A, should be considered.
If the place of use is not appropriate for crane entrance, boiler should be unload in a
proper place and carry with rollers to the place intended.
