SOLARFOCUS ecotop zero User manual

Operation manual for the system operator
Read carefully before operating
DR-0178-EN / v13-230502
Pellet boiler
ecotopzero,ecotoplight

1 About this manual 3
2 Safety information 3
3 Warranty, guarantee 4
3.1 Technical requirements for warranty and
guarantee claims 4
3.2 Conditions for claims 5
3.3 Claims rendered void 5
4 Product information 6
4.1 Proper use 6
4.2 Fuel 6
4.3 Requirements of storage area/room 6
4.4 Product description 6
4.5 Spare parts 6
4.6 Accessories 6
4.7 Type plate 7
4.8 CE declaration of conformity 7
4.9 Safety devices 7
4.10 Efficient and low-emission operation 8
4.11 Functional components 9
4.12 Innovative technologies 9
4.13 Technical specifications 10
4.14 Dimensions 12
5 Use and operation 13
5.1 Main screen of boiler control 13
5.2 Boiler operating mode 13
5.3 Selection menu 13
5.3.1 Heating circuit output test 14
5.4 Customer menu 14
5.4.1 Required boiler values 14
5.4.2 Vacuum output 15
5.4.3 Heat exchanger cleaning 15
5.4.4 User lock 16
5.4.5 Message log 16
5.4.6 Operating hours counter 17
5.4.7 Boiler output test 18
5.4.8 Qualified personnel menu 18
6 Heating circuit 20
6.1 Heating circuit settings 20
6.1.1 Heating circuit operating mode 20
6.1.2 Heating curve 22
6.1.3 General settings 24
6.1.4 Room settings 24
6.1.5 Screed program 26
7 DHW heating 27
7.1 Domestic hot water tank 27
7.1.1 DHW tank settings 27
7.2 HYKO hygiene combination tank 28
7.3 Fresh water module 28
8 Recirculation control 29
8.1 Circulation – settings 29
8.2 Recirculation control - options 30
9 Buffer tank 31
9.1 Setting the buffer tank temperatures 31
10 Solar system 32
11 Temperature difference - charge control 32
12 Connecting boiler control to the internet 33
13 SOLARFOCUS-connect 34
13.1 Ordering/enabling 34
13.2 Requirements for use 34
13.3 Reading display serial number 34
13.4 Installing the app 34
13.5 Approving additional users 35
14 mySOLARFOCUS app 35
14.1 Requirements for use 35
14.2 Registering on the web server 35
14.3 Installing the app, registering the user 36
14.4 Adding system 36
14.5 Using the mySOLARFOCUS app 36
14.6 Approving additional users 36
15 Weatherman function 37
15.1 Information 37
15.2 Heating circuit 37
15.3 DHW 38
15.4 Buffer tank charging 39
16 Maintenance and cleaning 40
16.1 Required activities - overview 40
16.1.1 Emptying the ash container 40
16.1.2 Boiler cleaning - automated processes 40
16.1.3 Visual inspection of moving components 40
16.1.4 Boiler cleaning - manual activities 41
16.1.5 Replacing the stainless steel combustion grate 42
16.1.6 Check system pressure 42
16.1.7 Cleaning the flue gas pipe 42
16.1.8 Check safety valve 43
16.1.9 Replace pellet suction turbine 43
16.1.10 Maintenance by qualified personnel 43
17 Perform emissions measurement 43
17.1 Chimney sweep measurement release 43
17.2 Emission measurement for external boil-
ers 44
18 Messages 44
19 Electrical fusing 51
Innovative_products 52
2 Operation manual ecotop-zero, ecotop-light
Content

1 About this manual
1 About this manual
Dear Customer,
To ensure reliable and efficient operation of your
boiler, the following points are extremely important:
–Professional planning and installation of the heat-
ing system.
–Training of system operator in starting up the
boiler.
–Regular maintenance by the operator.
–Regular maintenance by qualified personnel.
–Compliance with the specifications and inform-
ation in this manual.
Software version of boiler control
This manual describes operation from software ver-
sion 22.020.
Language
The language of the original manual is German. All
other language versions of this manual are trans-
lations.
Storage
Keep the manual for the entire service life of the
product and ready to hand. The manual must be
passed on to the new owner when the product is dis-
mantled/reused. If the manual is lost or destroyed,
request a new copy from the manufacturer.
Tips and warnings
The instructions used in this manual are highlighted
with symbols and signal words. The signal word indic-
ates the level and nature of the danger.
iIndicates information for correct handling of
the product.
!ATTENTION - Failure to comply with this
instruction could result in damage to property.
DANGER - Failure to comply with this instruc-
tion poses a danger to people.
Manufacturer
SOLARFOCUS GmbH
Werkstrasse 1, A-4451 St.Ulrich
Company register no. 281755x
Tel.: [phone], Fax: [phone]
[email protected]
www.solarfocus.com
Customer centre
Email: [email protected]
2 Safety information
Qualification of personnel
–The work procedures described in this manual
must be carried out by qualified specialist per-
sonnel.
–Work on electrical components must only be per-
formed by trained electricians and in accordance
with the relevant rules and directives.
Installation and commissioning
The system may only be installed and brought into
operation by certified qualified personnel
(SOLARFOCUS service technician or
SOLARFOCUS service partner).
DANGER -Written warnings must be
displayed on the fuel storage room
according to EN ISO 20023 and EN 303-5:
–The boiler must be switched off and the
combustion process must be completely
finished before commencement of filling
and conveying.
–We highly recommend venting the
storage area/room before entering it (CO
concentration).
Keep unauthorized persons and children
away
Danger of burns due to hot lines and hot components,
risk of injury from mechanically moving parts. Keep
unauthorised persons away, do not leave children
unattended, and control access to the boiler room
and fuel storage room.
Safety devices
Never disable the safety equipment of (fehlender
oder ungültiger Codeausschnitt)the heating system
under any circumstances. In case of failure, arrange
for immediate repair.
Operation manual ecotop-zero, ecotop-light 3

3 Warranty, guarantee
Maintenance and repair
–Perform maintenance activities at the specified
intervals. No or incorrect maintenance leads to
inefficient operation, higher failure risk of the
boiler and increased potential for hazards.
Recommendation: Conclude maintenance con-
tract
–Have repairs carried out by qualified personnel
only. Improper repairs can lead to risks for the
user and impaired operation.
–Store hot ashes only in metal containers. Never
put hot or warm ash in the dustbin. High risk of
fire.
–For repairs use only original spare parts or parts
approved by the manufacturer (e.g. standard
parts).
Damage to the system
–If the electrical insulation on cables, plugs,
switches becomes damaged, switch off the power
supply and have the insulation repaired.
–In the event of visible damage (e.g. thermal
deformation, mechanical damage), operation of
the system must not be continued. The system
may only be operated if it is in perfect technical
condition.
3 Warranty, guarantee
–Warrant claims apply within the scope of a boiler
maintenance agreement.
–Warranty claims can be made by the customer
and the dealer has a legal responsibility to honour
them.
3.1 Technical requirements for warranty
and guarantee claims
The following technical requirements must be
observed as a precondition for a warranty and guar-
antee claim.
Further information on the individual points can be
found in the boiler's installation manual.
Regular maintenance and cleaning
–The boiler and the heating system components
must be maintained and checked regularly.
–This is the prerequisite for the following:
–Long-term reliability of the boiler function
–Energy-saving and environmentally friendly oper-
ation of the boiler
–Long service life of the boiler.
–Option/recommendation: Conclude maintenance
contract
–Documentation is crucial: When maintenance is
performed by qualified personnel, the activities
carried out/measures taken are documented in
the maintenance log. It is advisable to keep a sys-
tem book, especially when foregoing main-
tenance by qualified personnel (for
documenting/as proof of one's own activities).
Fuel
–The fuel used must meet the specifications.
–Non-approved fuel may lead to inefficient
combustion and cause damage to the boiler.
Specifications for the heating system's fill-
up/make-up water
–Check pH value: this must be in the range of
8.2 to 9.5
–Avoiding scale build-up (=limescale on heat
exchanger surfaces):
–Take the water hardness into account
–Soften the fill-up water, or better: desalinate it.
–Avoiding water-side corrosion (triggered by the
oxygen in the water):
–Correct system planning, correct dimensioning,
take material combinations into account.
–Repair leaks immediately.
–Expansion tank (prevents air suction when the
system cools down): Correctly set the pressure,
check it regularly.
–Existing underfloor heating: Take care with old, dif-
fusion-open plastic pipes (separate the system).
Sufficient ventilation
One of the most important basic requirements for
trouble-free operation is the removal of air and gases
in the heating system. Exposed expansion tanks or
underfloor heating systems that are not diffusion res-
istant can result in above-average boiler corrosion
due to too much air entering the system and because
of poor ventilation.
SOLARFOCUS recommends the installation of a
deaerator, such as a SpiroVent, in the hottest area in
the system.
4 Operation manual ecotop-zero, ecotop-light

3 Warranty, guarantee
Return temperature in the boiler
–A temperature below the dew point (leads to
corrosion in the boiler) must be prevented by a
sufficiently high return temperature in the boiler.
–In the case of the ecotop zero/light, this is ensured
by the return flow boosting which is integrated as
standard.
Supply air to the boiler
–The boiler can be supplied with air dependently or
independently of the room air.
–For operation independent of the ambient air
(room-sealed), a boiler-controlled room air flap
can be integrated in the line as an option.
–The supply air in the boiler must not contain any
aggressive substances. These substances can
cause corrosion in the boiler and chimney.
–Aggressive substances are, for example, chlorine
or fluorine compounds (used in cleaning agents,
solvents, adhesives, etc.).
3.2 Conditions for claims
For warranty and guarantee claims observe the fol-
lowing points:
–The warranty begins at the time at the time of han-
dover (delivery note, commissioning log).
–The warranty period is calculated from the date of
initial commissioning (according to the control's
operating hour counter).
–The warranty periods are based on the relevant
regulations.
–We must be notified promptly and accurately of
any damage incurred, so that the cause can be
clarified.
–If the system has defects despite correct install-
ation (in compliance with the technical doc-
umentation), we grant a warranty provided that
the system has been examined by the plant cus-
tomer service (commissioning log).
–The guarantee applies to technical, construction-
related faults and faults in the manufacture of the
system that prevent correct and problem-free
usage.
–We are not liable for parts that were not produced
by SOLARFOCUS. However, we are prepared to
transfer our existing claims against the producer
(relating to this defect) to the buyer.
–In fulfilling the warranty/guarantee services, we
shall cover only the assembly time and the mater-
ials used, but not any travel or accommodation
costs necessary for the fitters/engineers or any
return transport costs.
–SOLARFOCUS GmbH assumes no liability for
any consequential costs of damages.
–The repair and/or warranty replacement shall be
carried out on site or in the SOLARFOCUS fact-
ory at our discretion.
–The company SOLARFOCUSwill determine
whether such work requires a repair or whether
the parts are to be replaced free of charge.
3.3 Claims rendered void
The warranty and guarantee claims are rendered
void if one of the following points applies:
–Non-compliance with the technical requirements
> 4
–Damage during transport
–Wilful damage
–Damage due to force majeure (water, fire, etc.)
–Non-observance of information in the planning,
installation and operation manual
–Insufficient energy or water, fault in the hydraulics
–Incorrect operation, failure to perform main-
tenance and cleaning as prescribed
–Commissioning and maintenance carried out by
non-certified companies
–Undocumented commissioning (no com-
missioning log) and/or maintenance (main-
tenance log)
–It is almost impossible to produce flawless
painted parts; for this reason, slight defects that
do not adversely affect proper use shall not be
deemed as grounds for complaint.
–No claims can be accepted under the warranty if
unauthorised intervention (or action that has not
been explicitly approved by us the manufacturer)
has been carried out. In addition, the goods must
be paid for within the specified payment time-
frame.
Limitation of liability
SOLARFOCUS GmbH assumes no liability for injury
or material damage resulting from:
–Failure to observe the instructions in this manual
–Use of the product for any purpose other than for
its intended use
–Employment of unqualified personnel
–Use of non-approved spare parts
–Technical modification of the product by the sys-
tem operator
Operation manual ecotop-zero, ecotop-light 5

4 Product information
4 Product information
4.1 Proper use
–The boiler ecotop zero/light is intended for heating
up water in closed heating systems.
–Only use fuel as specified in the next chapter
Fuel.
4.2 Fuel
Pellets
Use wood pellets only in accordance with these spe-
cifications:
–Pellets according to the ISO 17225-2 standard,
class A1.
–Pellets that meet the additional ENplus certific-
ation.
–Pellets that meet the additional DINplus certific-
ation.
4.3 Requirements of storage area/room
The requirements of a pellet storage area are
described in detail in ISO 20023.
The main requirements of a pellet storage area are as
follows: protect the fuel against moisture, ensure that
the storage area/room is well ventilated, provide ports
or filling points to allow pellets to be blown in from the
outside via a tanker.
As is the case with many biogenous substances, pel-
lets also emit small quantities of toxic and odourless
carbon monoxide (CO).
Particularly in the first two to three weeks after filling,
the large amount of pellets in the small air volume of
the store can lead to a critical concentration of CO.
This emission is usually associated with a build-up of
unpleasant odour. Pellets that were processed with
pine wood are particularly affected by this.
Filling pipe cover with ventilation function
To prevent CO from developing in the pellet storage
area, the filling pipe cover with ventilation function
has been developed. Even a small exchange of air
caused by temperature deviations between the
interior and the open air causes the CO to dissipate.
The filling lines should therefore by fed to the outside
and have as few bends or direction changes as pos-
sible. They must be electrically conductive and
earthed. The filling pipes must be located a maximum
of 2 metres above the footprint and must be equipped
with covers that are capable of ventilation.
4.4 Product description
–The ecotop zero/ecotop light is a boiler for the
combustion of wood pellets.
–The boiler has an automatic fuel ignition system,
automatic fuel supply and automatic heat
exchanger cleaning.
–The ash produced is collected in an ash con-
tainer, which must be emptied at regular intervals.
–Integrated in ecotop zero is an electrostatic dust
collector.
–This electrostatic dust collector can be retrofitted
on ecotop light if desired.
4.5 Spare parts
For repairs use only original spare parts or parts
approved by the manufacturer (e.g. standard parts).
The manufacturer cannot accept any liability for dam-
age caused by spare parts not authorised by the man-
ufacturer.
4.6 Accessories
Lifting aid
–Optional accessories for carrying/moving the
boiler.
–Art. 6144
6 Operation manual ecotop-zero, ecotop-light

4 Product information
Extension for exhaust pipe connection
–Accessories (included) for optional extension of
the connection, from Ø100mm to Ø130mm.
–Can be used for directing the flue gas pipe up or
to the rear.
–Art. 66556NIRO
4.7 Type plate
4.8 CE declaration of conformity
The conformity of the product is declared by the man-
ufacturer in accordance with the Machinery Directive
2006/42/EC; the documents are available for inspec-
tion at the manufacturer.
The product corresponds to Directive 2011/65/EU
(RoHS 2) and does not use any materials containing
asbestos. The product does not contain any PCB or
mercury.
4.9 Safety devices
Overtemperature reset (OTR)
–The overtemperature reset is a safety device that
prevents overheating of the boiler and is integ-
rated in the boiler safety group.
–Functioning: The overtemperature reset stops the
heating process at a boiler temperature ~95°C
(exclusively electrical function; fuel and air supply
are interrupted).
–After tripping, the overtemperature reset must be
manually released again by unscrewing the black
sealing cap 1and pressing the button as soon as
the boiler temperature falls below 60°C.
–If the overtemperature reset trips, this is indicated
on the boiler control display.
Operation manual ecotop-zero, ecotop-light 7

4 Product information

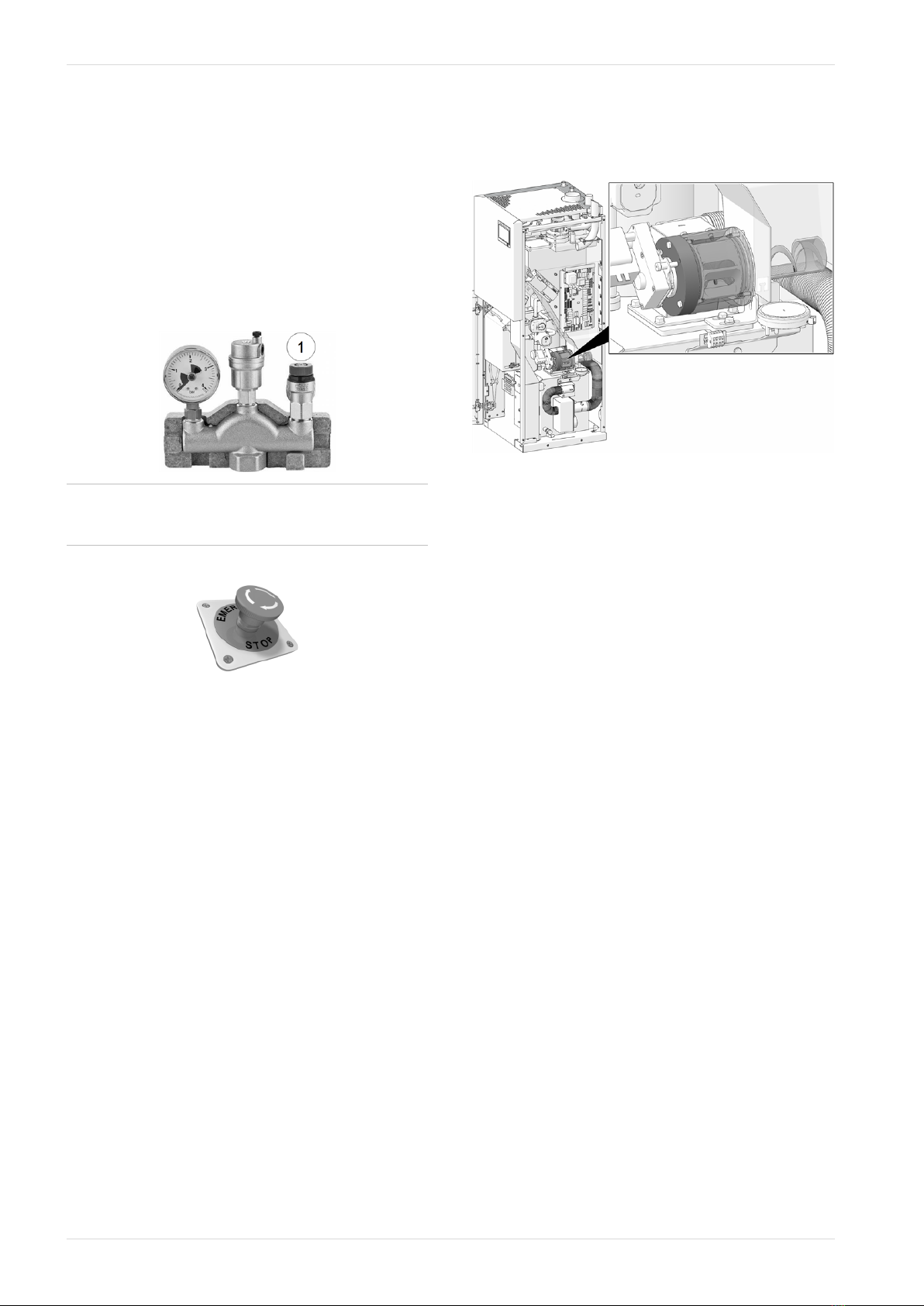

Safety valve (to protect against excess pres-
sure in the system)
–The safety valve 1is a safety device for protecting
against overpressure in the water circuit of the
heating system.
–Functioning: The valve opens when the system
pressure exceeds 3 bar. Water/steam is dis-
charged into an open drain via a blow-off line,
which avoids subsequent damage to the com-
ponents of the heating system. The safety valve is
closed during normal operation.
–For normative specification see EN 12828.
iThe safety valve (or a boiler safety group) is
not included in the scope of delivery. This
must be provided on site.
Emergency OFF switch
–The emergency OFF switch is a manually oper-
ated safety device. The burner and the fuel supply
to the boiler are stopped. Circulation pumps
remain in operation to dissipate heat and cool the
boiler.
–The switch must be installed outside the boiler
room in a safe place that is easy to access.
Rotary valve
The rotary valve fulfils all normative requirements for
the approved fuels regarding fire protection, burn-
back safety, backflow of gases:
–Complies with requirements regarding burn-back
protection devices (BPD) according to TRVB 118
H.
–The single axis rotary valve prevents backflow of
flammable products of combustion into the fuel
supply (according to EN 303-5).
–Fire is held off from spreading into the fuel supply
(according to EN 303-5).
4.10 Efficient and low-emission oper-
ation
Please note the following recommendations from the
EU Energy Efficiency Directive:
Use of a buffer tank
Since maximum combustion is possibleonly in stand-
ard operation of the boiler, and greater losses and
higher emissions occur during the warm-up and burn-
out phases, use of a buffer tank is recommended.
This tank stores the water heated by the boiler, allow-
ing the connected devices (heating circuit, DHW tank,
fresh water module, etc.) to access it as required.
This ensures sufficiently long, uninterrupted com-
bustion periods for the boiler.
Use of high-efficiency heating pumps
When using external heating pumps (e.g. existing
heating circuit pumps, etc.), high-efficiency pumps
with energy efficiency class A should preferably be
used.
This delivers savings potential of up to 80 % in drive
energy (compared to conventional heating pumps)
with identical feed results.
8 Operation manual ecotop-zero, ecotop-light

4 Product information
4.11 Functional components
1 Heating water, heating circuit (return/supply)
2 Flue gas pipe
3 Connections for pellets
4 ID fan
5 Suction turbine for pellet extraction
6 Electrostatic dust collector (option with ecotop
light)> 9
7 Pellet storage store
8 Boiler electrical power element
9 Ash container > 40
10 Single axis rotary valve > 8
11 Differential pressure gauge
12 Heat exchanger with interior turbulator
13 Stainless steel combustion grate > 42
4.12 Innovative technologies
Electrostatic dust collector[1]
To filter the last remaining dust particles from the flue
gas stream as well, SOLARFOCUS has developed
an integrated electrostatic dust collector. A special
discharge electrode with a high voltage of up to 30kV
ionises the fine dust particles, which then form a layer
of dust on the collection electrode. The discharge and
collection electrodes are cleaned fully automatically
together with the heat exchanger cleaning. External
cleaning facilities that frequently incur additional
costs are no longer required.
[1] Optional with ecotop light
Operation manual ecotop-zero, ecotop-light 9

4.13 Technical specifications
ecotop zero,ecotop light 15 20 24
Nominal heat output (NWL) [kW] 15.4 19.7 24.0
Heat output range [kW] 4.6 - 15.4 5.9 - 19.7 7.2 - 24.0
Energy efficiency class A+ A+ A+
Boiler class (according to EN 303-5:2012) 5 5 5
Boiler efficiency - zero - full load [%] 95.7 95.3 94.9
Boiler efficiency - zero - partial load [%] 95.9 96 96.1
Boiler efficiency - light - full load [%] 93.8 93.5 93.2
Boiler efficiency - light - partial load [%] 92.1 93.2 94.3
Dimensions
Width [cm] 60 60 60
Depth [cm] 66.5 66.5 66.5
Height (H) - including adjustable feet, adjustable feet
screwed in all the way - without hydraulic connections on
the top of the boiler
[cm] 157.3 157.3 157.3
Minimum room height [cm] 185 185 185
Weight
Weight [kg] 280 280 280
Weight without wooden pallet [kg] 288 288 288
Water side
Water content [l] 55 55 55
Max. permissible operating pressure [bar] 333
Boiler flow/boiler return connection [”] 1” UN 1” UN 1” UN
Drain connection [”] AG 1/2 ” AG 1/2 ” AG 1/2 ”
Differential pressure at ΔT 10°K [hPa] 145 245 345
Differential pressure at ΔT 20 °K [hPa] 35 60 85
Thermal overload protection [”] not required not required not required
Electrical connection
Connection, fuse 230 VAC, 50 Hz
C13 A
230 VAC, 50 Hz
C13 A
230 VAC, 50 Hz
C13 A
Fuel
Fuel
Wood pellets
acc. to
EN17225-2,
ENplus-A1
Wood pellets
acc. to
EN17225-2,
ENplus-A1
Wood pellets
acc. to
EN17225-2,
ENplus-A1
Capacity of intermediate pellet store [l] 55 55 55
Capacity of ash container [l] 20.3 20.3 20.3
Flue gas side
Flue gas pipe diameter [mm] 100/130 100/130 100/130
Height to centre of flue pipe [cm] 143 143 143
Flue gas mass flow full load [g/s] 9 / 10 12 / 12.5 15 / 15
Flue gas mass flow partial load [g/s] 3 / 4 4 / 4.5 5 / 5
Maximum flue gas temperature [1] full load > 11 [°C] 140 140 140
Maximum flue gas temperature [1] partial load > 11 [°C] 100 100 100
Minimum draught requirement [2] > 11 [Pa] 555
Condensation No No No
Emissions according to test report - ecotop zero
Flue gas values (in relation to 13% O2) from test report:test-
ing institute/test report No.
TÜVSüd
2219038-1
TÜVSüd
2219038-2
TÜVSüd
2219038-3
CO full load [mg/m³] 479
CO partial load [mg/m³] 83 50 17
4 Product information
10 Operation manual ecotop-zero, ecotop-light

4 Product information
Operation manual ecotop-zero, ecotop-light 11
ecotop zero,ecotop light 15 20 24
NOx full load [mg/m³] 111 114 116
NOx partial load [mg/m³] 107 109 111
Org. C full load [mg/m³] 0.3 0.6 0.9
Org. C partial load [mg/m³] 1.5 1.1 0.6
Dust content full load [mg/m³] 0.6 1 1.3
Dust content partial load [mg/m³] 0.5 0.9 1.3
Emissions according to test report - ecotop light
Flue gas values (in relation to 13% O2) from test report:test-
ing institute/test report No.
TÜVSüd
2220046-1
TÜVSüd
2220046-2
TÜVSüd
2220046-3
CO full load [mg/m³] 865
CO partial load [mg/m³] 70 49 29
NOx full load [mg/m³] 112 113 114
NOx partial load [mg/m³] 106 108 110
Org. C full load [mg/m³] 1.7 2 1.9
Org. C partial load [mg/m³] 1.8 3 3.2
Dust content full load [mg/m³] 7.9 7 5.7
Dust content partial load [mg/m³] 6.3 8 9.1
Regulation (EU) 2015/1187 - ecotop zero
Nominal heating output [kW] 15 20 24
Boiler's energy efficiency class A+ A+ A+
Energy efficiency class EEI of boiler and control combined A++ A++ A++
Energy efficiency index EEI of the boiler 121 121 122
Energy efficiency index EEI of the boiler and control com-
bined 125 125 126
Space heating annual usage etaS [%] 81 82 82
Annual emission values (in relation to 10% O2)
CO - carbon monoxide [mg/m³] 98 58 22
NOx – nitrogen oxide [mg/m³] 149 151 154
C - Total (carbon) [mg/m³] 111
Dust [mg/m³] 112
Regulation (EU) 2015/1187 - ecotop light
Nominal heating output [kW] 15 20 24
Boiler's energy efficiency class A+ A+ A+
Energy efficiency class EEI of boiler and control combined A+ A+ A++
Energy efficiency index EEI of the boiler 118 119 121
Energy efficiency index EEI of the boiler and control com-
bined 122 123 125
Space heating annual usage etaS [%] 80 81 82
Annual emission values (in relation to 10% O2)
CO - carbon monoxide [mg/m³] 83 58 35
NOx – nitrogen oxide [mg/m³] 146 150 153
C - Total (carbon) [mg/m³] 223
Dust [mg/m³] 8 11 12
[1] Flue gas temperature can be adjusted electronically
[2] A draught stabiliser must be fitted if the specified draught of 15 Pa is exceeded (attention:In the case of a boiler with room-sealed oper-
ation, a draught stabiliser must not be used)

4.14 Dimensions
Front Back
Side view
Top view: Flue gas pipe connection towards
top
Top view: Flue gas pipe connection towards
rear
1 Boiler return
2 Boiler flow
3 Flue gas pipe
4 Pellet return air
5 Pellet suction
4 Product information
12 Operation manual ecotop-zero, ecotop-light

5 Use and operation
5 Use and operation
Touch display for operation
If the boiler is supplied with a mains power supply, the
boiler control starts ecomanager-touch. The control is
started up to show the main screen.
iOperate the touch display with a finger. Do not
use hard and/or sharp implements.
If no inputs are made for 5 minutes (factory setting),
the display will switch to standby mode.
Tapping the display again restarts the display with the
main screen.
Buffer battery in operating element
A replaceable buffer battery (CR2032) ensures that
data (time, settings) are retained in the operating unit
when the power supply is switched off.

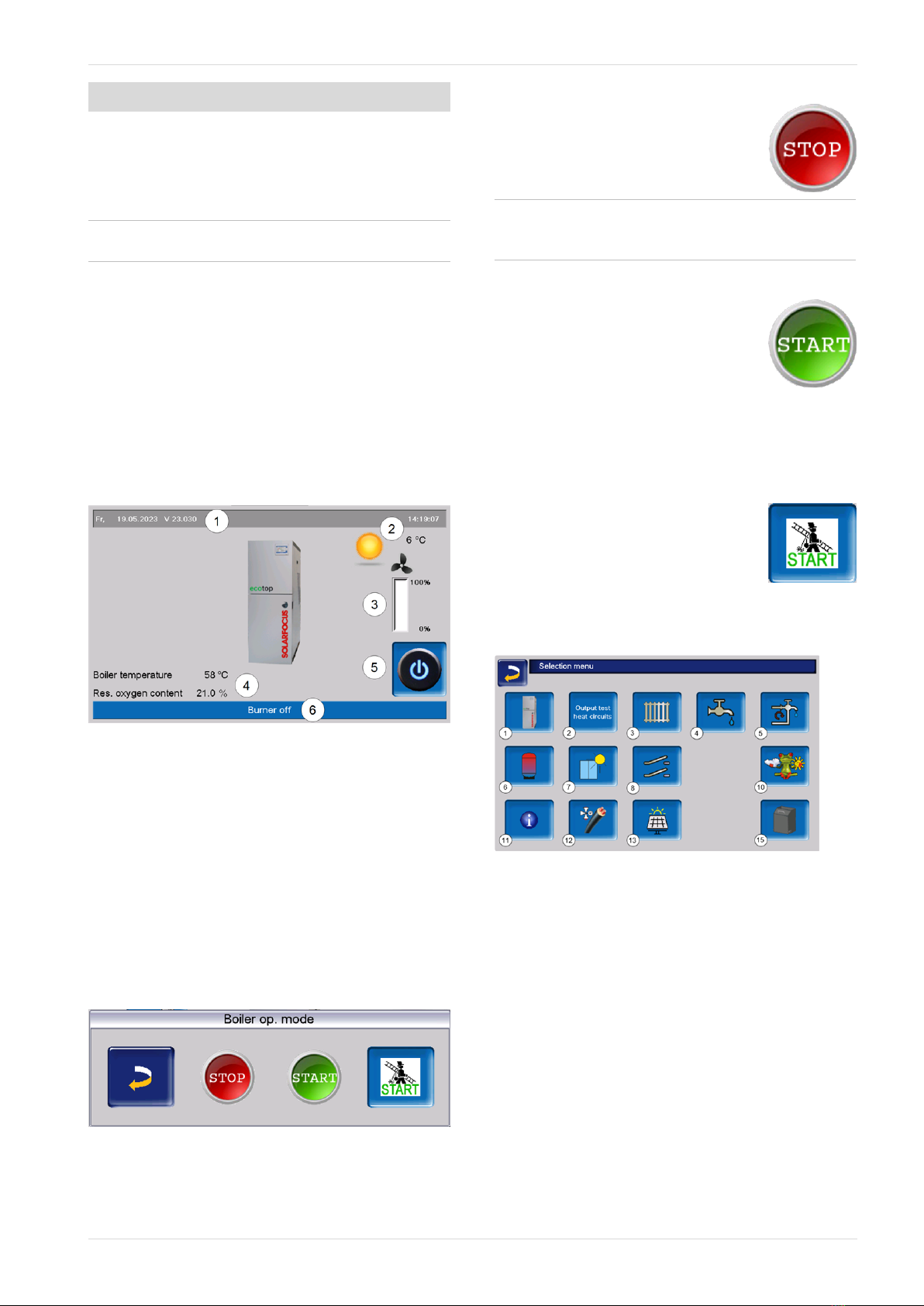

5.1 Main screen of boiler control
1 Software version for control
2 Outside temperature
3 Boiler output (rotational speed of induced
draught fan)
4 Boiler temperature and residual oxygen con-
tent in flue gas
5 Boiler operating mode > 13
6 Status line
Touching the main screen changes to the Selection
menu > 13
5.2 Boiler operating mode
STOP
The burnerisswitched off. No heating
requests of the connected devices are
fulfilled.
!WARNING - The burner must not start! Only
the automatic start-up of the heating circuit
pump is active to protect against frost.
START
After pressing the START button, the
burner is ready for operation and is able
to fulfil heating requests from the con-
nected devices. The burner goes into
standby as soon as a heating request is
fulfilled, or the time release > 14 is no longer avail-
able.
Chimney sweep function
This function is used to perform the emis-
sion measurements prescribed by law.
5.3 Selection menu
Access to the selection menu is possible by pressing
the boiler symbol on the main screen.
1 Customer menu > 14
2 Output test heating circuit > 14
(Only to be undertaken by qualified personnel.)
3 Heating circuit > 1
4 Hot water heating > 27
5 Circulation control (optional) > 29
6 Buffer tank(optional) > 31
7 Solar system (optional) > 32
8 Temperature difference, charge control
(optional) > 32
10 Weatherman function (optional) > 37
11 Information
12 Remote line (optional)
13 Photovoltaic system (optional)
15 Boiler cleaning > 40
Operation manual ecotop-zero, ecotop-light 13

5 Use and operation
5.3.1 Heating circuit output test
The available electrical outputs can be switched
on/off directly using the button. Can be used to test
the function of individual components.
!ATTENTION: Only to be undertaken by qual-
ified personnel.
5.4 Customer menu
1 Required boiler values > 14
2 Vacuum output > 15
3 Heat exchanger cleaning > 15
4 User lock > 16
5 Message log [1]: Recording of alarm and noti-
fication messages > 16
6 Operating hour counter > 17
7 Boiler output test (ATTENTION: Only to be
undertaken by qualified personnel).
8 Qualified personnel menu > 18
9 Customer trend (USB stick essential)
11 Cascade settings (optional)
[1] Button is only visible if a message is active.
5.4.1 Required boiler values
Burner release time 1
The burner can start within the release times; outside
of these times, starting does not take place and/or the
burner is stopped. A time release from 00:00 to 23:59
means that no restriction is pending and the burner
may start at any time.
!ATTENTION - In order to protect against frost,
only automatic start-up of the heating circuit
pump is active outside the release time.
iDHW heating in summer
If the boiler is used for heating hot water, the
required chimney draught of 5Pa may not be
present in the summer months (or outside the
heating period). This may result in smoke
escaping in the boiler room.
Reason: High temperature on the chimney
stack (greater than 30°C); as a result, the
cooler air does not rise (~ 20°C air tem-
perature when the burner starts)in the chim-
ney.
Remedy: Set the burner time release from
00:00 to 07:00 or from 21:00 to 23:59.
14 Operation manual ecotop-zero, ecotop-light

5 Use and operation
Burner release outside temperature 2
The burner may not start if the outside temperature
exceeds this value.
External boiler release 3
On switches the function to standby. I.e. a connected
external boiler may only start when it receives the
release from the SOLARFOCUS boiler (e.g. on the
basis of a lack of fuel, operating fault).
5.4.2 Vacuum output
Release 1
Within the release times, the pellet suction turbine
can start. A release time from 00:00 to 23:59 means
that no restriction is pending and suction can start at
any time.
Intermediate pellet store filling 2
Pressing the button starts the suction turbine and the
tank is filled once (i.e. current level and release times
are not considered). Prerequisite: the boiler must
have the status Switched off or Standby.
Automatic diverter for suction heads unit
(optional)3
This button is only visible if the product has been pur-
chased.
Possible settings: 8
–Automatic: (Recommended setting) After three
successful suction procedures at a head, the sys-
tem switches to the next head. An even reduction
of the fill level in the pellet storage area is
achieved.
–Selectively: The heads are successively emptied
through extraction.
–Only head …: Suction is performed only at the set
head. Manual further switching in the boiler con-
trol is required.
Pressing the "Storage area/room
filled" 9button marks all suction heads
as full again.
Pressing the status button changes
the head status (colour red: head is empty; colour
green: head is full).
The arrow 10 above
the heads shows
which one is cur-
rently in use. Pos-
ition C 11 of the arrow means that the pellet hose will
be emptied through extraction. The occurs auto-
matically and takes a few seconds.
Manual filling 4
Pressing the button deactivates the automatic suction
system, i.e. the suction turbine may not start. (e.g. for
manual filling of the intermediate pellet store through
the inspection flap).
5.4.3 Heat exchanger cleaning
Release from-to:
Within the release times, heat exchanger cleaning
can start automatically. A time release from 00:00 to
23:59 means that no restriction is pending and the
functions can start at any time.
Operation manual ecotop-zero, ecotop-light 15

5 Use and operation
5.4.4 User lock
The function serves as protection against unau-
thorised modification of the control parameters.
When the user lock is active, the parameters of the
individual screens are displayed but cannot be
changed. The active user lock is indicated by the pad-
lock icon 1in the screens.
User lock screen
Enter the password 2
To define a new password (maximum 20 characters).
Password 3
The currently valid password is displayed.
User lock 4
Off: The user lock is switched off.
On: Switches on the user lock function. If the display
is not touched for one minute, the user lock is active
in the screens.
Password reset 5
The current password is reset to the value solarfocus.
Accept new password 6
Enter a new password in the input field and press the
button. Note on screen keyboard: Confirm input with
the button.
5.4.5 Message log
The button is only visible if a message is active, i.e.
not acknowledged.
Located in the upper screen is both the date and the
time 1. The messages 3saved in the boiler control
are recorded here, with the start and end time. The
message with the highest priority is highlighted in red
2, acknowledged messages are green.
Press the 6button to quit messages. Button 4opens
the power failure log. All messages are acknow-
ledged with the 5button and the entries in the mes-
sage log are deleted.
Possible messages > 45
16 Operation manual ecotop-zero, ecotop-light

5 Use and operation
5.4.6 Operating hours counter
The operating hours of the individual outputs are lis-
ted in this menu. These are only counted when the
corresponding output is switched on.
The display of the pellet consumption is accessed by
clicking on the button 1. Pressing the Reset button
sets the pellet consumption back to 0 and in the bot-
tom area 4the consumption is displayed over the
elapsed time.
The heat distribution is reached via 2. Displayed here
are the operating hours during which heat was
requested by the various connected devices.
The integrated heat quantity measurement is
reached via 5. The pellet consumption is displayed
with maximum 15% deviation and is used together
with the efficiency factor for calculating the heat
quantity. The efficiency factor depends on the dif-
ference between the ambient temperature and flue
gas temperature, residual oxygen content and energy
content of the pellet 6.
There is no need for an additional heat quantity
counter.
The corresponding manufacturer declaration is
present and can be accessed here:
Operation manual ecotop-zero, ecotop-light 17

5 Use and operation
5.4.7 Boiler output test
!ATTENTION: Only to be undertaken by qual-
ified personnel.
The function of the individual actuators (insertion
motor, suction turbine, etc.) can be tested in the boiler
output test.
iThe output test can only be opened when the
boiler is switched off or the status is ready.
It is not possible to start the boiler during the
output test.
On completion of the period Screensaver act-
ive after, the screensaver is activated but
there is no automatic switch to the start
screen. The output start remains active.
The output test is only possible while there is
no remote access.
5.4.8 Qualified personnel menu
1 Service menu > 18
2 Modbus TCP interface
3 IP-VNC (IP address of the control) > 18
4 Send email
5 mySOLARFOCUS app > 13
6 Language selection > 19
7 Date and time > 19
Service menu
In the Service menu there are (factory predefined) set-
tings for an optimum combustion process in the
boiler. These can only be accessed by qualified per-
sonnel (code input required).
IP-VNC
The IP address must be must be entered in order to
operate the control via the internet.
The following boiler control functions require access
to the internet.
–Remote access to the control
–mySOLARFOCUS app > 35
–Weatherman function > 37
–SOLARFOCUS-connect > 34
Hardware
A cable connection is required on site for connecting
the control to the router. > 33
18 Operation manual ecotop-zero, ecotop-light

5 Use and operation
Mod bus TCP
With this function, the ecomanager-touch control is able
to communicate with a LOXONE control, e.g. for
smart home controls, in both directions.
iInstallation and configuration of this function
must be performed by the customer, i.e. they
are not included in the commissioning and ser-
vice activities for your SOLARFOCUS system.
Requirements for use
–ecomanager-touch control with 7" display
–Software version of boiler control: from V 19.050
or with therminator II touch from V 19.072
–Master and display must be in the same network.
Modbus TCP interface
–The connection is made via port 502
–The UnitIdentifier (UnitID) for the connection to
the slave is 1.
–To establish a connection with the panel, all that
needs to be known is the IP address of the con-
trol. The connection can be established via the
master.
–The instructions can be found here:
Setting in the boiler control
–Activate the Mocbus TCP interface
–The green colour 1denotes the availability of the
interface and the active data exchange. Red 2in
the display on the other hand indicates an inter-
ruption in the connection or a missing activation.
mySOLARFOCUS app
Pressing the button displays the screen with inform-
ation relating to online registration for the
mySOLARFOCUS app (serial number, PIN,status,
etc.)
Detailed information on use of mySOLARFOCUS
app > 35
Language selection
The language of the operating unit can be set on this
screen.
iIf a text is not available in the selected lan-
guage, it will be displayed in English.
Date and time
Summer/winter time is changed automatically when
the Switchover Summer-Winter parameter has the
value Europe. Switchover takes place on the last
Sunday of the months of March and October. If Amer-
ica is set, the clock is changed to summer time on the
first Sunday in April.
Operation manual ecotop-zero, ecotop-light 19

6 Heating circuit
6 Heating circuit
1 Name of heating circuit
2 Operating mode
3 Outside temperature
4 Average outside temperature [1]
5 Room temperature
6 Display of room temperature sensor operating
mode
7 Temperature of the energy source
8 Flow temperature of the heating circuit
9 Flow target temperature of the heating circuit
10 Position of the heating circuit mixing valve
11 Info line for heating request
12 Heating circuit pump
13 Status line
14 Heat. cir. settings
[1] Only visible if outside temperature delay is set higher than 0
hours.
6.1 Heating circuit settings
1 Heating circuit operating mode > 20
2 GeneralSettings
3 Room settings > 24
4 Mixing valve settings > 24
5 Heating curve > 22
6 System parameter
7 Screed program > 26
6.1.1 Heating circuit operating mode
Heating mode
The heating circuit pump is activated. A
shutdown occurs whenever
–the ambient switch off temperature
for heating mode is reached or
–a room temperature sensor is used and where
nominal room temperature for heating mode has
been reached
The room effect must therefore be set to on or con-
tinuous.
The heating circuit is supplied with the calculated
required flow temperature.
20 Operation manual ecotop-zero, ecotop-light
