Malloca WQP6-890F3 User manual

Model : WQP6-890F3
Please read this manual carefully
before using your dishwasher, and
keep it for future reference.
Hướng dẫn sử dụng
Vui lòng đọc kỹ hướng dẫn trước
khi sử dụng và giữ lại hướng dẫn
để tham khảo về sau.

QUICK USER GUIDE
1Discard scraps
Scrape large food particles off and
remove any foreign objects.
2Load dishes carefully
To help with wash performance,
arrange dishes so they are evenly
spaced and not nesting.
Starting A Wash
1Add detergent
Add the recommended quantity of
dishwasher-specific detergent to
the sink.
2Choose the appropriate program
and start washing
After closing the door, please gently
press the dot position on the drawing
to ensure that the door is closed.

SAFETY INFORMATION
4
CONTENTS
INSTALLATION INSTRUCTION
22
22
23
24
24
25
Product Dimensions 22
Parts supplied 23
Installation Precautions 24
Installation Information 24
Installing Your Dishwasher 25
PRODUCT DESCRIPTION
7
Product Overview
Control Panel
7
USING YOUR DISHWASHER
Water Softener
Preparing And Loading Dishes
Basket Use Tips
Adding Detergent
15
14
12
OPERATING THE APPLIANCE
Wash Cycle Table 16
Starting A Cycle Wash 17
Washing Fruits Or Vegetables 17
Changing The Program Mid-cycle 17
Forget To Add A Dish?
16
16
17
17
17
18
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
19
19
29
21
TROUBLESHOOTING TIPS
30
32 Error Codes
10
10
8

SAFETY INSTRUCTIONS
WARNING
READ ALL INSTRUCTIONS BEFORE USE
This appliance is intended to be used in household
and similar applications such as:
- staff kitchen areas in shops, offices and other
working environments;
- farm houses;
4
It is your responsibility to use caution when installing,
maintaining, and operating your dishwasher.
Malloca will not be liable for any damage resulting
from improper use.
This is the safety alert symbol. This symbol alerts you to
potential hazards that can result in property damage or
serious bodily harm, even death.
The safety alert symbol will be followed by either the
word WARNING or CAUTION then an important
safety message. These words mean:
Indicates the possibility of serious
bodily harm or death.
Indicates the possibility of injury or
damage to property.
WARNING
CAUTION
Basic Safety Precautions

5
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge providing they have been given supervision
or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children should not play with the appliance. Cleaning
and user maintenance should not be done by children
without supervision.(For EN60335-1)
This appliance is not intended for use by persons
(including children ) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction regarding the use of the appliance by a
person responsible for their safety. (For IEC60335-1 )
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Unplug before cleaning and performing maintenance
on the appliance.
Do not use the dishwasher before it is fully installed.
Do not operate the dishwasher without all the
enclosures fixed in place.

6
The sharp edges of knives and utensils with sharp
points should not face upwards.
Dishwasher detergent is dangerous. Avoid skin and
eye contact. A drawer should not be left open after
detergent has been loaded.
When emptying the dishwasher, check that all the
detergent has been dissolved.
The inlet water hose supplied must be used. Do not
reuse a used or old hose.
The power cable must be safely routed. If it is ever
damaged, it must be replaced with a similar item by
a registered electrician.
An earthed 3 pin socket must be used. Consult a
registered electrician if there is doubt regarding the
earth connection.
Product Disposal
The packaging can be recycled.
If the product is to be disposed of, do this
responsibly at your local Council Waste Depot.
DISPOSAL: Do not dispose this product as
unsorted municipal waste. Collection of
such waste separatelyfor special treatment
is necessary.

PRODUCT DESCRIPTION
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
Product Overview
Spray arm
7
Sewer
Plastic filterFine Filter
Cylindrical filterSalt container
Ultrasonic transducer

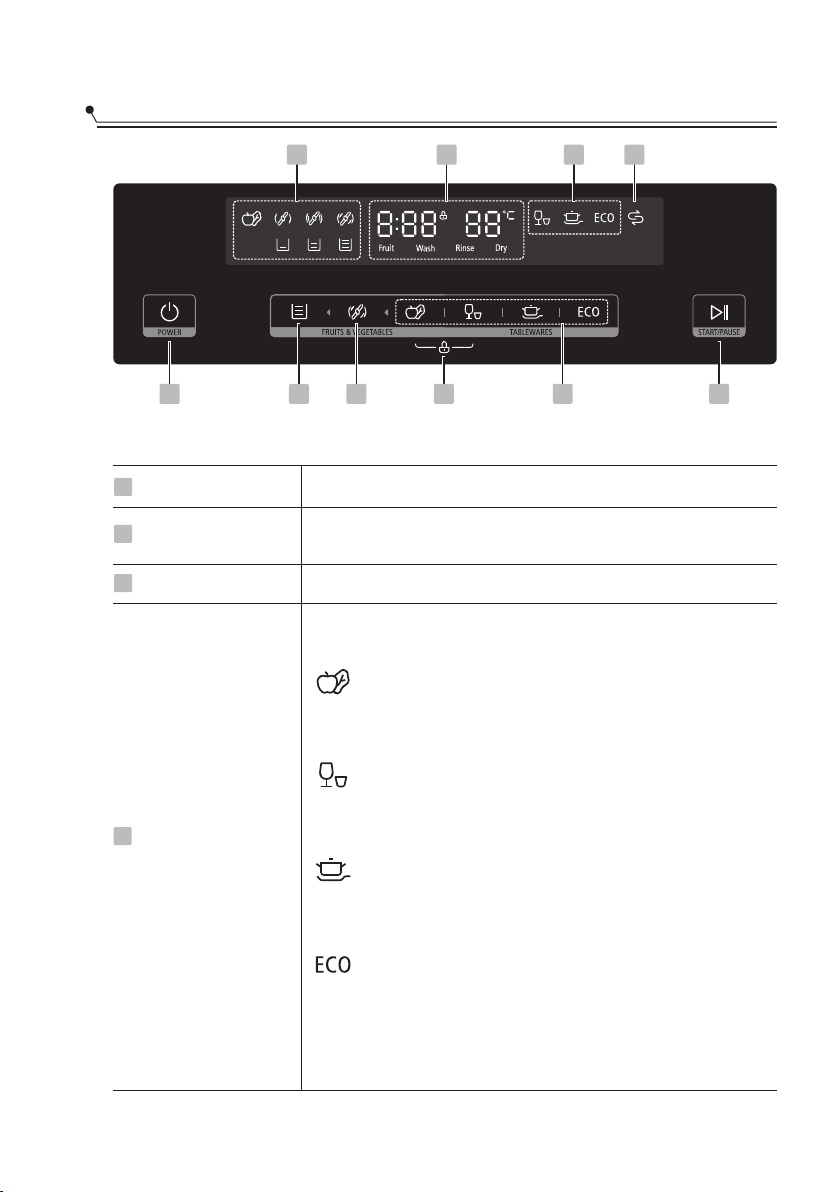

Control Panel
Operation (Button)
Power
1
2
Strength selector
3
To turn on your dishwasher, the screen will light up.
To select the strength of fruit and vegetable washing.
Touch the buttons to select a program, corresponding
indicator will be lit.
4Washing program
To select the water level for fruit and vegetable washing.
Water level
selector
1 5 4 6
7 8
2 3
109
Intensive
For heaviest soiled crockery, and normally soiled pots,
pans, dishes etc. With dried-on food.
Fruit & Vegetable
Used to clean fruits, vegetables, shells, etc.
This program need to set the water level and strength.
ECO
This is standard program, it is suitable to clean
normally soiled tableware and it is the most efficient
program in terms of its combined energy and water
consumption for that type of tableware.
Rapid
A shorter wash for lightly soiled loads that do not
need drying.
8

Display
Operation (Button)
This option allows you to lock the buttons on the control
panel, so children cannot accidently start the dishwasher by
pressing the buttons on the panel. Only the Power button
remains active.
To lock or unlock the buttons on the control panel, press
and hold the Fruit & Vegetablebutton+ Rapidbutton for
2 seconds simultaneously.
To start the selected washing program or pause it when the
dishwasher is operating.
Start/Pause
6
5Child lock
To show selected water level and intensity.
7
To show the time reminding, error code, child lock indication, temperature,
washing stage etc.
To show selected washing program.
If the   indicator is lit, it means the dishwasher is low on dishwasher salt and
needs to be refilled.
8
9
10
9

USING YOUR DISHWASHER
Water Softener
Adjusting salt consumption
1. Switch on the appliance.
2. Within 60 seconds after step 1, the Start/Pause button for more thantouch
5 seconds to start the water softener set model within 60seconds after the
appliance was switched on.
3. the Start/Pause button to select the proper set according to your localTouch
environment, the sets will change in the following sequence:
H1->H2->H3->H4->H5->H6.
4. Without any operation in five seconds, the machine will exit from set mode.
The water softener level is memorized by the program.
Please follow the steps below for adjustment in salt consumption.
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which
would have a detrimental or adverse effect on the operation of the appliance.
The more minerals there are, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area.
Your local Water Authority can advise you on the hardness of the water in your area.
0 - 5
6 - 11
12 - 17
18 - 22
23 - 34
35 - 55
German German
dHdH
German
dH
Salt consumption Salt consumption
(gram/cycle)(gram/cycle)
Salt consumption
(gram/cycle)
0 - 9
10 - 20
21 - 30
31 - 40
41 - 60
61 - 98
0 - 6
7 - 14
15 - 21
22 - 28
29 - 42
43 - 69
0 - 0.94
1.0 - 2.0
2.1 - 3.0
3.1 - 4.0
4.1 - 6.0
6.1 - 9.8
0
9
12
20
30
60
French French
fH fH
French
fH Mmol/lMmol/lMmol/l
Water softener levelWater softener levelWater softener level
British British
ClarkeClarke
British
Clarke
WATER HARDNESS
H1
H2
H3
H4
H5
H6
dH=1.25 Clarke=1.78 fH=0.178mmol/l
°° °
1
The manufactory setting: H3
Contact your local water board for information on the hardness of your water supply.
10

Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use,
especially table salt, will damage the water softener. In case of damages
caused by the use of unsuitable salt the manufacturer does not give any
warranty nor is liable for any damages caused.
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have been
spilled, remaining on the bottom of the machine for any period of time,
which may causecorrosion.
WARNING
1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the hole and pour in about 1kg of
dishwasher salt.
3. Fill the salt container to its maximum limitwith water, It is normal for a small
amount of water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will stop being after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should
be started (We suggest to use a short program). Otherwise the filter system, pump
or other important parts of the machine may be damaged by salty water. This is
out of warranty.
The salt container is located the lower basket. Please follow the steps below for adding
dishwasher salt:
Loading the salt into the softener
NOTE:
The salt container must only be refilled when the salt warning light ( ) in the
control panel comes on. Depending on how well the salt dissolves, the salt
warning light may still be on even though the salt container is filled.
If salt has spilled, run a soak or quick program to remove it.
11

Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
For washing the following cutlery/dishes
Are not suitable
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolour during washing
Glazed patterns may fade if machine washed frequently
Are of limited suitability
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans.It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
Place objects in the dishwasher in following way:
Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded on a slant so that water can
run off.
All utensils are stacked securely and can not tip over.
Be sure that no wash items protrude through the basket base where they will likely
foul the spray arm.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
12

Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
through the basket.
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
CAUTION
Loading the dishwasher
The loading pattern in the illustration is recommended for the design of basket.
NOTE:
Cups and glasses face downwards.
Plates face the back of each other, as do side plates, soup plates and saucers.
Small bowls
Soup bowls
Soup spoon
Rice spoon
Chopsticks
Spoons
Shallow plates
Deep plates
Cups
13

14
WARNING
Always load sharp utensils with the
sharp point down!
Do not let any item extend through
the bottom.
Folding spikes of basket
Basket Use Tips
Front of the basket Side of the basket
The basket has four folding spikes. You can adjust the angle of the folding spikes in
the basket to four different positions to math the size and shape of your dishes.
Cup rack
When you need to use the cup rack, you can place the cup rack as follows.
You can reverse the steps when placing high items.
1.Turn the cup rack
counterclockwise
to the vertical.
2.Lift up the cup rack.3.Turn the cup rack
counterclockwise
and secure it.

15
Fruit and vegetable basket
When cleaning fruits and vegetables, use the fruit and vegetable basket instead of the
dishes basket.
Water level scale
(Choose the water level
according to the actual situation)
Adding Detergent
The chemicals in Dishwasher Detergent are necessary to remove,
dissolve and help dispose of all the soils from the wash load.
Only specific Electric Dishwasher Detergent is capable of
doing this.
WARNING
Dishwasher detergent is dangerous. Avoid skin and eye contact
Keep the dishwasher detergent out of reach of children.
Keep it sealed in a dry place.

OPERATING THE APPLIANCE
Wash Cycle TableWash Cycle Table
16
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.
Running
Time(min)
82
115
29
Energy
(Kwh)
0.77
0.62
0.55
Water
(L)
8.5
6.5
6.5
Description
Of Cycle
Wash(65℃)
Rinse
Rinse
Rinse(65℃)
Drying
Pre-wash
Wash(45℃)
Rinse(65℃)
Drying
Wash(65℃)
Rinse
Rinse(60℃)
Program
(*EN 50242)
Intensive
Rapid
EN 50242: This program is the test cycle. The information for comparability test in
accordance with EN 50242.
NOTE:
Detergent
Pre/Main
1 pieces
18g
1 pieces
18g
1 pieces
18g
Running
Time(min)
Water level Gentle Moderate Strong
Running
Time(min)
Running
Time(min)
Low
Middle
High
16
19
22
Grape
Crayfish
Tomato
Vegetable
leaves
Strawberry
blueberry
Cherry
17
20
23
18
21
24
Shell
Potato
Apple
Broccoli
*The strength and water level of the fruit and vegetable selection in the table are only for reference.

17
Starting A Cycle Wash
1. Insert the plug into the socket. Make sure that the water supply is turned on to
full pressure.
2. Touch the Power button for 3 seconds to turn on the dishwasher.
3. Choose a program, the response light will turn on.
4. Touch the Start/Pause button, the display : blinks. The program starts running.
Washing Fruits Or Vegetables
1. After turning on the dishwasher, touch the Fruit & Vegetable button.
2. Touch the Water level selector button and Strength selector button to set the
appropriate water level and washing intensity.
3. Touch the Start/Pause button, the display : blinks. The program starts running.
Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have already
drained the wash water. If this is the case, the dishwasher needs to be reset and the
detergent must be refilled. To reset the dishwasher, follow the instructions below:

18
It is dangerous to open the drawer
mid-cycle, as hot steam may
scald you.
CAUTION
Forget To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.
1. Press the Start/Pause button to pause the washing.
2. Press any Program button for more than 3 seconds, the dishwasher will enter
standby mode.
3. Select the desired program.
4. Press the Start/Pause button.
3 sec
In standby mode, you can touch and hold the Rapid button + ECO button for
3 seconds simultaneously to drain the water tank.
Forced Drainage

MAINTENANCE AND CLEANING
External Care
Its best to clean spills on the outside of your dishwasher as they occur. Use a soft,
damp cloth on the control panel to gently wipe away spills and dust. Do not clean the
dishwasher by sprinkling water over it and avoid letting water come into contact with
any of the electrical parts.
Internal Care
Filtering system
The filtering system in the base of the wash cabinet traps coarse debris from the
washing cycle. The collected coarse debris may cause the filters to clog. Check the
condition of the filters regularly and clean them if necessary under running water.
Follow the steps below to clean the filters.
19
Keeping your dishwasher clean improves its performance, reduces unnecessary
repairs, and lengthens its life.
Do not over tighten the filters. Put the filters back in sequence securely,
otherwise coarse debris could get into the system and cause a blockage.
NEVER use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage
dishes and utensils.
CAUTION
WARNING
Disconnect the dishwasher from the power supply (unplug or switch off at
the circuit breaker) and allow all its parts to cool before any cleaning or
maintenance.

20
1 2
Hold the and rotate it cylindrical filter
anticlockwise to unlock the filter.
Lift the filter upwards and out of
the dishwasher.
Split the filter system into three parts.
3 4
Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
Reassemble the filters in the reverse
order of the dissasembly, replace the
filter insert, and rotate clockwise to
the close arrow.
