Malloca WQP6-890F4 User manual

Sink Dishwasher
Instruction Manual
MODEL: WQP6-890F4
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING
YOUR DISHWASHER, AND KEEP IT FOR FUTURE REFERENCE.
Máy rửa chén kết hợp chậu
Hướng dẫn sử dụng
VUI LÒNG ĐỌC KỸ HƯỚNG DẪN TRƯỚC KHI SỬ DỤNG VÀ
GIỮ CẨM NANG NÀY ĐỂ THAM KHẢO VỀ SAU.

Dear customers,
First of all, thank you for choosing this product. The purpose of our product is to focus on
cleaning products, to set hands free and make life more enjoyable! We insists on
independent innovation. We dedicate to research deeply in real life kitchen experience, in
order to develop easy-to-use products and provide good service to every user.
Caution: Please read carefully right through this instruction booklet before installing or
operating your dishwasher. The instructions indicate proper installation way to avoid
accidents caused by improper installation and operation.
Note: Due to the continuous improvement of the products, the products you purchase
may differ from that shows in the manual. Please refer to the actual product.
Contents
SAFETY INSTRUCTION
PRODUCT DESCRIPTION
Component Description---4
Spare Part List---5
USING YOUR DISHWASHER
Water Softener---7
Rinse Aid---9
Preparing and Loading Dishes---10
Fruit and Vegetable basket---14
Operating Instructions---15
Washing Program---16
Forget to Add a Dish---17
Accidental Opening Protection---18
MAINTENANCE AND CLEANING
Waste Basket---18
Fliter---18

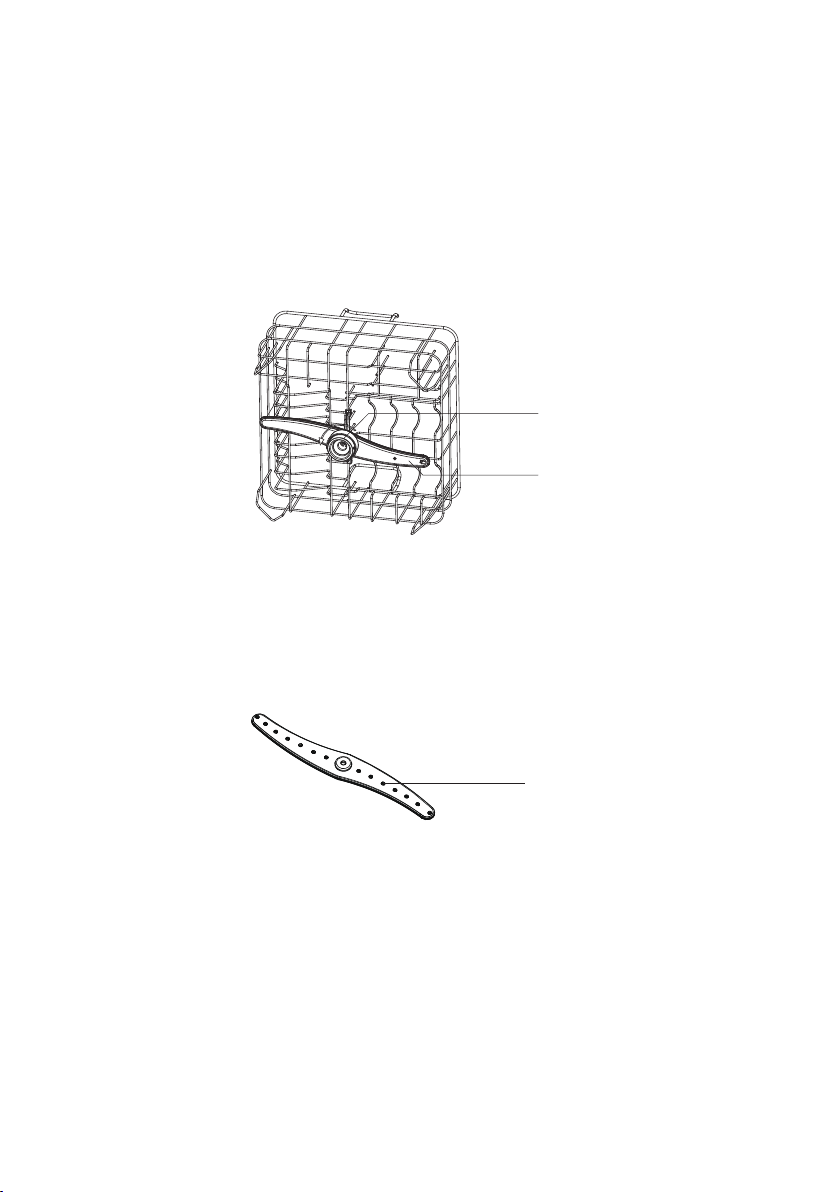

Spray Arm---19
INSTALLATION INSTRUCTION
Installation Precautions---20
Installation Cabinet Size Requirements---21
Installation Guide---22
SERVICE
Troubleshooting---24
Error Codes---25
1

SAFETY INSTRUCTION
WARNING
●In order to avoid damage of the user and users' property, the product and the instruc-
tion manual contain important information of correct and safe use.
●The pictures and symbols are intended to help the user understand the manual well. It
may differ on the actual product. Please read the relevant operating instructions on the
product carefully before use and strictly abide by them.
●Please keep the manual for later reference.
NOTES
●Please use the original power cord
Unauthorized replacement of the power cord and overloading may result in electric
shock or fire.
●Please connect the ground wire
When the dishwasher is faulty or damaged, the ground wire can effectively shunt the
current to protect the user from electric shock.
●Use the specified water softener and rinse aid
Do not use other detergent or salt to replace the specified water softener or rinse aid. If
it is used improperly, it will not be covered by the warranty.
●Use new hose assemblies
The dishwasher should be connected to the water source with a new hose assembly
and the old hose assembly should not be reused.
●Permitted water pressure
The water pressure of the dishwasher is 0.04MPa~1.00Mpa.
PROHIBITION
●Do not use the sink dishwasher during thunderstorms or with wet hands.
During thunderstorms, please power off the dishwasher to prevent damage to the
dishwasher from the lightning strikes. Please do not touch the power cord with wet
hands to avoid electric shock.
●Keep the children away from the dishwasher
Children should not play with the appliance to avoid any damage.
●Keep children away from the water softener and rinse agents.
These detergents are dangerous. Please keep them out of the children’s reach. If they
are attached to the skin or eyes, please wash under running water as soon as possible.
●Do not leave the door open
Please do not leave the door open for long as this may cause injury or other risks.
1
2

ATTENTION
●Stop the dishwasher before opening the door
If you need to open the door when the dishwasher is running, please press the
Start/Pause button and slowly open the door to prevent injury of hot steam and water.
●Power off for abnormality
When an abnormality such as a burnt smell occurs, please power off the appliance.
●Be careful with sharp edges of utensils
The sharp edges of knives and other utensils must not face upwards.
●Turn off the power and faucet
Turn off the power and faucet before cleaning, performing maintenance.
NOTES
●When washing fruits and vegetables, do not put fruits and vegetables that conflict with
nutrients together to avoid loss of nutrients.
●Do not wash meat in the appliance.
●Do not wash items containing lots of dirt, which may result in appliance damage.
●The appliance may not reach the desired cleaning effect on stubborn stains such as
water-steamed egg stains.
●Don't touch the heating elements during or immediately after use.
●Don't pour any water into the sink when the appliance is running, which may cause
malfunction.
●The cabinet for installing the appliance should be strong and high enough. The
appliance should be firmly installed.
●Keep away from flammable materials such as heat, gas and alcohol.
●Do not place heavy objects on the glass panel of the product.
●Do not use a rough scrubbing agent or a sharp knife to clean the glass. They will
scratch the glass and cause glass breakage.
●The appliance may have remaining water due to the water inlet testing. Please don't
worry and feel free to use it.
3

PRODUCT DESCRIPTION

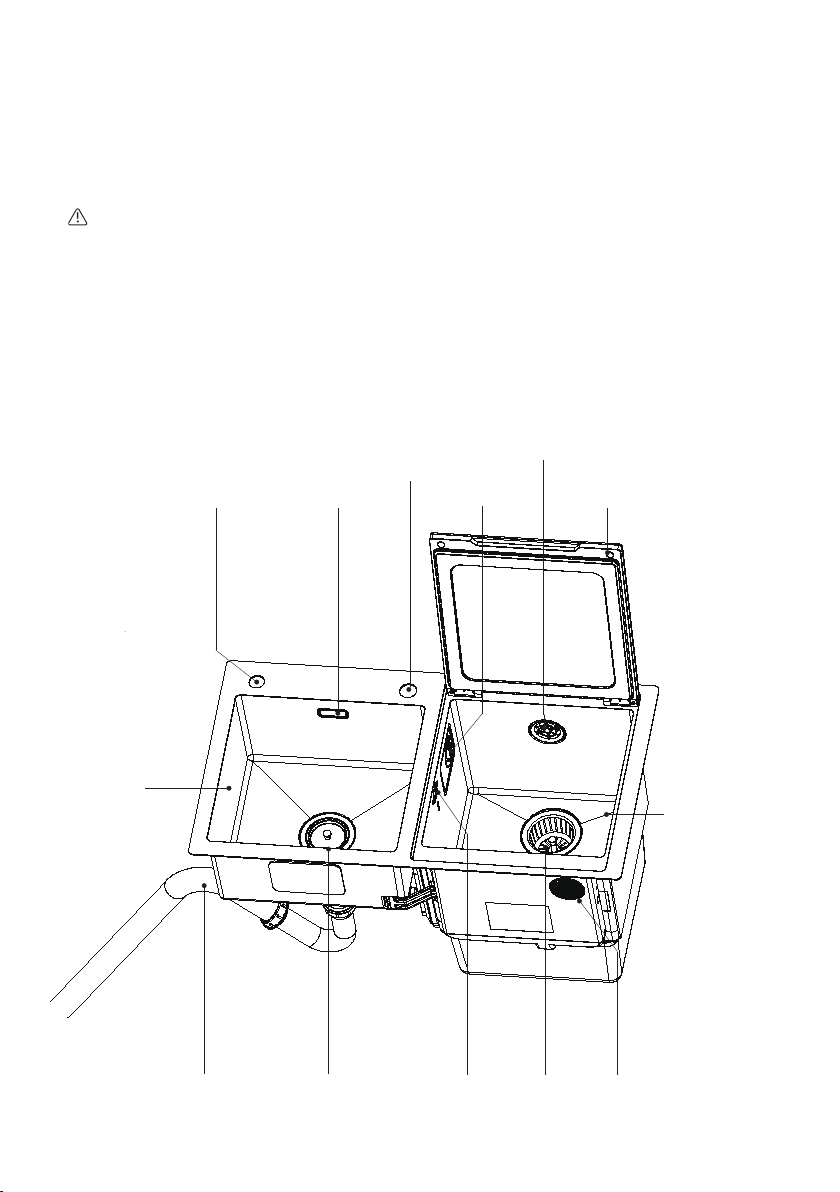

Component Description
ATTENTION
●To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
●As the appliance is kept upgrading, it may differ between the actual appliance and the
one in the manual. Please refer to the actual product.
●The manual is mainly for WQP6-890F4. For other differences, please see the remarks.
Overflow
Control panel
Water
softener inlet
Faucet
hole
Purifier
faucet hole
Secodary
sink Dishwasher
sink
Drain pipe
assembly
Drainer Rinse aid
inlet
Overflow
Air
inlet
Waste
basket
4

Spare Part List
NOTE
As the appliances are kept upgrading, the actual parts may differ from those in the
below list. Please refer to the actual parts.
waste basket
Parts Name
filter
114 drainer
50 double end drain pipe
50 single drain pipe
WQP6-890F4
5
5

L shape drain pipe
water inlet pipe
three-way valve
tube
6

USING YOUR DISHWASHER
Water Softener
NOTE
●When the light of salt-lacking on the display is on, please add the specified salt in time.
●After adding salt, the light will still stay on after a while. Then it will turn off.
1 Unscrew the water softener
inlet cover counterclockwise.
2 Pull out the auxiliary chute
from opening.
Water softener function
Adding a specified salt
The water softener can soften the water and reduce the scale, which will improve the
cleaning. If the tap water in your area is hard, it is recommended to add specified salt
into the water softener, which can make the water soft. If the local tap water is soft,
there is no need to add the specified salt.
3 Put the salt into the
dishwasher.
4 Add some water to prevent
from overflow for the first time.
step 1
step 3
step 2
step 4
7

5 Push back the chute, and
screw the salt cover clock-
wise.
6 When adding water soften-
er, if the salt is spilled on the
sink, please rinse it with water.
step 5 step 6
Setting Water softener
Suggested gear setting:
If you don't know the hardness of the water, please consult from the local water compa-
ny or buy the test device for the test hardness by yourself.
WATER HARDNESS
German °dH
0-5
6-11
12-17
18-22
23-34
35-55
0-0.94
1.0-2.0
2.1-3.0
3.1-4.0
4.1-6.0
6.1-9.8
0
9
12
20
30
60
0-9
10-20
21-30
31-40
41-60
61-98
French °fH
0-6
7-14
15-21
22-28
29-42
43-69
British °Clarke
H1
H2
H3
H4
H5
H6
Water
softener
leverl
Salt
consum-
ptionMmol/l
8
8

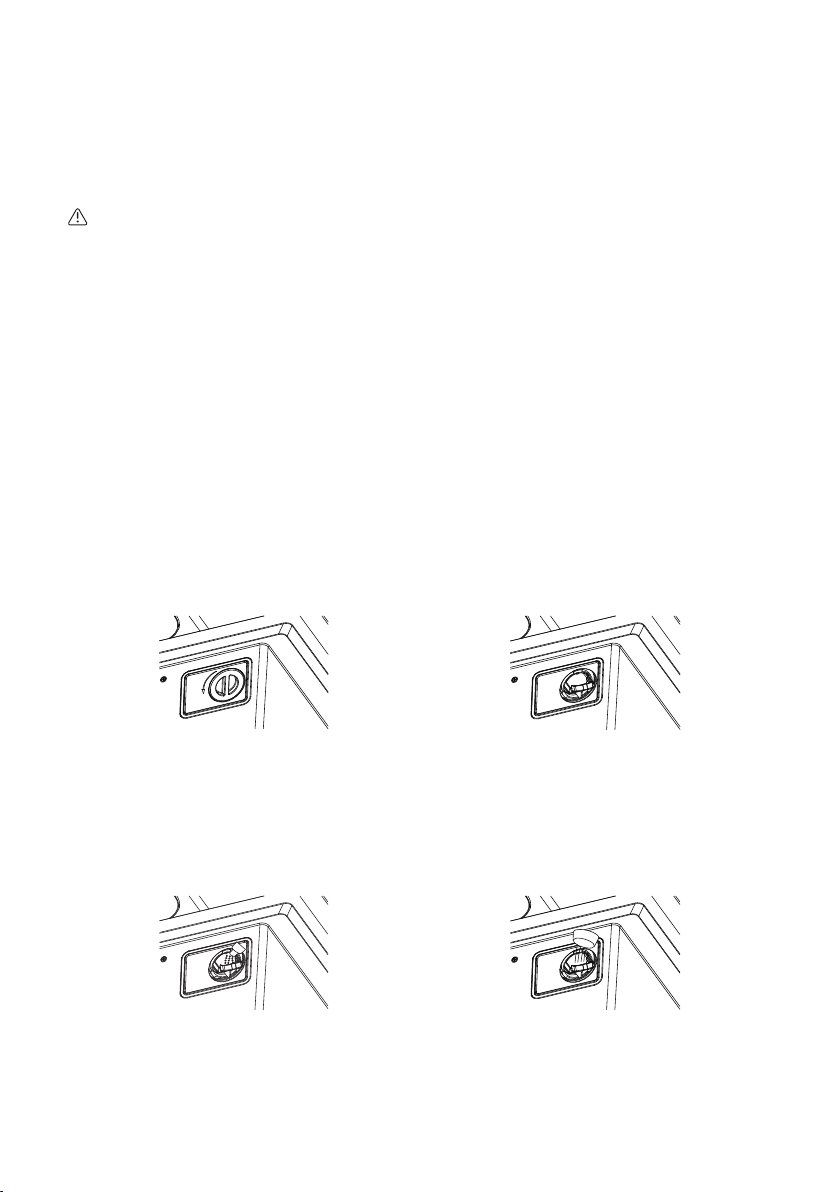

Rinse Aid
Rinsing aid function
Please use the specified rinse aid. Using rinse aid will optimize your drying and wash
performance. It makes glassware and tableware more shinning after cleaning.
1. Rotate the dispenser cap anticlock-
wise
3. Pour rinse aid into the dispenser
inlet.
2. Put the outlet tube onto the rinse
aid bottle.
Adding rinse aid
4. Push the cap and rotate it clock-
wise.
5. When adding rinse aid, if the aid is spilled on the sink, please rinse it with water to
prevent from extra foaming in the next wash.
9

Deformative wooden stuff
Metallic finishing tableware
Below utensils are NOT recommended to be
washed by this sink dishwasher:
Narrow neck bottles
Low heat resistance plastics
Aluminum or iron pans, which
will be rusted
10
Preparing and Loading Dishes
This sink dishwasher can clean most of the household utensils. However, the washing
condition of the dishwasher has different effect on different types of tableware.
We recommend you to wash utensils of the below categories.

Tableware specification
Tableware
D208*H33
11

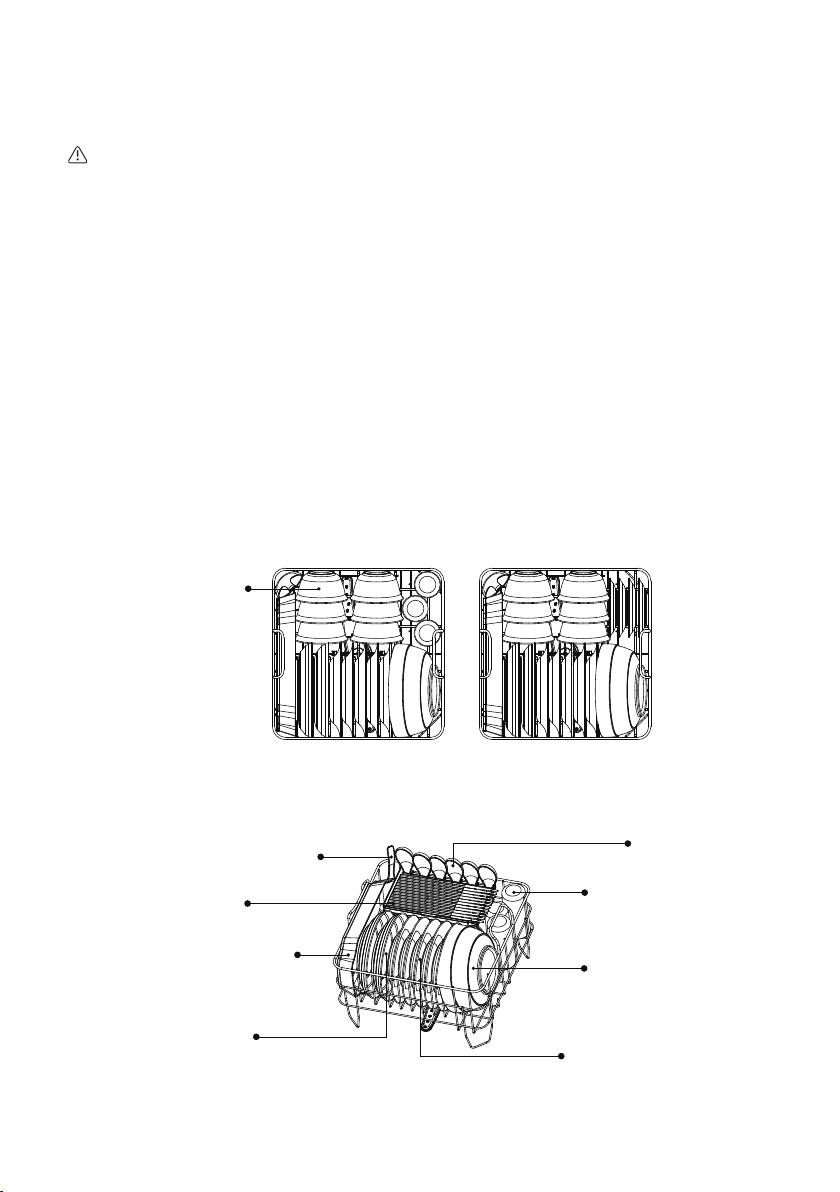

Loading instructions
1. Flip over the cutlery rack and place the dishes and bowls into the lower basket in the
position as shown in the below picture
2. Push down the cutlery rack back to original position and put the cutlery into the rack.
All square holes are available for setting spoons.
Chopsticks
Long Spoons
Fish Dish
Deep Plates
Shallow Plates
Big Bowls
Glasses
Spoons
Tableware loading
In order to have good cleaning results, before you set the utensils, please scrape large
food particles off to the rubbish container to avoid block of filter or spray arm. We
recommend you to set utensils as below instruction.
1. Please don’t set oversize utensils into the dishwasher otherwise the door cannot be
closed.
2. Make sure that no utensils protrude through the basket base to avoid sticking of spray
arm during rotation.
3. Place all the tableware into the machine with the opening facing downwards so that
water cannot collect.
4. Please expose the utensils as much as possible in order to have a good cleaning
result.
ATTENTION
Bowls
12

3. Put the filter and the waste basket into drainage hole before you put the basket into
the dishwasher, disregarding whether there is water inside, as the dishwasher can take
in and discharge water automatically.
4. Put the basket into the dishwasher sink.
5. Close the door and start the dishwasher to clean the utensils automatically.
13

Fruit and Vegetable Basket
(only available for some models)
When cleaning fruits, vegetables and seafood, use the fruit and vegetable basket
instead of the tableware basket.
ATTENTION
The washing items MUST be immerged in the water. The ultrasonic generator removes
the dirt on the surface of the washing items through water.
ATTENTION
14

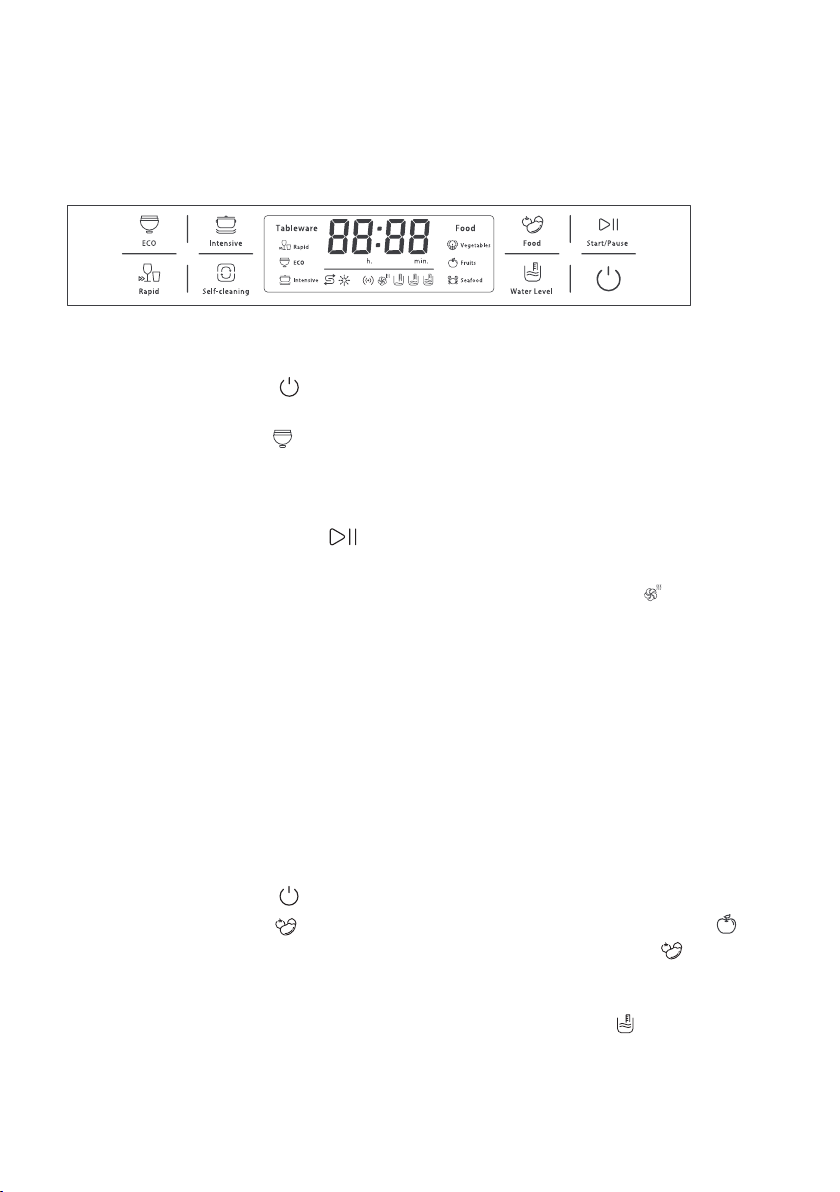

Operating Instructions
FOR MODEL
WQP6-890F4
1. Press the Power button for 3 seconds to start the dishwasher under standby
mode.
2. The light of ECO wash flashes. To switch to other wash program, press the Rapid
or Intensive button. Select the desired program and the corresponding light will turn on.
The display shows the time needed to finish the wash. For example, the time to finish
ECO wash is 1 hour and 5 minutes.
3. Press the Start/Pause button . The program starts running. The display shows
the countdown of the needed time. The ":" light flashes.
4. After the wash cycle is completed, the drying program will start. The " " light flashes.
The display shows the remaining time needed. The blow dryer will start running to dry
the dishes. After the program is finished, the dishwasher will turn off automatically.
5. After the drying is completed, the dishwasher will automatically start the refreshing
program, to prevent the dishes from storing in an airtight space. Every two hours, the
motor of the blow dryer will run 10 minutes to bring in fresh air. If you don’t need this
function, please long press the Power button to cancel it. This refreshing program only
starts after tableware cleaning wash cycles.
Washing tableware
1. Press the Power button for 3 seconds to start dishwasher under standby mode.
2. Press the Food button to enter the fruit washing program. The Fruits light
flashes. To switch to other food washing programs, press the Food button . The
switch sequence is Fruits-Seafood-Vegetables. Select the desired program and the
corresponding light will flash. The display shows the time needed to finish the wash.
3. Select the desired water level by pressing the Water Level button . The switch
Washing food
15

We have thoroughly tested all washing programs in our lab. Below chart shows the main
technical specifications under different programs.
The washing program selection is recommended in accordance to the testing standard
EN60335
The data of the running time, energy and water consumption shown above is for
reference only. It may differ in actual use with the difference of environment tempera-
ture, water temperature, water pressure, quantity of tableware and etc.
Washing Program
REMARKS
Program Rapid ECO Intensive
Tablewares
Recommended
Detergent
Running Time（min）
Temperature
Energy Consumption（kW·h）
Water Consumption（L）
18g/1 piece
26
70℃
0.62
6.9
18g/1 piece
65
70℃
0.76
9.2
18g/1 piece
80
75℃
1.09
9.2
Lightly soiled Heaviest soiled Heaviest soiled
for long time
16

How to select a proper food
washing program
REMARKS
Water level Vegetables Fruits Seafood
Running Time(min.)
Washing items
Low
Medium
High
/
19
21
23
Soft fruits like
Strawberries,
Blueberries,
Cherries,
grapes and etc.
35
37
39
Seafood like
Lobsters, Crabs
and etc. Hard
fruits like
apples, bears
and etc.
Select a proper water level according to the food quantity, to ensure a good cleaning
result
The time data shown above is for reference only. It may differ in actual use with the
difference of environment temperature, water pressure, quantity of food and etc.
Forget to Add a Dish
You can add dishes before the dishwasher is in operation.
Press the Start/Pause button , to stop the dishwasher. Open the dishwasher door
and add the dishes. Close the door and press the Start/Pause button to resume.
19
22
25
All kinds of
vegetables,
potatoes,
peanuts and
etc. which are
stuck by dirt
17

If you accidentally open the door when the dishwasher is in operation, the machine will
stop working. The display shows E1 error code and the alarm beeps. If you close the
door within 30 seconds, the machine will automatically resume operation.
It is NOT recommended to do such operation, as there is splashing hot water during
operation, which is easy to cause injury.
Special reminder to family with children: do not touch the dishwasher in operation.
Accidental Opening Protection
Maintenance and Cleaning
Lift up the waste basket and
pour the large waste into the
kitchen trash can. Then flush
the waste basket under running
water.
Cleaning Waste Basket
The filter in the dishwasher is easy to be
attached by tiny contaminants. Flush it
under running water to clean it. If neces-
sary, you can use a cleaning cloth to
clean inside and outside thoroughly.
Cleaning Filter
Lift up the waste basket and pour the large waste into the kitchen trash can. Then
flush the waste basket under running water.
ATTENTION
18

There is a separate spray arm on the tableware basket and the fruits & vegetables
basket. The way to disassemble for these two spray arms is the same. Take the
tableware basket as an example.
Normally you don’t need to disassemble the spray arm to clean until there are many
contaminants on the holes of the spray arm and extendable cover.
Spray Arm
Rotate the extendable cover counterclockwise to disassemble. Clean the contaminants
on the spray arm or the extendable cover under running water. Use a cleaning brush if
necessary.
After cleaning, rotate the extendable cover clockwise to tighten. Make sure that the
spray arm can be rotated flexibly.
Extendable Cover
Spray Arm
Spray Arm Hole
19
