Malsch IMPULSE KL User manual

CLINIC DESIGN
IMPULSE KL
INSTRUCTION MANUAL HOSPITAL BED

2 |

|3
Dear Customers,
By purchasing a hospital bed from Malsch care & clinic design®,
you have obtained a long-lasting medical device with functions
that meet all the requirements of everyday hospital care while
maintaining the highest standards of safety.
Thank you very much for the trust you have placed in us.
Our company guarantees carefully selected materials and contin-
uous quality control while employing state-of-the-art production
technologies.
Complying with the usage and operating instructions helps to
prevent the risk of accidents and preserves the high value of your
hospital bed.

4 |
Product range 6
Specic function 7
Environmental sustainability 7
Notes to the instruction manual 8
Pictograms/symbols 8
Safety instructions 9
Technical data 14
Electric drives 15

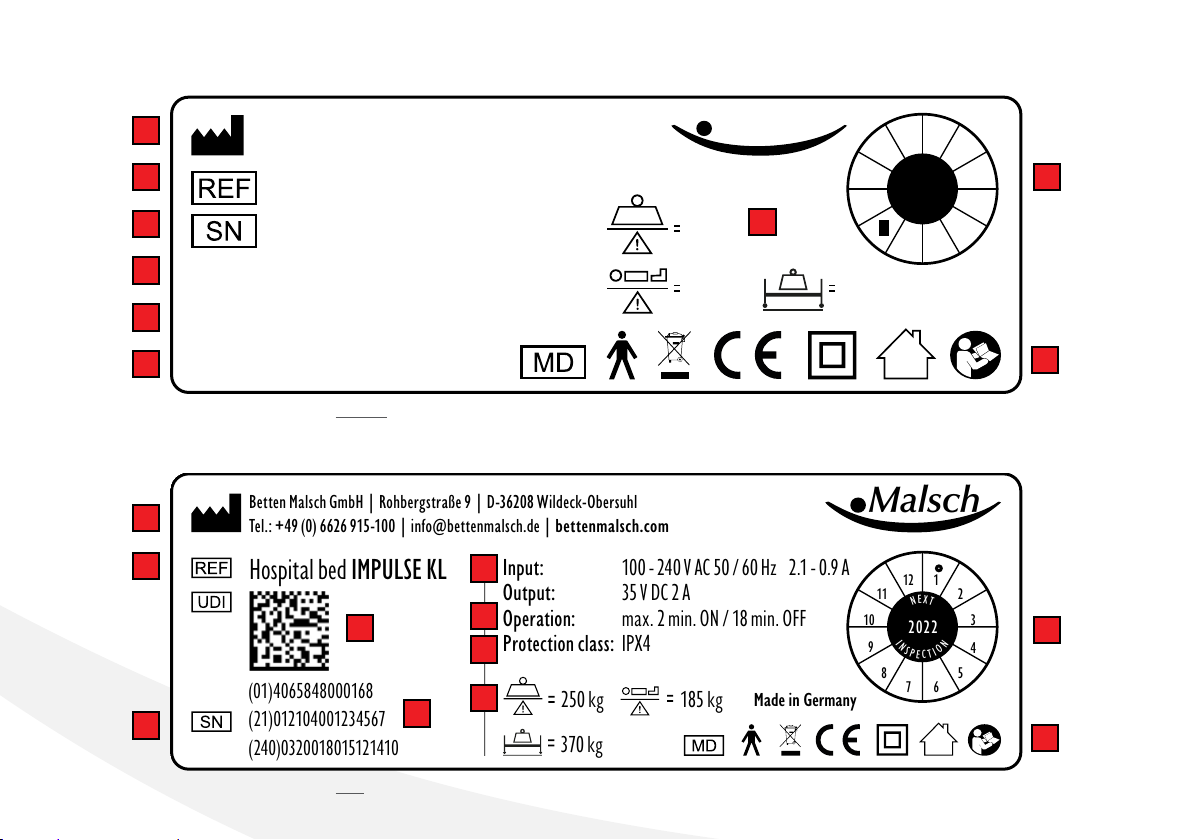

Rating plate 16
Rating plate with UDI 16
Symbols of sta controller 19

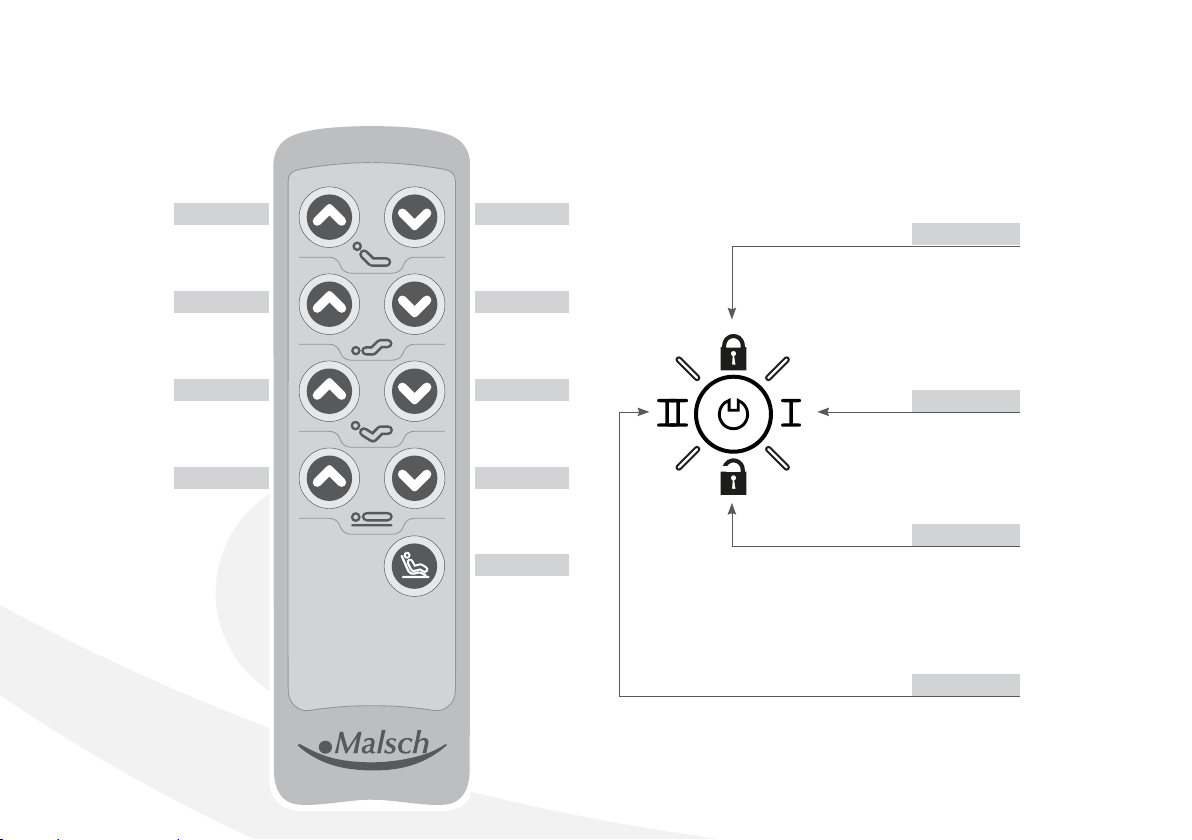

HC-146 hand controller symbols 20
IMPULSE KL hospital bed with
undercarriage Editions 300(-P)/400(-P) /XL 20
HC-147 hand controller symbols 21
IMPULSE KL hospital bed with
undercarriage Edition 200 21
Function illustration 22
IMPULSE KL hospital bed with
undercarriage Editions 300/400/XL*22
IMPULSE KL hospital bed with
undercarriage Edition 200 24
Description of function 26
Back rest 26
Mechanical back rest release / CPR 26
Adjustable upper / lower leg support 27
Auto contour 27
Height adjustment 27
Low position / fall prevention 28
Trendelenburg / Anti-Trendelenburg position 28
Comfort sitting position 28
Hand controller locking function 29
Braking and transport 29
5th castor (optional) 30
Contents

|5
GS side rail adjustment 32
VGS side rails adjustment 34
EVGS side rails adjustment 35
ESG side rail adjustment 37
Integrated sleeping surface extension
with quick release 38
Integrated sleeping surface extension 39
Removable head / foot boards 40
Potential equalisation 40
Function illustration 42
IMPULSE KL hospital bed with
undercarriage Editions 300-P/400-P 42
Additional safety instructions
or beds used in psychiatric wards 44
DS-P side rail adjustment 45
ISO standard rail with restraint grid 46
Maintenance 47
Battery replacement 49
Maintenance intervals 50
Delivery and assembly 51
Disposal instructions 52
Troubleshooting 53
Product safety 54
Cleaning and disinfection 55
Electromagnetic compatibility (EMC) 57
Warranty and service 60
Customer service 60
Declaration of conformity 60
Certicates 61

6 |

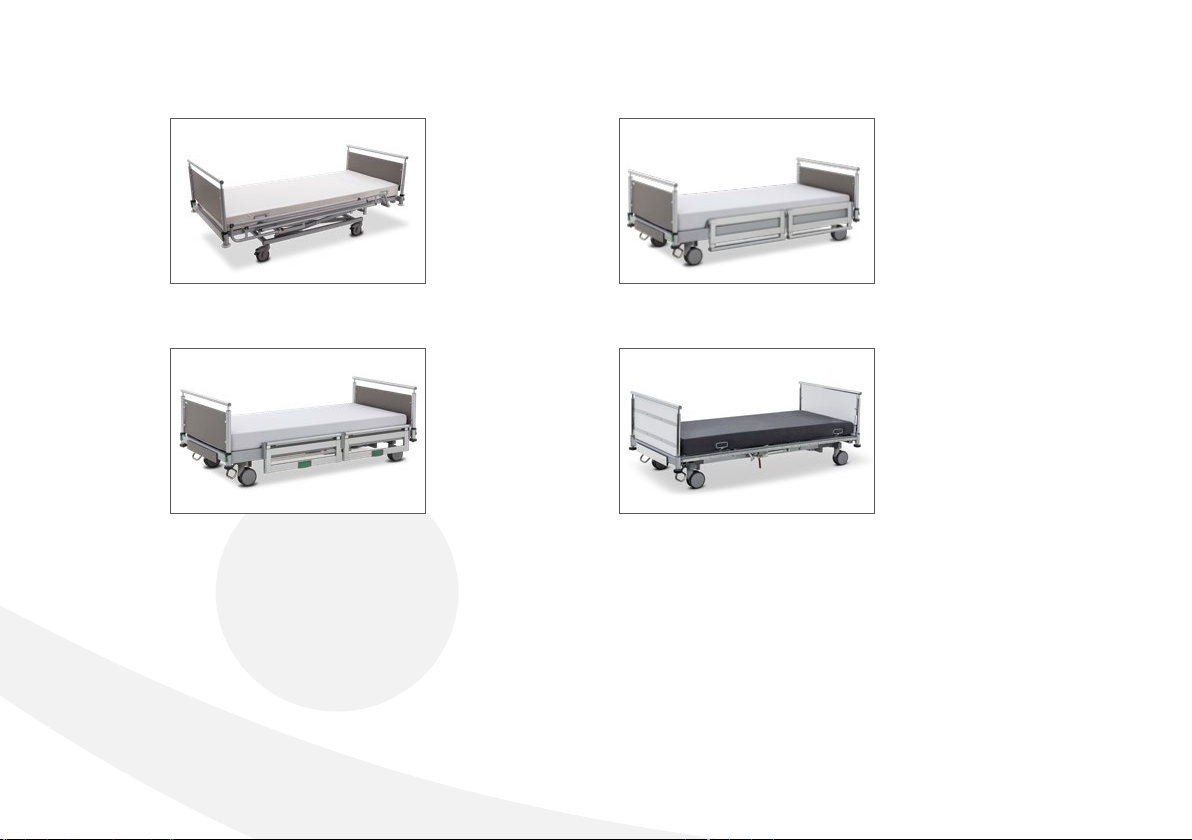

IMPULSE KL hospital bed
with undercarriage Edition 200
IMPULSE KL hospital bed
with undercarriage Edition 300 / 400
IMPULSE KL hospital bed
with undercarriage Edition XL
IMPULSE KL hospital bed
with undercarriage Edition 300-P / 400-P
PRODUCT RANGE

|7
ENVIRONMENTAL
SUSTAINABILITY
Betten Malsch GmbH hospital beds are manufactured in line with
the relevant regulations using state-of-the-art processing technol-
ogies, and contain no hazardous materials. The materials used to
nish surfaces are CFC- and solvent-free.
Hospital beds that are taken out of service due to their age or
irreparable damage must be disposed of in line with local disposal
regulations.
Caution! Please observe the relevant local regula-
tions when disposing of metal, wood and electrical
waste.
The hospital beds made by Betten Malsch GmbH are used in the
care of patients with physical limitations. The beds are designed
exclusively for this purpose. The functions of these hospital beds
assist the care sta in their daily work and oer convenient solu-
tions for positioning the patient and compensating for certain
symptoms experienced by patients in clinics and hospitals or com-
parable medical facilities. This complies with working environment
1, 2, 3 and 5 as stipulated by IEC 60601-2-52:2009 / AMD1:2015.
If the hospital beds are to be used for other applications, prior
written agreement from Betten Malsch GmbH is required.
The product is intended for use as a care aid or health device.
As such, it is subject to the regulations of the relevant insurance
associations. The hospital bed is a medical product with regard
to applicable industry standards and regulations. Therefore, this
product must only be used under medical supervision.
The hospital beds described in this instruction manual are ap-
proved for adult patients with a body weight of at least 40kg
and a height of at least 146cm. In accordance with the stand-
ard IEC 60601-2-52:2009/AMD1:2015, the beds must not be
used by patients whose body weight and height is below these
limits or who have a BMI under 17, as the risk of injury is sig-
nicantly increased for this group.
Caution! The use of incompatible side rails and
mattresses can lead to injury, as body parts may
become trapped.
SPECIFIC FUNCTION

8 |
NOTES TO THE
INSTRUCTION MANUAL
PICTOGRAMS / SYMBOLS
The following instructions and guidelines in this instruction man-
ual are intended for care sta or other persons and sta tasked
with operating and using the hospital bed.
The instruction manual must be accessible to per-
sonnel at all times to avoid operating errors and to
guarantee fault-free operation. The care sta must
have a good understanding of the hospital beds and
be trained in their operation before using them for
the rst time. The instruction manual must be used
for this training.
This instruction manual has been written for the IMPULSE KL
hospital bed. The images, graphics and texts it contains may dier
from the equipment supplied.
The manufacturer oers technician training for
maintenance and servicing work on their hospital
beds. A certicate obtained as part of this training
authorises the holder to carry out technical work
independently on the beds.
For better orientation, this instruction manual uses the picto-
grams described below.
Important!
Instructions labelled in this way must be strictly ob-
served in order to avoid injury or damage!
Information!
This pictogram identies information relating to the
current subject!

|9
SAFETY INSTRUCTIONS
It is important that the following safety instructions are ob-
served to prevent risks to patients as well as carers, and to
avoid any damage to the hospital bed:
The instruction manual must be read and observed before
using the hospital bed.
The information on the rating plate must be observed! The
information on the rating plate is explained in detail on
p. 16 of this instruction manual.
In the event of any faults or defects that could endanger
persons, the bed must not be used.
Electrically adjustable hospital beds must be operated by
trained sta only.
Before the bed is used for the rst time, the operator must
ensure that it is safe to use and in good condition.
To prevent the patient from falling while getting into or out
of the bed, the castors must always be set to the braked
position.
The bed can be moved into various positions. When doing
so, take care to ensure no parts of the body or other ob-
jects are located in the adjustment area.
Only care sta are permitted to adjust the side rails. When
adjusting the sleeping surface position, take care to ensure
the patient does not come into contact with the side rails
to avoid trapping any part of the body.
The functionality of the side rails must be checked every day.
They must not bear any load of over 75 kg vertically or over
50 kg horizontally.
When using CPR (optional, mechanical emergency lowering
of the back rest), always additionally relieve the load on the
back rest by hand to prevent the back rest from dropping in
an uncontrolled manner.
The IMPULSE KL hospital bed features a battery-operat-
ed emergency mode. This allows the one-o lowering of
the sleeping surface in the event of a power cut. To ensure
this functionality, we recommend an annual test of the 9 V
batteries as part of the technical safety check and regular
battery replacement every two years or after each use of
the emergency lowering mechanism.
p. 49 Battery replacement.
The hand controller functions can be locked or released
using the sta controller or the key switch on the rear side
of the hand controller. Check with the hand controller that
the locking function has taken eect.
p. 20 - p. 21 Hand controller symbols
The drive system used must be operated using a VDE-
approved power source, i.e. a 100 -240 V, 50 / 60Hz mains
socket.
The mains connection cable is also protected by a mechani-
cal strain relief device. Nevertheless, take care to ensure that
the cable is not damaged by sharp edges, mechanical loads
or pinch / shear points.

10 |
The hand controller can be placed exibly. When placing
the hand controller, take care to ensure that it cannot be
triggered accidentally (e.g. by being trapped between two
objects). The hand controller must be freely accessible.
When using the hospital bed in a patientʼs room, safety
distances from walls, window ledges and other furnishings
must be observed. The safety distances depend on the de-
sign and model of the hospital bed and are based on the
height adjustment and the tilting motions of the bed. The
minimum distance is 30 mm.
Improper use of the bed may cause hazards. Examples of
improper use include:
§Unauthorised activation of the electrical functions
§Use of the bed by persons with a body weight of less
than 40 kg or a BMI of less than 17, or a height of less
than 146 cm p. 7 Specic function
§Moving the bed by pulling on the mains cable or side rails
§More than one person adjusting the bed at the same time
§Activation of the functions by patients without prior
instruction
§Pulling the mains cable to disconnect it from the power
supply
§Moving the bed on sloping or unsurfaced ground
In line with the standard DIN EN 60601-2-52:2016, when
choosing a mattress, it is important that there is a minimum
distance of 22 cm between the top of the sleeping surface
and the top of the side rail in its fully extended position. The
mattress used must meet the applicable safety standards.
The constant presence of liquid in the area of the motor
must be avoided (e. g. incontinence).
For safety reasons, the handle on the trapeze bar must be
replaced in its entirety every 5years.
Servicing and repairs on electrical components must be car-
ried out by specially trained sta, and only original replace-
ment parts from the manufacturer may be used.
The hospital bed is not suitable for extended operation
beyond a working cycle of two minutes. If the mains adapter
is overloaded or if it overheats, it will shut o automatically.
Further operation is possible only after a 30-minute cool-
down phase. (Observe the drive manufacturerʼs notes on
the rating plate!)
It is essential to avoid obstructing any part of the bed mech-
anism, as this can lead to damage or complete disabling of
the drive system due to overheating.
Likewise, the safe working load must not be exceeded.
If an immobile patient remains in the same position for an ex-
tended period of time without the use of additional position-
ing aids, this can lead to pressure sores. The manufacturer of
the hospital bed is not liable for this in any way.

|11
Electrically operated hospital beds are active medical prod-
ucts and must be maintained according to Article 7 of the
Medical Devices Operator Ordinance (MedProd-BetrV.)
These maintenance measures must be carried out regularly
(at least once per year). They must include visual and func-
tionality checks of functional and electrical safety in line with
VDE0751. p. 47 Maintenance
Furthermore, electrically operated hospital beds are electri-
cal appliances whose safety is the responsibility of the em-
ployer. The supervisory function of this obligation is the re-
sponsibility of the Employersʼ Liability Insurance Association
for Health Service and Welfare Work (BGW) and the Trade
Supervisory Board (Gewerbeaufsichtsamt). The regulations
of the employersʼ liability insurance associations apply, par-
ticularly those of the German statutory accident insurance
body (DGUV), rule3 of which stipulates regular inspections
of movable electrical equipment at a recommended interval
of six months, but at least once a year. These inspections
may only be carried out by a certied electrician or person
with electrical training using specialist measurement and in-
spection equipment. The inspections according to DGUV
rule 3 can be conducted by specialist sta trained by the
manufacturer as part of the inspections and maintenance
service for medical products.
Electrically operated hospital beds are active medical prod-
ucts and must be listed in an inventory for each site in line
with Article 13 of the German Medical Device Operator
Ordinance (MedProd-BetrV). It is advisable to also docu-
ment the correct implementation of the required checks
and servicing in this inventory and to specify the date of the
next inspection. The required protocols concerning checks
already performed must be appended to the inventory.
Proper execution and traceable documentation of the
technical checks, maintenance and servicing work prescribed
by the manufacturer, as well as the technical safety checks,
are required in order to preserve the warranty rights of the
purchaser. If the operator of a medical product does not
meet their obligations, this could lead to the risk of dam-
age and accidents for which the manufacturer is explicitly
notliable.
Maintenance work must be carried out and documented by
trained sta.
The bed should be left in the lowest position when the
patient is unattended to reduce the risk of injury caused by
falling out of bed.
If the mains connection cable is damaged, the bed can
no longer be used and must immediately be taken out of
operation.
Improper use of the mains connection cable can result
in hazards (e. g. electric shock). Examples of this are cable
breaks due to kinking, shearing or other mechanical damage.
When using other ME devices in conjunction with the hos-
pital bed, precautions must be taken to prevent damage to
the device cable or other components of the ME device
resulting from crushing between the movable parts of the
medically used bed.

12 |
The hospital bed is not suitable for use in the vicinity of
active facilities that use high-frequency surgical devices.
The hospital bed is not suitable for use in HF-shielded rooms
used for magnetic resonance imaging in which high-intensity
EM disturbance variables occur.
The use of this hospital bed directly next to or in conjunc-
tion with other electrical devices (e.g. stacked) must be
avoided, as this can lead to faulty operation. If using the bed
in the manner described above is absolutely necessary, the
devices involved should be subjected to a function test for a
longer period of time in order to rule out malfunction due
to interference.
The use of accessories, transducers and cables other than
those specied or provided by Betten Malsch GmbH can
cause increased emissions of electromagnetic interference
or reduce the electromagnetic interference resistance of
the device and thus lead to faulty operation.
Portable HF communication devices (radio devices) – in-
cluding their accessories, such as antenna cables and exter-
nal antennas – must not be used closer than 30 cm to the
parts and cables of hospital beds as designated by Betten
Malsch GmbH. Non-observance can impair the perfor-
mance of the hospital bed.
The emissions of this device are below the thresholds de-
ned by IEC/ CISPR 11:2009, Class A and thus permit the
use of it in industrial environments and hospitals. This de-
vice may not provide adequate protection against wireless
services if used in residential areas (for which Class B is
normally required according to CISPR 11). The user may
have to implement remedial measures such as relocating or
repositioning the device.
Servicing and maintenance tasks may not be performed
while the ME device is in use.

|13

14 |
TECHNICAL DATA
Model Dimensions
[cm]
Sleeping surface
[cm]
Height adjust-
ment [cm]
Weight Load capacity
max.
(Anti-)
Trendelenburg
Upper leg
adjustment
Back rest
adjustment
IMPULSE KL
hospital bed with
undercarriage
Edition 200
211x 104 200x 90 43 to 83
*
approx. 100kg
Total 200 kg
135 kg patient
20 kg mattress
45 kg accessories
– 43° 71°
IMPULSE KL
hospital bed with
undercarriage
Edition 300
Edition 300-P
216x 106 200x 90 36 to 86
*
approx. 120kg
Total 250 kg
185 kg patient
20 kg mattress
45 kg accessories
15°/ 14° 43°
71°/ 12 cm
mattress com-
pensation
IMPULSE KL
hospital bed with
undercarriage
Edition 400
Edition 400-P
216x 106 200x 90 27 bis 80
*
approx. 120kg
Total 250 kg
185 kg patient
20 kg mattress
45 kg accessories
15°/ 14° 43°
71°/ 12 cm
mattress com-
pensation
IMPULSE KL
hospital bed with
undercarriage
Edition XL
216x 116 200x 100 36 to 86
*
approx. 160kg
Total 300 kg
235 kg patient
20 kg mattress
45 kg accessories
15°/ 14° 43°
71°/ 12 cm
mattress com-
pensation
* Measured from sleeping surface frame

|15
ELECTRIC DRIVES
Model Edition 200 Edition 300 Edition 400 Edition XL Edition 300 Edition 400
Drive set Dual drive Standard Standard Standard Basic Basic
Electrical connection 100- 240V AC 50/ 60Hz
Output voltage 35VDC 2 A 35V DC 2,5A
Over-current o 7,5A -11,5 A DC
Over-voltage o 45V DC
Standby operation max. 0.5 W
Protection IPX4 IPX6 IPX4
Protection class II
Force
Lifting system force 1x 6,000N 2 x 3,000N 2 x3,000 N 2x 3,000 N
Force of sleeping surface adjustment 2x 4,000N 2 x 3,000N 3 x3,000 N 2x 3,000N
Motor running time on 2 min./ o 18 min.
Data on operation, transport and storage
Operating temperature range +10°C to +40° C
Transport / storage temperature range +5°C to +45° C
Relative humidity 30- 75%
Atmospheric pressure range 700hPa to 1,060hPa
Operating volume 54dB (A)
Operating altitude max. 3,000 m

16 |
RATING PLATE
Input:
Output:
Operation:
Protection class:
Made in Germany
Hospital bed IMPULSE KL
0819 1234567 250 kg
185 kg 370 kg
100-240V AC 50/60 Hz 2.1-0.9 A
35 V DC 2/2.5 A
max. T_on: 2 min.
min. T_o: 18 min.
IPX4
12
3
4
5
67
8
9
10
11 12
N
E
X
T
I
N
S
P
E
C
T
I
O
N
2021
Malsch
Betten Malsch GmbH|Rohbergstraße 9| D-36208Wildeck-Obersuhl
Tel.: [phone] | Fax: [phone]
RATING PLATE WITH UDI
Example of a rating plate without UDI of the IMPULSE KL hospital bed
Example of a rating plate with UDI of the IMPULSE KL hospital bed
Input:
Output:
Operation:
Protection class:
12
3
4
5
67
8
9
10
11 12
N
E
X
T
I
N
S
P
E
C
T
I
O
N
2022
Hospital bed IMPULSE KL 100 - 240 V AC 50 / 60 Hz 2.1 - 0.9 A
35 V DC 2 A
max. 2 min. ON / 18 min. OFF
IPX4
185 kg
250 kg
370 kg
(01)4065848000168
(21)012104001234567
(240)0320018015121410
Made in Germany
Malsch
Betten Malsch GmbH | Rohbergstraße 9 | D-36208 Wildeck-Obersuhl
Tel.: [phone] | [e-mail] | bettenmalsch.com
2
2
7
7
3
3
10
11
4
4
5
5
6
6
8
8
9
9
1
1

|17
The rating plate is located on the underside of the sleeping sur-
face, at the head of the bed on the right. To inspect the rating
plate, raise the head section to the upper position.
Notes:
1. Manufacturerʼs address
2. Model ID
3. Serial number
4. Electrical voltage, frequency, power consumption
5. Operating time of motorised adjustment:
Please observe this information to protect against over-
heating! In the example, the drives of the bed are limited
to a maximum of 2minutes of continuous operation. If
this limit is reached, a regeneration period of 18minutes
must be observed before the drives can be operated again.
6. Protection of electrical equipment against splash water
“Only use in dry areas”, Protection Rating Class II (double
insulation, protective insulation)
7. Indicates the next technical check after delivery in line with
VDE0751-1
8. Explanation of the safety symbols used on the rating plate:
Marking as a medical device
Application part type B
Directive 2002/ 96 / EC relating to old electrical and
electronic equipment
Conformity marking in line with the
Medical Device Directive
Protection class IPX4 and Protection Rating Class II
“Only use in dry areas”
“Follow the instruction manual”
9. Explanation of the weight icons used on the rating plate:
Safe working load
Maximum permissible weight of the
resident
Maximum total weight of the medical product incl.
resident (bed weight plus maximum permissible
resident weight)
10. 2D barcode (GS1 data matrix) DI + PI = UDI
11. (DI) Device Identier
(01) UDI-DI / GTIN
(PI) Production Identier
(21) Serial number
(240) Additional product information

18 |
Labels
A separate sticker to the right of the rating plate refers to the
labels described below:
Symbol: Label indicating beds for adults used for medical pur-
poses in line with IEC 60601-2-52:2009/AMD:2015
The hospital bed is approved for adult patients with a body
weight of at least 40 kg and a height of at least 146 cm. In accord-
ance with the standard IEC 60601-2-52:2009 / AMD1:2015, the
hospital bed must not be used by patients whose body weight
and height are below these limits or who have a BMI under 17, as
the risk of injury is increased for this group.
Symbol: Label indicating replaceable mattresses in line with
IEC 60601-2-52:2009/AMD:2015 – please observe the infor-
mation and instruction manual for the mattresses.
The following table contains information concerning mattress siz-
es depending on the sleeping surface dimensions:
Mattress size [cm] Sleeping surface
dimensions [cm]
Volumetric weight
[kg /m³]
78 x 200 x 12 / 14 80 x 200 *35 - 50
88 x 200 x 12 / 14 90 x 200 35 - 50
98 x 200 x 12 / 14 100 x 200 *35 - 50
108 x 200 x 12 / 14 110 x 200 *35 - 50
118 x 200 x 12 / 14 120 x 200 *35 - 50
*Optional special sizes

|19
SYMBOLS OF STAFF CONTROLLER
ADJUSTMENTS
S1 CPR (electric)
S2 Shock position
S9 Back rest up
S10 Upper leg support up
S11 Auto contour up
S12 Lift adjustment up
S13 Anti-Trendelenburg position
S15 Back rest down
S16 Upper leg support down
S17 Auto contour down
S18 Lift adjustment down
S19 Trendelenburg position
LOCKING OF FUNCTIONS
S3 Lock back rest adjustment
S4 Lock upper leg support
S5 Lock auto contour
S6 Lock lift adjustment
S7 Lock (Anti-)Trendelenburg
S8 Lock hand controller (LED red = locked)
S14 Switch on operating panel (LED green = ON)
LED green = 220V AC
Yellow LED indicates battery charging status
S1 S2
S3
S9
S15
S4
S10
S16
S5
S11
S17
S6
S12
S18
S7 S8
S13 S14
S19
LED red =
locked

20 |
HC-146 HAND CONTROLLER SYMBOLS
Locking functions
positioned on the back of the hand controller for restricting
operation by resident.
485 C
355 C
Pantone Cool Gray 11C
Pantone Cool Gray 3C
S1
Back rest
up
S2
Back rest
down
S3
Upper leg
support up
S5
Auto contour
up
S7
Height adjust-
ment up
S4
Upper leg
support down
R1
LOCKED
No functions
operational
R2
UNLOCKED
All functions
available
R3
UNLOCKED
All functions
available
R4
UNLOCKED
All functions
available
S6
Auto contour
down
S8
Height adjust-
ment down
S10
Comfort
sitting position
IMPULSE KL hospital bed with undercarriage Editions 300(-P)/400(-P) / XL
Drive type “Standard” with sta controller
