Mamava Solo User manual

Solo Assembly Instructions
For replacement parts,
questions or concerns, contact:
802.347.2111
[email protected]
Version: SOLO V1.1
02/25/2022 Page 1
People required: 2
Average time required: 2 hours

Page 2

Floor leveling and placement (Page 5)
Step 1......
Step 2......
Step 3......
Step 4......
Bench and Bench Posts (Page 6)
Step 5......
Step 6......
Step 7......
Left Wall Panels (Page 7)
Step 8......
Step 9......
Step 10......
Step 11......
Step 12......
Step 13......
Back Right Wall Panel (Page 8)
Step 14......
Step 15......
Step 16......
Step 17......
Header and Roof Pans (Page 9)
Step 18......
Step 19......
Step 20......
Step 21......
Step 22......
Page 3
Table of Contents
Wiring: Roof Pans (Page 10)
Step 23......
Step 24......
Step 25......
Wiring: Beauty Panel (Page 11)
Step 26......
Step 27......
Step 28......
Step 29......
Step 30......
Step 31......
Roof and Perf Pans and Shelf (Page 12)
Step 32......
Step 33......
Step 34......
Step 35......
Door (Page 13)
Step 36......
Step 37......
Step 38......
Step 39......
Leveling (Page 14)
Step 40......
Step 41......
Step 42......
Step 43......

TOOLS REQUIRED
Level (provided)
6' Ladder
Phillips Head #2 Screwdriver
Phillips Head #3 Drive Screwdriver
(provided)
Rotolock Allen Key
(provided, 5.5mm)
9/16" Socket Wrench
Power Drill with Phillips Head bit
**For box disassembly only!**
Light Working Gloves
**Assembly requires two people**
Page 4
LOOSE HARDWARE
(28) M8 X 1.25 X 25mm Flat-head Screw
(18) M8 X 1.25 X 40mm Flat-head Screw
(8) #8 X 3/4" Pan-head Screw
(6) Plastic Push Rivets
(10) Rotolock Caps
(2) Door Handles
D100
D200
D300
D400
E100
C100
H100
I100
A104
F209
F209
F302
F302
F301
A104
PARTS LIST
PART NUMBER DESCRIPTION GENERAL DIMENSIONS
(INCHES)
SOLO-A100 FLOOR PAN 60 X 34 X 5
SOLO-A104 BENCH POST 14 X 3 X 7
SOLO-C100 BEAUTY PANEL 31 X 11 X 4
SOLO-D100 FRONT LEFT WALL PANEL 30 X 17 X 84
SOLO-D200 BACK LEFT WALL PANEL 30 X 17 X 84
SOLO-D300 BACK RIGHT WALL PANEL 30 X 17 X 84
SOLO-D400 DOOR 32 X 17 X 80
SOLO-E100 BENCH 31 X 26 X 19
SOLO-F209 PERF PAN 57 X 15 X 2
SOLO-F301 MIDDLE ROOF PAN 33 X 9 X 4
SOLO-F302 SIDE ROOF PAN 26 X 5 X 4
SOLO-H100 HEADER 32 X 18 X 6
SOLO-I100 SHELF 15 X 12 X 3

FLOOR LEVELING AND PLACEMENT
1. Place provided Level in desired location. Ensure that there are
no gaps between the bottom of the level and the floor that are
greater than 1/8", and that the site is level (the indicating bubble
on the level should be between the center marks).
2. Place Floor Pan in desired pod location.
3. Push down on Floor Pan at red arrow locations.
The Floor Pan should be stable and not rock.
4. Place provided Level in Floor Pan slots as shown and ensure
that the floor pan is level.
Page 5
LEVEL
**Note: If there's rocking, move the Floor Pan
a short distance to find a more stable location.
**Note: If the floor is not level, move the Floor Pan
a short distance to find a more stable location.

DETAIL A
DETAIL B
A
B
BENCH AND BENCH POSTS
5. Slide Bench Posts into Bench Post Brackets, fasten as shown.
(4) M8 X 1.25 X 25mm screws
6. Place Bench onto Bench Post Brackets by aligning Bench Flange
Screws (Detail A) with the teardrop holes (Detail B) in the Bench Posts.
7. Fasten bottom of Bench to top of Bench Posts as shown.
(4) M8 X 1.25 X 25mm screws
Page 6
BENCH POST
A104
BENCH POST
A104
BENCH
E100
BENCH POST BRACKET
A103
BENCH POST BRACKET
A103
FLOOR PAN
A100
**Note: Bench Posts are universal and can go into either
Bench Post Bracket.
BENCH POST
A104
BENCH
E100
BENCH POST
A104

8. Set Front Left Wall Panel onto notched flange
in Floor Pan. Wall Panels should slide onto the
Floor Pan. If not, check alignment and try again.
9. Set Back Left Wall Panel onto notched flange
in Floor Pan. Ensure Wall Panels are aligned
and flush together. Rotolock both panels
together using provided allen key, starting from
the bottom.
10. Place Rotolock Caps over visible holes.
11. Fasten Wall Panels to Floor Pan.
(4) M8 X 1.25 X 40mm screws
12. Loosely Fasten Wall panels to Bench Posts.
(4) M8 X 1.25 X 25mm screws
13. Loosely Fasten Bench to Wall Panels.
(4) M8 X 1.25 X 40mm screws
LEFT WALL PANELS
Page 7
BENCH
E100
FRONT LEFT WALL PANEL
D100
ROTOLOCK HOLES
FLOOR PAN
A100
BACK LEFT WALL PANEL
D200

BACK RIGHT WALL PANEL
14. Set Back Right Wall Panel onto
notched flange in Floor Pan.
15. Rotolock back panels together using provided allen key.
16. Place Rotolock Caps over visible holes.
17. Fasten Back Right Wall Panel to Floor Pan.
(2) M8 X 1.25 X 40mm screws
Page 8
BACK RIGHT WALL PANEL
D300
ROTOLOCK
HOLES
BACK LEFT WALL PANEL
D200
FLOOR PAN
A100

DETAIL D
D
HEADER AND ROOF PANS
18. Pop Header Brackets into Wall Panel Bracket Slots by pushing
downward on Header (Detail D). You may need to pull the Wall Panel
and Header together. Rotolock Header to Front Left Wall Panel and Back
Right Wall Panel with provided allen key.
19. Drop Middle Roof Pan into roof opening by aligning the Roof Pan
flanges within the slots on top of the Wall Panels. Ensure Wire Harness
connections are pulled through the Roof Pan before dropping into place.
20. Drop Side Roof Pan into roof opening by aligning the Roof Pan
flanges within the slots on top of the Wall Panels. Ensure Wire Harness
connections are pulled through the Roof Pan before dropping into place.
21. Fasten Side Roof Pans to Middle Roof Pan as shown.
(6) M8 X 1.25 X 25mm screws
22. Fasten all Roof Pans to Wall Panels as shown.
(8) M8 X 1.25 X 25mm screws
Page 9
FRONT LEFT WALL PANEL
D100 HEADER
H100
BACK RIGHT WALL PANEL
D300
HEADER BRACKET
WALL PANEL
BRACKET SLOT
MIDDLE ROOF PAN
F301
SIDE ROOF PAN
F302
SIDE ROOF PAN
F302

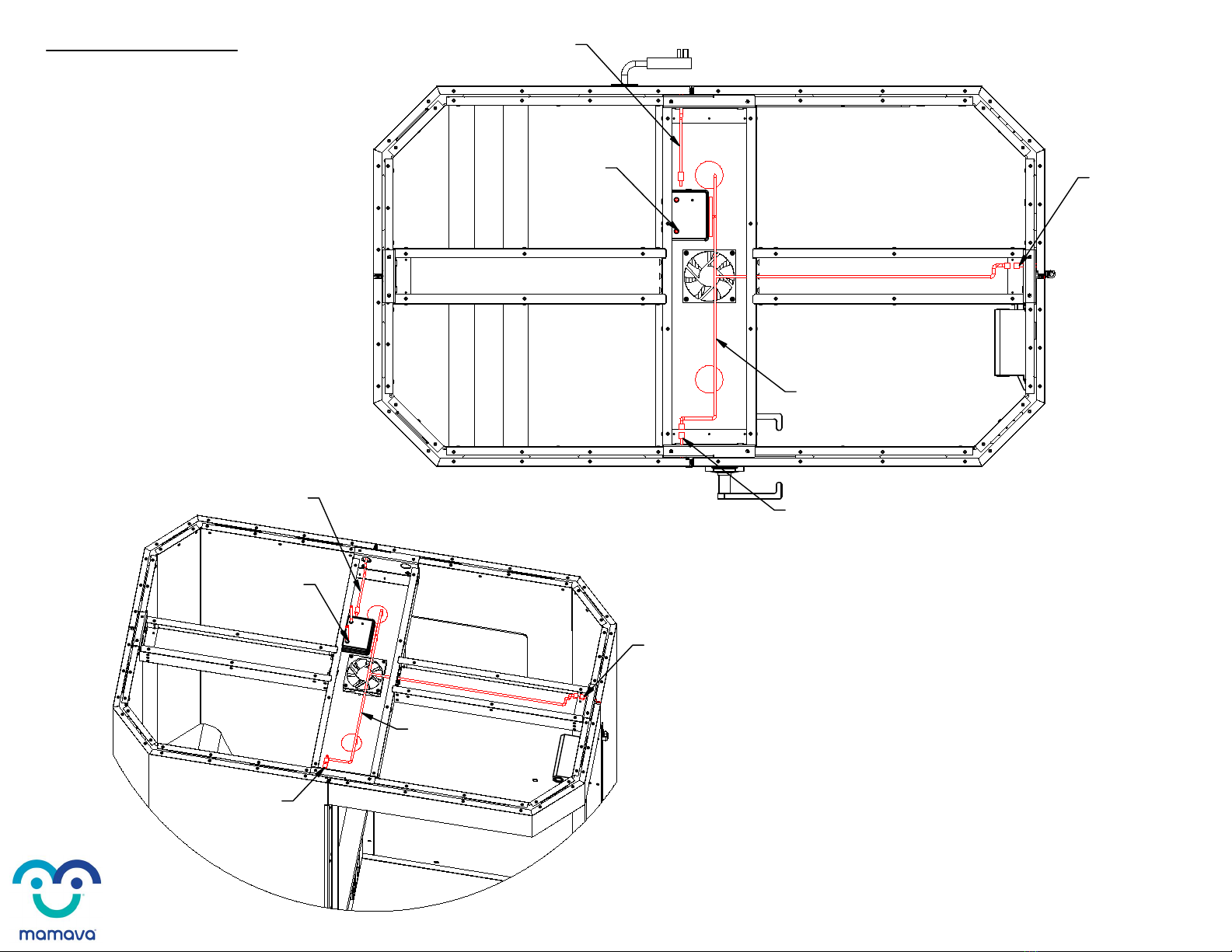

WIRING: ROOF PANS
23. Connect Roof Pan Wire Harness
to Front Left Wall Panel Wire.
24. Connect Roof Pan Wire Harness
to Back Right Wall Panel Wire.
25. Plug PCD Power Cord into PCD
and flip up antennas.
Page 10
PCD
PCD POWER CORD
FRONT LEFT
WALL PANEL WIRE
ROOF PAN
WIRE HARNESS
BACK RIGHT
WALL PANEL WIRE
FRONT LEFT
WALL PANEL WIRE
ROOF PAN
WIRE HARNESS
BACK RIGHT
WALL PANEL WIRE
PCD
PCD POWER CORD

WIRING: BEAUTY PANEL
26. Remove Wire Grommet Cover from back of unit
and run GFCI Wire into unit through Back Left Wall Panel.
27. Connect GFCI wire to Beauty Panel Junction Box
and replace Wire Grommet Cover.
28. Connect PCD Power Cord to
Beauty Panel Junction Box.
29. Leave the Beauty Panel conected, but not installed so you
have access under the Bench.
30. Plug in GFCI Plug on exterior
of unit to wall outlet.
31. Hold down the plunger switch located in the
dead bolt hole on the latch side of the wall panel.
Verify that both lights and fans turn on when the
switch is depressed.
Page 11
BEAUTY PANEL
JUNCTION BOX
ROTOLOCK
HOLES (2)
GFCI WIRE
PCD
POWER
CORD
PLUNGER
SWITCH
PCD POWER CORD
BEAUTY PANEL JUNCTION BOX
GFCI WIRE
BEAUTY PANEL
C100

DETAIL E
E

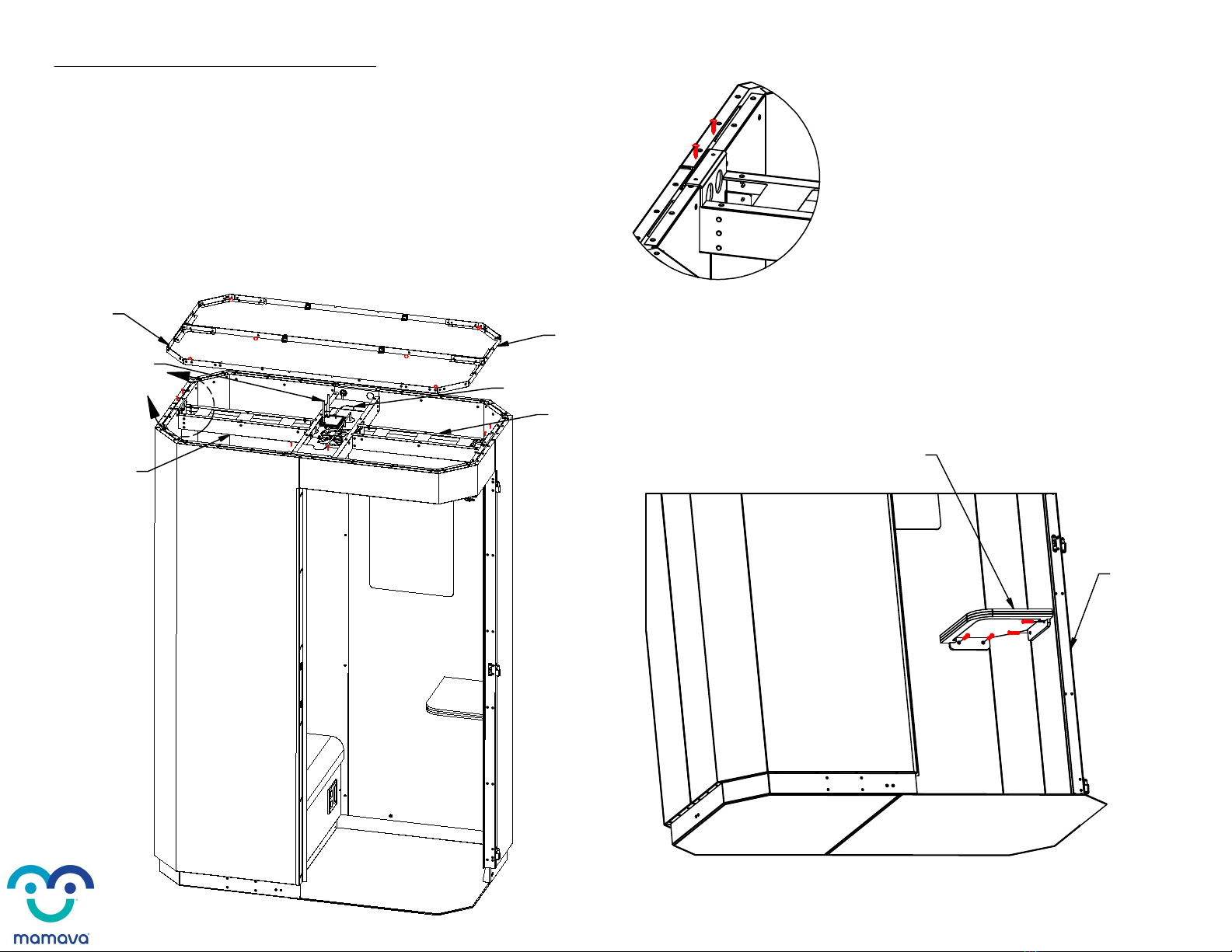

ROOF AND PERF PANS AND SHELF
32. Fasten Roof Pans to top of Wall Panels, as shown in Detail E.
(8) #8 X 3/4" Pan-head screws
33. Drop both Perf Pans into roof opening, carefully guiding the
PCD antennas through the holes in the Perf Pans.
34. Fasten both Perf Pans to inside of Wall Panels.
(6) Plastic Push Rivets
35. Fasten Shelf to Back Right Wall Panel.
(4) M8 X 1.25 X 40mm screws
Page 12
PERF PAN
F209
PERF PAN
F209
SIDE ROOF PAN
F302
SIDE ROOF PAN
F302
MIDDLE ROOF PAN
F301
PCD ANTENNAS
SHELF
I100
BACK RIGHT WALL PANEL
D300

DOOR
36. Hang Door as shown, ensuring door is open enough to
clear the Header.
37. Connect door closer arms. Ensure the door latches but
doesn't slam. Adjust tension and speed screws if needed.
38. Attach both door handles to door by snapping them
into the exposed handle holes.
39. Ensure that the door latches, the handles are operable,
and the deadbolt functions properly.
If they do, tighten all loose screws, and install the Beauty
Panel.
Page 13
TOP ARM MUST BE
90°TO CLOSED DOOR
FASTEN BOTTOM
ARM TO TOP ARM.
*SPIN BOTTOM ARM
TO CHANGE LENGTH.
TENSION AND SPEED
ADJUSTMENT SCREWS
90°
DOOR CLOSER SETUP
AS VIEWED FROM BELOW
**If they don't, refer to page 14 to level the unit.**
Assembly completed!
DOOR
D400

LEVELING
40. Level the unit by adjusting the leveling bolts until the
door latches and the deadbolt turns smoothly.
(4) Leveling Bolts - 9/16" Socket Head
41. Tighten the screws that attach the Bench Posts to
the Wall Panels.
(4) M8 X 1.25 X 25mm screws
42. Tighten the screws that attach the Bench to the Wall
Panels.
(4) M8 X 1.25 X 40mm screws
43. Rotolock the Beauty Panel in place. Cover holes in
the Beauty Panel.
(2 caps)
Page 14
ROTOLOCK
HOLES (2)
LEVELING BOLTS
BENCH POST
A104
BENCH POST
A104
BENCH
E100
BEAUTY PANEL
C100
**Tighten all screws highlighted in red.

Mamava.com
[phone]
[e-mail]
Congrats on your new addition and
welcome to the Mamava family! Once
your Mamava pod is installed, please
take a few moments to ensure
everything is fully functional. Once we
receive this from, signed and dated,
plus a photo of your pod, we'll
activate the pod on our app, so
breastfeeding parents can find and
access it with their own phone.
Post Installation
Checklist
Store your Mamava owner's manual guide, brass key, and
small deadbolt key in a safe location. If you require
assistance, please contact us at [phone] or
[email protected] and we'll be happy to help.
If you have any concerns or questions, do not hesitate to contact us directly at [phone]
and we will do whatever we can to help. If you’ve checked all of the above and you are
satisfied with the installation, please sign the below indicating your approval. By signing the
below, certifies the understanding and satisfaction with the pod(s) installation. Any installation
changes and/or requests submitted to Mamava post installation may be subject to service fees.
Signature: Date:
Name Print: Serial #:
Check Your Pod
The door closes easily and freely without rubbing against the door
frame. It it doesn't, please address by referring to the pod alignment
and leveling instructions.
The deadbolt engages fully and easily. If it doesn’t, please address
leveling and pod alignment.
The interior lights and fans turn on automatically when the door
opens. The lights and fans will go o after 30 seconds have elapsed.
All outlets (standard and USB port) work.
Test Pod Access
Test access with your keypad code by entering 8008 to unlock the door.
Make sure that the interior lights and fans come on (and stay on) after
dead-bolting the lock.
Stay in the pod for a minimum of one minute.
Tell Mamava Your Pod is Ready
Take a horizontal photo of your pod in its installed location for our
app. Be sure to remove any packing materials and get a nice, clean
shot from 8' away!
Locate the serial number on the white label inside the door frame
(it starts with FCD or MMV - ####).
Fill out all of the fields below and return this form along with the
photo of your pod to [email protected].
220221
