Mangar Health Airflo Mk3 Setup guide
Airflo Diagnostic Guide
This leaflet is designed to
guide you through a simple
diagnostic procedure if you have
any problems with your Airflo
compressor.
Depending on when your equipment was
purchased, your Airflo model will vary. If you
purchased pre June 2017, you are likely to be
using an Airflo MK3 or and Airflo Plus.

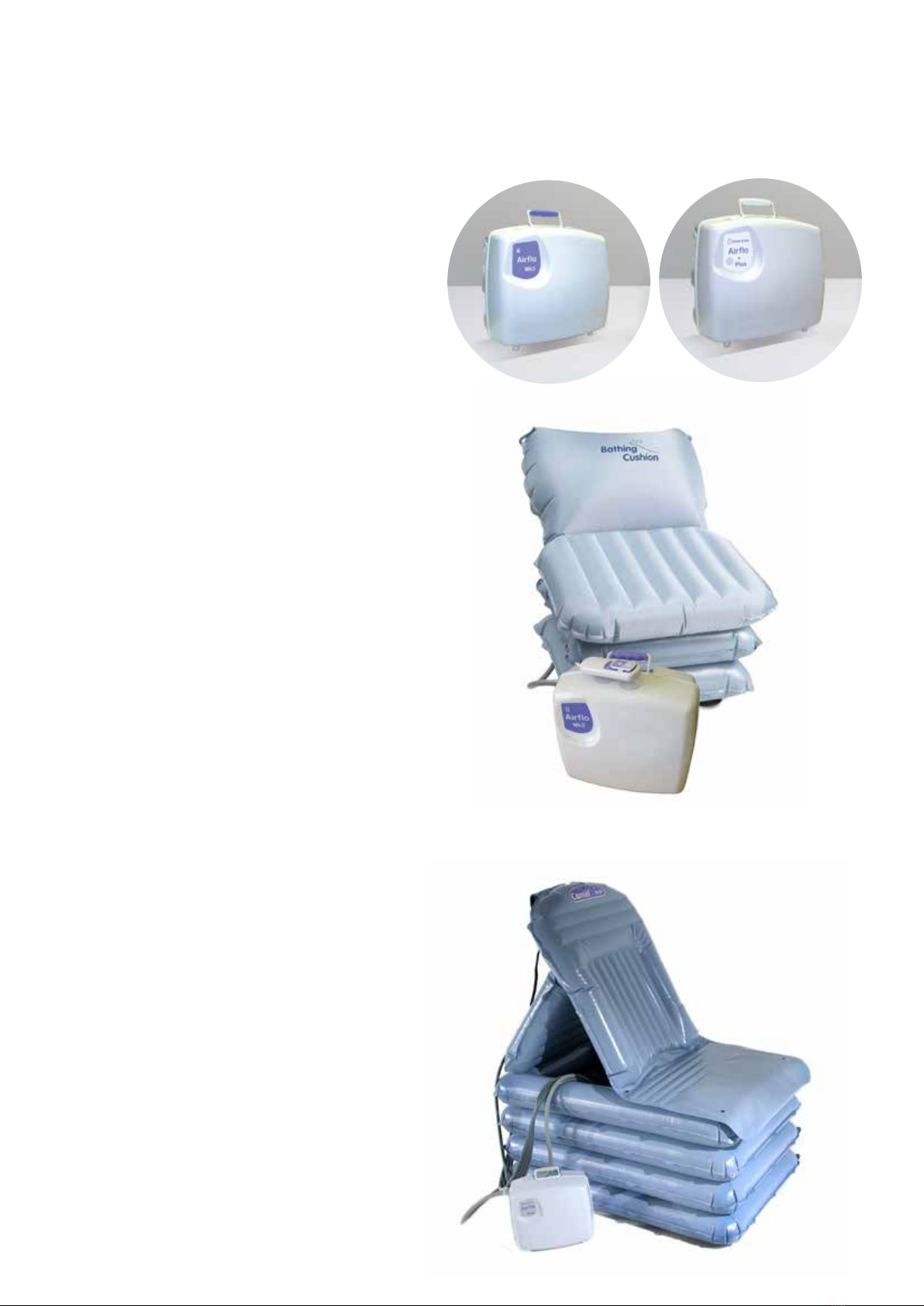

Airflo Mk3 is used to inflate:
•Bathing Cushion
•Surfer Bather
•Handy Pillowlift
•Sit U Up Pillowlift
•Leglifter
Airflo Plus is used to inflate:
•ELK lifting cushion
•Camel lifting cushion
Introduced in June 2017,
the new generation models,
Airflo 12 and Airflo 24 have
improved performance and
lifting power.
Airflo 12 used to inflate:
• Bathing Cushion
• Surfer Bather
• Handy Pillowlift
• Sit U Up Pillowlift
• Leglifter
Airflo 24 is used to inflate:
• ELK lifting cushion
• Camel lifting cushion
NO
YES
Airflo Mk3 Fault Finding Chart
START
ARE ANY PARTS
BROKEN OR
MISSING?
WHAT COLOUR
IS BATTERY
LIGHT?
DOES
PRODUCT
INFLATE WITH
H/C?
RED
FLASHING
RED OR RED/GREEN
LIGHTS
GREEN
REPLACE/SELL
AIRFLO RETURN/
DISCARD
WITHIN SPECIFICATION
NO FAULT FOUND
REFIT H/C &
PRESS UP OR
DOWN BUTTON
REPLACE
H/C
CHARGE FOR A
MINIMUM OF 9 HRS
REPLACE/SELL PART
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
IS THE AIRFLO
WORKING?
DOES AIRFLO
CYCLE>30 SECS
WITH NO PRODUCT
ATTACHED?
NO
NO
YES
YES
NO
YES
CONNECT
PRODUCT
CURRENT
OVERLOAD CUT-OUT
TRIPPED. WAIT 3
SECONDS TO RESET
BATTERY LIGHT
FLASHING RED
BATTERY
LIGHT
FLASHING
RED/GREEN?
POINT A NO
MQ0040 Issue A
NO
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES YES
YES
GO TO POINT A
DOES
PRODUCT
DEFLATE WITH
H/C?
DOES
AIRFLO RUN
CONTINUOUSLY
WHEN H/C
RELEASED?
DOES AIRFLO
CYCLE WITH
PRODUCT
DISCONNECTED?
PUSH H/C PLUG IN
FULLY
REPLACE/SELL AIRFLO
RETURN/DISCARD
REPLACE/SELL AIRFLO
RETURN/DISCARD
REPLACE/SELL AIRFLO
RETURN/DISCARD
WITHIN SPECIFICATION
NO FAULT FOUND
REPLACE / SELL
CHARGER RETURN/
DISCARD
SELL BATTERY
REPLACE/SELLH/C
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
IS POWER
LIGHT ON
CHARGER?
ARE EXPECTED
NUMBER OF LIFTS/
DESCENTS
ACHIEVED?
DOES THIS
RESOLVE
ISSUE?
DOES THIS
RESOLVE THE
PROBLEM?
TEMPERATURE
CUT-OUT HAS
TRIPPED WAIT
60-90 MINUTES
TO COOL
DOES THIS
RESOLVE THE
PROBLEM?
DOES THIS
RESOLVE THE
PROBLEM?
NO
NO
NO
Airflo Plus Fault Finding Chart
START
IS THE AIRFLO
WORKING?
WHAT COLOUR
IS BATTERY
LIGHT AFTER
16 SECS?
DOES
PRODUCT
INFLATE WITH
4-WAY H/C?
RED
FLASHING
RED OR RED/GREEN
LIGHTS
GREEN OR
FLASHING
GREEN
REPLACE/SELL
AIRFLO
RETURN/
DISCARD
BRIEFLY
PRESS
‘POWER’
BUTTON TO
ACTIVATE
BATTERY
STATE
INDICATOR &
WAIT 16
SECONDS
REPLACE/SELL
AIRFLO
RETURN/
DISCARD
WITHIN SPECIFICATION
NO FAULT FOUND
REPLACE
4-WAY
H/C
CHARGE FOR A
MINIMUM OF 9 HRS
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
DOES AIRFLO
CYCLE >30
SECS WHEN
‘AUTO’
SELECTED?
ARE ANY
PARTS
MISSING OR
BROKEN?
YES
YES
YES
NO
NO
CONNECT
PRODUCT
CURRENT
OVERLOAD CUT-OUT
TRIPPED. WAIT 3
SECONDS TO RESET
BATTERY LIGHT
FLASHING RED
BATTERY
LIGHT
FLASHING
RED/GREEN?
POINT B
POINT A
NO
NO
RESOLVED
NO
NO NO
NO
YES
YES YES
YES
MQ0048 Issue 1
GO TO POINT B
GO TO POINT A
DOES AIRFLO
CYCLE WITH
PRODUCT
DISCONNECTED?
REPLACE/SELL AIRFLO
RETURN/DISCARD
REPLACE/SELL AIRFLO
RETURN/DISCARD
REPLACE/SELL AIRFLO
RETURN/DISCARD
REPLACE/ SELL
CHARGER RETURN/
DISCARD
SELL BATTERY
RESOLVED
RESOLVED
RESOLVED
RESOLVED
IS POWER
LIGHT ON
CHARGER?
ARE EXPECTED
NUMBER OF LIFTS/
DESCENTS
ACHIEVED?
DOES THIS
RESOLVE
ISSUE?
TEMPERATURE
CUTOUT
HAS TRIPPED.
WAIT 60-90
MINUTES
TO COOL
DOES THIS
RESOLVE THE
PROBLEM?
DOES THIS
RESOLVE THE
PROBLEM?
NO
NO
YES
YES
NO
NO
Airflo 12 Fault Finding Chart
START
ARE ANY
PARTS
BROKEN OR
MISSING?
WHAT COLOUR
IS BATTERY
LIGHT?
DOES AIRFLO
MOMENTARILY
RUN?
DOES
PRODUCT
INFLATE WITH
H/C?
FLASHING RED
BATTERY LIGHT?
RED
1,2,3 OR
4 GREEN
LIGHTS
REFIT H/C &
PRESS UP OR
DOWN BUTTON
REPLACE PART
REPLACE H/C
INTERNAL FAULT
REFER TO SERVICE
MANUAL. REPAIR/
REPLACE AIRFLO.
RETURN/DISCARD
INTERNAL FAULT
REFER TO SERVICE
MANUAL. REPAIR/
REPLACE AIRFLO.
RETURN/DISCARD
WITHIN SPECIFICATION
NO FAULT FOUND
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
IS THE
AIRFLO
WORKING?
DOES AIRFLO
CYCLE WITH AIR
OUTLET CLOSED?
YES
NO
NO
YES
YES
CONNECT
PRODUCT
PRESS “UP”
BUTTON
TEMPERATURE
CUTOUT
HAS TRIPPED.
WAIT 60-90
MINUTES
TO COOL
NO
NO
YES
YES YES NO NO
NO YES
NO
NO NO
NO
YES YES
YES
MQ0048 Issue 1
DOES
PRODUCT
DEFLATE WITH
H/C?
DOES
AIRFLO RUN
CONTINUOUSLY
WHEN H/C
RELEASED?
DOES AIRFLO
CYCLE WITH
PRODUCT
DISCONNECTED?
REPLACE AIRFLO
RETURN/DISCARD
REPLACE H/C PUSH H/C
PLUG IN
FULLY
REPLACE AIRFLO
RETURN/DISCARD
WITHIN
SPECIFICATION
NO FAULT
FOUND
REPLACE / SELL
CHARGER RETURN/
DISCARD
REPLACE
BATTERY
CHARGE FOR A
MINIMUM OF 16 HRS
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
RESOLVED
IS POWER
LIGHT ON
CHARGER?
ARE EXPECTED
NUMBER OF LIFTS/
DESCENTS
ACHIEVED?
DOES THIS
RESOLVE
ISSUE?
DOES THIS
RESOLVE THE
PROBLEM?
DOES THIS
RESOLVE THE
PROBLEM?
NO
YES
YES
DOES AIRFLO
MOMENTARILY
RUN?
WHAT COLOUR
IS BATTERY
LIGHT?
1, 2, 3 OR
4 GREEN
LIGHTS
CONNECT
PRODUCT
PRESS
‘POWER’
BUTTON
RESOLVED
NO
Airflo 24 Fault Finding Chart
START
RED
REPLACE/SELL
AIRFLO RETURN/
DISCARD
WITHIN SPECIFICATION
NO FAULT FOUND
INTERNAL FAULT
REFER TO SERVICE
MANUAL. REPAIR/
REPLACE AIRFLO.
RETURN/DISCARD
CHARGE FOR A
MINIMUM OF 16 HRS
PRESS THE
‘BATTERY STATUS
INDICATOR’ BUTTON
TO ACTIVATE
BATTERY STATUS
INDICATOR
RESOLVED
RESOLVED
RESOLVED
DOES AIRFLO
CYCLE WITH AIR
OUTLET
CLOSED?
NO
YES
YES
YES
NO
YES
ARE ANY PARTS
BROKEN OR
MISSING?
IS THE
AIRFLO
WORKING?
YES
FLASHING RED
BATTERY LIGHT?
INTERNAL FAULT
REFER TO SERVICE
MANUAL. REPAIR/
REPLACE AIRFLO.
RETURN/DISCARD
RESOLVED
TEMPERATURE
CUTOUT
HAS TRIPPED.
WAIT 60-90
MINUTES
TO COOL
NO
NO
NO
YES
NO
NO
YES
NO YES YES
YES
YES
MQ0040 Issue A
DOES
PRODUCT
INFLATE WITH
4-WAY H/C?
DOES AIRFLO
CYCLE WITH
4-WAY H/C
DISCONNECTED?
REPLACE
4-WAY H/C
REPLACE AIRFLO
RETURN/DISCARD
WITHIN SPECIFICATION
NO FAULT FOUND
REPLACE CHARGER
RETURN/DISCARD SELL BATTERY
RESOLVED
RESOLVED
RESOLVEDRESOLVEDRESOLVED
IS POWER
LIGHT ON
CHARGER?
ARE EXPECTED
NUMBER OF LIFTS/
DESCENTS
ACHIEVED?
DOES THIS
RESOLVE
ISSUE?
YES
REPLACE/SELL AIRFLO
RETURN/DISCARD
RESOLVED
DOES THIS
RESOLVE THE
PROBLEM?
NO
