MANGO POWER mPanel Pro User manual

mPanel Pro User Manual
mPanel Pro User Manual
These instrucons apply to the MANGO POWER mPanel Pro device. Please read this
user manual carefully before installing or using the mPanel Pro device. Keep this user
manual in a safe place for future reference.

Contents
1. Safety Precauons .................................................................................................Page 2
2. Product Introducon ............................................................................................Page 3
2.1 Overview ...........................................................................................................Page 3
2.2 What's in the BOX ...........................................................................................Page 4
2.3 Product Specicaons ....................................................................................Page 5
2.4 Features .............................................................................................................Page 5
3. Product Installaon ...............................................................................................Page 8
3.1 Materials Required for Installaon ...............................................................Page 8
3.2 Product Fixaon ...............................................................................................Page 8
3.3 Wiring Steps ......................................................................................................Page 9
4. Funcon Usage Introducon ..............................................................................Page 12
4.1 Backup Mode ....................................................................................................Page 12
4.2 Grid Funcon ....................................................................................................Page 12

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
2
1. Safety Precauons
Before installing, maintaining, or using the MANGO POWER mPanel Pro in any way, please read this
user manual carefully and comply with all the rules and warnings provided. Do not operate this
device contrary to the regulaons of this user manual as it may lead to equipment damage, electric
shock, severe injury, or even death.
The operator of this device must be procient in understanding the condion of the equipment, the
safety informaon provided, and the necessary precauons before any installaon, operaon,
inspecon, or maintenance.
This user manual categorizes safety precauons into two levels: "▲Danger" and "●Warning"
▲Danger: Flawed operang may be extremely dangerous and result in severe injury or death.
●Warning: Flawed operang may be dangerous and result in moderate or mild injuries and equipment
or property damage.
The pictures in this user manual are for reference only and may dier slightly from the actual product.
In order to ensure the connuous improvement of this manual, we reserve the right to modify it.
No unit or individual is permied to copy this user manual, or any part of it, for commercial purposes
without the wrien permission of the MANGO POWER company.
Danger:
When dealing with any wiring, please ensure that the power is turned o to avoid electric shock.
This equipment should not be installed in direct sunlight, humid environments, or in any
environment where rain or other liquids might make contact with it as this increases the risk of
electric shock.
Ensure reliable grounding to prevent electric shock and re.
All work related to the device must be performed by qualied personnel who have electrician
cercates – including installaon, operaon, maintenance, sengs, and conguraon.
Do not aempt to operate any of the switches or buons of the device with wet hands as it may
lead to electric shock.
Please switch the power o when troubleshoong or cleaning any of the equipment.
Do not place any objects on top of the product during installaon, use, or maintenance.
The electrical installaon must comply with the local naonal electrical safety standards and
regulaons.
Do not remove the rear boom plate of the device during circuit operaon as there is a risk of
electric shock.
Do not touch any uninsulated wires when opening the protecve cover on the product as there is
a risk of electric shock.
Do not place ammable or potenally explosive materials near the device.

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
3
All warning labels and nameplates on mPanel Pro should be clearly visible at all mes and must
not be removed, covered, or pasted over.
Please keep children away from mPanel Pro and its related systems to prevent the risk of electric
shock.
Warnings:
For opmal use and maintenance, the space surrounding the device should not be less than
400mm and the device’s height o the ground should not be less than 1000mm.
Only aer the device is installed in its place should any electrical wiring be carried out.
Protecve sleeves must be added to the incoming and outgoing wires of the device.
Conrm that the circuit breaker and all incoming/outgoing wires meet the requirements of the
device during wiring.
Use special prescribed tools for the installaon and wiring of the device.
If any damage to the mechanical or electrical components of the device is noted, immediately
stop the installaon, and contact the supplier promptly.
If any malfuncon occurs during use, turn o the power and check the cause of the malfuncon.
Do not strike the device while trying to repair it as it will only damage the equipment.
Switch the power supply o when performing maintenance checks and cleaning.
Live maintenance must be performed by professionals with the required protecve measures.
Do not modify any crical components of the device as it may lead to property, personal, or
product harm..
Do not use damaged, broken, or worn wires and connectors. Protect the wires from physical
damage - such as compression, door closures, or being ed into knots or stepped on.
Do not place incoming and outgoing wires in areas where water or other liquids may come into
contact with them.
2. Product Introducon
2.1 Overview
This product is an electrical control distribuon box designed for MANGO POWER Union and
MANGO POWER E products. The mPanel Pro connects the MANGO POWER Union or MANGO
POWER E to the load to assist in automacally switching the energy supply between the grid and the
MANGO POWER backup power sources.
Note: When two MANGO POWER E units are connected in parallel, the output voltage can support a
240V split-phase and allows them to meet the requirements of most household appliances.

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
4
2.2 What's in the BOX
MANGO POWER Union
No.
Type
Quanty
1
mPanel Pro
1
2
Expansion plug
3
3
Self-tapping screw
3
4
Manual
1
5
Warranty Card
1
6
AC Input Cable for POWER Move
1
7
AC Input Cable for POWER Home
1
8
AC Output Cable
2

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
5
MANGO POWER E
No.
Type
Quanty
1
mPanel Pro
1
2
Expansion plug
3
3
Self-tapping screw
3
4
Manual
1
5
Warranty Card
1
6
AC Input Cable
2
7
AC Output Cable
2
8
E-Link Cable
1

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
6
2.3 Product specicaon
Product
mPanel Pro
Size
554*280*108mm
Mains input voltage
120V, 240V
Mains input current
50A
Output port
2×30A
Backup input Port
2×30A
Load output port
4x15A
Working temperature
-10°C- 45°C

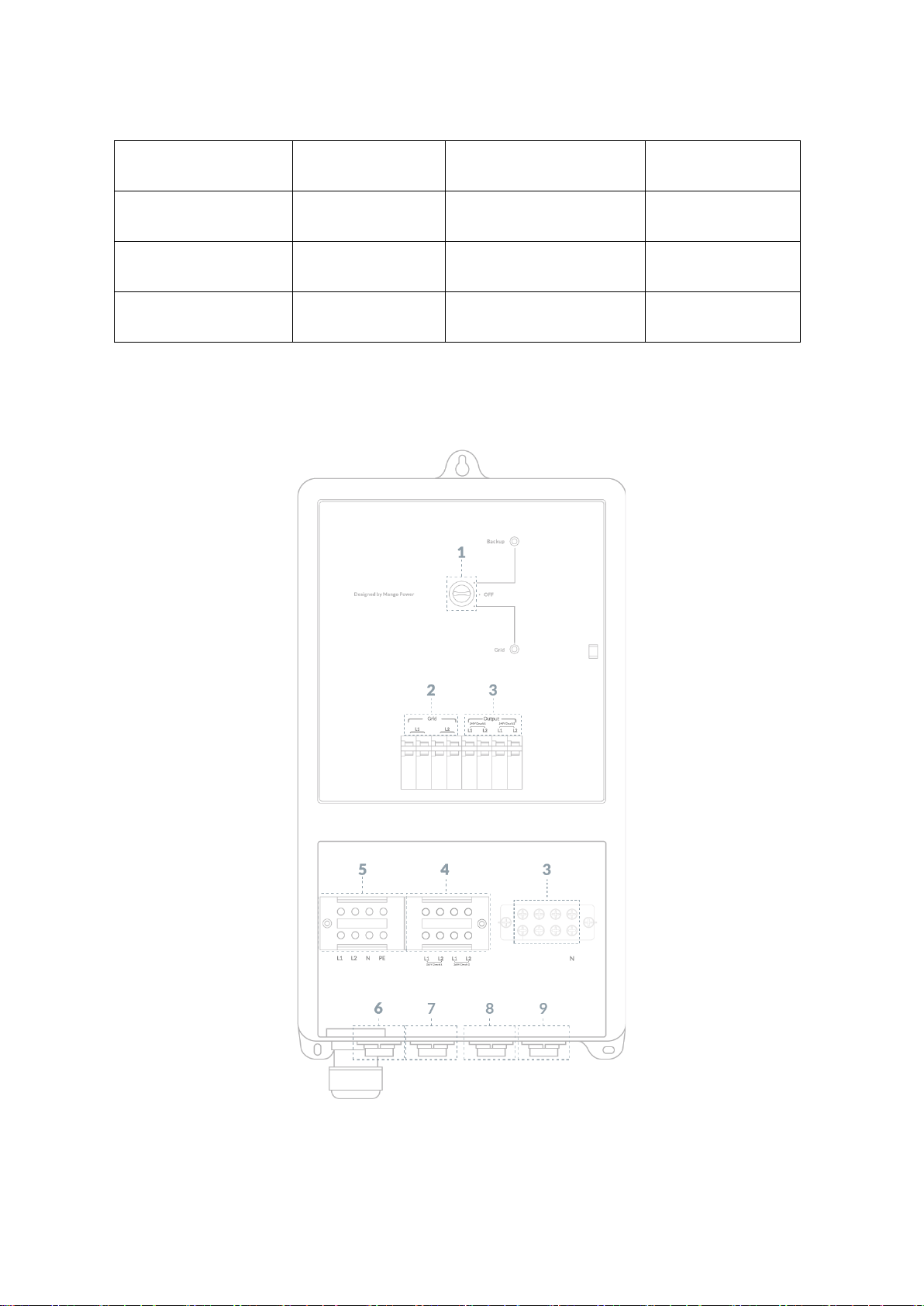

2.4 Features

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
7
NO.
Name
Descripon
1
Rotary Switches
Controls the output circuit to accommodate the power
supply of four output circuits and allows the power supply
to be quickly switched between the grid and the power
backup soluon.
2
Grid Breaker
Controls the shutdown of the mains input.
3
Output Breaker
Controls the shutdown of the mains input
3
Neutral load Access
Terminal
Connects to the output neutral wire line.
4
Live Load Access Terminal
Connects to the output live wire - the maximum current
of a single port is 15A.
5
Mains Input
The mains input live wire is connected to the L terminal,
the mains input neutral wire is connected to the N
terminal, the earth wire is connected to the PE terminal,
and the maximum current is 50A.
6
Output-1 Port
Connects to the input port of MANGO POWER Union or
MANGO POWER E device - the maximum current is 30A.
7
Output-2 Port
Connects to the input port of MANGO POWER Union or
MANGO POWER E device - the maximum current is 30A.
8
Backup Input-1 Port
Connects to the output port of a separate Power Move,
Power Home, or MANGO POWER E device - the
maximum current is 30A.
9
Backup Input-2 Port
Output port when connecng the MANGO POWER
Union device or 2 sets of the MANGO POWER E device -
the maximum current is 30A.

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
8
3. Product Installaon
3.1 Materials Required for Installaon
●Power cables:
A 6 AWG black silicone cable, a 6 AWG white silicone cable, and a 6 AWG green-
yellow silicone cable.
A 12 AWG black silicone cable and a 12 AWG white silicone cable.
●Tools:
Power drill, screwdriver, and insulated gloves
3.2 Product Fixing

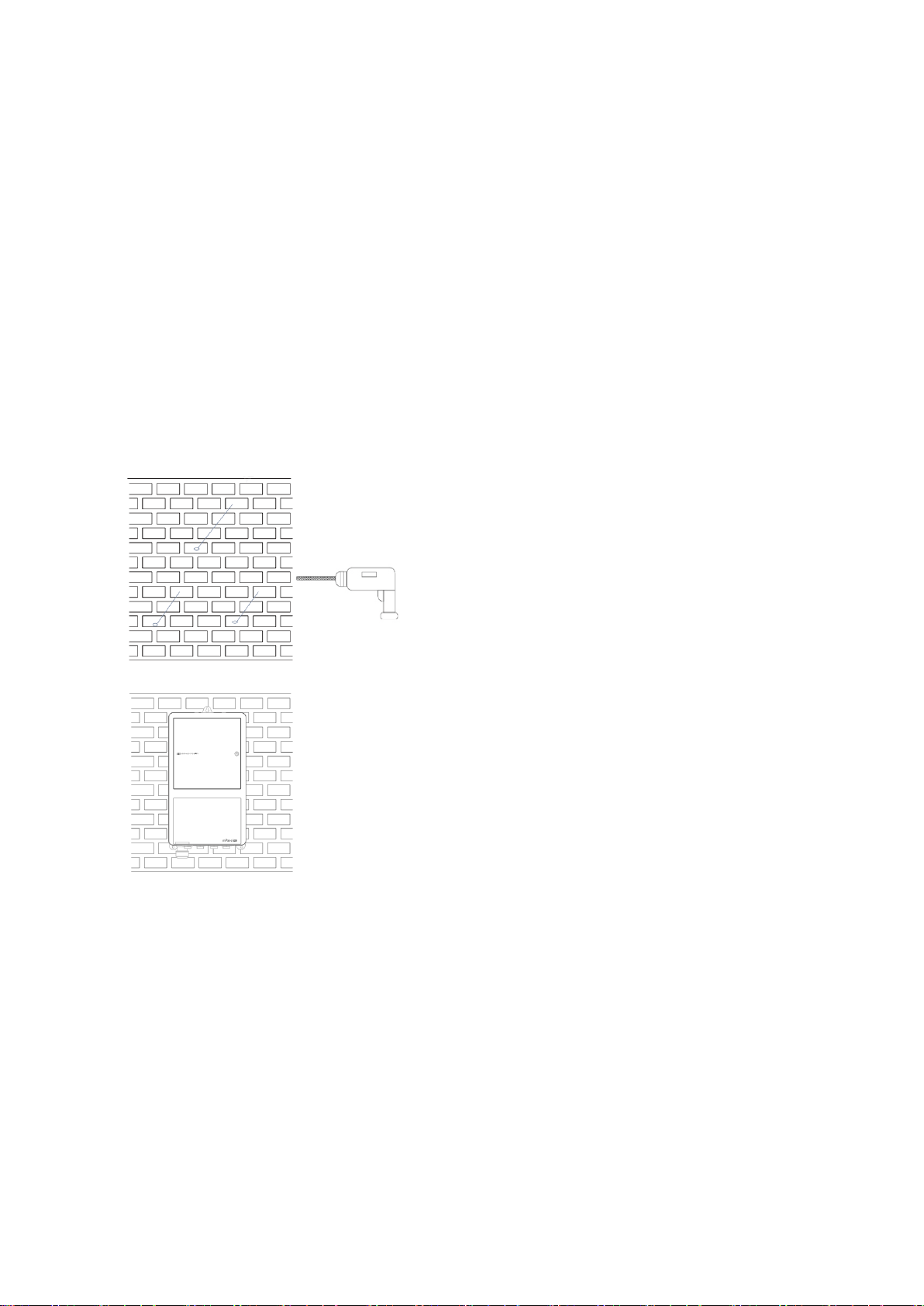

(1) Mark the posions of the three xing holes on
the wall where the product needs to be installed.
Use a power drill to make holes at the marked
posions for installaon, insert expansion plugs
into the holes, and screw a self-tapping screw
into the top screw hole.
(2) Hang the mPanel Pro on the top screw that
was just inserted so that the two lower screw
holes align with the installaon holes below the
mPanel Pro. Take out the other 2 self-tapping
screws, align them with the two holes, then
insert and ghten them.

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
9
3.3 Wiring steps
MANGO POWER Union and mPanel Pro wiring diagram

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
10
MANGO POWER E and mPanel Pro wiring diagram

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
11
(1) Open the boom cover then use a screwdriver to unscrew the protecve cover
screws and remove the inner cover. Put the prepared silicone cable onto the
protecve tube, and take measures to protect the exposed wires outside of
mPanel Pro.
a. Use the 6AWG wire to connect the home AC distribuon box and the mPanel Pro AC
input: the 6AWG black silicone cable connects to L1/L2, the 6AWG white silicone cable
connects to N, and the 6AWG yellow-green silicone cable connects PE.
b. Use the 12AWG black silicone cable to connect the energy supply to the mPanel Pro
load input for the hot wire: L1/L2.
c. Use the 12AWG white silicone cable to connect the load to the mPanel Pro load input
for the neutral wire: N.
d. Aer the wiring is completed, ghten the protecve cover screws with a screwdriver
and place the protecve cover back on the device.
(2) Use the AC input cable and AC output cable to connect the MANGO POWER
Union or MANGO POWER E devices to the mPanel Pro:
MANGO POWER Union:
a. Use the AC input cable to connect the mPanel Pro's backup input to the Power
Home's 40A home backup outlet or the Move's 30A AC outlet. (When only the
Power Move or Power Home is available, the AC input cable can only be
connected to the mPanel Pro's Backup Input-1.)
b. Use the AC output cable to connect the mPanel Pro's Output-1/Output-2 to
the Power Home or Power Move's grid AC input.
MANGO POWER E:
For 1 MANGO POWER E device:
a.Use the AC input cable to connect the mPanel Pro's Backup Input-1 to the MANGO
POWER E's 30A AC outlet.
b. Use the AC output cable to connect the mPanel Pro's Output-1/Output-2 to MANGO
POWER E's GRID AC INPUT.
For 2 MANGO POWER E devices:
a. Connect 2 MANGO POWER E devices using the E-link cable then use the AC input
cable and AC output cable to connect the input/output ports.

©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER Union, MANGO POWER E, MANGO POWER
mPanel Pro, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change
12
4. Funcon Usage Introducon
Aer the successful installaon of mPanel Pro, turn on the backup mode for the MANGO
POWER Union or MANGO POWER E and switch between mPanel Pro Backup and Grid
modes by controlling the knob switch.
4.1 Backup Mode
(1) Turn the knob switch to the backup posion then turn on the grid breaker. The output
port can then charge the MANGO POWER Union or MANGO POWER E devices. Turn on
the output breaker and the MANGO POWER Union or MANGO POWER E device can
supply power to the load. The L1-N and L2-N can output four 120V circuits.
(2) If 2 MANGO POWER E devices are connected in parallel, the MANGO POWER E can
output two L1-L2-N 240V split-phases. Note: When two MANGO POWER E devices are
connected in parallel and the backup mode is turned on, only discharge is allowed and not
charging. To charge, turn o the MANGO POWER E’s backup mode.
(3) If it is necessary to stop supplying power to the load, the output breaker can be
selecvely turned o as needed.
4.2 Grid Funcon
(1) Turn the knob switch to the grid posion then turn on the grid breaker and switch to
the ulity power in order to supply power to the load, the MANGO POWER Union
device, or the MANGO POWER E device. The L1-N and L2-N can output four 120V
circuits, and L1-L2-N can output 240V.
(2) If it is necessary to stop supplying power to the load, the output can be selecvely
turned o as needed or the grid breaker can be used to turn o the ulity power input
source.

Shenzhen Xihe Future Technology Co.,Ltd
Please scan this QR code for
more product informaon
