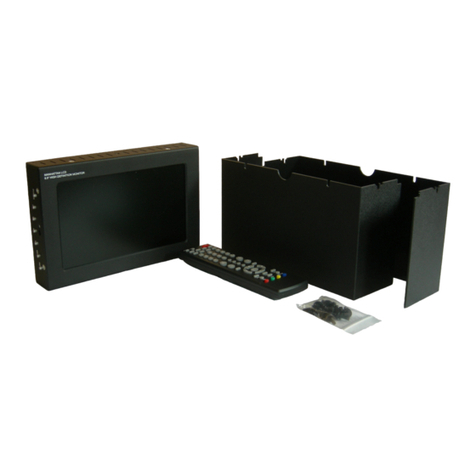

Section: HD8400 - Features & Specifications
LCD:
Architecture – 8.4” LCD XGA (1024x768)
Contrast – 500:1
Brightness – 400 Nits (Quad Lamp, Replaceable)
Display Color – 16.7 Million
Response Time – 25 ms, full on/full off
ViewingAngle (L/R/U/D) – 170 / 170 degrees
Surface Finish – Antiglare
Controls:
Brightness – Contrast – Saturation – Hue – Sharpness
4:3 – 16:9 – 16:10 – 2.35:1 – 2:1 – 1:1 – Custom Sizing Overscan and Underscan
Picture Flip and Rotate
Red Green Blue Level – 5000K – 6500K – 8000K – 9300K – Red Green Blue Monochrome
Blue Only for Calibration
Picture in Picture – On Screen Display – Multi Language – Freeze Frame
Infrared Remote Control – Full Access to OSD (Optional)
Case:
0.125" ABS Matte Finish
Dimensions – 10" Wide, 6.4" High, 2.5" Deep
Weight –Approx 3 LBS
Stainless Steel Buttons
Two Mounting Location to Connect to Camera Gear (1/4*20 Thread, Top and Bottom)
Inputs:
DVI – HDMI (HDCP) – 1 Input, Supports 1080p, 1080i, 720p, 576p, 576i, 480p, 480i and VESA and IBM
VGA – VESA and IBM
HDSDI – SMPTE 259M-C – Supports 1080p 30Hz, 1080p 25Hz, 1080i 60Hz, 1080i 50Hz, 720p 60Hz,
720p 50Hz, 576p 50Hz, 480p 60Hz, 576i 50Hz, and 480i 60Hz (HD8910 - Single Channel HDSDI, HD8920
- Dual Channel HDSDI)
Component: 1 Input, Supports 1080p, 1080i, 720p, 576p, 480p, 60Hz, 50Hz, 30Hz and 24Hz
Video and S-Video: 1 Input Each, Support 480i, 576i, 60Hz and 50Hz
Power – 12-24v DC – Built Power Regulator – 4 Pin XLR Power <40 Watts
Tekkeon MP3450I Rechargeable Battery – 2 Hour Run Time (Optional)
Battery Plates – Sony, Panasonic, Cannon (optional)

Section: HD8400 - Monitor Schematic
© 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
2)
Front Right Side
Top
Bottom (connectors)
Left Side
12V DC
XLR
Y (G) Pb (B) Pr (R)
DVI / HDMI VGA S-VIDEO VIDEO
MOUNT
IN OUT
HD - SDI IN OUT HD - SDI
12V DC
+
-
UP DN
MENU
ON/OFF
LCD BRIGHTNESS
-
+
MANHATTAN LCD
8.4” HIGH DEFENITION MONITOR STATUS I/R
250mm
60mm
175mm
Graphic Key
Casing Screws
Sun Shade
Connectors
1/4-20 Mounting
Ventilation Slits

© 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
3)
Specifications
Operating voltage- DC 3V
Operating temperature -10LC ~ 50LC
Operating current- 20 K 10mA
Power source- 2 x AAA size batteries
Number of keys- 33
Oscillation frequemcy- 455KHz K 2.2KHz
Arrival distance- 7 m
Dimensions- 148mm(H) x 47.5mm(W) x 28mm(D)
Weight- Approx, 75g (without batteries)
1 2 3
4 5 6
7 8 9
POWER ATTENTION
AV/TV
D
I
S
P
L
A
Y
OSD
BACK OSD NEXT
PIP
SOUND
REPEAT
STOP
- -
CH
ZOOM
TRACK
FREEZE S-VID
YCrCb
Comp
RGB
PLAY
Power on/off
Digit Keys
Select input source
Zoom/
Sound Mode
Selection
+/- key
Display Screen
Info
Back to previous
OSD menu
Stop
(RGB)
Repeat
Pause/Freeze
Tracks select
Up Track (S-Video)
Next Track (Composite)
Play
(YCrCb/Component)
Go to next OSD
menu
UP/DN
Picture in picture
Mute
Select station ID for
IR enable/disable
Volume
Channels select
IR LED
Section:Remote Control
The remote control unit is compatible with all Manhattan LCD 1000 series monitors. It is
provided with universal control buttons that enable the control of OSD functions.

Basic Functionality
Using Remote Control or Monitor Console
Function: Power On Monitor> Insert power source via connector into the 12V DC socket or 4-pin XLR DC input respectively.
A RED LED will indicate power is reaching the monitor. If RED LED fails to light, trouble shoot power adapter, battery or source. Screen will
be BLACK.
Insert one or more video source connections into the appropriate ports (See P5)
Function: Invoke On-Screen Display and access basic On-Screen Menus using Remote Control or Unit Console
With two fresh AAA batteries installed, point the front of the remote at the Monitor Console’s IR port (Status / IR) and depress the RED ‘Power’
button located on the remote control unit. The RED power LED will then turn GREEN and after 6 seconds, a solid BLUE will fill the screen
If unit is set to automatically detect a source (Auto Source Seek); it will scroll through options and stop when a signal is detected. If no source
is detected an error message will result. If Auto Source Seek is OFF, then a signal type must be manually selected using the remote control
or unit console. Once a signal has been detected, an image will appear with the default settings that were last used.
CAUTION: Selecting “Reset to Factory Defaults” under the UTILITIES menu will erase all user preferences and revert the settings to
factory defaults.
TIP: It is a good idea to make screen shots or to note down preferences for various users as well as specific scenarios
for future reference (particularly in the event of an accidental reset to factory defaults)
Function: Select and Adjust Display Settings: Remote or Console
Invoke On Screen Display (OSD) On remote, depress either
OSD
BACK
OSD button. The OSD will appear. Select OSD modes by scrolling Right >
or < Left using ‘NEXT OSD and BACK OSD buttons respectively. Use the & as well as (+) & (-) keys to navigate within each menu option
and to make selections and manipulate sliders.
The same functionality can be invoked using the unit console control buttons.
(See detailed OSD Functions )
When session is complete, turn power OFF, disconnect power cable and then all video input cables.
Energy Saver: Use Auto Power OFF and OSD Timeout settings to conserve energy and increase screen longevity
(See detailed OSD Functions )
Section:Quick Set Up
© 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
4)

Section:On Screen Display Functions
5) © 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
Volume### Increase/decrease volume level, total: 100 steps
Brightness Increase/decrease panel brightness level, total: 100 steps
Contrast Increase/decrease panel contrast level, total: 100 steps
Saturation Increase/decrease saturation, total: 100 steps
Hue ** Increase/decrease Hue level, total: 100 steps
Sharpness* Increase/decrease sharpness, total: 30 steps
Position :
Move the image position upward | Move the image position downward | Move the image position to the left
Move the image position to the right
Backlight :
Backlight Backlight brightness adjustment (Function when light detector sets OFF)
Setup>
- Backlight invert : : Invert for the backlight brightness
- Backlight Frequency :D/A 600Hz / PWM 160Hz
D/A 600Hz : Voltage level dimming control
PWM 160Hz : PWM dimming control
Aspect / Size : - Fill Screen : Enable full screen expansion for lower resolution Image
- Fill to Aspect Ratio: Enable fill screen expansion for lower resolution image according to aspect ratio
- 4 : 3 : scaling format in 4:3
- 16 : 9 : scaling format in 16:9
- 16 : 10 : scaling format in 16:10
- 2.35 : 1 : scaling format in 2.35:1
- 2 : 1 : scaling format in 2:1
- 1 : 1 : Display the exact image resolution on the screen without image expansion.
- Custom Sizing#### :
- Overscan
- Normal
- Custom >
H Size
V Size
H Pan
V Pan CONTINUED>>>
Picture Mode

Section:On Screen Display Functions
6) © 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
Aspect / Size : - Fill Screen : Enable full screen expansion for lower resolution Image
- Fill to Aspect Ratio: Enable fill screen expansion for lower resolution image according to aspect ratio
Blue Only : ON / OFF : Turn off the "Red" & "Green" channel (i.e output all zero to Red & Green channel)
[This function will display on OSD menu when JP4 – 5-6 closed]
* : DISPLAY IN VIDEO MODE ONLY
** : FUNCTION IN ARGB/ DVI / VIDEO NTSC / HD COMPONENT MODE ONLY
#: DISPLAY IN ARGB / DVI MODE ONLY
## : FUNCTION IN ARGB MODE ONLY
### : DISPLAY WHEN VIDEO ADD-ON BOARD CONNECTED
#### : DISPLAY IN VIDEO / HD/SD SDI 1 / HD/SD SDI 2 MODE ONLY
Picture Mode
Input
Input : Select the input video signal
HD/SD SDI 1• HD/SD SDI 2*** • VGA# • DVI • HD Component • Composite 1 • Composite 2*** • S-Video • SD Component
# : Press “-“ key to activate the “Auto Picture Setup” function.
PIP Setup >
PIP Source
HD/SD SDI 1 • HD/SD SDI 2 • VGA • DVI • HD Component • Composite 1 • Composite 2 • S-Video • SD Component • Off
PIP Size : OFF / Small / Medium / Large / PBP
4 possible input groups that can be mixed for PIP :
a) VGA/HD-component
b) DVI
c) HD-SDI
d) Composite/S-Video/SD-component
It can not allow to select signal source from the same group for PIP.
CONTINUED>>>

Section:On Screen Display Functions
7) © 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
PIP Position :
Move the PIP position upward
Move the PIP position downward
Move the PIP position to the left
Move the PIP position to the right
PIP Swap : Swap between the main window and PIP window
PIP Auto off : : OFF / ON
ON : When PIP is no signal input after 30 seconds, the PIP window will turn off automatically.
OFF : PIP window keeps on
*** DISPLAY WHEN SETTING ON UNDER SETUP AUTO SOURCE SEEK
Input (...continued)
Setup >
Auto Picture Setup# : Auto adjust the image position, phase and size
Auto Color Gain## : Auto Color Calibration (See appendix IV)
Wide Screen Mode detection# >: Recognize the wide screen mode coming from ARGB port
- Off
- 1280x768
- 1366x768
Manual Clock## : Adjust the image horizontal size
Manual Phase# : Fine tune the data sampling position (adjust image quality)
Auto Source Seek :
- Auto : : OFF / ON
ON – Auto source select always enable
OFF – Disable auto source select functionComposite 1
Utilities

Section:On Screen Display Functions
8) © 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
Setup > Selection for the corresponding input sources detection
HD/SD SDI 1 • HD/SD SDI 2 • VGA • DVI • HD Component • Composite 1
Composite 2 • S-Video • SD Component
The corresponding input port name display on OSD menu will disappear once
setting “OFF”.
De-interlacing Mode*> AFM : Auto Film Mode • TNR : Temporal Noise Reduction
MADI : Motion Adaptive De-interlacing • LADI : Low Angled De-interlacing
Auto Power : OFF / ON
ON – Enable soft power off function if absence of input signals
OFF – Disable soft power function
Video Standard (SD)* : Auto / NTSC / NTSC 4.43 / PAL / PAL M / SECAM
Image Orientation : Normal / Horizontal flip / Vertical flip / Rotate
Gamma : 1.0 / 1.6 / 2.2
OSD
OSD position :
H POS : Move the OSD menu image horizontally
V POS : Move the OSD menu image vertically
OSD Timeout (sec) : ON – 60 : Adjust the OSD menu timeout period in a step of 5
seconds (max 60 seconds)
ON = Continuous to display OSD menu.
60 = 60 seconds later will turn off the OSD menu.
Language : English / Chinese : Select OSD menu language display
Transparency : ON / OFF : Set OSD transparency
Freeze : Freeze the image (use “+” button)
Zoom >
Zoom level : : Enable the zoom in function on the image displayed.
Use “+” button to zoom in the image
Use “-“ button to decrease the zoomed image
Horizontal pan : : Pan the image horizontally
Vertical pan : : Pan the image vertically
Default : Restore to default values
Note : Freeze state will be cleared when you using zoom function.
Utilities (...continued)

Section:On Screen Display Functions
9) © 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
Color Temperature
5000K
6500K
8000K
9300K
User setting :
USER Red :
USER Green :
USER Blue :
Default : Resume to the default values
Hot Key >
Hot key 1 : Volume / Brightness / Contrast / Input / Zoom / Freeze / Aspect / PIP Size / PIP
Swap / Image Orientation
Hot key 2 : Volume / Brightness / Contrast / Input / Zoom / Freeze / Aspect / PIP Size / PIP
Swap / Image Orientation
Monochrome Mode >
- Color
- Red Monochrome
- Green Monochrome
- Blue Monochrome
Reset to Factory Defaults
KEY
* : DISPLAY IN VIDEO MODE ONLY
# : DISPLAY IN ARGB MODE ONLY
## : DISPLAY IN ARGB / HD COMPONENT MODE ONLY
Utilities (...continued)

Section:Input Connections
10) © 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
HD SDI - Input & Output
High Definition Composite
Video Signals
(Dual or 2-Channel Shown)
Component - Input
High Definition
Componet Video
Signals
(1-Channel Shown)
4-Pin
XLR
12V DC
Input
1/4-20
Threaded
Mount
Standard
DC Input
12V
SD ComponentS-Video
Input
VGA
Input
DVI /HDMI
Input
(Via Adapter)
12V DC
XLR
Y (G) Pb (B) Pr (R)
DVI / HDMI VGA S-VIDEO VIDEO
MOUNT
IN OUT
HD - SDI IN OUT HD - SDI
12V DC
Examples: Input
source video from camera
or deck. Output to deck or
link to additional HD SDI
device Inputs or additional
HD SDI monitors
Power Source
110V/220V AC > 12VDC
Wall adapter or 12V DC Battery
Examples: AV Input
from computer or camera via
HDMI to DVI adpater cable or
comparable adapter/cable
combinations.
Examples: Standard Definition
Video sources such as VCR/
VTR or SD Camera.
Examples: Input
HD Component source video
from camera or deck

Section:Warranty Statement
12) © 2009 Imägo Metrics LLC for Manhattan LCD Inc. - All Rights Reserved
MANHATTAN LCD
HD8400
Quick Guide
Warranty:
Manhattan LCD monitors are warrantied to be free from manufacturing defects for a period
of 12 Months from the date of purchase to theoriginal owner.
Disclaimers:
Manhattan LCD. Shall be indemnified and held harmless for any and all injury or death
resulting from the improper use of thier products.
Warranty is null and void if there is any evidence of tampering, or if the case has been
opened.
Claims:
Claims for damages must be preceded by a Return Merchandise Authorization (RMA) .
RMA’s may be requested directly from the manufacturer or authorized distributors.
Manhattan LCD reserves the right to refuse to repair or replace any monitor that it deems
is in need of repair due to customer negligence or damage was caused by use other than
the normal intended purpose of the product.
Contact:
Manhattan LCD
Quality AV Products
Contact Info
John Reed - Sales / Engineering , [email protected]
Tel: [phone]
Vincent Falcone - Tech Support / Shipping , [email protected]
Tel: [phone]
Sales [email protected]
Support [email protected]
Address:
Manhattan LCD
3328 Spotted Fawn Dr
Orlando FL 32817
USA
