ManoMano 01SHPR0806RS-V1 User manual

For Assistance Please
Contact Customer Care on
01636 880514
2mm Drill bit
x2
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
This building should be erected by
two adults
For ease of assembly, you must pilot
drill all screw holes and ensure all
screw heads are countersunk.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
ESSENTIAL that you treat the garden building with a wood preserver within 3
months of assembly. This will need to be re-applied annually to ensure longevity
of your building. Care must be taken when constructing the garden building
that it is not touching the ground and is on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be
slightly smaller than the external measurement of the building, i.e. The cladding should overlap the base, creating a run o for water. It is also
recommended that the oor be at least 25mm above the surrounding ground level to avoid ooding.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products independently tested to EN71
level,we cannot accept responsibility for your safety whilst erecting or using this product.
Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces
of the timber. You are strongly advised
to wear gloves when working with or
handling rough sawn timer.
12
3
6
45
7
8
9
10
11
13 14
15
17
L brace Qty 2
16 Padbolt Block
120mm
Qty 1
01SHPR0806RS-V1 01OVLR0806RS-V1
01636880514
Dimensions
Length = 1779mm
Width = 2357mm
Height = 2231mm
Before
assembly make sure
you have a suitable
base ready to erect
your building
Please retain product label and instructions for future reference

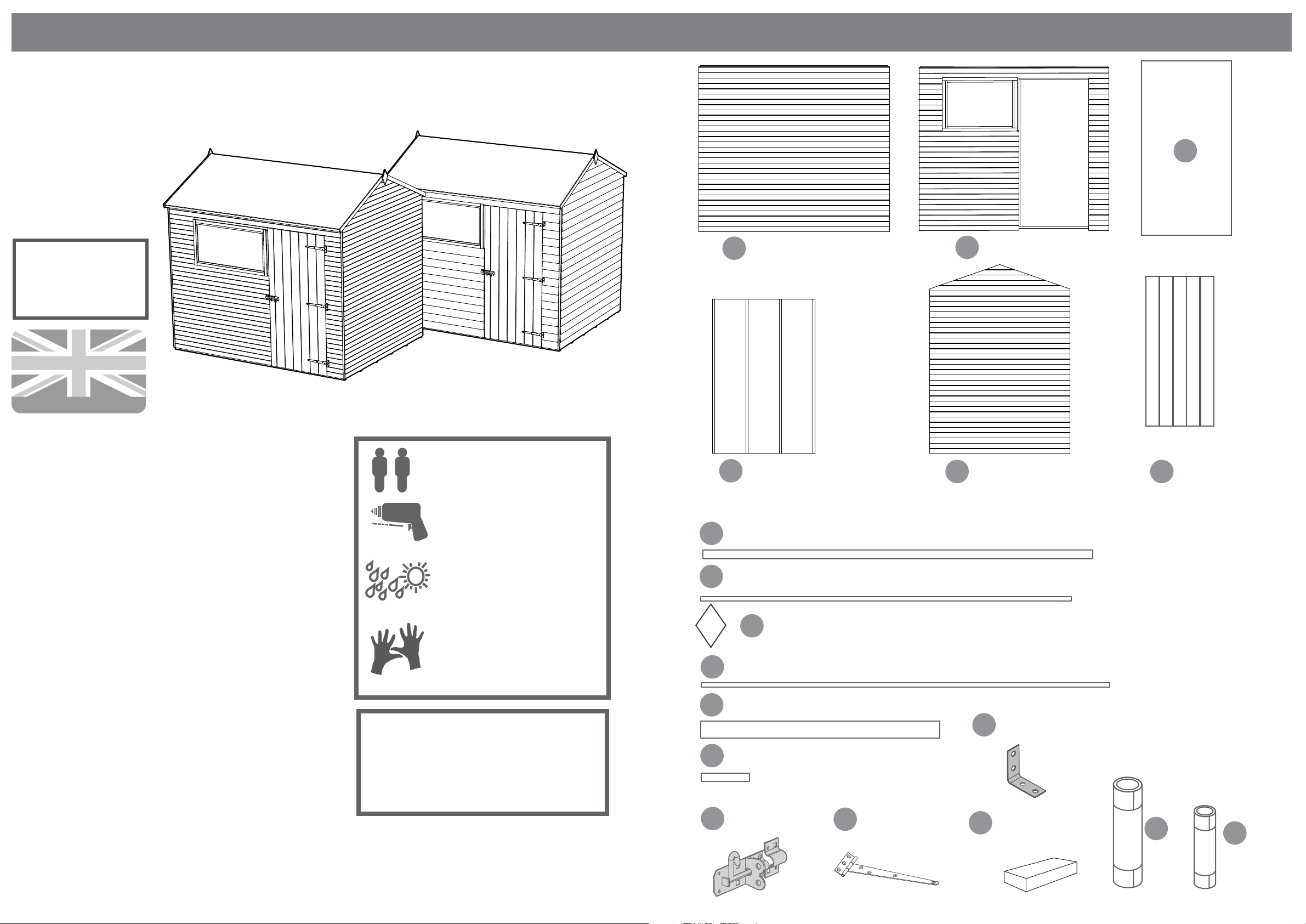

Fixing Kit
Plain Side x1 Door panel x1
Floor x2
Roof Sheet x2
Gables x2
T-hinge Qty 3
Corner trims 1740mm Qty 4
Diamond Finial Qty 2
Fascias 1027mm Qty 4
Pad bolt Qty
1
Roof eave 1185mm Qty 4
12 Floor Joining blocks 400mm Qty 5
Ridge bar 2285mm Qty 1
Door x1
Felt
MADE IN GREAT BRITAIN
18/10/2011
18
Capping
Felt

Nail Bag
50mm Screw x35
40mm Screw x40
Felt Tacks x 100
30mm Screw x90
Remove transportation blocks
from the bottom of each panel
before beginning assembly.
Each Panel should have two
blocks.
Please note that for instruction
purposes the 8x6 eco has been
used.
Step 1
5
Step 2
Ensure oors are ush to each other and
using the oor joining blocks x them
together with 2x30mm screws per
block. 4
10x 30mm Screws
30mm
screw
12
Step 3
4x 50mm screws
Secure the plain gable to the
plain panel with screws as
shown in the diagram. Making
sure to NOT SCREW the
panels to the floor
until the roof is on the
building.
Step 4
18 x 30mm screws
6
1
5
13
16
14
Using 6x 40mm screws secure
the padbolt into the padbolt
block behind the door.
Then using 4x40mm screws
per hinge secure the hinges to
the door making sure to screw
into the door framing.

13x 40mm screws
Step 5
Using 3x40mm screws per
hinge fix the door to the door
panel making sure to screw
into the framing and allow
gaps for the door to open and
close.
Using 4x40mm screws secure
the padbolt retainer giving
clearance for the door and
padbolt.
2
12 x 50mm screws
Step 6
Repeat the process
shown previously in step 3
to secure all 4 panel
Together. 2
5
8 x 30mm screws
Step 7
Secure the ridge bar
using 2x L brackets
as shown in the
diagram, using
4x30mm screws per
end.
7
15
Step 8
32 x 30mm screws
Firstly secure the roof eave’s to
each roof sheet as shown using
3x30mm screws per eave.
Secure the roof as
Shown using 12x40mm
screws per panel.
3
88

Step 9
secure the floor to the base
using 4x40mm screws per
panel, securing all 4 panels
16x50mm screws
Step 10
Cut the felt into 2 sheets
and apply to the roof along
the outside edges, as
shown, tacking the felt at
100mm Intervals.
Add the capping felt along
the centre of the roof and
tac in the same way.
17
100x Felt tacks
18
17 17
18

Step 11
12 x 40mm screws
Secure the corner trims as
shown in the diagram on the
front and back using
3x40mm screws per strip.
10
Step 12
12 x 40mm screws
Secure the facias using
3x40mm screws per
facia ensuring that the
edges butt up in the
middle.
11
11 9
9
I
t
i
s
E
S
S
E
N
T
I
A
L
t
h
a
t
y
o
u
a
p
p
l
y
w
o
o
d
t
r
e
a
t
m
e
n
t
i
m
m
e
d
i
a
t
e
l
y
a
f
t
e
r
t
h
e
b
u
i
l
d
i
n
g
h
a
s
b
e
e
n
a
s
s
e
m
b
l
e
d
.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
