Introduction / Overview
he 24-RM1 offers dual power relays capable of mains power switching. hese relays can be configured as
high, low or window alarms and can be associated with a group of up to 8 24 acquisition modules per relay.
Relays can operate when the sum of the assigned acquisition modules reach a setpoint or when any of the
modules reach the setpoint. here is also a mode where the difference between the lowest and highest value is
compared to the setpoint. his is ideal for applications where you are looking for a group of weights to be
within a certain band. i.e. balancing four corners of a weigh scale or a hanging truss.
Relays can be latched and a digital input or external command can be used to reset them.
An alarm/error signal relay is operated if communication is lost or other selectable errors occur and this alarm
resets once the source of the alarm or error is removed.
his module is supplied in an IP65 sealed ABS case but a DIN rail option is available.
he state of the power relays during an error can be selected.
Communications Overview
he 24 range of telemetry devices each have a factory set unique ID.
Data is shared between devices using Data Provider messages. A device generates these messages which can
then be used by many other devices simultaneously.
hese messages ( or packets ) of information contain a single value of data and each is identified by a Data
Tag.
he Data Tag should be unique for each message.
ID
Identi ies each device
Each device has a unique ID that is factory set. his is represented as a 6 character hexadecimal
number consisting of the digits 0 to 9 and the letters A to F.
I.e. FFD3BE
Data Tag
Id
enti ies each Data Provider message
A Data Tag consists of a 4 character hexadecimal number consisting of the digits 0 to 9 and the
letters A to F. he Data Tag can be changed by the user but the factory default is to match the
last 4 characters of the device ID.
I.e. An acquisition device of ID FFC12B would have a default Data Tag of C12B .
When a device consumes data (i.e. a handheld displaying data from an acquisition device) all it is doing is
listening to all of the Data Provider messages and selecting the one it wants to use. It then extracts the data
and displays it.
Some devices that use Data Provider messages also need to know the ID of the device providing the data. his
is necessary if that device needs to specifically wake the data providing device as opposed to using a broadcast
wake that will wake all devices on the same channel and using the same encryption key.
Pairing offers an automated method of hooking a provider and consumer of data together. However, some
devices may require you to manually enter Data Tag and ID information so it would be beneficial to the user to
understand the above mechanism.
Configuration Overview
You need to determine the Data ags of all acquisition modules that are to contribute data to this relay
module.

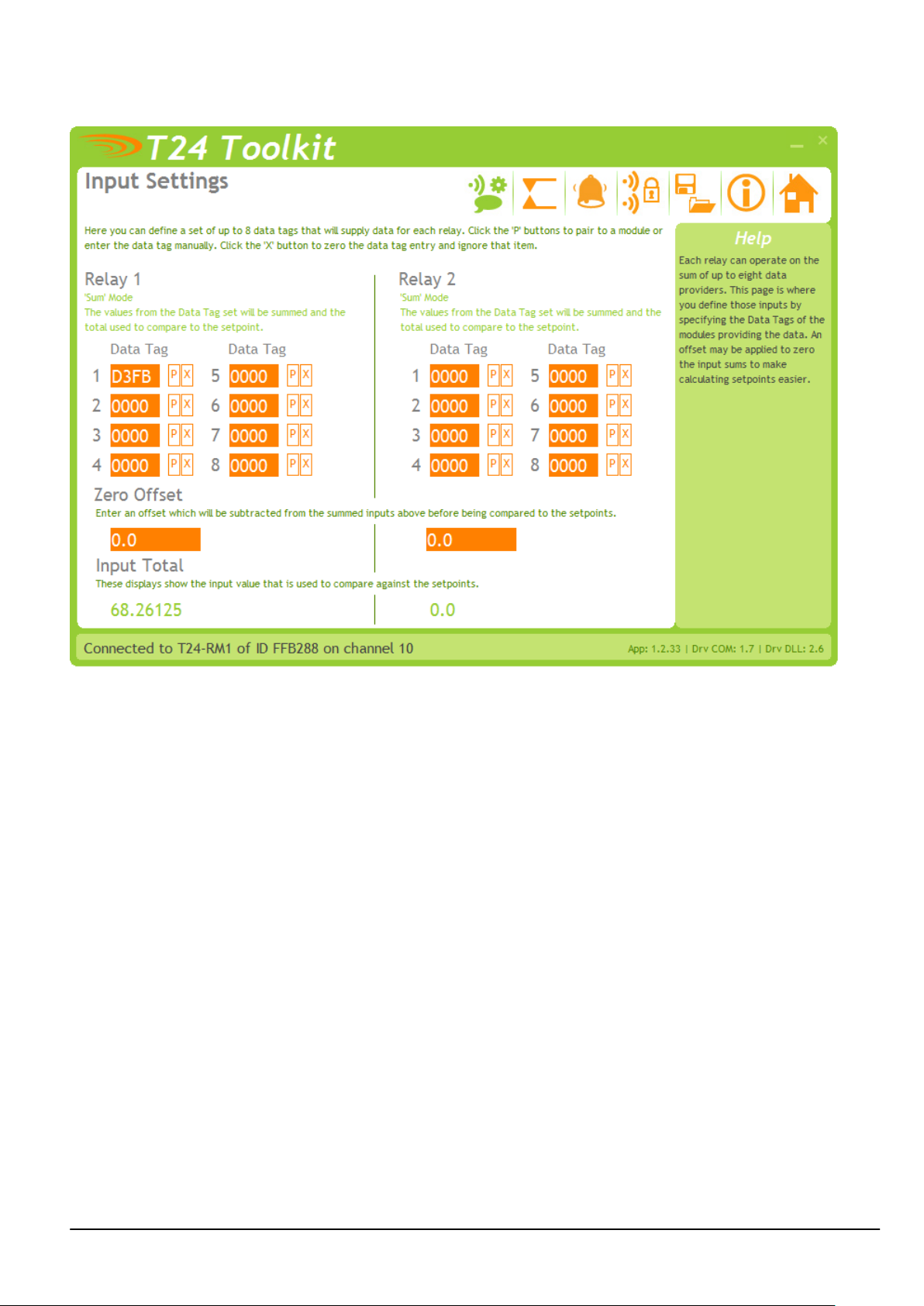

Each relay can use the value of up to 8 inputs which are, depending on the mode selected, used to generate a
value that is checked against your setpoint.
he toolkit allows you to see the calculated value of the selected set of Data ags. In the case of ‘sum’ mode
this will help in determining whether you want to apply an offset. his may be useful to effectively ‘zero’ the
input total to make calculating the setpoints easier.

Mantracourt Electronics Limited T24-RM1 User Manual
3
Getting Started
o be able to see the totals from acquisition devices supplying data to the 24-RM1 and to avoid entering error
mode due to timeouts, we must first ensure that the appropriate modules are transmitting their values at a
suitable rate such as the default of 3 per second. hen we can configure the 24-RM1 to use the data from
these devices.
Configuration must be done with the 24 oolkit software and a base station.
Connections & Indicators
You will need to connect power to the 24-RM1 for it to operate. Only power is required to enable
configuration using a base station and the appropriate toolkit software.
LEDs
Mode Flashes 2 x per second when operational
Activity Flashes when 24 data packets are received
ime Out No 24 data present for longer than user defined period
Error Remote 24 error from any defined 24 input device
Relay 1 Relay 1 Energised (Connection between COM and NO)
Relay 2 Relay 2 Energised (Connection between COM and NO)
Inputs
Digital Input 1 Can either reset a latched relay 1 or transmit a Data Provider Packet of a specified Data ag
Digital Input 2 Can either reset a latched relay 2 or transmit a Data Provider Packet of a specified Data ag
Digital Input 3 Resets both latched relays
RELAY 2
COM
NO NC
GND
Input 1 GND Input 2
NC 1
COM 1 NO 1 NC 2 COM 2 NO 2
+v
0V
RELAY 1
9
–
32 V Supply
ALARM RELAY
DIGI AL INPU S
Input 3
GND
DIGI AL INPU
Mode
Activity
ime Out
Error
Relay 1
Relay 2
Pair

Mantracourt Electronics Limited T24-RM1 User Manual
4
T 4-RM1 Operation
he 24 RM1 can accept 8 24 data inputs for each of the two relays, the total of the inputs compared to the
set point and mode of the relay channel affects whether the relay is energised or not. In addition when
considering the use relays attention should be paid as to what state the system will be in when the power is

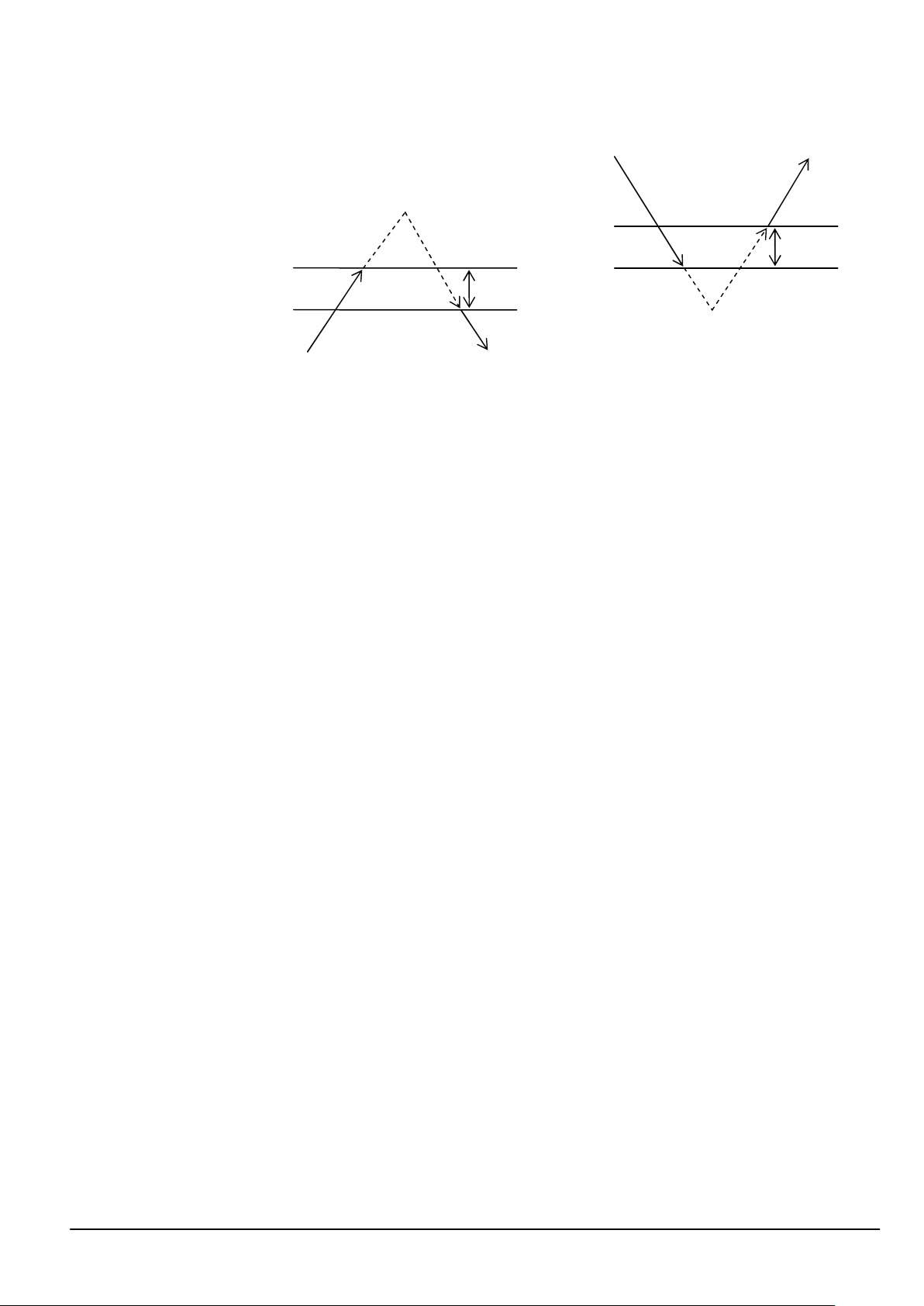

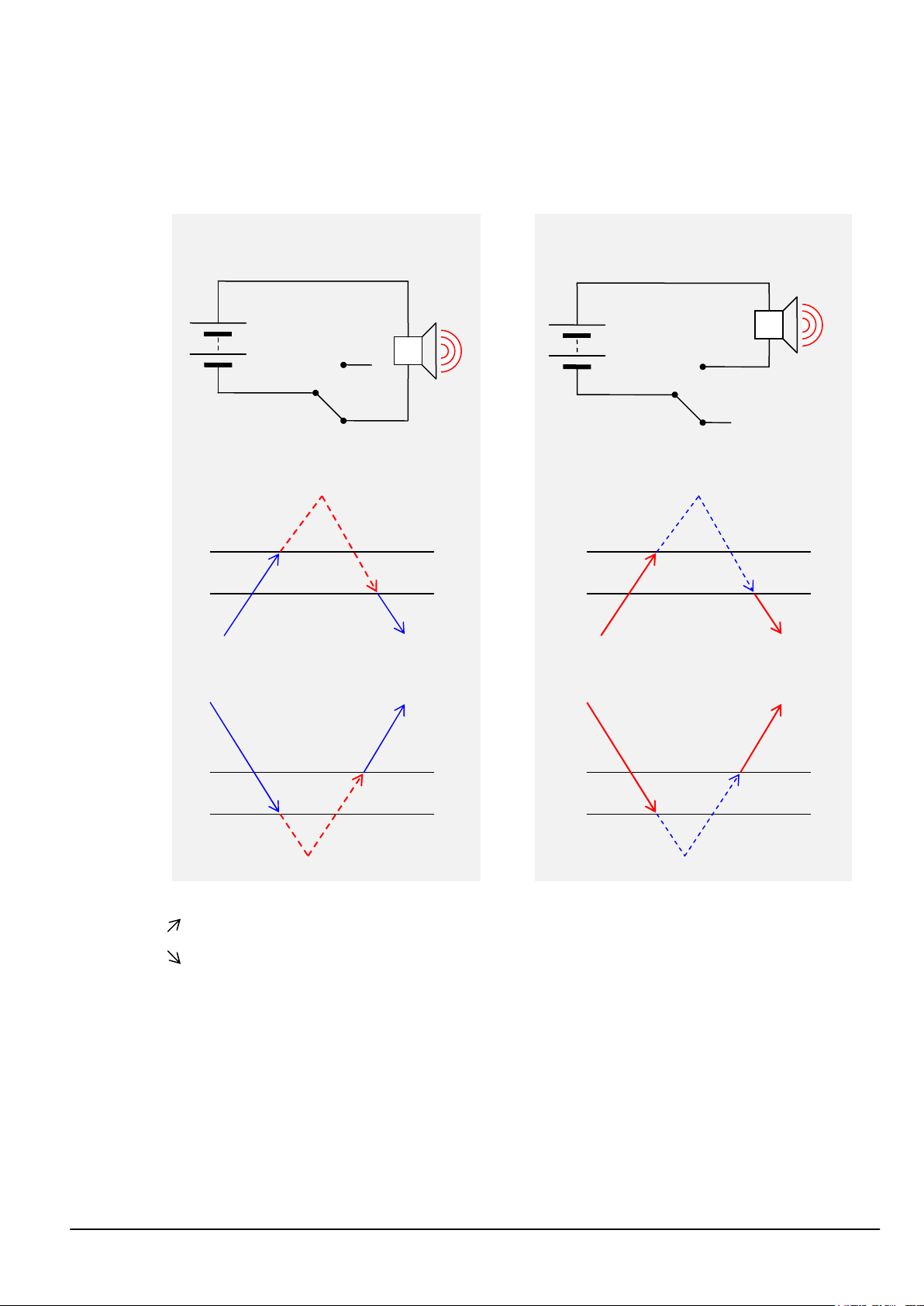

off. he diagram below outlines how wiring and normal and inverse modes influence the state of relays.
(COM = Common, NO = Normally Open, NC = Normally Closed)
KEY:
Increasing Value _____ Relay Energised _____ Alarm Activated
Decreasing Value --------- Relay Unenergised ______ Alarm Deactivated
Relays can change state due to the following events:
 Arrival of 24 data from user defined 24 device that causes the relay output to trigger.
 riggering of digital input 1 or 2 (switch input) which if configured reset latched relays
 Arrival of data from a specified data tag can reset latched relays.
 A change in error state of a module specified in a relays list of inputs
he 24-RM1 also features a third Alarm relay. he Alarm relay is energised from start up, (connection made
between COM and NO). he relay de-energises if an error is detected, an error is classed as a timeout and
optionally can include Integrity error or low Battery. he Alarm Relay will return to normal once the source of
the error is removed.
NC
NO
COM
NC
NO
COM
Set Point
S
et Point
-
Hysteresis
Set Point
Set Point+Hysteresis
Inverted
Operation
OP IONAL LA CH
OP IONAL LA CH OP IONAL LA CH
OP IONAL LA CH
Wired in this con iguration the alarm
would sound when the power is o
Wired in this con iguration the alarm
would not sound when the power is o
Normal
Operation

Mantracourt Electronics Limited T24-RM1 User Manual
5
Configuration
his section explains how to install software and connect the required devices together. Please note that you
will need the 24 oolkit software and a 24-BS base station to allow your computer to communicate with 24
telemetry devices.
Installation
T 4 Toolkit
o configure the devices we must use the T24 Toolkit software application. his can be downloaded from our
web site or may be shipped with your products.
Install this on a PC or laptop.
Run setup.exe and follow the prompts to install the software.
T 4-BSu Base Station
If you have a USB version of the base station ( 24-BSu) then you just need to plug this into a USB socket on your
PC. If you are using an alternative base station then please refer to the appropriate manual.

Mantracourt Electronics Limited T24-RM1 User Manual
6
T 4 Toolkit
he 24 oolkit provides a means of simple configuration of the 24-RM1 and associated acquisition module
along with useful tools to aid integration. Calibration of the acquisition modules is also provided.
Run the 24 oolkit software application.
General Pages
Setup Base Station Communications

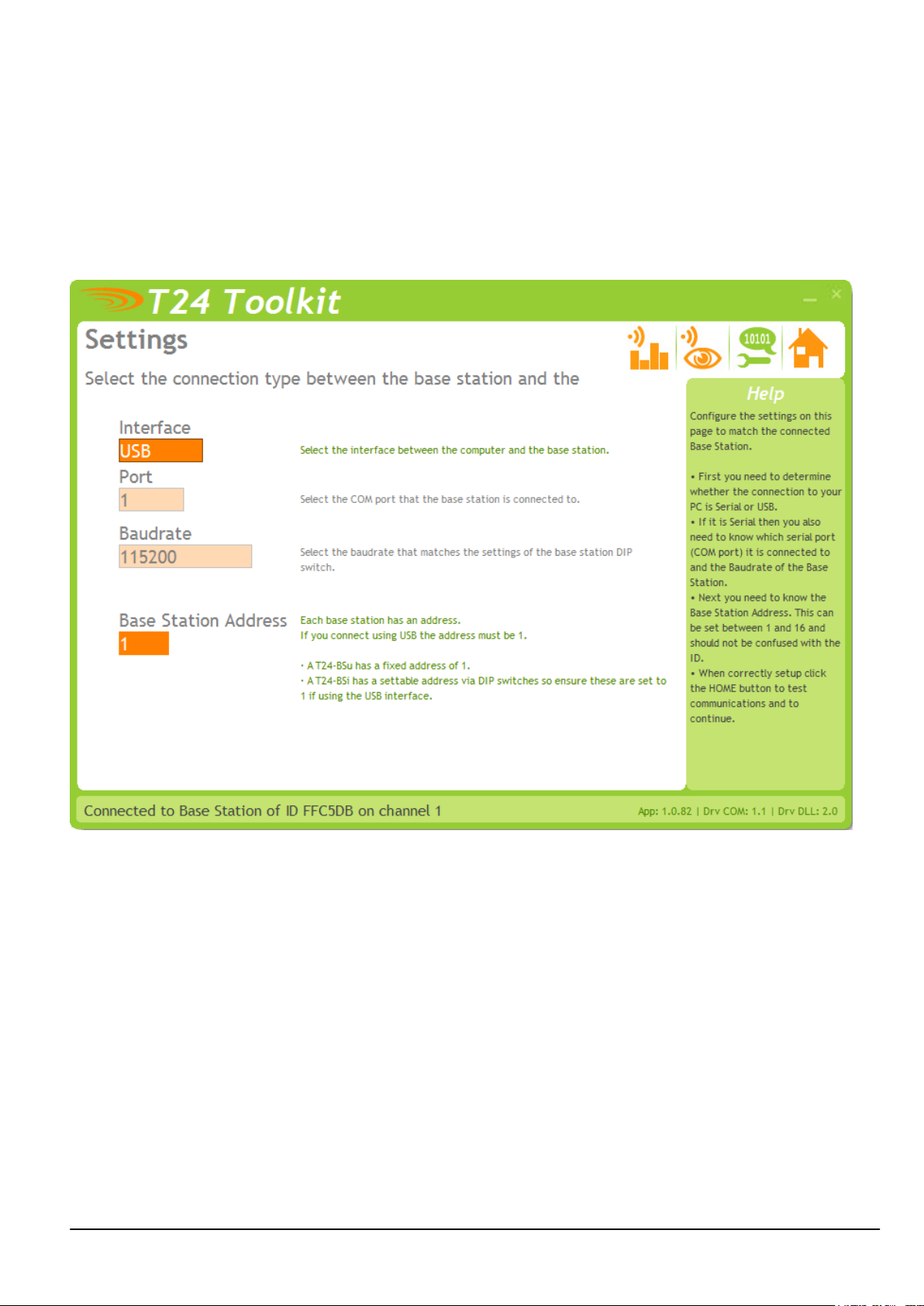

Select USB as the interface and select 1 as the Base Station Address.
In the toolkit all items that can be changed by the user are coloured orange.
o change a value just click on the relevant orange item. You will then be presented with a new dialog window
allowing you to change the value.
his may use a slider, text box or list to allow your new value to be entered.
Click the Home button to attempt communications with the base station.
If no communications can be established the toolkit will remain on this page. You will need to check that the
base station is powered and that it is connected to the converter correctly.

Mantracourt Electronics Limited T24-RM1 User Manual
7
Home
We now have successful communications with the base station so we can now pair with our device or we can
select the Spectrum Analyser mode or Data Provider Monitor mode.

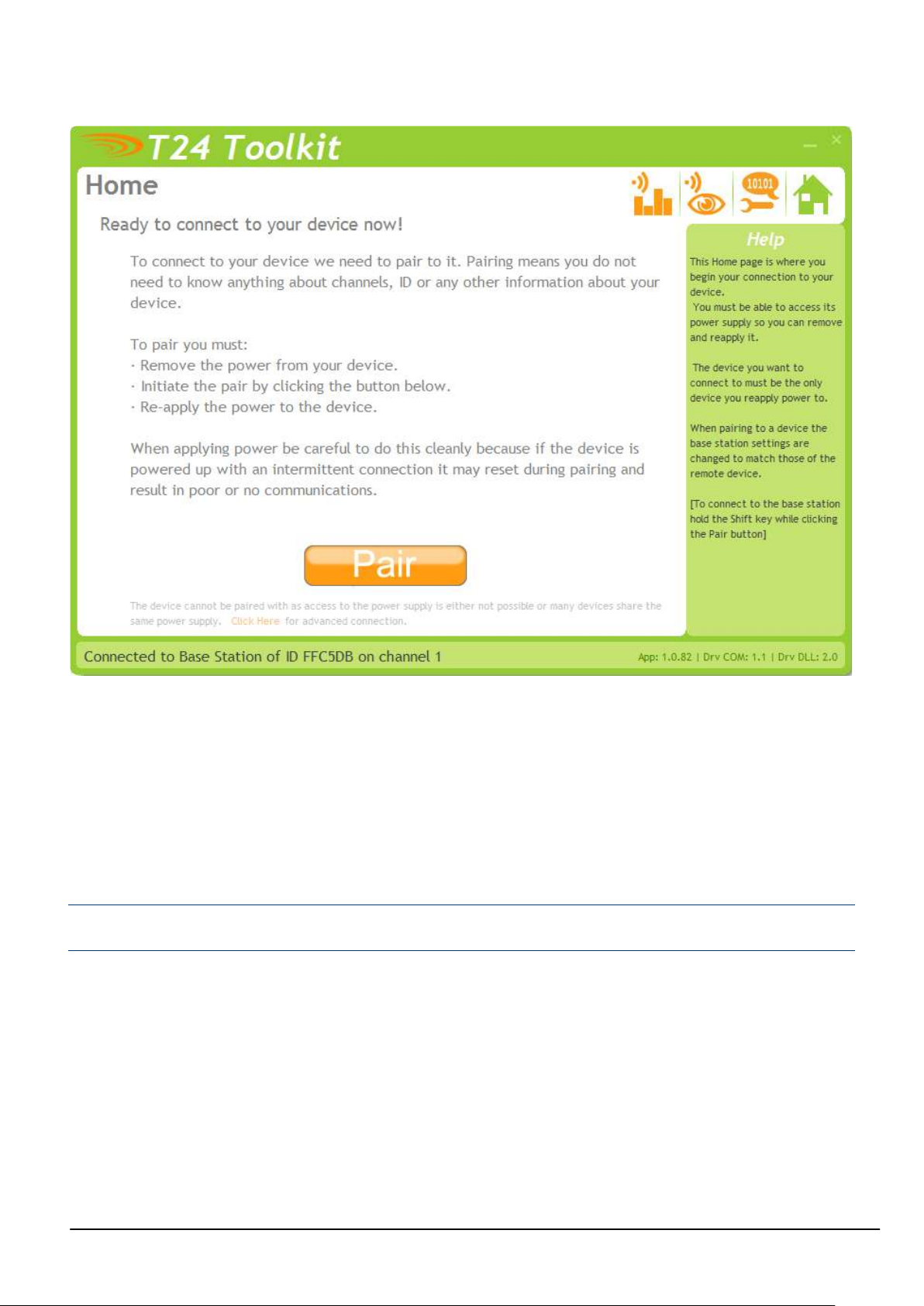

Pairing Procedure
• Remove power from the 24-RM1 module.
• Click the Pair button on the toolkit.
• You now have 10 seconds to re-apply power to the 24-RM1 module.
If you connect successfully the toolkit will change to the Information page.
If the pairing fails try again.
NOTE: he act of Pairing with the toolkit will not change the radio configuration settings of the connected
device. he settings will only change if you change them yourself within the toolkit.

Mantracourt Electronics Limited T24-RM1 User Manual
8
Analyser
he analyser page is provided as a tool and will not normally be needed unless you plan to change channels and
want to find the best channel to select, or to diagnose poor communications issues.
his page shows the radio signal levels detected across all the channels available to the 24 series of devices.
Using this tool may help in detecting noisy areas and allow you to decide on which channels you may want to
use.
he above charts show the traffic from a Wi-Fi network and it can be seen to be operating over channels 6 to 9
and it would be best (though not essential) to avoid using these channels.

Mantracourt Electronics Limited T24-RM1 User Manual
9
Information

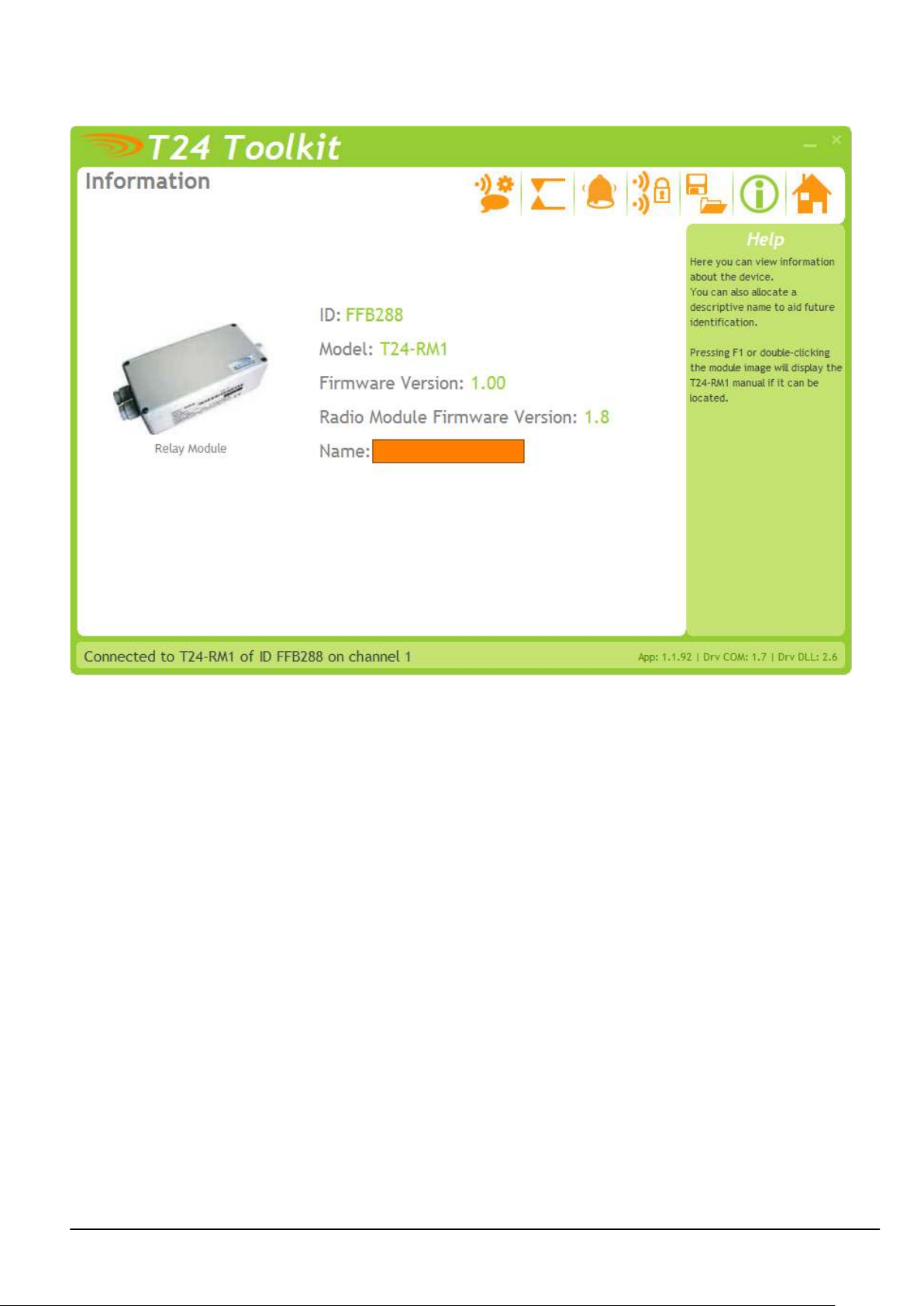

his page shows you information about the connected device.
Items you can change:
Name
You can enter a short descriptive name (11 characters) which may help you recognise this
device in the future.

Mantracourt Electronics Limited T24-RM1 User Manual
10
Channel and Encryption
Here you can change the channel and encryption key for the module.
NO E: Early acquisition module do not yet utilise the encryption keys so these should be left at all zeros.
Items you can change:
Channel
Select a channel between
1 and 16. he default is channel 1. You can use the
Spectrum Analyser mode to determine a good clean channel to use.
NO E: Channel 16 is used to negotiate pairing so avoid this channel if possible.
Encryption Key
Only devices with identical encryption ke
ys can communicate. You can isolate
groups of devices on the same channel or just use the key to ensure the data
cannot be read by somebody else.

Mantracourt Electronics Limited T24-RM1 User Manual
11
Save and Restore
Here you can save the device settings to a file on your PC so that they can be later loaded back into the same
or different device.
Items you can change:
Save
Click this button to open a file dialog window to allow you to select a filename
and location to save the configuration file to.
All configuration information including calibration data will be saved to the
file.
he file extension is tcf.
Restore
Click this button to open a file dialog window to allow you to select a filename
and location of a previously saved file to load into the connected device.
All configuration information including calibration data will be overwritten.
he file extension is tcf.
Advanced Settings
Click this button to enter the Advanced Settings Page.
Here are settings which do not normally require changing.

Mantracourt Electronics Limited T24-RM1 User Manual
12
Input Settings
Here you can set the Data ags of the data used as the inputs.
he description in green below the ‘Relay1’ and ‘Relay2’ captions indicate the way in which the values from
the Data ags will be used to compare against the setpoint to determine whether the relay will activate.
See the Relay Operation Settings section for details.
Items you can change:
Relay
1Data ag[1
-
8]
E
nter up to eight Data ags the data from which will be
used to determine the
value compared to the set point to control relay 1.
Relay2
Data ag[1
-
8]
E
nt
er up to eight Data ags the data from which will be used to determine the
value compared to the set point to control relay 2.
Zero Offset
[
1
-
2]
his value will be subtracted from the total of the summed data from the data
tags for Relay 1.

Mantracourt Electronics Limited T24-RM1 User Manual
13
Relay Operation Settings
Here you can change various settings that influence the operation of the individual relays.
Items you can change:
Mode [1
-
2]
his setting determines how the Data ag values are used to compare against
the setpoint. his is only available in firmware versions 2.0 and above.
Previous versions will operate only in ‘Sum’ mode.
• Sum – he values of the defined Data ags are summed and this
summed total is compared to the setpoint.
• Any – he Data ags with the highest value is compared to the
setpoint. i.e. If any of the individual acquisition modules exceed the
setpoint.
• Di erence - he difference between the lowest and highest values of
all the Data ags is calculated and this difference (Which is absolute
i.e. always positive) compared to the setpoint.
•
Operation [1
-
2]
Whether set to normal or inverse decides how the relay state corresponds to
the set point and hysteresis. (See diagram on next page)
Set
p
oint
[1
-
2]
he Set Point is the level at which the relay state
will change, see below
.
Hysteresis [1
-
2]
his value set on offset between when the relay is engergised and de
-
energised creating a de-bounce for the relay. (See diagram on next page)
Latch
ing
[1
-
2]
Latching locks the state of the relay when it passes the set point.

Mantracourt Electronics Limited T24-RM1 User Manual
14
Operation
and Hysteresis
Settings
Normal Operation
Inverted Operation
_________ RELAY ENERGISED
------------- RELAY DE-ENERGISED
Set Point
Hysteresis
OP IONAL LA CH
OP IONAL LA CH
Hysteresis

Mantracourt Electronics Limited T24-RM1 User Manual
15
Relay Settings Advanced
Here you can change various settings that influence the operation of the individual relays.
Items you can change:
Relay Reset Data ag [1
-
2]
Enter a Data ag that on receipt will reset the latched relay. Enter
zero to
disable this feature.
Waker Duration
Enter a time in milliseconds for this module to attempt to wake acquisition
modules when first powered up. he default is 12000 milliseconds (12
seconds).
When this is non zero the acquisition modules will be kept awake while this
module has power applied. he acquisition modules should have a Sleep Delay
set so that after the relay module has been powered down the acquisition
modules then return to sleep.
Enter zero to disable this feature.

Mantracourt Electronics Limited T24-RM1 User Manual
16

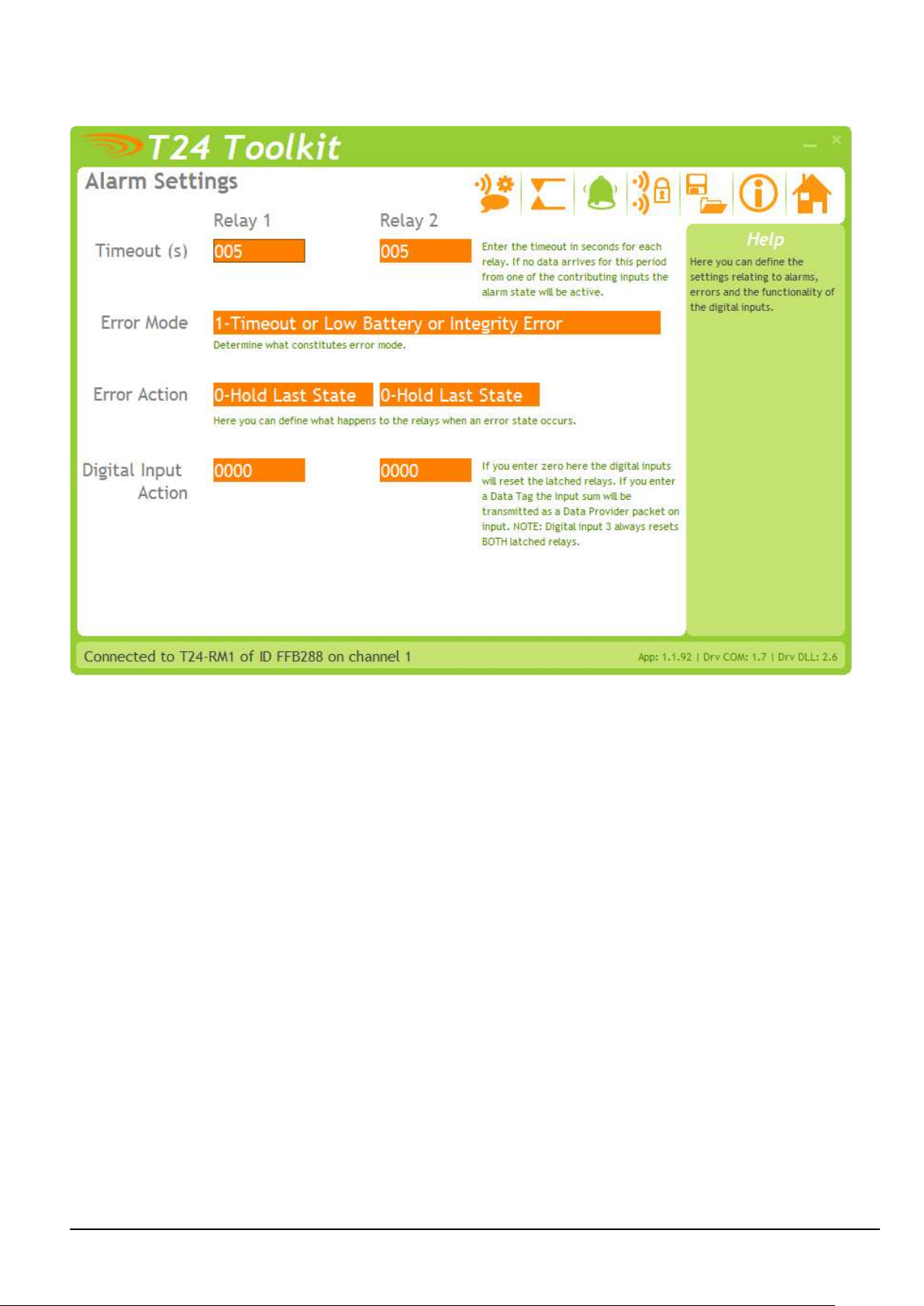

Errors & Input Settings
his page defines how the individual relays will react to time outs and errors present from any defined 24
device, as well as how Digital inputs 1 and 2 are used.
Items you can change:
imeout
Enter a time in seconds that if
exceeded the 24
-
RM1 will affect the relay state
according to the error action, as well as set the alarm relay and light the time
out LED
Error Action
For each relay t
he action upon error detection can be defined as ;
• Hold Last State
• De-Energise Relay
• Energise Relay
Error Mode
he error mode defines what is causes the alarm relay and individual error
action to be triggered. Errors can be defined as
• ime out
• ime out or Low Battery
• ime out or Low Battery or Integrity Error
Digital Input 1
Digital i
nput 1 can be used to either
• Reset Relay 1 from its latched state
• ransmit a data provider with user defined data tag containing the total
of the inputs of Relay 1
Digital Input 2
Digital input 2 can be used to either
• Reset Relay 2 from its latched state
• ransmit a data provider with user defined data tag containing the total
of the inputs of Relay 2

Mantracourt Electronics Limited T24-RM1 User Manual
17
Installation
Overview
Radio performance at microwave wavelengths is very dependent upon the operating environment; any
structure within the operating region of the radios will give rise to three effects:
Obscuration. Obscuration will result in reduced range and occurs when an obstruction masks the line-of-sight
between radios.
Aberrations to the horizontal and vertical space patterns. Distortion of these patterns may occur if
structures or objects are placed in the near or intermediate field of the antenna. he effect will be to distort
the coverage patterns, adversely affecting range and link quality.
Re lection. Any object placed in line-of-sight of the transmit antenna will result in signals arriving at the
receiver by an indirect path. Degradation of performance due to reflection (multipath effects) appears as
reduced range or poor link quality.
Any of the above will cause poor RSSI figures, an increase in the packet loss rate and in extreme cases
complete loss of signal. Fortunately, if consideration is given to these effects at the integration stage then a
good quality link will be obtained.
Guidelines or product design:
When selecting materials for product enclosures, preference should be given to fibreglass, light coloured ABS or
Polypropylene; at the wavelength of 2.4GHz radio other materials will adversely affect the signal by
attenuation, refraction or change in polarisation.
If the application demands that the radio is fitted inside a metal enclosure then ensure that the specified
clearances are maintained around the antenna and design in a fibreglass RF window at least as large as the
clearance dimensions but ideally as large as possible.
RAD24i radios fitted inside a product should be oriented so that the chip antenna will be vertical when the
product is in its normal operating position.
Guidelines or installation:
When planning installations ensure that line-of –sight between nodes is maintained and that objects or
structures are kept at least one metre away from antennae wherever possible.
o avoid poor link quality between a RAD24i radio and a handheld device ensure that the RAD24i is mounted so
that the chip antenna is vertical. Improvement may also be obtained by altering the height above ground of the
RAD24i; a small increase or reduction in antenna elevation will often improve reception.
Range underwater is only a decimetre or so depending on packet rate. Best performance underwater is
obtained by using low packet rates and immersing water-proofed antennae rather than water-tight enclosures
containing the antennae.

Mantracourt Electronics Limited T24-RM1 User Manual
18
Specifications
General Radio
Min
Typical
Max
Units
License
License Exempt
Modulation method
MS (
QPSK)
Radio type
ransceiver (2 way)
Data rate
250
K bits/sec
Radio Frequency
2.4000
2.4835
GHz
Power
1
mw
Range
200 (650)
Metres (feet)
*
Channels (DSSS)
16
* Maximum range achieved in open field site at a height of 3 metres above ground.
T 4-RM1
Min
Typical
Max
Units
PSU
9
-
32
V DC
Operational Current All Relays Active
155*
*
mA
Operational emperature Range
-
10
60
Deg C
Storage emperature Range
-
4
0
70
Deg C
Power Relays
240V 5A
Alarm Relay
1A 24V DC
120
V AC
** At 12 Volt nominal Supply

Mantracourt Electronics Limited T24-RM1 User Manual
19
Approvals
CE
Complies with EMC directive. 2004/108/EC
The Radio Equipment and Telecommunications Terminal Equipment R&TTE) Directive,
1999/5/EC,
European Community, Switzerland, Norway, Iceland, and Liechtenstein
English:
his equipment is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Deutsch:
Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprecheneden
Vorgaben der Richtlinie 1999/5/EU.
Dansk:
Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i
Directiv 1999/5/EF.
Español:
Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directive
1999/5/EC.
Français:
Cet appareil est conforme aux exigencies essentialles et aux autres dispositions pertinantes de la
Directive 1999/5/EC.
Íslenska:
Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar 1999/5/ESB.
Italiano:
Questo apparato
é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva
1999/5/EC.
Nederlands:
Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijn
1999/5/EC.
Norsk:
Dette utstyret er i samsvar med de gru
nnleggende krav og andre relevante bestemmelser i EU
-
directiv 1999/5/EC.
Português:
Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva 1999/5/EC.
Suomalainen:
ämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimu
kset ja on siinä asetettujen muidenkin
ehtojen mukainen.
Svenska:
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta
bestämmelser i Direktiv 1999/5/EC.
his equipment is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
FCC
Family: RAD24
Models: i and e for internal and external antenna variants. For antenna T24-ANTA and T24-ANTB
FCC ID:VHARAD24
This device complies with Part 15c of the FCC Rules. Operation is subject to the following two conditions: 1) this
device may not cause harmful interference, and 2) this device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: If the device is changed or modified without permission from Mantracourt Electronics Ltd, the user
may void his or her authority to operate the equipment.
