Marani MDA-KDM Series User manual

www.marani-proaudio.com
E-mail: [e-mail]
High performance digital power amplifier
MDA - KDM series
Box Contents:
AMP*1 warranty card*1 Network cable*1 Power Cord*1
Output connection: Use the SpeakON plug to connect. A/C is the
combined output, for example, interface A +1/-1 is the A output
channel, and interface 2/-2 is the B output channel.
Device Connect：
Panels：
Input connections: Analog signal, Dante （Optional）, AES
digital signal. (The input signal line should have an
independent shielding layer to maintain a distance of 50CM or
more from other interference sources)
①②
③④ ⑤
⑥
⑦⑧ ⑨
⑩
Note:
① 4.3 inch capacitive touch screen, which can quickly manage input source switching, channel link, network settings, local
information, etc.
② Multi-function button, press or rotate, you can confirm or modify the selected parameters.
③USB interface, use Type-B2.0 cable to connect the power amplifier. (Note: The following systems in WIN7 require manual
installation of drivers. Address: www.marani-proaudio.com)
④ Analog signal input interface. Before connecting to the signal, please ensure that the amplifier is in a mute or minimum volume
state. (Factory default analog input)
⑤ Digital signal input interface. You need to select a digital signal input source in the software.
⑥ TCP/IP network interface, supporting STATIC and DHCP modes, capable of remote control of devices, firmware upgrades, and
more.
⑦Dante network audio interface, support daisy chain connection. https://my.audinate.com/support/downloads/download-latest-dante-
software
⑧⑨A/B/C/D output interface, A/C port is a combined output. +1/-1 is the A/C output channel and +2/-2 is the B/D output channel.
⑩⑪Power input interface and power switch, connected using PowerCON plug, connected to 90-240V 50/60Hz AC power.
⑪

www.marani-proaudio.com
E-mail: [e-mail]

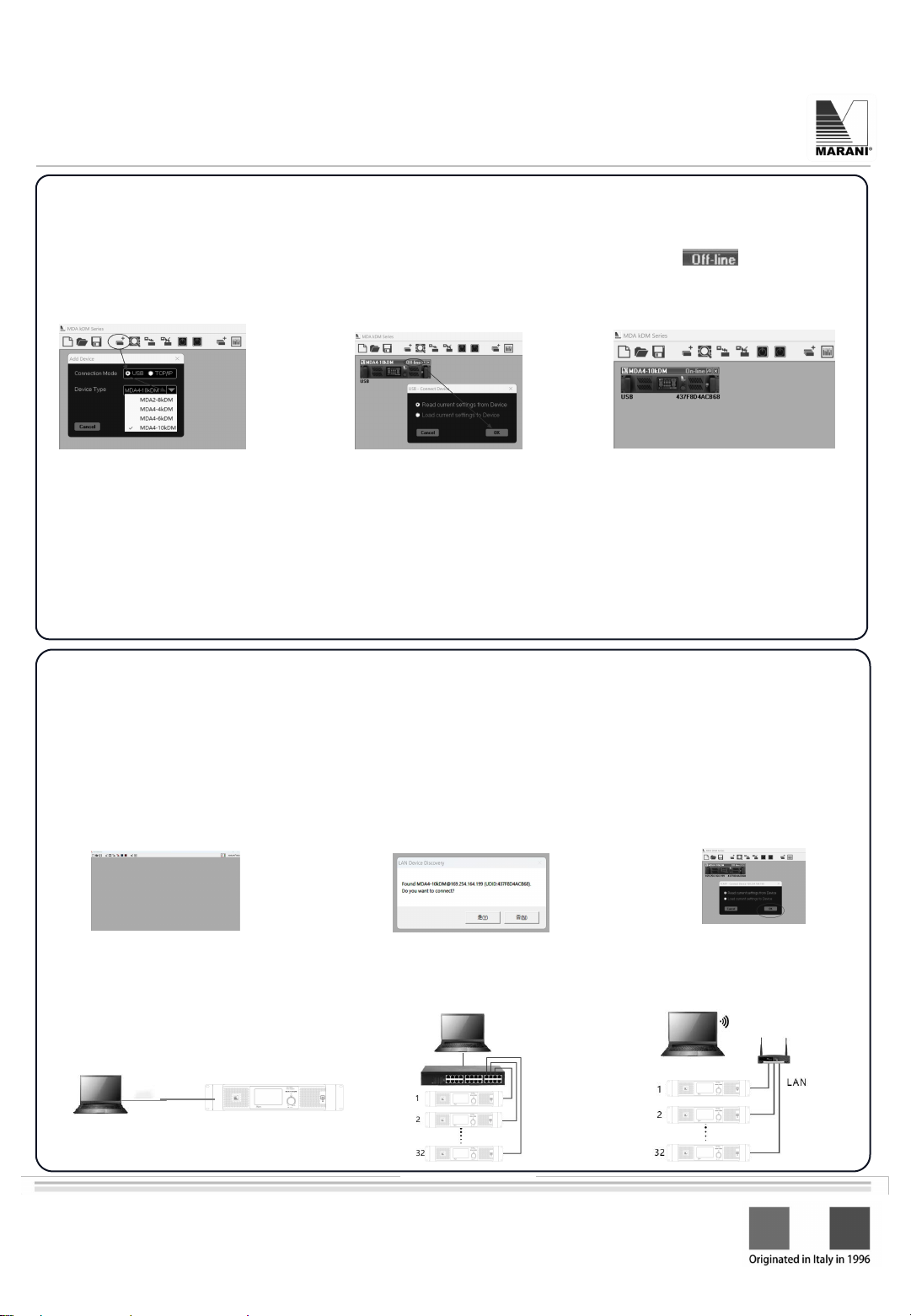

Connected operation：
The MDA-KDM series has two connection methods: USB or TCP/IP, and it is recommended to use TCP/IP network connection.
ØUSB connection, simply use a Type-B2.0 cable to connect to the power amplifier and open a computer with installed software.
Add the corresponding model of power amplifier in the software and select USB connection. Click to connect the
device.
Add Device Connected Device Successfully connected
Common issues with USB connection：
Click 'OK' and the device prompts' Device not found 'because the software did not recognize a device that can be connected on the
COM port.
Solution: Open the computer device manager to check whether the port and driver are normal. When the COM port is greater than
12, manually change it to the free COM port within 12. If the driver cannot be recognized properly, please try using another USB
port on the computer or reinstall the driver. Download address: www.marani-proaudio.com (Note: Drivers below WIN7 need to be
manually installed)
ØNetwork cable connection，Optional STATIC or DHCP IP mode, use a Category 5/Category 6 network cable to connect the
TCP/IP port of the power amplifier to the network adapter interface of the computer. If DHCP mode is selected, ensure that the
IPV4 address option in the network adapter of the computer is automatic, and open the software to automatically search for the
power amplifier. To select the STATIC mode, you need to adjust the IPV4 address option in the corresponding network adapter
in the Windows network settings to manual IP, and it should be within the same range as the power amplifier IP. Then, open the
software to automatically discover the current power amplifier. When the number of connected amplifiers exceeds 5, it is
recommended to use STATIC mode to prevent unstable connection due to network congestion. (Note: When using a static IP
connection, if the power amplifier IP is 192.168.0.100, the computer IP should be set to 192.168.0.xxx)
Connected Device
Open software devices detected
Network cable connection diagram:
High performance digital power amplifier
MDA - KDM series
Network cable

www.marani-proaudio.com
E-mail: [e-mail]
Common issues with network cable connection:
1. After opening the software, it is not possible to automatically search for devices.
Solution: Click on the settings icon on the amplifier screen to enter the IP settings page and view the current IP mode of the
amplifier. Open the computer's wired network card network adapter and view the IP mode of Internet Protocol Version 4 (TCP/IP
v4).
If the current amplifier selects STATIC mode, the IP address is 192.168.0.100. Set the computer Internet Protocol
version 4 (TCP/IP v4) to manual and manually enter the IP address 192.168.0.254. (Note: The IP address of the power amplifier is
192.168.0.100, and the computer IP needs to use an IP segment other than 192.168.0.100)
If the IP address and mode are set correctly, the software cannot search for the amplifier yet. You can first turn off the computer's
wireless network, find the Internet and network in the computer settings, select Windows Firewall, turn off all firewalls, and restart
the software to try connecting.
2. After opening the software, the software prompts: Found [email protected] (UDID: 437F8D4ACB68) The device is
UNREACHABLE! Please check your network settings
Solution:  The software has found a power amplifier with an IP segment of 192.168.1.100, but cannot connect. Need to check the
computer IP settings.

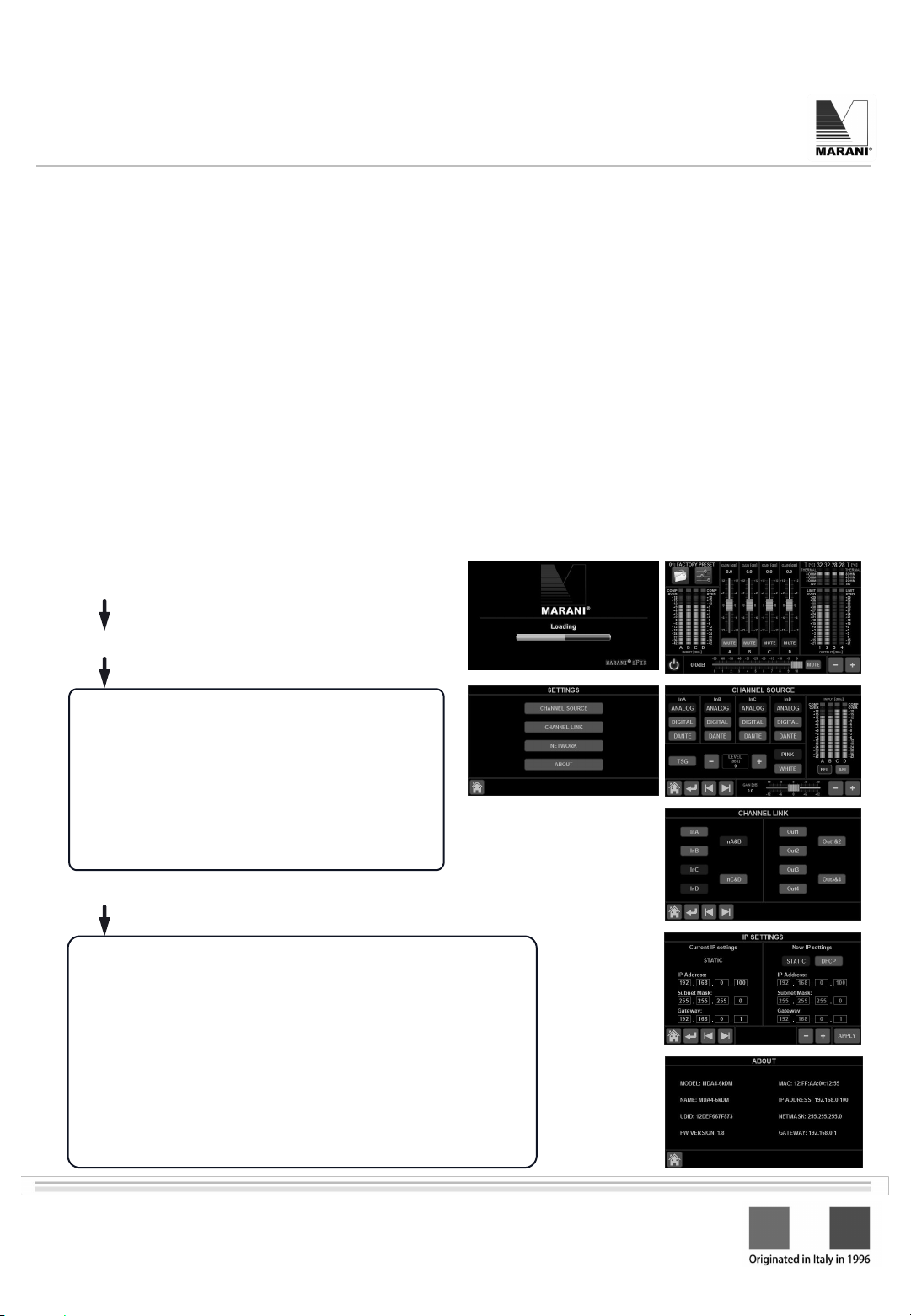

The MDA-KDM series power amplifier has a 4.3 inch capacitive touch screen, which can quickly manage input source switching,
channel linkage, network settings, local information, and more. More precise data adjustment and function confirmation can be
achieved through panel buttons.
1.0.Turn on the power switch of the amplifier>>>Data loading
pRecall presets>>>You can retrieve presets that have
been saved in the amplifier
pSettings menu
pChannel Mute and Volume Adjustment
pInput and output signal display
pStandby Switch
1.1.Power amplifier Home screen
2.0.Settings menu
pChannel Source Settings>>>Selectable from Analog, Digital,
Dante, Signal Generator
pChannel linkage>>>Supports multi-channel linkage
pNetwork Settings>>>Can view local IP settings information,
supports STATIC and DHCP modes, and can customize IP
addresses as needed
pLocal information>>>You can view the main information of this
device, such as device name, current IP address, firmware version,
etc
Display screen management:
High performance digital power amplifier
MDA - KDM series

www.marani-proaudio.com
E-mail: [e-mail]
Software management：
①New Project
②Importin project Files from a Computer
③Save project files to computer
④Add a device (you can choose to add a device using USB,
TCP/IP)
⑤Search for new devices (search method USB, TCP/IP.
TCP/IP can set the search range)
⑥Connect all offline devices currently added
⑦Disconnect all currently connected online devices
⑧All devices exit standby mode
⑨All devices are in standby mode
⑩Add a group (can control the Gain/mute of multiple
devices at the same time...)
⑪ Level monitoring and mute of all power amplifiers
程
Navigation Bar - At the top of all amplifier user interfaces.
①Call in presets from the computer, save presets to the computer, store presets to the amplifier, call up stored presets in the
amplifier, and copy channel settings
② Amplifier settings, including LAN, name, group reset, preset call mode, amplifier gain, user, administrator
③ Firmware upgrade, please use a network cable connection to upgrade
④Administrator, administrator mode has the highest management permissions for the device, which can encrypt, lock, or hide
processor data and functions. Default password: 111111
⑤User interface lock, panel lock (default password: 000000), device identification, data backup, and data recovery
⑥ Routing interface, which can be directly accessed by clicking on the function module
⑦All channel level display, level adjustment, mute switch
⑧A/B/C/D input channel, click the corresponding serial number to quickly open the channel processing page.
⑨1/2/3/4 output channel, click the corresponding serial number to quickly open the channel processing page.
⑩ Standby switch, red on, blue off
High performance digital power amplifier
MDA - KDM series

www.marani-proaudio.com
E-mail: [e-mail]

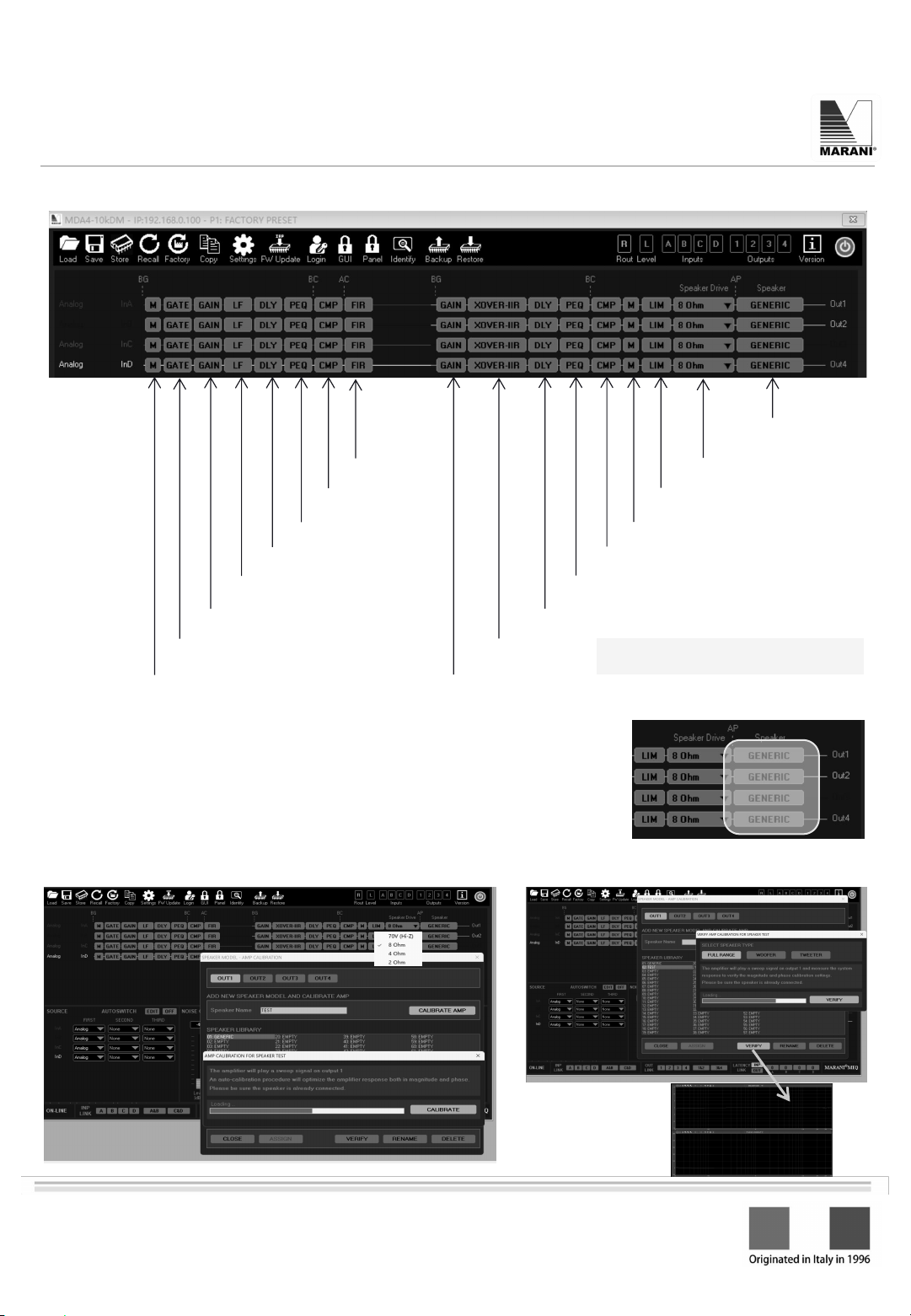

Software routing interface：
Input Mute
Gate
Input Gain
Loudness Filter
Input Delay
Input PEQ
Input compressor
FIR
Output Gain
X-OVER
Output Delay
Output PEQ
Output compressor
Output Mute
Output compressor
Output load impedance
selection
Amp
calibration
Note: Click on the corresponding function
module for quick access.
The MDA-KDM series amplifier has added an amplifier calibration function. The amplifier
DSP can calibrate the output of the amplifier based on the load feedback signal to achieve
more accurate output frequency response of the speaker. (When performing amplifier
calibration, the amplifier input signal should be turned off.)
The user can select the impedance value on the corresponding power amplifier output channel
according to the Impedance parameters of the speaker used. Then start the calibration
function>>>Select the corresponding channel>>Select the data storage location>>Edit
name>>Click on calibration>>Wait for calibration to complete>>Verify>>Select verification
category>>Verify completed.
①②
③
④
⑤⑥
⑦
⑧
⑨
High performance digital power amplifier
MDA - KDM series
AMP Calibration:

www.marani-proaudio.com
E-mail: [e-mail]
High performance digital power amplifier
MDA - KDM series
MDA4-10KDM
MDA2-8KDM
MDA4-6KDM
MDA4-4KDM
2Ω power（rms）
-
-
4 x 800W
4 x1200W
2.7Ω power（rms）
4 x 1600W
2 x 3800W
4 x 1800W
4 x1100W
4Ω power（rms）
4 x 2200W
2 x 4000W
4 x 1200W
4 x 800W
8Ω power（rms）
4 x 1600W
2 x 2000W
4 x 630W
4 x 400W
70V （rms）
4 x 2200W
2 x 4000W
4 x 1800W
4 x1200W
100V （rms）
4 x 2200W
2 x 4000W
-
-
Analog input
4 XLR （MDA2-8KDM 2 XLR）
Digital input
2 x AES/EBU（MDA2-8KDM 1 XLR）
Dante input
Dual LAN port / support AES67 (optional)
THD+N
≦0.03% (1W@4Ω)
≦0.09% (1W@4Ω)
≦0.03% (1W@4Ω)
≦0.04% (1W@4Ω)
S/N(A-wt)
＞106dB
Maximum input level
21dBu / 15dBu
Frequency response
20Hz~20kHz ±0.8dB
Connected mode
USB、Tcp/Ip
Preset quantity
50
FIR
Input：512 Taps；Output：512Taps
PEQ
Up to 12 PEQ per input channel; Up to 8 PEQ per output channel
Dynamic processing
LF、RMS、Limiter
X-Over filter
IIR、FIR、MIR
MARANI Correction
plugin
AUTO EQ/AMP CALIBRATION
Equipment size
482*470*88mm 2RU
N.W/G.W
13.5 Kg /17Kg
13.2 Kg/16.7Kg
13.5Kg/17Kg
12.5Kg/16Kg
Package size
630x600x140mm
