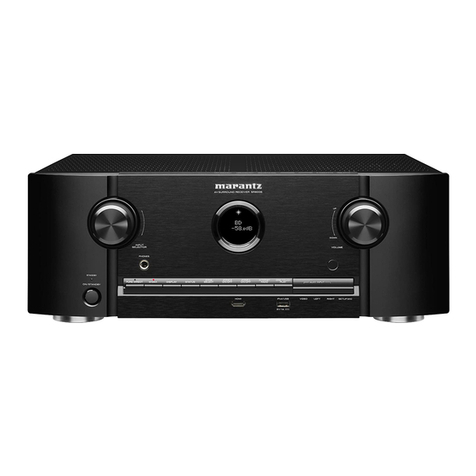

Marantz SR6005 User manual

MODEL: SR6005
Model Information
INTEGRATED NETWORK AV RECEIVER
MI121416E3-1
I/R Codes
Product Specifications
Upgrades/Updates
Accessories
Reset Procedure
Warranty
Remote Control
Rear Panel
Front Panel
NOTE:
This edition is missing the link to the IR codes…………………………………………………………………….. 12/14/2016
Model Information
Index
Protection History
Display Mode

Front Panel (1 of 2
Power operation button (ON/STANDBY)
Turns power to this unit on and off (standby).
Power indicator
Door
When you are using buttons and/or terminals behind the door, press the
bottom of the door to open it. When not using buttons and/or
terminals behind the door, close it. Be careful not to catch your fingers
when closing the door.
HOME FRONT PANEL WITH DOOR OPEN 2
VOLUME control knob
Remote control sensor
M-DAX indicator
Display
PURE DIRECT indicator
INPUT SELECTOR knob······
4
5
6
7
1
2
3
8
9

Front Panel WithThe Door Open (2 of 2)
HOME MAIN DISPLAY 3
Headphones jack
When the headphones are plugged into this jack, audio will no longer be
output from the connected speakers or from the PRE OUT connectors.
NOTE: To prevent hearing loss, do not raise the volume level excessively
when using headphones.
SETUP MIC jack
iPod/USB port
DIGITAL connector
Cursor buttons ()
ENTER button
AUX1 INPUT connectors
SURROUND MODE button
22
AUTO button
DISPLAY button
STATUS button
MENU button
RETURN button
BAND button
ZONE SELECT button
ZONE2 ON/OFF button
PURE DIRECT button
11
12
13
14
10 18
19
20
21
15
16
17
FRONT PANEL (1 of 2)
26
23
24
25

Main Display
HOME REAR PANELFRONT PANEL WITH DOOR OPEN 4
Input signal channel indicators
These light when digital signals are input.
When playing HD Audio sources, the “EXT1” indicator lights when a
signal from an extension channel (a channel other than the front,
center, surround, surround back or LFE channel) is input.
If there are two or more extension channels, the “EXT1” and “EXT2”
indicators light.
Input signal indicators
Information display
The input source name, surround mode, setting values and other.
information are displayed here.
Front height channel indicators
When audio is output from the front height channels, the “H”
indicator lights.
Front speaker indicator
This lights according to the setting of the front A and B speakers.
Master volume indicator
MUTE indicator
This lights when the mute mode is selected.
Audyssey® indicators
Light up as follows, depending on the setting of “MultEQ®” ,
“Dynamic EQ®” and “Dynamic Volume®”.
1
2
3
4
5
Sleep timer indicator
This lights when the sleep mode is selected.
ZONE2 indicator
This lights up when ZONE2 (separate room) power is turned on
Input mode indicators
Set the audio input modes for the different input sources.
HDMI indicator
This lights when playing using HDMI connections.
Tuner reception mode indicators
These light according to the reception conditions when the
input source is set to “TUNER”.
STEREO : In the FM mode, this lights up when receiving stereo
broadcasts.
TUNED : Lights up when the broadcast is properly tuned in.
AUTO : Lights up when in the auto tuning mode.
Decoder indicators
These light when the respective decoders are operating.
HD indicator
This light during HD Radio reception.
7
9
11
12
6
13
8
10
When “MultEQ®”, “Dynamic EQ®” and “Dynamic Volume®”
are “ON”.
When “MultEQ®” and “Dynamic EQ®” are “ON” and “Dynamic
Volume®” is “OFF”.
When “MultEQ®” is “ON” and “Dynamic EQ®” and “Dynamic
Volume®” are “OFF”.
AUDYSSEY
MULTEQ
DYN VOL EQ
AUDYSSEY
MULTEQ
DYN EQ
AUDYSSEY
MULTEQ
14
15

1 2 3 4 5 6
78910111213
141516
Rear Panel
HOME
HD RADIO antenna terminals
Analog audio connectors
PRE OUT connectors
7.1ch input connectors (7.1CH IN)
Speaker terminals (SPEAKER SYSTEMS)
AC inlet (AC IN)
Component video connectors
HDMI connectors
Digital audio connectors
REMOTE CONTROLMAIN DISPLAY 5
1
7
8
9
Video connectors
FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
REMOTE CONTROL connectors
M-XPort connector
SIRIUS connector.
DC OUT jacks
RS-232C connector
16
2
3
4
5
6
10
15
11
12
13
14

HOME
Remote Control (1 of 2)
REMOTE CONTRO (2 of 2)REAR PANEL 6
INPUT buttons ()
DISPLAY/Tuner mode (T.MODE) button
SHIFT/TOP MENU button
Cursor buttons (uio p)
MENU button
MACRO button
Number buttons
Clear button (CLR)
TUNING buttons (+, –)
Remote control signal transmitter
Power buttons (ON, STANDBY)
Speaker A/B button (SPKR A/B)
TEST TONE button
Muting button (MUTE)
Light button
Master volume control buttons (VOLUME +, –)
Surround mode (SURR.) /MEMORY button
SEARCH/Information (INFO) button
ENTER button
RETURN button
System buttons
• Pause button (II)
• Play button ()
• Stop button ()
• Skip buttons ()
• Search buttons ()
FM/AM band switching button (BAND)
8
9
10
7
11
13
14
15
12
16
18
19
20
17
21
23
22
24
26
25
Display
1) LEARN indicator
2) MACRO indicator
3) Information display
4) Indicator
SOURCE power button
SET button
Input mode button (A/D)
Input source select buttons
Source select button (SOURCE SEL)
1
3
4
5
2
6
27

HOME
Remote Control (2 of 2)
WARRANTY (1 of 2)REMOTE CONTROL (1 of 2) 7
STEREO button
AUTO buttons
MULTEQ button
Audio delay button (A.DELAY)
M-DAX button
Channel level button (CH LVL)
SLEEP button
INSERT button
DELETE button
Pure direct button (P.DIRECT)
REPEAT button
RANDOM button
Dynamic EQ/Dynamic Volume button (DYN EQ/VOL)
Video select button (V.SEL)
TV operation buttons (TV POWER / INPUT)
CHANNEL/PRESET buttons (+, –)
NOTE:
The HDMI, Z3, CDR and A-DSX buttons cannot be used.
29
30
31
28
32
34
35
36
33
37
39
40
41
38
42
43

MARANTZ USA LIMITED WARRANTY (1 of 2)
This warranty will be honored only in the U.S.A.
Length of Non-Transferable Warranty
This warranty on your Marantz product which is distributed and warranted by Marantz America Inc. remains in effect for the
following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA), LLC
DEALER.
MARANTZ AMERICA, Inc.
(a D&M Holdings Company)
100 Corporate Drive
Mahwah, NJ 07430-2041
[phone]
www.usa.Marantz.com
MARANTZ FACTORY SERVICE by PANURGY OEM
701 Ford Road (South Dock)
Rockaway, NJ 07866-2053
[phone]
[phone] Fax
http://www.panurgyoem.com/Denon/Denonrepair.html
See the next page for more information about the Marantz limited warranty
HOME
3 year warranty for both Parts & Labor, from the original purchase date
1 year for refurbished (B-Stock) units
WARRANTY (2 of 2)REMOTE CONTROL 8

Warranty (2 of 2)
What is covered and what is not covered
Except as specified below, this warranty covers parts and labor to correct all defects in materials and workmanship. The following are not covered by the
warranty.
1. Damage, deterioration, malfunction or failure to meet performance specifications resulting from:
Accident, acts of nature, misuse, abuse, neglect or unauthorized product modification.
Improper installation, removal or maintenance, or failure to follow instructions supplied with the product.
Repair or attempted repair by anyone not authorized by Marantz to repair the product.
Any shipment of the product (claims must be presented to the carrier).
Any cause other than a product defect.
2. Cleaning, initial set-up, check-ups with no defects found, or charges incurred for installation, removal or reinstallation of the product.
3. Any product on which the serial number has been defaced, modified or removed.
4. Batteries.
5. Accessories, including but not limited to, batteries, cables, mounting hardware and brackets, cleaning accessories, antenna and detachable power cords.
6. Warranty is void if purchase was made from anyone other than an authorized Marantz dealer.
Who may enforce the warranty?
This warranty may be enforced only by the original purchaser.
What we will pay for
We will pay for all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this
warranty.
How you can get service
If your unit needs service, contact Marantz customer service by calling 201-762-6666. We will advise you of the name and location of one or more
authorized Marantz service stations from which service can be obtained. Please do not return your unit to the factory without prior authorization.
You must pay any shipping charges if it is necessary to ship the product for service. However, if the necessary repairs are covered under warranty, we
will pay the return shipping charges to any destination within the United States, its possessions or territories.
Whenever warranty service is required, you must present the original dated sales receipt or other proof of date of purchase.
Limitations of implied warranties
All implied warranties, including warranties of merchantability and fitness for a particular purchase, are limited in duration to the length of this warranty.
Exclusion of damages
Marantz liability for any defective product is limited to repair or replacement of the product at Marantz’s option. Marantz shall not be liable for damage to
other products caused by any defects in Marantz products, damages based upon inconvenience or loss of use of the product, or any other damages,
whether incidental, consequential, or otherwise.
How the law relates to the warranty
Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
HOME RESETWarranty (1 of 2) 9

Reset
HOME ACCESSORIESWARRANTY 2 10
Power/Standby
button
“SURROUND
MODE” button
“AUTO”
button
“MENU”
button
“BAND”
button
“ENTER”
button
Perform this procedure if the display is abnormal or if operations cannot be performed.
When the microprocessor is reset, all the settings are reset to their default values.
Various setting details can be saved and reset on this device. If setting details are saved before returning to the default values, after returning
to the default settings, setting details can be returned to the same values as before returning to the defaults.
Procedure to Save Settings
Skip this step if you want to return all of the settings to factory default.
When the power is ON, press and hold “BAND” and “ENTER” for more than 3 seconds.
After “MEMORY SAVING” is shown on the display, “COMPLETE”is shown to inform you that the settings have been saved.
Reset procedure:
Turn off power using “ON/STANDBY”
With the power off, press and hold the “SURROUND MODE” button, “AUTO” button, and “POWER” button simultaneously on the AVR for a
few seconds until the AVR’s display starts flashing at intervals of about 1 second.
Perform the next step only If the settings were saved as explained on the previous step, “Procedure to Reload Settings”.
Procedure to Reload Settings:
Press and hold “BAND” and “MENU” for more than 3 seconds.
After “MEMORY LOAD” is shown on the display, “COMPLETE” is shown to inform you that the
settings have returned to those saved previously

Accessories
HOME FAQ’sRESET
307010077005M $ $ $
963116011270S $00D9600187308 $5.99 90M-ZC000470R $30.64
Remote Control
(RC011SR)
Power Cord)
Sound
Calibration
Microphone
Sound
Calibration
Microphone
Stand
Antenna AM
Loop Wire
FM Indoor
Antenna
CD ROM
Owner’s
Manual
Notes on Radio Quick Start
Guide
Safety
Instructions
Warranty
(For North
America Only)
11

FAQ’s ( 1 of 2)
HOME FAQ’s 2ACCESSORIES 12

FAQ’s (2 of 2)
HOME UPGRADEFAQ’s 1 13

Upgrades/Updates (1 of 2)
HOME
Dolby Atmos, DTS:X and Auro-3D Upgradeable
Dolby Atmos and DTS:X surround sound technologies dispense with channel-based coding in favor of object-based coding, giving the sound designer the
ability to precisely place sounds anywhere in the 3-dimensional space. The SR6005, features the ability to connect a 5.1 surround sound speaker system and
4 additional overhead speakers (or 4 additional Dolby Atmos elevation speakers) for the ultimate home cinema experience. Thanks to the 11ch processing
capability, you can just add an external 2-channel amplifier and even enjoy a thrilling 7.1.4 channel Dolby Atmos or DTS:X experience. Dolby Surround
Upmixer and DTS Neural:X Upmixer are also in place to simulate 3D sound from standard formats.
Auro-3D Upgrade
By fully immersing the listener in a cocoon of life-like sound, Auro-3D puts you right in the middle of the action. Auro-3D provides an immersive surround
sound experience thanks to dedicated height and overhead channels, in addition to the regular channels. The height information, captured in recording or
created during the mixing process, is mixed into a standard 5.1 PCM stream that comes with a regular Blu-ray. Moreover, the Auro-3D engine recognizes
mono, stereo, 5.1 surround or an Auro-encoded signal and transforms them into 3D audio. Once upgraded with the Auro-Codec decoder, the SR6005 is
capable of decoding the original Auro-3D mix and playing back an Auro-3D 10.1 channel configuration (with external amplifier). Auro-3D upgrade
availability and pricing to be announced.
Visit http://upgrade.Marantz.com for upgrade information.
Upgrades/Updates (2 of 2)FAQ’s 2 14

Upgrades/Updates (2 of 2)
HOME Specifications –Audio SectionUpgrades/Updates (1 of 2)
Firmware:
This unit has the ability to update its firmware over the internet if so is selected by the user. When connected to a network via Wi-Fi or Ethernet, the AVR
searches automatically for new updates and if any is found, a message appears on the screen for approx. 40 seconds with the options of updating the
firmware: “NOW”, “LATER”, or “IGNORE”. Note: This feature of displaying the update message, can be disable from the “Setup” menu
(Setup/General/Firmware/Notifications/Update or Upgrade/Off).
If the update process is interrupted, “Update retry” appears on the display and the unit tries repeatedly to continue the update until it either reconnects and
picks up where it left off and continue the update process or times itself out after trying several times. When the latter occurs, one of the following messages
will appear on the screen.
To Check for Firmware Update from the Marantz server when the unit is connected to the internet via the Ethernet port (When Firmware Notification is
turned off).
Press “SETUP” and select “GENERAL” and then select “FIRMWARE” followed by “UPDATE” and finally, select “CHECK FOR UPDATE”.
Note: This will also check the time it will approximately take to complete the update.
To check to see if an update or upgrade is available for your SR6005 and also to download the latest version of firmware, click on the following link:
http://www.us.marantz.com/us/support/pages/productupdates.aspx
Note: A list of “Recent Updates/Upgrades is also available at this link”
Connection fail Download fail Updating fail Server is busy Login failed
15

Specifications –Audio Section
HOME
Audio section
Power amplifier
Rated output
Front 110 W + 110 W (8 Ω/ohms, 20 Hz –20 kHz with 0.08 % T.H.D.)
Center 110 W (8 Ω/ohms, 20 Hz –20 kHz with 0.08 % T.H.D.)
Surround 110 W + 110 W (8 Ω/ohms, 20 Hz –20 kHz with 0.08 % T.H.D.)
Surround back/Front Height 110 W + 110 W (8 Ω/ohms, 20 Hz –20 kHz with 0.08 % T.H.D.)
Maximum effective
output power:
Front 190 W + 190 W (6 Ω/ohms, 1 kHz with 10 % T.H.D.)
Center 190 W + 190 W (6 Ω/ohms, 1 kHz with 10 % T.H.D.)
Surround 190 W + 190 W (6 Ω/ohms, 1 kHz with 10 % T.H.D.)
Surround back 190 W + 190 W (6 Ω/ohms, 1 kHz with 10 % T.H.D.)
Output connector 6 –8 Ω/ohms
Analog
Input sensitivity/Input impedance 175 mV/50 kΩ
Frequency response 10 Hz –100 kHz —+1, –3 dB (Direct mode)
S/N 98 dB (IHF–A weighted, Direct mode)
SPECIFICATIONS -VIDEO –
TUNER -GENERAL
Upgrades/Updates 2 SPECIFICATIONS -
DIMENSIONS -WEIGHT 16

Specifications -Video section,Tuner Section, General Section
HOME
Video section
Standard video connectors
Input/output level and impedance 1 Vp-p, 75 Ω/ohms
Frequency response 5 Hz -10MHz, 0, -3dB (when “Video Convert” set
to “OFF”)
Color component video connector Input/output level and impedance
Y signal 1 Vp-p, 75 Ω/ohms
PB/CB signal 0.7 Vp-p, 75 Ω/ohms
PR/CR signal 0.7 Vp-p, 75 Ω/ohms
Frequency response 5 Hz -60MHz –0, -3dB
HD Radio section
FM AM
Note: µV at 75 Ω/ohms, 0 dBf = 1x10-15 W
Reception frequency range 87.50 MHz -107.90 MHz 530 kHz –1710 kHz
Effective sensitivity 1.5 µV (14.8 dBf)18 μV
50 dB sensitivity Mono –2.8 µV (20.2 dBf)
S/N ratio
Mono 78 dB
Stereo 68 dB
HD 85 dB 85 dB
Total harmonic Distortion (at 1 kHz):
Mono 0.1 % (1KHz)
Stereo 0.2 % (1KHz)
HD 0.02 %0.02 %
SPECIFICATIONS -
AUDIO
SPECIFICATIONS -
DIMENSIONS -WEIGHT 17
General section
Power supply AC 120V, 60Hz
Power consumption 650 W
Power consumption in standby mode 0.2W
Power consumption in CEC standby mode 3.0 W
For purpose of improvement, specifications and design are subject to change without notice.

Specifications –Dimensions, Weight
HOME
Dimensions section (Unit : inch/mm)
Weight: 26 lbs 2.1 oz (11.8 kg)
SPECIFICATIONS -VIDEO –
TUNER –GENERAL
SPECIFICATIONS -
AUDIO
Protection History Display
Mode (Front Panel Buttons) 18

SR6005 -Protection History Display Mode (1 of 3)
19
Protection History Mode records and displays an event in which the THERMAL, CURRENT, ASO or DC protection was activated.
HOME Protection History Display Mode ProcedureSpecs –Dimensions/Weight
Model Information
Index
STATUS CURSOR  POWER
Procedure to enter the “Protection History Display Mode”.
1. Press and hold the “STATUS” and the “CURSOR” buttons at the same time and press the “POWER” button to turn on the
power.
2. Press the “STATUS” button to turn on the FL display.
ENTER

1. If no protections have occurred, “No Protect” is
displayed
2. if last protection was ASO, “ASO” is displayed.
Cause: A short circuit occurred between the speaker terminals, or speakers with an impedance outside the rating were connected. If the power is turned on
during this abnormality, protection is activated after around 5 seconds and the power is turned off.
3. If the last protection was DC, “DC” is displayed.
Cause: DC output of the power amplifier is abnormal.
If the power is turned on during this abnormality, protection is activated after around 5 seconds and the power is turned off.
4. If the last protection was THERMAL, then “THERMAL * is
displayed.
Cause: Abnormal heat sink temperature.
If the power is turned on during this abnormality, protection is activated after around 5 seconds and the power is turned off.
FLD
PROTECT
HISTORY
:NO
FLD : A S O
FLD : D C
Caution: These protections may also be activated due to causes such as disconnection of connectors or operations around the
microcomputer. After viewing the above protection history, press the button "STATUS" to return to the normal display.
FLD Fluorescent Display
SR6005 -Protection History Display Mode (2 of 3)
20
HOME Clearing the Protection HistoryFront Panel and Button Locations
Model Information
Index
FLD :THERMAL
