Marantz LC2601 User manual

ENGLISH

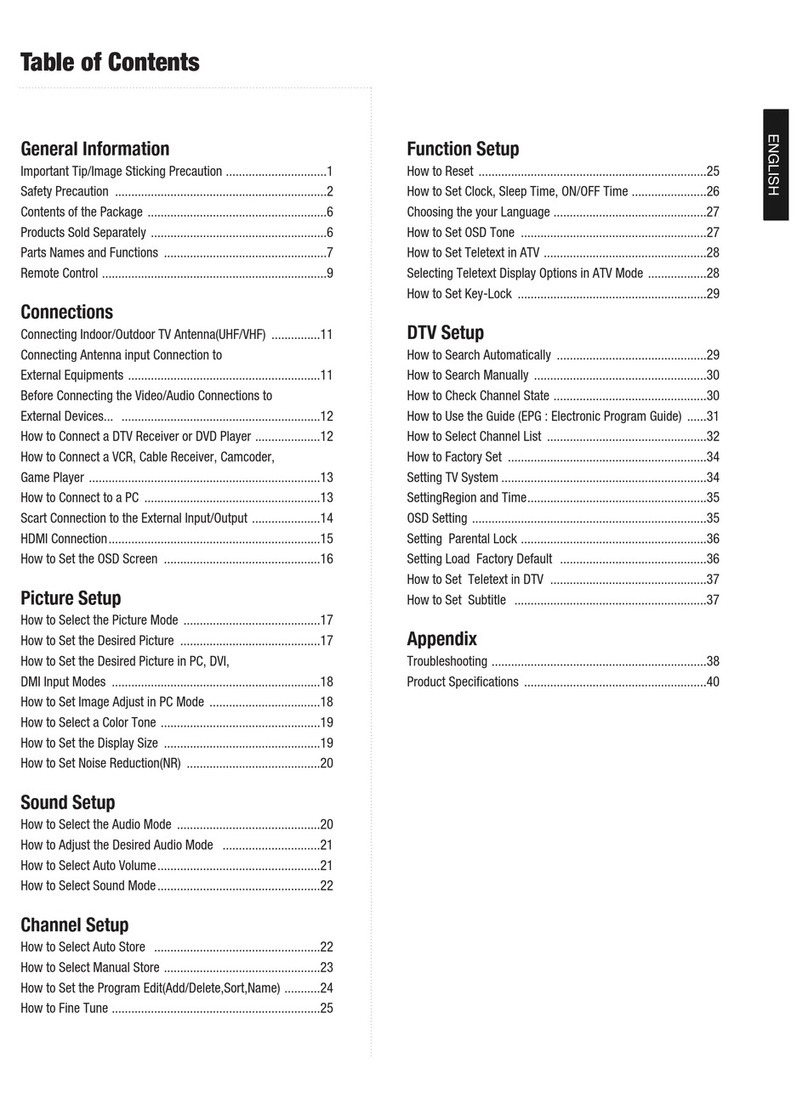

Table of Contents
General Information
Important Tip ........................................................................1
Safety Precaution ................................................................2
Contents of the Package .......................................................6
Products Sold Separately ......................................................6
How to Mount and Detach The Speakers .............................7
How to adjust the view angle ................................................8
Kensington Lock Anti-theft Device ........................................8
Parts Names and Functions ..................................................9
Remote Control ...................................................................11
Connections
Connecting Indoor/Outdoor TV Antenna(UHF/VHF) ...............13
Connecting Antenna Input Connection to External
Equipments ........................................................................13
Before Connecting the Video/Audio Connections to
External Devices... ..............................................................14

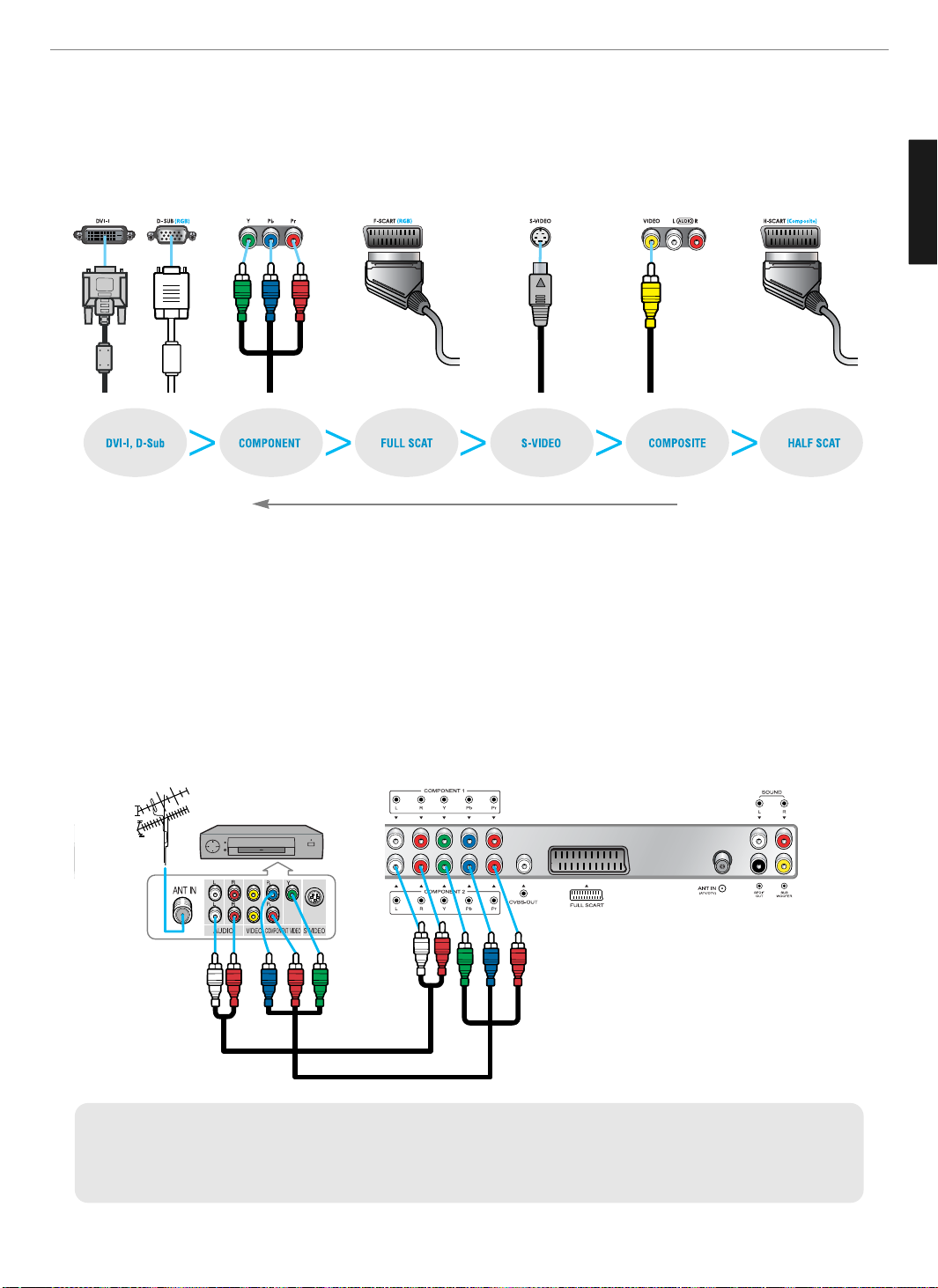

How to Connect a DTV Receiver or DVD Player ....................14
How to Connect a VCR, Cable Receiver, Camcoder,
Game Player .......................................................................15
How to Connect to a PC ......................................................15
Scart Connection to the External Input/Output .....................16
How to Set the OSD Screen ................................................17
Picture Setup
How to Select the Picture Mode ..........................................18
How to Set the Desired Picture ...........................................18
How to Set the Desired Picture in PC, DVI Input Modes .......19
How to Select a Color Temperature .....................................19
How to Set the Display Scale ..............................................20
How to Set Noise Reduction ................................................21
How to Set Image Adjust in PC Mode ..................................21
Sound Setup
How to Select the Audio Mode ............................................22
How to Adjust the Desired Audio Mode ..............................22
How to Select AVL ..............................................................23
How to Select S. Mode ........................................................23
How to Select TruSurround XT ............................................24
How to Set the Output of Subwoofer ...................................24
How to Select Earphone ......................................................25
Channel Setup
Automatic Program Searching ............................................26
Manual Program Searching .................................................26
How to Set the Program Edit ...............................................27
Using the LNA(Low-Noise-Amplifier) Feature ......................28
Function Setup
How to Set PIP/TWIN ...........................................................28
How to Set Key-Lock ..........................................................30
Choosing the Your Languages .............................................30
How to Set Teletext in ATV .................................................31
Selecting Teletext Display Options in ATV Mode ..................31
How to Set Clock, Sleep Time, ON/OFF Time .......................32
DTV Setup
How to Search Automatically ..............................................33
How to Search Manually .....................................................33
How to Check Tuner State ..................................................34
How to Use the Guide (EPG : Electronic Program Guide) ......35
How to Select Channel List .................................................36
How to Set Favorite Channel ...............................................36
How to Use Channel List Mode ...........................................37
How to Lock Channel ..........................................................37
How to Set the Channel Order .............................................38
How to Delete Channel .......................................................38
How to Add Channel ...........................................................39
How to Factory Set .............................................................39
How to TV/RADIO switching ................................................40
How to Subtitle / Audio .......................................................40
How to Select Channel / Information ...................................41
How to Set Teletext in DTV .................................................41
Appendix
How to Use an External Device Using the Remote Control ...42
Troubleshooting ..................................................................44
Product Specifications ........................................................46

1
General Information
ENGLISH
Image Retention Effect (Image Sticking)
1. Cause :
- Image Retention Effect may come from displaying a still picture in a certain period of time with at a certain
area continuously, as feature of LCD panel. This is caused due to brightness degradation. Many LCD
manufacturers are trying to overcome this limitation.
2. Prevention
- To avoid this matter, use the product after reducing brightness and contrast, especially when a still image is
displayed for a long time. (Contrast 50/Brightness 50 - See 18 page)
Once an image retention occurs, use the mode that displays motion. It will reduce this matter.
3. Solution
- The temporary image sticking would decrease with displaying Full-White pattern during 10 hours.
* The permanent image sticking could not take off under the latest technology.
This method may be used to eliminate a temporary retained image that occurs after displaying a still image in a
certain period of time. Since it may take several minutes to several hours to remove image sticking, it is
recommendable to display motion pictures during 2~3 minutes every hour when keeping displaying a still
image. As image sticking is influenced by the brightness of a still image being displayed and its display time, it
is recommended to reduce the brightness of the screen.
* Image Sticking does not come under the warranty.
When watching a still Image within motion pictures and Wide/Zoom1/Zoom2
/14:9/4:3 screen
1. Note :
- When the central area of the screen and the screen edges are fixed, the different brightness level of
the edges may cause image retentions on the edges when watching for a long time
- This phenomenon happens also to products from other manufacturers. Please avoid to watch a still
image for a long time.
- If you watch a still image for a long time, this may damage your TV.
* This matter does not come under the warranty.
Wide,Zoom1, Zoom2, 14:9, 4:3
screen
Box still image
Important Tip
Image Sticking Precaution

2
General Information
ENGLISH
Safety Precaution
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
Do not connect multiple electrical
appliances to a single outlet.
- It may cause a fire due to overheating from
the outlet.
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges
and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA
No.70-1984, provides information about proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Example of Grounding According to National Electrical Code
Instruction
Do not use or store a flammable
spray or inflammable things near the
TV.
- They may cause explosion or fire.
Do not install the TV in a
bookshelf, closet, or a place with
poor air circulation.
- Fire may be caused due to the rise of
internal temperature.
Make sure to remove the speakers
before moving the TV with speakers
mounted on it.
- When the speakers are detached from the
unit while carrying it, this may cause damage
to the unit or personal injury.
Any necessary action such as making the
antenna cable loop at the entrance of the
building should be taken to prevent rainwater
on the outdoor antenna cable from possibly
running indoor.
- If raindrop gets into the LCD TV, it may
cause a fire or an electric shock.

ENGLISH
3
General Information
If there is a persistent accumulation
of dusts or water on the plug, please
make sure to wipe it off using a dry
cloth.
- It may cause a fire or an electric shock.
Firmly plug in the power cord so that
it does not pull out.
- An unstable connection may cause fire.
Do not use a damaged power cord
or plug, or loose outlet.
- It may cause electric shock or fire.
Do not put a water bowl, vase,
candle, bug repellant smoke,
cigarette, plants, or heavy thing on
the TV.
- It may cause electric shock or fire and also
heavy things may cause injury when they
fall.
Do not install in a place where there
is oil, smoke, excessive humidity, or
where water may be sprinkled on it.
- This may cause electric shock or fire.
Do not install on an unstable place
or small support.
- This may cause the TV to fall, resulting in
serious injury especially to children.
Never attempt to open, fix, or modify
your TV.
- When there is a need for fixing, call a
service center. Fire or electric shock may be
caused.
Do not put a metallic object like chopstick,
wire, or puncher or inflammables like paper
or a match in a vent, headphone jack, or AV
jacks of the TV.
- Electric shock or fire may be caused.
When the TV produces abnormal noise,
burning smell, or smoke, unplug the TV
immediately and call a service center.
- Electric shock or fire may be caused.
Safety Precaution ......................................................................................Continued from previous page
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.

4
General Information
ENGLISH
Do not place any heat sources such as
radiators and heat registers, etc. near the TV.
- It may cause a fire.
Do not block ventilating slits with a table
cloth.
- Blocking the ventilation slits may produce
internal heat increase, resulting in a fire.
Keep the TV at least 10cm away from the
wall for ventilation.
- Fire may be caused due to the rise of
internal temperature.
Do not allow children to climb or play on the
TV.
- This may cause the TV to fall resulting in
serious injury.
Do not place toys and cookies, etc. on the TV,
which may attract children’s attention.
- This may cause the TV to fall, resulting in
serious injury.
When cleaning the TV, make sure to
disconnect the power plug and use a dry, soft
cloth for a cleanup.
- Please avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquito spray,
air freshener, lubricant or synthetic
detergent.
Unplug when you do not use your TV for a
long time.
- If dust is stacked on the TV, electric shock
or fire may be caused from heat, fire, or
deterioration of insulation.
When moving the TV, two or more people are
advised to carry it.
- This may cause damage to the unit or
personal injury.
Never touch the power plug or outlet with
wet hands.
- This may cause electric shock.
In connection with the selling of batteries or rechargeable batteries or with the supply of devices which contain batteries or rechargeable batteries, we are
required, according to the recycling regulations, to inform you the procedures.
Batteries may not be binned to the household waste. You are legally required, as final consumer, to return used batteries or rechargeable batteries. You
can return used batteries or used rechargeable batteries free of charge to retailers or in your proximity (as local collecting points or in the trade). You may
also send them back to us by mail. Batteries or rechargeable batteries, which contain pollutants, are marked by the symbol of a crossed waste bin. Beside
the waste bin symbol are the chemical designations for pollutants; Cd stands for cadmium, Pb for lead and Hg for mercury.

5
General Information
ENGLISH
Do not install the product on the floor.
- This may cause the TV to fall resulting in
serious injury.
Unplug the product during lightning or
thunderstorms and never touch the antenna
cable.
- It may cause a fire or an electric shock.
Keep the remote control batteries out of
sight and out reach of children.
- If your child swallows a battery, see your
doctor immediately.
When replacing batteries, make sure to
match the batteries to the (+) and (-) marks
in the battery compartment.
- Mismatching of polarities may result in
internal damage to batteries, fire due to
leakage or contamination.
Always use the standard batteries and avoid
using old batteries together with new ones.
- Otherwise it may result in internal damage
to batteries, fire due to leakage or
contamination.
In the event of damaging or dropping the
product, switch off the power and remove
the plug.
- Using a damaged product may cause an
electric shock or a fire.
- Contact your local service center.
Before moving the product, ensure to switch
off the power and unplug all the electrical
cords and the external connection cords such
as an antenna cable and other source
connections, etc.
- Electrical cords may be damaged, resulting in
a fire or an electrical shock.
Ensure the power cord doesn’t trail
across any hot objects like a heater.
- This may cause a fire or an electric shock.
Consult a service center or customer
service for inside cleaning about
once a year.
- When dust is piled inside the TV for long time, fire
or malfunction may be caused.
Safety Precaution ......................................................................................Continued from previous page
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.

6
General Information
ENGLISH
Contents of the Package
When opening the package, please ensure to check the following accessories.
Products Sold Separately
If you want to purchase the following accessories, consult a service center, electronics shops, or parts seller.
Power Cord
Antenna Cable
(coaxial cable)
User's GuideRemote Control & 2 batteries
(1.5V AAA)
Audio Cable (PC)Audio Cable (DVI/DVD)PC signal Cable (D-SUB)
S-video Cable Component Cable
(Y, Pb, Pr)
Composite Cable
(Video/Audio)
Scart cable

7
General Information
ENGLISH
How to Mount and Detach The Speakers
You can attach the speakers to the base of the unit or use them separately.
How to mount the speakers onto the base of the unit
1. Tilt the unit backward until its base faces yourself (See next page “How to Adjust the View Angle”).
2. Prepare your right speaker first. Remove the tube of the hooks and verify that the hooks are placed in the
upright position.
3. Align the right speaker hooks with the cavity holes marked with “SPEAKER” under the base.
4. Slide the right speaker inward till the tension hooks are securely locked as shown in Figure below.
5. Repeat step 2~4 for the left speaker.
The right and left speakers are labeled R (Right) and L (Left) on their rear.
The provided speakers are designed for this product only. It is recommended not to connect
the speakers to other devices. When connecting an other amplifier, the amplifier output should
be within 10W. Output which exceeds 10 W may cause fire.
Make sure to remove the speakers before moving the TV. When the speakers are detached
from the unit while carrying it, this may cause damage to the unit or personal injury.
WARNING
ALERT
Right Speaker
Left Speaker
32” - Press the tension hook and remove
the speakers in reverse order.
When detaching the speakers
26” - Remove the speakers in reverse order.

8
General Information
ENGLISH
How to adjust the view angle
You can adjust the panel downward or upward at a 0~15 degree angle.
15
O
Kensington Lock Anti-theft Device
- This display unit supports Kensington standard security lock to prevent theft.
- You should purchase the Kensington lock device personally, if you need. The security lock is available at an
electronics shop.
- For more information, please refer to the following contact information..
* Kensington Technology Group
• Address : 2000 Alameda de las Pulgas 2F san mateo, California 94403-1289
• Tel : [phone] • Fax : [phone] • Web-site : www.kensington.com

9
General Information
ENGLISH
- Power Indicator Status -
Parts Names and Functions
Front View
Volume buttons
Use these buttons to adjust sound levels. These
buttons also serve as the cursors of
Select/Adjust in Menu mode.
Channel buttons
Use these buttons to change channels. These
buttons also serve as the cursors of Down and
Up buttons in Menu mode.
Select button
Use this button to select each item from the
menu mode.
Menu button
Use this button to display or exit from the menu
mode.
Source button
Use this button to switch among inputs
connected to the TV.
Power button
Use this button to turn on or off the TV.
Remote sensor and power LED.
- Point the remote control toward LED.
- It displays standby or operation status.
Speakers
See page 7 for information on how to mount
speakers.
Indicator
Red
Green
Status
Standby
Power on
* This product image may be a bit different from the actual product.

10
Algemene informatie
NEDERLANDS
Achteraanzicht
Stroomschakelaar
Stroomaansluiting (AC)
DVI-Video ingangsterminal
D-SUB ingangsterminal
DVI/D-SUB Audio ingangsterminal
Component 2 Audio-ingangsterminal
Component 2 Audio-ingangsterminal
Component 1 Audio-ingangsterminal
Component 1 Audio-ingangsterminal
CVBS-uitgangsterminal
Full Scart ingangsterminal
Antenna ingangsterminal
Digitale audio-uitgangsterminal voor
coaxiale kabel
Subwoofer uitgangsterminal
Uitbreiding audio-uitgangsterminal
S-Video ingangsterminal
Video(CVBS)-ingangsterminal
Audio (CVBS)-ingangsterminal
Koptelefoon uitgangsterminal
Half Scart ingangsterminal
Uitbreiding RS-232 ingang voor ATV-
communicatie.
SPDF audio uitgangsterminal
Uitbreiding RS-232 ingang voor DTV-
communicatie.
Luidsprekerterminal
* Het is mogelijk deze afbeelding lichtjes verschilt van het eigenlijke product.

11
General Information
ENGLISH
Remote Control
1. POWER/STANDBY
2. MUTE
This button is also used when setting up to use other external
devices.
3. PIP FUNCTIONS
- MODE/PIP
: Use this button for PIP On/Off.
- SOURCE
: Use this button to select the input source of sub-picture.
- SIZE
: Use this button to select the size of sub-picture.
- SWAP
: Use this button to swap main and sub-picture.
- POSITION
: Use this button to select the position of sub-picture.
4. PREVIOUS PROGRAM
5. A/D TV
Use this button to switch the input source from analog to
digital
6. Other external device selection ( 42 P)
7. MENU SELECTION
Use this button to select menu items.
8. LEFT/RIGHT MOVE/ADJUST
Use these buttons to move between menu items or adjust
each item.
9. MENU
Use this button to call the OSD on the screen.
10. EXIT
Use this button to end the OSD.
11. DTV CHANNEL SELECTION
12. STILL
13. Use this buttons to use other manufacturer’s DVD or
VCR.
14. INFOMATION
Use this button to display resolution or various program.
15. SOURCE
Use this button to select External Input.
16. VOLUME
17. SOUND MODE
18. SLEEP
19. ASPECT RATIO
Use this button to change the picture size.
20. NUMERIC KEYS

12
General Information
ENGLISH
How to Insert Batteries in the Remote Controller * Battery type :1.5V/AAA
Teletext & Fastext Function
(See pages 31 for more details.)
1. TTX/MIX
To see Teletext Service Data for Analog TV and Digital TV.
2. GUIDE (EPG-Electronic Program Guide)
To watch the program information. Press once more to return
to normal mode.
3. CH. LIST
To watch the channel list for Digital TV. Press key to
confirm or press EXIT to return to previous channels.
4. RED rubber
- DTV : To setup favorite channel lists in the Channel List menu.
- ATV : To delete a channel in the Program Edit menu.
5. GREEN rubber
- DTV : To lock favorite channel lists in the channel list menu.
- ATV : To sort channels in the Program Edit menu.
6. YELLOW rubber
- DTV : To move favorite channel lists in the channel list menu.
- ATV : To edit channel names in the Program Edit menu.
7. BLUE rubber
DTV : To delete a channel from the channel List menu. To show
extended program information in the EPG menu.
8. S.MODE
To adjust the subtitle and audio condition/status of the current
channel for Digital TV
9. TV-RADIO
To switch between the TV channel and radio channel for
Digital TV.
10. WHITE rubber
DTV : To add a new channel to the Channel List menu.
11. ORANGE rubber
DTV : To see variant channel lists for user’s convenience in the
Channel List menu.
Press and hold Δpart and push to open
cover.
Insert batteries with proper polarities of
+ and -.
Use the remote control with cover closed.
123

13
Connections
ENGLISH
✓ When inserting a 75 ohm coaxial cable into the input connection, ensure the wire tip not to bend.
✓ If you experience poor signal reception, we recommend you purchase a signal amplifier for better picture quality.
VHF Antenna
UHF Antenna
Antenna cable
Connecting Indoor/Outdoor TV Antenna(UHF/VHF)
- Antenna or Cable service without cable box connections
- For on optimum picture quality, adjust the direction of antenna if needed.
VCR/Cable Receiver
Connecting Antenna Input Connection to External Equipments
1. Connect an antenna cable to VCR/Cable/Satellite Receiver with the antenna input.
2. Use a coaxial cable to connect VCR/Cable/Satellite Receiver's antenna output to the antenna input on your TV.
Antenna cable

14
Connections
ENGLISH
Before Connecting the Video/Audio Connections to External Devices...
Please make sure to read the following instruction to enjoy the best picture quality.
Best picture quality is displayed in the following order.
The superior picture quality starts from the far left side.
✓ Output terminal mark (Y, Pb, and Pr) of DVD player may be indicated as Y, B-Y, R-Y/Y-Cb-Cr /Y-Pb-Pr according to the
type of DVD player models.
✓ If your DVD player or Set Top Box supports DVI/D-SUB, see Connecting to a PC (page 15) for connection. You can enjoy
more clear picture quality.
DTV receiver
/ DVD Player
Audio cable
Video (Y, Pb, Pr) cable
How to Connect a DTV Receiver or DVD Player
1. Connect the Video cable (Y, Pb, Pr) between output terminals (Y, Pb, Pr) of DTV receiver or DVD player and the
input terminals (Y, Pb, Pr) of DTV/DVD (576i/576p/720p/1080i) on the rear of TV.
(Connect the jacks to terminals in the same color.)
2. Connect the Audio cable between Audio output terminals of DTV receiver or DVD player and Audio input terminal
for DTV/DVD Audio on the rear of TV. (Connect the jacks to terminals in the same color.)

How to Connect to a PC
1. Connect the PC signal cable (15-pin D-sub) between the output terminal of PC and the D-sub input terminal of TV.
2. Connect the Audio cable between Audio output terminal of PC and Audio input terminal for PC on the rear of TV.
(Connect the jacks to terminals in the same color.)
✓If you use DVI connection, you can enjoy better picture quality.
✓This product supports Plug-and-Play function.
✓We recommend the above method if the DVD player or set top box supports DTV signal with DVI/D-sub (15 pin) cable
for better picture quality.
✓If you input an unsupported resolution in PC or DVI mode, the screen won’t be displayed properly.
How to Connect a VCR, Cable Receiver, Camcoder, Game Player
1. Connect the Video cable or S-Video cable between Video/S-Video output terminals of VCR or Cable receiver and
Video/S-Video input terminal of TV. (Connect the jacks to terminals in the same color.)
2. Connect the Audio cable (Left: white, Right: red) between Audio output terminals of VCR or cable receiver and
Audio input terminal of TV. (Connect the jacks to terminals in the same color.)
✓ To enjoy a better picture quality, use the S-Video cable rather than the composite cable.
Audio cable
Video cable or
S-Video Cable
Video/Cable receiver
Game Player
Camcorder
DVI cable (DIGITAL)
D-SUB cable
Audio Cable
or
15
Connections
ENGLISH

16
Connections
ENGLISH
Resolutions Supported in PC
Vertical frequency
70.00
72.80
75.00
70.08
60.32
75.00
72.19
74.55
60.00
70.07
75.03
60.02
74.99
Resolution
640 x 350
640 x 480
720 x 400
800 x 600
832 x 624
1024 x 768
1280 x 1024
1366 x 768
Horizontal frequency
31.47
37.86
31.50
31.47
37.88
46.88
48.08
49.73
48.36
56.48
60.02
63.98
61.27
Video Game Device
Video Disc Player
Satellite Receiver
- F Scart Input : RGB, CVBS - F Scart Output : CVBS
- H Scart Input : CVBS - H Scart Output : CVBS
DVD
VCR
SET TOP BOX
VIDEO(CVBS) + Audio(L/R)
F SCART
TV OUT
TV IN
Scart Connection to the External Input/Output
If you have a second VCR and wish to copy casettes tape. Connect the source VCR to “F Scart” and the target VCR
to “H Scart” so that you can redirect the signal from “F Scart” to “H Scart”.
* “F Scart” sends the TV broadcast signal received through an antenna to a set-top box and receives the
descrambled signal back, which allows you to view TV broadcasts in AV Mode.
* “H Scart” you are capable to record live TV broadcasts on the TV screen. (Please make sure that your TV is “ON”.)
✓When switching voltage comes into the Scart-Pin 8 during viewing a TV program, the current mode will be switched
to Scart mode.

Different OSD Menu
You can confirm OSD menu of three different type.
How to Set the OSD Screen
PC : For supporting Personal Computer connection.
DVI : Digital Visual Interface for using TMDS transmission
reduces the loss of signal.
iDTV : Digital Terrestrial broadcasting for supporting DVB-T
system.
COMP-1 / COMP-2 : For supporting greater color accuracy than
composite video or S-VIDEO by splitting
chrominance into one video signal.
S-VIDEO : For supporting better resolution than composite video,
which carries the signals together.
VIDEO : For supporting the color shade(chrominance) and
brightness(luminance) information into one video signal.
F-SCART - For supporting composite video and RGB video
signals. SCART connectors is used with many
European video equipments.
H-SCART - Basically the same as Full SCART in function but not
supporting RGB Video signals.
ANALOG TV - Terrestrial broadcasting for supporting analog
PAL/SECAM system.
MOVE SELECT EXIT
AUTO PROGRAM
MANUAL PROGRAM
PROGRAM EDIT
LNA OFF
CHANNEL
MOVE SELECT EXIT
AUTO SCAN
MANUAL SCAN
CHANNEL STATE
GUIDE
CHANNEL LIST
FACTORY SET
DTV CHANNEL
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
MOVE SELECT EXIT
50
19
100
100
PC
✓ In case of the source in
Analog TV, S-VIDEO, VIDEO,
F-SCART, H-SCART
✓ In case of the source in iDTV ✓ In case of the source in PC, DVI,
COMP-1, COMP-2
PC
DVI
iDTV
COMP-1
COMP-2
MMP
S-VIDEO
VIDEO
F-SCART
H-SCART
ANALOG TV
CURRENT INPUT
iDTV
MOVE SELECT
17
Connections
ENGLISH

ENGLISH
18
Picture Setup
Press MENU button.
Menu items appear on the screen.
Press button to select “Picture” Icon.
“PICTURE MODE” is highlighted.
Press / buttons, then the menu changes in the following order.
➛STANDARD ➛DYNAMIC ➛MOVIE ➛MILD ➛USER ➛
Press EXIT button to TV viewing or press MENU button to return to the previous
menu.
♦ STANDARD : Most video contents are appropriate to this mode.
♦ DYNAMIC : Clear display
♦ MOVIE : When watching a movie
♦ MILD : Soft display.
♦ USER : When the user wants to set the values directly.
✓ In the user’s mode, the users can adjust their desired contrast, brightness,
sharpness, hue, saturation.
How to Select the Picture Mode
Users can automatically adjust the picture mode according to the input mode.
How to Set the Desired Picture
Users can manually adjust their desired picture
Press MENU button.
Menu items appear on the screen.
Press button to select “Picture” Icon.
“PICTURE MODE” is highlighted.
Press / buttons to select USER .
Select required option by pressing the / button, then Press / button
to adjust.
Press EXIT button to TV viewing or press MENU button to return to the previous
menu.
♦ CONTRAST : Adjust the brightness and darkness of the object and backgrounds.
♦ BRIGHTNESS : Adjust the brightness of the entire picture.
♦ SHARPNESS : Adjust the clarity of object outlines.
♦ SATURATION : Adjust colors into deeper or lighter colors.
1
3
4
2
1
2
PICTURE MODE
CONTRAST
BRIGHTNESS
SHARPNESS
SATURATION
COLOR TONE
SCALE
NOISE REDUCT
MOVE SELECT
STANDARD
STANDARD
WIDE
OFF
@
UP
UP
UP
UP
3
4
5
PICTURE MODE
CONTRAST
BRIGHTNESS
SHARPNESS
SATURATION
COLOR TONE
SCALE
NOISE REDUCT
MOVE SELECT
USER
STANDARD
WIDE
OFF
@
UP
UP
UP
UP

ENGLISH
Press MENU button.
Menu items appear on the screen.
Press button to select “Picture” Icon.
“CONTRAST” is highlighted.
Select required option by pressing the / buttons, then Press /
buttons to adjust.
After selecting COLOR TEMP, then the menu changes in the following order.
➛NORMAL ➛WARM ➛COOL ➛sRGB ➛USER ➛
Press EXIT button to TV viewing or press MENU button to return to the previous
menu.
♦ NORMAL : For a general Color Tone.
♦ WARM : For warm colors with reddish tone.
♦ COOL : For cool colors with bluish tone.
♦ USER : When the user wants to set the degree of RGB directly.
Press MENU button.
Menu items appear on the screen.
Press button to select “Picture” Icon.
“PICTURE MODE” is highlighted.
Press / buttons to move to “COLOR TONE”.
Press / buttons, then the menu changes in the following order.
➛STANDARD ➛WARM ➛COOL ➛
Press EXIT button to TV viewing or press MENU button to return to the previous
menu.
♦ STANDARD : For a general Color Tone.
♦ WARM : For warm colors with reddish tone.
♦ COOL : For cool colors with bluish tone.
How to Set the Desired Picture in PC, DVI Input Modes
Users can adjust Color as users want.
How to Select a Color Temperature
Users can adjust Color as users want.
1
1
3
4
5
2
19
Picture Setup
3
4
2
PICTURE MODE
CONTRAST
BRIGHTNESS
SHARPNESS
SATURATION
COLOR TONE
SCALE
NOISE REDUCT
MOVE SELECT EXIT
STANDARD
STANDARD
WIDE
OFF
@
UP
UP
UP
UP
