STRETTO LED FRONT
HORIZONTAL / VERTICAL
14.1806.COLOUR
14.1815.COLOUR
30
GRAPHITE
14.1806 (Vertical) 14.1815 (Horizontal)
14 15
STAINLESS
STEELALUMINIUM
14.1806.14 / 14.1806.15 / 14.1806.30
TECHNICAL DRAWINGS
14.1815.14 / 14.1815.15 / 14.1815.30
134
74
6,5
74
134
6,5
230V VOLTAGE NOT
DIMMABLE OUTDOOR F-MARK
4,5W WATTAGE Ra 85 CRI IP65 IP RATING CE MARK
DRIVER
INCLUDED 168 lm LUMEN 10 IK RATING
LED BULB
INCLUDED 3000K KELVIN CLASS II
DIT PRODUCT BEVAT EEN LICHTBRON VAN ENERGIE-EFFICIËNTIEKLASSE: G
THIS PRODUCT CONTAINS A LIGHT SOURCE OF ENERGY EFFICIENCY CLASS: G

WWW.MARETTI.COM
2/3
“No rights can be derived from the information provided on this Instruction Manual. Information on the Instruction Manual has been compiled with the utmost care and is updated on a continuous basis. Nevertheless Maretti cannot guarantee that all information is free of errors, complete or fully up to date.”
STRETTO LED FRONT
VERTICAL / HORIZONTAL
INSTRUCTIONS
14.1806.COLOUR
14.1815.COLOUR
WARNING: This lighting tting is installed
in wet location IP65 only if installed on
a backbox 14.1800.00 (separate order)
Remove the back door and the cable-block
supplied
1 2
Insert the power conductors through
the membrane cable entry and connect
to the pushwire terminal block. In case
of through wiring installation use the two
cable entry / each terminal
3
Operate in order to keep the membrane
around the cable towards out
4
14.1812.00 Stretto LED body horizontal
5
14.1802.00 Stretto LED body vertical
5
IP65 index is guaranteed only if the back-box
is completely in line with the surface of the
wall. If it’s not so, you can use the additional
gasket supplied, in order to compensate the
level difference
8
7
Close the back-door and insert the light body
in the back-box. Pay attention to relocate the
wiring inside
6 6
Block the external mask and the light body
to the back-box
7
Replaceable control gear
by a professional
Replaceable (LED only) light source
by a professional
LET OP: Volg en bewaar deze gebruiksaanwijzing.
-Zorg ervoor dat de netspanning uitgeschakeld is voor installatie, reparatie of onderhoud. (Installatie, reparatie en onderhoud uitsluitend door gekwaliceerde personen).
-Voor reparatie of onderhoud uitsluitend originele delen gebruiken. Probeer het product niet zelf te demonteren en te repareren, onjuiste reparaties kunnen het
product beschadigen en elektrische schokken veroorzaken wat tot ernstig letsel kan leiden.
-Om waterdichtheid te verzekeren dient u alle onderdelen handvast aan te draaien.
-Dit armatuur niet openen of installeren tijdens regen of hoge luchtvochtigheid.
-Uitsluitend op het etiket aangegeven lichtbronnen gebruiken.
De fabrikant aanvaardt geen enkele aansprakelijkheid voor letsel of schade als gevolg van een verkeerde toepassing van het armatuur.
De fabrikant aanvaardt geen garantie in geval van het niet behandelen van de lampen volgens de richtlijnen van de fabrikant.
Als er schade aan elektrische onderdelen te vinden zijn, vraag dan een elektricien om het te vervangen.
Onderhoud is behoud:
Een goede instandhouding van het armatuur is sterk afhankelijk van omgevings- en onderhoudsfactoren. Hierop kunnen wij geen invloed uitoefenen.
Alle producten hebben onderhoud nodig, zo ook uw buitenlamp.
-Schakel voor de zekerheid de elektriciteit uit!
-Wij adviseren om 2x per jaar de armaturen te reinigen.
-Gebruik geen agressieve, schurende of chemische schoonmaakmiddelen.
-Aan de directe kuststreek en de Waddeneilanden adviseren we minimaal 1x per kwartaal de buitenlampen te reinigen.
-Goed onderhoud verlengt het plezier en levensduur van uw buitenlampen.
NOTE: Follow and keep this instructions manual.
-Make sure that the mains voltage is switched off before installation, reparation or maintenance. (Installation, reparation and maintenance only by qualied persons).
-Use only original parts for repairs or maintenance. Never attempt to disassemble, repair or alter the product in any way, improper repairs could damage the
product causing electrical shocks which may cause serious injury.
-Make sure all parts are turned hand tight to be sure the item is waterproof.
-Do not open or install this luminaire during rain or highly humid condition.
-Use only suitable light sources indicated on the label.
The manufacturer accepts no liability for any injuries or damages resulting from the incorrect use or installation of the xture.
Any operation performed on the xture that is not in accordance with instructions will void manufacturer’s warranty.
If you nd any damage to the electrical parts, please ask a qualied electrician to replace it.
Maintenance is preservation:
A good preservation of the xture is highly dependent on environmental factors and maintenance. We cannot exercise any inuence on this.
All products require maintenance, including your outdoor xture.
-Make sure that the mains voltage is switched off before you begin.
-We recommend to clean the xtures 2x per year.
-Do not use aggressive, abrasive or chemical cleaners.
-On the immediate coast and the Wadden Islands we recommend cleaning the outdoor xtures at least 1x per quarter.
-Proper maintenance extends the pleasure and lifespan of your outdoor xtures.

WWW.MARETTI.COM
3/3
“No rights can be derived from the information provided on this Instruction Manual. Information on the Instruction Manual has been compiled with the utmost care and is updated on a continuous basis. Nevertheless Maretti cannot guarantee that all information is free of errors, complete or fully up to date.”
STRETTO LED FRONT
VERTICAL / HORIZONTAL
INSTRUCTIONS
14.1806.COLOUR
14.1815.COLOUR

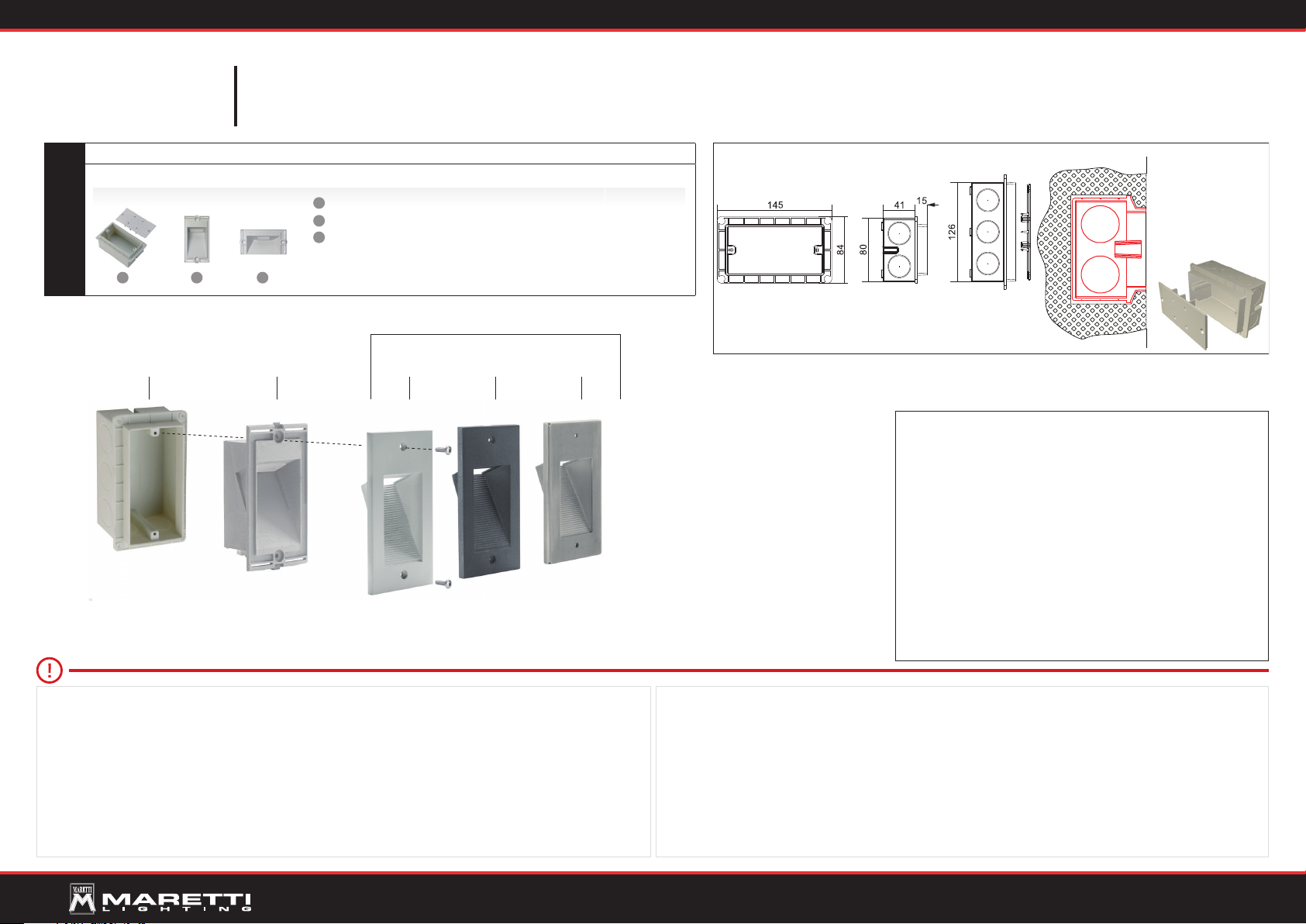

Backbox
separate order
Body
separate order
Aluminium Polycarbonate
Front
Stainless
steel
14.1802.00 14.1806.14 14.1806.30 14.1806.1514.1800.00
ACCESSORIES
SEPARATE ORDER
STRETTO ACCESSORIES (SEPARATE ORDER)
Accessories Article number
Stretto led backbox (L:145 x W:84 x H:56mm) 14.1800.00
Stretto led body vertical (L:130 x W:70 x D:49mm) 14.1802.00
Stretto led body horizontal (L:130 x W:70 x D:49mm) 14.1812.00
1
2
3
1 2 3
*: Stainless steel:
Stainless steel means that the material itself cannot oxidize, but can certainly
attract oxidation from the environment.
Maintenance
Greasy ngers, dirt, surface damage, sea air and iron dust nearby such highways and
railroads or tramway, can damage the oxide layer of stainless steel and corrosion
may arise. Good and regular maintenance of the stainless steel is required. We
hereby advise to use only special chlorine free stainless steel cleaner. This cleaner
forms a protective layer to the stainless steel.
Installation
stainless steel has a natural property to create a protective layer. This 3-day process
starts after removal of the protective lm on the stainless steel. Due to harmful acids
to the hands, the protective lm can therefore only be removed with gloves. The
material is during the process more vulnerable. Avoid therefor the abovementioned
environmental factors and the touch, physically or through the air, with other metals.
The stainless steel should be, after these 3 days, sprayed with a special chlorine free
stainless steel cleaner and mounted with gloves.
Warranty
A good preservation of the stainless steel is highly dependent on environmental
factors and maintenance. Maretti cannot exercise any inuence on this. Therefor
unfortunately we cannot give any guarantees that stainless steel does not corrode.
IP65 protection index
is guaranteed only if
the backbox (separate order)
is perfectly in line with
the wall surface.
IP65 bescherming index
is gegarandeerd indien
de backbox behuizing
(afzonderlijk te bestellen)
perfect in lijn met de wand.
CUTTING DIMENSIONS BACKBOX 14.1800.00 (separate order)
