Maritimo C47 SPORTS CABRIOLET User manual

www.maritimo.com.au
THE WORLD’S FINEST LONG-RANGE MOTORYACHTS
C47 SPORTS CABRIOLET
OWNER’S MANUAL
00_47_prelims.indd i00_47_prelims.indd i 7/12/10 12:49 PM7/12/10 12:49 PM

00_47_prelims.indd ii00_47_prelims.indd ii 7/12/10 12:49 PM7/12/10 12:49 PM

At Maritimo Offshore, we are very conscious
of the competitive nature of today’s boating
market, so to be selected by you as the boat
manufacturer of choice makes us feel proud
of the product we create.
That feeling of pride will be apparent to you
as you become acquainted with your boat.
The effort that the team at Maritimo have
expended, both in design and workmanship,
is now before you to make use of as you wish.
Your Maritimo is a vessel constructed of the
finest materials and workmanship and will
give you years of enjoyment. The engines
and installed equipment will require regular
servicing if they are to deliver their best, these
servicing schedules being covered in the
literature provided by those manufacturers.
We advise you to study them, and if any
doubts arise please consult our dealer.
The safety of you and all who travel on this
boat has been uppermost in our minds
all through the design and construction
stage and we are proud of the strength and
robustness of the vessel; however, the sea is
to be respected, and we urge you to consider
the safety of yourself, your crew and the boat
at all times.
Finally, enjoy! We trust that you will have many
pleasant times.
Bill Barry-Cotter
Chief Executive Officer
THANK YOU FOR CHOOSING A
MARITIMO C47 SPORTS CABRIOLET
00_47_prelims.indd iii00_47_prelims.indd iii 7/12/10 12:49 PM7/12/10 12:49 PM

CONTENTS
I
iv 1 Important Information 1
1.1 Safety Symbols 3
1.2 Glossary of Terms 5
1.3 Warning Signs and Locations 9
1.4 Caution Signs and Locations 13
2 Specifications 17
2.1 Maritimo C47—Specifications 18
2.2 Helm Visibility 19
2.3 Navigation Lights 20
3 Maritimo Warranty 21
3.1 Maritimo Warranty 22
1. Warranty 22
2. Claim Process 22
3. Specific Exclusions from Warranty 23
4. Transferability of Warranty 24
5. Modification of Products by
Maritimo 24
6. Entire Warranty 24
7. Miscellaneous 25
4 Safety 29
4.1 Introduction 30
4.2 Safety Equipment 30
4.3 Galley 30
4.4 Carbon Monoxide 30
4.5 Man Overboard 31
4.6 Rough Conditions 31
4.7 Escape 31
4.8 Refuelling Safety 32
4.9 Fire Extinguishers 32
4.10 Fire-suppression System 33
4.11 Response to Fire 34
5 Engineering 39
5.1 Introduction 40
5.2 Fuel 40
5.3 Contamination in Fuel 40
5.4 Fuel Tanks 41
5.5 Refuelling 41
5.6 Filters and Fuel Lines 42
5.7 Propulsion System 43
5.8 Trim Tabs 43
5.9 Corrosion Protection 44
5.10 Engine Room and Machinery Space 45
6 Plumbing 49
6.1 Introduction 50
6.2 Freshwater Filters and Pump 50
6.3 Salt Water Pump 51
6.4 Plumbing Circuits 52
6.5 Cockpit Shower 53
6.6 Cockpit Wash-down 53
6.7 Anchor Wash 54
C47 SPORTS CABRIOLET
CONTENTS
The photographs and descriptions
used in this book are indicative only
and may not portray the actual craft
or equipment noted on the front of this
publication. Maritimo reserves the right
to alter specifications from time to time
without the obligation to incorporate
these changes in any previously
manufactured products.
00_47_prelims.indd iv00_47_prelims.indd iv 7/12/10 12:49 PM7/12/10 12:49 PM

CONTENTS
I
v
6.8 Hot Water System 54
6.9 Waste Water Plumbing 55
6.10 Sanitation 56
6.11 Operation of Toilet 56
6.12 Waste Storage Indicator 57
6.13 Black Water Tank 57
6.14 Waste Water Diverter 58
6.15 Gulper Pump (Grey Water) 58
6.16 Bilge Pumps 59
6.17 Bilge Alarm Panel 60
6.18 Overboard Discharge 61
7 DC Power 65
7.1 Introduction 66
7.2 Batteries 66
7.3 Battery Maintenance 66
7.4 Battery Control Panel 67
7.5 DC Switchboard 72
7.6 Battery Charger/Inverter 74
7.7 DC Circuits 75
8 AC Power 97
8.1 Introduction 98
8.2 Ship’s Generator 99
8.3 Shore Power (240 volt 50 Hz) 100
8.4 Electrolysis Blocker (240 volt 50 Hz) 101
8.5 AC Switchboard 101
8.6 Shore Power (110/220 volt Hz) 102
8.7 Isolation Transformers 102
8.8 Earth Leakage Circuit Breakers (ELCBs) 103
8.9 Reversed Polarity 104
8.10 Power Inverter 105
8.11 Shore Power Selection (240 volt 50 Hz) 106
8.12 Ship’s Power Selection
(110/220 volt 60 Hz) 110
9 Air Conditioning and Refrigeration 117
9.1 Introduction 118
9.2 Cooling Pump 119
9.3 Operating the Air Conditioning 120
9.4 Cockpit Freezer 121
10 Appliances 125
11 Operating the Boat 133
11.1 Introduction 134
11.2 Operational Checklist 134
11.3 Starting the Engines 134
11.4 Manoeuvring the Vessel 134
11.5 Helm Station Switch Panel 135
11.6 Spotlight Control 136
11.7 Bilge Alarm Panel 136
11.8 Navigation Lights 136
11.9 Engine Control IPS Joysticks 137
11.10 Trimming the Boat 137
00_47_prelims.indd v00_47_prelims.indd v 7/12/10 12:49 PM7/12/10 12:49 PM

CONTENTS
I
vi 11.11 Anchoring 138
11.12 Towing 140
11.13 Deck Working Area 141
11.14 Life Raft Stowage 141
11.15 Man Overboard Recovery 141
11.16 Operating the Dinghy Storage 142
11.17 Operating the Desalinator 144
11.18 Operating the Boarding Platform 146
12 Maintenance 153
12.1 Lifting the Boat 154
12.2 Antifouling 155
12.3 General Maintenance 157
12.4 Environmental Impacts 157
00_47_prelims.indd vi00_47_prelims.indd vi 7/12/10 12:49 PM7/12/10 12:49 PM

1.0
IMPORTANT INFORMATION
01_47_important.indd 101_47_important.indd 1 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
2This manual has been compiled to
help you to operate your craft with
safety and pleasure. It contains
details of the boat, the equipment
supplied or fitted, its systems, and
information on its operation and
maintenance. Please read it carefully
and familiarise yourself with the craft
before using it.
If this is your first boat, or you are
changing to a type you are not familiar
with, please ensure for your own
comfort and safety that you obtain
handling and operating experience
before assuming command. Your
dealer or national boating association
or yacht club will be pleased to advise
you of local schools or competent
instructors.
Please keep this manual in a safe
place and hand it over to the new
owner when you sell the craft.
At all times it is the responsibility of
the master of the vessel to make sure
that the boat is operated in a safe and
dependable manner. The Maritimo C47
is designed for Category B sea
conditions in which wind strength
may exceed Force 8 on the Beaufort
scale with wave heights of up to four
metres. Such conditions may be
encountered on extended voyages
across oceans, or inshore when
unsheltered from the wind and waves
for several hundred miles.

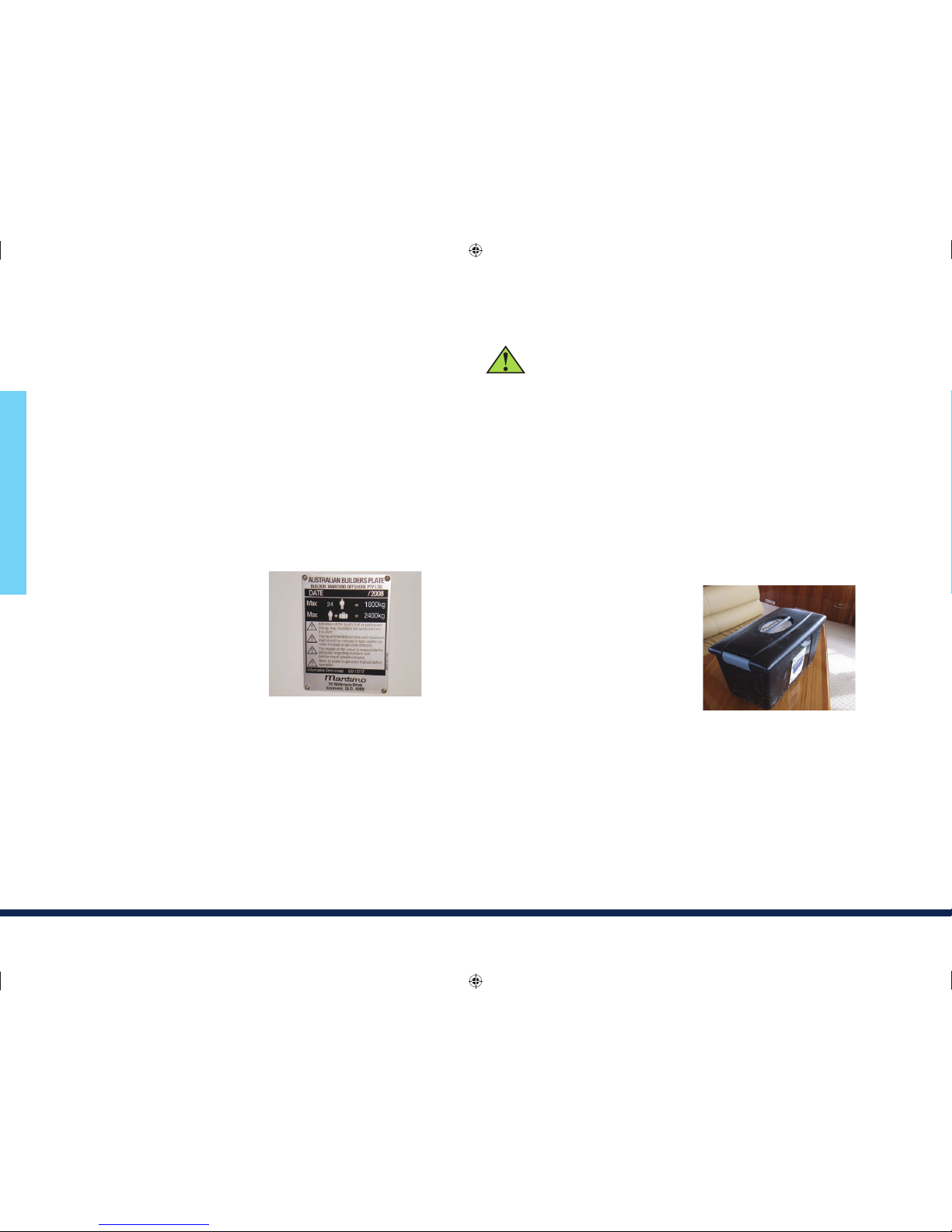

A builder’s plate, as shown, is affixed
to the vessel near the helm station.
This shows the maximum number of
persons (24) or the maximum weight
(mass) of persons (1800 kg) that may
be carried. The maximum weight
(mass) of persons and their portage
is 2400 kg.
Builder’s plate
The unladen mass of the craft,
empty of stores, water and fuel, is
13 840 kg. The standard specified
horsepower of the engines is
870 HP (640 kW). The maximum
recommended load for the craft is
5036 kg and this must be evenly
distributed to maintain the trim of the
boat and secured in such a manner
that it will not shift in a heavy seaway.
To minimise the risk of flooding, it
is important that all the seacocks
to all through-hull openings
should be kept closed unless in
use. The master must be familiar
with their location and know how
to operate them in the event of an
emergency. The starboard side
door and the cockpit door should
be kept closed and all hatches
closed and locked when the boat
is operated at planing speeds and
in rough weather. If water enters
the vessel, the automatic bilge
pumping system will come into
operation; this system can also
be manually activated.
This manual does not attempt to
cover every single item installed
on the boat; rather it is a guide to
the operator on the safe operation
and maintenance of the craft. More
specific and in-depth information
can be found in the relevant
manufacturers’ handbooks that are
supplied with their equipment. They
are located in two BLUE PORTFOLIO
CASES and we urge you to read
these. Please leave them on board
when selling the boat.
Portfolio case
1.0
IMPORTANT INFORMATION
01_47_important.indd 201_47_important.indd 2 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
3
Extreme Intrinsic Hazard Symbol
This symbol denotes an extreme intrinsic hazard which
would result in a high probability of death or irreparable
injury if proper precautions are not taken.
Escape Hatch Symbol
This symbol indicates the direction to the nearest escape,
e.g. hatches, etc.
Attention Symbol
This symbol denotes a reminder of safety practices or
directs attention to unsafe practices which could result in
personal injury or damage to the craft or components.
Flammable Symbol
This symbol is used near flammable liquids, e.g. filler caps,
fuel tanks, etc.
Portable Fire-extinguisher Symbol
This symbol shows the designated place of a portable
fire-extinguisher or the locker where it is stowed.
Refer Owner’s Manual Symbol
This symbol indicates that important information is
contained in the Owner’s Manual and should be read
and understood by the operator of the craft.
Manual Control Fixed Fire-extinguisher Symbol
This symbol is used to indicate the manual control of
a fixed fire-extinguishing system.
!DDITIONALå
)NFORMATION
Additional Information Panel Symbol
The Additional Information panel will be used throughout
this book to alert the operator that additional information
is available in the ship’s portfolio case and should be
consulted as a matter of importance.
Escape Directional Symbol
This symbol indicates the direction to escape. IMPORTANT
This information panel will be used
throughout this book to alert the
operator that additional information
is available in the ship’s portfolio
case and should be consulted as
a matter on importance.
Important Panel Symbol
The IMPORTANT panel will bring the operator’s attention
to systems or actions that are necessary to promote the
correct functioning of the boat.
1.1
SAFETY SYMBOLS
01_47_important.indd 301_47_important.indd 3 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
4
01_47_important.indd 401_47_important.indd 4 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
5
abeam anything at right angles to
the boat
aboard carried on the boat
adrift loose, not on moorings or
towline
aft towards the back of the boat
aground less water than the draft of
the boat
ahead forwards
amidships in or towards the centre of
the boat
anchorage place where a boat can be
anchored, usually in safety
astern behind the boat
aweigh to raise the anchor
batten down make boat secure, generally
against foul weather
beam the greatest width of a boat
bearing the direction of an object
expressed either as a true
bearing as shown on the
chart, or as a bearing relative
to the heading of the boat
below inside the boat
bilge the interior of the hull
below the floorboards
boat hook a pole with a hook at one
end; used to retrieve objects
boot top a painted line on the boat just
above the waterline
bow the forward part of a boat
bow line a docking line leading from
the bow
bowline a knot, probably the most
useful one that can be used
aboard
bridle a line or wire secured at both
ends in order to distribute a
strain between two points
brightwork varnished woodwork
bulkhead a wall separating
compartments
buoy a float used as an indicator
cabin a compartment for
passengers or crew
capsize to turn over
cast off to let go the lines that are
used to moor a boat
chart a marine map for use by
navigators
chine the intersection of the
bottom and sides of a flat
or V-bottomed boat
cleat a fitting to which lines are
made fast
clove hitch a knot for temporarily
fastening a line to a spar
or piling
coaming a vertical piece around the
edge of a cockpit, hatch, etc.,
to prevent water on deck from
running below
cockpit an opening in the deck from
which the boat is handled
course the direction a boat is being
steered
dead ahead directly ahead
dead astern directly aft
dinghy a small, open boat; a dinghy
is often used as a tender for
a larger craft
displacement the weight of water displaced
by a floating vessel; thus,
a boat’s weight
draft the depth of water a boat
draws
ebb outgoing tide
fender a chafing pad, placed
between boats, or between
a boat and a pier, to prevent
damage
1.2
GLOSSARY OF TERMS
01_47_important.indd 501_47_important.indd 5 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
6flare the outward curve of a
vessel’s sides near the bow;
a distress signal
flood incoming tide
following sea an overtaking sea that comes
from astern
fore-and-aft in line with the centreline of
the boat
forepeak a locker in the bow of the
boat
forward toward the bow (front) of
the boat
freeboard the vertical distance from the
waterline to the gunwale
galley the kitchen
gear a general term for ropes,
blocks, tackle and other
equipment
grab rails hand-holds
ground tackle anchor and chain
gunwale the edge of a boat’s sides
hatch an opening in a boat’s deck
head toilet
heading the direction in which the boat
is pointing
headway the forward motion of a boat
helm the location from which the
boat is steered
hull the main body of a vessel
inboard the centre of a boat
jetty a structure, usually masonry,
projecting out from the shore;
a jetty may protect a harbour
entrance
keel the bottom centreline of a hull
knot a measure of speed equal to
one nautical mile (6076 feet)
per hour
latitude the distance north or south
of the equator measured and
expressed in degrees
lazarette a storage space in a boat’s
stern area
lee the side sheltered from the
wind
leeward the direction away from the
wind; opposite of windward
leeway the sideways movement of
the boat caused by either
wind or current
line rope and cordage used on
a boat
log a record of courses or
operation; also a device
to measure speed
longitude the distance in degrees east
or west of the meridian at
Greenwich, England
midships approximately in the location
equally distant from the bow
and stern
mooring an arrangement for securing
a boat to a mooring buoy or
a pier
nautical mile one minute of latitude;
approximately 6076 feet—
about one-eighth longer than
the statute mile of 5280 feet
navigation rules the marine equivalent of the
‘rules of the road’
outboard towards or beyond the boat’s
sides; a detachable engine
mounted on a boat’s stern
overboard over the side or out of the
boat
pier a loading platform extending
at an angle from the shore
01_47_important.indd 601_47_important.indd 6 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
7
pile a wood, metal or concrete
pole driven into the bottom.
Craft may be made fast to
a pile; it may be used to
support a pier (see piling)
or a float.
piling support, protection for
wharves, piers, etc.;
constructed of piles (see pile)
piloting navigation by use of visible
references, the depth of the
water, etc.
planing a boat is said to be planing
when it is essentially moving
over the top of the water
rather than through the water
planing hull a type of hull shaped to glide
easily across the water at
high speed
port the left side of a boat looking
forward; a harbour
quarter the sides of a boat aft of
amidships
quartering sea sea coming on a boat’s
quarter
rode the anchor line and/or chain
rope in general, cordage as it is
purchased at the store; when
it comes aboard a vessel and
is put to use, it becomes line
rudder a vertical plate or board for
steering a boat
running lights lights required to be shown
on boats under way between
sundown and sunup
saloon lounge/dinner area off the
main deck
satellite a form of position finding
navigation using radio transmissions
from satellites with
sophisticated on-board
automatic equipment
scope the ratio of anchor chain or
rope to the depth of water
the boat is anchored in
screw a boat’s propeller
scuppers deck drains
seacock a through-hull valve, a shut-off
on a plumbing or drain pipe
between the vessel’s interior
and the sea
sea room a safe distance from the shore
or other hazards
seaworthy a boat or a boat’s gear able to
meet the usual sea conditions
secure to make fast
set direction towards which the
current is flowing
ship a larger vessel usually thought
of as being used for ocean
travel; a vessel able to carry
a ‘boat’ on board
sole cabin or saloon floor; timber
extensions on the bottom of
the rudder; also the moulded
fibreglass deck of a cockpit
sounding a measurement of the depth
of water
spring line a pivot line used in docking,
undocking, or to prevent the
boat from moving forward
or astern while made fast
to a dock
squall a sudden, violent wind often
accompanied by rain
starboard the right side of a boat when
looking forward
stem the forwardmost part of the
bow
stern the after part of the boat
01_47_important.indd 701_47_important.indd 7 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
8stern line a docking line leading from
the stern
stow to put an item in its proper
place
thwartships at right angles to the
centreline of the boat
tide the periodic rise and fall of
water level in the oceans
tiller a bar or handle for turning
a boat’s rudder or an
outboard motor
topsides the sides of a vessel between
the waterline and the deck;
sometimes referring to onto
or above the deck
transom the stern cross-section of
a square-sterned boat
trim fore and aft balance of a boat
under way vessel in motion, i.e. when not
moored, at anchor or aground
v bottom a hull with the bottom section
in the shape of a ‘V’
wake moving waves, track or path
that a boat leaves behind
it when moving across
the water
waterline a line painted on a hull which
shows the point to which a
boat sinks when it is properly
trimmed
way movement of a vessel through
the water such as headway,
sternway or leeway
01_47_important.indd 801_47_important.indd 8 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
9
Label No. Location Sign
MW1 Lower transom positioned at centre such
as to be readable to persons in water near
swim platform. !WARNING
Rotating propeller can cause
serious injury or death.
Never approach or use ladder
when motor is running.
! WARNING
RISK OF SERIOUS INJURY OR DEATH.
PERSONS MUST NOT BE ON
SWIM PLATFORM OR MARLIN BOARD
WHEN IN OPERATION.
1.3
WARNING SIGNS AND LOCATIONS
IMPORTANT WARNING LABELS AND CAUTION SIGNS
Note: The life of signs on the vessel that are used to alert persons of potential hazards MUST be maintained
in optimum condition. Over time, depending upon location and exposure to cleaning chemicals and ultraviolet
radiation, some or all of these warnings may become difficult to read.
It is the responsibility of the boat owner to replace these signs with new items as necessary.
These signs are available from the selling dealer at all times.
01_47_important.indd 901_47_important.indd 9 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
10 Label No. Location Sign
MW2 Port and starboard boarding gates. Position
near top hinge on the inside of the gate. !WARNING
Prevent falls overboard.
Close latch and stay inside
gate(s) while underway.
MW3 AC and DC Switchboard. Position above
panels.
4OMINIMISESHOCKANDFIREHAZARDS
4URNOFF BOATSSHORECONNECTION
SWITCHBEFORECONNECTINGOR
DISCONNECTINGSHORECABLE
#ONNECTSHOREPOWERCABLEATTHE
BOATFIRST
)FPOLARITYINDICATORISACTIVATED
IMMEDIATELYDISCONNECTCABLE
$ISCONNECTSHOREPOWERCABLEAT
SHOREOUTLETFIRST
#LOSESHOREPOWERCOVERTIGHTLY
$/./4!,4%23(/2%0/7%2
#/..%#4)/.3
!
!WARNING
01_47_important.indd 1001_47_important.indd 10 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
11
Label No. Location Sign
MW4 AC and DC Switchboard. Position above
panels.
%LECTRICSHOCKHAZARD
6ESSELISEQUIPPEDWITHA
$#TO!#INVERTER
$ISCONNECT$#INVERTER
!WARNING
MW5 Engine room. Position near fuel filters.
AVOID SERIOUS INJURY OR DEATH FROM FIRE
RESULTING FROM LEAKING FUEL.
INSPECT SYSTEM FOR LEAKS
AT LEAST ONCE A YEAR.
! WARNING
01_47_important.indd 1101_47_important.indd 11 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
12 Label No. Location Sign
MW6 Engine room. Position on the starboard side
fuel tank near fuel filters.
LEAKING FUEL IS A FIRE HAZARD.
AVOID SERIOUS INJURY OR DEATH FROM FIRE.
KEEP BOTH SIGHT GAUGE VALVES CLOSED,
EXCEPT WHEN CHECKING FUEL.
! WARNING
MW7 Inside of the engine room hatch and
machinery space hatch.
ENGINE COMPARTMENT HAS FIXED
EXTINGUISHING SYSTEM.
TO AVOID ASPHYXIATION, LEAVE
THE AREA BEFORE DISCHARGE.
AFTER DISCHARGE, VENTILATE
BEFORE ENTERING.
! WARNING
MW8 Located in the starboard side locker of
the cockpit.
OPEN TRANSOM GATES
PRIOR TO RAISING
DINGHY STORAGE
! WARNING
01_47_important.indd 1201_47_important.indd 12 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
13
1.4
CAUTION SIGNS AND LOCATIONS
Label No. Location Sign
MC1 1: Engine room on port and starboard
fuel tanks.
!#!54)/.
4!.+"%().$
$/./4$2),,/23#2%7
2: Machinery space on port and starboard
fuel tanks.
!#!54)/.
4!.+"%().$
$/./4$2),,/23#2%7
01_47_important.indd 1301_47_important.indd 13 22/11/10 10:04 AM22/11/10 10:04 AM

IMPORTANT INFORMATION
I
14 Label No. Location Sign
MC2 Port and starboard shower recesses.
Position on shower door above hinge. CAUTION
To avoid damage, secure shower door
in open position when underway.
!
MC3 Port and starboard shower recesses.
Position on shower door above hinge. CAUTION
AVOID INJURY FROM SLIPS AND FALLS.
Using toilet and shower when the
boat is in motion can result in injury.
!
01_47_important.indd 1401_47_important.indd 14 22/11/10 10:04 AM22/11/10 10:04 AM
