Sevylor HUI 100 Product manual

I NFLATABLE BOATS
READ THE FOLLOWING
INSTRUCTIONS AND WARNINGS TO AVOID
DROWNING OR SERIOUS INJURY
WARNING:
•Not a life saving device.
•Not for use by children without adult supervision.
•Always wear an approved Personal Flotation Device
(Life Preserver).
•Do not overload.
•Never tow from another boat or vehicle.
•Use only in water away from debris and obstructions.
•Do not use in high wind, strong currents, open water or
dangerous tides.
•Be familiar with the area you intend to use the product.
•Never allow diving into or from these products.
•Never leave in or near water when not in use.
•Know and follow local water safety rules and boating
regulations.
•Use only in protected waters.
•Do not use this product under the influence of alcohol
or drugs.
•Do not over inflate.
•Follow inflation sequence on the product.
Including the following Model Series:
Colossus™ and HUI
INFLATABLE BOATS
®
®
®
®

INFLATABLE BOATS
®
®
IMPORTANT INFORMATION
The warnings below relate to various situations. Please observe them.
CAUTION!
Denotes a imminent hazard which will result in severe injury if you
do not comply with the instructions.
WARNING!
Reminds you of safety measures which must be observed. Also
denotes unsafe practices which could result in personal injury or
damage to the product or property, if you do not comply with the
instructions.
CAUTION!
It is the owner's responsibility to make sure all users carefully
read and follow the instructions for safe operation of this
product. Observe all local and national laws. Always wear a
Personal Flotation Device approved by the proper authorities.
Please carefully observe the Capacity Plate information which
is printed on the product.
WARNING!
These products are not meant for towing because the extreme
pressure of the water while towing can tear the eyelets and/or
handles. These products are not meant to be used in whitewater.
CAUTION!
Altering the construction of these products could jeopardize the
safety of the occupants and will void the limited warranty.
CAUTION!
Keep boat away from gasoline, battery acid, solvents, etc., as they
can damage the product.
2

INFLATABLE BOATS
®
®
INFLATION INSTRUCTIONS
CAUTION!
Do not over inate. Pressurize product to "Ination Pressure"
stated in the chart for your specic product.
WARNING!
Never use a compressor, CO2or compressed air to inate the
product. Do not let Your product come into contact with sharp,
pointed objects.

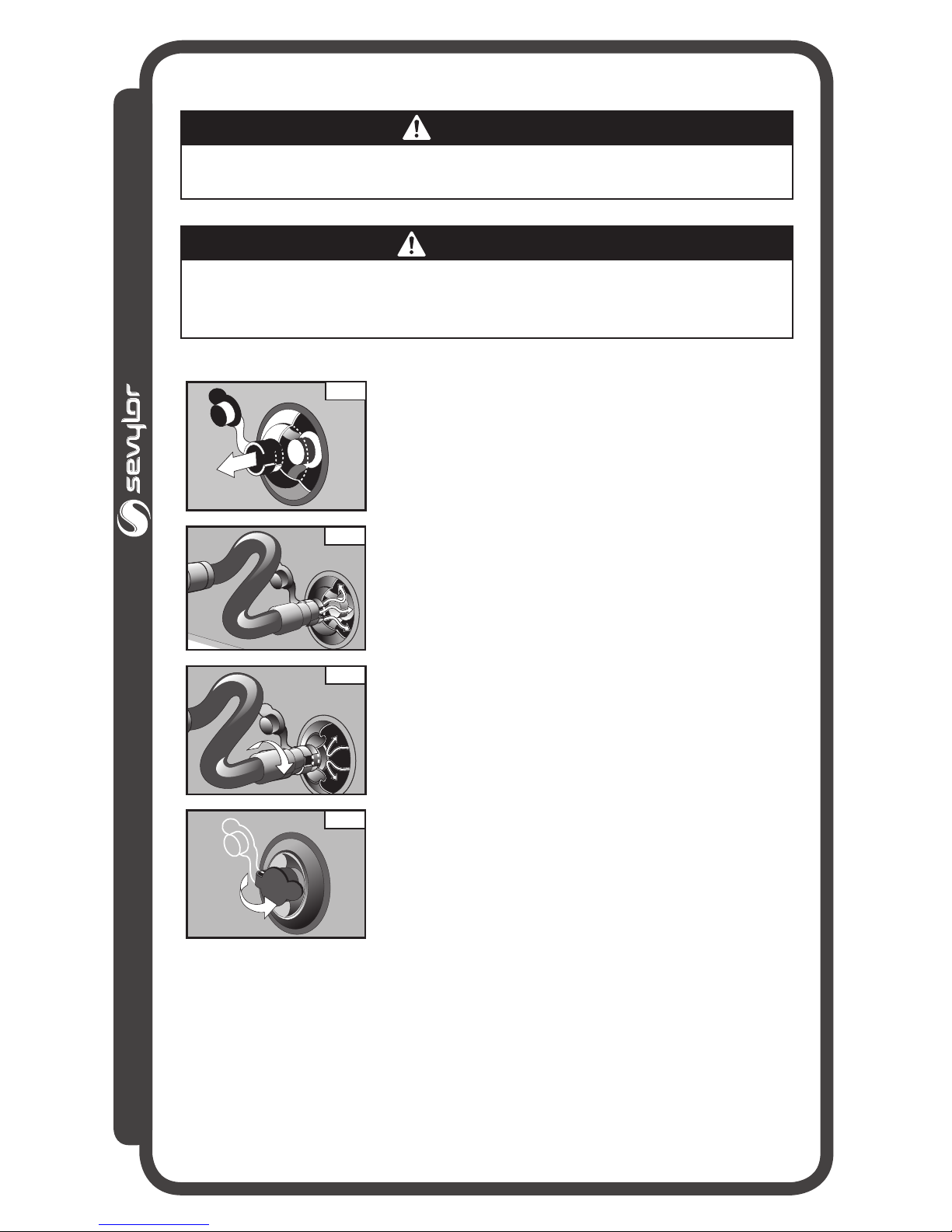

To inate using any Sevylor®Pump:
3
1
2
3
4
1. To begin inflation, open external cap and pull firmly on
the lanyard to extend out. This will open internal yellow
seal.
3. When fully inflated, seal valve by pushing in with
adapter nozzle. This will seal the internal yellow
stopper and keep air from escaping while closing cap.
Gently twist adapter while backing hose out of valve.
2. Attach nozzle of hose to inflation end of pump. Insert
adapter nozzle into valve and start pumping.
4. Fully remove pump and hose and close external cap.
Valve should appear depressed into itself.

INFLATABLE BOATS
®
®
IMPORTANT! Inate the product chambers in the following order:
1. Inate the inside all-around safety chamber.
2. Inate the oor chamber(s).
3. Inate the outside main chamber.
The chambers on the product will be numbered to indicate order of
ination also. This order of ination will ensure the proper volume and
buoyancy of the safety chamber.
Note: To inate the mini double lockTM valve, which is used on some
of the Sevylor boat oors and seat bottoms, follow the same ina-
tion instructions above, using the mini double lockTM valve adapter.
The mini Double Lock™ valve adapter is included with all Sevylor®
pumps. The adapter can be purchased from Customer Service by
calling 1-800-835-3278 (Part Number 5010000707).
CAUTION!
Water temperature and weather do affect the pressure in inatable
products. In cold weather your product will lose some pressure due
to the fact the air will contract. If this occurs, you may want to add
a little air to improve your product’s performance. However, in hot
weather, the air will expand. You must let some air out to prevent
your product from failing due to overpressure. You should avoid
exposing your product to extreme temperatures (hot or cold).
DEFLATION INSTRUCTIONS
Deation instructions using any Sevylor®Pump:
4
Remove nozzle of hose from inflation end and attach to
opposite deflation end of pump. Repeat same steps as
inflation. This will draw the air out quickly.

INFLATABLE BOATS
®
®
Persons
Capacity
Maximum Pay-
load Capacity Engine Inflation Pressure
Inflation
Pressure
Model # Persons Only
Persons, Gear,
Motor
(if applicable)
Max. HP Engine Main
Chamber(s)
Floor
Chamber(s)
HUI 100 1 Pers. or 190
lbs. 190 lbs. N/A 0.4 PSI 0.4 PSI
HUI 200 2 Pers. or 370
lbs. 370 lbs. N/A 0.4 PSI 0.4 PSI
HUI 400 4 Pers. or 650
lbs. 650 lbs. N/A 0.4 PSI 0.4 PSI
WARNING!
Do not exceed the certied maximum capacities under any circumstances!
WARNING!
Do not exceed the certied maximum capacities under any circumstances!
Persons
Capacity
Maximum Pay-
load Capacity Engine Inflation Pressure
Inflation
Pressure
Model # Persons Only
Persons, Gear,
Motor
(if applicable)
Max. HP Engine Main
Chamber(s)
Floor
Chamber(s)
Colossus™
2 Person Boat
2 Pers. or
435 lbs. 435 lbs. N/A 0.5 PSI 0.5 PSI
Colossus™
3 Person Boat
3 Pers. or
680 lbs. 680 lbs. N/A 0.5 PSI 0.5 PSI
Colossus™
4 Person Boat
4 Pers. or
840 lbs. 840 lbs. N/A 0.5 PSI 0.5 PSI
5
WARNING!
Do not attempt to mount a motor on any boat that does not state a
Max. HP Engine rating.

INFLATABLE BOATS
®
®
6
OPERATING INSTRUCTIONS:
•Follow all local boating regulations and navigation rules.
Familiarize yourself with boating conditions where you plan to use
the product. Use common sense and caution when operating in
unfamiliar places.
•Observe the maximum weight the product can carry and do not
overload past this limit. Over-loading jeopardizes the safety of the
occupants.
•Be sure all accessories and/or equipment (e.g. oars, life jackets)
are in proper working condition before using the product. Each
person occupying the product is to wear an approved Personal
Flotation Device (life preserver).
•Sharp objects are not to be carried in the product without
adequate protection or storage.
•When navigating the product in any water depth, watch for
submerged or sharp objects that may damage or pierce the
product’s air chambers.
•Enter the product from the port (left) or starboard (right) sides -
not from the fore (front) or aft (back) sides.
•Never tow with a boat or any other vehicle.
DANGER!
CARBON MONOXIDE (CO) CAN CAUSE PERSONAL INJURY,
BRAIN DAMAGE OR DEATH.
Carbon monoxide is an odorless, colorless, extremely toxic gas.
Symptoms of carbon monoxide poisoning are dizziness, ears
ringing, headaches, nausea and unconsciousness.
Have the victim breathe fresh air deeply. If breathing stops,
resuscitate. A victim often revives, then relapses because organs
are damaged by lack of oxygen. Seek immediate medical attention.
WARNING!
ROTATING PROPELLER MAY CAUSE SERIOUS INJURY OR DEATH
•Keep away from the rear of boat while engine is running.
WARNING!
•DO NOT mount a motor on any boat that exceeds the Maximum
Horsepower rating for your specic boat model. See pages 5.
MOTOR MOUNTING

INFLATABLE BOATS
®
®
7
WARNING!
AVOID SERIOUS INJURY OR DEATH
•DO NOT sit on the side tubes while the product is underway.
Sudden movement of the product will cause you to lose balance
and fall. Sit on the oor or on the seating cushion and use the
grab line to prevent loss of balance.
PROPER SEATING LOCATION
CARE & STORAGE:
•Your product is made of the highest quality materials. Altering
the construction of your product will void the limited warranty and
could jeopardize the safety of the occupants.
•If your product has been used in salt water, rinse it off with fresh
water as soon as possible.
•Remove tar spots or other soiled areas by using a mild soap and
rinsing with fresh water.
•Be sure Your product is completely dry before storing.
•The product may be stored inated, but do not place any heavy or
sharp objects on or near it. Storage is best in a dry room.

INFLATABLE BOATS
®
®
8
R
R
RR
RR
R
R
RR
RR
RR
R
R
RR
RR
RR
Grab Line
Grab Line
4 Oar Locks
2 Oar Locks
2 Oar Locks
4 Air
Chambers
4 Air
Chambers
3 Air
Chambers
8 Rope Holders
with Oar Storage
Clips
8 Rope Holders
with Oar Storage
Clips
Front
Handle
Front
Handle
Front
Handle

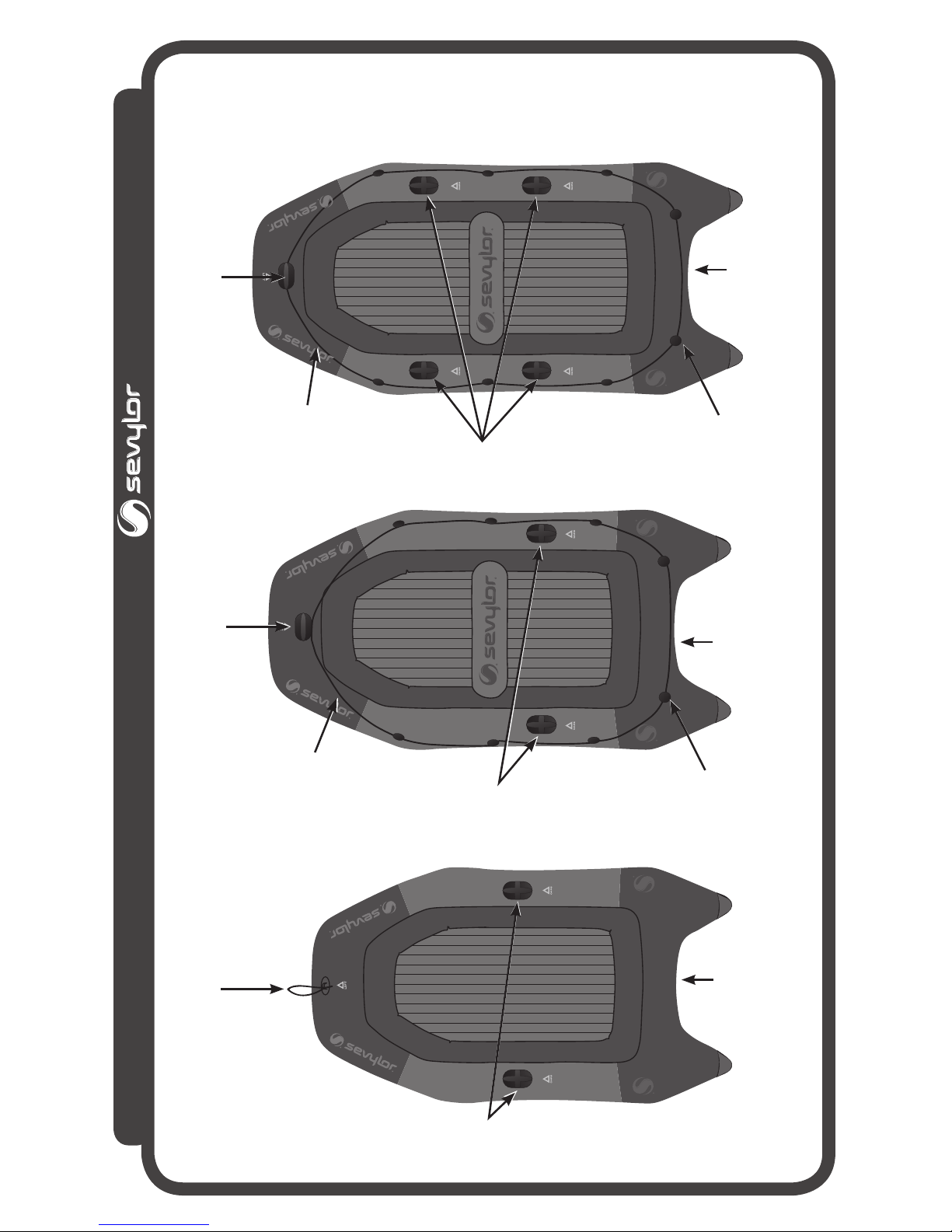

4 PERSON
3 PERSON
2 PERSON
Colossus™ Models

INFLATABLE BOATS
®
®
9

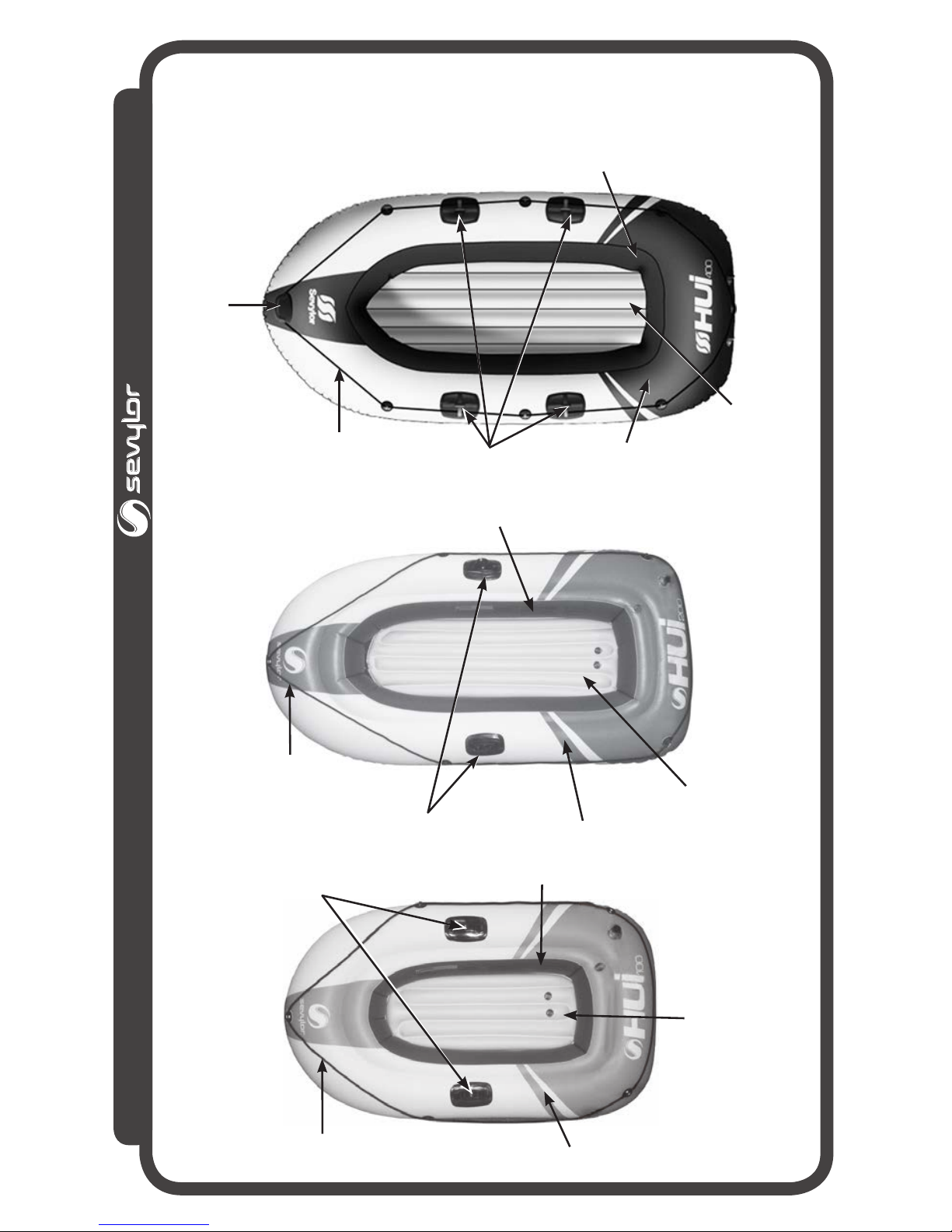

HUI 400
HUI 200
HUI 100
HUI Models
Carry
Handle
Grab Line
4 Oar Locks
DIN Safety Chamber
Main Chamber
Inated Floor-
2 Chambers
2 Oar Locks
Main Chamber
Inated Floor-
2 Chambers
DIN Safety Chamber
Grab Line
Inated Floor-
2 Chambers
Grab Line
2 Oar Locks DIN Safety Chamber
Main Chamber

INFLATABLE BOATS
®
®
10

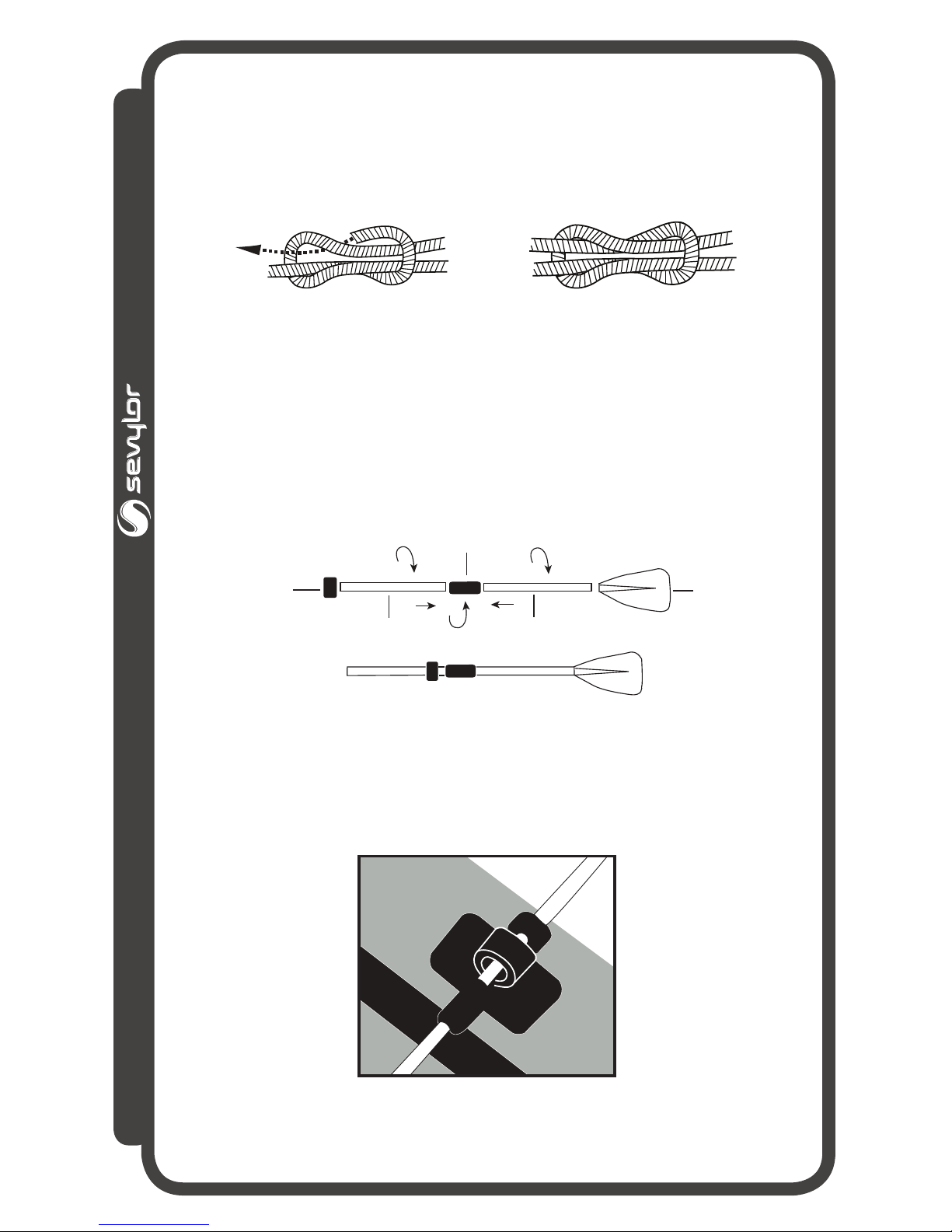

GRAB LINE INSTALLATION:
IMPORTANT: To properly install the inatable boat’s grab line, rst
inate the product. Feed the grab line through the eyelets on each of
the rope holders. Then tie the two loose ends in a square knot at the
rear of the product.
The assembled oar is to be inserted into the oar locks from the
outside of the product. The oar retainer ring is then placed onto
the top half of the assembled oar, from the inside of the product, to
prevent the oar from sliding into the water (see below).
OAR ASSEMBLY:
(for models with oar included)
Join the two shafts together by screwing them together into the
coupler. Attach the blade to the shafts by screwing in into the bottom
of the shaft.
Replacement Part #2000004151
Square Knot
Retainer
Ring
Coupler
Shaft Shaft
Blade

INFLATABLE BOATS
®
®
11
REPAIRING SMALL PUNCTURES
Inadvertent punctures can be repaired using 3 different methods
described below.
Included “Sticky Back Repair Patch” (included with select models
only)
1. Thoroughly clean and dry the damaged area. Completely deate
the product.
2. Cut a portion of the patch to cover the puncture and allow an
additional ¼" on all sides. Always cut a round or oval patch, never
leave square corners.
3. Be sure the repair area is completely dry.
4. Peel the backing from the patch.
5. Adhere the patch to the puncture.
6. Using your thumb or nger, apply even pressure across the entire
surface of the patch.
Included Vinyl Repair Patch (included with select models only)
If your model does not include the Sticky Repair Patch noted above,
then it will come with a Vinyl Repair Patch. This vinyl repair patch
does not include vinyl glue, but it can be purchased from any home
or hardware store (PVC cement).
1. Thoroughly clean and dry the damaged area. Completely deate
the product.
2. Cut a portion of the patch to cover the puncture and allow an
additional ¼" on all sides. Always cut a round patch, never leave
square corners.
3. Be sure the repair area is completely dry.
4. Apply generous coat glue to the vinyl repair patch and to the
product.
5. Allow the glue to dry for 2 to 3 minutes, or until the glue becomes
tack y.
6. Apply the patch to the product, using your thumb or nger; apply
even pressure across the entire surface of the patch. Make
sure the edges of the patch are pressed down along the entire
diameter.
7. Allow the product to dry for at least 10 hours before inating and
using.
You may purchase the Sevylor®Repair Patch (2000014178) which is
a no-glue, pressure sensitive patch great for tears up to 1 inch long.
You may also purchase the Sevylor®Air Seal (2000015201) which is
a special no patch liquid that will repair pinholes in 5 minutes. These
and more products can be found by calling Coleman Customer
Service at 1-800-835-3278 or by visiting www.sevylor.com.

INFLATABLE BOATS
®
®
4010042075 (ECN20044079-01)
© 2014 The Coleman Company, Inc. All rights reserved.
Double Lock™ and Colossus™
are trademarks of The Coleman Company, Inc.
Sevylor
®
and
®
are registered trademarksof The Coleman Company, Inc.
3600 North Hydraulic • Wichita, KS 67219 U.S.A.
1-800-835-3278 • www.Sevylor.com
®
®
