MOVILED 105/4
User Manual / Instrucciones de Usuario

1. Production Introduce
Thank you for choose this MOVILED 105/4 product, this model is the newest led moving head light
which is the latest development of the smart, efficient products, beautiful shape, smooth R & D,
combined with the advanced technology of today's stage lighting products with international
advanced electronic control technology and excellent user- friendly industrial design.
MOVILED 105/4 Led light, use 7pcs
high brightness 15 w RGBW 4 IN 1 LED source, By
careful arrangement and design, make the R,G, B,W mixing evenly and colour is pure. Through
the built-in microprocessor control, Use the high precision of constant current control mode, the
R.G.B.W. can realize independent 0-255 of brightness adjustment, rich color changes.
Through
the menu calls the built -in program, for scenario editor and setting sound, master-slave control
mode, can do rainbow, variable strobe and electric dimming effect.
MOVILED 105/4 has quick response speed, impact resistance, good heat dissipation. Long
using life (the life of the LED is over 100000 hours) no radiation, high efficiency and energy
saving, low energy consumption, the real green products. Accept international DMX512 signal
mode.
MOVILED 105/4 applications
very widely, installati on is simple and can be used for lighting
in large
fixed stage, the background wash, large-scale theatrical performances, stadium lighting, temporary
stage shows, television stations, conference center, professional theaters, dance halls, bars, small
theatrical performances, and public environment illumination.
2. Fixture Size

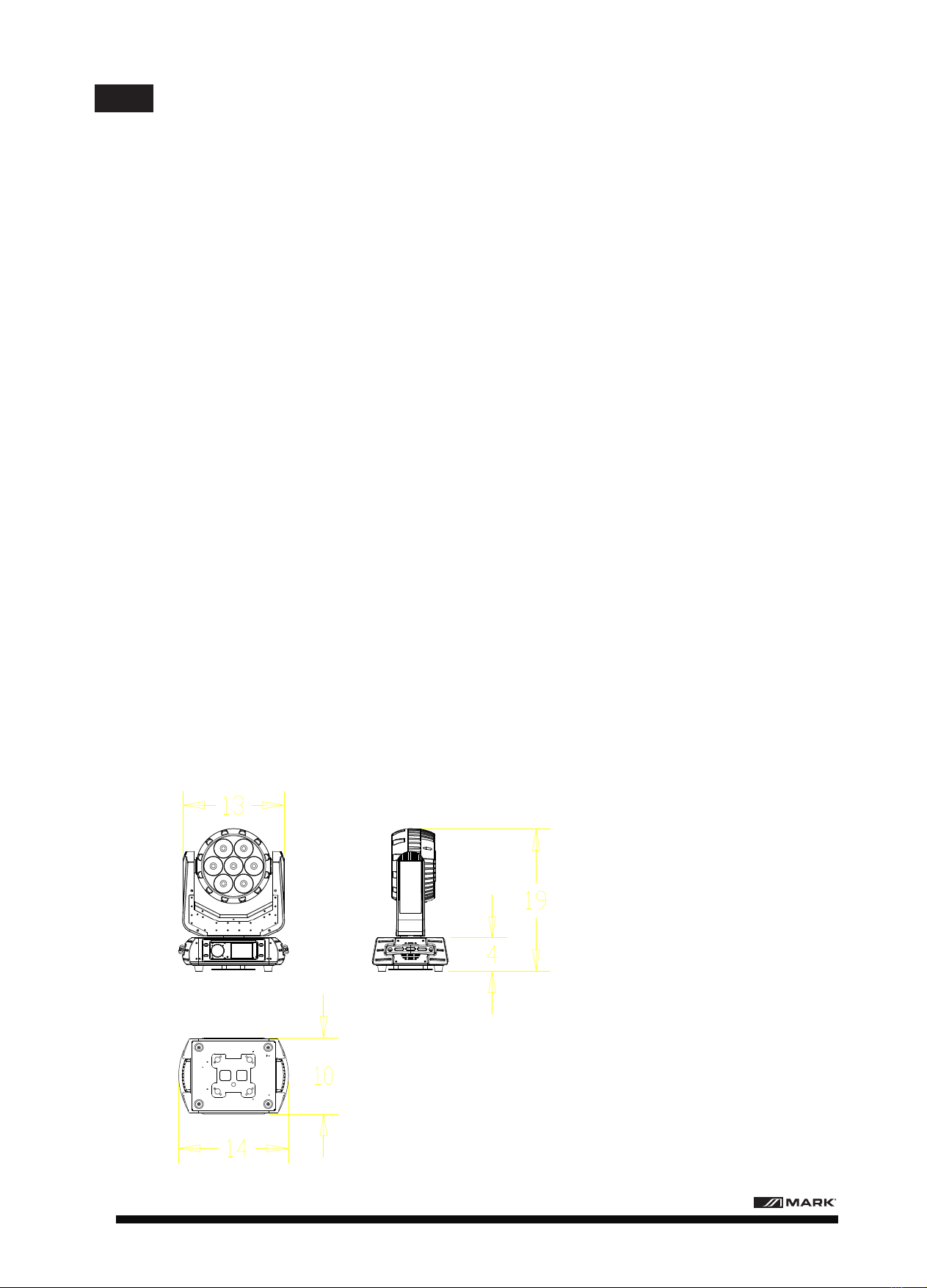

Dimension：337（L）×256（W）×352（H）mm
MOVILED 105/4 User Manual/Manual de uso 1
EN

3. Parts Introduce
4. SAFETY INFORMATION
Safety Warning: This product is only suitable for professional use, and does not apply to security
for other purposes. When you got the lights, please check the package whether have any damage
caused by transportation. If there is any damage, do not use this fixture, and please contact the
dealer or manufacturer as soon as possible. This product is only suitable for indoor, IP 20
protection class. Lamps should be kept dry to avoid Moisture, overheating or dusty environment.
Prevent lamps come into contact with water or any other liquid.
Please read the instructions before use energized or installing.
Follow through the operation of security methods and pay attention to the warning signs
on the specification and equipment.
Head
Cover
Lens Component
PCB Board
Arm Shell
Handle
Touch Screen
Horizontal Cover
Die casting aluminum radiator
Base Shell
Display Shell
Control Wheel
Head Back Cover
Focus lens component
Touch Screen Battery Button
MOVILED 105/4 User Manual/Manual de uso 2
EN

4.1 ANTI -HIGH TEMPERATURE
ta =40°C
Please don’t use the equipment if the temperature above 40℃
4.2 TO PREVENT FALLING WOUNDING
When Hang the fixture, please must verify that the facilities to be able to withstand at least 10
times or more weight of fixtures.
Please make sure the Mounting hardware is strong enough no any damage, and insurance for
the safety rope as auxiliary security fixed in other facilities will need to verify before installation.
Installing or removing the equipment, to make the pulley below the work location
4.3 UA PROTECTION
Forbid straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be timely replaced if any damage to rupture.
4.4 PREVENTION OF ELECTIC SHOCK
The electrical connection must only be carried out with corresponding qualifications;
Before installing, make sure you use the power voltage must comply with the
identified power, voltage and have an overload or leakage protection;
Each fixture must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when stall or replace the lamp and the fuse;
Forbid using the fixture in storm or wet environment.
4.5 TO PREVENT BURNING OR FIRE
1. The fixture can't be mounted directly on the surface of ordinary combustible material.
2. The equipment must be installed away from inflammable and explosive materials.
3. The highest temperature is 40 ° C when the equipment is in stable state.
4. The equipment can not have an obstacle at least in the range of 0.5 meters.
5. Do not replace the non-original parts.
5. Packing and Shipping
5.1 ATTACHMENT
Attach follow accessory.
Content Quantity
User Manual 1
DMX Cable 1
Safety Rope( charge) 1
MOVILED 105/4 User Manual/Manual de uso 3
EN

6. INSTALL STANDARD
Please ensure that make regular security checks for the lights and installation accessories.If lack
of these working conditions and professional level,
please let the relevant professional person do,
unprofessional incorrect operation can lead to life-threatening.
The equipment suitable environment temperature range is 0OC - 40OC, don’t use it in too high or
too low temperature. When the equipment is on installation, dismounting ,
removing or
repairing,please don't stay in the right below of the fixture . The operator must ensure that the
fixture is a secure connection. Please let professionals to check its electrical parameters before
installation. Make sure the related experts check
these installation once a year.
6.1 Rigging Installation
MOVILED 105/4 can put on the stage or install on the bracket in any direction, the rapid locking
system can lock it on the bracket fast and easily according to the following picture 2 direction.
6.2 EQUIPMENT FIXED
1. Before installation must verify the fast lock is keep in good state, and can withstand at least
10 times the weight of product. Verify that the building can withstand at least 10 times of
the total weight of the product and accessory equipments.
2.Use the bolt and Nuts of M12 lock the hooks and fixture.
MOVILED 105/4 User Manual/Manual de uso 4
EN

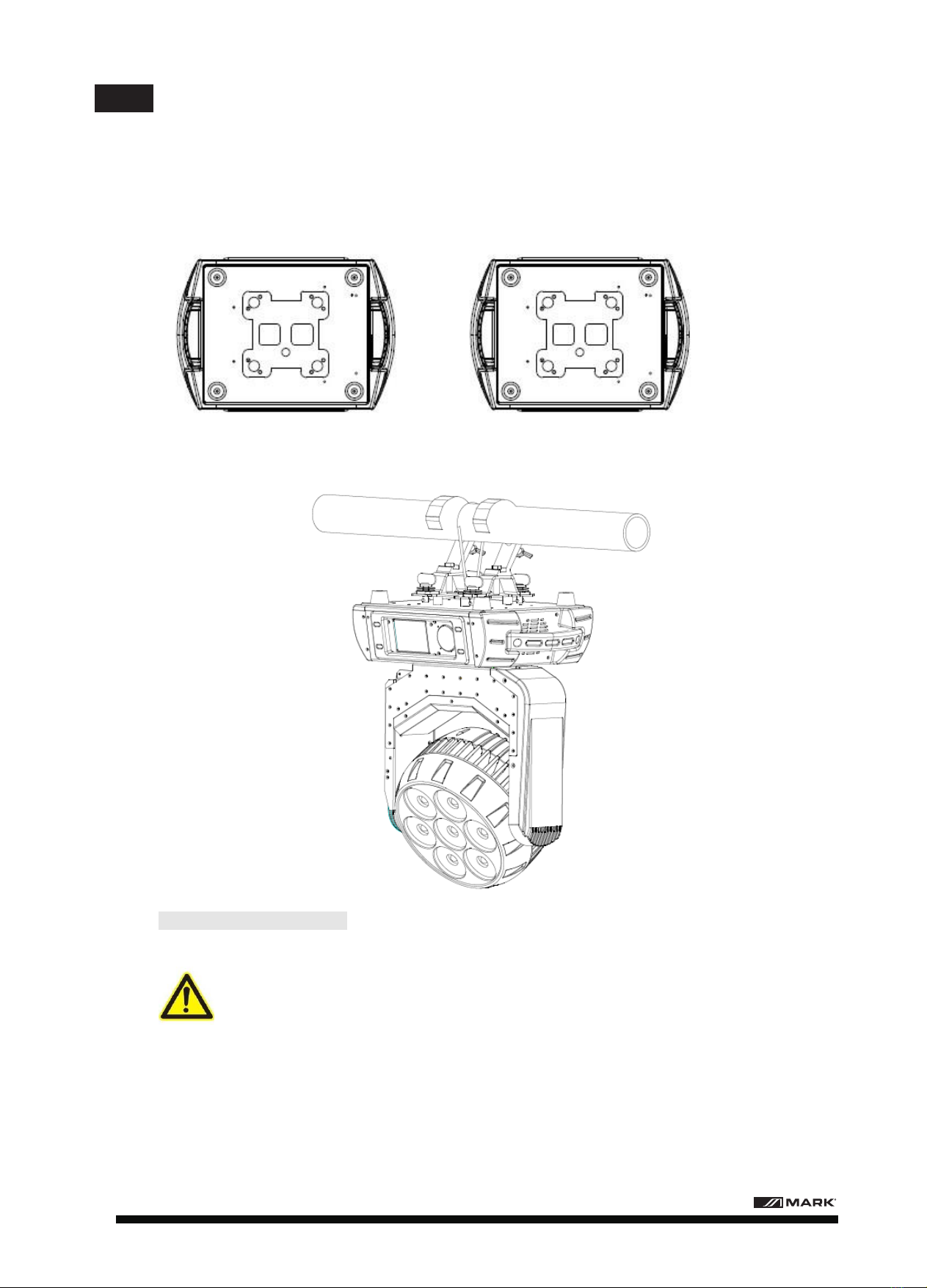

3. Fix the hang fixture into the hole, which located on the base of the light.
Seize handle of fasteners, clockwise rotate 1/4 turn and lock. Installed other one fastener in
the same method.
As the pictures show, the two square holes in the center of the base is the safety rope junction.
4. Using the safety cable which can withstand 10 times the weight of the equipment.
5. Make sure the X,Y protect locks are opened, Verify that within 0.5 meters there is no
combustibles .
6.3 EQUIPMENT CONNECT
Attention! One product only can accept one input and one output.
MOVILED 105/4 has DMX input and output 3pin and 5pin connection socket.
Pin 1, FOR GROUND; Pin 2 connected to the negative polarity signal; The pin
3connected to the positive polarity signal.
DMX512 cable must use the professional shielded twisted pair cable.
MOVILED 105/4 User Manual/Manual de uso 5
EN

DMX 512 signal amplifier.
Do not use two outputs to separate the connection, if separate a continuous connection
to branch, DMX512 splitter is necessary.
Attention! vertically up to put the fixture, the shortest safe distance between the
fixtures must be≥900 mm, the installation layout diagram as shown in the picture.
To prevent the reflection and interference of receiving the control signals, we must
install a terminal plug at the end of each branch of 3pin or 5pin output socket. Terminal plug
(welding a 0.25W 120 Ω resistor between the 2 and 3 pin of 3pin or 5 pin socket.
6.4 CABLE CONNECTION
Connect the DMX data : from the controller to the near est controller equipment 3pin or 5pin
socket, and then from th is equipment output connected to the next equipment input, like this
continuous connecting, finally the output of the terminal equipment for the data cable insert a
terminal plug.
If use DMX512 distributor, the controller co nnect to the DMX512 distributor’ s input firstly,
then connect the next equipment from the output of the distributor, according to this method,
Finally match the terminal plug.
7. AC power..
7.1 VOLTAGE , FUSE SPECIFICATION
Input Voltage Fuse
200 -240V 5A 5×20（Main fuse）
100 -120V 10A 5×20（Main fuse）
MOVILED 105/4 User Manual/Manual de uso 6
EN

7.2 Power Connection
The equipment must be operated by professionals; Make sure that the voltage of
power supply must be comply with the voltage identified on the device, and must have
an
overload or leakage electrical protection.
ATTENTION!
The equipment directly connected to the power supply.
Factory has equipped the standard 3 pin plug socket. Connect the power supply as below table.
Yellow and green wire could be connect to ground.
If the cable of the fixture is damaged, replacement should be operate by factory or qualified staff.
Wire Colour Plug Mark
Brown Live wire L
Blue Null N
Yellow+Green Ground wire
8. CONTROL PANEL MENU OPERATE
1: The indicating arrow in the right below is enter the menu (click the menu).
2: The touch screen display have four operation key : Exit, Upward, Downward, Enter, press it will
execute orders accordingly.
3: Can change the parameter Settings directly on the touch screen
4: Also can use the wheel on the left side of touch screen to change the parameter Settings
5: The equipment have built-in temperature sensor, the temperature will display on the bottom left
corner of touch screen. When over the rated temperature, the equipment will start the automatic
protection function.
6: When the equipment receive the DMX512 signal ,the blue ligh t on the top right lights up, the
left side show have connected the XLR Socket..
CONTROL PANEL MENU OPERATE
Address
DMX Address number set 001-512
Transfer Rate 029
Data 506
Signal quality 100%
Start Code 000
Fixed ID set 0-4096
Return
Special White Balance Off
MOVILED 105/4 User Manual/Manual de uso 7
EN

White Balance Red (0-100%)0 -255
White Balance Green (0-100%)0 -255
White Balance Blue (0-100%)0 -255
White Balance White (0-100%)0 -255
Dim Mode Fast
Slow
ChunMode
Smal
Stan
Exte
RunMode
DMX
Auto
Musc
SigClear Open
Off
Signal Reset Open
Off
Rainbow Exec
Annu
Return
InfoSee
Total Tim 00048：00
WorkHour 00000：03
Times 0000：61
ClearTim -- -- --
ClearTim -- -- -
Touch Screen_Control Vtft.01(Software version)
XY _Control (Software version )
LED _Control (Software version)
Return
Control
Channel 01 (25%) 64
Channel 02 (50%) 127
Channel 03 (100%) 255
... ... ... ... ... ...
Channel118 (25%) 64
Channel119 (50%) 127
Channel120 (100%) 255
Display
ShowReve Natu
Revl
Language Chin
Engh
BrigSett 0%-100%
Backligh Ligh
90s
MenuBack Off
MOVILED 105/4 User Manual/Manual de uso 8
EN

60s
Return
XY Setup
X Reverse Off
Open
Y Reverse Off
Open
XY Speed
Fast
NORM
Slow
X Angle 540°
360°
XY Fback Open
Off
Pan 0-255
Tilt 0-255
Focus 0-255
Return
9. Technical specification
product specification:
1： Power consumption
：150W
2: LED Quantity：7pcs 4 in 1 leds
（
RGBW）
3：
4：
2.8-inch touch screen display, Can be set up very intuitive personalization capabilities.
5：
Super quality lens
6：
Single Lens Angle: 5 degree
7：
Beam/Zoom Angle: 5 degrees, three linear motor adjust the lens angle.
8：
Control Mode：Simple mode, Standard mode, Extended mode
9：
Each led RGBW can be individual control 256 level of brightness control.
10：
With sound and master-slave mode control function
Many strobe and rainbow effect.
11：By using constant current control of each color, its brightness maintain on the same level no
matter in single fixture control or multiple fixtures control.
12：Pan scanning use 3phase motor
：540º 8Bit(16Bit scanning precision),
13：Tilt scanning use 3phase motor
：245º 8Bit(16Bit scanning precision),
14: Pan and Tilt adopt photoelectric reset system, can automatically inspect and reset,
15：DMX512 signal reception
16：Built-in temperature detection protection function.
MOVILED 105/4 User Manual/Manual de uso 9
EN

10. DMX Control Channel Mode
Three control models
1: Simple mode 2：Standard mode 3：Extended mode
Standard
mode
Simple
mode
Extended
mode
DMX
VALUE
Function
CH1 CH1 CH1 0-255 PAN
CH2 CH2 0-255 PAN 16BIT
CH3 CH2 CH3 0-255 TILT
CH4 CH4 0-255 TILT 16BIT
CH5 CH3 CH5
Speed Pan/Tilt movement;
0-225 Max to min speed
226-235 Blackout by movement
236-255 NO function
CH6 CH4 CH6
Pan Motor continuous rotation
0-127 no function
128-189 Forwards Pan rotation from fast to
slow
190-193 No fotation
194-255 Backwards Pan rotation from slow
to fast
CH7 CH5 CH7
Tilt Motor Tilt rotation from fast to
slow
0-127 No function
128-189 Forwards Tilt rotation from fast to
slow
190-193 No rotation
194-255 Backwards Tilt rotation from fast to
slow
CH8 CH6 Red LED-all arrays;
0-255 RED(0-Black,,255-100% Red)
CH9 CH7 Green LED-all arrays;
18：Using APFC power factor correction function on the switching power supply , power
factor >0.98.
19:Working Voltage：AC:100V-240V,50 -60Hz
20：The maximum allowable temperature while working :40ºC.
21: IP Rate：IP20.
22：Size：337×256×352mm.
23：15.2Kg.
MOVILED 105/4 User Manual/Manual de uso 10
EN

0-255 Green (0 Black,255-100% Green)
CH10 CH8 Blue LED-all arrays;
0-255 Blue(0- Black, 255 - 100% Red)
CH11 CH9 White LED-all arrays;
0-255 White (0 - Black, 255 - 100% Green)
CH12 CH10 CH8
Shutter strobe:
0－31 Led turn off
32－63 Led turn on
64-95 Strobe effect slow to fast
96 －
127
Led turn on
128 －
159
Pulse-effect slow to fast
160 －
191
Led turn on
192 －
223
Random strobe effect slow to fast
224 －
255
Led turn on
CH13 CH11 CH9 Dimmer intensity
0--255 Intensity 0 to 100%
CH14 CH12 CH10
Color Macro:
0-7 No function
8-39 From RED to YELLOW
40-71 Form YELLOW TO GREEN
72-103 From GREEN TO CYAN
104-135 From CYAN TO BLUE
136-167 From BLUE TO MAGENTA
168-199 From MAGENTA TO RED
200-231 FROM RED TO WHITE
232-255 Crossfading colours from show to
fast
CH15 CH13 CH11
Color Presets
0-4 No function
5-9 White2700K
10-14 White3200K
15-19 White4300K
20-24 White5600K
25-29 White6500K
30-34 White8000K
35-39 Red
40-44 Green
45-49 Blue
MOVILED 105/4 User Manual/Manual de uso 11
EN

50-54 Natural White
55-59 Full White
60-64 Yellow
65-69 Magenta
70-74 Cyan
75-79 Salmon
80-84 Turquoise
85-89 Light green
90-94 Steel Blue
95-99 Orange
100-104 Straw
105-109 Pale Lavander
110-114 Pink
115-119 RED/WHITE
120-124 GREEN/ERD
125-129 BLUE/RED
130-134 WHITE/RED
135-139 WHITE/PINK
140-144 WHITE/TURQUOISE
145-149 SMALL RED/WHITE
150-255 Reserved
CH16 CH14 CH12 Color Presets Dimmer:
0-255 Dimmer 100 to 0%
CH17 CH15 CH13
Chase patterns
1－14 Led trun off
15－30 Chase 1
31－46 Chase2
47-62 Chase3
63-78 Chase4
79-94 Chase5
95-110 Chase6
111-126 Chase7
127-142 Chase8
143-158 Chase9
159-174 Chase10
175-190 Chase11
191-206 Chase12
207-222 Chase13
223-238 Chase14
239-255 Chase15
CH18 CH16 CH14
Chase Speed:
0－125 Fast to aSlow Backward
126 －Stop(Speed=0)
MOVILED 105/4 User Manual/Manual de uso 12
EN

MOVILED 105/4 User Manual/Manual de uso 13
130
131 －
255
Slow to Fast Fonward
CH19 CH17 CH15 Chase Fade:
0－255 Fade Chase
CH16 Red LED -array 1:
0－255 Red (0Black,255 100%Red)
CH17 Green LED-array 1:
0－255 Green(0Black,255 100% Green)
CH18 Blue LED -array 1:
0－255 Blue (0-Black,255- 100% Blue)
CH19 White LED -array 1:
0－255 White (0black,255 100% white)
CH20 Red LED -array 2:
0－255 Red (0- Black,255 100%Red)
CH21 Green LED array 2:
0－255 Green(0 Black,255 100% Green)
CH22 Blue LED -array 2:
0－255 Blue (0Black,255 100% Blue)
CH23 White LED -array 2:
0－255 White (0black,255 100% white)
CH24 Red LED -array 3:
0－255 Red (0 Black,255 100%Red)
CH25 Green LED-array 3:
0－255 Green(0-Black,255-100% Green)
CH26 Blue LED -array 3:
0－255 Blue (0-Black,255-100% Blue)
CH27 White LED -array 3:
0－255 White (0-black,255-100% white)
CH28 Red LED -array 4:
0－255 Red (0 Black,255-100%Red)
CH29 Green LED array 4:
0－255 Green(0Black,255100% Green)
CH30 Blue LED -array 4:
0－255 Blue (0Black,255 100% Blue)
CH31 White LED -array 4:
0－255 White (0black,255 100% white)
CH32 Red LED -array 5:
0－255 Red -Black,255 100%Red)
CH33 Green LED array 5:
0－255 Green(0 Black,255 100% Green)
CH34 Blue LED -array 5:
0－255 Blue (0 Black,255 100% Blue)
EN

CH35 White LED -array 5:
0－255 White (0 black,255 100% white)
CH36 Red LED -array 6:
0－255 Red (0 Black,255 100%Red)
CH37 Green LED array 6:
0－255 Green(0 Black,255 100% Green)
CH38 Blue LED -array 6:
0－255 Blue (0 Black,255 100% Blue)
CH39 White LED -array 6:
0－255 White (0 black,255 100% white)
CH40 Red LED -array 7:
0－255 Red (0 Black,255 100%Red)
CH41 Green LED-array 7:
0－255 Green(0-Black,255-100% Green)
CH42 Blue LED -array 7:
0－255 Blue (0Black,255 100% Blue)
CH43 White LED -array 7:
0－255 White (0-black,255 100% white)
CH20 CH18 CH44
Reset, INTERNAL programs:
0-79 Normal
80-84 All motor reset
85-87 Scan motor reset
88-99 No function
100-119 Internal program1(scene1~8 of
EEPROM))
120-139 Internal program2(scene 9~16 of
EEPROM))
140-159 Internal program3(scene 17~24 of
EEPROM))
160-179 Internal program4(scene 25~32 of
EEPROM))
180-199 Internal program5(scene 33~40 of
EEPROM))
200-219 Internal program6(scene 41~48 of
EEPROM))
220-239 Internal program7(scene 49~56 of
EEPROM))
240-255 Music Control(scene of Program1)
MOVILED 105/4 User Manual/Manual de uso 14
EN

12. Routine Maintenance
Cleaning and maintenance
MOVILED 105/4 need do daily cleaning and maintenance, the equipment life time is greatly depends
on the operating environment, please consult the technical department for professional advice,
Fixture Cleaning
Optical components need to be clean gently , coating surface is very fragile, it is easy to scratch,
keep the acrylic plate clean, or will affect the brightness of the fixture, don't use destructive
solvent, otherwise it will damage the plastic or coating.
Clean the optical element
1: after turning off the power, open the cover.
2: Using a vacuum cleaner or pressure blow down gently blowing off the dust.
3: With No bouquet cotton paper or using cotton cloth with water or distilled water to wipe the
granular material, do not wipe the surface, use the pressure gas blow away the dust
.

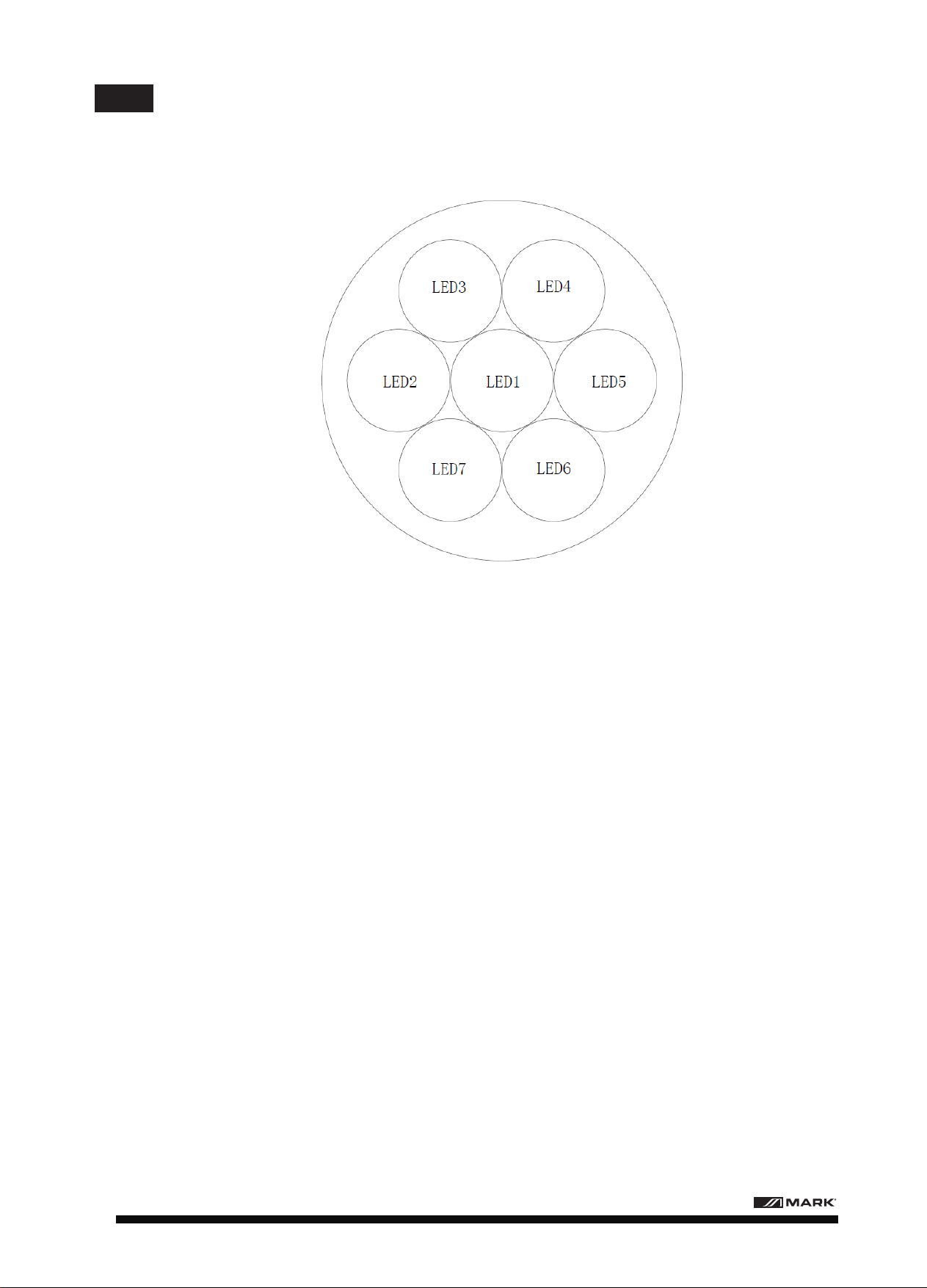

11. Led Position
MOVILED 105/4 User Manual/Manual de uso 15
EN

1. Introducción al producto
2. Dimensiones

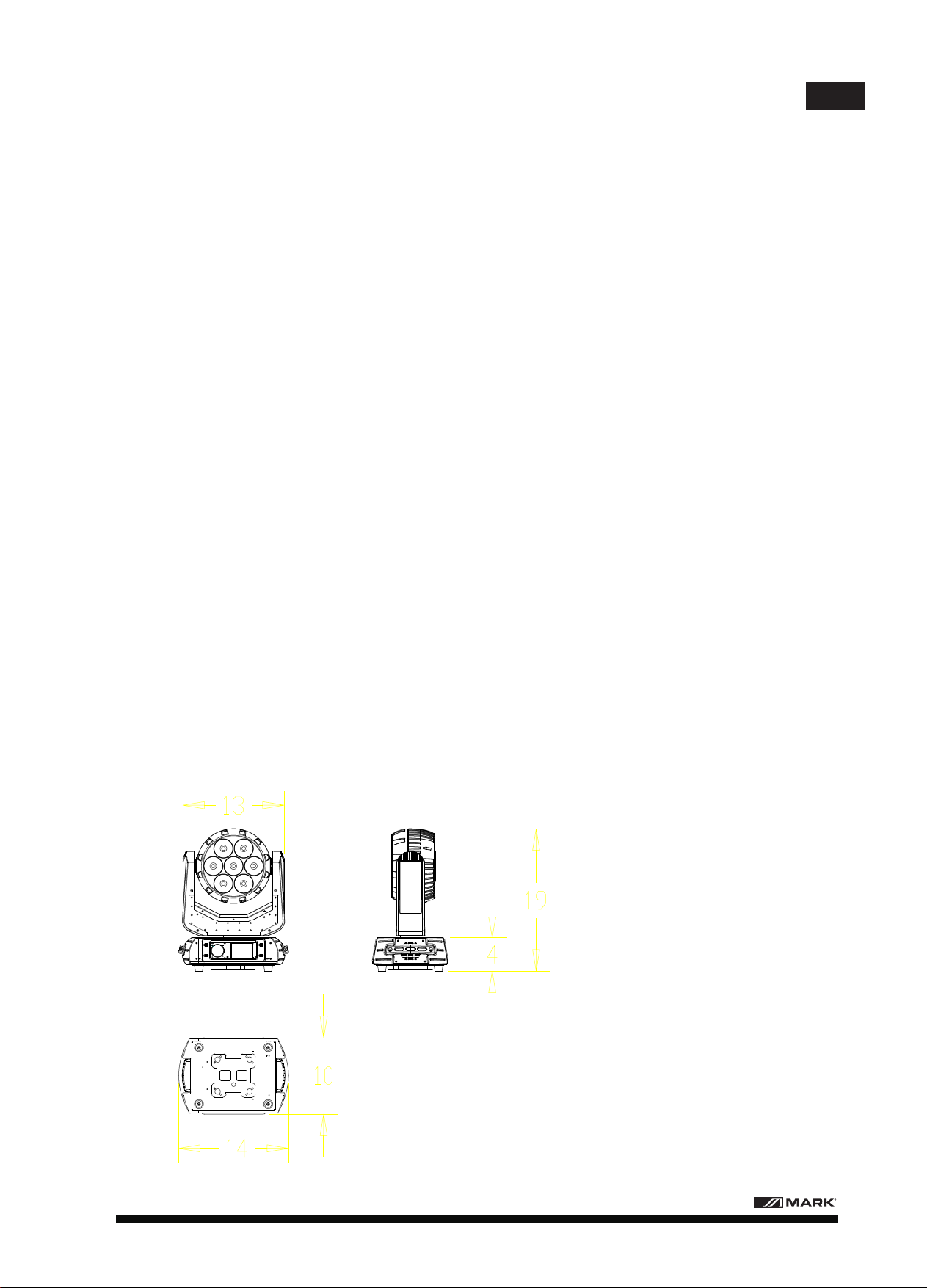

Dimensiones: 337 (L) ×256 (An) ×352 (Pr)mm
Gracias por elegir MOVILED 105/4 este modelo es una innovadora cabeza móvil la cual constituye el último
desarrollo en producto eficiente e inteligente, elegante forma y diseño combinado con la avanzada tecnología
de los productos de iluminación actuales.
MOVILED 105/4 utiliza 7 brillantes LEDs RGBW (4 en 1) de 15W c.u. Gracias a su cuidado diseño, la mezcla
de colores es muy pura, pudiendo realizar ajustes independientes de la intensidad de cada uno de los colores
R,G, B y W. Mediante el intuitivo menú, es posible ejecutar los programas incorporados, configurar para su
ejecución por audio o mediente el modo master-slave. dispone además de efecto rainbow, strobo variable y
dimmerización.
MOVILED 105/4 dispone de una rápida respuesta de movimiento, es resistente a los impactos y con una buena
disipación de calor. La larga vida útil de su fuente lumínica (los LEDs pueden superar las 10.000 horas de uso),
junto con la inexistencia de radiación, alta eficacia y ahorro de energía y bajo consumo, son otras de sus
principales características.
El rango de aplicaciones de MOVILED 105/4 es muy amplio, su instalación es muy simple y puede ser usado
en escenarios de grandes dimensiones como elementos fijos, efectos wash de fondo, escenarios teatrales,
iluminación en escenarios o polideportivos, escenarios móviles, platós de TV, centros de conferencias, pubs,
salas de fiesta, etc.
MOVILED 105/4 User Manual/Manual de uso 16
ES

3. Elementos
4. INFORMACION DE SEGURIDAD
Cubierta superior
Componentes de las lentes
PCB
Carcasa del brazo
Asa
Botonera
Cubierta horizontal
Radiador de aluminio
Tapa inferior
Display
Rueda de control
Cubierta de la cabeza
Lentes de enfoque
Batería de la botonera
Este producto sólo puede ser utilizado para su uso profesional, no permitiéndose su uso para
otros propósitos. Cuando reciba la unidad, compruebe el embalaje por si ha sufrido daños
durante el transporte. Si detecta daños, no utilice la unidad y contacte inmediatamente con su
distribuidor lo antes posible. Este producto está diseñado para su uso en interiores (rango IP 20).
Las fuentes lumínicas deben mantenerse secas y evitar la humedad, sobrecalentamiento o
ambientes polvorientos.
Evite que las lámparas entren en contacto con cualquier líquido. Por favor, lea estas instrucciones
antes de poner en marcha la unidad. Sigua todas las notas de seguridad contenidas en el manual.
MOVILED 105/4 User Manual/Manual de uso 17
ES

4.1 ALTA TEMPERATURA
ta =40°C
Por favor, no utilice este dispositivo en ambientes con temperaturas superiores a los 40ºC.
4.2 PREVENIR LA CAIDA DEL DISPOSITIVO
4.3 PROTECCION ULTRAVIOLETA
4.4 PREVENCION DE DESCARGAS ELÉCTRICAS
4.5 PREVENCION DE FUEGO
5. Empaquetado y transporte
5.1 INCLUIDO
MOVILED 105/4 incorpora los siguientes accesorios:
Contenido Cantidad
Manual de uso 1
Cable DMX 1
Cable de seguridad 1
Cuando cuelgue la unidad de un sistema truss o punto de fijación, asegúrese que es capaz de
soportar un peso 10 veces superior a la de la unidad fijada.
Asegúrese además que el soporte utilizado es suficientemente robusto así como colocar un cable de
seguridad como sistema adicional. Estos sistemas precisan una verificación previa.
No se exponga a la luz directa de la fuente lumínica para evitar daños en los ojos.
No se esta unidad sin las lentes que integra
Las lentes y cubiertas deben ser reemplazadas si sufren daños
La conexión eléctrica debe ser realizada por personal cualificado.
Antes de la instalación, asegúrese de conectarlo a una toma con el voltaje correcto.
Cada unidad debe ser conectada de manera adecuada a una toma de tierra.
Desconecte la unidad cuando reemplace algún elemento interno
No utilice la unidad durante tormentas eléctricas o ambientes húmedos.
1. La unidad no puede ser montada directamente sobre una material inflamable o combustible.
2. La unidad debe ser situada lejos de este tipo de materiales.
3. La temperatura ambiente no debe superar los 40ºC para un funcionamiento óptimo.
4. El equipo no debe tener obstáculos alrededor a menos de 0.5 m
5. Utilice siempre elementos originales.
MOVILED 105/4 User Manual/Manual de uso 18
ES

6. INSTALACION STANDARD
6.1 Instalación rigging
6.2 FIJACION DEL EQUIPO
Asegúrese de realizar comprobaciones periódicas de seguridad del dispositivo y accesorios de
instalación. Para este cometido, lo aconsejable es que lo realice un profesional para evitar accidentes.
La unidad debe funcionar en un rango de temperatura ambiente entre 0ºC y 40ºC, no use en
condiciones diferentes de esta. Si el dispositivo precisa ser desmontado de la instalación, no
permanezca debajo. Asegúrese que la unidad está correctamente fijada. Por favor, deje en manos
de profesionales las comprobaciones de conexionado eléctrico.
MOVILED 105/4 puede situarse sobre un escenario o, utilizando una garra. El sistema de fijación
rápida permite bloquear de manera segura y rápida como muestra la figura 2.
1. Antes de instalar la unidad, verifique que el sistema que bloquea la sujección está en buen estado
y que es capaz de soportar hasta 10 veces el peso total del dispositivo y sus accesorios.
2. Utilice pasadores, tornillos y tuercas de M12 para asegurar la unidad.
MOVILED 105/4 User Manual/Manual de uso 19
ES
