INSTALLATION MANUAL
UltraV Series Outdoor Units
Models
A-VMH18DU-1
A-VMH28TU-1
A-VMH36QU-1
A-VMH48PU-1
517.787.2100 • www.marsdelivers.com

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
2
Accessories .................................................... 5
Safety Precautions ..................................... 6
Outdoor Unit Installation ......................... 12
Outdoor Unit Installation Instructions ..... 12
Drain Joint Installation ................................ 14
Notes on Drilling Hole in Wall ................... 14
When Select a 24K Indoor Unit ................ 14
Table of Contents
Installation Manual
Installation Diagram ................................ 10
Installation Overview ............................... 9
1
2
6
3
4
Specications .............................................. 11
5

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
3
Refrigerant Piping Connection............... 15
Wiring................................................. 18
Outdoor Unit Wiring ................... 18
Wiring Figure ................................ 20
Air Evacuation .......................................... 24
Evacuation Instructions ......................... 24
Note on Adding Refrigerant ............... 25
Safety And Leakage Check .................. 26
Test Run....................................................... 27
Function of Automatic Wiring/Piping Correction...... 28
7
8
9
10
11
LN
MC MC



 a 











 
 
 

o

om
p
li
a
nt
 BLACK
4

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
5
Accessories 1
The air conditioning system comes with the following accessories. Use all of the installation parts and
accessories to install the air conditioner. Improper installation may result in water leakage, electrical
shock and re, or equipment failure.
Name Shape Quantity
Installation plate 1
Plastic expansion sheath 5-8
Self-Tapping Screw A ST3.9X25 5-8
Connecting
pipe
assembly
Liquid side
Gas side
1
Drain joint (some models)
1
Seal ring (some models)
Ø9.52
Ø6.35
Parts you must purchase.
Consult a technician for
the proper size.
Ø12.7
Ø9.52
Ø15.9
1
1
Owner’s manual
Installation manual
Optional part
(one piece/one indoor unit)
Optional part
(1-5 pieces for outdoor
unit, depending on models)
Transfer connector (packed with the indoor or
outdoor unit, depending on models)
NOTE: Pipe size may dier from appliance to
appliance. To meet dierent pipe size requirements,
sometimes the pipe connections need a transfer
connector installed on the outdoor unit .
Optional part
(one piece/one cable)
Magnetic ring
(Hitch on the communication cable between the
indoor unit and outdoor unit after installation.)
1
Cord protection rubber ring
(If the cord clamp cannot fasten on a small cord, use
the cord protection rubber ring [supplied with
accessories] to wrap around the cord. Then x it in
place with the cord clamp.)
(depending on models)
(depending on models)
(on some models)
Optional Accessories
There are two types of remote controls: wired and wireless.
Select a remote controller based on customer preferences and requirements and install in an
appropriate place.
Refer to catalogues and technical literature for guidance on selecting a suitable remote controller.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
6
Safety Precautions 2
Read Safety Precautions Before Installation
Incorrect installation due to ignoring instructions can cause serious damage or injury.
The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.
WARNING
• Carefully read the Safety Precautions before installation.
•In certain functional environments, such as kitchens, server rooms, etc., the use of specially
designed air-conditioning units is highly recommended.
•This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
• Only trained and certified technicians should install, repair and service this air
conditioning unit.
Improper installation may result in electrical shock, short circuit, leaks, fire or other damage to
the equipment and personal property.
• Strictly follow the installation instructions set forth in this manual.
Improper installation may result in electrical shock, short circuit, leaks, fire or other damage to
the equipment.
•Before you install the unit, consider strong winds, typhoons and earthquakes that might aect
your unit and locate it accordingly. Failure to do so could cause the equipment to fail.
•After installation, ensure there are no refrigerant leaks and that the unit is operating properly.
Refrigerant is both toxic and flammable and poses a serious health and safety risk.
Failure to observe a warning may result in death. The appliance must be installed in
accordance with national regulations.
Failure to observe a caution may result in injury or equipment damage.
WARNING
CAUTION

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
7
WARNING
•Appliance shall be installed, operated and stored in a room with a oor area larger than X m²
(Please see the following form ). The appliance shall not be installed in an unventilated space, if
that space is smaller than X m² (Please see the following form ).
•
•
Appliance shall be stored in a well-ventilated area where the room size corresponds to the room
area as specied for operation.
The appliance disconnection must be incorporated with an all-pole disconnection device using
hard wiring in accordance with electrical codes.
Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes their
competence to handle refrigerants safely in accordance with an industry recognized assessment
specification.
•
Amount of refrigerant
to be charged (kg) maximum installation
height (m) Minimum room area (m²)
≤2.048 2.2m 4
≤2.048 1.8m 4
≤2.048 0.6m 35
2.048-3.0 2.2m 4
2.048-3.0 1.8m 8
2.048-3.0 0.6m 80
>3.0 2.2m 5
>3.0 1.8m 9
>3.0
Model
(Btu/h)
≤30000
≤30000
≤30000
30000-48000
30000-48000
30000-48000
>48000
>48000
>48000 0.6m 80
•The appliance shall be stored in a room without continuously operating ignition sources
(for example: open ames, an operating gas appliance or an operating electric heater).
•Do not pierce or burn.
•
•
Be aware that the refrigerants may not contain an odour.
Compliance with national gas regulations shall be observed.
•Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of refrigerants.
•The appliance shall be stored so as to prevent mechanical damage from occurring.
•Keep ventilation openings clear of obstruction.
NOTE: The following informations are required for the units adopt R32/R290 Refrigerant.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
8
Note about Fluorinated Gasses
1. This air-conditioning unit contains fluorinated gasses. For specific information on the type of gas
and the amount, please refer to the relevant label on the unit itself.
2.
Installation, service, maintenance and repair of this unit must be performed by a certified technician.
3. Product uninstallation and recycling must be performed by a certified technician.
4. If the system has a leak-detection system installed, it must be checked for leaks at least every 12
months.
5.
When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
9

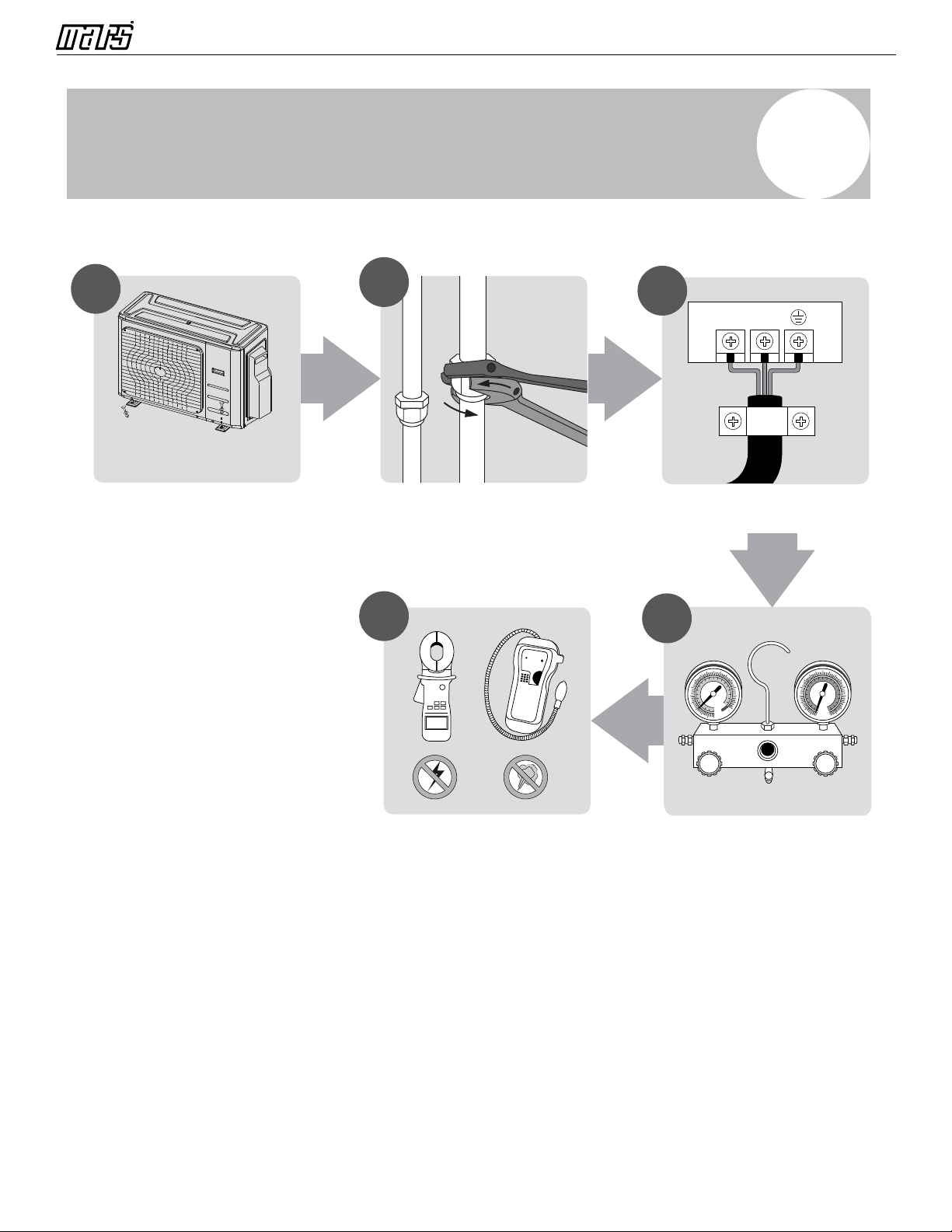

Installation Overview 3
LN
123
MC MC
4
5
INSTALLATION ORDER
Install the outdoor unit
(Page 11)
Evacuate the refrigeration
system
(Page 23)
Connect the wires
(Page 17)
Connect the refrigerant pipes
(Page 14)
Perform a test run
(Page 26)

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
10
Installation Diagram 4
Installation Diagram
Installation
plate
Mounting screw
ST3.9×25-C-H
Refrigerant
pipe
Remote
controller
holder
Clip anchor
(2)
• This illustration is for demonstration
purposes only.
The actual shape of your air condtioner may
be slightly dierent.
•
CAUTION
•
To prevent wall damage, use a stud nder to
locate studs.
A minimum pipe run of 3 metres is required
to minimise vibration & excessive noise.
Two of the A, B, and C air circulation pathways
must be free from obstructions at all times.
•
•
• Copper lines must be independently insulated.
Safety Precautions
1
2
3
5
4
1
Installation plate
Clip anchor
(1)
Remote
controller
holder
5 4 3
2
The maximum
amount of the
connection cables is 5.
This section is for
reference only.
Air-break Switch
Drainage
Pipe
Air-break
Switch
Outdoor Unit
Power Cable
More than 5"
More than 5"
More
than 5"
More than 6"
More than 5"
24"
80"
24"
6"
5"
5"
24"
24"
80"
NOTE: The installation must be performed in
accordance with local and national standards.
The installation may be slightly different in
different areas.
Minimum 4"
Recommended 12"
Minimum 4"
Recommended 12"
Minimum 4"
Recommended 12"

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
11
Table 5.1
Table 5.2

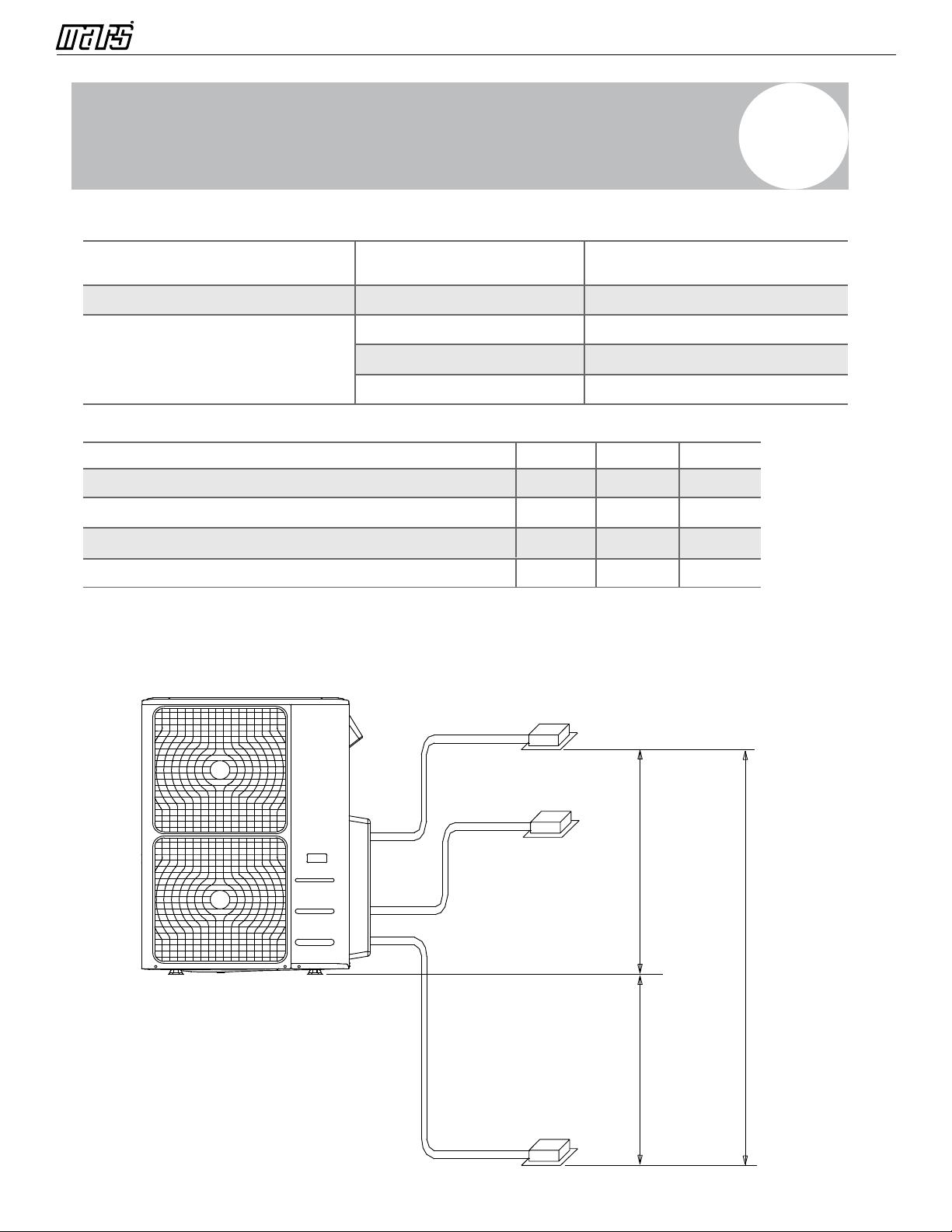

Specifications 5
Number of units that can be used
together
Connected units 1-4units
Compressor stop/start frequency Stop time 3 min or more
voltage uctuation within ±10% of rated voltage
Power source voltage voltage drop during start within ±15% of rated voltage
interval unbalance within ±3% of rated voltage
Unit: m/ft.
10m(32.8ft)
When installing multiple indoor units with a single outdoor unit, ensure that the length of the
refrigerant pipe and the drop height between the indoor and outdoor units meet the requirements
illustrated in the following diagram:
Indoor unit
Indoor unit
Indoor unit
Outdoor unit
15m(49ft)
15m(49ft)
Max.Height dierence
1 drive 2 1 drive 3
Max. length for all rooms 40/131 60/197
Max. length for one indoor unit 25/82 30/98
Max. height dierent between indoor and outdoor unit 15/49 15/49
Max. height dierent between indoor units 10/33 10/33
1 drive 4
80/262
35/115
15/49
10/33

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
12
Outdoor Unit Installation
Outdoor Unit Installation Instructions
Step 1: Select installation location.
The outdoor unit should be installed in a
location that meets the following requirements:
Place the outdoor unit as close to the indoor
unit as possible.
Ensure that there is enough room for
installation and maintenance.
The air inlet and outlet must not be
obstructed or exposed to strong wind.
Ensure the location of the unit will not be
subject to snowdrifts, accumulation of leaves
or other seasonal debris. If possible, provide
an awning for the unit. Ensure the awning
does not obstruct airflow.
The installation area must be dry and well
ventilated.
There must be enough room to install the
connecting pipes and cables and to access
them for maintenance.
The area must be free of combustible gases
and chemicals.
The pipe length between the outdoor and
indoor unit may not exceed the maximum
allowable pipe length.
If possible, DO NOT install the unit where it
is exposed to direct sunlight.
If possible, make sure the unit is located far
away from your neighbors’ property so that
the noise from the unit will not disturb them.
If the location is exposed to strong winds (for
example: near a seaside), the unit must be
placed against the wall to shelter it from the
wind. If necessary, use an awning.
(See Fig. 6.1 & 6.2)
Install the indoor and outdoor units, cables
and wires at least 3.2 ft from televisions or
radios to prevent static or image distortion.
Depending on the radio waves, a 3.2 ft
distance may not be enough to eliminate all
interference.
Strong wind
Strong wind
Strong wind
Fig. 6.1 Fig. 6.2
Step 2: Install outdoor unit.
Fix the outdoor unit with anchor bolts (M10)
>60cm / 23.6”
Fix with bolts
CAUTION
•Be sure to remove any obstacles that
may block air circulation.
•Make sure you refer to Length
Specifications to ensure there is
enough room for installation and
maintenance.
Fig. 6.3
6
√
√
√
√
√
√
√
√
√
√
√
√

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
13
Table 6.1: Length Specifications of Split Type
Outdoor Unit (unit: mm/inch)
Split Type Outdoor Unit
(Refer to Fig 6.4, 6.5, 6.6, 6.10 and Table 6.1)
Fig. 6.6
Fig. 6.5
A
B
D
W
H
W
H
Fig. 6.4
Outdoor Unit Dimensions
W x H x D
Mounting Dimensions
Distance A Distance B
760x590x285 (29.9x23.2x11.2) 530 (20.85) 290 (11.4)
810x558x310 (31.9x22x12.2) 549 (21.6) 325 (12.8)
845x700x320 (33.27x27.5x12.6) 560 (22) 335 (13.2)
900x860x315 (35.4x33.85x12.4) 590 (23.2) 333 (13.1)
945x810x395 (37.2x31.9x15.55) 640 (25.2) 405 (15.95)
990x965x345 (38.98x38x13.58) 624 (24.58) 366 (14.4)
946x810x420 (37.2x31.9x16.53) 673 (26.5) 403 (15.87)
946x810x410 (37.2x31.9x16.14) 673 (26.5) 403 (15.87)
952x1333x410 (37.5x52.5x16.14) 634 (24.96) 404 (15.9)
952x1333x415 (37.5x52.5x16.14) 634 (24.96) 404 (15.9)
845x702x363 (33.27x27.6x14.3) 540 (21.26) 350 (13.8)
938x1369x392 (36.93x53.9x15.43) 634 (24.96) 404 (15.9)
900x1170x350 (35.4x46x13.8) 590 (23.2) 378 (14.88)
800x554x333 (31.5x21.8x13.1) 514 (20.24) 340 (13.39)
Fig. 6.7
L
H
300 cm / 118” or more
A
60 cm / 23.6”
or more
150 cm / 59”
or more
25 cm / 9.8”
or more
25 cm / 9.8”
or more
Rows of series installation
L ≤H L ≤1/2H
L A
25 cm / 9.8” or more
1/2H < L ≤H 30 cm / 11.8” or more
L >H Can not be installed
Table 6.2 The relations between H, A and L
are as follows.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
14
When Select a 24K Indoor Unit
The 24K indoor unit can only be connected with
an A system. If there are two 24K indoor units,
they can be connected with A and B systems.
(See Fig. 6.10)
Fig. 6.10
Table 6.3: Connective pipe size of an A and B
system (unit: inch)
Indoor Unit capacity
(Btu/h) Liquid Gas
9K/12K 1/4 3/8
12K/18K 1/4 1/2
24K 3/8 5/8
NOTE: The minimum distance between the
outdoor unit and walls described in the
installation guide does not apply to airtight
rooms. Be sure to keep the unit unobstructed
in at least two of the three directions (M, N, P)
(See Fig. 6.8)
Fig. 6.8
Drain Joint Installation
Notes On Drilling Hole In Wall
You must drill a hole in the wall for the
refrigerant piping, and the signal cable that will
connect the indoor and outdoor units.
1. Determine the location of the wall hole
based on the location of the outdoor unit.
2. Using a 65-mm (2.5”) core drill, drill a hole
in the wall.
NOTE: When drilling the wall hole, make
sure to avoid wires, plumbing, and other
sensitive components.
3.
Place the protective wall cu in the hole.
This protects the edges of the hole and
helps seal it when you nish the installation
process.
M
N
P
Minimum 4"
Recommended 12"
from back wall
60 cm / 23.6” on right
60 cm / 23.6” above
30 cm / 11.8” on left
200 cm / 78” in front
NOTE: Make sure the water drains to a safe
location where it will not cause water damage
or a slipping hazard.
Seal
Drain joint
(A) (B)
Base pan hole of
outdoor unit
Seal
Fig. 6.9
If the drain joint comes with a rubber seal
(see Fig. 6.9 - A ), do the following:
1. Fit the rubber seal on the end of the drain joint
that will connect to the outdoor unit.
2. Insert the drain joint into the hole in the base
pan of the unit.
3. Rotate the drain joint 90° until it clicks in place
facing the front of the unit.
4. Connect a drain hose extension (not included)
to the drain joint to redirect water from the
unit during heating mode.
If the drain joint doesn’t come with a rubber
seal (see Fig. 6.9 - B ), do the following:
1. Insert the drain joint into the hole in the base
pan of the unit. The drain joint will click in
place.
2. Connect a drain hose extension (not included)
to the drain joint to redirect water from the
unit during heating mode.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
15
Refrigerant Piping Connection 7
Safety Precautions
WARNING
•All eld piping must be completed by a
licensed technician and must comply with the
local and national regulations.
•When the air conditioner is installed in a small
room, measures must be taken to prevent the
refrigerant concentration in the room from
exceeding the safety limit in the event of
refrigerant leakage. If the refrigerant leaks
and its concentration exceeds its proper limit,
hazards due to lack of oxygen may result.
•When installing the refrigeration system,
ensure that air, dust, moisture or foreign
substances do not enter the refrigerant circuit.
Contamination in the system may cause poor
operating capacity, high pressure in the
refrigeration cycle, explosion or injury.
•Ventilate the area immediately if there is
refrigerant leakage during the installation.
Leaked refrigerant gas is both toxic and
flammable. Ensure there is no refrigerant
leakage after completing the installation work.
Refrigerant Piping Connection Instructions
CAUTION
•The branching pipe must be installed
horizontally. An angle of more than 10° may
cause malfunction.
•DO NOT install the connecting pipe until both
indoor and outdoor units have been installed.
•Insulate both the gas and liquid piping to
prevent water leakage.
Step1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and flare them properly. This will
ensure efficient operation and minimize the
need for future maintenance.
1. Measure the distance between the indoor
and outdoor units.
2. Using a pipe cutter, cut the pipe a little
longer than the measured distance.
CAUTION
DO NOT deform pipe while cutting. Be extra
careful not to damage, dent, or deform the pipe
while cutting. This will drastically reduce the
heating efficiency of the unit.
1. Make sure that the pipe is cut at a perfect
90° angle. Refer to Fig. 7.1 for examples of
bad cuts

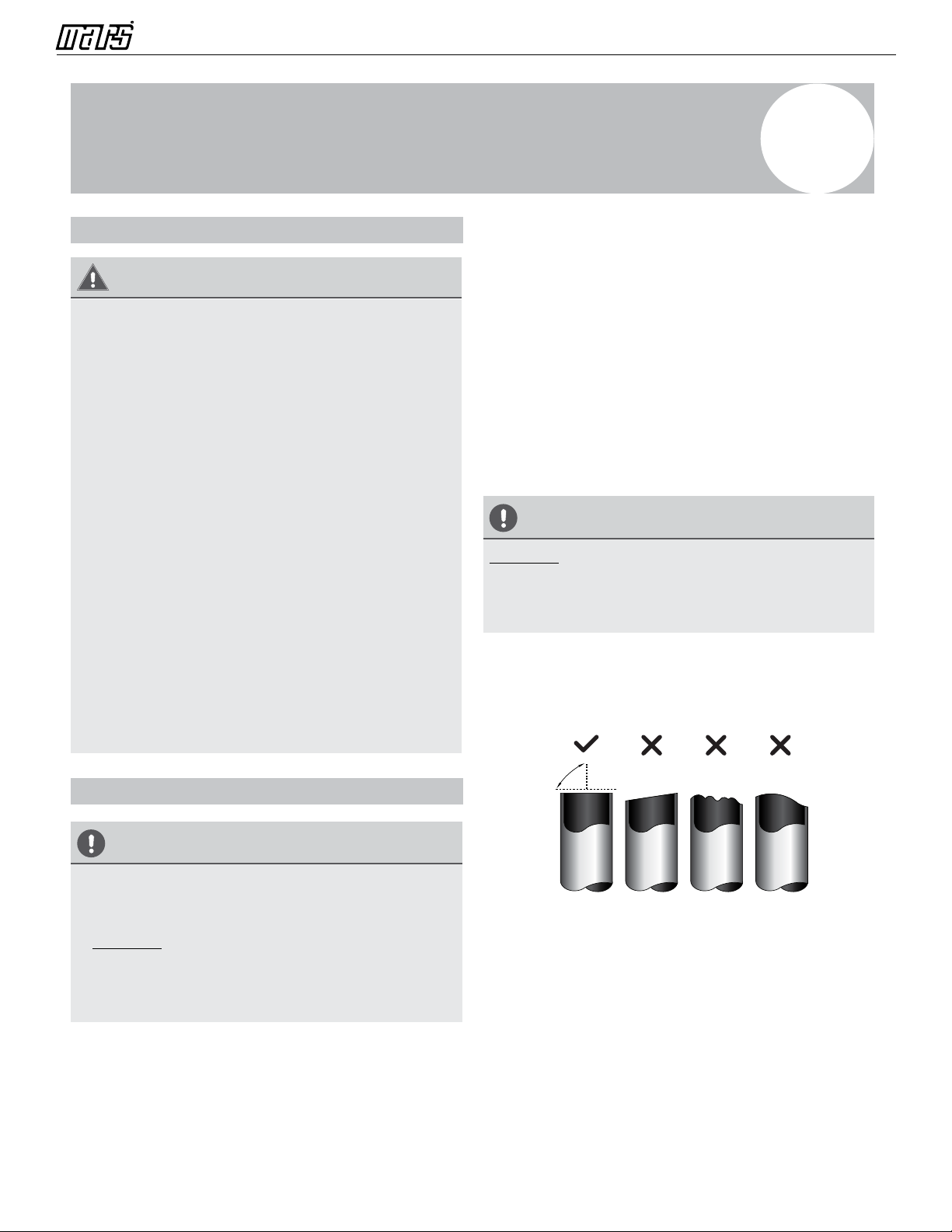

Oblique Rough Warped
90°
Fig. 7.1
Step 2: Remove burrs.
Burrs can affect the air-tight seal of a refrigerant
piping connection. They must be completely
removed.
1. Hold the pipe at a downward angle to
prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool, remove
all burrs from the cut section of the pipe.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
16

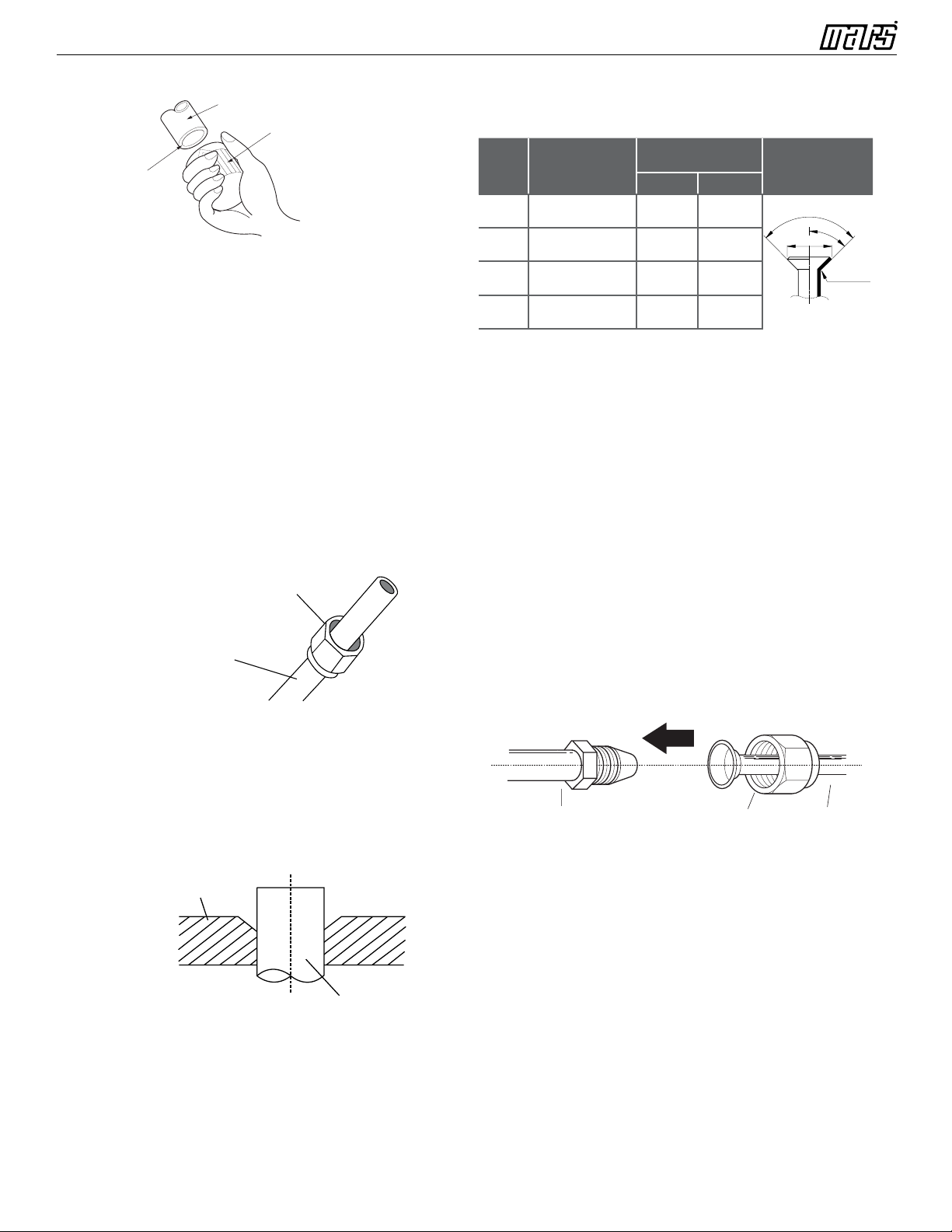

4. Remove PVC tape from ends of pipe when
ready to perform flaring work.
5. Clamp flare form on the end of the pipe. The
end of the pipe must extend beyond the flare
form.
Flare form
Pipe
Fig. 7.4
6. Place flaring tool onto the form.
7. Turn the handle of the flaring tool
clockwise until the pipe is fully flared. Flare
the pipe in accordance with the dimensions
shown in table 7.1.
Pipe
Reamer
Point down
Fig. 7.2
Step 3: Flare pipe ends
Proper flaring is essential to achieve an airtight
seal.
1. After removing burrs from cut pipe, seal
the ends with PVC tape to prevent foreign
materials from entering the pipe.
2. Sheath the pipe with insulating material.
3. Place flare nuts on both ends of pipe.
Make sure they are facing in the right
direction, because you can’t put them on
or change their direction after flaring.
See Fig. 7.3
Flare nut
Copper pipe
Fig. 7.3
Table 7.1: PIPING EXTENSION BEYOND FLARE
FORM
8. Remove the flaring tool and flare form,
then inspect the end of the pipe for cracks
and even flaring.
Pipe
gauge Tightening
torque Flare dimension (A) (Unit: mm/Inch) Flare shape
Min. Max.
1/4"
R0.4~0.8
45°±2
90 °
±4
A
Fig. 7.5
3/8"
1/2"
5/8"
18-20 N.m
(183-204 kgf.cm) 8.4/0.33 8.7/0.34
25-26 N.m
(255-265 kgf.cm) 13.2/0.52 13.5/0.53
35-36 N.m
(357-367 kgf.cm) 16.2/0.64 16.5/0.65
45-47 N.m
(459-480 kgf.cm) 19.2/0.76 19.7/0.78
Step 4: Connect pipes
Connect the copper pipes to the indoor unit first,
then connect it to the outdoor unit. You should
first connect the low-pressure pipe, then the
high-pressure pipe.
1. When connecting the flare nuts, apply a thin
coat of refrigeration oil to the flared ends of
the pipes.
2. Align the center of the two pipes that youwill
connect.
Indoor unit tubing Flare nut Pipe
Fig. 7.6
3. Tighten the flare nut as tightly as possible
by hand.
4. Using a spanner, grip the nut on the unit
tubing.
5. While firmly gripping the nut, use a torque
wrench to tighten the flare nut according to
the torque values in table 7.1.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
17
NOTE: Use both a spanner and a torque wrench
when connecting or disconnecting pipes to/from
the unit.
Fig. 7.7
CAUTION
•Be sure to wrap insulation around the piping.
Direct contact with the bare piping may result
in burns or frostbite.
•Make sure the pipe is properly connected.
Over tightening may damage the bell mouth
and under tightening may lead to leakage.
NOTE ON MINIMUM BEND RADIUS

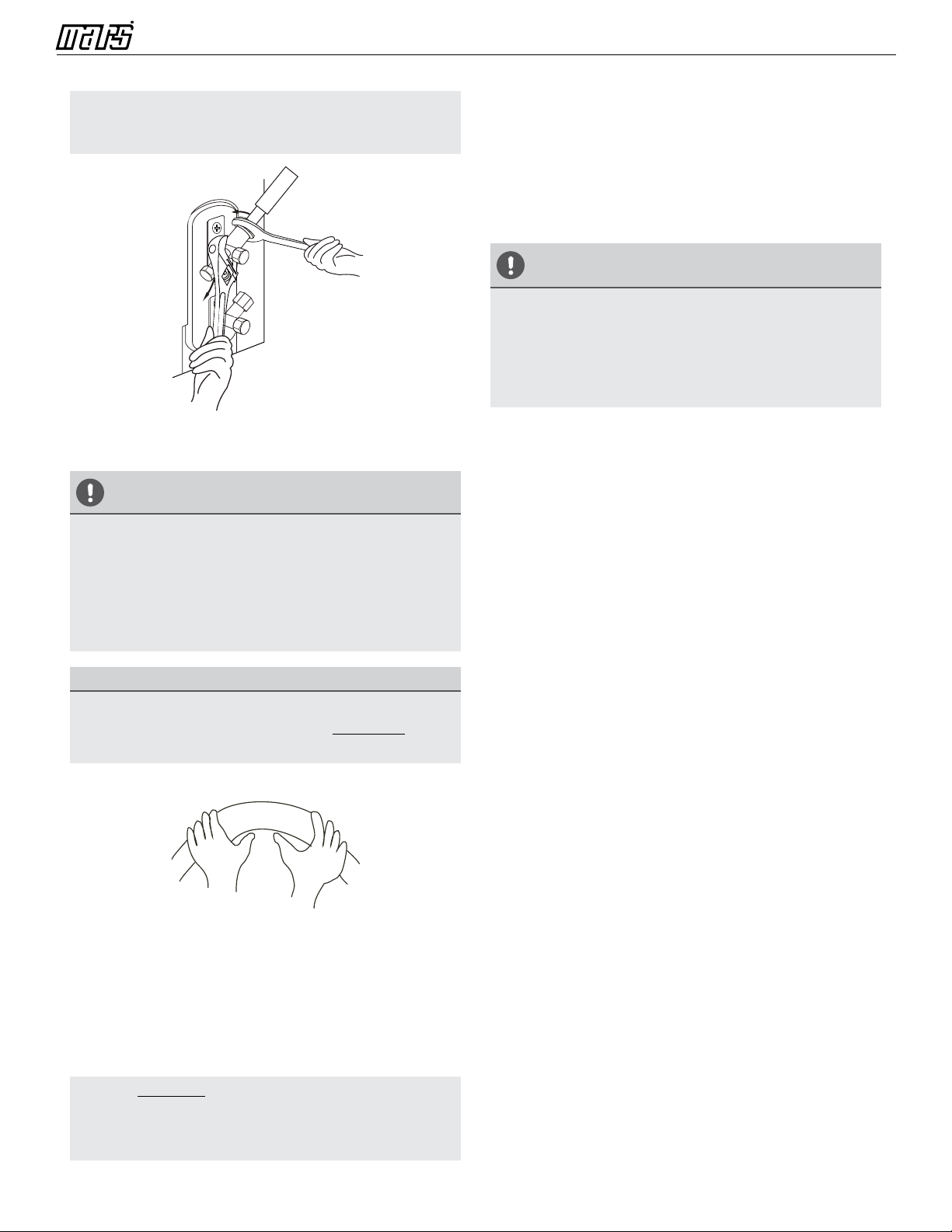

Carefully bend the tubing in the middle
according to the diagram below. DO NOT bend
the tubing more than 90° or more than 3 times.
Bend the pipe with thumb
min-radius 10cm (3.9”)
Fig. 7.8
6. After connecting the copper pipes to the
indoor unit, wrap the power cable, signal
cable and the piping together with binding
tape.
NOTE: DO NOT intertwine signal cable with
other wires. While bundling these items
together, do not intertwine or cross the signal
cable with any other wiring.
7. Thread this pipeline through the wall and
connect it to the outdoor unit.
8. Insulate all the piping, including the valves
of the outdoor unit.
9. Open the stop valves of the outdoor unit to
start the flow of the refrigerant between
the indoor and outdoor unit.
CAUTION
Check to make sure there is no refrigerant leak
after completing the installation work. If there is
a refrigerant leak, ventilate the area immediately
and evacuate the system (refer to the Air
Evacuation section of this manual).

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
18
Wiring
Safety Precautions
WARNING
•Be sure to disconnect the power supply
before working on the unit.
•All electrical wiring must be done
according to local and national regulations.
•Electrical wiring must be done by a
qualified technician. Improper connections
may cause electrical malfunction, injury
and fire.
•An independent circuit and single outlet
must be used for this unit. DO NOT
plug
another appliance or charger into the same
circuit. If the electrical circuit capacity is not
enough or there is a defect in the electrical
work, it can lead to shock, fire, unit and
property damage.
•Connect the power cable to the terminals
and fasten it with a clamp. An insecure
connection may cause fire.
•Make sure that all wiring is done correctly
and the control board cover is properly
installed. Failure to do so can cause
overheating at the connection points, fire,
and electrical shock.
•Ensure that main supply connection is
made through a switch that disconnects all
poles, with contact gap of a least 3mm
(0.118”).
•DO NOT modify the length of the power
cord or use an extension cord.
CAUTION
•Connect the outdoor wires before
connecting the indoor wires.
•Make sure you ground the unit. The
grounding wire should be away from gas
pipes, water pipes, lightning rods,
telephone or other grounding wires.
Improper grounding may cause electrical
shock.
•DO NOT connect the unit with the power
source until all wiring and piping is
completed.
•Make sure that you do not cross your
electrical wiring with your signal wiring, as
this can cause distortion and interference.
Follow these instructions to prevent distortion
when the compressor starts:
•The unit must be connected to the main
outlet. Normally, the power supply must
have a low output impedance of 32 ohms.
•No other equipment should be connected
to the same power circuit.
•The unit’s power information can be found
on the rating sticker on the product.
Outdoor Unit Wiring
WARNING
Before performing any electrical or wiring work,
turn o the main power to the system.
1. Prepare the cable for connection
a. You must first choose the right cable size
before preparing it for connection. Be sure
to use H07RN-F cables.
Table 8.1: Minimum Cross-Sectional Area
of Power Cables North America
Rated Current of
Appliance (A) AWG
≤7 18
7 - 13 16
13 - 18 14
18 - 25 12
25 - 30 10
8
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board(PCB) is
designed with a fuse to provide overcurrent
protection. The specications of the fuse are
printed on the circuit board, such as:
Outdoor unit: T20A/250VAC(for <24000Btu/h
unit), T30A/250VAC(for >24000Btu/h unit)
NOTE: The fuse is made of ceramic.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
19
b. Using wire strippers, strip the rubber jacket
from both ends of signal cable to reveal
about 15cm (5.9”) of the wires inside.
c. Strip the insulation from the ends of the
wires.
d. Using a wire crimper, crimp u-lugs on the
ends of the wires.
NOTE: While connecting the wires, please
strictly follow the wiring diagram (found inside
the electrical box cover).
2. Remove the electric cover of the outdoor unit.
If there is no cover on the outdoor unit,
disassemble the bolts from the maintenance
board and remove the protection board.
(See Fig. 8.1)
Cover
Screw
Fig. 8.1
3. Connect the u-lugs to the terminals
Match the wire colors/labels with the labels on
the terminal block, and firmly screw the u-lug
of each wire to its corresponding terminal.
4. Clamp down the cable with designated cable
clamp.
5. Insulate unused wires with electrical tape.
Keep them away from any electrical or metal
parts.
6. Reinstall the cover of the electric control box.

Installation Manual - A-VMH18DU,28TU,36QU,48PU-1
20

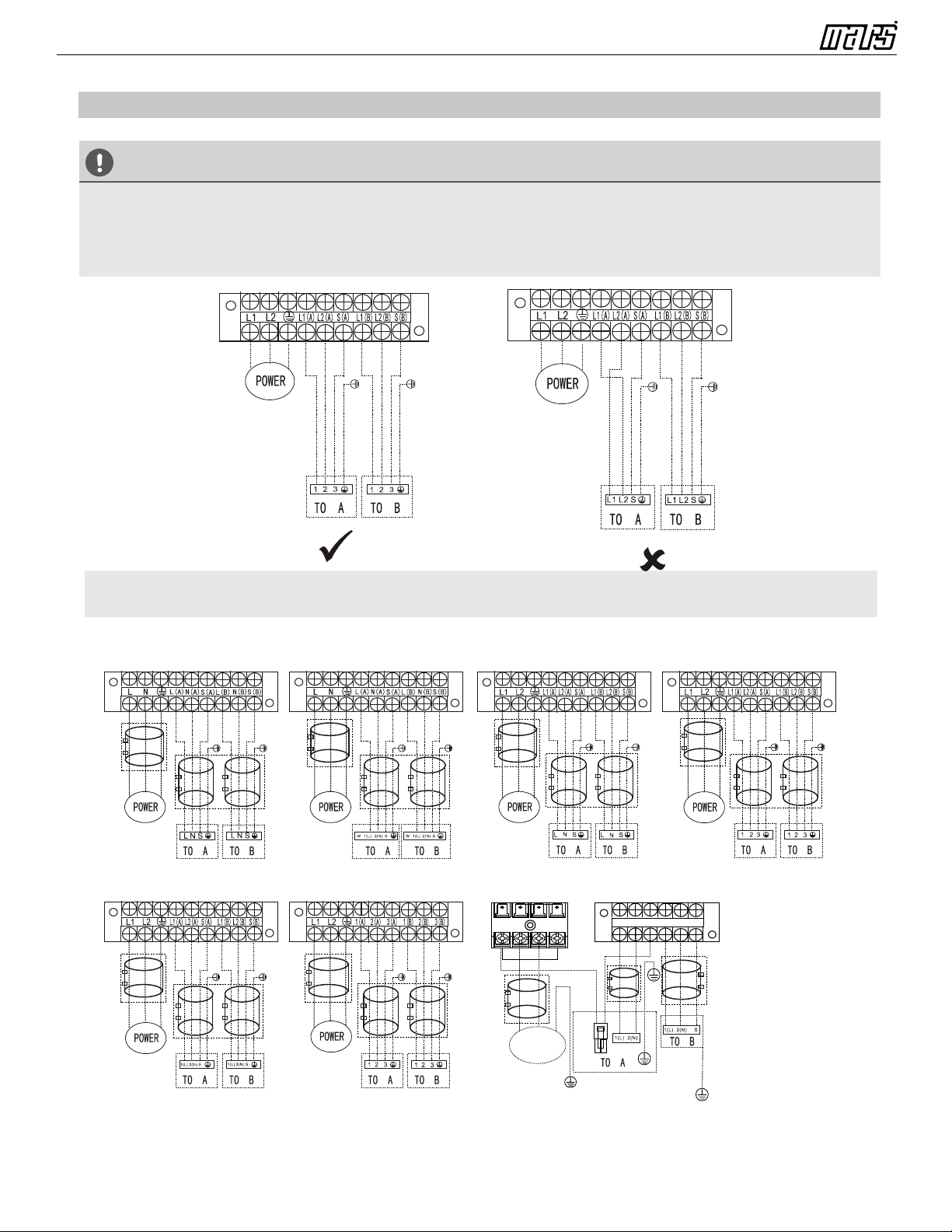

Wiring Figure
One-two models:
POWER
SUPPLY
L(A)
S(A)
N(A) L(B) N(B)
S(B)
Y/G
WLN
L(1)
NOTE: Refer to the following gures if end-users wish to perform their own wiring.
Run the main power cord through the lower line-outlet of the cord clamp.
CAUTION
Connect the connective cables to the terminals, as identied, with their matching numbers on the
terminal block of the indoor and outdoor units. For example, in the US models shown in the
following diagram, Terminal L1(A) of the outdoor unit must connect with terminal L1 on the
indoor unit.
Model A
Model E Model F Model G
Model B Model C Model D
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
