Mars ATL-88-1A User manual

1
TECHNICAL DESCRIPTION
OPERATION AND MAINTENANCE
MANUAL
for
Emergency parachute ATL - 88/90 - 1A
(ATL - 15)
number P –001 –15
Number of issue: 2
Date of issue: 14. 12. 2016
Validity from serial number 1646001

2

3
LIST OF CHANGES
If the necessity occurs to change or complete the text of this manual, the
owner will receive a notification by means of bulletins approved by the
Design Organisation or EASA agency which will include new (amended)
sheets. The owner of the manual is obliged to record the received changes
in the List of changes and replace the invalid sheets for the applicable
sheets. The changed or amended parts of the text will be indicated on the
side by means of a vertical line and at the bottom with the number and date
of the change issue.
Change
serial
number
Chapter
Number of
sheets
subject to
changes
Date of new
sheets’
issue
Bulletin
number of
change
issue
Bulletin
approval
date
Date of
completion
Signature

4

5
TECHNICAL DESCRIPTION
OPERATION AND MAINTENANCE
MANUAL
for
Emergency parachute ATL - 88/90 - 1A
(ATL - 15)
number P –001 –15

6
CONTENTS:
Page
CHAPTER I.
Technical description of emergency parachute ATL - 88/90 - 1A (ATL-15)
1. Designation 7
2. Technical parameters 7
3. Parachute function 9
4. The set of parachute 9
5. List of replaceable parts 10
6. Technical description of the parachute 11
CHAPTER II.
Instructions for the packing of the parachute
1. General instructions 17
2. Inspection of the parachute before packaging 17
3. Packaging tools 18
4. Parachute package 18
CHAPTER III
Instructions for using the parachute
1. Preparation of the parachute before flying 35
2. Parachute opening 35
CHAPTER IV
Storage and transport of the parachute
1. Preparation of the parachute for storage 36
2. Storage of parachutes 36
3. Parachute transport 36
CHAPTER V
Maintenance and repairs of the parachute
1. Parachute maintenance 37
2. Parachute repair 37

7
CHAPTER I
Technical description of emergency parachute ATL - 88/90 - 1A (ATL-15)
1. Designation
Emergency parachute ATL –88/90 –1A (ATL-15), (hereinafter referred to as the
parachute) is designed as personal parachute assemblies for flight crew
equipment and for passengers in emergency situation.
The parachute complies with standards of European technical standard order
ETSO C23d and standard SAE AS8015B.
2. Technical parameters
a) Basic parameters
- Canopy area 36m2
- Max. parachute mass:
Part number 09999 5.8 kg with metal parts H335 + H 337
09998 6.3 kg with metal parts H405 + H 323
09997 6.4 kg with metal parts H395 + H 323
The parachute mass are defined without the portable bags and back padding.
- dimensions of the packed parachute length 530 mm
width 330 mm
height 80 mm
- force required for pulling out the ripcord 23 ÷ 97 N
b) Design
The parachute is made in three designs.
c) Functional parameters
- average vertical descent speed
at load G = 122 kg up to 7.1 m.s-1
- turning by 360° 8.6 s
d) Limiting of parachute using:
- max. operating weight 122 kg (269 lb)
- max. operating speed (at the moment
of the container opening) 278 km.h-1 (150 kt EAS)
- min. allowable altitude of the use 100 m AGL
at the aircraft speed 110 km.h-1
- environmental immunity from - 40 to + 93.7 °C
Note: The parachutes showed the reliable function at the tests with the loaded
weight 147 kg (324 lb) - max. operating weight x 1,2 at the speed
333,6 km.h-1 (180 kt EAS) - max. operating speed x 1,2.

8
e) Warranty term
Warranty period is 5 years providing the repair work and replacement
of worn parts is provided in time, storage and transport conditions
observed, and regular inspections related to the parachute canopy
ventilation are performed. The warranty period is calculated from the
parachute dispatch date, however maximum 6 months from the
production date (defined on the canopy and the label on the parachute
package).
The manufacturer will not accept claims in the cases below:
-If a violent parachute damage occurs or the instructions are not
observed as detailed in the Technical description and the operation
and maintenance manual:
-If the parachute logbook is not attached to the parachute or if it is
incorrectly filled;
If the parachute logbook gets lost a person from the user’s staff
authorized by the manufacturer carries out a visual inspection of the
parachute combined with a record describing the parachute’s condition
entered in the Inspection report for the parachute that is necessary to
issue a copy of the original parachute logbook. Such record shall be
sent to the manufacturer for storage and on the basis of a satisfactory
result of this record the manufacturer shall issue a new parachute
logbook marked as “COPY”.
Visual inspection of the parachute can be performed at the
manufacturer’s site. An entry specifying the parachute’s condition is
made into the Check sheet.
If the parachute manifests damage the nature of which may lead to the
assumption that mechanical and physical properties of materials used
have changed (stains of unknown origin, serious burning, shifts of
threads in fabric, damaged lines, worn and torn straps or other marks of
excessive damage) the organization authorized to perform the
maintenance will perform the mechanical-physical testing of the
parachute materials.
In case the parachute requires repair work, the organization authorized
for performing maintenance will perform it based on agreement with the
user.
f) Lifetime
The total parachute lifetime is specified for the maximum of 20 years
from the production date providing the instruction specified in the
Technical description and the Operation and maintenance manual are
observed.
The total lifetime depends on the technical state of the parachute or its
parts.
The person authorized to perform the parachute packaging for use,
must perform the inspection of the parachute completeness and its
technical state prior to its packaging for use.
If the parachute state is compliant, an authorized person will pack the
parachute. The parachute eligibility for further operation is confirmed for
the period of max. 365 days.

9
The person authorized can apply this procedure until using the total
lifetime of the parachute.
In case of finding unsuitable technical state of individual parachute
parts which is in breach of the regulations stated in the Technical
description and the Operation and maintenance manual, the parachute
must be eliminated from operation, and the incompliant part must be
replaced, or the parachute must be sent to an organization authorized
for performing maintenance.
The organization authorized for performing maintenance will
recommend the performance of potential repair work of the parachute
or eliminate the parachute from operation and terminate its use.
g) The environmental immunity of the parachute is between from - 40
to + 93.7 °C at relative humidity compliant with the temperatures.
The parachute can be packed prior to use for the maximum of 365
days.
During each use it is necessary to professionally check the parachute,
and if required, send it for repair to the organisation authorized to
perform the maintenance.
The inspection conclusions are recorded in the parachute logbook.
3. Parachute function
After leaving the aircraft, the pilot activates the parachute by pulling out the
ripcord from the pocket located on the left side of the harness at the chest height.
By pulling the ripcord handle from the chest to the waste of the pilot, the ripcord
pins will be pulled out from the closing cord lugs, the container flaps will be
released, and the pilot chute will shoot in the air flow pulling out the canopy with
the lines from the container. The lines will then be released from the rubber
bands of the closing flap, spread over the whole length, and the canopy will be
filled with air. Completely filled canopy provides calm floating and safe landing.
4. The set of parachute (fig. 1)
The parachute includes the main parts:
I. Pilot chute PV –031 –1A 1 pcs
II. Bridle SŠ –054 1 pcs
III. Canopy V –070 –2A 1 pcs
IV. Harness PS –041 –1A 1 pcs
V. Container OP –094 –1A 1 pcs
VI. Ripcord U –091 1 pcs
VII. Back padding P –032 1 pcs
VIII.Portable bag G –225 1 pcs
On user request available back padding P-030 with progressive shape
construction for increase user comfort.

10
5. List of replaceable parts
5.1. Pilot chute PV –031 –1A
5.2. Bridle SŠ –054
5.3. Ripcord U –091
5.4. Portable bag G –225
5.5. Closing cord l = 300-10 mm SU –001 *
5.6. Rubber band 2 x ⅜“
5.7. Rubber band 1 ¼ x ⅜“
5.8. Back padding P –032
5.9. Back padding P –030
* The indicated length is measured at a load of 100N.
Fig. 1

11
6. Technical description of the parachute
6.1. Pilot chute PV –031 –1A (fig. 2)
It is designed for pulling put the canopy from the container. The base of the
canopy (1) of the pilot chute, and it is made of polyamide fabric.
The stop (2) is made of woven curtain –rough. The pilot chute is reinforced with
tapes (3), which form the fastener in the lower part (4). Cylindrical shape steel
spring (5) is sewn in the pilot chute. The top part of the pilot chute and the
location of the spring attachment include the sewn tape loops with fitted metal
grommets (6), designed for passing through the closing cord and folding and
fitting the pilot chute in the container.
Fig. 2
6.2. Bridle SŠ –054 (fig. 3)
The bridle connect the pilot chute with the pole vent cords of the parachute
canopy. It is made from polyamide cavity with 2,000 mm length. Both ends of the
bridle are fitted with lugs for the connection with the canopy and the pilot chute.
Fig. 3

12

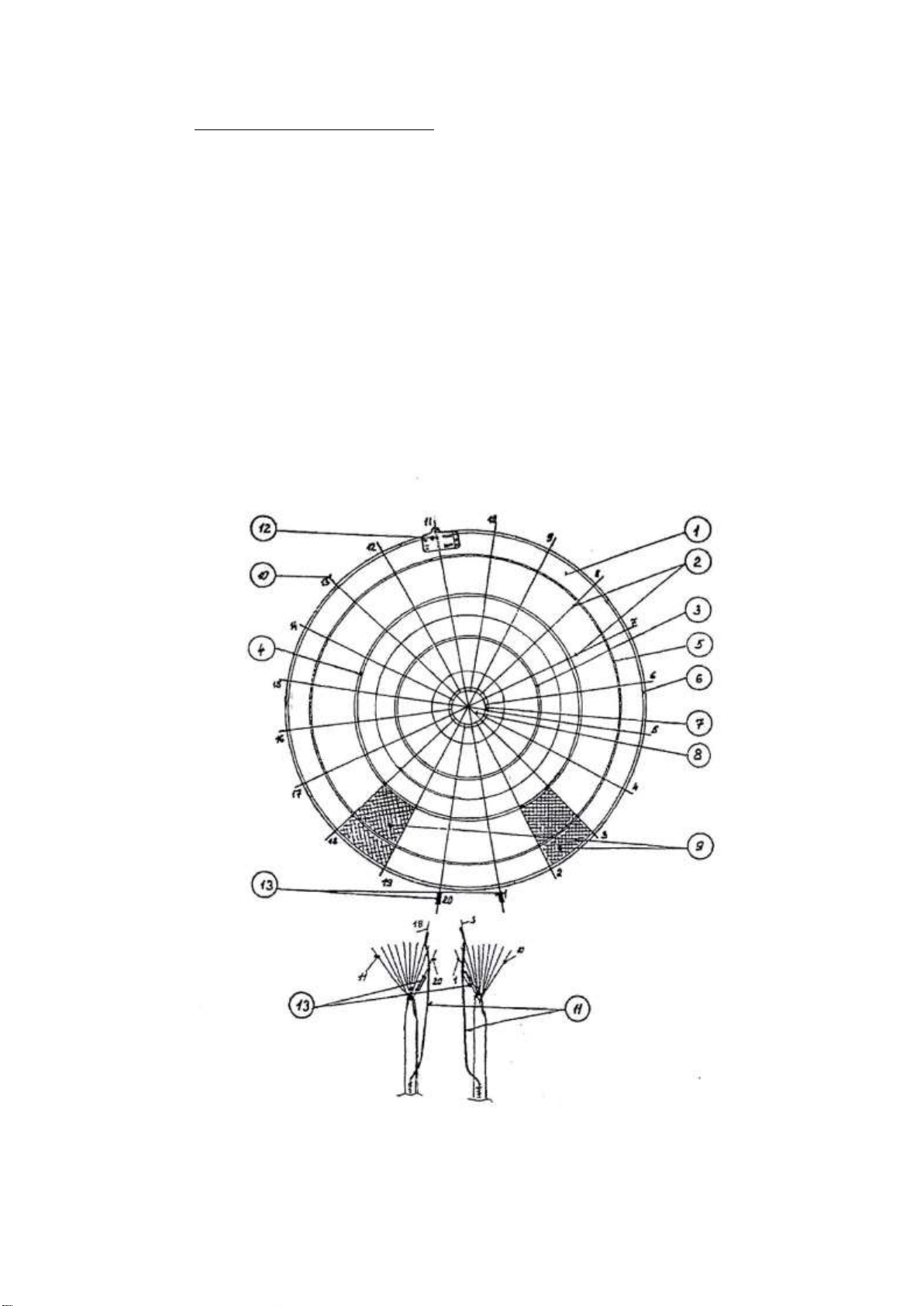

6.3. Canopy V –070 –2 A (fig. 4)
Canopy (1) with surface area 36 comprises of two types of polyamide fabrics and
it comprises of 20 fields.
The canopy construction is reinforced with 13 mm tapes –bearing (2) and round
(3), (4) and (5).
The lower edge (6) and the pole vent edge (7) are reinforced with 15 mm strap.
The pole vent is reinforces with pole vent cords (8). The rear part of the canopy
includes two fields (9) partially filled with curtain woven –fine, which provides the
stability, forward speed and control features of the parachute. The canopy
includes 20 attached suspension lines (10) in length 5.000 mm with minimum
strength 2.600 N. The lower part includes attached steering lines (11) of red
colour to lines No. 3 and 18. The suspension lines during the packaging are
placed into the rubber bands 2 x ⅜“ of the closing flap (12), which is sewn at the
lower edge of the canopy at the suspension line No. 11. The suspension lines
No. 1 and 20 are fitted with marking (13) for simpler canopy placing at the lower
edge and at the risers of the harness.
Fig. 4

13
6.4. Harness PS –041 –1A
6.5. Container OP –094 –1A
The harness with the container forms one unit (fig. 5).
The harness is used for attaching the parachute to the pilot’s body and
distributing the dynamic impact. The harness comprises of the polyamide strap
with minimum breaking strength 27.500 N. It comprises of two main straps –left
(1) and right (2), lumbar (3) and chest (4) strap. The main straps are reinforced
from the chest straps to the lumber straps with straps (5), it is transferred into the
risers in the shoulder part (6) and in the back straps (7), which are bent and sewn
over the lumber strap (3). The transfer solidity of the main strap into the riser is
provided by metal oval lugs (8). The chest part of the left main strap includes the
sewn strap (4). One end of the metal hose (9) is sewn and passes in the chest
strap for the ripcord wire. Below the chest strap, there is a pocket (10) for placing
the ripcord handle. The right main strap in the chest part includes the fastening
buckle (11) designed for passing the chest strap and fastening the harness in the
chest area. Both reinforcement straps (5) include the sewn ribbon closures (12)
from the reverse side designed for setting the length of the harness. The risers
are fitted with lugs (13) for connecting the canopy lines. The lumber strap is on
both ends fitted with buckles (14), designed for fastening the harness to the pilot’s
body. The opening used for passing the main straps is created between two
whippings (15) at each end of the lumber strap. Both main straps, forming the leg
straps from the lumber straps, include the inserted leg pads (16) designed for
reducing pressure of the leg straps on the pilot’s legs.
The container is designed for placing the canopy with the lines, bridle, and the
pilot chute. The container is made of polyamide or polyester fabric in the shape
of envelope.
The main parts of the container include: The back cotton pad (17), which is
transferred to two shoulder pads (18 central part of the parachute (19) with side
flaps (20), closing flap (21), top flap (22)) and lower flap (23).
The back cotton pad includes sewn ribbon closures (24) for connecting the back
padding, and the central lower part includes the marking label (25).
The interior part of the back cotton pad forms the container bottom (26), with
sewn container central part (19) with side flaps (20).
The centre of the central part includes the sewn cover flap (27), designed for
separating the canopy from the harness risers. The central part is fitted with two
metal grommets (28) with the passing through closing cord (29) designed for
limiting the movement and folding of the pilot chute and for closing the container.
Three tape loops are sewn below the cover flap. Two side loops (30) are
designed for performing the inspection binding of the harness riser lugs to the
container. The upper loop (31) is designed for connecting the rubber band 2 x ⅜“
(32).
The closing flap (21) is sewn to the top side of the central part. The closing flap is
fitted with two side elastic pockets (33) from the interior side used for the canopy
end location with the pole vent cords and then two packaging tapes (34). The
centre of the closing flap at the lower edge includes a pressed metal grommet
(28). The grommet is designed for passing the rubber band 2 x ⅜“, where a part
of the bridle is inserted. This method ensures the position of the closing flap with
the located end of the canopy top end in the container during the canopy placing
into the container.

14
The lower edge of the central part includes two sewn tapes (35) with passing
through rubber bands 1 ¼ x ⅜“ (36), designed for attaching the suspension lines
to the container.
Both side flaps (20) are also fitted with metal grommets (28), designed for closing
the container.
The lower flap (23) has a pocket shape. It is designed for placing a part of folded
canopy.
The central part of the upper edge is fitted with the metal grommet (28) designed
for passing the closing cord (29) and for closing the container.
The top flap (22) includes a triangle shape which is transferred to the upper part
of the shoulder cotton pad. It is sewn in the interior periphery with the shoulder
cotton pads of the back cotton pad. The external connection of the top flap and
shoulder cotton pads is provided by the flaps (37).
The top flap comprises of two main parts: External flap (38) and internal flap (39).
The external flap in the interior part is fitted with flaps (40) on both sides which
are designed for the connection of the external flap to the internal flap, and with
reinforcement in the round lower part (41), which is during the parachute
completion inserted in the opening in the lower flap. The central part of the
external flap is in the central area fitted with the sewn reinforcement (42),
designed for the protection of the opening mechanism (wire of the ripcord with
pins inserted into the lugs of the closing cord) against external effects.
The internal flap (39) is solidified with reinforcement inside (43) and also fitted
with two metal grommets (28), with passing closing cord secured with the ripcord
pins during the container packing.

15
Fig. 5
6.6. Ripcord U –091 (fig. 6)
The ripcord is designed for closing and opening of the parachute. It comprises of
the handle (1), steel wire (2), two pins (3) and a stop (4).
Fig. 6

16
6.7. Back padding P-032 (fig. 7)
The back padding is designed for comfortable pilot leaning in the aircraft seat.
The external parts of the back padding are made of cotton canvas (1) and airtight
polyamide fabric (2), interior area is fitted with the padding from unwoven textile
(3). The back padding side, made from the airtight polyamide fabric, includes
sewn ribbon closures (4), designed for the connection back padding to the
container.
Fig. 7
6.8. Portable bag G –225 (fig. 8)
The portable bag is designed for placing the parachute for storage and transport.
It is made from polyamide canvas in the shape of a block with dimensions
550x400x170 mm. The upper part of the bag includes a zip (1), for closing the
bag. The portable bag includes two holders (2) and a pocket sewn on the side (3),
which is closed by means of ribbon closure (4). The pocket is used for locating
the parachute logbook and the spare parts.
Fig. 8

17
CHAPTER II.
Instructions for the packing of the parachute
1. General instructions
1.1. The parachute can only be packed by a person authorized to pack the
parachutes.
1.2. Prior to the parachute packaging it is necessary to check the completeness
and technical state.
1.3. Defects are eliminated by replacing defective parts or by repairing them.
1.4. The parachute repair is performed as per the technical conditions for repair
works No. O-1-15.
1.5. The parts replacement and repairs must be recorded in the parachute
logbook.
1.6. The sealing of ripcord pins will be completed by means of green threads
with 4.5 to 7.5 N strength.
1.7. The sealing of portable bag closing will be completed by means of red
threads with 49 to 68.8 N strength.
1.8. During the parachute packing, we recommend to protect the canopy from
direct sunlight.
2. Inspection of the parachute before packaging
2.1. The inspection is completed in the sequence below:
-Pilot chute
-Bridle
-Canopy with lines
-Harness
-Container
-Ripcord
-Back padding
-Portable bag
2.1.1 Inspection of the pilot chute
Check the fabric, seams, and metal grommets on the tapes for damage.
If the spring is seriously damaged or broken, the pilot chute is replaced
with new one.
Check the tapes for sewing with the metal grommets to the spring and
their position in the spring base centre.
2.1.2. Inspection of the bridle
The cavity strap and sewing are checked for damage.
2.1.3 Inspection of the canopy
The canopy is checked stretched against the light. Check the fabric,
tapes and sewing for damage. After the canopy inspection, check the
suspension and steering lines.

18
2.1.4 Inspection of the harness
Check the harness for the completeness of the straps and sewing, the
ripcord pocket, the state and function of the buckles.
2.1.5 Inspection of the container
Check the fabric, tapes and reinforcement, the state of metal grommets
for damage. Pay extra care to the closing cord –if damaged, it must be
replaced.
2.1.6 Inspection of the ripcord
Check the ripcord state –the wire, stop and pins (pressing, corrosion,
indentations). The damaged ripcord is replaced.
2.1.7 Inspection of the back padding
Check the fabrics, tapes and ribbon closures for damage.
2.1.8 Inspection of the portable bag
Check the fabric (stains), holder straps and the state of zip for damage.
2.2 Damaged parts replacement
The operation enables to replace the parts defined in CHAPTER I, article 5.
3. Packaging tools
3.1 The parachute is packed on the packing table or on the field packaging
desk.
3.2 The parachute packaging requires the use of two packing cords of 1 m
length and several weights.
4. Parachute package
The parachute is packed by one person.
After the parachute packing, make a record on the packaging into the parachute
logbook.
Packaging procedure:
4.1 Packing preparation
4.2 Canopy folding
4.3 Inspection of the canopy and the lines
4.4 Placing of the lines into the closing flap
4.5 Inspection of the lines placing
4.6 Placing of the canopy into the container
4.7 Placing the pilot chute and closing the container
4.8 Check of the packed parachute

19
4.1. Packing preparation
The parachute is spread on the packing table. The cords of the pole vent
are attached at the end of the packing desk, the canopy and the suspension
lines are stretched at full length. The pilot chute is placed next to the
canopy. The harness with the container is placed with the container
upwards, the canopy is divided to halves in such way the lines No. 1 to 10
were placed on the right and the lines No. 11 to 20 on the left (fig. 9).
Pass the ripcord wire with the pins through the ripcord hose. The ripcord
handle is placed into the pocket on the harness and secured by means of
the ribbon closures.
Fig. 9
4.2. Canopy folding
The left half of the canopy is thrown over the right side (fig. 10). Line No. 12
is placed on the Line No. 11, the field between the lines is folded to half and
levelled at full length (fig. 11).
This enables is placed of the whole left canopy side up to the line No. 20
(fig. 12).
Fig. 10

20
Fig. 11
Fig. 12
