TANKERS
OPERATING & SAFETY INSTRUCTIONS
FOR SPARE PARTS GO TO
WWW.MARSHALL-TRAILERS.CO.UK
FOR MODELS:
ST1200, ST1400, ST1600, ST1800,
ST2000, ST2300, ST2550
CHARLES J. MARSHALL (ABERDEEN) LTD
CHAPEL WORKS, BUCKSBURN, ABERDEEN, AB21 9TL.
Telephone: [phone] Fax: [phone]
Email: [e-mail]
www.marshall-trailers.co.uk

2
EC DECLARATION OF CONFORMITY
WE: CHARLES J. MARSHALL (ABERDEEN) LTD
CHAPEL WORKS, BUCKSBURN, ABERDEEN, SCOTLAND, AB21 9TL.
DECLARE THAT THE PRODUCT:
MAKE: CHARLES J. MARSHALL (ABERDEEN) LTD
TYPE: MARSHALL TANKER
MODEL: _______________________________
SERIAL NO: ______________
CONFORMS TO THE ESSENTIAL HEALTH & SAFETY REQUIREMENTS OF
89/392/EEC MACHINERY DIRECTIVE AS AMENDED BY 91/368/EEC DIRECTIVE.
PLACE OF ISSUE –CHAPEL WORKS, BUCKSBURN,
ABERDEEN, SCOTLAND, AB21 9TL.
NAME & TITLE OF AUTHORISED PERSON:
CHARLES R. MARSHALL
MANAGING DIRECTOR
DATE: ___________
WE ENCLOSE OUR INSTRUCTIONS FOR THE SAFE OPERATION OF THIS
MACHINE, THE WORKING OF WHICH IS FULLY UNDERSTOOD BY THE
UNDERSIGNED.
CUSTOMER’S SIGNATURE: _________________________ DATE: ___________

3
SAFETY INSTRUCTIONS
Important Safety advice!
1.STOP
2.THINK
3.CALL 01224 722777
Safety First: Please read and fully understand the contents of this instruction
manual, if you are in any doubt whatsoever of the safe operation of this
machine, please contact Charles J. Marshall (Aberdeen) Ltd on Tel. 01224
722777.
1. Guards - Ensure all guards are present and securely fastened in place.
2. Maintenance - Ensure the machine PTO and tractor is completely stopped and
secure prior to carrying out any maintenance.
3. PTO Shaft - Safety is important, if you are in any doubt of how to fit the PTO shaft,
please contact our service department.
4. Ensure that the pump is in the proper position for vacuum or pressure.
5. Ensure that the safety pressure relief valve is set and working correctly by lifting the
top round part, the pressure gauge should read no more than one bar –adjustment
is required if the pressure is higher than this.
6. Always apply the parking brake when the Tanker is to be left unhitched from the
tractor.
7. Hydraulic Valve –Always check that the valve is open when pump is creating
pressure or vacuum.
8. Before undoing any hatch, ensure the tanker is depressurised completely.
9. Before entering a slurry tanker, make sure it has been properly ventilated, the pump
is running and that the person entering has a rope attached, which should be held by
two people. Never close the entry hatch with someone inside.
10. As some gases released by agitated slurry may be flammable, never smoke or hold
up naked lights in the vicinity of the tanker.
11. Extreme care is required if discharging slurry near power lines.

4
OPERATING INSTRUCTIONS
YOUR MARSHALL TANKER HAS BEEN DESIGNED TO GIVE YOU LONG AND RELIABLE SERVICE.
THIS CAN BE ENSURED BY FOLLOWING THE INSTRUCTIONS BELOW.
General Operating Instructions
Operating the tanker –Couple up the 6” hose either on the side or at the rear to the bauer
coupling ensuring that the connection is airtight. Open the appropriate valve, place the
vacuum pump in the vacuum position then start the PTO (at low engine speeds). Operators
of tankers fitted with a hydraulic drive pump should ensure both hydraulic hoses are
connected to the tractor’s spool valves before engaging. Watch the gauge on the front and
take note of its reading as the hose becomes full, at this point increasing vacuum is pointless
as this is the point when the smallest amount of vacuum is lifting the liquid. By controlling
the PTO speed you will be able to maintain this situation. (This greatly reduces the risk of
over filling and reduces the amount of froth created during loading). When liquid becomes
visible in the sight glass immediately shut the appropriate valve, shut down the engine revs
and when the engine is idling shut off the pump. Uncouple the hose and change the pump
position to pressure.
When emptying the tanker allow the pressure to build up in the tanker then open the back
rear valve –never turn with the PTO running and always start and stop the pump at low
engine revs.
Hertell Pump Operating Instructions
Must be used in the 540 RPM PTO mode, the PTO speed must not exceed 350rpm.
There must be one oil drop, every one to two seconds, visible in the oiler. Remember this is
TOTAL oil loss, so MUST be checked and topped up daily to keep the oil above the mark on
the dip-stick.
Check the oil level in the front gear box housing regularly.
Due to the weight and speed at which the main pump rotor rotates it is vital that the input
PTO speed is low when the pump is started or stopped.
To help prolong the life of the pump it is advisable, after every 25 working hours, to pass
diesel through it. This can be done by placing the pump in the pressure position and holding
the container of diesel up to the exhaust on the pump the diesel will be sucked up through
the pump and will wash out the entire pump. KEEP THE PUMP TURNING for around 30
seconds then change the pump from pressure to vacuum –note the foul diesel will pass out
through the exhaust so some means of catching this is advisable to enable you to dispose of
this correctly. Continue the pump running for around 30 seconds this greatly prolongs not
only the pumps life but coats the top shut off valve.
This procedure MUST only be completed when the pump is cold and DO NOT STOP THE
PUMP UNTIL the diesel has dispersed fully.
All Pumps fitted to Marshall Tankers, have unfortunately, to be subject to the Manufacturer’s
warranty terms which are that if a Pump has worked successfully for more than three hours it cannot
be regarded as being of faulty manufacture.

5
Bationie Pump Operating Instructions
Must be used in the 540 RPM PTO mode, the PTO speed must not exceed 350rpm.
There must be one oil drop, every one to two seconds, visible in the oiler. Remember this is
TOTAL oil loss, so MUST be checked and topped up daily to keep the oil above the mark on
the dip-stick.
Check the oil level in the front gear box housing regularly.
Due to the weight and speed at which the main pump rotor rotates it is vital that the input
PTO speed is low when the pump is started or stopped.
To help prolong the life of the pump it is advisable, after every 25 working hours, to pass
diesel through it. This can be done by placing the pump in the pressure position and holding
the container of diesel up to the exhaust on the pump the diesel will be sucked up through
the pump and will wash out the entire pump. KEEP THE PUMP TURNING for around 30
seconds then change the pump from pressure to vacuum –note the foul diesel will pass out
through the exhaust so some means of catching this is advisable to enable you to dispose of
this correctly. Continue the pump running for around 30 seconds this greatly prolongs not
only the pumps life but coats the top shut off valve.
This procedure MUST only be completed when the pump is cold and DO NOT STOP THE
PUMP UNTIL the diesel has dispersed fully.
ALWAYS DISENGAGE PTO SHAFT WHEN TURNING.
NEVER OVERFILL TANK. TO AVOID THIS, CLOSE THE GATE VALVE WHENEVER SLURRY IS
VISIBLE IN THE SIGHT GLASS. THE OVERFLOW VALVE IS THERE ONLY FOR SAFETY.
MAINTENANCE INSTRUCTIONS
1. Hubs / Bearings must be greased regularly; we recommend they are checked after
the first fourteen days work, then six monthly thereafter.
2. Tyre pressure should be checked regularly (See page 8).
3. Wheel nuts should be checked when the machine is new, then after operating for
one hour, then one day and weekly thereafter. The same procedure applies if nuts
have been removed and replaced.
4. Check the tow hitch for wear and replace accordingly.
5. Lights should be kept clean and if not in use for some length of time, coating with
some form of oil spray is recommended.
6. Regularly check the top shut-off valve for damage or corrosion.

6
7. Keep Hydraulic 6” Valve Clean - This can be a cause of over filling problems as a
poorly adjusted unclean valve can allow air to pass when the tanker is being loaded
causing vast amount of unwanted froth.

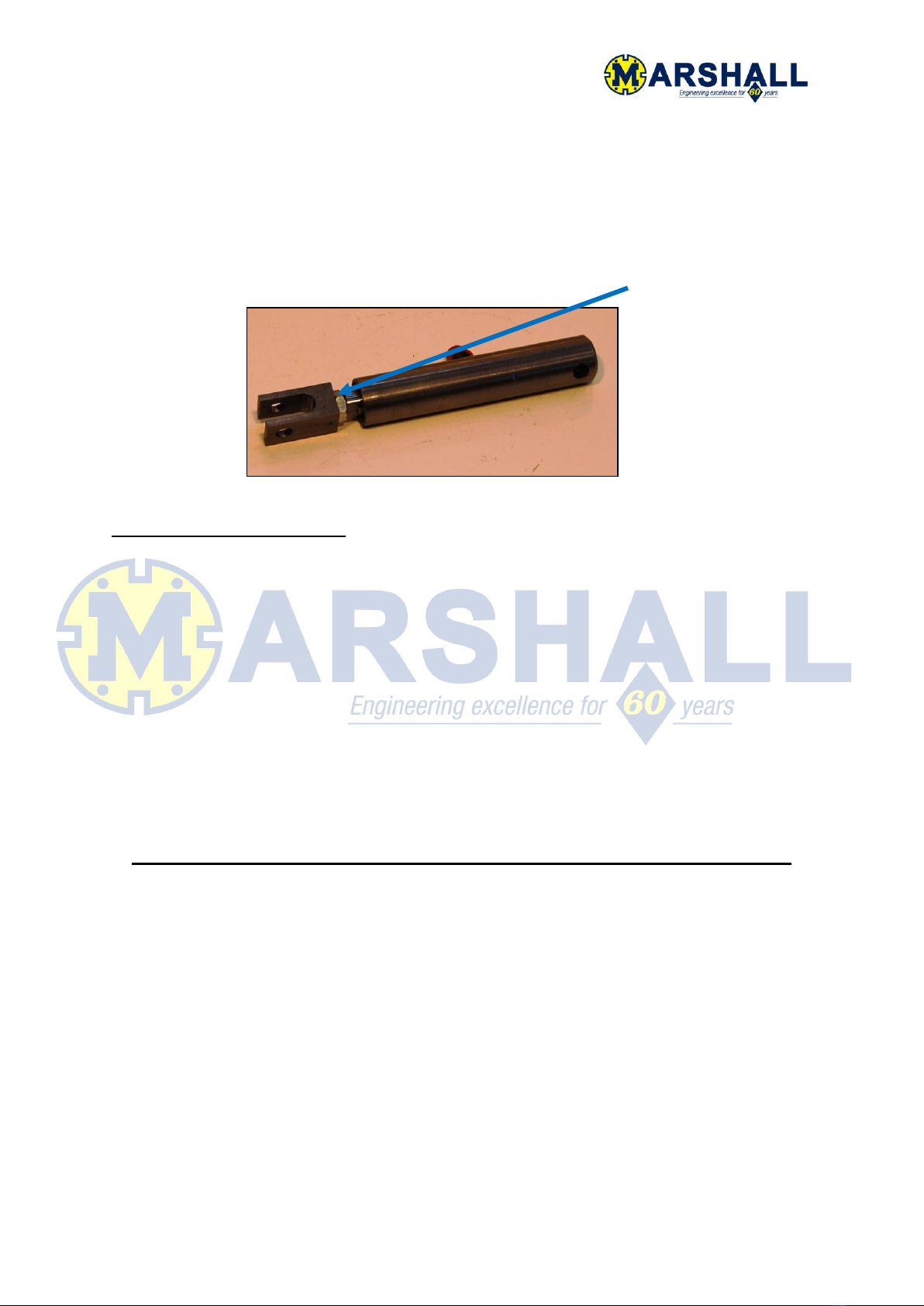

BRAKE ADJUSTMENT: Always adjust brakes with the tanker on a completely level surface.
This can be done by loosening the nut behind the clevis, then rotating the piston,
adjustment will appear from the ram. Remember to tighten the locknut when completed.
Maintenance Instructions - Oil
Check the oil levels daily.
1. The front part of the pump is a gearbox which should be filled to the top of the small
sight glass, on the side, with SAE 90 oil.
2. The other oil is checked by removing the dip-stick on top of the pump which should
always be kept above the mark. This is a TOTAL DISCHARGE OF OIL SO MUST BE
TOPPED UP DAILY with SAE 20 or similar. (Do not use milking parlour oil.)
The oil drip feed has to be set at one drop every two seconds when the pump is idling.
ENSURE THE PUMP IS PROPERLY LUBRICATED
FITTING INSTRUCTIONS TO FIT ACTIVATOR TO GATEVALVE
1. Remove gland nut from the top of the gate valve, leaving the gland packing seals in
place.
2. Remove dome part of gate valve from base by unscrewing the six allen bolts.
3. Remove brass paddle and shaft assembly from the base of the gate valve, then remove
the paddle from the shaft.
4. De-tension activator spring completely by turning the top threaded rod in an anti-
clockwise motion.
5. When the tension is released totally, screw activator tightly into the domed top of the
gate valve, then using position 3 (locking nut) lock into position.

7
6. Replace brass paddle onto the bottom stainless steel shaft of the activator.
7. Replace dome and activator assembly to the base of the gate valve making sure that the
gate valve gasket is in place and tighten the allen bolts securely.
8. Re-tension the spring by turning the top threaded rod in a clockwise fashion, until the
paddle is seated firmly into the base of the gate valve.
9. Connect activator port to the tractor hydraulic system using 3/8” r1 hose.
GATE VALVE AND ACTIVATOR MAINTENANCE
After frequent use the tension applied to the activator springs may loosen which will cause
the gate valve to not close properly. This can be rectified by re-tensioning the springs
accordingly. Another problem which may arise with your gate valve/activator assembly is
when the gate valve does not fully open. This is caused by the build up of waste material
being trapped and compressed in the dome of the gate valve. This can be prevented by
removing the activator and top dome unit from the base of the gate valve and cleaning out
the dome.
N.B. Remember to slacken off all the tension from the activator spring when removing the
dome/activator unit, and then re-tensioning it when the unit has been bolted back together
again after cleaning. This will prolong the life of the activator as well as the gate valve.
Pressure valve adjustment
To adjust the pressure simply slacken the locking nut on the body of the valve then screw
the valve clockwise to increase pressure anticlockwise to decrease (NB maximum pressure
should be kept at 1barr / 15PSI).
Any other problems arising, please contact Charles J. Marshall (Aberdeen) Ltd service
department.

8

9
Part Number Complete Pump
Hertell KD8000 069/03-8000 KD-8000ltr Vacuum Pump c/w Fixing Plate
Parts for Pump
Hertell KD8000 069/04-8001 No.1 Screw
Hertell KD8000 069/04-8002 No.2 Washer
Hertell KD8000 069/04-8003 No.3 Screw
Hertell KD8000 069/04-8004 No.4 Plug
Hertell KD8000 069/04-8005 No.5 Seal
Hertell KD8000 069/04-8006 No.6 Oil Level Indicator
Hertell KD8000 069/04-8007 No.7 Bearing
Hertell KD8000 069/04-8008 No.8 Attack gear 55 teeth
Hertell KD8000 069/04-8009 No.9 Nipple 90
Hertell KD8000 069/04-8010 No.10 Bearing
Hertell KD8000 069/04-8011 No.11 Oil Sight Glass
Hertell KD8000 069/04-8012 No.12 Oil Tube
Hertell KD8000 069/04-8013 No.13 Elastic Pin
Hertell KD8000 069/04-8014 No.14 Key
Hertell KD8000 069/04-8015 No.15 Drop Feeder
Hertell KD8000 069/04-8016 No.16 Washer
Hertell KD8000 069/04-8017 No.17 Screw
Hertell KD8000 069/04-8018 No.18 Gasket
Hertell KD8000 069/04-8019 No.19 Outlet
Hertell KD8000 069/04-8020 No.20 O-Ring
Hertell KD8000 069/04-8021 No.21 Plug
Hertell KD8000 069/04-8022 No.22 Conic Distributor
Hertell KD8000 069/04-8023 No.23 Spring
Hertell KD8000 069/04-8024 No.24 Outlet Gasket
Hertell KD8000 069/04-8025 No.25 Outlet
Hertell KD8000 069/04-8026 No.26 Flange
Hertell KD8000 069/04-8027 No.27 Washer
Hertell KD8000 069/04-8028 No.28 Handle
Hertell KD8000 069/04-8029 No.29 Distributor Cover
Hertell KD8000 069/04-8030 No.30 Gasket
Hertell KD8000 069/04-8031 No.31 Screw
Hertell KD8000 069/04-8032 No.32 Washer
Hertell KD8000 069/04-8033 No.33 Lubrication Nipple
Hertell KD8000 069/04-8034 No.34 Bearing Cover
Hertell KD8000 069/04-8035 No.35 Bearing
Hertell KD8000 069/04-8036 No.36 Seal
Hertell KD8000 069/04-8037 No.37 Plug
Hertell KD8000 069/04-8038 No.38 Copper Washer
Hertell KD8000 069/04-8039 No.39 Hinge
Hertell KD8000 069/04-8040 No.40 Plug
Hertell KD8000 069/04-8041 No.41 Distributor
Hertell KD8000 069/04-8042 No.42 Gasket
Hertell KD8000 069/04-8043 No.43 Body
Hertell KD8000 069/04-8044 No.44 Vane
Hertell KD8000 069/04-8045 No.45 Rotor
Hertell KD8000 069/04-8046 No.46 Gasket
Hertell KD8000 069/04-8047 No.47 Gearbox
Hertell KD8000 069/04-8048 No.48 Oil Pump
Hertell KD8000 069/04-8049 No.49 Oil Pump Gasket
Hertell KD8000 069/04-8050 No.50 Oil Pump Attack Gear
Hertell KD8000 069/04-8051 No.51 Oil Pump Gear
Hertell KD8000 069/04-8052 No.52 Lock Nut
Hertell KD8000 069/04-8053 No.53 Gasket
Hertell KD8000 069/04-8054 No.54 Gearbox Cover
Hertell KD8000 069/04-8055 No.55 T-Connection
Hertell KD8000 069/04-8056 No.56 Small Gear 28 teeth
Hertell KD8000 069/04-8057 No.57 Seal
Hertell KD8000 069/04-8058 No.58 Pipette
Hertell KD8000 069/04-8059 No.59 PTO Guard
Hertell KD8000 069/04-8060 No.60 Rotor Plug
Hertell KD8000 069/04-8061 No.61 1/2" plug
Hertell KD8000 069/04-8062 No.62 Nut
Hertell KD8000 069/04-8063 No.63 PTO Guard Screw
Hertell KD8000 069/04-8064 No.64 Nipple
Hertell KD8000 069/04-8065 No.65 Elbow 1/2
Hertell KD8000 069/04-8066 No.66 Nipple
Hertell KD8000 069/04-8067 No.67 Bracket

10
Part Number Size Maximum Weight Speed Max Tyre Pressure
Please note this chart is for reference only each tyre brand can have different ratings.
083/01-26-12 26 x 1200 x 12 800kg 25kmh 20psi
083/01-100-12 10.0/80x12 10ply 1000kg 30kmh 45psi
083/01-100-15 10.0 x 15.3 1500kg 30kmh 52psi
083/01-115-15 11.5 x 15 2000kg 30kmh 52psi
083/01-125-15 12.5 x 15 2500kg 30kmh 60psi
083/01-135-17 13.5 x 17 2500kg 30kmh 45psi
N/A 15/70 x 18 3200kg 40kmh 75psi
083/01-15-22.5 15 x 22.5 (385/65R 22.5) 4500kg 80kmh 90psi
N/A 405x60R 22.5 4500kg 80kmh 90psi
083/01-1555-17 15-55 x 17 2120kg 40kmh 52psi
083/01-1670-20 16/70 x 20 3000kg 40kmh 49psi
083/01-165-70 16.5 x 70 x 18 3200kg 40kmh 54psi
N/A 18 x 22.5 5800kg 80kmh 90psi
N/A BN2 340/457-1300 x 18 2600kg 40kmh 60psi
N/A BN3 1300 x 530 x 533 4500kg 40kmh 53psi
N/A BN4 22/70-20 4500kg 40kmh 33psi
083/01-340-65 XP27 Radial 340/65R 18 2650kg 90kmh 72psi
083/01-400-60 400-60 x 22.5 4000kg 40kmh 51psi
083/01-550-45 550-45 x 22.5 4375kg 40kmh 41psi
083/01-560-45 560-45 x 22.5 4575kg 45kmh 58psi
083/01-500-60 500-60 x 22.5 5450kg 40kmh 41psi
083/01-550-60 550-60 x 22.5 5300kg 40kmh 44psi
083/01-435-50 435-50 x 19.5 2YR 4500kg 100kmh 100psi
083/01-184-30 18.4 x 30 14 pr 3550kg 40kmh 39psi
083/01-184-34 18.4 x 34 14 pr 3650kg 40kmh 36psi
083/01-231-26 23.1 x 26 3950kg 40kmh 36psi
083/01-281-26 28.1 x 26 6100kg 40kmh 33psi
OOOOOOO 30.5 x 32 7100kg 40kmh 39psi
083/01-750-60 750 x 60 x 30.5 8500kg 40kmh 60psi
