martens GTL723 User manual

Operating Manual
Clamp-on Temperature Sensor
GTL723
EN
Save for later reference!

Clamp-on Sensor GTL723
Table of contents
1Proper use (application areas).........................................................................................................1
1.1 Safety signs and symbols ...................................................................................................................2
1.2 Safety instructions...............................................................................................................................3
1.3 Product liability and guarantee............................................................................................................3
1.4 Standards and directives.....................................................................................................................3
2Product description ..........................................................................................................................4
2.1 Delivery content...................................................................................................................................4
2.2 Operating principle..............................................................................................................................4
2.3 Design oft he measurment system......................................................................................................5
2.4 Type plate............................................................................................................................................5
2.5 Step responce of clamp-on sensor .....................................................................................................6
3Mounting and electrical installation................................................................................................7
3.1 Mechanical mounting ..........................................................................................................................7
3.2 Mounting guidelines ............................................................................................................................7
3.3 Mounting notes....................................................................................................................................8
3.4 Instruction on Ordinance (EC) 1935/2004...........................................................................................8
3.5 Electrical installation............................................................................................................................9
3.6 Connction diagram............................................................................................................................10
4Commissioning, Maintanace and Servicing.................................................................................11
4.1 Comissioning............................................................................... Fehler! Textmarke nicht definiert.
4.2 Maintanance................................................................................ Fehler! Textmarke nicht definiert.
4.3 Servicing............................................................................................................................................11
4.4 Calibration / Adjustment....................................................................................................................12
5Fault finding.....................................................................................................................................13
6Technical Data.................................................................................................................................14
6.1 Mechanical desing / dimensions.......................................................................................................15
7Ordering code..................................................................................................................................17
7.1 Accessories.......................................................................................................................................19
8Device transport and storage ........................................................................................................19
8.1 Returns..............................................................................................................................................19
8.2 Disposal.............................................................................................................................................20
9Service..............................................................................................................................................20
9.1 Manufacurer ................................................................................ Fehler! Textmarke nicht definiert.
9.2 Service processing............................................................................................................................20
10 EU-Declaration of conformity ........................................................................................................21

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
1 / 19
BA_MA_TC125_EN_V0.13
1 Proper use (application areas)
Detailed information on the application area can be found in the Chapter
2 Product description.
The operating safety of the device is ensured only with proper use and observation of the information given in
the operating instructions.
For safety and guarantee reasons, work above and beyond that described in the operating instructions may only
be carried out by personnel authorized by the manufacturer. Unauthorized conversions or modifications are
expressly prohibited.
In the event of improper use, this device can pose dangers, depending on the application.
Device is not suitable for use in areas subject to the risk of explosion or system components relevant to safety
in accordance with SIL.
General safety instructions, use
These operating instructions must be kept where they are immediately available to specialist personnel at
all times.
Only trained personnel authorized by the operator, while wearing the corresponding protective clothing must
carry out all procedures described in these operating instructions.
All rights reserved.

Clamp-on Sensor GTL723
2 / 19
BA_MA_GTL723_EN_V2.04
1.1 Safety signs and symbols
Warning instructions:
Table 1 Safety signs and symbols
Danger
Warning! This symbol warns against immediately threaten- ing danger, death, severe physical
injury or serious material damage if instructions are not followed.
Attention! This symbol warns against possible dangers or dangerous situations, which can
cause damage to the de- vice itself or to the environment if instructions are not followed.
Note! This symbol indicates procedures, which have a direct influence on operation or can
cause unforeseen reactions if instructions are not followed.
Warning! In front of an area in which explosive atmospheres can occur.
This only applies to devices with an ATEX approval.

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
3 / 19
BA_MA_TC125_EN_V0.13
1.2 Safety instructions
Read the product description before bringing the device into operation. Ensure that the product is fully
suitable for the applications in question.
The operator is responsible for the problem-free operation of the device. The operator is obliged through-
out the complete usage time to establish and ensure that the required working and safety measures
comply with the relevant applicable regulations.
1.3 Product liability and guarantee
Liability disclaimer:
The content of the operating instructions has been checked for compliance with the device described. Deviations
cannot however be excluded, so that we offer no guarantee of full compliance. The information in these instruc-
tions is checked regularly, and necessary corrections incorporated into the following editions. We reserve the
right to make technical amendments. All claims are also subject to the valid “General delivery conditions for
products and services of the electronics industry”.
GHM Messtechnik cannot check or repair devices without the specified, fully completed form (see
chapter 9.1 Returns).
1.4 Standards and directives
Conformity
EMC-Directive 2014/30/EU
Testing standard EN 61326-1:2013
EN 61326-2-3:2013
Vibrations EN 60068-2-6:2008
FDA conform
Danger

Clamp-on Sensor GTL723
4 / 19
BA_MA_GTL723_EN_V2.04
2 Product description
The GTL723 pipe clamp-on sensors are especially useful as an Alternative to invasive and inline-measuring
procedures for monitoring sterilization processes.Without disturbing the process, the special clamp-on mechan-
ics make the systems flexible, absolutely dead spot-free, and usable without high installation costs. This meas-
uring procedure permits high-precision results.
The pipe clamp-on sensor consists of a sensor insert with the Pt100 sensor, integrated transmitter and the
pipeline adapter. With the aid of the microprocessor-controlled measurement, the user can adapt the parameter
setting to the process environment using a PC.
Block diagram
Figure 1 Block diagram
2.1 Delivery content
Clamp-on Sensor GTL723
Pipeline adapter, RLA (separate ordering position)
Silicone insert (RLA included)
This operating manual (GTL723 included)
Optional GTL Configuration tool (separate ordering position)
2.2 Operating principle
The GTL723 clamp-on sensor measures temperatures of liquids in metal pipelines without a process connector
touching the fluid. For this purpose, the clamp-on sensor is mounted on the exterior of the pipe at a suitable site.
The sensor plate is pressed to the exterior of the pipe wall by a spring. Constant pressure and shielding the
silicone from the ambient air guarantee an optimal thermal transfer. The one-piece measuring insert, which is
manufactured from premium-quality synthetic material prevents undesirable heat dissipation and reduces the
response time. The sensor plate inside the measuring insert is in direct thermal contact with the Pt100 sensor.
2.3 Pipe wall correction
A pipe clamp-on sensor causes a measuring error, since the pipe wall is between the fluid and the measuring
point. This error is largely compensated by the pipe wall correction by means of an expansion, a polynomial
determined through an elaborate series of tests. It is assumed that the pipes are stainless steel (any grade).
Pipe wall thicknesses of 1 to 4 mm for pipeline adapters of manufactured sizes #2 and #3, or of 1 to 2 mm for
pipeline adapters of manufactured size #1, are considered. The pipe wall correction differentiates applications
with and without heat-conductive paste. The necessary adjustment can be made with the GTL Configuration
tool.

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
5 / 19
BA_MA_TC125_EN_V0.13
Pipe-Ø: DN10...DN80
2.4 Design of the measurement system
The GTL723 measuring system consists of an RLA piping adapter and a GTL723 measuring insert.
Figure 2 Design of measurement system
2.5 Type plate
The nameplate contains the most important identification data:
Connection diagram
Manufacturer
Type and article designation
Technical data
Serial number
Figure 3 Type plate GTL723
Figure 4 Type plate RLA
Insertion GTL723
Clamp-on adapter
RLA
Type plate
insertion GTL723
Type plate
Clamp-on adapter RLA
Silicon insertion
RLA
Sensor insertion with
round plug M12,
360° turn able

Clamp-on Sensor GTL723
6 / 19
BA_MA_GTL723_EN_V2.04
2.6 Step response of clamp-on sensor
Reference conditions
Pipe diameter
29 mm
Pipe wall thickness
1,5 mm
Pipe material
1.4404
Flow rate
0,5 ~ 1,5 m/s
Ambient temperature
30 °C
Medium
Water
Mounting direction
Acc. to position 1, 3.1 Mechanical mounting
Table 2 Reference condition for step response

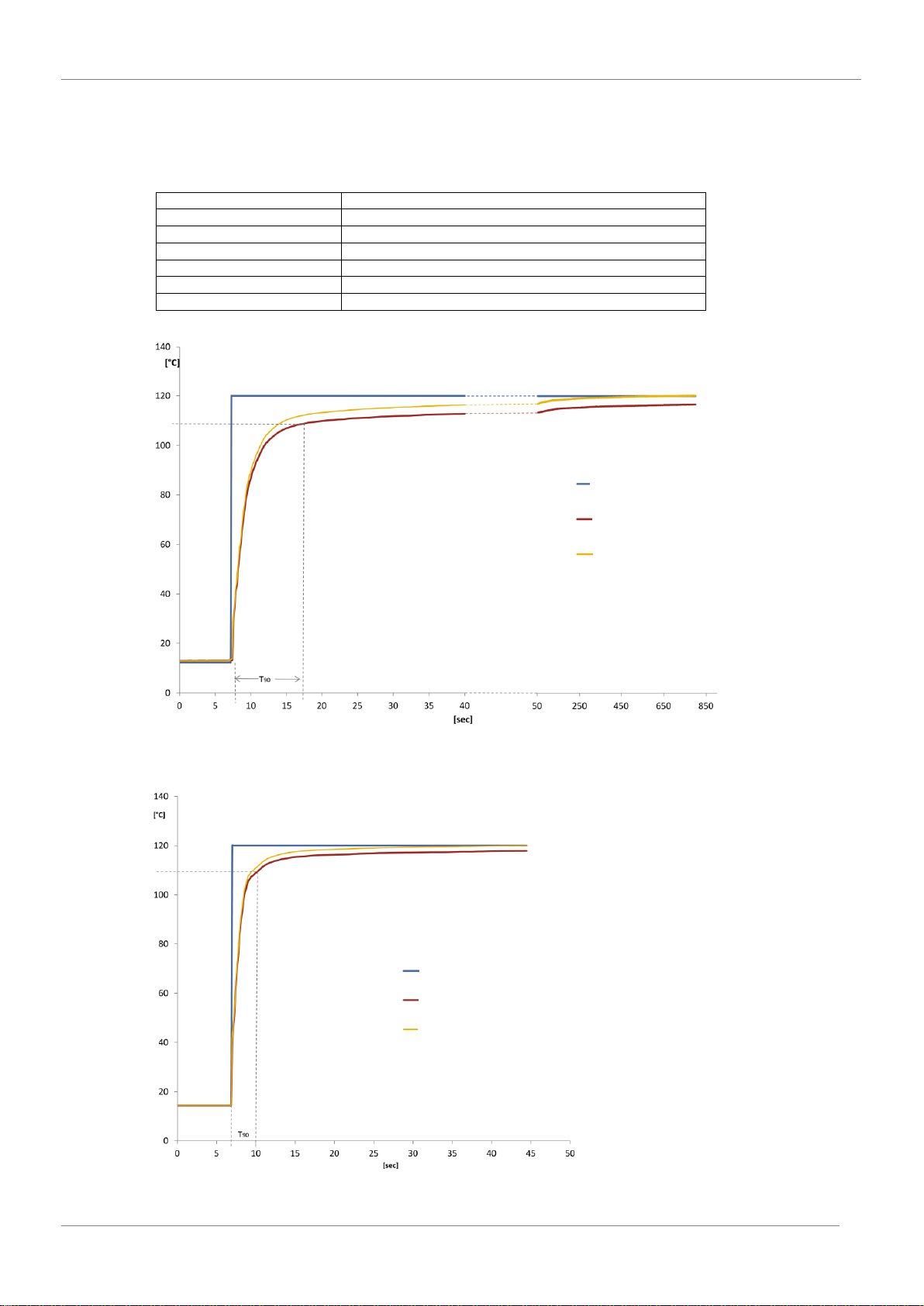

Figure 5 Step-response (T90) in water, without thermal compound
Figure 6 Step-response (T90) in water, with thermal compound
Medium (Water)
GTL723
GTL723 step-response (without thermal compound)
GTL723 with activated
pipe wall correction
Medium (Water)
GTL723
GTL723 step-response (with thermal compound)
GTL723 with activated
pipe wall correction

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
7 / 19
BA_MA_TC125_EN_V0.13
3 Mounting and electrical installation
3.1 Mechanical mounting
The RLA pipe clamp sensors are available in three sizes. The adapters are adjusted to the pipe diameter (DN10
to DN80) with different highly heat- resistant silicone inserts.
Frame size (Bg)
Pipe Ø [mm]
1
12,0..19,0
2
20,0..33,9
3
34,0..53,0
4a
60,3..75,9
4b
76,0..88,9
Table 3 Frame size and pipe diameter
Available for pipe standards: DIN 11850 r2 und DIN11866 rB, rC.
The cap nuts of the two adapter parts should be torqued to a value from 0.5 to 1 Nm (0.37 to 0.74 ft-lb) to avoid
a deformation of the silicone insert, which would prevent a correct fitting of the pipes.
For the same reason, all cap nuts must be torqued equally. This is especially important for pipes with small
diameters without the use of heat-conductive paste.
3.2 Mounting guidelines
(For mounting instructions, see Figure 7 Permissible types of mounting)
To ensure secure functionality and the best measuring results, please follow these mounting steps:
1. The pipe diameter should not deviate more than ± 1 % from the nominal diameter of the silicone insert.
2. Clean the exterior of the pipe before installation. Be sure that no chips, swarf, or other particles are
lodged between sensor and pipe because this would prevent the contact plate of the sensor from
being flush against the pipe, which reduces accuracy.
3. The installation site should be at least 15 cm (6 inches) from pipe el- bows, pipe reducers, and radial
welded seams. The sensor must not be placed on welded seams of axially welded pipes. The sensor
should be installed at a distance of at least15 cm (6 inches) from other installed sensors with fluid
contact.
4. Behind pipe elbows, the sensor housing should be installed on the out- side to prevent measuring
errors due to bubble formation or flow characteristics.
5. If the pipes are not completely filled, the sensor should be installed in the fluid-covered area of the
pipe.
6. Unilateral strain due to suspending heavy objects or taut connection wires should be avoided.
The sensor plate must be flush against the pipe.
7. If thermal compound is used between pipe wall and measuring tip, it should be replaced in the mainte-
nance interval according the maximum storage period of the paste.
8. The electrical installation must be made after the pipeline adapter is installed on the process line.

Clamp-on Sensor GTL723
8 / 19
BA_MA_GTL723_EN_V2.04
3.3 Mounting notes

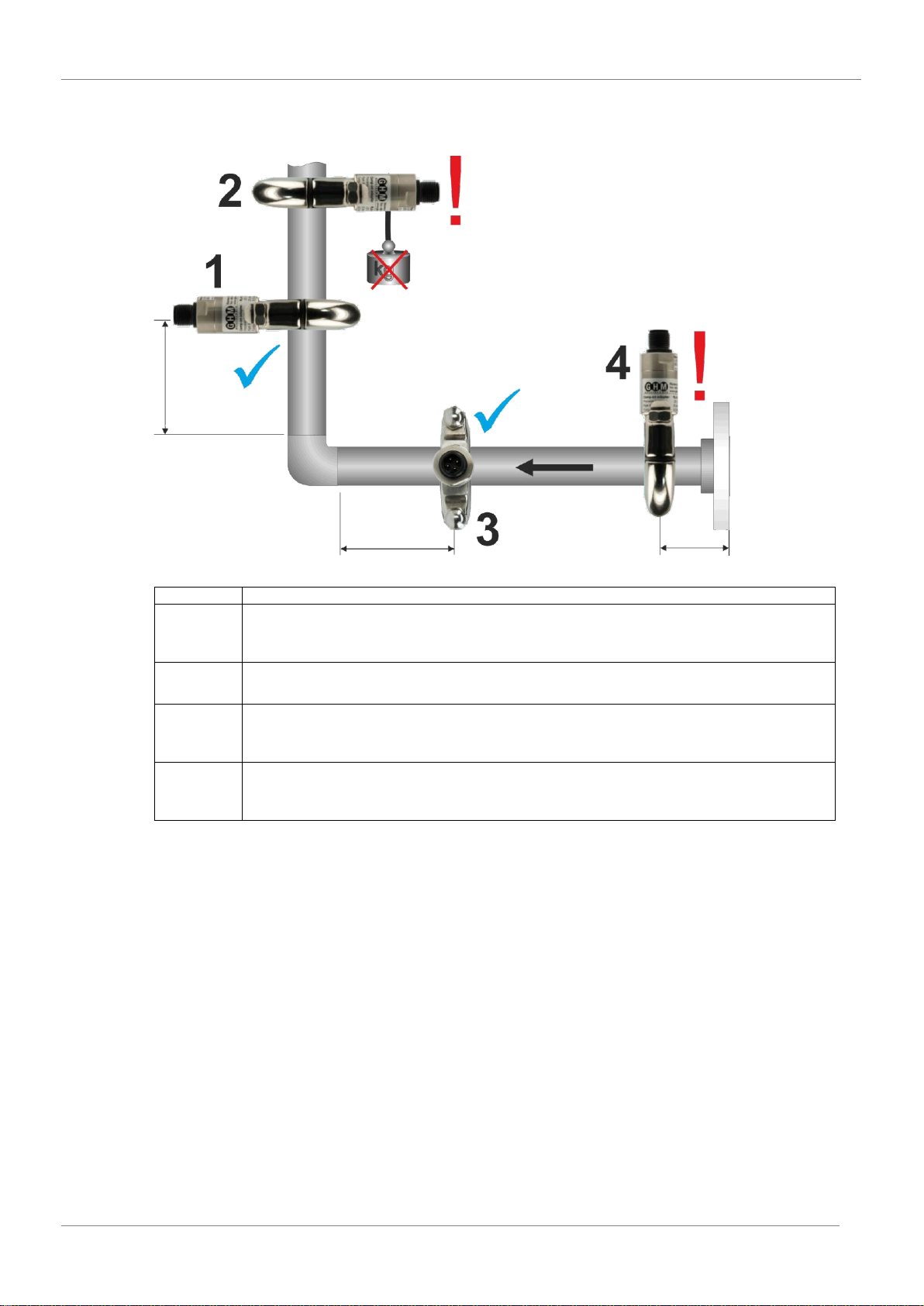

Figure 7 Permissible types of mounting
Position
Characteristics
1

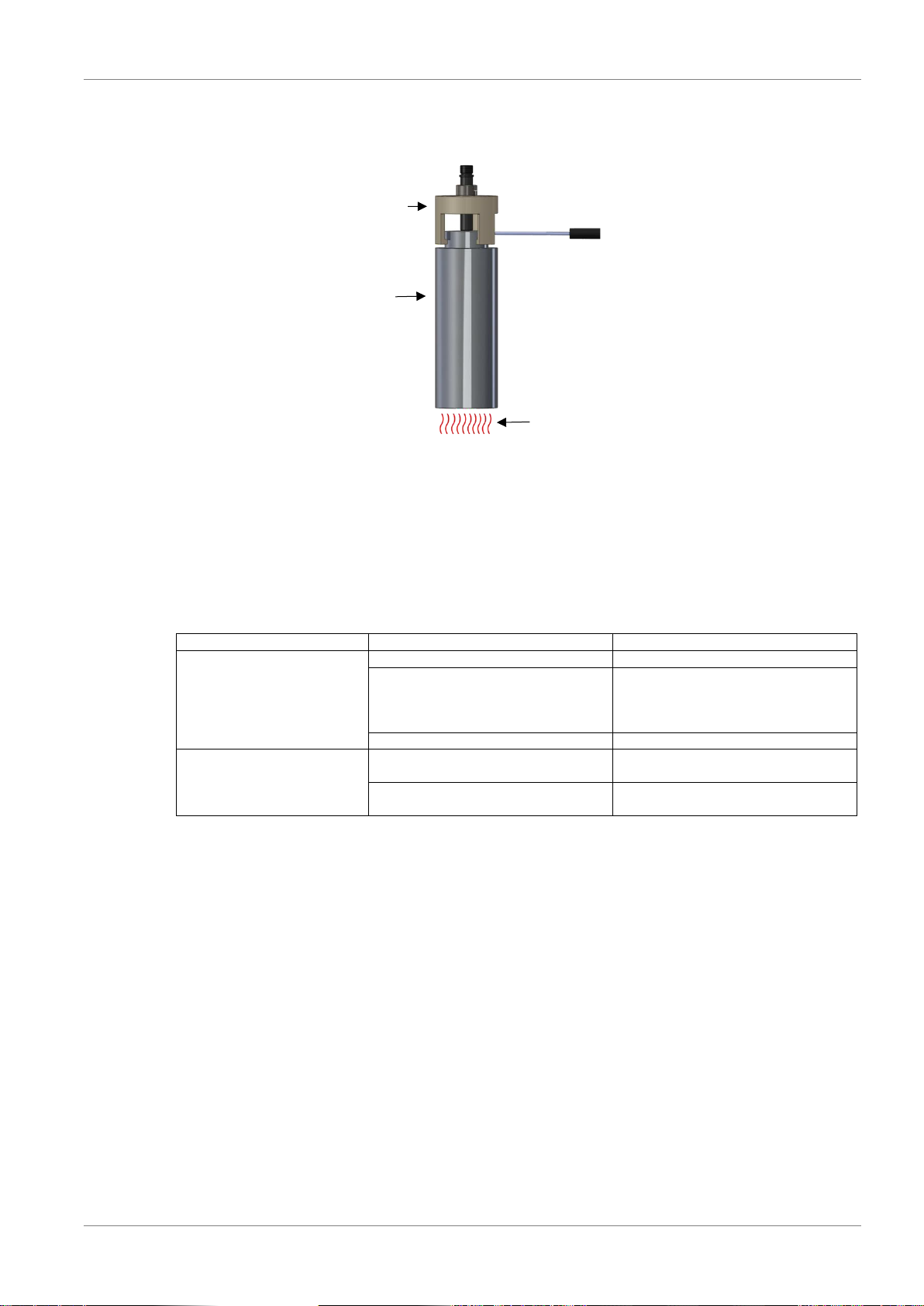

Ideal:
Achieves the best result, since there are no bubbles, deposits, or rising lost heat in the pipes
to distort the measuring result.
2
Questionable:
Lost heat and moving the contact area may lead to distorted measuring results.
3
Ideal:
Good measuring result, if no air bubbles form. Minimum distance to pipe angle 15 cm (6
inches)
4
Questionable:
Lost heat and too small a distance from the connection flange may lead to distorted measur-
ing results.
Table 4 Description to Fig. 7
3.4 Instruction on Ordinance EU 10/2011 / (EC) 1935/2004
The following components of the product are designed in accordance with Ordinance for permanent contact
with foodstuffs:
FDA approved components
Flow direction
min. 15 cm
min. 15 cm
min. 15 cm

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
9 / 19
BA_MA_TC125_EN_V0.13
3.5 Electrical installation
The electrical connection is to realized using the M12 round connector pin 1 (+) and 2/3 (-). For the wiring see
Figure 8 Connection diagram.
Supply voltage acc. To DIN EN 60664-1, SELV, PELV
The device must be installed only by a qualified electrician. The national and international regulations for the
installation of electrical systems of the relevant operator country apply.
For configuration and adjustment, GTL-Configuration tool is required.
Danger

Clamp-on Sensor GTL723
10 / 19
BA_MA_GTL723_EN_V2.04
4 Operating elements and functions
4.1 Parameterization
To parameterize the device, the programming software GTL Configuration tool is required. The programming
takes place via the PC-USB interface.
After starting the software on the PC, the parameters and the operating structure are read out of the device (see
separate operating instructions). The following parameters Table 5 are available.
*The free programmable measuring range must be in range -20.0…160 °C.
The minimal span must be 50 °C.
Operating structure
1st Menu level
2nd Menu Level
Parameter level
Editor type
Format
Value range
Factory setting
1 –Measuring range dis-
play
1.1 –Unit
Selection table
°C, °F
°C
1.2 –Solution
Selection table
Not active
1.3 –Measuring range
Selection table or
Number input
-##,#..###,#
-10..+40°, 0..50°, 0..100°,
0..150° C, free programmable
0,0..150,0
2 –Filter and output
2.1 –Filter
Selection table
No filter function,
t90 = 0,7 s,
t90 = 1,8 s,
t90 = 3,5 s
No filter function
2.2 –Fault detection
Selection table
##.##
>22,00 mA, < 3,75 mA
22,00 mA
2.3 –Temperature @ 4 mA
Number input
#,# - ###,#
Values as MR 1.3
0,0*
2.4 –Temperature @ 20 mA
Number input
#,# - ###,#
Values as MR 1.3
150,0*
2.5 –Pipe wall correction
Selection table
Not active
active, without compound
active, with compound
Not active
3 –Offset- and gradient
correction
3.1 –Offset correction
Number input
#,# - #,#
-5,0..+5,0
0,0 °C
3.2 –Gradient correction
Number input
##.## - ##.##
-10,00..+10,00
0,00 %
Table 5 Operating structure GTL723

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
11 / 19
BA_MA_TC125_EN_V0.13
4.2 Connection diagram
View at the plugs:
5 Commissioning, Maintenance and Servicing
5.1 Commissioning
1. Be sure that the pipe clamp sensor is flush with the pipe.
2. Be sure that the M-12 connector is screwed on correctly and the cable is not pulling on the sensor.
3. Check the correct measuring function after connecting the evaluation device.
5.2 Maintenance
Housing
When cleaning the device, make sure that its connections are firm and tight. Cleansers must not harm the
housing surface and gaskets.
If the housing is cleaned with a high-pressure cleaning device, make sure the electric connection and the
device are not sprayed directly. Avoid cleanser deposits on the thread and inside the guide of the interior
part.
Sensor
During cleaning, it is essential not to damage the sensor tip. If cleansers are used, make sure that they do not
harm any materials.
5.3 Servicing
The device itself cannot be repaired. Replacement of the insertion is possible without process interruption
5.4

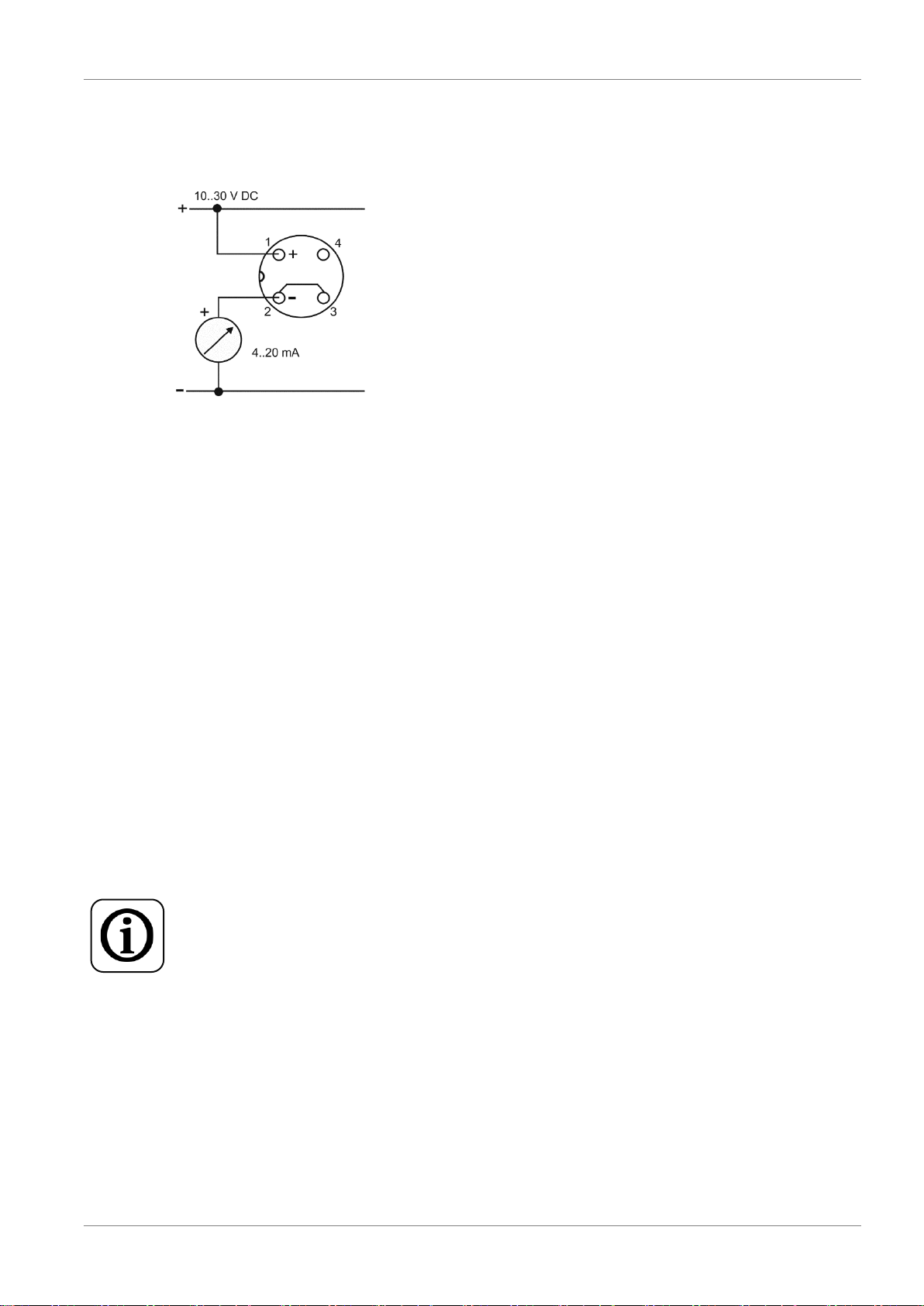

Figure 8 Connection diagram

Clamp-on Sensor GTL723
12 / 19
BA_MA_GTL723_EN_V2.04
5.5 Calibration / Adjustment
The series GTL723 sensors are calibrated in a way so that the measurement errors are within the target values
of the calibration data below (specifications for the temperature sensor). Upon request, this sensor can also be
delivered with a certificate of calibration. A recalibration in our facilities is also possible.
Please notice the following for external recalibration:
Depending on the purpose of the pipe clamp sensor, the test should be conducted by placing the evaluative
silver plate in the sensor insert on a heat-controlled reference surface (dry calibration).
Wet calibration, e.g. in an oil bath, is possible in principle but not recommended, due to the submergence, which
deviates from normal application. The utilization data limits (see technical specifications) for the device must be
considered at all times.
For a wet calibration, the maximum temperatures, listed under measurement range, are only used for the un-
derside of the sensor. During progressive submergences of the sensor tip, the calibration temperature is re-
duced to the valid ambient temperature.
Specially constructed inserts for customary block calibrators and suitable retaining pieces for housing the sensor
and a reference thermometer with certificate of calibration are available from the manufacturer upon request.
Attention:
If “Pipe Wall Correction” is activated for the GTL723 sensors, it is absolutely necessary to switch off this param-
eter with the GTL configuration tool prior to calibrating.
Acceptable deviation data ± 0,3 °C

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
13 / 19
BA_MA_TC125_EN_V0.13
Proposed calibrating system
Figure 9 Proposed calibration system
The insert is constructed in a way to position the calibrated reference sensor very closely under the active
heating surface, so that it may be used as a reference meter or regulator of the application temperature.
The GTL sensor insert must at all times be guided in a way to ensure a totally flush position of the evaluative
silver plate on the heating surface. (Placing the sensor by hand is not practicable.)
6 Faultfinding
Fault
Cause
Remedy
Device fails to output signal
or wrong value
Break of wire
Check continuity of cables
Supply voltage <10 V
Check supply voltage at PIN 1 and 3
of the cable socket directly over the
GTL (without the burden of the eval-
uation device)
Parameter set
Check programed measuring range
Output signal exceeds the
measuring range
Temperature to high
Check measuring point
Parameter set
Check programed measuring range
Table 6 Faultfinding
GTL-sensor insertion
Retaining
clamp
Calibrated reference sensor
Heated insert
external heating

Clamp-on Sensor GTL723
14 / 19
BA_MA_GTL723_EN_V2.04
7 Technical Data
Temperature sensor
Pt100 A class, acc. to DIN EN 60751
Measuring range
-20..+100 °C, temporary 160°C <30 min
Min. measuring range
50 °C
Ambient temperature
-20..+60 °C
Electrical connection
Loop voltage
10…30 V DC, 2-wire connection
Round plug
4-pole, M12x1
Sensor current
10 mA, max. (0,3..1 mA, recommended)
Protection class
IP67 in connection with mounted M12-plug, only
Response time / accuracyt1
Date, medium temperature 120 °C
without thermal com-
pound
with thermal com-
pound
Step response T90
10 s, approx.
3 s, approx.
Accuracy
- With pipe wall adjustment
- Without pipe wall adjustment
up to 0,6 % f. s.
up to 2,5 % f. s.
up to 0,2 % f. s.
up to 1 % f. s.
Temperature coefficient
0,02 %/°C
Error indication
< 3,7 mA or > 22 mA, programmable
Cause of error
Measured temperature out of range -200…+300°C or
Internal error
Current output at
- 1,1 x MBend..300°C
- -200°C..0,9xMBstart
> 22 mA (no error)
< 3,7 mA (no error)
Independent of the parameter set „error indication“
Output
4…20 mA, 2-wire
Burden
= (supply voltage –10 V) / 0,023A
Sensor
Material
- Spring
- Insert sensor
- Tip sensor
- M12 plug
SS-type 1.4310 (spring power 21 N, max.)
PEEK
Silver 935
PA / gold plated contacts
Housing
18 mm round case
Weight
17g
Clamp-on adapter
Material
- Adapter
- Case
- Adapter insertion
SS-type 1.4405
SS-type 1.4305
Silicon HTV
Weight
Frame size 1
Frame size 2
Frame size 3
Frame size 4
120 g
170 g
395 g
955 g
Table 7 Technical data
1) See also Figure 5 and Figure 6. Measurement results depend on the respective installation situation (see
3.3 Mounting notes.

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
15 / 19
BA_MA_TC125_EN_V0.13
7.1 Maximum ambient temperature

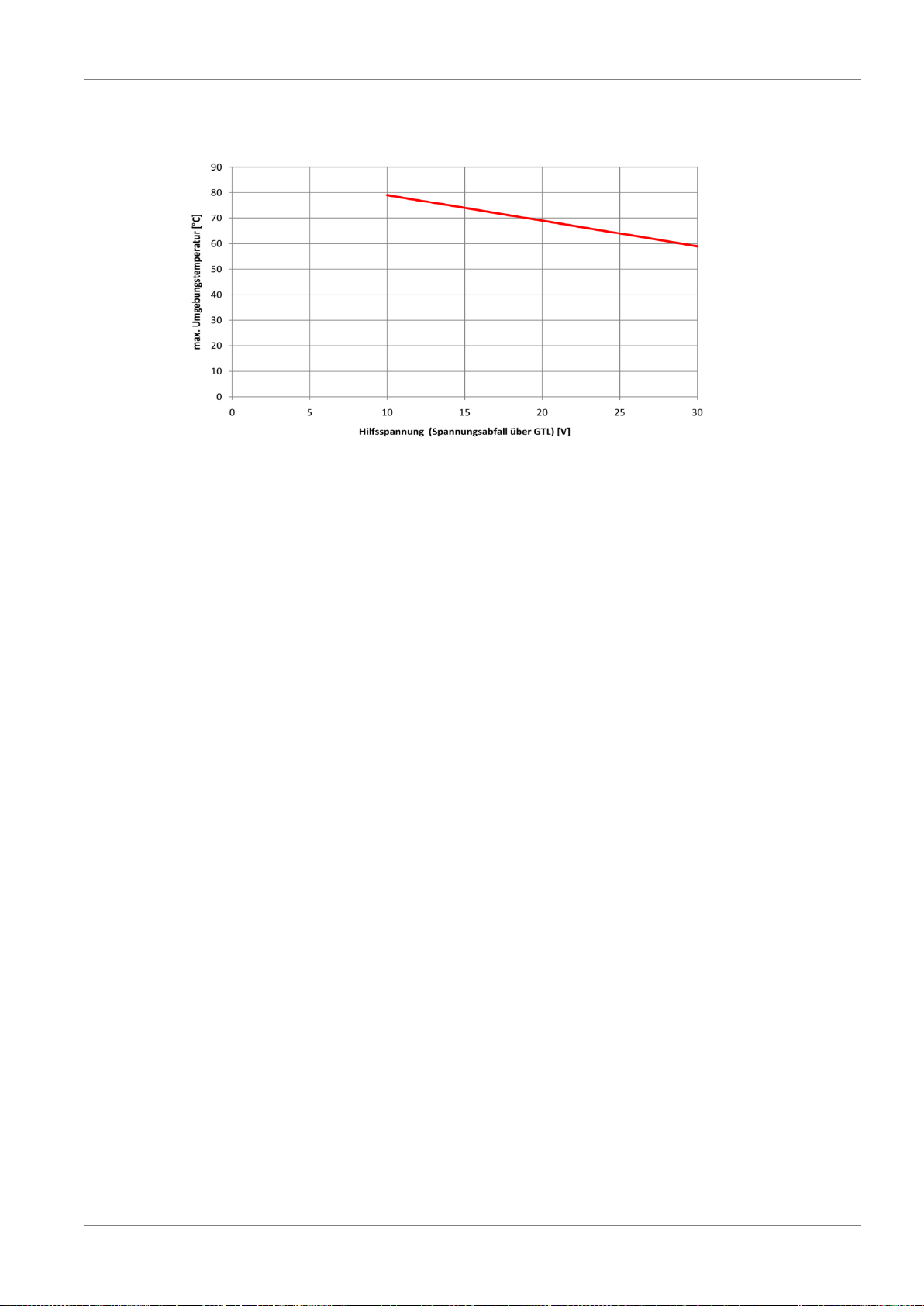

Figure 10 Maximum ambient temperature

Clamp-on Sensor GTL723
16 / 19
BA_MA_GTL723_EN_V2.04
7.2 Mechanical design / dimensions
Figure 101 Dimensions GTL723, RLA
Frame size
Pipe
[mm]
B
[mm]
h
[mm]
SW
[mm]
1
13,0..19,9
51
26
11
2
20,0..33,9
64
32
11
3
34,0..53,0
92
46
14
4a
60,3..75,9
133
68
14
4b
76,0..88,9
133
68
14
Table 8 Frame size and dimensions RLA
Clamp-on sensor GTL723
Clamp-on adapter RLA

Clamp-on Sensor GTL723
BA_MA_GTL723_EN_V2.04
17 / 19
BA_MA_TC125_EN_V0.13
8 Ordering code
Note:
In place of order, please specify the clamp-on sensor and the clamp-on adapter.
Clamp-on temperature sensor
1.
2.
3.
4.
5.
6.
-
-
-
-
-
1.
Design/input
GTL723
Pt100 Sensor with M12-round plug
2.
Electrical connection
2
4…20 mA (10…30V DC), 2-wire
3.
Measuringrange
M1
-10…+40 °C
M2
0…+50 °C
M3
0...+100 °C
M4
0...+150 °C
Temperature>100 °Cmax.30min.
MB
Custommeasuringrangein°C(e.g.20...130°C)
Minrange:50°C
4.
Pipewallcorrectionfor ss-type pipes
0
Notactive
1
Active, withoutusageofthermalcompound
2
Active, withusageofthermalcompound
5.
Options
00
Withoutoptions
6.
Certificate
APZ3P
3.1testingcertificate, accuracy(30/60/90°C)
Table 9 GTL723 Ordering code

Clamp-on Sensor GTL723
18 / 19
BA_MA_GTL723_EN_V2.04
Clamp-on adapter
1.
2.
RLA
-
1.
Pipediameter
DIN11850
DIN11866
ISO1127
r1
r2
rC
ASME-BPE
rB
Bg.1
120 (12,0mm)
DN10
130 (13,0 /12,7mm)
DN10
½“
135 (13,5mm)
DN8
DN8
172 (17,2mm)
DN10
DN10
180 (18,0mm)
DN15
190 (19,0 mm)
DN15
¾“
Bg.2
213 (21,3mm)
DN15
230 (23,0mm)
DN20
254 (25,4mm)
1”
269 (26,9mm)
DN20
280 (28,0mm)
DN25
290 (29,0mm)
DN25
337 (34,0 /33,7mm )
DN32
DN25
350 (35,0mm)
DN32
Bg.3
381 (38,1mm)
1 ½“
400 (40,0mm)
DN40
410 (41,0mm)
DN40/
424 (42,4mm)
DN32
483 (48,3mm)
DN40
508 (50,8 mm)
2“
520 (52,0mm)
DN50
530 (53,0mm)
DN50
Bg.4a
603 (60,3mm)
DN50
635 (63,5mm)
2 ½ “
700 (70,0mm)
DN65
Bg.4b
761 (76,2 /76,1mm)
3“
DN65
850 (85,0mm)
DN80
889 (88,9 mm)
DN80
xxx
999
Customizeddiameter.Onrequest.
2.
Options
00
Withoutoption
Table 10 RLA Ordering code
