Martin Professional Wizard Extreme User manual

Wizard Extreme
user manual

552
516
208
110
1
3
4
5
6
2
7
8
9
1. Data sockets
2. Power and Data LEDs
3. Power input, main fuse,
power on/off switch
4. DIP switch
5. Safety cable eye
6. Mounting bracket
7. Lamp housing
8. Swivel locks
9. Focus rod (see illustration
below right)
Cover access screws
Measurements are in millimeters
© 2004 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be
reproduced, in any form or by any means, without
permission in writing from Martin Professional A/S,
Denmark.
Printed in Denmark.
P/N 35000155, Rev. B

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installing a plug on the mains lead . . . . . . . . . . . . . . . . . . . . . . . .8
Adjusting voltage settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Overhead mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Operation from the floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Multi-coupler bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Data connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Recommended cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Stand-alone operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Single-unit operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Master / slave operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Stand-alone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
MC-1 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
MC-1 settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
DMX operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
DMX modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Setting the DMX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
DMX control address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Basic service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Lamp maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Setting Wizard emulation and 1-channel modes . . . . . . . . . . . . .31
Updating firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
DMX protocol: 11-channel mode . . . . . . . . . . . . . . . . . . . . . . .35
DMX protocol: Wizard emulation 8-channel mode . . . . . . .38
DMX protocol: 1-channel mode . . . . . . . . . . . . . . . . . . . . . . . .40
Wizard Extreme specifications . . . . . . . . . . . . . . . . . . . . . . . . .41

Introduction 5
I NTRODUCTION
Thank you for selecting the Martin Wizard Extreme. The Wizard Extreme
is an automated lighting fixture that features:
• 12 factory-designed macros that allow light shows to be created quickly
with minimal programming
• Strobe effects
• Two independent color/gobo wheels
• Seven solid colors, eight-split colors, and two white positions
• 13 gobos plus open position
• A rotating parabolic reflector
• A rotating mirror drum with variable swivel angle
• Adjustable focus with rapid adjustment mechanism
• Mechanical shutter
• Multiple control options that enable a broad range of effects
The combination of parabolic reflector and mirror drum delivers over 80
individual light beams. A new glass reflector design offers enhanced light
output.
SAFETY INFORMATION
Warning! This product is not for household use. It presents risks of
lethal or severe injury due to fire and heat, electric shock, and
falls.
Read this manual before powering or installing the fixture, follow the
safety precautions listed below and observe all warnings in this manual
and printed on the fixture. If you have questions about how to operate the
fixture safely, please contact a Martin distributor for assistance. Refer any
service operation not described in this manual to a qualified technician.
Do not modify the fixture or install other than genuine Martin accessories
and upgrade kits.
Avoiding electric shocks
• Disconnect the fixture from AC power before removing or installing the
lamp, fuses, or any part, and when not in use.
• Always ground (earth) the fixture electrically.

6 Wizard Extreme user manual
• Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.
• Do not expose the fixture to rain or moisture.
• Refer all service to a qualified technician.
• Never operate the fixture with missing or damaged lenses and/or
covers.
Protecting yourself and others from burns and fire
• Never attempt to bypass the thermostatic switch or fuses. Always
replace defective fuses with ones of the specified type and rating.
• Ensure that the air flow through fans and vents is free and unobstructed.
• Keep all combustible materials (for example fabric, wood, paper) at
least 0.3 meters (12 inches) away from the fixture. Keep flammable
materials well away from the fixture.
• Do not illuminate surfaces within 0.1 meters (4 inches) of the fixture.
• Provide a minimum clearance of 0.1 meters (4 inches) around fans and
air vents.
• Replace the lamp if it becomes defective or worn out, or before usage
exceeds the maximum service life. When replacing the lamp, allow the
fixture to cool for at least 5 minutes before opening the fixture or
removing the lamp. Protect your hands and eyes with gloves and safety
glasses. It can take up to 15 minutes for the fixture to cool completely.
• Never place filters or other materials over the lens or mirror drum.
• The exterior of the fixture can reach temperatures up to 60° C (140° F)
and the screws on the lamp plate can reach up to 90° C (194° F). Allow
the fixture to cool for at least 5 minutes before handling.
• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C
(104° F).
• Do not stare directly into the light.
• Never operate the fixture without all lenses and covers installed: an
unshielded lamp can explode without warning and emits dangerous UV
radiation that can cause burns and eye damage.
• Covers, shields, lenses or ultraviolet screens must be changed if they
have become visibly damaged.
• The lamp must be changed if it has become damaged or thermally
deformed.
Preventing injuries due to falls
• When suspending the fixture above ground level, verify that the
structure can hold at least 10 times the weight of all installed devices.

Introduction 7
• Verify that all external covers and rigging hardware are securely
fastened and use an approved means of secondary attachment such as
a safety cable.
• Block access below the work area whenever installing or removing the
fixture.
UNPACKING
The packing material is carefully designed to protect the fixture during
shipment – always use it to transport the fixture.
The Wizard Extreme is supplied with the following:
• 3-wire power cable.
• This user manual. The latest version of this manual is also available in
the support area of the Martin website at http://www.martin.com

8 Wizard Extreme user manual
AC POWER
The Wizard Extreme’s operating voltage is printed on the serial number
label that can be found on the back of the Wizard Extreme. Verify that the
operating voltage closely matches the AC supply voltage before applying
power. Contact your Martin dealer if the operating voltage differs from your
supply voltage by more than five percent.
INSTALLING A PLUG ON THE MAINS
LEAD
The fixture’s mains lead may require a grounding-type cord cap that fits
your power distribution cable or outlet. Consult a qualified electrician if you
have any doubts about proper installation.
Warning! For protection from dangerous electric shock, the fixture must
be grounded (earthed). The AC mains supply shall have
overload and ground-fault protection.
Important! Verify that the feed cables are undamaged and rated for the
current requirements of all connected devices before use.
Following the cord cap manufacturer’s instructions, connect the yellow
and green wire to ground (earth), the brown wire to live, and the blue wire
to neutral. The table below shows some pin identification schemes.

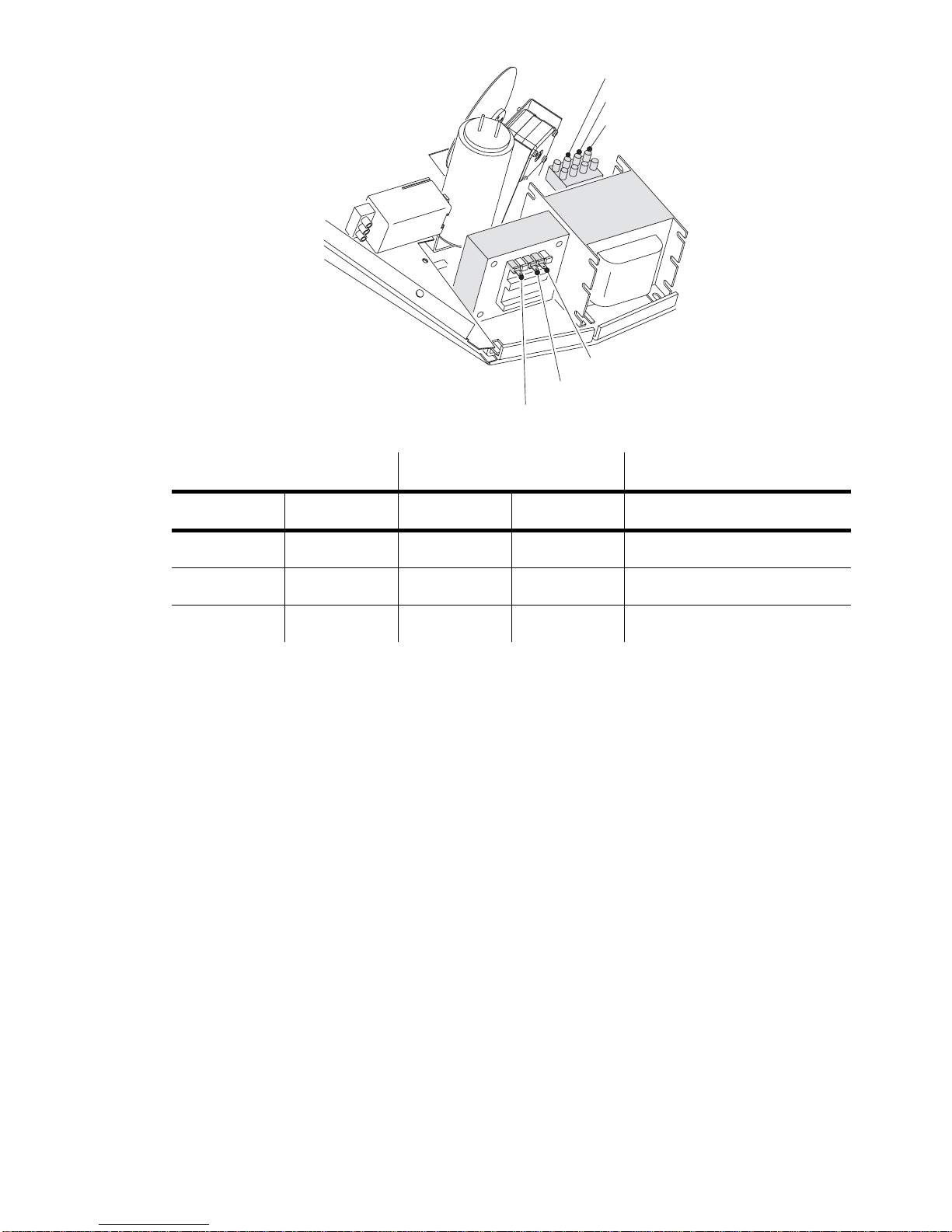

ADJUSTING VOLTAGE SETTINGS
EU Model
1. Disconnect the fixture from AC power.
Wire Pin Marking Screw color
brown live “L” yellow or brass
blue neutral “N” silver
yellow/green ground green

AC power 9
2. If the lamp is hot, allow it to cool for 5 minutes and wear safety
goggles to protect your eyes.
3. Remove the six cover-access screws (see diagram inside the cover of
this manual) and lift of the fixture cover.
4. On the transformer, move the BROWN wire to the transformer
terminal shown in the table above for the local AC supply voltage. The
terminals are indicated on a label on the top of the transformer.
5. On the ballast, move the BROWN wire to the terminal listed for the
voltage. The terminals are indicated on the top of the ballast.
6. Replace the cover.
Local AC Supply Transformer Ballast
Freq. Voltage Setting Terminal Setting / Terminal
50 Hz 220 - 235 V 225 V 3 230 V
50 Hz 235 - 245 V 240 V 4 240 V
50 Hz 245 - 260 V 240 V 4 250 V
Transformer Ballast
225 V
240 V
230 V
240 V
250 V
0 V

10 Wizard Extreme user manual

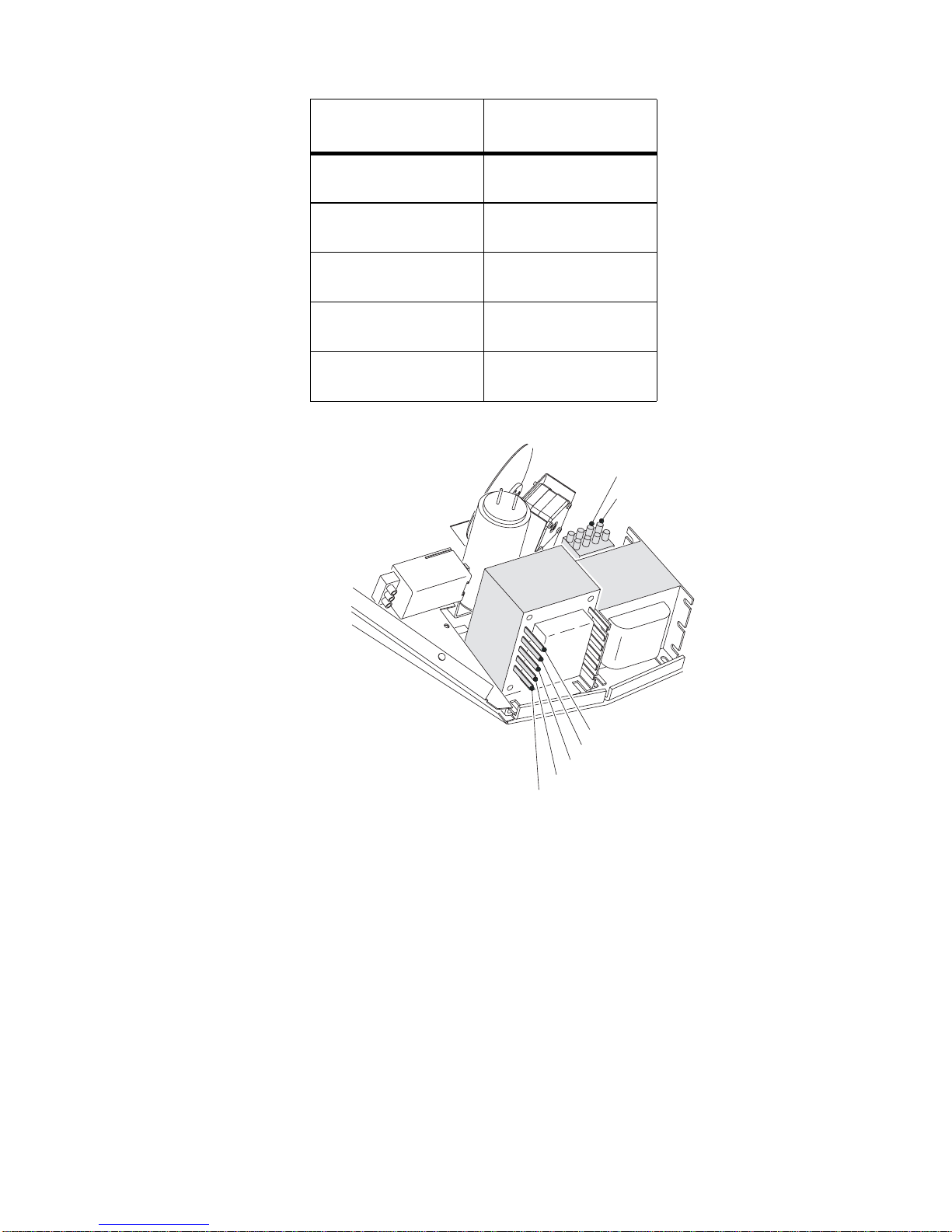

US model
1. Disconnect the fixture from AC power.
2. If the lamp is hot, allow it to cool for 5 minutes and wear safety goggles
to protect your eyes.
3. Remove the six cover-access screws (see diagram inside the cover of
this manual) and lift off the fixture cover.
4. On the ballast, move the BLUE wire to the 225 V / 50 Hz terminal for
50 Hz local AC supply, or to the 225 V / 60 Hz terminal for 60 Hz local
AC supply.
5. On the transformer, move the BROWN wire to the setting as listed in
the previous table for the local AC voltage. The terminals are indicated
on a label on the top of the transformer.
6. Replace the cover.
Local
AC Voltage Transformer taps
95 - 110 V Blue wire: 20V
Brown wire: 120 V
110 - 130 V Blue wire: 0 V
Brown wire: 120 V
200 - 220 V Blue wire: 20 V
Brown wire: 230 V
220 - 240 V Blue wire: 0 V
Brown wire: 230 V
240 - 260 V Blue wire: 0 V
Brown wire: 250 V
Transformer Ballast
225 V / 60 Hz
225 V / 50 Hz
250 V
230 V
120 V
20 V
0 V
