Martin P3 PowerPort 1000 IP Rental User manual

P3 PowerPort 1000 IP Rental
SERVICE MANUAL
Revision A, 10-26-2017

Service manual
2 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017
Table of contents
General information ............................................................................................................................................ ...3
Safety instructions .................................................................................................................................................................................3
Tools ........................................................................................................................................................................................................3
Spare parts ..............................................................................................................................................................................................4
Wiring diagram .................................................................................................................................................... ...5
Repair and replacement...................................................................................................................................... ...6
Opening the lid........................................................................................................................................................................................6
Replacing the controller PCBA..............................................................................................................................................................6
Replacing the transceiver PCBA...........................................................................................................................................................7
Replacing the power supply PCBA ......................................................................................................................................................7
Replacing the DC/DC PCBA...................................................................................................................................................................7
Replacing the fan....................................................................................................................................................................................8
Replacing the display panel ..................................................................................................................................................................8
Updating software ................................................................................................................................................................................12
Maintenance....................................................................................................................................................... ...12
Cleaning the product............................................................................................................................................................................12
Cleaning the pressure relief valve...................................................................................................................................................................... 13
Conditions .............................................................................................................................................................................................13
Maintenance schedule .........................................................................................................................................................................13

Service manual
3 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017
Figure 1: Safety instructions
Figure 2: Tools
Figure 3: ESD mat and wristband
General information
This service manual contains information about how to
service P3 PowerPort 1000 IP Rental.
Safety instructions
Before you carry out service work, read this document.
Installation and service work must comply with local
regulations and accepted codes of good practice.
Observe the safety instructions in the user manual for
the product.
Tools
Make sure that the tools below are available before you
start working on the product:
• ESD mat and wristband.
• Allen key, H4.
• PZ 2x100 screwdriver.
• FZ 0 screwdriver.
• 8 mm socket spanner.
• Plastic spatula.
• Display panel, P/N M33001134.
Important! Take the necessary
precautions to prevent static
electricity from damaging the
product during modication or
repair.

Service manual
4 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017
Figure 4: PartFinder: Flat
Spare parts
For an overview of the spare parts and spare part
numbers of P3 PowerPort 1000 IP Rental, refer to
martin.com.
1. Log in with your user login details.
2. Search for “P3 PowerPort 1000 IP Rental”.
3. Clik “Partnder: Flat” (1).
1

Service manual
5 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017 5 of 14
Wiring diagram
© 2017 Martin Professional ApS
Martin™ General Technical Specification apply to this item
Confidential
Page 1 of 1P3 PowerPort 1000 IP Rental
1 1
A A

Shield
Not used
Not mounted
Not mounted
unshield
Class 1 (High Voltage Circuit) Class 2 Wire Harness Mains Earth Wire Legend: Isolated Circuit
Not used
16AWG min.
11862105
11862106
11862105
11862105
11862108
11862108
11851047
11862104
11862101 11862102
11862101
11862102
Wire on fan
11851048
11862110
11862100
11862107
unshield
Shield
1
2
3
4
5
450V_1
450V_2
450V_3
48V_2
48V_4a 48V_4b
48V_3
24V_2
Temp_4
Temp_1
Temp_3
Temp_2
24V_3
24V_4
EN_1
EN_2 EN_3
11862107
11862110
11862100
11862100
11862100
PL2, PL3, PL4, PL5:
PL1:
PL1
Neutral
PL1 DMX
2
PL? <Function>
PL? <Function>
PL10
Ethernet
PL6 AUX Power
2
PL8
Temp. 3
PL4 24V
4
PL13 2x24V
4
PL18 Controller board 120
PFC 900W
62112004
PL9
Ethernet
PL11
Line Out
PL5 48V
2
X4
<Function>
PL4 24V
4
PL8
Temp. 3
PL4 VMX
5
PL3 Power in6
PL2 Enable
4
PL19 48V
2
PL2 Enable
4
PL7 450VDC
4
PL? <Function>
Controller board
62050046
PL20 48V
2
PL1 DMX
2
PL15 Key/LED Foil
16
PL2 VMX
5

Powercon
Mains in (110-230VAC)
PL8
Ethernet
PL5 48V
2
PL5
Temp. 3
X5 <Function>
Transceiver board
62111002
DCDC 900W
62112005
PL? <Function>
PL3 Power in6
PL2 Line
PL4 Enable
2
PL5 VMX
5
PL17
Temp.Sensor 6
FAN1 05741905
PL? <Function>
PL7
Ethernet
PL16 Fan
4
PL6 Safety Loop
2
PL3
VMX
5
PL12
Neutral Out
PL? <Function>
PL1
Mains In 2
DCDC 900W
62112005

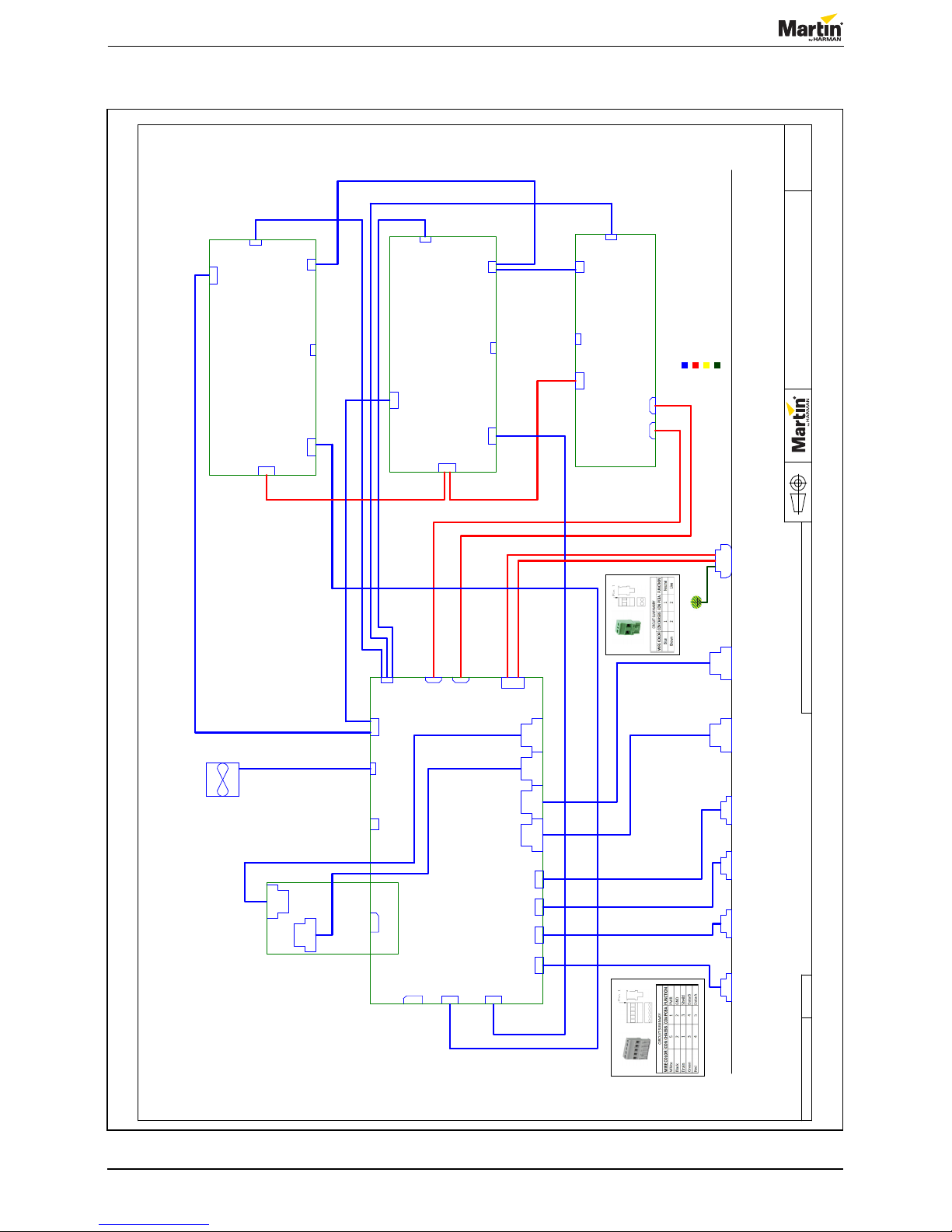

Figure 5: Wiring diagram, P3 PowerPort 1000 IP Rental

Service manual
6 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017
Repair and replacement
Opening the lid
1. Turn of the power.
2. Remove the eight screws (1).
3. Unclip the safety wire (2).
4. Remove the lid (3).
Figure 6: Removing the screws
Figure 7: Unclipping the safety wire
Figure 8: Controller PCBA
1
2
3
Replacing the controller PCBA
1. Follow the procedure in “Opening the lid” on page
6.
2. Remove the three screws (1).
3. Replace the controller PCBA.
4. Tighten the screws to 0.2 Nm.
5. Follow the procedure in “Opening the lid” on page
6 in reverse order.
NOTE! Tighten the eight screws in gure 6 to 2.5
Nm.
1

Service manual
7 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017
Figure 9: Tranceiver PCBA
Figure 10: Power supply PCBA
Figure 11: DC/DC PCBA
Replacing the transceiver PCBA
1. Follow the procedure in “Opening the lid” on page
6.
2. Remove the controller PCBA. Follow the
procedure in “Replacing the controller PCBA” on
page 6.
3. Remove the six screws (1).
4. Replace the transceiver PCBA.
5. Tighten the six screws to 1.1 Nm.
6. Install the controller board. Follow the procedure
in “Replacing the controller PCBA” on page 6
in reverse order.
7. Follow the procedure in “Opening the lid” on page
6 in reverse order.
NOTE! Tighten the eight screws in gure 6 to 2.5
Nm.
Replacing the power supply PCBA
1. Follow the procedure in “Opening the lid” on page
6.
2. Remove the four screws (1).
3. Replace the power supply PCBA.
4. Tighten the four screws to 2.5 Nm.
5. Follow the procedure in “Opening the lid” on page
6 in reverse order.
NOTE! Tighten the eight screws in gure 6 to 2.5
Nm.
Replacing the DC/DC PCBA
1. Follow the procedure in “Opening the lid” on page
6.
2. Remove the four screws (1 and 2).
3. Replace the DC/DC PCBA.
4. Tighten the four screws to 2.5 Nm.
5. Follow the procedure in “Opening the lid” on page
6 in reverse order.
NOTE! Tighten the eight screws in gure 6 to 2.5
Nm.
1
1
2
1

Service manual
8 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017
Figure 12: Removing the screws from the bracket
Figure 13: Removing the screws on the fan
Replacing the fan
1. Follow the procedure in “Opening the lid” on page
6.
2. Remove the two nuts (1) on the bracket
3. Gently pull out the fan.
4. Remove the four screws (2) on the fan.
5. Replace the fan.
6. Tighten the four screws (2).
7. Place the fan in the cabinet.
8. Tighten the two nuts (1).
9. Follow the procedure in “Opening the lid” on page
6 in reverse order.
NOTE! Tighten the eight screws in gure 6 to 2.5
Nm.

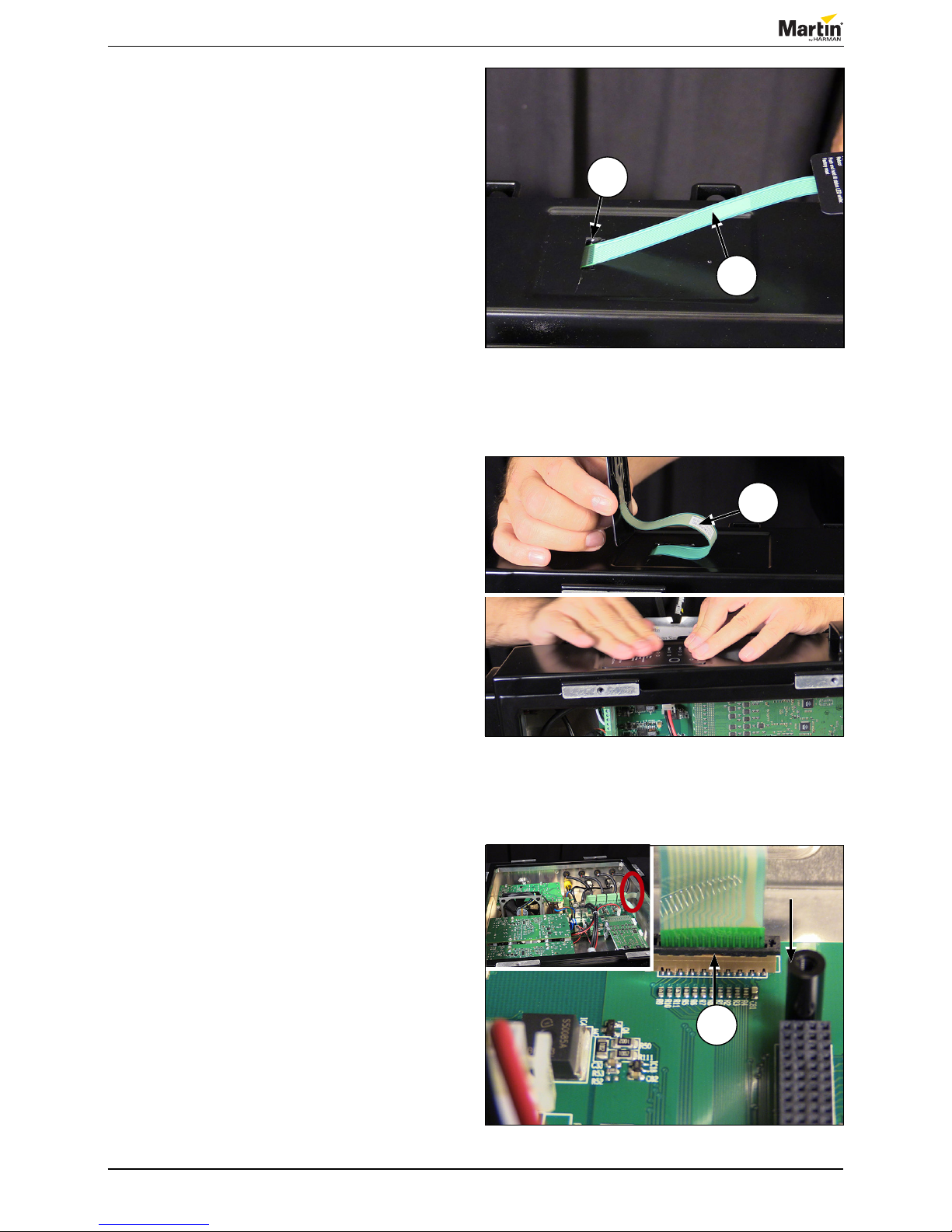

Figure 14: Disconnecting the ribbon cable
Replacing the display panel
1. Follow the procedure in “Opening the lid” on page
6.
2. Disconnect the ribbon cable (1), by gently lifting
the the black lock on PL15 (2) with your ngers.
3. Remove the ribbon cable.
1
2
2
1
2

Service manual
9 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017
Figure 15: Display panel
Figure 16: Display panel
Figure 17: Removing the display panel
4. Remove the new display panel (P/N M33001134)
from the bag.
5. Gently remove the display panel (3). See gure 16
to Figure 19.
NOTE! On P3 PowerPort Install, both the cabinet
and the display panel are grey. However, on
P3 PowerPort Rental, both the cabinet and the
display panel are black. 3

Service manual
10 of 14P3 PowerPort 1000 IP Rental - Revision A, 10-26-2017

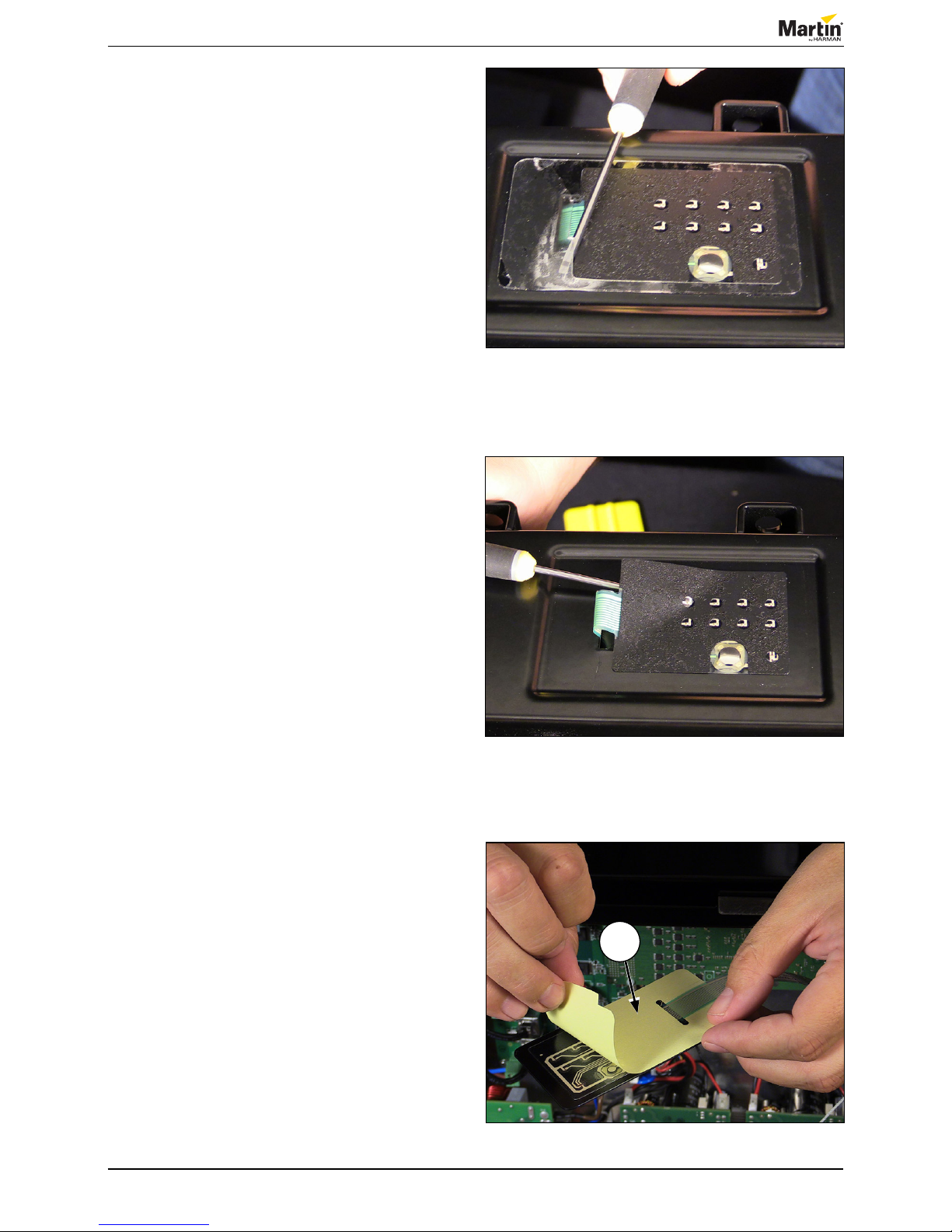

Figure 18: Removing the display panel
Figure 19: Removing the display panel
6. Remove the paper (4) from the display panel.
4
Figure 20: Removing the display panel
