Martin Mania PR1 User manual

Mania PR1
user manual

Measurements are expressed in millimeters.
340
158
315
290
Ø13
© 2003 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be reproduced, in any form or by any means,
without permission in writing from Martin Professional A/S, Denmark.
Printed in China.
P/N 35000148, Rev. A.

3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mania PR1 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overhead mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installing a gobo/texture glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing a color filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Focusing the Mania PR1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Gobo rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Remote control operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Basic service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lamp maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Replacing the mains fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4 Mania PR1 user manual
I NTRODUCTION 1
Thank you for selecting a Martin Mania PR1. The Mania PR1 is a gobo
projector with a motorized rotating gobo.
SAFETY INFORMATION
Warning! This product is not for household use. It presents risks of
lethal or severe injury due to fire and heat, electric shock, and
falls.
Read this manual before powering or installing the fixture, follow the safety
precautions listed below and observe all warnings in this manual and
printed on the fixture. If you have questions about how to operate the
fixture safely, please contact a Martin distributor for assistance. Refer any
service operation not described in this manual to a qualified technician. Do
not modify the fixture or install other than genuine Martin accessories and
upgrade kits.
Refer servicing to qualified personnel.
Maximum ambient temperature Ta= 40°C(104°F).
See serial label for replacement fuse size and lamp type.
Suitable for mounting on normally flammable surfaces.
Do not look directly into the light.
Risk of fire, electrical shock and burns.
Use only in dry locations.
For indoors use only.
Do NOT block exhaust vents.
Shields, lenses or ultraviolet screens shall be changed if they become
visibly damaged to the extent that their effectiveness is impaired, for
example, by cracks or deep scratches.

Introduction 5
The lamp shall be changed if it becomes damaged or thermally deformed.
If the external power cord of this luminaire is damaged, it shall be
replaced by a special cord exclusively available from your Martin dealer.
Avoiding electric shocks
Warning Always disconnect from mains power before replacing the
lamp, fuses, or any part, and when not in use.
• Before operation ensure that factory setting of voltage and frequency
match local power supply.
• Always ground (earth) the fixture electrically.
• Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.
• Do not expose the fixture to rain or moisture.
• Never operate the fixture with missing or damaged lenses and/or covers.
Protecting yourself and others from burns and fire
Warning Hot lamp. The exterior of the fixture can become hot. Allow to
cool for at least 20 minutes before handling or opening.
• Surface temperature under steady state condition = 95°C (203° F).
• Minimum distance to flammable material = 0.3 m (1 ft).
• Minimum distance to illuminated surface 1.0 m (3.3 ft).
• Never attempt to bypass the thermostatic switch or fuses. Always replace
defective fuses with ones of the specified type and rating.
• Ensure that the air flow through vents is free and unobstructed.
• Provide a minimum clearance of 0.1 meters (4 inches) around air vents.
• Never place filters or other materials over the lens or in the optical path.
• The exterior of the fixture can become hot. Allow the fixture to cool for at
least 20 minutes before handling.
• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C
(104° F).
• Do not stare directly into the light.
• Never operate the fixture without all lenses and covers installed: an
unshielded lamp emits dangerous UV radiation that can cause burns and
eye damage.
Preventing injuries due to falls
• When suspending the fixture above ground level, verify that the structure
can hold at least 10 times the weight of all installed devices.

6 Mania PR1 user manual
• Verify that all external covers and rigging hardware are securely fastened
and use an approved means of secondary attachment such as a safety
cable.
• Block access below the work area whenever installing or removing the
fixture.
UNPACKING
The packing material is carefully designed to protect the fixture during
shipment - always use it to transport the fixture.
The Mania PR1 is packaged with the following:
• 3-wire IEC power cable
• User manual
• Blue-hued texture glass
• Remote control unit with 5-metre (16.4 ft) RJ-45 cable
MANIA PR1 OVERVIEW
Cooling vent
Safety cable attachment eye
AC supply setting
Mains switch
Mains socket
Fuse holder
Cooling fan
Thumb screw (cover lock)
Gobo rotation direction switch
Remote control input
Gobo rotation speed
Remote control output

Installation 7
I NSTALLATION 2
AC POWER
Before operation ensure that factory setting of voltage and frequency
match local power supply.
Always ground (earth) the fixture electrically.
Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.
Note: If the external power cord of this luminaire is damaged, it
shall be replaced by a special cord exclusively available from
your Martin dealer.
Configuring for local mains power
The Mania PR1 has a switch-selectable power supply that can operate in
the following voltage ranges at 50-60 Hz:
• 115 - 120 volts (setting 115)
• 220 - 240 volts (setting 230)
Warning Do not operate the fixture on a power supply that falls outside
of these ranges.

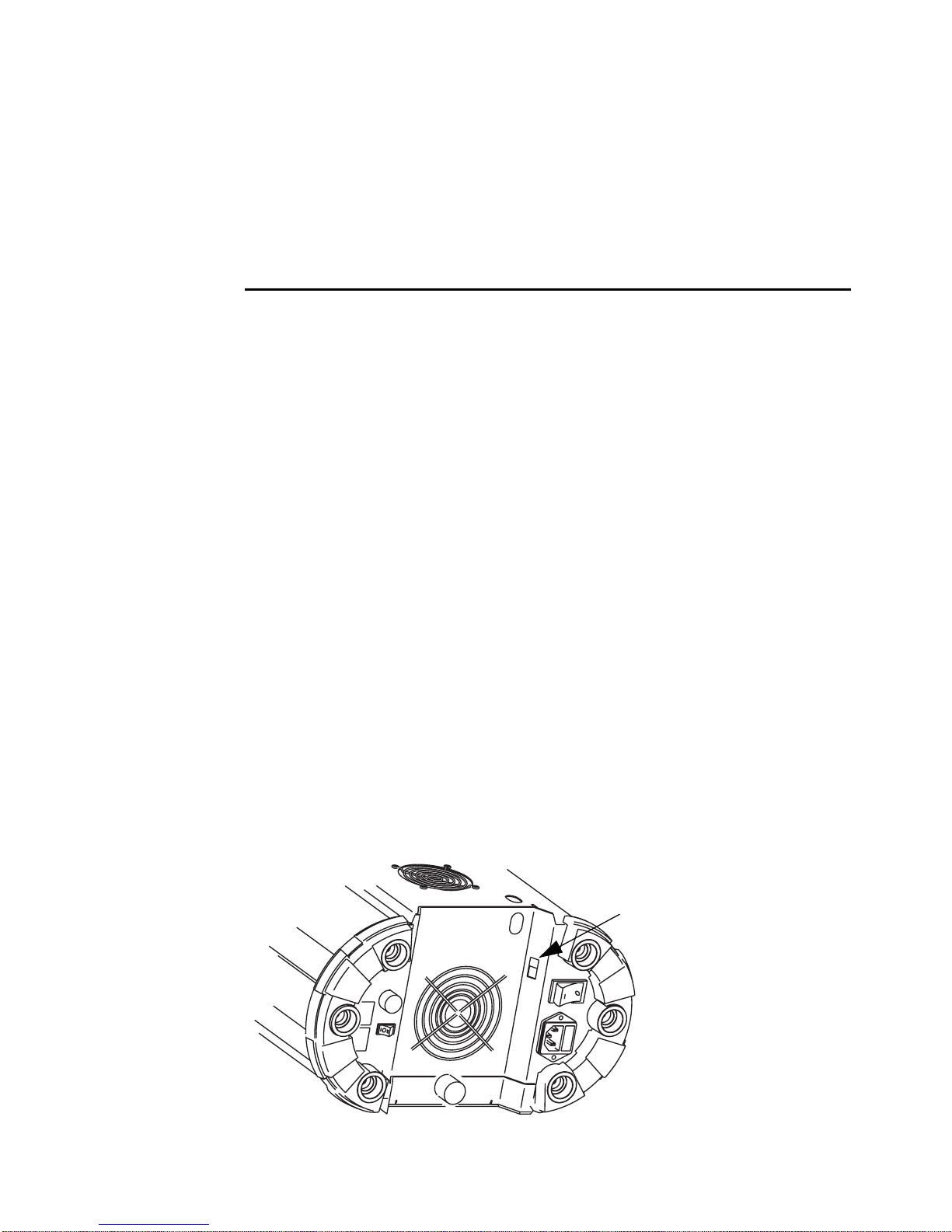

Select the operating range using the red AC supply switch at the rear of
the fixture.
AC supply setting

8 Mania PR1 user manual
Installing a plug on the mains lead
Warning! For protection from dangerous electric shock, the fixture must
be grounded (earthed). The AC mains supply shall have
overload and ground-fault protection.
Important! Verify that the feed cables are undamaged and rated for the
current requirements of all connected devices before use.
The fixture’s mains lead may require a grounding-type cord cap that fits
your power distribution cable or outlet. Consult a qualified electrician if you
have any doubts about proper installation.
Following the cord cap manufacturer’s instructions, connect the
appropriate wires to ground (earth), live, and neutral. The following table
below shows some common wire identification schemes.
Applying power

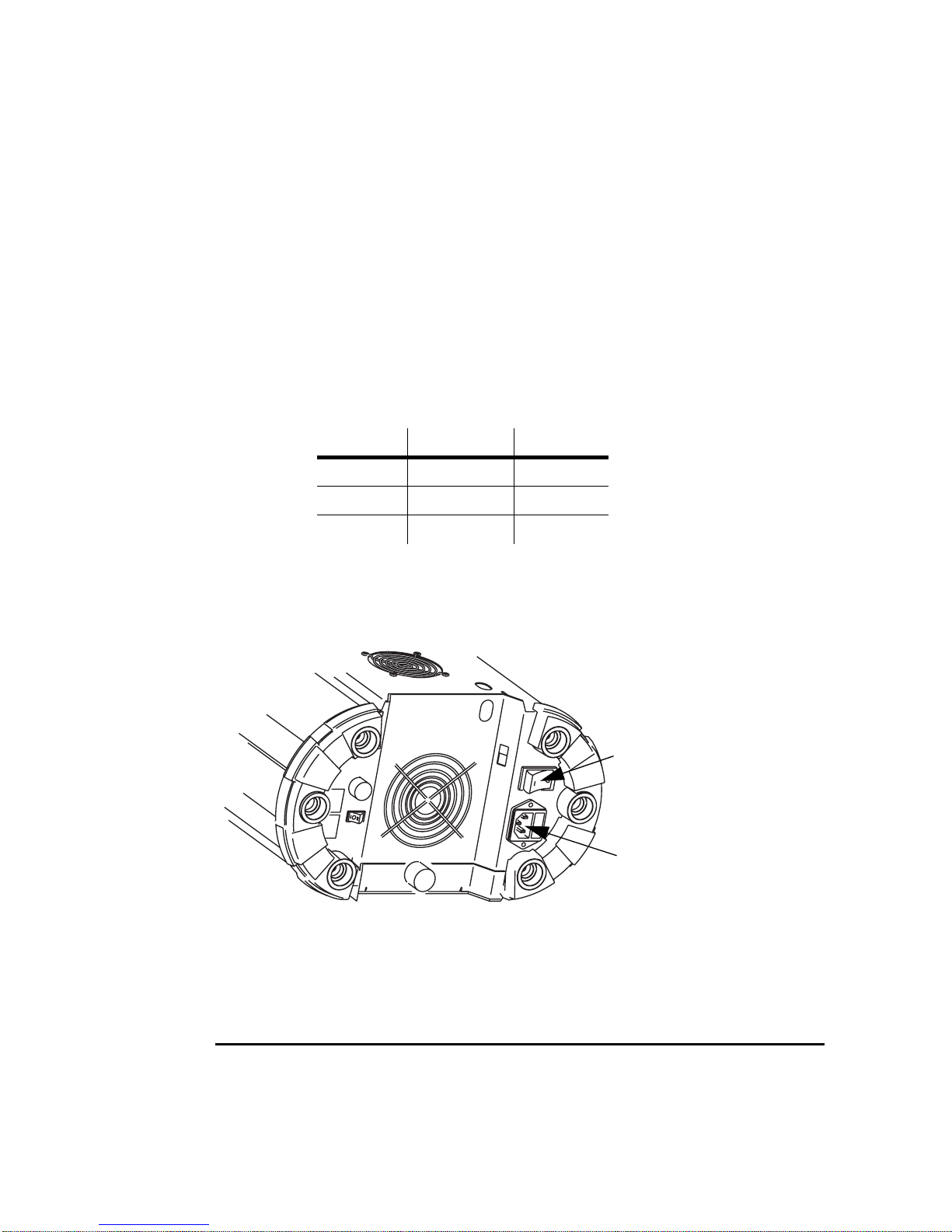

1 Connect the mains power cable to the fixture at the 3-prong IEC male
input socket at the rear of the fixture.
2 Turn the power on using the mains switch.
OVERHEAD MOUNTING
The Mania PR1 is designed to be hung overhead with a clamp (not
included).
Function Wire (EU) Wire (US)
live brown black
neutral blue white
ground yellow/green green
Mains socket
Mains switch

Installation 9
Warning! Block access below the work area before proceeding.
Always use a secure means of secondary attachment.
For indoors use only.
To hang the Mania PR1 on an overhead support:
1 Verify that the structure can support at least 10 times the weight of all
installed fixtures, clamps, cables, auxiliary equipment, and other items.
2 If hanging the fixture with a rigging clamp, verify that the clamp is
undamaged and is designed for the fixture’s weight. Bolt the clamp
securely to the mounting bracket on the fixture with a grade 8.8
(minimum) M12 bolt and lock nut, or as recommended by the clamp
manufacturer, through the clamp hole in the mounting bracket.
3 If permanently installing the fixture, verify that the hardware (not included)
and mounting surface can bear at least 10 times the fixture’s weight.
4 Working from a stable platform, clamp or fasten the fixture to the
structure.
5 Install a safety cable that can hold at least 10 times the weight of the
fixture through the safety cable attachment point on the fixture.
6 Loosen the swivel locks, tilt the fixture to the desired angle, and retighten.
7 Verify that the fixture is at least 1 meters (3.3 ft.) from the surface to be
illuminated and at least 0.3 meters (1 ft.) from any combustible materials.
Verify that the clearance around the air vents is at least 0.1 meters (4 in.).
Safety cable attachment point

10 Mania PR1 user manual
O PERATION 3
The lamp will light when the mains switch at the rear of the fixture is turned
on.
INSTALLING A GOBO/TEXTURE GLASS
The fixture comes with a:
• Red-hued texture glass (installed)
• Blue-hued texture glass
You can install standard size D gobos where the maximum image
diameter is 40 mm (1.6 in.).
To change the gobo/texture glass:
1 Switch the mains power off and allow the fixture to cool for 20 minutes.

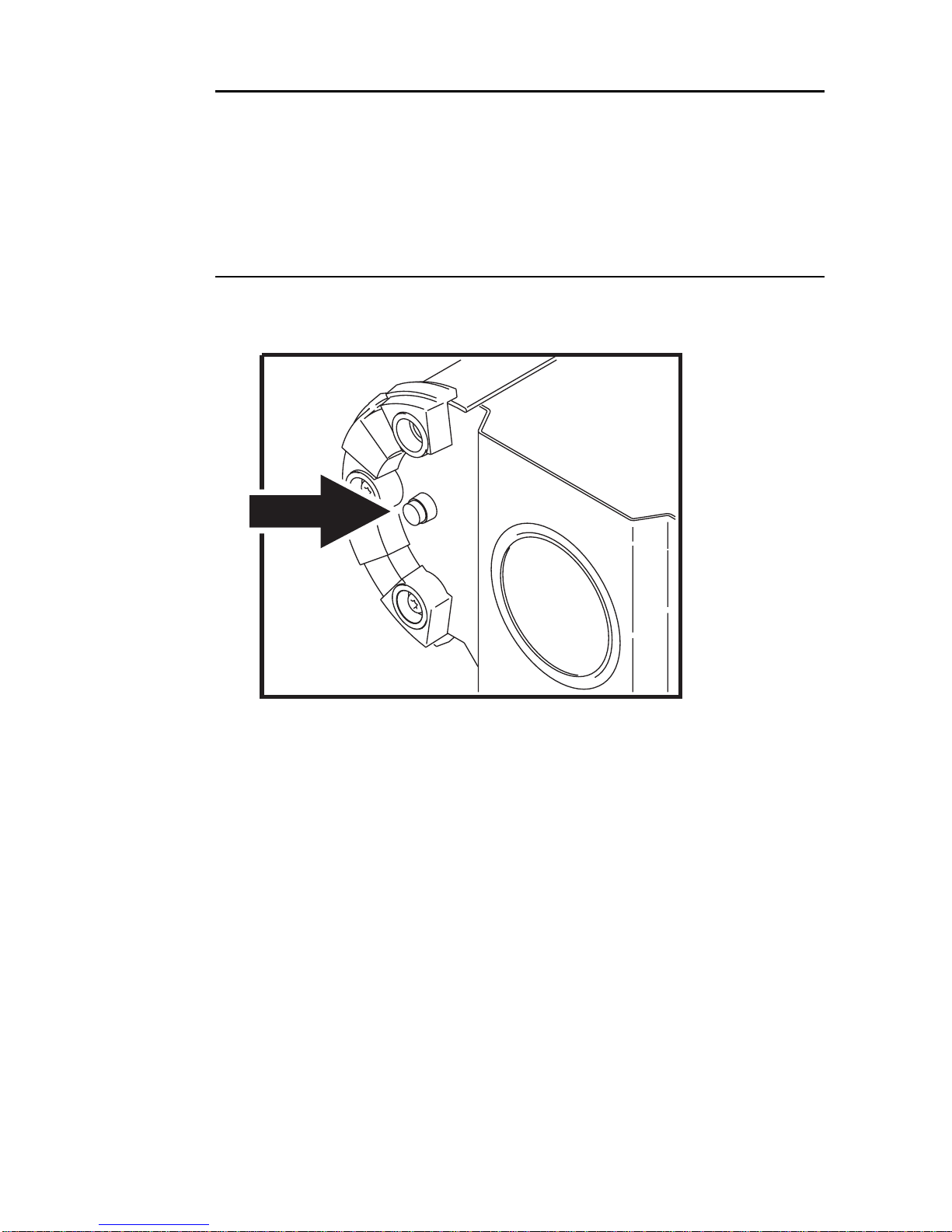

2 Unscrew the gobo access hatch on the top of the fixture.

Operation 11
3 Lift the gobo holder out of the fixture.

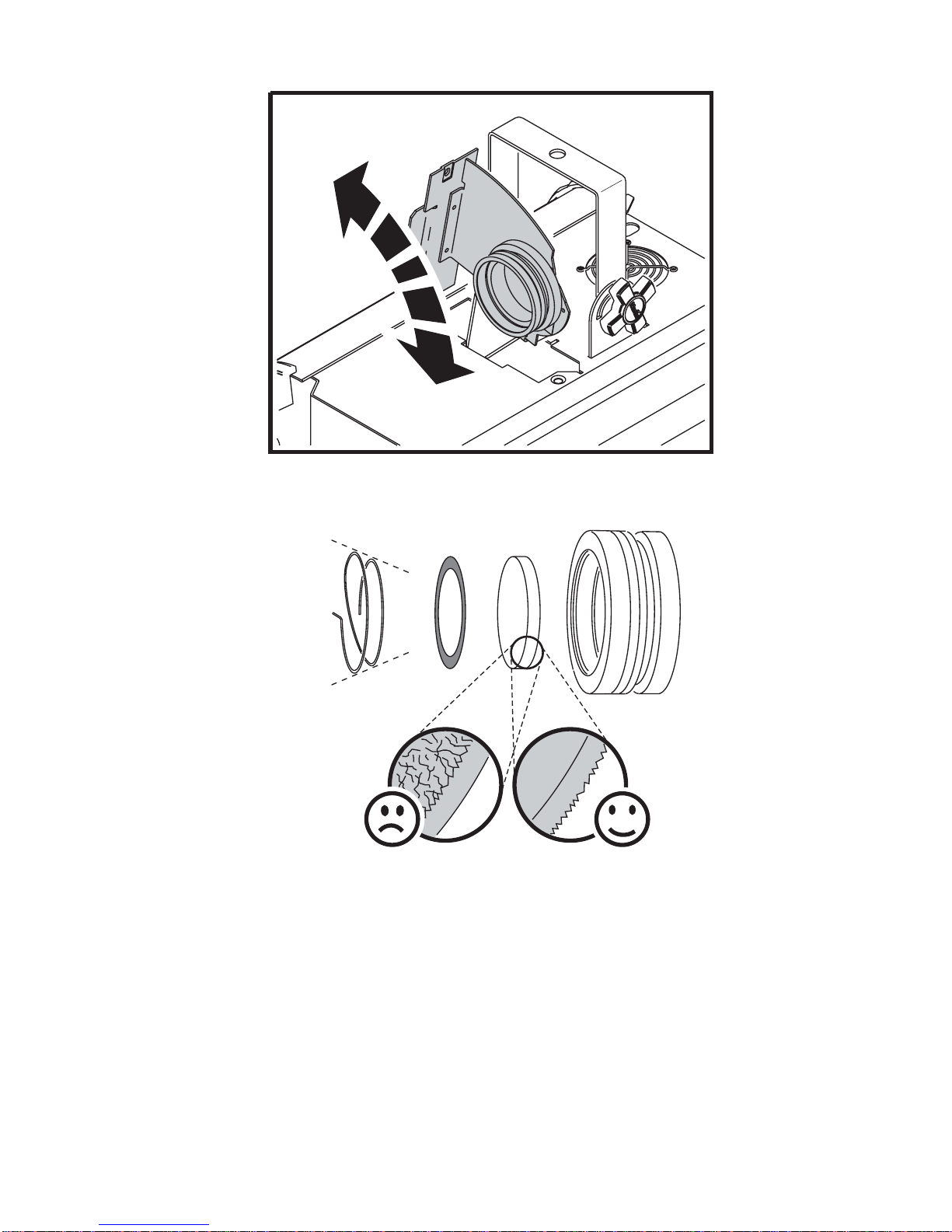

4 The gobo/texture glass is held in place by a steel spring. Remove the
spring to remove the gobo/texture glass that is presently installed.
5 Install the replacement gobo or textured glass. Note that the coated or
textured side should face the lamp.
6 Replace the gobo holder, and screw the access hatch closed, before
applying power.
Lamp side
Front lens side

12 Mania PR1 user manual
INSTALLING A COLOR FILTER
You can install a color filter in the slot that can be found on the lamp side
of the gobo holder. This slot can hold a 51 x 54 mm (2 x 2.1 in.) filter with a
thickness of between 1.1-2.0 mm (0.05-0.08 in.).
FOCUSING THE MANIA PR1
The focus is adjusted using the dial next to the lens. Twist the dial until a
sharp image is acquired.

Operation 13
GOBO ROTATION
You can adjust the speed and direction of the gobo rotation using the
controls at the rear of the fixture.
REMOTE CONTROL OPERATION
The remote control unit can control up to four daisy-
chained Mania PR1s. Connect the remote control to
the RJ-45 In connector on the first Mania PR1 fixture
and connect successive fixtures using the RJ-45 Out
connector.
The maximum cable length between daisy-chained
fixtures is 10 metres (33 ft).
Gobo rotation direction switch
Gobo rotation speed
Rotation direction
Rotation direction
Rotation speed
Rotation speed
Mains switch
Mains switch
FastSlow

14 Mania PR1 user manual
B ASIC SERVICE 4
This chapter describes the maintenance procedures that you can perform
yourself.
Warning The exterior of the fixture can become hot. Always disconnect
the fixture from AC power and allow to cool for at least 20
minutes before handling or opening.
CLEANING
Regular cleaning of the elements in the optical path, as well as the air
vents, is vital to maintaining the operational quality of the Mania PR1.
Important! Excessive dust, smoke fluid, and particulate buildup degrades
performance and causes overheating and damage to the
fixture that is not covered by the warranty.
Cleaning the air vents and fan
To maintain adequate cooling, dust must be cleaned from the air vents
periodically. Remove dust from the air vents with a soft brush, cotton
swab, vacuum, or compressed air.
Cleaning optical components
Clean the optical components regularly. The presence of smudges or dust
on optical surfaces can reduce the strength of the light output and the
quality of the effects.
Use care when cleaning optical components and work in a clean, well lit
area. The coated surfaces are fragile and easily scratched. Do not use
solvents that can damage plastic or painted surfaces.
1 Disconnect the fixture from power and allow it to cool for 20 minutes.

Basic service 15
2 Remove the thumb screw holding the cover in place.
3 Slide the fixture cover open.
4 Vacuum or gently blow away dust and loose particles with compressed
air.
5 Remove stuck particles with an unscented tissue or cotton swab
moistened with glass cleaner or distilled water. Do not rub the surface: lift
the particles off with a soft repeated press.
6 Remove smoke, and other, residues with cotton swabs or unscented
tissues moistened with isopropyl alcohol. A commercial glass cleaner may
be used, but residues must be removed with distilled water. Clean with a
slow circular motion from center to edge. Dry with a clean, soft and lint-
free cloth or compressed air.
7 Close the fixture cover and tighten the thumb screw, taking care not to
trap any loose wires.
LAMP MAINTENANCE
Warning Isolate electrically before re-lamping. The lamp shall be
changed if it becomes damaged or thermally deformed.
Caution Hot lamp.
Installing a lamp in the Mania PR1
1 Disconnect the fixture from power and allow it to cool for 20 minutes.

16 Mania PR1 user manual
2 Remove the thumb screw holding the cover in place.
3 Slide the fixture cover open.
4 Gently grasp the bulb as close to the base as possible and lever it out of
the bulb socket.
5 Replace the bulb; only the EVC (M33) 24V / 250 watt lamp is supported
(Martin P/N 97000103).
Warning Installing any other lamp may damage the fixture!

Basic service 17
6 Close the fixture cover and tighten the thumb screw, taking care not to
trap any loose wires.
7 Reapply power to the fixture.
REPLACING THE MAINS FUSE
The Mania PR1 uses a time-delay fuse for protection against current
overload. An indication that the fuse may have blown is that when power
is applied and the lamp is switched on, no light is produced.
If the fuse blows repeatedly, there is a fault with the unit that requires
service by a Martin technician.
Never bypass the fuse or replace it with one of another size or rating.
1 Unplug the mains cable from the input socket.
2 Pry open the fuse holder (located next to the mains power connector) with
a flat-head screwdriver and remove the fuse.
3 Replace the fuse with one of the same type. The fuse rating is listed on
the serial number label and in “Specifications” on page 19.
4 Replace the fuse holder.
Fuse holder

18 Mania PR1 user manual
T ROUBLESHOOTING 5
problem probable cause(s) suggested remedy
No light No power to the fixture Check connections
Blown fuse If power is applied and the
lamp is switched on, but
does not light, then check
and replace fuse if
necessary.
Burned out lamp Install new lamp
Fixture to hot Allow to cool
Improve air flow around
fixture
No action Electrical malfunction Refer to a Martin service
technician
Fuse blows repeatedly Electrical malfunction Refer to a Martin service
technician

Specifications 19
S PECIFICATIONS A
PHYSICAL
Size without mounting bracket (LxWxH). . . . 340x290x158 mm (13.4x11.4x6.2 in.)
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 kg (19.8 lbs)
CONSTRUCTION
Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . steel and aluminum
THERMAL
Exterior surface temperature under steady state condition . . . . . . . . 95°C (203°F)
Time required to cool before handling . . . . . . . . . . . . . . . . . . . . at least 20 minutes
Maximum ambient temperature (Ta). . . . . . . . . . . . . . . . . . . . . . . . . . 40° C (104°F)
INSTALLATION
Minimum distance to flammable material . . . . . . . . . . . . . . . . . . . . . . . . .0.3 m (1ft)
Minimum distance to illuminated surface . . . . . . . . . . . . . . . . . . . . . . . 1.0 m (3.3ft)
Minimum clearance around air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 m (4in)
CONTROL
Gobo rotation direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .manual switch
Gobo rotation speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dial
Remote control unit. . .4 fixture control with up to 10 m (16 ft) between each fixture
GOBO
Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D
Maximum image diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mm (1.6 in.)
COLOR FILTERS
Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 x 54 mm (2 x 2.1 in.)
Thickness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.1-2 mm (0.05-0.08 in.)
PHOTOMETRICS
Beam angle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25°
ELECTRICAL
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-prong IEC male socket
AC Power . . switch selectable, operating ranges 115-120 V / 220-240 V, 50-60 Hz
Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.15 AT (time delay),

20 Mania PR1 user manual
TYPICAL POWER AND CURRENT
115 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255 W, 2.1 A
115 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255 W, 2.2 A
120 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263 W, 2.2 A
120 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262 W, 2.2 A
220 V. 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229 W, 1 A
220 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228 W, 1 A
230 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255 W, 1.1 A
230 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255 W, 1.1 A
240 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .265 W, 1.1 A
240 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .261 W, 1.1 A
INCLUDED ITEMS - US VERSION
2 m (6.5 ft) US mains cable 18AWG with US male connector (UL approved)
EVC (M33) 24V/2 250W lamp
User manual
Blue-hued texture glass
Red-hued texture glass (installed)
Remote control with 5 m (16.4 ft) RJ-45 cable
INCLUDED ITEMS - NON-US VERSION
3 m (9.8 ft) EU mains cable 3x1.0mm2with Schuko male connector
3 m (9.8 ft) EU mains cable 3x1.0mm2with no male connector
EVC (M33) 24V/2 250W lamp
User manual
Blue-hued texture glass
Red-hued texture glass (installed)
Remote control with 5 m (16.4 ft) RJ-45 cable
ACCESSORIES
EVC (M33) 24V/2 250W lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 97000103
Half-coupler clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602005
3.15 AT fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 05020013
UTP patch cable 5 m (16.4 ft) RJ-45. . . . . . . . . . . . . . . . . . . . . . . . . P/N 11840095
ORDERING INFORMATION
Mania PR1 US version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90430031
Mania PR1 non-US version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90430030
