Marvel 66BWM-BS-G User manual

Overall depth including handle:
Overall depth NOT including handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
26 1/4"
24 1/4"
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"

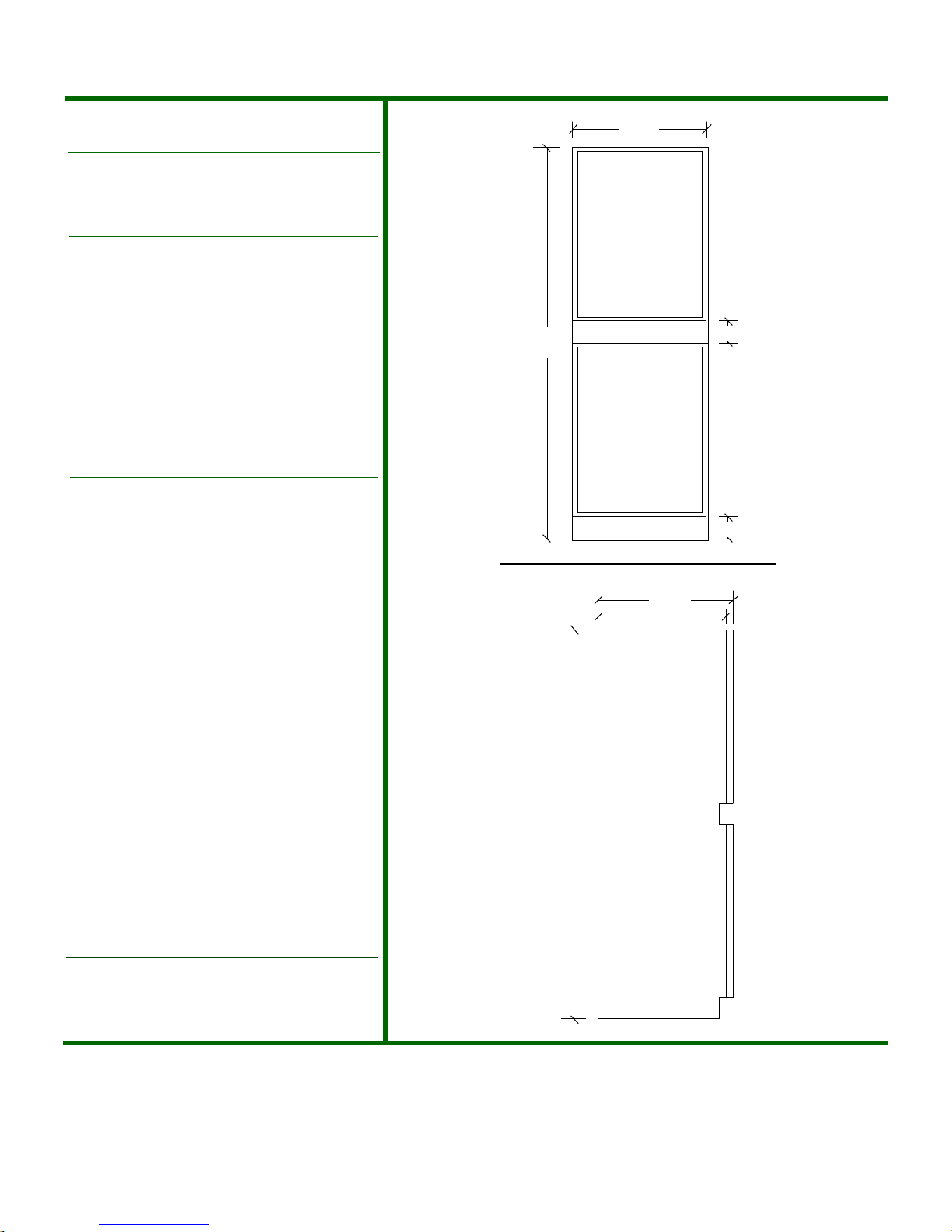

Front View
(not to scale)
Side View
(not to scale)
3"
69 1/8" Max
68 1/8" Min
24 1/8"
24 1/4"
22"
3"
69 1/8" Max
68 1/8" Min
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
· When recessed, unit does not require additional air
space for top, sides or rear
· MicroSentryTM refrigeration monitor controls
refrigeration system's performance to maintain a
constant and precise temperature
· Each section (upper and lower) has its own cooling
system and MicroSentry TM monitor to ensure wines
and beverages are kept at proper storage temperature
· Racks have front trim of clear, solid maple
(unfinished)
· Lower section has lighted and inclined display shelf
for up to four wine bottles , with storage for 3 more in
back
See page 2 for additional information
www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]
• Dimensions (Actual Size) •
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Luxury Series Wine and Beverage Refrigerators:
66BWM-BS-G
• Product Model Number (s): •
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
This Data Sheet Includes Information On
BN • A318B149 • • 070511 • 132647 • 83145
• Additional Information •
318
Marvel

· Capacity: 59 wine bottles, including magnums; 133 twelve-ounce
canned beverages.
• Door is reversible in field if model does NOT include -LL or -LR.
• Door lock (when -LL, left hand hinge or -LR, right hand hinge is added
to the model number), top center of door. Door with lock is not field
reversible.
• Full length designer bar handle.
• Wine racks and beverage shelves may be extended at 90° door
opening.
• Shipping weight: 356 pounds.
• U.L. Listed.
• Does not accept custom panels.
- 66BWM-BS-G: Beverage refrigerator upper/ Wine cellar lower.
Black cabinet, stainless finish frame glass doors, high gloss ebony
interior.
Additional Information:
