Dometic Coolmatic CR50 User manual

CR50, CR65, CR80, CR110, CR140
Compressor Refrigerator
Operating manual . . . . . . . . . . . . . . . . . . . . 12
Réfrigérateur à compression
Notice d’utilisation . . . . . . . . . . . . . . . . . . .33
Nevera con compresor
Instrucciones de uso . . . . . . . . . . . . . . . . . .55
EN
FR
ES
CR 110
CR 140
CR 80
CR 50
CR 65
REFRIGERATION
COOLMATIC
CR50-65-80-110-140--O-US.book Seite 1 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
2
1
2
4
3
5
6
CR 50
1
4
3
2
1
5
6
CR 65
2
CR50-65-80-110-140--O-US.book Seite 2 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
3
4
3
2
1
5
6
CR 80
3
3
2
1
4
5
6
CR 110
4
CR50-65-80-110-140--O-US.book Seite 3 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
4
1
2
6
CR 140
5
3
4
5
0
1
2
3
4
5
6
7
4
1
23
6
CR50-65-80-110-140--O-US.book Seite 4 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
5
1
2
7
1
4
3
2
ca. 50 mm
8
CR50-65-80-110-140--O-US.book Seite 5 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
6
1
Vent Lock
9
1
2
0
1
a
CR50-65-80-110-140--O-US.book Seite 6 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
7
1
b
c
d
CR50-65-80-110-140--O-US.book Seite 7 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
8
Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
e
1
rt
sw
f
CR50-65-80-110-140--O-US.book Seite 8 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
9
1
3
2
g
380
534
500
CR 50
h
CR50-65-80-110-140--O-US.book Seite 9 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
10
CR 65
448
525
545
i
CR 80
475
640
528
j
CR 110
520
745
558
k
CR50-65-80-110-140--O-US.book Seite 10 Donnerstag, 13. Oktober 2016 2:37 14

CoolMatic
11
CR 140
525
812
620
l
A
B
m
CR50-65-80-110-140--O-US.book Seite 11 Donnerstag, 13. Oktober 2016 2:37 14

EN
CoolMatic
12
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .18
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
CR50-65-80-110-140--O-US.book Seite 12 Donnerstag, 13. Oktober 2016 2:37 14

EN
CoolMatic Explanation of symbols
13
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER!
•Danger of fatal injuries!
When using the appliance on boats: if the appliance is powered
by the mains, ensure that the power supply has a residual current
circuit breaker!
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CR50-65-80-110-140--O-US.book Seite 13 Donnerstag, 13. Oktober 2016 2:37 14

EN
Safety instructions CoolMatic
14
!WARNING!
•Before you start up the appliance for the first time, check that the
operating voltage matches the battery voltage (see type plate).
•If the connection line of this device is damaged, it must be replaced
with a special connection line which is available from the manufacturer
or customer service.
•Have a trained technician do the installation in wet rooms.
•Do not operate the appliance if it is visibly damaged.
•This appliance may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
ANOTICE!
•Warning: do not open or damage the refrigerant circuit under any
circumstances.
•Set up the appliance in a dry location where it is protected against
splashing water.
•Do not place the appliance near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.)
•Ensure that the ventilation slots are not covered.
•Do not store any explosive substances, such as spray cans with
propellants in the device.
2.2 Operating the appliance safely
DDANGER!
•Danger of fatal injury!
Do not touch exposed cables with your bare hands. This especially
applies when operating the appliance from an AC mains.
!WARNING!
•Disconnect the refrigerator and other electric loads from the battery,
before you connect the battery to a quick charging device.
Overvoltage can damage the electronics.
•People (including children) whose physical, sensory or mental capac-
ities or whose lack of experience or knowledge prevent them from
using this product safely should not use it without the supervision or
instruction of a responsible person.
CR50-65-80-110-140--O-US.book Seite 14 Donnerstag, 13. Oktober 2016 2:37 14

EN
CoolMatic Scope of delivery
15
•Electrical appliances are not toys!
Keep electrical appliances out of reach of children or infirm persons.
Do not let them use the appliances without supervision.
!CAUTION!
•If you connect the appliance to a battery, make sure that no food
comes into contact with the battery acid.
•Protect the appliance from rain and moisture.
INOTE
•Defrost the appliance in good time to save energy.
•Disconnect the appliance from the power supply, if you are not going
to use it for a prolonged period.
3Scopeofdelivery
4Accessories
Available as accessory (not included in scope of delivery):
Quantity Description
1 Refrigerator
1 Cable set (only for AC version)
1 Operating manual
Ref. no. Description Explanation
MPS35 Rectifier
for 100 – 240 V
Converts the input voltage when connecting a
12 or 24 V-refrigerator to the 100 to 240 V AC mains.
CR50-65-80-110-140--O-US.book Seite 15 Donnerstag, 13. Oktober 2016 2:37 14

EN
Intended use CoolMatic
16
5 Intended use
The refrigerator is suitable for cooling and freezing foodstuffs. The device can be
connected to several power sources (12 V and 24 V and/or 100 – 240 V)
!
6 Technical description
CR series cooling appliances can cool goods and keep them cool. Products can be
deep-frozen in the freezer compartment.
All materials used in the refrigerator are compatible for use with foodstuffs. The
refrigerant circuit is maintenance-free.
The refrigerators are suitable for use with a DC voltage of 12 V or 24 V (e.g. in camper
vans, caravans or on boats).
I
With a rectifier (accessory), the 12 and 24 V refrigerators can be operated on an AC
network:
•MPS35 rectifier: for use with a 100 – 240 V supply
When used on boats the refrigerator can be subjected to a constant inclination of
30°.
You can use the continuously variable thermostat to set the desired temperature.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
NOTE
The CR140 and all US versions are available in DC/AC version only.
These refrigerators can be operated using a 12 or 24 V direct current
source as well as a 100 – 240 V AC current source. The connection
voltage of your device can be found on the type plate on the back of the
device
CR50-65-80-110-140--O-US.book Seite 16 Donnerstag, 13. Oktober 2016 2:37 14

EN
CoolMatic Technical description
17
6.1 Control elements inside the fridge
The various types of refrigerators are shown in the following illustrations:
•CR50: fig. 1, page 2
•CR65: fig. 2, page 2
•CR80: fig. 3, page 3
•CR110: fig. 4, page 3
•CR140: fig. 5, page 4
6.2 Control elements
No. in illustration Explanation
1 Freezer compartment
2 Wire shelf (folding, so that bottles can be put in the fridge)
3Shelf
4 Fruit compartment
5 Bottle restraint (to hold bottles in the door)
6 Compartment with lid (hinged)
No. in
fig. 6, page 4 Explanation
1 Temperature controller
2 Green LED: operation
3 Red LED: fault
4 Interior lighting
CR50-65-80-110-140--O-US.book Seite 17 Donnerstag, 13. Oktober 2016 2:37 14

EN
Installing and connecting the refrigerator CoolMatic
18
7 Installing and connecting the
refrigerator
7.1 Safety instructions for installation on boats
Please note the following instructions for installation on boats:
D
A
Observe all the other installation instructions in this section.
7.2 Installing the refrigerator
A
I
DANGER!
If the appliance is powered by the mains, ensure that the power supply
has a residual current circuit breaker.
NOTICE!
•The device can be tilted sideways up to 30°. When setting up the
refrigerator, note that it must be fastened to take account of this. If
you have any questions regarding installation, consult your specialist
dealer.
•Install the refrigerator so that the warm air produced can easily flow

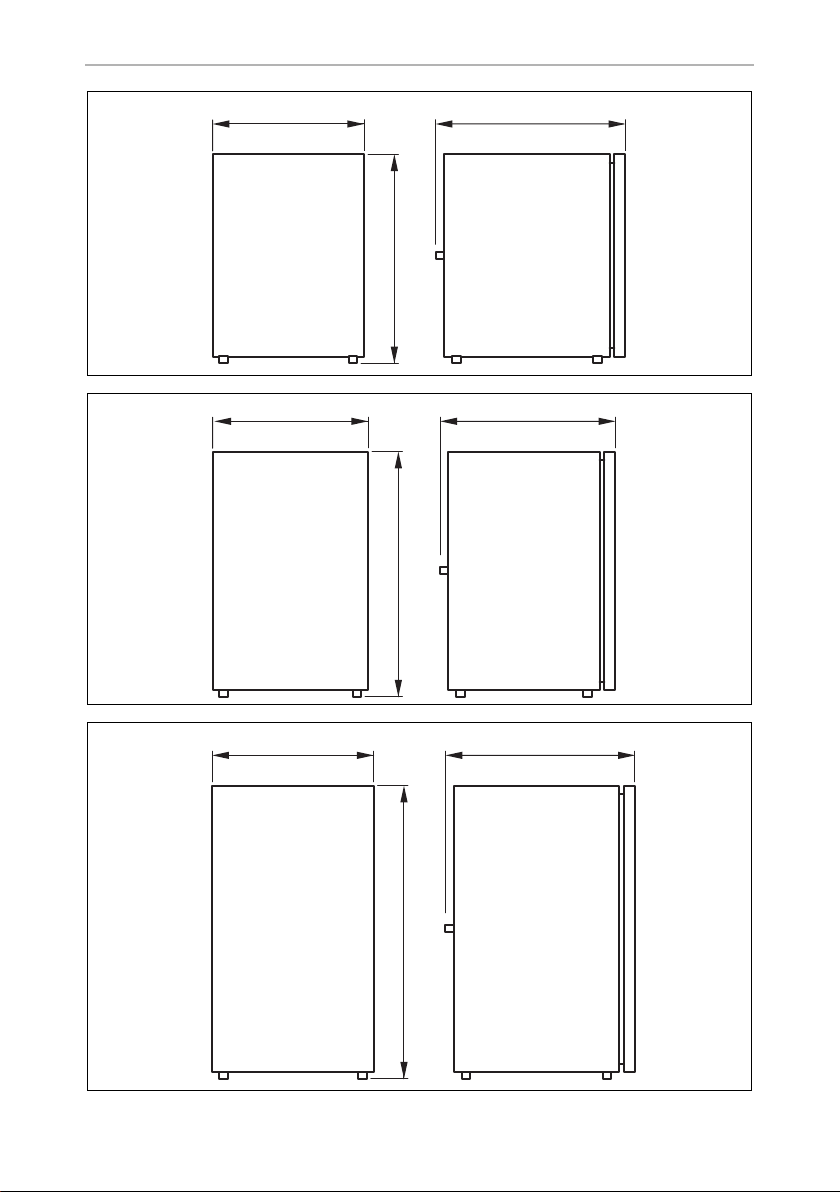

away (either upwards or to the sides, fig. 8, page 5).
•The appliance is designed for ambient temperatures between
+18 °C and +43 °C.
NOTICE!
•Fasten the device as described in the operating manual to prevent
hazards.
•Keep objects clear of openings in the housing or mounting structure
(such as ventilation slots).
•The refrigerator is only suitable for installation in a fitted niche. Once
it is installed, only the front of the appliance may be accessible.
NOTE
In the case of integrated refrigerators, please remove the locking
mechanism at the top and bottom. You can contact the Dometic branch
in your country for more information (addresses on the back of the oper-
ating manual).
CR50-65-80-110-140--O-US.book Seite 18 Donnerstag, 13. Oktober 2016 2:37 14

EN
CoolMatic Installing and connecting the refrigerator
19
The appliance is designed for ambient temperatures between +18 °C and +43 °C.
In continuous operation, the air humidity may not exceed 90 %.
Set up the fridge in a dry, sheltered place. Avoid placing it near heat sources such as
radiators, gas ovens, hot water pipes etc. Do not let it stand in direct, strong sunlight.
Install the refrigerator so that the warm air produced can easily flow away (either
upwards or to the sides). Therefore make sure there is adequate ventilation (fig. 8,
page 5).
The condensation which forms during normal operation of the refrigerator can be

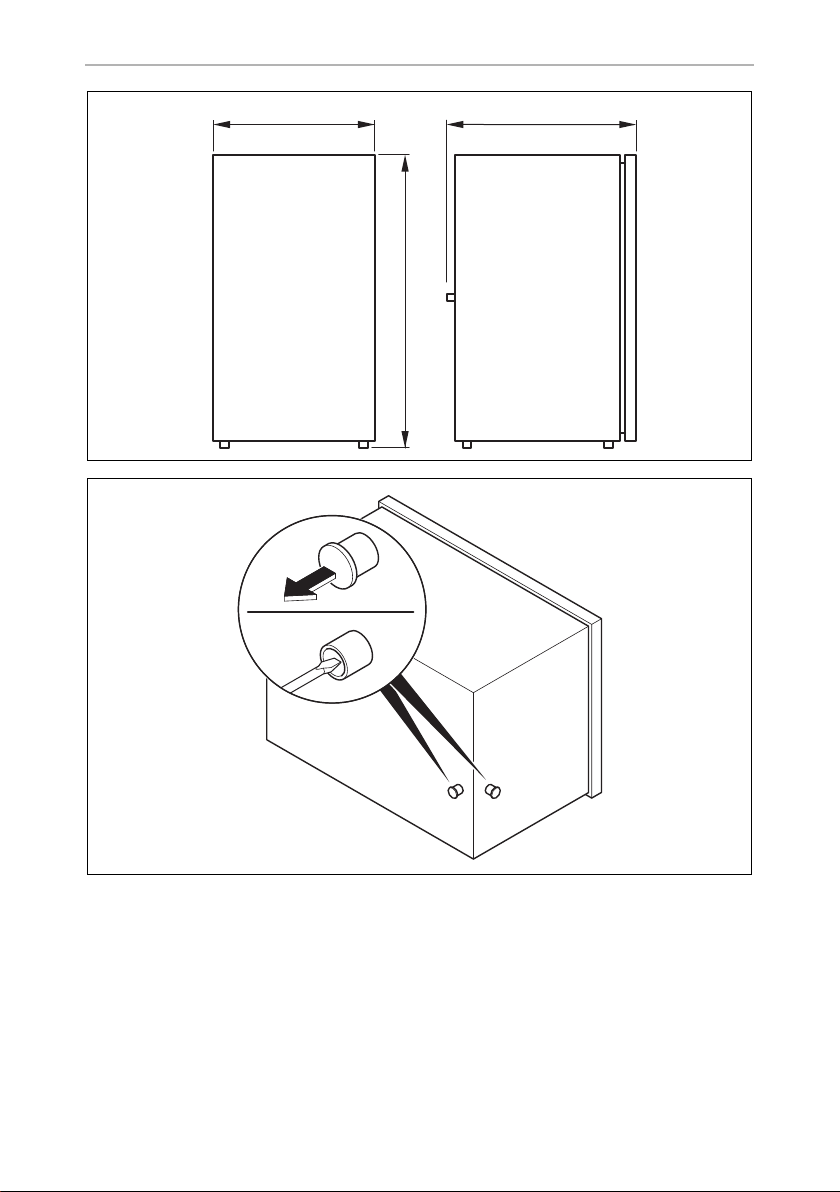

drained off via two outlets on the appliance. For delivery purposes, these outlets are
sealed. The two outlets are located on the rear and on the underside of the appliance
(fig. m, page 11).
➤Choose the condensation outlet most suitable for the place of installation and
remove its cap.
➤Insert a sharp object (e.g. a screwdriver) approx. 25 to 30 mm into the outlet to
pierce open the inside of the appliance.
If you put the refrigerator in a recess, you can fix it inside with suitable screws:
➤Remove the blanking plugs (fig. 72, page 5).
➤Push the refrigerator into the recess.
➤Use suitable screws (fig. 71, page 5) to fix the refrigerator in place.
➤Press the blanking plugs (fig. 72, page 5) into the openings.
No. in
fig. 8, page 5 Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the fridge if insufficient air can circulate above or at
the side.
CR50-65-80-110-140--O-US.book Seite 19 Donnerstag, 13. Oktober 2016 2:37 14

EN
Installing and connecting the refrigerator CoolMatic
20
7.3 Undo the lock
The refrigerator has a locking mechanism (fig. 91, page 6) which is also used, to
protect it during transport. The following settings are possible:
A
•Lock (turn wheel clockwise to the end stop): The door is locked and secured.
To open the door, lift the handle up and open it.
•Vent (turn wheel anti-clockwise to the end stop): The door is slightly open, but
fixed in position.
Use this position, if you are not going to use the appliance for a long time.
7.4 Changing the door hinge
You can also change the hinge of the door, so that it opens to the left rather than the
right.
➤Proceed as shown in fig. b, page 7 to fig. d, page 7, to change the hinges.
7.5 Connecting the refrigerator
Connect the refrigerator to DC power
The refrigerators can be operated with 12 Vgor with 24 Vg.
A
➤Determine the required cross section of the cable in relation to the cable length
according to fig. e, page 8.
Key for fig. e, page 8
NOTICE!
Only adjust the locking mechanism when the door is open. If you use it
with the door closed, you will damage the device.
NOTICE!
To avoid voltage drops and loss of performance, keep the cable as short
as possible and avoid joins.
For this reason avoid additional switches, plugs or multi-way adapters.
Co-ordinate axis Explanation Unit
l Cable length m
∅Cable cross section mm²
CR50-65-80-110-140--O-US.book Seite 20 Donnerstag, 13. Oktober 2016 2:37 14
