Marvel 66SWBE-BN User manual

Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"
Front View
(not to scale)
Side View
(not to scale)
3"
69 1/8" Max
68 1/8" Min
24 1/8"
22"
3"
69 1/8" Max
68 1/8" Min
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• 66SWBE-BN Wine cellar upper/Beverage refrigerator
lower: Black cabinet, no door, with high gloss ebony
interior. Door option sold separately.
• All models have shelf fronts of clear, solid maple
(unfinished).
• Individual cooling systems and temperature controls
for each compartment.
• Controls and digital temperature displays easily in
center grille.
• Door is reversible in field.
• Wine racks and beverage shelves may be fully
extended at 90° door opening.
• Shipping weight: 356 pounds.
• U.L. Listed.
See pages 2-3 for additional information
www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]
• Dimensions (Actual Size) •
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Chateau Collection Wine and Beverage Refrigerators
with without door (door ordered separately):
66SWBE-BN
• Product Model Number (s): •
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
This Data Sheet Includes Information On
BN • A318B149C150 • • 070609 • 185714 • 36492
• Additional Information •
318
Marvel

Door options:
1) Overlay Glass Door Frame (P/N 42244699, accepts customer
supplied wood frame overlay, see below. REQUIRES 2 DOOR
PANELS.). Add 1 3/8" to depth for door without panel or handle.
2) Overlay Solid Door (P/N 42244667 black. Accepts overlay panel
and door pull supplied by customer, see
page 3. REQUIRES 2 DOOR PANELS.). Add 1 3/8" to depth for door
without panel or handle.
3) Full Wrap Door (P/N 42244670 black with black liner, 42244671
stainless with black liner. Add 2 1/8" to depth for door and 2" for
designer full -length bar handle.
Accessories:
• Designer full -length bar handle in stainless steel (P/N 42244405),
black (P/N 42245084) or white (P/N 42245085).
• Marvel Shelf Front Kits for Beverage Refrigerator: Prefinished shelf
fronts (4).
- Gloss black: P/N 42245191
- Gloss white: P/N 42245192
- Stainless steel: P/N 42245193
- Natural maple (unfinished): P/N 42245194
• Marvel Shelf Front Kits for Wine Cellar: Prefinished shelf fronts (6)
and wine cradle rack (1).
- Gloss black: P/N 42245058
- Gloss white: P/N 42245059
- Stainless steel: P/N 42245060
- Natural maple (unfinished): P/N 42245061
1 3/4" min
1 3/4" min
1 3/4"
min
1 3/4" min

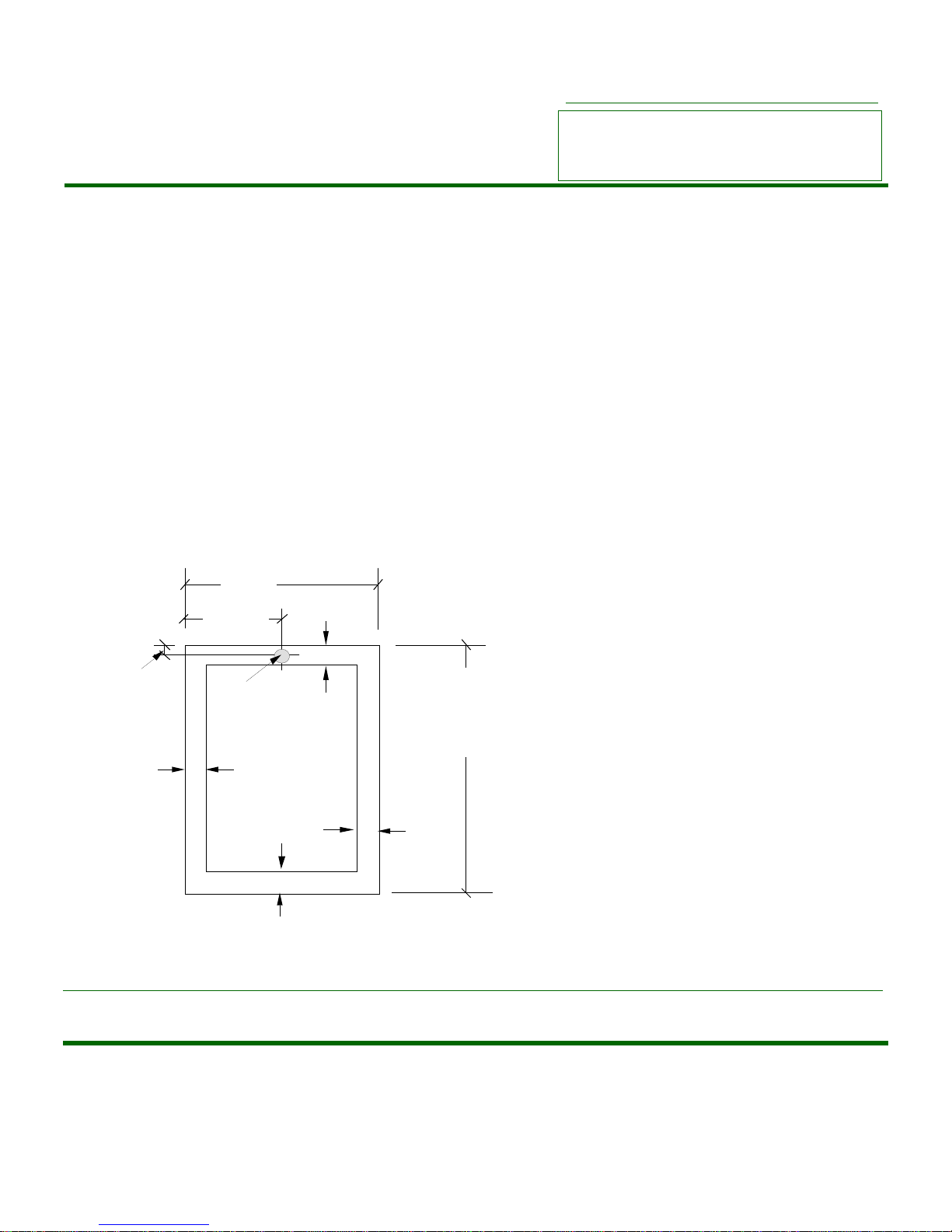

Front View
Custom Overlay Glass Door Frame Dimensions
(not to scale)
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
23 7/16"
For doors with locks installed (-LR or -LL
included in model number). It will be necessary
to drill a hole in the overlay door frame,
corresponding to the lock location, prior to
assembly. Hole diameter through overlay frame
should be 15/32" with a 13/16" counterbore from
back side of panel, 7/16" deep.
Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
Optional
Lock
Location
11 23/32"
15/32"
Additional Information:
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand [phone]
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Chateau Collection Wine and Beverage Refrigerators
with without door (door ordered separately):
66SWBE-BN
• Product Model Number (s): •
This Data Sheet Includes Information On
BN • A318B149C150 • • 070609 • 185714 • 36492
149
Page 2
Marvel

Custom Overlay Solid Door Dimensions
(not to scale)
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
23 3/4"
For doors with locks installed (-LR or -LL
included in model number). It will be necessary
to drill a hole in the overlay door panel,
corresponding to the lock location, prior to
assembly. Hole diameter through overlay panel
should be 15/32" with a 13/16" counterbore from
back side of panel, 7/16" deep.
Min. thickness: 5/8"
Max. thickness: 3/4"
Max. weight: 20 lbs
Optional
Lock
Location
11 7/8"
7/16"
Additional Information:
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand [phone]
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Chateau Collection Wine and Beverage Refrigerators
with without door (door ordered separately):
66SWBE-BN
• Product Model Number (s): •
This Data Sheet Includes Information On
BN • A318B149C150 • • 070609 • 185714 • 36492
150
Page 3
Marvel
