OWNERS GUIDE
MARVEL PROFESSIONAL UNDERCOUNTER REFRIGERATION
THE ORIGINAL REFRIGERATION EXPERTS SINCE 1892
FOR MODEL # MPDR424

Welcome to the Marvel Experience
Thank you for choosing our quality American-built product
to add to your home. We are thrilled to welcome you to
our growing community of Marvel owners, who trust in our
products and our support.
The information in this guide is intended to help you install
and maintain your new Marvel undercounter model to pro-
tect and prolong its lifetime. We encourage you to contact
our Technical Support team at [phone] with any
questions.
Got a Marvelous Design?
We would love to see how your Marvel product looks in its
new home. Send us photos at marketing@marvelrefrigera-
tion.com, and we might feature your Marvel home design
on our website and social media!
Bonus Third-Year Warranty Free with Product
Registration
Your Marvel Professional product
qualies for a one-year extension
of the two-year warranty coverage
from your date of purchase, free of
charge. To take advantage of this
third-year warranty, be sure to reg-
ister your product with Marvel within
60 days from the date of purchase
at marvelrefrigeration.com and pro-
vide proof of purchase.
Thank you again for investing in Marvel for your home!
XXXXXXXXXXXX
XXXXXXXXXXXX
MARVEL
g
Figure 1
R600A
WELCOME
It is important you send in your warranty registration card
immediately after taking delivery of your appliance or you
can register online at www.marvelrefrigeration.com.
The following information will
be required when registering
your appliance.
Service Number
Serial Number
Date of Purchase
Dealer’s name and address
The service number and serial number can be found on the
serial plate which is located inside the cabinet on the left
side near the top. See gure 1.
Warranty Registration
Online registra-
tion available at
www.marvelrefrig-
eration.com

TABLE OF CONTENTS
Tip: Click on any section below to jump directly there
Safety
Important Safety Instructions
Installation
Unpacking Your Appliance
Electrical
Cutout & Product Dimensions
Installing Your Appliance

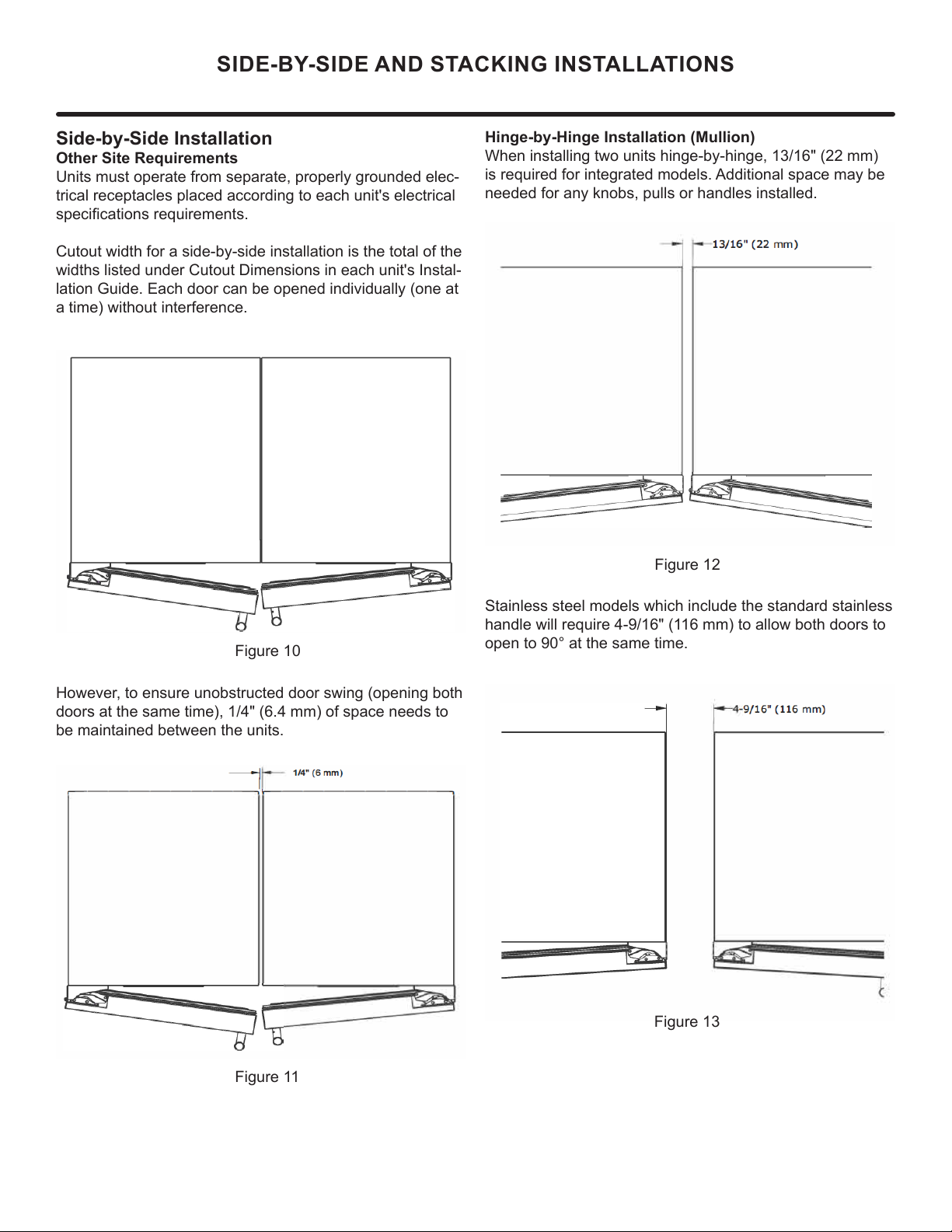

Side-by-Side & Stacking Installations

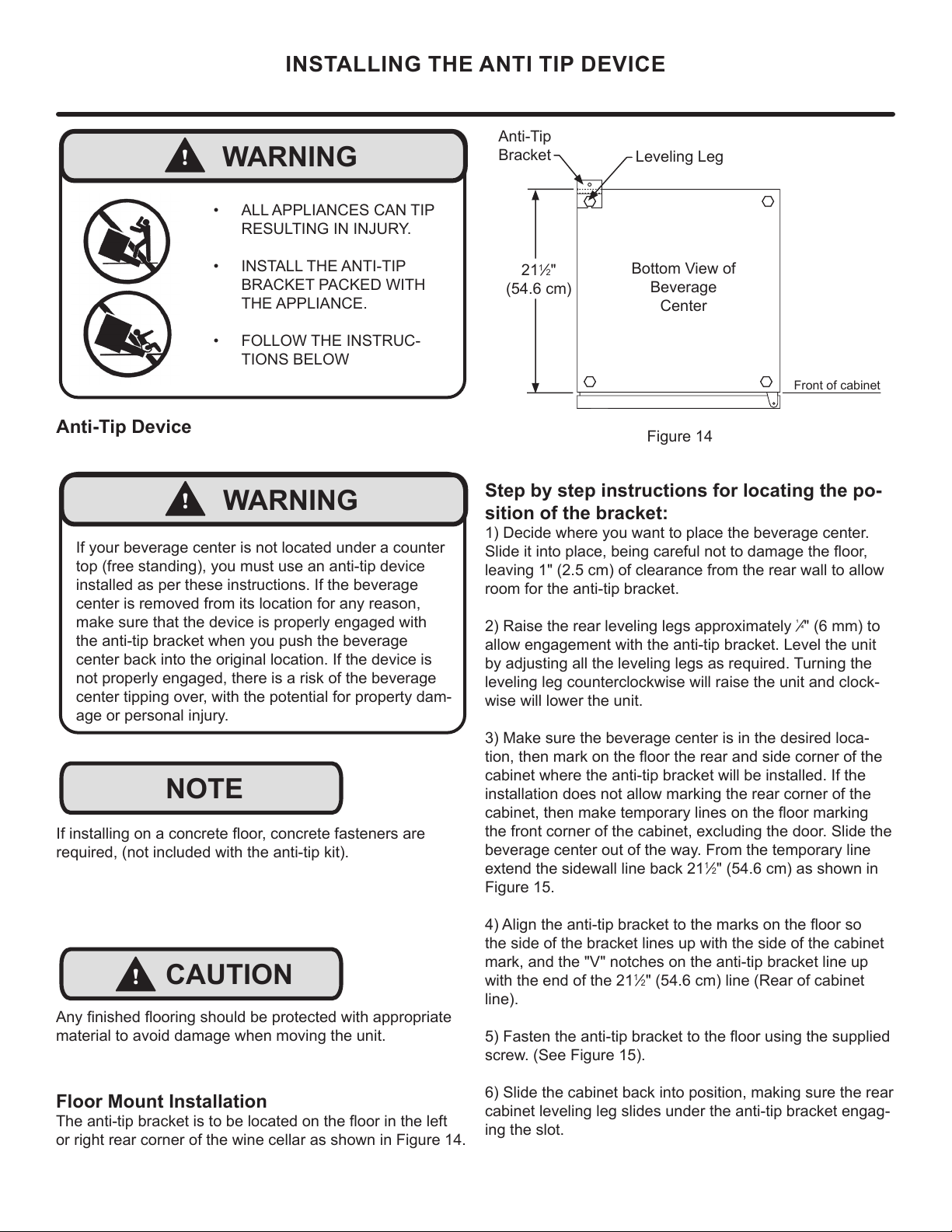

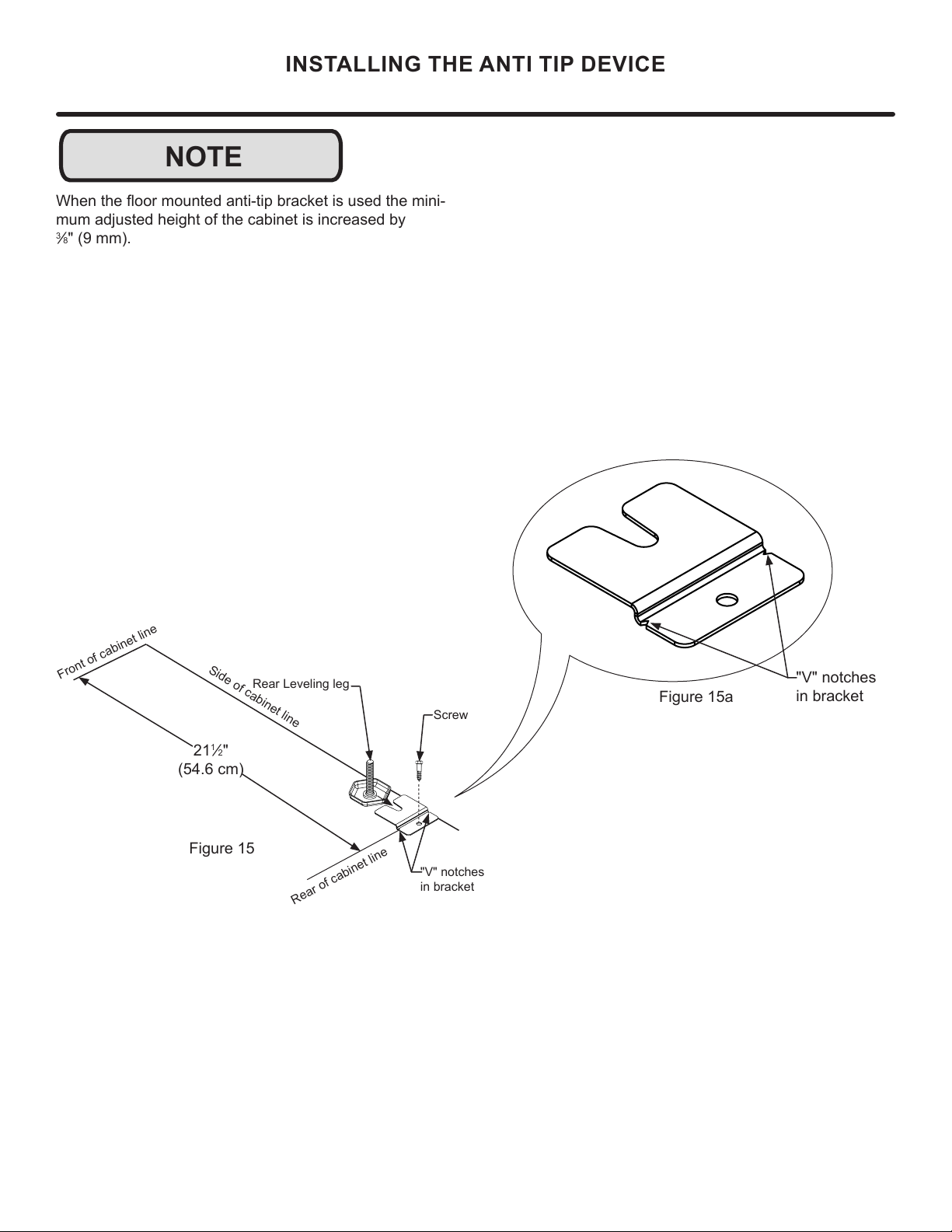

Installing the anti-tip device

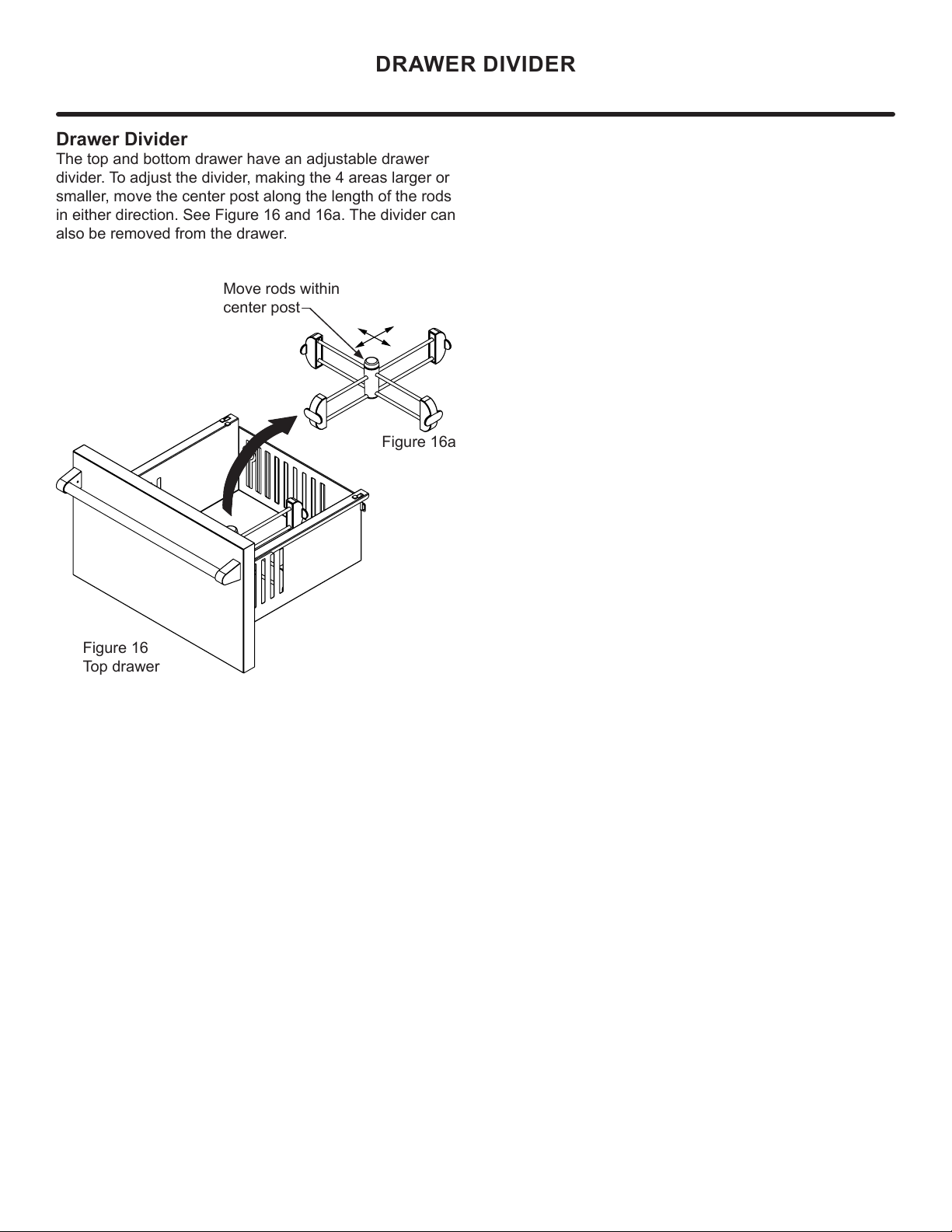

Drawer Divider
Integrated Panel Dimensions

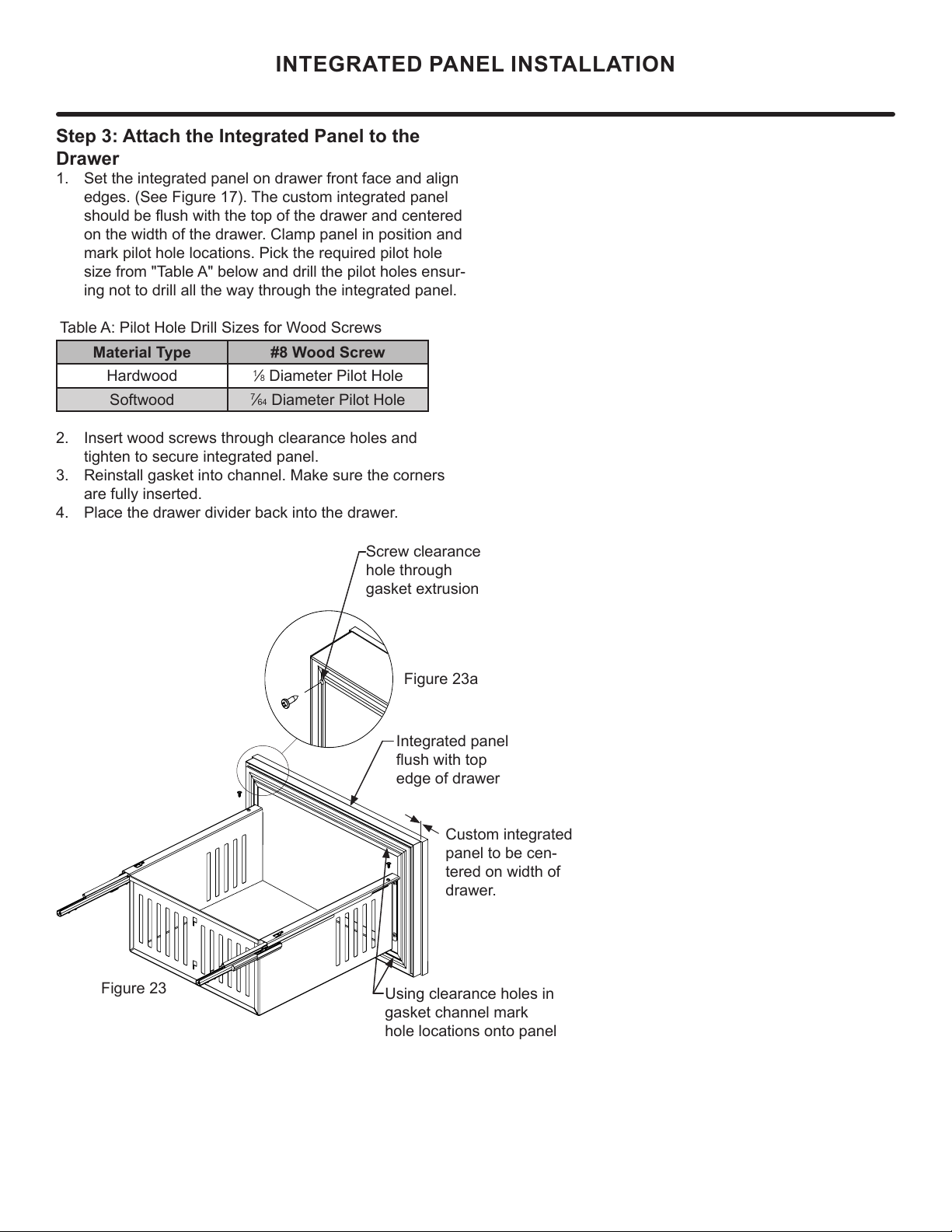

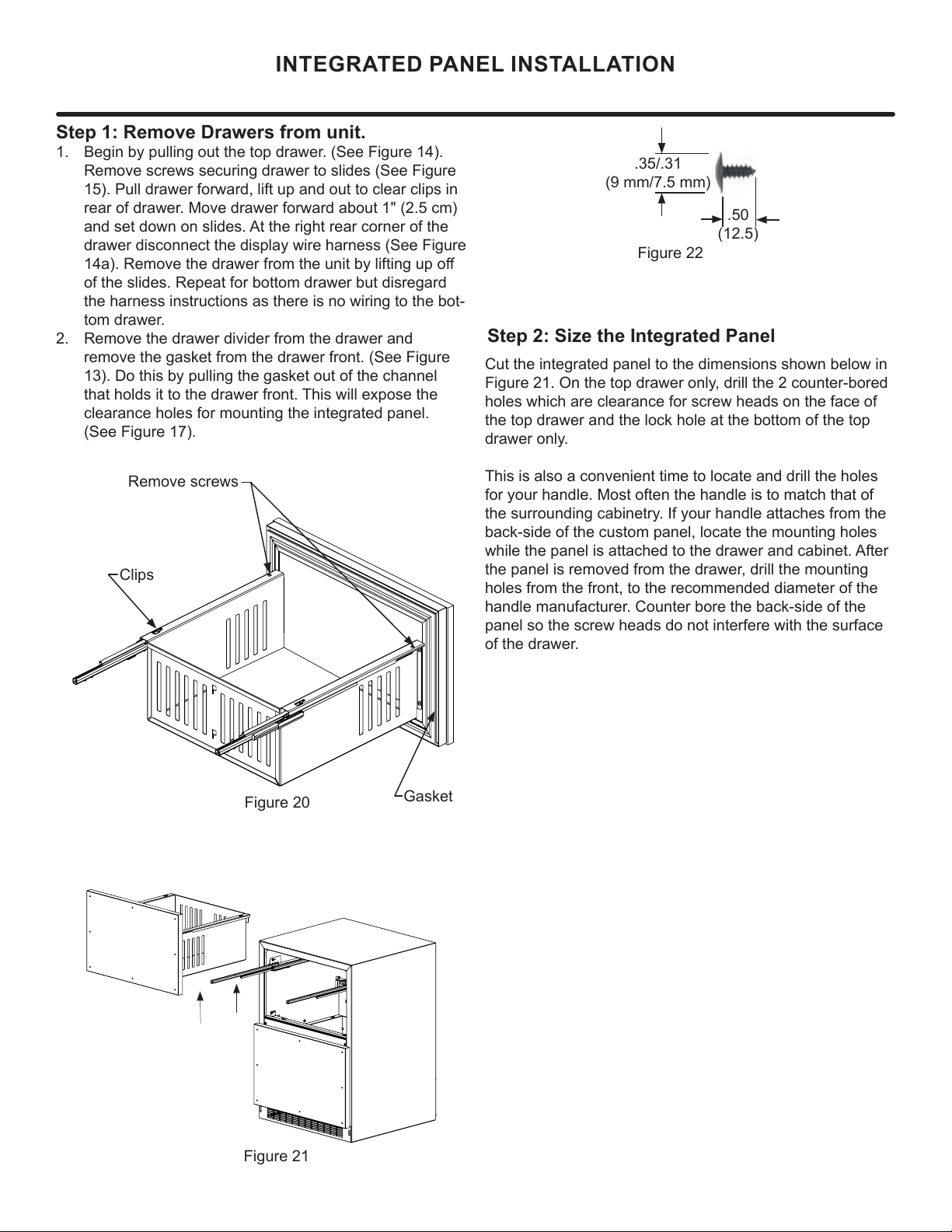

Integrated Panel Installation
Maintenance

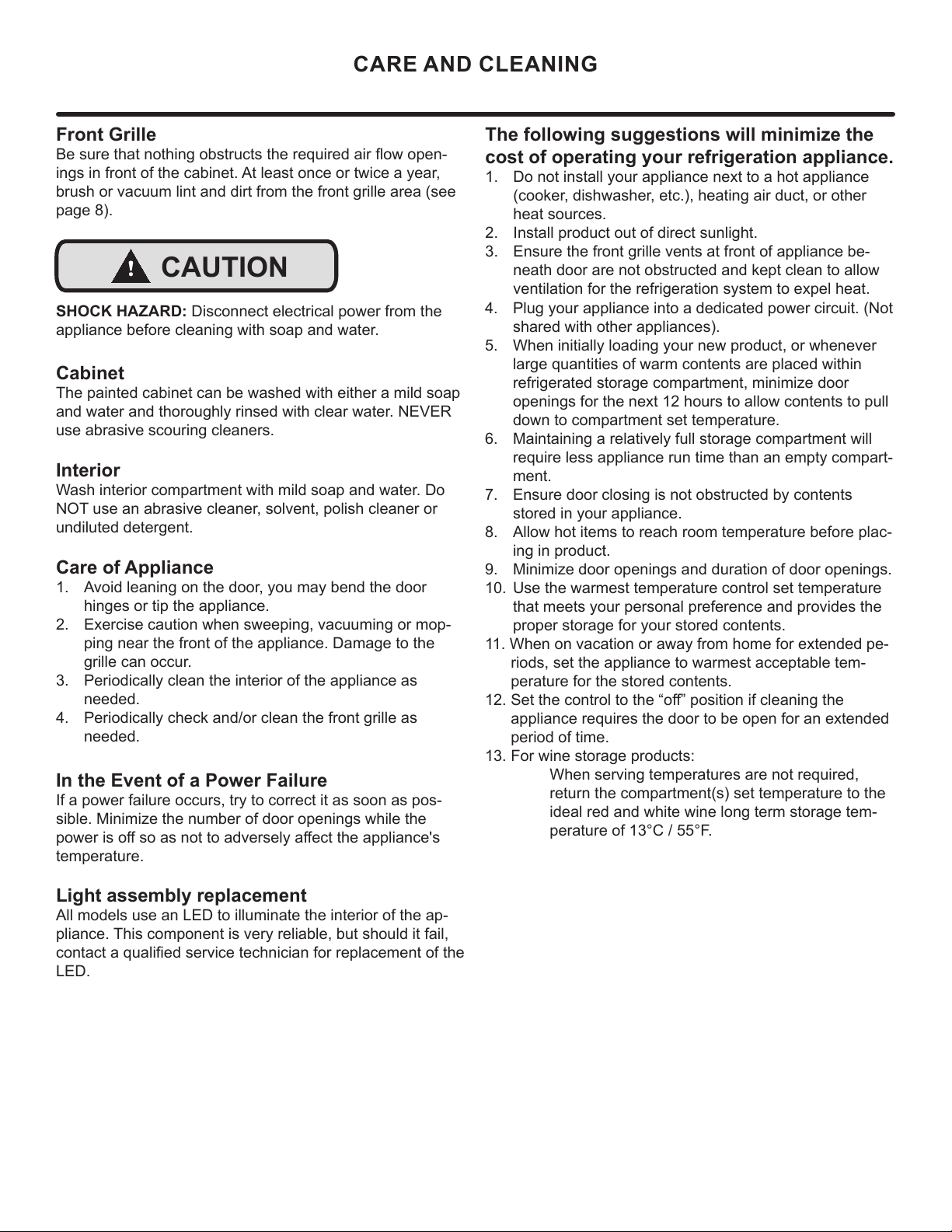

Care and Cleaning
Extended Non-Use
Operating Instructions

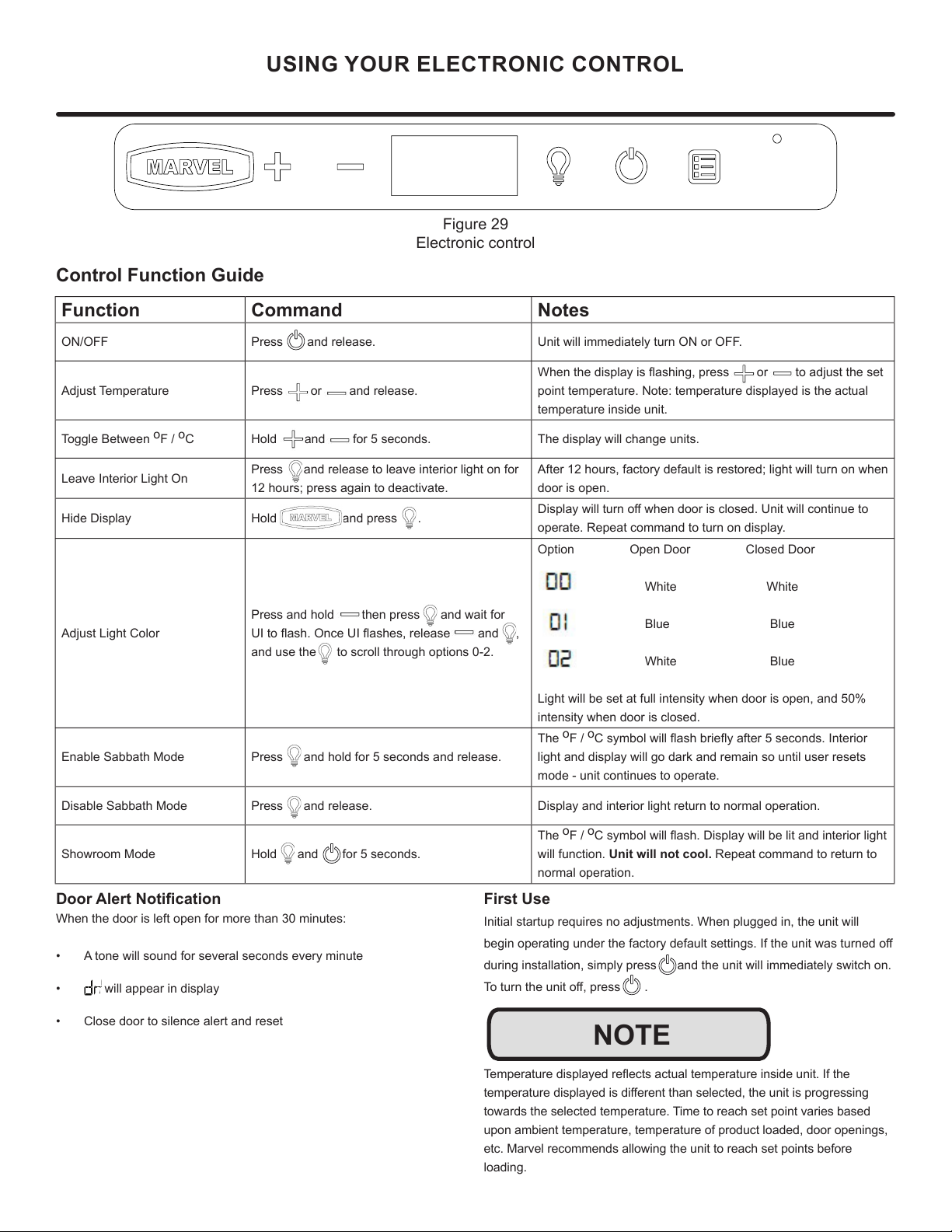

Using Your Electronic Control
Energy Savng Tips
Service
Obtaining Service
Wire Diagram
Product Liability
Ordering Replacement Parts
R600a Specifications
System Diagnosis Guide
Compressor Specifications
Troubleshooting Extended
Control Operation - Service
Thermistor
Warranty
3

NOTE
!CAUTION
Important Safety Instructions
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and situa-
tions that may occur. Common sense, caution, and care
must be exercised when installing, maintaining, or operat-
ing this appliance.
Recognize Safety Symbols,
Words, and Labels.
CAUTION-Hazards or unsafe practices which could re-
sult in personal injury or property / product damage.
NOTE-Important information to help assure a problem
free installation and operation.
!WARNING
WARNING - You can be killed or seriously injured
if you do not follow these instructions.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause cancer.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause birth defects or
other reproductive harm.
!WARNING
WARNING - This unit contains R600a (Isobutane)
which is a ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite defrosting.
Do not damage refrigerant circuit.
IMPORTANT SAFETY INSTRUCTIONS
4

NOTE
!CAUTION
!WARNING
WARNING - Dispose of the plastic bags which can
be a su󰀨ocation hazard.
!WARNING
WARNING - Help Prevent Tragedies
Child entrapment and su󰀨ocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous - even if they sit out for "just a few hours".
If you are getting rid of your old refrigerator, please fol-
low the instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
•Take o󰀨 the doors or remove the drawers.
• Leave the shelves in place so children may not
easily climb inside.
!WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding in-
ternal components in place. The owners manual is shipped
inside the product in a plastic bag along with the warranty
registration card, and other accessory items.
Important
Keep your carton and packaging until your appliance has
been thoroughly inspected and found to be in good condi-
tion. If there is damage, the packaging will be needed as
proof of damage in transit. Afterwards please dispose of all
items responsibly.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
If the appliance was shipped, handled, or stored in other
than an upright position for any period of time, allow the ap-
pliance to sit upright for a period of at least 24 hours before
plugging in. This will assure oil returns to the compressor.
Plugging the appliance in immediately may cause damage
to internal parts.
UNPACKING YOUR APPLIANCE
5

Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accor-
dance with the National Electrical Code and applicable lo-
cal codes and ordinances (see Figure 4). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to provide the proper power
supply. The third ground prong should not, under any cir-
cumstances, be cut or removed.
Figure 4
NOTE
Ground Fault Circuit Interrupters (GFCI) are prone to nui-
sance tripping which will cause the appliance to shut down.
GFCI’s are generally not used on circuits with power equip-
ment that must run unattended for long periods of time, un-
less required to meet local building codes and ordinances.
ELECTRICAL
Figure 2
Do not remove
ground prong
Figure 3
Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any circumstanc-
es, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power
cord. (See Figure 2).
• Do not use an adapter. (See Figure 3).
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
!WARNING
6

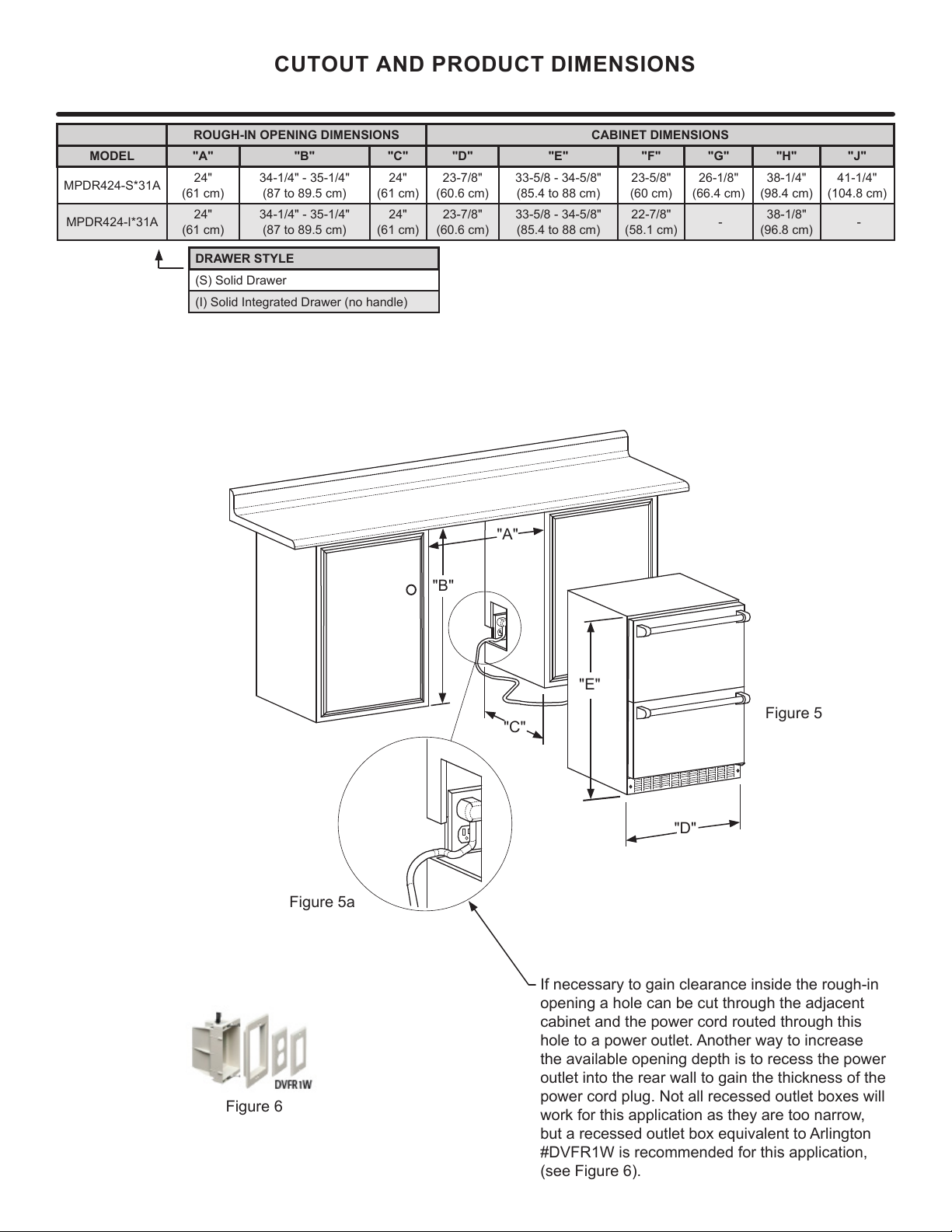

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
MPDR424-S*31A 24"
(61 cm)
34-1/4" - 35-1/4"
(87 to 89.5 cm)
24"
(61 cm)
23-7/8"
(60.6 cm)
33-5/8 - 34-5/8"
(85.4 to 88 cm)
23-5/8"
(60 cm)
26-1/8"
(66.4 cm)
38-1/4"
(98.4 cm)
41-1/4"
(104.8 cm)
MPDR424-I*31A 24"
(61 cm)
34-1/4" - 35-1/4"
(87 to 89.5 cm)
24"
(61 cm)
23-7/8"
(60.6 cm)
33-5/8 - 34-5/8"
(85.4 to 88 cm)
22-7/8"
(58.1 cm) - 38-1/8" (96.8 cm) -
DRAWER STYLE
(S) Solid Drawer
(I) Solid Integrated Drawer (no handle)
"A"
"B"
"C"
"D"
"E"
Figure 5
Figure 5a
Figure 6
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent
cabinet and the power cord routed through this
hole to a power outlet. Another way to increase
the available opening depth is to recess the power
outlet into the rear wall to gain the thickness of the
power cord plug. Not all recessed outlet boxes will
work for this application as they are too narrow,
but a recessed outlet box equivalent to Arlington
#DVFR1W is recommended for this application,
(see Figure 6).
CUTOUT AND PRODUCT DIMENSIONS
7

"D"
"E"
"F"
"G"
"H"
"I"
Floor mount anti-tip bracket.
211⁄2"
(54.6 cm)
1"
(2.5 cm)
Figure 7
CUTOUT AND PRODUCT DIMENSIONS
PRODUCT DATA
MODEL
ELECTRICAL
REQUIREMENTS #
PRODUCT
WEIGHT
MPDR424 115V/60Hz/15A 140 lbs
(63.6 kg)
* To install (F) models with the door face ush with adja-
cent cabinetry doors, custom decorative panel thickness
cannot exceed 3⁄4" (19 mm).
** Minimum rough-in opening required is to be larger than
the adjusted height of the cabinet.
# A grounded 15 amp dedicated circuit is required. Follow
all local building codes when installing electrical and appli-
ance.
8

!CAUTION
Front grille
screws

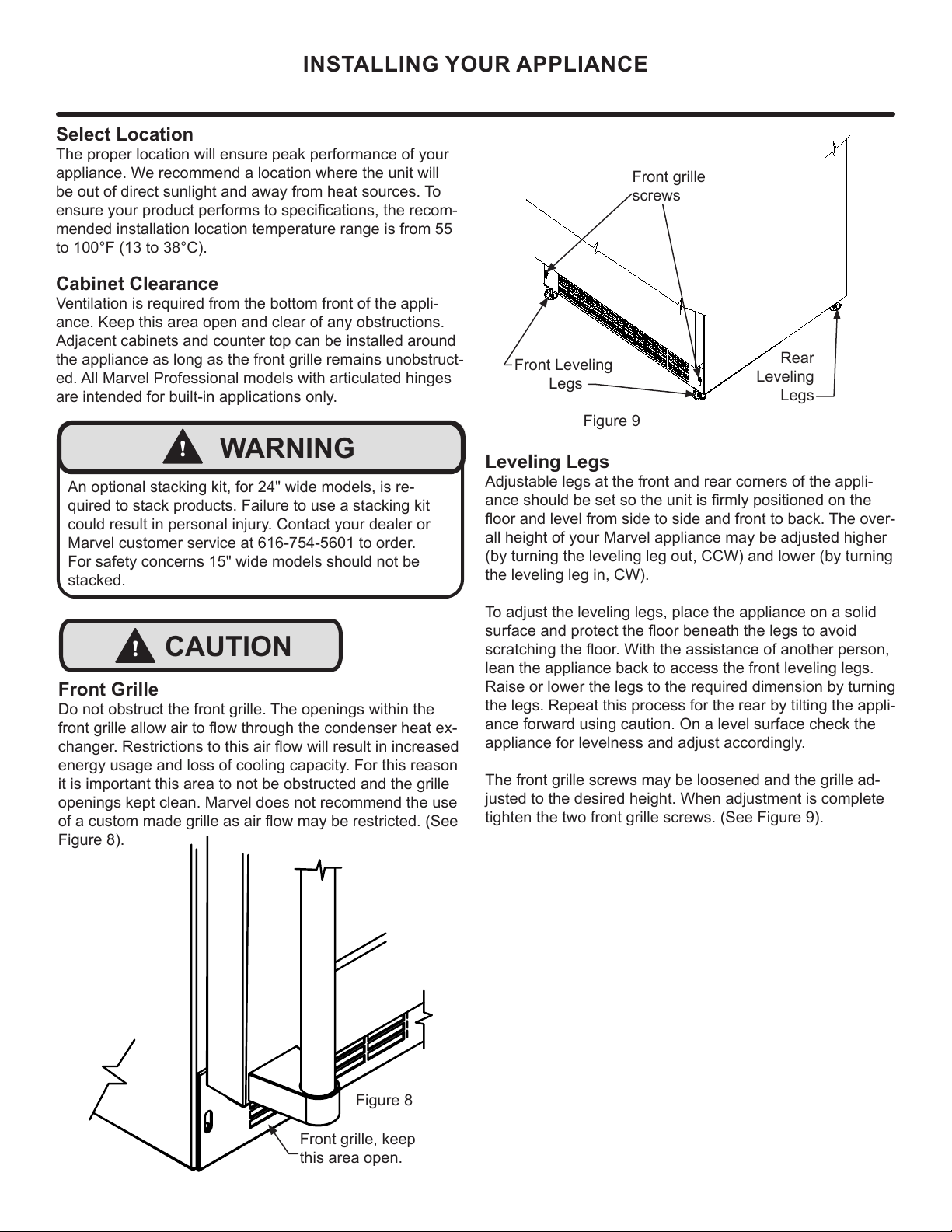

Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
ensure your product performs to specications, the recom-
mended installation location temperature range is from 55
to 100°F (13 to 38°C).
Cabinet Clearance
Ventilation is required from the bottom front of the appli-
ance. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the appliance as long as the front grille remains unobstruct-
ed. All Marvel Professional models with articulated hinges
are intended for built-in applications only.
Front Grille
Do not obstruct the front grille. The openings within the
front grille allow air to ow through the condenser heat ex-
changer. Restrictions to this air ow will result in increased
energy usage and loss of cooling capacity. For this reason
it is important this area to not be obstructed and the grille
openings kept clean. Marvel does not recommend the use
of a custom made grille as air ow may be restricted. (See
Figure 8).
INSTALLING YOUR APPLIANCE
!WARNING
An optional stacking kit, for 24" wide models, is re-
quired to stack products. Failure to use a stacking kit
could result in personal injury. Contact your dealer or
Marvel customer service at 616-754-5601 to order.
For safety concerns 15" wide models should not be
stacked.
Figure 9
Front Leveling
Legs
Leveling Legs
Adjustable legs at the front and rear corners of the appli-
ance should be set so the unit is rmly positioned on the
oor and level from side to side and front to back. The over-
all height of your Marvel appliance may be adjusted higher
(by turning the leveling leg out, CCW) and lower (by turning
the leveling leg in, CW).
To adjust the leveling legs, place the appliance on a solid
surface and protect the oor beneath the legs to avoid
scratching the oor. With the assistance of another person,
lean the appliance back to access the front leveling legs.
Raise or lower the legs to the required dimension by turning
the legs. Repeat this process for the rear by tilting the appli-
ance forward using caution. On a level surface check the
appliance for levelness and adjust accordingly.
The front grille screws may be loosened and the grille ad-
justed to the desired height. When adjustment is complete
tighten the two front grille screws. (See Figure 9).
Rear
Leveling
Legs
Figure 8
Front grille, keep
this area open.
9

SIDE-BY-SIDE AND STACKING INSTALLATIONS
Side-by-Side Installation
Other Site Requirements
Units must operate from separate, properly grounded elec-
trical receptacles placed according to each unit's electrical
specications requirements.
Cutout width for a side-by-side installation is the total of the
widths listed under Cutout Dimensions in each unit's Instal-
lation Guide. Each door can be opened individually (one at
a time) without interference.
Figure 10
However, to ensure unobstructed door swing (opening both
doors at the same time), 1/4" (6.4 mm) of space needs to
be maintained between the units.
Hinge-by-Hinge Installation (Mullion)
When installing two units hinge-by-hinge, 13/16" (22 mm)
is required for integrated models. Additional space may be
needed for any knobs, pulls or handles installed.
Stainless steel models which include the standard stainless
handle will require 4-9/16" (116 mm) to allow both doors to
open to 90° at the same time.
Figure 11
Figure 12
Figure 13
10

INSTALLING THE ANTI TIP DEVICE
Step by step instructions for locating the po-
sition of the bracket:
1) Decide where you want to place the beverage center.

leaving 1" (2.5 cm) of clearance from the rear wall to allow
room for the anti-tip bracket.
¹" (6 mm) to
allow engagement with the anti-tip bracket. Level the unit
by adjusting all the leveling legs as required. Turning the
leveling leg counterclockwise will raise the unit and clock-
wise will lower the unit.
3) Make sure the beverage center is in the desired loca-

cabinet where the anti-tip bracket will be installed. If the
installation does not allow marking the rear corner of the


beverage center out of the way. From the temporary line
12" (54.6 cm) as shown in
Figure 15.

the side of the bracket lines up with the side of the cabinet
mark, and the "V" notches on the anti-tip bracket line up
with the end of the 2112" (54.6 cm) line (Rear of cabinet
line).

screw. (See Figure 15).
6) Slide the cabinet back into position, making sure the rear
cabinet leveling leg slides under the anti-tip bracket engag-
ing the slot.
Front of cabinet
Figure 14
2112"
(54.6 cm)
Anti-Tip
Bracket Leveling Leg
Bottom View of
Beverage
Center
Floor Mount Installation

or right rear corner of the wine cellar as shown in Figure 14.
!WARNING
• ALL APPLIANCES CAN TIP
RESULTING IN INJURY.
• INSTALL THE ANTI-TIP
BRACKET PACKED WITH
THE APPLIANCE.
• FOLLOW THE INSTRUC-
TIONS BELOW
!CAUTION
NOTE

material to avoid damage when moving the unit.

required, (not included with the anti-tip kit).
Anti-Tip Device
!WARNING
If your beverage center is not located under a counter
top (free standing), you must use an anti-tip device
installed as per these instructions. If the beverage
center is removed from its location for any reason,
make sure that the device is properly engaged with
the anti-tip bracket when you push the beverage
center back into the original location. If the device is
not properly engaged, there is a risk of the beverage
center tipping over, with the potential for property dam-
age or personal injury.
11

NOTE
INSTALLING THE ANTI TIP DEVICE
-
mum adjusted height of the cabinet is increased by
38" (9 mm).
Figure 15a
"V" notches
in bracket
"V" notches
in bracket
Figure 15
2112"
(54.6 cm)
Front of cabinet line
Rear Leveling leg
Side of cabinet line
Rear of cabinet line
Screw
12

Drawer Divider
The top and bottom drawer have an adjustable drawer
divider. To adjust the divider, making the 4 areas larger or
smaller, move the center post along the length of the rods
in either direction. See Figure 16 and 16a. The divider can
also be removed from the drawer.
Move rods within
center post
Figure 16a
Figure 16
Top drawer
"V" notches
in bracket
DRAWER DIVIDER
13

1429⁄32"
(379 mm)
23⁄8"
(60 mm)
Panel
thickness
Figure 17
19"
(483 mm)
13⁄16"
(30 mm)
1"(25 mm) diameter counter
bore 1⁄4" (6 mm) deep
2 places, top drawer only.
117⁄8"
(302 mm)
11⁄32"
(8.8 mm)
1⁄2" (12.7 mm)
diameter, top
drawer only
13⁄16" (21 mm)
counterbore
7⁄16" (12 mm)
deep, top
drawer only
This side
facing interior
233⁄4"
(603 mm)
INTEGRATED PANEL DIMENSIONS
14

INTEGRATED PANEL INSTALLATION
Full Integrated Panel Installation Instructions
Determine Wood Screw Requirements
1. A #10 pan head wood screw should be used to proper-
ly secure the integrated panel. A quantity of 16 screws
are supplied with the unit in the literature pack.
2. Use only pan head screws.
3. If your integrated panel is thinner than 5⁄8" (15.9 mm)
you will need to purchase shorter screws. The longer
screws will break through the front of the panel.
Figure 18
• Never attempt to repair or perform maintenance on
the appliance until the main electrical power has been
disconnected. Turning the appliance control "OFF"
does not remove electrical power from the units wiring.
• Replace all parts and panels before operating.
!WARNING
Electrocution Hazard
!CAUTION
It is important to use the factory provided grille that came
with the product to assure proper air ow is maintained
through the condenser. The use of a custom grille is not
recommended and will void the warranty.
15

Cut the integrated panel to the dimensions shown below in
Figure 21. On the top drawer only, drill the 2 counter-bored
holes which are clearance for screw heads on the face of
the top drawer and the lock hole at the bottom of the top
drawer only.
This is also a convenient time to locate and drill the holes
for your handle. Most often the handle is to match that of
the surrounding cabinetry. If your handle attaches from the
back-side of the custom panel, locate the mounting holes
while the panel is attached to the drawer and cabinet. After
the panel is removed from the drawer, drill the mounting
holes from the front, to the recommended diameter of the
handle manufacturer. Counter bore the back-side of the
panel so the screw heads do not interfere with the surface
of the drawer.
Step 2: Size the Integrated Panel
Figure 22
.35/.31
(9 mm/7.5 mm)
.50
(12.5)
Figure 20
Remove screws
Clips
Gasket
Figure 21
Step 1: Remove Drawers from unit.
1. Begin by pulling out the top drawer. (See Figure 14).
Remove screws securing drawer to slides (See Figure
15). Pull drawer forward, lift up and out to clear clips in
rear of drawer. Move drawer forward about 1" (2.5 cm)
and set down on slides. At the right rear corner of the
drawer disconnect the display wire harness (See Figure
14a). Remove the drawer from the unit by lifting up o󰀨
of the slides. Repeat for bottom drawer but disregard
the harness instructions as there is no wiring to the bot-
tom drawer.
2. Remove the drawer divider from the drawer and
remove the gasket from the drawer front. (See Figure
13). Do this by pulling the gasket out of the channel
that holds it to the drawer front. This will expose the
clearance holes for mounting the integrated panel.
(See Figure 17).
INTEGRATED PANEL INSTALLATION
16

Step 3: Attach the Integrated Panel to the
Drawer
1. Set the integrated panel on drawer front face and align
edges. (See Figure 17). The custom integrated panel
should be ush with the top of the drawer and centered
on the width of the drawer. Clamp panel in position and
mark pilot hole locations. Pick the required pilot hole
size from "Table A" below and drill the pilot holes ensur-
ing not to drill all the way through the integrated panel.
Table A: Pilot Hole Drill Sizes for Wood Screws
Material Type #8 Wood Screw
Hardwood 1⁄8Diameter Pilot Hole
Softwood 7⁄64 Diameter Pilot Hole
2. Insert wood screws through clearance holes and
tighten to secure integrated panel.
3. Reinstall gasket into channel. Make sure the corners
are fully inserted.
4. Place the drawer divider back into the drawer.
Figure 23
Integrated panel
ush with top
edge of drawer
Using clearance holes in
gasket channel mark
hole locations onto panel
Screw clearance
hole through
gasket extrusion
Figure 23a
Custom integrated
panel to be cen-
tered on width of
drawer.
INTEGRATED PANEL INSTALLATION
17

USING YOUR ELECTRONIC CONTROL
Control Function Guide
Function Command Notes
ON/OFF Press and release. Unit will immediately turn ON or OFF.
Adjust Temperature Press or and release.
When the display is ashing, press or to adjust the set
point temperature. Note: temperature displayed is the actual
temperature inside unit.
Toggle Between oF / oC Hold and for 5 seconds. The display will change units.
Leave Interior Light On Press and release to leave interior light on for
12 hours; press again to deactivate.
After 12 hours, factory default is restored; light will turn on when
door is open.
Hide Display Hold and press . Display will turn o󰀨 when door is closed. Unit will continue to
operate. Repeat command to turn on display.
Adjust Light Color
Press and hold then press and wait for
UI to ash. Once UI ashes, release and ,
and use the to scroll through options 0-2.
Option Open Door Closed Door
White White
Blue Blue
White Blue
Light will be set at full intensity when door is open, and 50%
intensity when door is closed.
Enable Sabbath Mode Press and hold for 5 seconds and release.
The oF / oC symbol will ash briey after 5 seconds. Interior
light and display will go dark and remain so until user resets
mode - unit continues to operate.
Disable Sabbath Mode Press and release. Display and interior light return to normal operation.
Showroom Mode Hold and for 5 seconds.
The oF / oC symbol will ash. Display will be lit and interior light
will function. Unit will not cool. Repeat command to return to
normal operation.
Door Alert Notication
When the door is left open for more than 30 minutes:
• A tone will sound for several seconds every minute
• will appear in display
• Close door to silence alert and reset
First Use
Initial startup requires no adjustments. When plugged in, the unit will
begin operating under the factory default settings. If the unit was turned o󰀨
during installation, simply press and the unit will immediately switch on.
To turn the unit o󰀨, press .
Temperature displayed reects actual temperature inside unit. If the
temperature displayed is di󰀨erent than selected, the unit is progressing
towards the selected temperature. Time to reach set point varies based
upon ambient temperature, temperature of product loaded, door openings,
etc. Marvel recommends allowing the unit to reach set points before
loading.
NOTE
Figure 29
Electronic control
18

!CAUTION
Front Grille
Be sure that nothing obstructs the required air ow open-
ings in front of the cabinet. At least once or twice a year,
brush or vacuum lint and dirt from the front grille area (see
page 8).
SHOCK HAZARD: Disconnect electrical power from the
appliance before cleaning with soap and water.
Cabinet
The painted cabinet can be washed with either a mild soap
and water and thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Interior
Wash interior compartment with mild soap and water. Do
NOT use an abrasive cleaner, solvent, polish cleaner or
undiluted detergent.
Care of Appliance
1. Avoid leaning on the door, you may bend the door
hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mop-
ping near the front of the appliance. Damage to the
grille can occur.
3. Periodically clean the interior of the appliance as
needed.
4. Periodically check and/or clean the front grille as
needed.
In the Event of a Power Failure
If a power failure occurs, try to correct it as soon as pos-
sible. Minimize the number of door openings while the
power is o󰀨 so as not to adversely a󰀨ect the appliance's
temperature.
Light assembly replacement
All models use an LED to illuminate the interior of the ap-
pliance. This component is very reliable, but should it fail,
contact a qualied service technician for replacement of the
LED.
CARE AND CLEANING
4. Plug your appliance into a dedicated power circuit. (Not
shared with other appliances).
5. When initially loading your new product, or whenever
large quantities of warm contents are placed within
refrigerated storage compartment, minimize door
openings for the next 12 hours to allow contents to pull
down to compartment set temperature.
6. Maintaining a relatively full storage compartment will
require less appliance run time than an empty compart-
ment.
7. Ensure door closing is not obstructed by contents
stored in your appliance.
8. Allow hot items to reach room temperature before plac-
ing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature
that meets your personal preference and provides the
proper storage for your stored contents.
11. When on vacation or away from home for extended pe-
riods, set the appliance to warmest acceptable tem-
perature for the stored contents.
12. Set the control to the “o󰀨” position if cleaning the
appliance requires the door to be open for an extended
period of time.
13. For wine storage products:
When serving temperatures are not required,
return the compartment(s) set temperature to the
ideal red and white wine long term storage tem-
perature of 13°C / 55°F.
The following suggestions will minimize the
cost of operating your refrigeration appliance.
1. Do not install your appliance next to a hot appliance
(cooker, dishwasher, etc.), heating air duct, or other
heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance be-
neath door are not obstructed and kept clean to allow
ventilation for the refrigeration system to expel heat.
19

ENERGY SAVING TIPS
4. Plug your appliance into a dedicated power circuit. (Not
shared with other appliances).
5. When initially loading your new product, or whenever
large quantities of warm contents are placed within
refrigerated storage compartment, minimize door
openings for the next 12 hours to allow contents to pull
down to compartment set temperature.
6. Maintaining a relatively full storage compartment will
require less appliance run time than an empty compart-
ment.
7. Ensure door closing is not obstructed by contents
stored in your appliance.
8. Allow hot items to reach room temperature before plac-
ing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature
that meets your personal preference and provides the
proper storage for your stored contents.
11. When on vacation or away from home for extended pe-
riods, set the appliance to warmest acceptable tem-
perature for the stored contents.
12. Set the control to the “o󰀨” position if cleaning the
appliance requires the door to be open for an extended
period of time.
13. For wine storage products:
When serving temperatures are not required,
return the compartment(s) set temperature to the
ideal red and white wine long term storage tem-
perature of 13°C / 55°F.
The following suggestions will minimize the
cost of operating your refrigeration appliance.
1. Do not install your appliance next to a hot appliance
(cooker, dishwasher, etc.), heating air duct, or other
heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance be-
neath door are not obstructed and kept clean to allow
ventilation for the refrigeration system to expel heat.
20
