SP88W8782-MA0 2.4 GHz v2.0
(HP SDGOB-1292, 1150-7962)
WLAN Module
IEEE 802.11n/g/b
User Guide

Regulatory Use Only
Document Conventions
Note: Provides related information or information of special importance.
Caution: Indicates potential damage to hardware or software, or loss of data.
Warning: Indicates a risk of personal injury.
Document Status
Doc Status: 1.00 Technical Publication: 0.xx
For more information, visit our website at: www.marvell.com
Disclaimer
No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose,
without the express written permission of Marvell. Marvell retains the right to make changes to this document at any time, without notice. Marvell makes no warranty of any
kind, expressed or implied, with regard to any information contained in this document, including, but not limited to, the implied warranties of merchantability or fitness for any
particular purpose. Further, Marvell does not warrant the accuracy or completeness of the information, text, graphics, or other items contained within this document.
Marvell products are not designed for use in life-support equipment or applications that would cause a life-threatening situation if any such products failed. Do not use
Marvell products in these types of equipment or applications.
With respect to the products described herein, the user or recipient, in the absence of appropriate U.S. government authorization, agrees:
1) Not to re-export or release any such information consisting of technology, software or source code controlled for national security reasons by the U.S. Export Control
Regulations ("EAR"), to a national of EAR Country Groups D:1 or E:2;
2) Not to export the direct product of such technology or such software, to EAR Country Groups D:1 or E:2, if such technology or software and direct products thereof are
controlled for national security reasons by the EAR; and,
3) In the case of technology controlled for national security reasons under the EAR where the direct product of the technology is a complete plant or component of a plant,
not to export to EAR Country Groups D:1 or E:2 the direct product of the plant or major component thereof, if such direct product is controlled for national security reasons
by the EAR, or is subject to controls under the U.S. Munitions List ("USML").
At all times hereunder, the recipient of any such information agrees that they shall be deemed to have manually signed this document in connection withtheir receipt of any
such information.
Copyright © 1999–2012. Marvell International Ltd. All rights reserved. M Logo, Marvell, Moving Forward Faster, Alaska, Link Street, Prestera, Virtual Cable Tester, Yukon,
Datacom Systems On Silicon, AnyVoltage, DSP Switcher, Feroceon, ZX, ZXSTREAM, Armada, Qdeo & Design, QuietVideo, TopDog, TwinD, and Kinoma are registered
trademarks of Marvell or its affiliates. Avanta, Avastar, Carrierspan, DragonFly, HyperDuo, HyperScale, Kirkwood, LinkCrypt, Marvell Smart, The World As You See It,
Turbosan, and Vmeta are trademarks of Marvell or its affiliates.
Patent(s) Pending—Products identified in this document may be covered by one or more Marvell patents and/or patent applications.
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 2 Document Classification: Restricted April 26, 2012, 1.00

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292,
1150-7962)
WLAN Module
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 3
PRODUCT OVERVIEW
The Marvell® SP88W8782-MA0 2.4 GHz v2.0 (HP
SDGOB-1292, 1150-7962) is an embedded WLAN
802.11n/g/b radio module. It is designed to be fixed
inside a printer product through a multi-pin digital
interface connector and mounting brackets.
The module is intended to be factory installed into an
enclosed product. The module is a PCB consisting of the
Marvell 88W8782 1x1 SISO IEEE 802.11n/g/b WLAN
SoC, host connector interface, RFIC switches, passive
discrete components, and integrated passive printed
circuit antennas.
The embedded module operates under the control of the
host printer in order to provide wireless network
connectivity to other compatible devices using the IEEE
802.11n/g/b Wi-Fi standards. It is capable of operating in
the 2.412–2.472 GHz frequency band.
The module requires DC power and configuration from
the host printer in order to operate. Refer to the printer’s
user manual for more details.
This product is for indoor use only.
General Features
IEEE 802.11n/g/b compliant
Dual antenna supporting diversity
SDIO host interface
Chipset
Marvell 88W8782
Security
WEP 64- and 128-bit encryption with hardware TKIP
processing (WPA)
AES-CCMP hardware implementation as part of
802.11i security standard (WPA2)
Radio Characteristics
802.11n
•Up to 13 channels (HT20)
•Up to 9 channels (HT40)
•MCS0–MCS7 (OFDM)
802.11g
•Up to 13 channels
•64QAM/16QAM/QPSK/BPSK/CCK (OFDM, DSSS)
802.11b
•Up to 14 channels (Japan)
•64QAM/16QAM/QPSK/BPSK/CCK (OFDM, DSSS)
Software
Linux supported with drivers based on Fedora
Core 13

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 4 Document Classification: Restricted April 26, 2012, 1.00
Figure 1 shows an overall block diagram.
Figure 1: Block Diagram
88W8782
SDIO
Host Conn
SP88W8782-MA0 2.4 GHz
(HP SDGOB-1292, 1150-7962)
1.8V LDO
1.2V LDO
SDIO
3.3V
1.8V
MAC
Baseband
40 MHz
Crystal
Low
Pass
Filter
Aux
RF Test
Conn
Main
SPDT
ANT
Z-Match
WLAN 802.11n/g/b
Main Antenna
(2.4 GHz)
WLAN 802.11n/g/b
Auxiliary Antenna
(2.4 GHz)
ANT
Z-Match
Y1
CON1
U1
U3
CON4 C44, C45, C46
C35, C36, C37
2.4 GHz Radio
2.4 GHz
LNA 2.4 GHz
PA
2.4 GHz T/R SW
FLT1
2.4 GHz Tx/Rx

Regulatory Use Only
Table of Contents
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 5
Table of Contents
Product Overview.......................................................................................................................................3
Table of Contents .......................................................................................................................................5
List of Figures.............................................................................................................................................6
List of Tables ..............................................................................................................................................7
1 Theory of Operation ......................................................................................................................9
2 Signal Description.......................................................................................................................10
2.1 Pinout..............................................................................................................................................................10
2.2 Pin List ............................................................................................................................................................11
3 Electrical Specifications .............................................................................................................13
3.1 Absolute Maximum Ratings ............................................................................................................................13
3.2 Operating Conditions ......................................................................................................................................14
3.3 WLAN RF Specifications.................................................................................................................................15
3.3.1 Receive Mode Specification—2.4 GHz.............................................................................................15
3.3.2 Transmit Mode Specification—2.4 GHz............................................................................................16
3.4 WLAN Functions .............................................................................................................................................17
3.4.1 WLAN Data Rates ............................................................................................................................17
4 Mechanical Drawing....................................................................................................................19
A Regulatory Conformance............................................................................................................21
B Regulatory Statements ..............................................................................................................22
C Revision History ..........................................................................................................................33

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 6 Document Classification: Restricted April 26, 2012, 1.00
List of Figures
Product Overview.......................................................................................................................................3
Figure 1: Block Diagram ....................................................................................................................................4
1 Theory of Operation .......................................................................................................................... 9
2 Signal Description ........................................................................................................................... 10

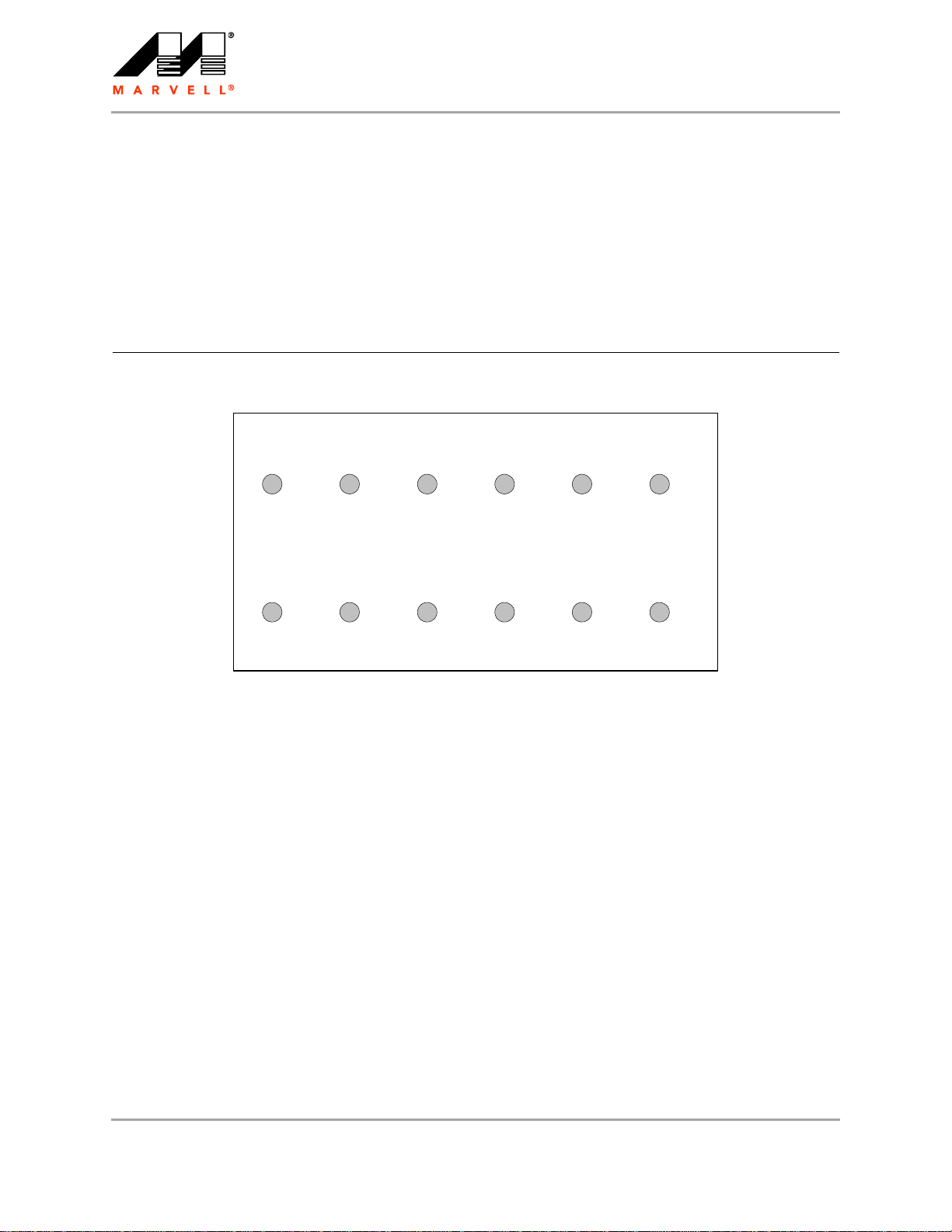

Figure 2: Pin Diagram......................................................................................................................................10
3 Electrical Specifications ................................................................................................................. 13
4 Mechanical Drawing ........................................................................................................................ 19
Figure 3: Mechanical Drawing—SP88W8782MA0 (2.4 GHz)..........................................................................19
A Regulatory Conformance.................................................................................................................21
B Regulatory Statements ....................................................................................................................22
C Revision History ...............................................................................................................................33

Regulatory Use Only
List of Tables
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 7
List of Tables
1 Theory of Operation ...........................................................................................................................9
2 Signal Description ............................................................................................................................10
Table 1: Pin List..............................................................................................................................................11
3 Electrical Specifications ..................................................................................................................13
Table 2: Absolute Maximum Ratings..............................................................................................................13
Table 3: Operating Conditions........................................................................................................................14
Table 4: 802.11n Rx Mode—Receive Sensitivity (2.4 GHz)...........................................................................15
Table 5: 802.11g/b Rx Mode—Receive Sensitivity (2.4 GHz)........................................................................15
Table 6: 802.11n Tx Mode—Transmit Power (2.4 GHz).................................................................................16
Table 7: 802.11g/b Tx Mode—Transmit Power (2.4 GHz)..............................................................................16
Table 8: WLAN Data Rates ............................................................................................................................17
Table 9: MCS Index........................................................................................................................................17
4 Mechanical Drawing .........................................................................................................................19
A Regulatory Conformance.................................................................................................................21
B Regulatory Statements ....................................................................................................................22
C Revision History ...............................................................................................................................33
Table 10: Revision History................................................................................................................................33

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 8 Document Classification: Restricted April 26, 2012, 1.00
THIS PAGE INTENTIONALLY LEFT BLANK

Regulatory Use Only
Theory of Operation
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 9
1Theory of Operation
The Marvell® SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962) IEEE 802.11n/g/b
WLAN client module is a low cost, low part count, complete, and ready-to-manufacture solution
using a standard SDIO interface. The design architecture includes the Marvell® 88W8782, a highly
integrated WLAN System-on-Chip (SoC), specifically designed to support high throughput data rates
for next generation WLAN products. The device is designed to support IEEE 802.11n/g/b payload
data rates.
The module provides the combined functions of the IEEE Standard 802.11/802.11b Direct Sequence
Spread Spectrum (DSSS), 802.11g and 802.11n Orthogonal Frequency Division Multiplexing
(OFDM), baseband modulation, Medium Access Controller (MAC) with support for multiple BSS and
multiple station modes, CPU, memory, host interface, direct-conversion WLAN RF radio, and
Bluetooth coexistence on a single integrated chip. Also included are an integrated 2.4 GHz power
amplifier and an integrated 2.4 GHz transmit/receive switch.
The transceiver architecture design is equipped with a fully integrated RF-to-baseband radio that
operates in the 2.4 GHz ISM radio band for 802.11 applications. For optimum performance, the gain
adjustments of the integrated LNAs and AGCs on the receive paths are seamlessly controlled by
baseband functions. The transmitters up-convert their quadrature baseband signals and deliver the
signals to a fully integrated internal power amplifier for radio band transmission. One external Single
Pole Double Throw (SPDT) switch provides antenna diversity. 2.4 GHz T/R switching is provided by
an integrated T/R switch.
The 40 MHz crystal provides the SoC with the reference frequency. Local oscillator frequencies are
generated by a fully integrated programmable frequency synthesizer with no external components.
The loop bandwidth is optimized for phase noise and dynamic performance and quadrature signals
are generated on-chip.
The chip architecture also includes integrated One-Time Programmable (OTP) memory for storing
calibration and wireless module configuration parameters such as the MAC address. An optional
external serial memory chip may also be used to store firmware, calibration data, and wireless
module configuration parameters.
For security, the 88W8782 supports IEEE 802.11i security standards through the implementation of
the Advanced Encryption Standard (AES)/Counter Mode CBC-MAC Protocol (CCMP) and Wired
Equivalent Privacy (WEP) with Temporal Key Integrity Protocol (TKIP) security mechanisms.
For video, voice, and multimedia applications, 802.11e Quality of Service (QoS) is supported.

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 10 Document Classification: Restricted April 26, 2012, 1.00
2Signal Description
2.1 Pinout
Figure 2: Pin Diagram
1197531
12108642
VIOSD_DAT[3] SD_DAT[1]GNDSD_CMDVDD33
PDn/RESETnSD_DAT[0] SD_DAT[2]GNDGNDSD_CLK
Straight Connector (Bottom Side View)

Regulatory Use Only
Signal Description
Pin List
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 11
2.2 Pin List
Table 1: Pin List
Pin# Pin Name
1 VDD33
2 SD_CLK
3 SD_CMD
4GND
5 SD_DAT[3]
6 SD_DAT[0]
7GND
8GND
9 SD_DAT[1]
10 SD_DAT[2]
11 VIO
12 PDn/RESETn

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 12 Document Classification: Restricted April 26, 2012, 1.00
THIS PAGE INTENTIONALLY LEFT BLANK

Regulatory Use Only
Electrical Specifications
Absolute Maximum Ratings
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 13
3Electrical Specifications
3.1 Absolute Maximum Ratings
Table 2: Absolute Maximum Ratings
Symbol Parameter Min Typ Max Units
VDD33 SDIO Power Supply -- 3.3 4.1 V
VIO SDIO Power Supply -- 1.8 2.2 V
-- 3.3 4.0
IDD33 VDD33 Max Current Rating -- -- 500 mA
TSTORAGE Storage Temperature -55 -- 125 °C
HSTORAGE Storage Humidity 90% -- 95% RH

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 14 Document Classification: Restricted April 26, 2012, 1.00
3.2 Operating Conditions
Table 3: Operating Conditions
Symbol Parameter Min Typ Max Units
VDD33 SDIO Power Supply 2.97 3.3 3.63 V
VIO SDIO Power Supply 1.62 1.8 1.98 V
2.97 3.3 3.63
TAAmbient Operating Temperature 5 -- 60 °C
fclock Reference Clock Frequency -- 40 -- MHz

Regulatory Use Only
Electrical Specifications
WLAN RF Specifications
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 15
3.3 WLAN RF Specifications
3.3.1 Receive Mode Specification—2.4 GHz
Table 4: 802.11n Rx Mode—Receive Sensitivity (2.4 GHz)
Parameter Condition Min Typ Max Units
MCS7 802.11n, 20 MHz, PER<10% -71 -- -- dBm
MCS7 802.11n, 40 MHz, PER<10% -68 -- --
Table 5: 802.11g/b Rx Mode—Receive Sensitivity (2.4 GHz)
Parameter Condition Min Typ Max Units
1 Mbps 802.11b, PER<8% -97 -- -- dBm
6 Mbps 802.11g, PER<10% -90 -- --
11 Mbps 802.11b, PER<8% -85 -- --
54 Mbps 802.11g, PER<10% -75 -- --

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 16 Document Classification: Restricted April 26, 2012, 1.00
3.3.2 Transmit Mode Specification—2.4 GHz
Table 6: 802.11n Tx Mode—Transmit Power (2.4 GHz)
Parameter Condition Min Typ Max Units
MCS0–2 802.11n, 20 MHz 13.5 15 16.5 dBm
MCS3–5 802.11n, 20 MHz 12.5 14 15.5
MCS6–7 802.11n, 20 MHz 11.5 13 14.5
MCS0–2 802.11n, 40 MHz 11.5 13 14.5
MCS3–5 802.11n, 40 MHz 10.5 12 13.5
MCS6–7 802.11n, 40 MHz 10.5 12 13.5
Table 7: 802.11g/b Tx Mode—Transmit Power (2.4 GHz)
Parameter Condition Min Typ Max Units
1–11 Mbps 802.11b 16.5 18 19.5 dBm
6–18 Mbps 802.11g 14.5 16 17.5
24–36 Mbps 802.11g 14.5 16 17.5
48–54 Mbps 802.11g 13.5 15 16.5

Regulatory Use Only
Electrical Specifications
WLAN Functions
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 17
3.4 WLAN Functions
3.4.1 WLAN Data Rates
Table 8: WLAN Data Rates
Mode Rates Units
802.11n MCS0–MCS71
1. MCS is an index for PHY rates in 802.11n mode which applies to both 2.4 GHz and 5 GHz
frequency bands.
Index
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
Table 9: MCS Index
MCS Index Modulation Code Rate Data Rates (Mbps)
HT20 HT40
800 ns GI 400 ns GI 800 ns GI 400 ns GI
0 BPSK 1/2 6.5 7.2 13.5 15
1 QPSK 1/2 13 14.4 27 30
2 3/4 19.5 21.7 40.5 45
3 16QAM 1/2 26 28.9 54 60
4 3/4 39 43.3 81 90
5 64QAM 2/3 52 57.8 108 120
6 3/4 58.5 65 121.3 135
7 5/6 65 72.2 135 150

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 18 Document Classification: Restricted April 26, 2012, 1.00
THIS PAGE INTENTIONALLY LEFT BLANK

Regulatory Use Only
Mechanical Drawing
Copyright © 2012 Marvell CONFIDENTIAL Doc. No. MV-SM00001-00 Rev. –
April 26, 2012, 1.00 Document Classification: Restricted Page 19
4Mechanical Drawing
Figure 3: Mechanical Drawing—SP88W8782MA0 (2.4 GHz)
Note
All dimensions in mm. See Section 5, Part Order Numbering/Package Marking, on page 21 for package
marking.

Regulatory Use Only
SP88W8782-MA0 2.4 GHz v2.0 (HP SDGOB-1292, 1150-7962)
User Guide
Doc. No. MV-SM00001-00 Rev. – CONFIDENTIAL Copyright © 2012 Marvell
Page 20 Document Classification: Restricted April 26, 2012, 1.00
THIS PAGE INTENTIONALLY LEFT BLANK
