Operating Instructions
Introduction Direction for use Trouble shooting
The unit is designed for ordinary private/ commercial vehicles with DC 12V batteries.
It cannot be used in vehicles with DC 24V batteries (buses, trucks, etc.).
Thank you for purchasing MaSSC Clean Photocatalyst Air Purifier (MC-CA1).
Before initial use, please read the operating instructions carefully to ensure proper use of the unit.
Please pay attention to《Safety Precautions》before using this product.
After reading, keep the operating instructions in a convenient location for future reference.
Photocatalyst Air Purifier
MC-CA1【Designed for car】

Features
!
Photocatalyst mixture MaSSC
The influenza virus reduced to 1/100 after 20 minutes
(Minute)1
1/2
2
21
211
21 31
【Experiment in suppressing
the action of airborne viruses】
High-performance photocatalyst mixture MaSSC
Compact and simple design
Remarkable disinfecting and deodorizing effect
MaSSC(Material with Strong Sterilization Capability) is the mixture of photocatalyst and antimicrobial
metal complexes, which is a highly-effective disinfecting materials. Fujico developed a unique
thermal spray technology which makes Photocatalyst mixture MaSSC a highly-effective and durable
performance. With not only the Ultraviolet light, but also fluorescent lamps and other indoor light
source, this unit demonstrates a remarkable disinfecting and deodorizing effect.
While MaSSC is effective in suppressing the action of airborne viruses, and in decomposing and eliminating airborne allergens
such as dust mite feces and dead mite body parts. However, it cannot provide a completely sterile environment or guarantee
the ability to prevent infection.
Actual disinfecting and deodorizing eectiveness will vary according to the room conditions (Capacity of the room, shape, air conditioning, ventilation
and product location, etc.) or the operation method.
MaSSC(MC-CA1)Experimental Results
The decomposition and deodorizing effect to
smoke, odors, volatile organic compound Elimination effect to influenza virus
(Hour)1
1
31
51
71
91
211
231
5923 27 31 35
ᅿCompare the effect of decomposition on
Volatile organic compounds (acetaldehyde)ᆀ
Residual rate (%)
Elimination rate (%)
MC-C
Ozone-style MC-C
Natural
attenuation
Ionic
Experimental Institution: In-house technology development centre
Experimental Device: Stainless steel airtight container (1m3)
Experimental gas: Acetaldehyde(Initial concentration, 2500 ppm)
Measuring device: FIGARO FTVR-01
Experimental Institution: BMSA (Biomedical Science Association)
Viruses: influenza virus
Cell: Madin-Darby canine kidney cell
Virus Spray: Omron Nebulizer
Experimental Device: MC-C air purifier with filter structure
Experimental Area: ZAMUSA glove box (Volume: 12L)
Equipment for virus collection: SARTORIUS Gelatine color filter
2

The unit does not work properly.
What is the frequency of Maintenance?
Why there is a clicking sound comes from the unit?
If I turn on/shutdown the engine,
will the air purifier start or stop accordingly?
FAQ(Frequently Asked Question)
dz
Q
A
A
A
A
Is the car adapter connected properly?
Please be connected definitely. (See P.8)
Have you checked if the fuse has blown?
Replace with a new fuse. (See P.11)
In order to maintain the performance of MaSSC, please clean the
filter for every 720 hours (If the unit is in operation for 8 hours per
day, the approximate time interval is 3 months). The dirtiness of
the filter depends on the environment usage and please clean the
filter immediately if the filter is clogging. After cleaning , the unit
can be functioned efficiently.
Clicking sound may be audible when the unit is in operation. The
time interval and the sound level depend on the environment you
are using. However, the performance of the air purifying feature will
not be affected.
Yes. If you turn on /shutdown the engine, the air purifier will start
or stop accordingly.
The indicator light is turned on in red and flickered.
The unit has failed. Please consult Shun Hing Technology Co., Ltd
(Hotline: [phone])
3

ŘŢųůŪůŨġTo reduce the risk of electric shock, fire or injury
DON'TDO'S
unplug
the cigar plug
Safety Precautions
!
■ Do not operate the unit (e.g. switching ON/OFF) while driving.
(Doing so could lead to distracted driving and accidents.)
■Do not install the unit in places where it could hamper visibility to the front or
driving operations, or in places where it could be dangerous to passengers.
(Doing so could lead to accidents or injury.)
■ Do not put in places exposed to direct sunlight.
(Doing so could cause warping or malfunction.)
■ This unit is designed exclusively for use in vehicles with 12V batteries.
Do not use in other vehicles. Do not use the unit in large trucks, buses or other vehicles
with 24V batteries. (Doing so could lead to fire or malfunction)
■ Do not damage the cord and do not modify nor repair by yourself. Also, do not use the cord
if it is damaged. (The damaged section could cause short-circuiting and the cord could melt,
or even leading to fire) If the cord is damaged, please contact our Repair Service Hotline
(Tel: [phone]).
■ Do not pull on the cord when unplugging the cigar plug or the unit connection plug.
ġġġġĩŅŰŪůŨġŴŰġŤŰŶŭťġťŢŮŢŨŦġŵũŦġŤŰųťĭġŭŦŢťŪůŨġŵŰġŧŪųŦġŰųġŦŭŦŤŵųŪŤġŴũŰŤŬįĪ
■ Do not plug in or unplug the cigar plug with wet hands.
ġġġġĩŅŰŪůŨġŴŰġŤŰŶŭťġŤŢŶŴŦġŦŭŦŤŵųŪŤġŴũŰŤŬĪ
■ When transporting, be careful not to drop the unit or subject it to shocks.
(Doing so could cause damage or malfunction) Continued usage could lead to fire or
electric shock.
■ Do not modify or repair the unit.ġĩŅŰŪůŨġŴŰġŤŰŶŭťġŭŦŢťġŵŰġŧŪųŦĭġŦŭŦŤŵųŪŤġŴũŰŤŬġŰųġŪůūŶųźįĪ
!
!
!
!
!
!
!
Do not spill beverages or drop cigarette ashes, metal objects, burnable objects,
etc., into the unit through the air outlet or air intake. (Doing so could lead to fire
or electric shock) Be particularly careful if there are small children in your family.
If water or foreign substances get inside the unit, switch off the device and unplug
the cigar plug immediately. (Otherwise, fire or electric shock may occur.)
■
Do not wipe the unit with oils, alcohol, petrol or thinner, or spray hairspray and
insecticides. (Unit stained with these substances could lead to cracking,
electric shock or fire)
■
Do not place the unit at the place where is exposed to oil smoke or moisture such
as kitchen counter or a humidifier. (Doing so could cause malfunction)
■
Do not place the unit near heating equipment such as outlet of hot-air type heater.
(Doing so could cause warping or malfunction.)
■
Use the car adapter designed exclusively for this unit, and insert the cigar plug
securely all the way in until it stops. (If the cigar plug is not inserted completely,
it could heat up, deforming the cigar lighter socket and even lead to fire)
■
Be sure to unplug the cigar plug from the cigar lighter socket when cleaning.
(Failure to do so could cause electric shock or injury)
■
Be sure to unplug the cigar plug from the cigar lighter socket when the unit
is not in use for a long period of time.(Failure to do so could lead to electric
shock or fire caused by short-circuiting)
■
■Failure to heed the operating instructions will result in the following situation:
Warning Caution
May result in severe
injury or death
May result in injury or
material damage
■The following pictograph intends to alert and explain you the safety precautions
To protect from injury or damage,
safety precautions should be followed, including:
Please follow instructions carefully
4

ŘŢųůŪůŨġTo reduce the risk of electric shock, fire or injury
DON'TDO'S
unplug
the cigar plug
Safety Precautions
!
■ Do not operate the unit (e.g. switching ON/OFF) while driving.
(Doing so could lead to distracted driving and accidents.)
■Do not install the unit in places where it could hamper visibility to the front or
driving operations, or in places where it could be dangerous to passengers.
(Doing so could lead to accidents or injury.)
■ Do not put in places exposed to direct sunlight.
(Doing so could cause warping or malfunction.)
■ This unit is designed exclusively for use in vehicles with 12V batteries.
Do not use in other vehicles. Do not use the unit in large trucks, buses or other vehicles
with 24V batteries. (Doing so could lead to fire or malfunction)
■ Do not damage the cord and do not modify nor repair by yourself. Also, do not use the cord
if it is damaged. (The damaged section could cause short-circuiting and the cord could melt,
or even leading to fire) If the cord is damaged, please contact our Repair Service Hotline
(Tel: [phone]).
■ Do not pull on the cord when unplugging the cigar plug or the unit connection plug.
ġġġġĩŅŰŪůŨġŴŰġŤŰŶŭťġťŢŮŢŨŦġŵũŦġŤŰųťĭġŭŦŢťŪůŨġŵŰġŧŪųŦġŰųġŦŭŦŤŵųŪŤġŴũŰŤŬįĪ
■ Do not plug in or unplug the cigar plug with wet hands.
ġġġġĩŅŰŪůŨġŴŰġŤŰŶŭťġŤŢŶŴŦġŦŭŦŤŵųŪŤġŴũŰŤŬĪ
■ When transporting, be careful not to drop the unit or subject it to shocks.
(Doing so could cause damage or malfunction) Continued usage could lead to fire or
electric shock.
■ Do not modify or repair the unit.ġĩŅŰŪůŨġŴŰġŤŰŶŭťġŭŦŢťġŵŰġŧŪųŦĭġŦŭŦŤŵųŪŤġŴũŰŤŬġŰųġŪůūŶųźįĪ
!
!
!
!
!
!
!
Do not spill beverages or drop cigarette ashes, metal objects, burnable objects,
etc., into the unit through the air outlet or air intake. (Doing so could lead to fire
or electric shock) Be particularly careful if there are small children in your family.
If water or foreign substances get inside the unit, switch off the device and unplug
the cigar plug immediately. (Otherwise, fire or electric shock may occur.)
■
Do not wipe the unit with oils, alcohol, petrol or thinner, or spray hairspray and
insecticides. (Unit stained with these substances could lead to cracking,
electric shock or fire)
■
Do not place the unit at the place where is exposed to oil smoke or moisture such
as kitchen counter or a humidifier. (Doing so could cause malfunction)
■
Do not place the unit near heating equipment such as outlet of hot-air type heater.
(Doing so could cause warping or malfunction.)
■
Use the car adapter designed exclusively for this unit, and insert the cigar plug
securely all the way in until it stops. (If the cigar plug is not inserted completely,
it could heat up, deforming the cigar lighter socket and even lead to fire)
■
Be sure to unplug the cigar plug from the cigar lighter socket when cleaning.
(Failure to do so could cause electric shock or injury)
■
Be sure to unplug the cigar plug from the cigar lighter socket when the unit
is not in use for a long period of time.(Failure to do so could lead to electric
shock or fire caused by short-circuiting)
■
■Failure to heed the operating instructions will result in the following situation:
Warning Caution
May result in severe
injury or death
May result in injury or
material damage
■The following pictograph intends to alert and explain you the safety precautions
To protect from injury or damage,
safety precautions should be followed, including:
Please follow instructions carefully
5

To reduce the risk of electric shock, fire or injury
Safety Precautions (Cont')
■
!
Caution
To reduce the risk of electric shock, fire or injury
■
!
Avoid long-term viewing of LED purple light source from the
unit when operating. The built-in LED light will not make you feel
uncomfortable for short-term viewing. However, avoid long-term
viewing.
Move the unit out of the vehicle when using room fumigating
type insecticides or deodorizers. The chemicals could get
inside the unit and later be ejected from the air outlet, possibly
harming your health.
■
!
■
!
■
!
Warning
Parts Name
Main unit • Control panel/ Display
Air Outlet
■
!
Main Unit
Unit Connection Plug
Connecting cord
(Approx. 1.8m)
Cigar(lighter) Plug
(with 12V/5A glass tube fuse)
Connect to the cigar lighter socket
in the vehicle
■
!
Car Adapter
Bottom view
Operation Button
Filter
DC power port
Green: under normal operation
Orange: Clean the filter
(The light turns on after operating for 720 hours)
Red: The unit has failed.
Normal Clean Filter
Filter reset
Press & hold
ON/OFF
ON OFF
button
Error
If the cigar lighter socket is integrated into the ashtray, be sure
that cigarettes are completely put out before using.
When leaving the vehicle, unplug the cigar plug and close the
ashtray's lid.(Failure to do so could lead to fire caused by the
smoldering cigarettes.)
Do not touch the metal parts of the car adapter's cigar plug
(cigar lighter socket)(The temperature of the metal parts of the
cigar plug will get relatively higher after the vehicle is stopped,
and could cause burns if touched.)
Do not put the unit in a unstable location
(Otherwise, the unit may fall, leading to damage or malfunction.)
Operation Light
6

To reduce the risk of electric shock, fire or injury
Safety Precautions (Cont')
■
!
Caution
To reduce the risk of electric shock, fire or injury
■
!
Avoid long-term viewing of LED purple light source from the
unit when operating. The built-in LED light will not make you feel
uncomfortable for short-term viewing. However, avoid long-term
viewing.
Move the unit out of the vehicle when using room fumigating
type insecticides or deodorizers. The chemicals could get
inside the unit and later be ejected from the air outlet, possibly
harming your health.
■
!
■
!
■
!
Warning
Parts Name
Main unit • Control panel/ Display
Air Outlet
■
!
Main Unit
Unit Connection Plug
Connecting cord
(Approx. 1.8m)
Cigar(lighter) Plug
(with 12V/5A glass tube fuse)
Connect to the cigar lighter socket
in the vehicle
■
!
Car Adapter
Bottom view
Operation Button
Filter
DC power port
Green: under normal operation
Orange: Clean the filter
(The light turns on after operating for 720 hours)
Red: The unit has failed.
Normal Clean Filter
Filter reset
Press & hold
ON/OFF
ON OFF
button
Error
If the cigar lighter socket is integrated into the ashtray, be sure
that cigarettes are completely put out before using.
When leaving the vehicle, unplug the cigar plug and close the
ashtray's lid.(Failure to do so could lead to fire caused by the
smoldering cigarettes.)
Do not touch the metal parts of the car adapter's cigar plug
(cigar lighter socket)(The temperature of the metal parts of the
cigar plug will get relatively higher after the vehicle is stopped,
and could cause burns if touched.)
Do not put the unit in a unstable location
(Otherwise, the unit may fall, leading to damage or malfunction.)
Operation Light
7

Getting started
Connect the car adapter to the back of the unit
Connecting the car adapter and unit
Insert the cigar plug into the cigar lighter sock
■Bottom view
Route the cord
along the groove
Separate the main unit from electronic key of vehicle by 30cm or more.
Otherwise, it may interfere with radiation noise from main unit and the
electronic key may not be recognized.
Warning
Cautions on wiring the car adapter
Cautions on installation
● Do not let the cord touch or get caught in the seat rails, shift lever or other
moving parts.
● Do not wire to impede the driving.
● Consider the moving range of the seats (forward/backward, swiveling or
reclining) when wiring.
● Do not bend the cord extremely or compress it.
● Be sure to place on a stable location.
● Do not obstruct the air inlet or outlet.
● Keep the unit away from the vehicle’s in-glass antenna. Failure to do so
could cause noise in the radio.
● Do not install the unit directly in front of the car air conditioner’s outlets,
the unit could get hot when the climate control is operating in the heating
mode.
● The unit may get scratched by the vibrations of the vehicle.
● Set the unit away from direct sunlight.
● For indoor use, noise maybe found in TV or radio, or a radio clock
cannot display the time properly. Therefore, move the unit away from the
TV, radio and the radio clock.
Use the dedicated car adapter for this unit (otherwise it may lead to
fire). Insert the cigar plug securely all the way in until it stops.
8

Getting started
Connect the car adapter to the back of the unit
Connecting the car adapter and unit
Insert the cigar plug into the cigar lighter sock
■Bottom view
Route the cord
along the groove
Separate the main unit from electronic key of vehicle by 30cm or more.
Otherwise, it may interfere with radiation noise from main unit and the
electronic key may not be recognized.
Warning
Cautions on wiring the car adapter
Cautions on installation
● Do not let the cord touch or get caught in the seat rails, shift lever or other
moving parts.
● Do not wire to impede the driving.
● Consider the moving range of the seats (forward/backward, swiveling or
reclining) when wiring.
● Do not bend the cord extremely or compress it.
● Be sure to place on a stable location.
● Do not obstruct the air inlet or outlet.
● Keep the unit away from the vehicle’s in-glass antenna. Failure to do so
could cause noise in the radio.
● Do not install the unit directly in front of the car air conditioner’s outlets,
the unit could get hot when the climate control is operating in the heating
mode.
● The unit may get scratched by the vibrations of the vehicle.
● Set the unit away from direct sunlight.
● For indoor use, noise maybe found in TV or radio, or a radio clock
cannot display the time properly. Therefore, move the unit away from the
TV, radio and the radio clock.
Use the dedicated car adapter for this unit (otherwise it may lead to
fire). Insert the cigar plug securely all the way in until it stops.
9

Normal
Clean Filter
Filter reset
Press & hold
ON/OFF
ON OFF
button
Error
Turn the tip of the cigar plug and remove it
Insert the new fuse, and then reassemble as before.
!
!
Remove dust from filter by using a vacuum cleaner.
● Do not press the vacuum cleaner strongly against the filter to avoid damage to the filter.
Ɏ
!

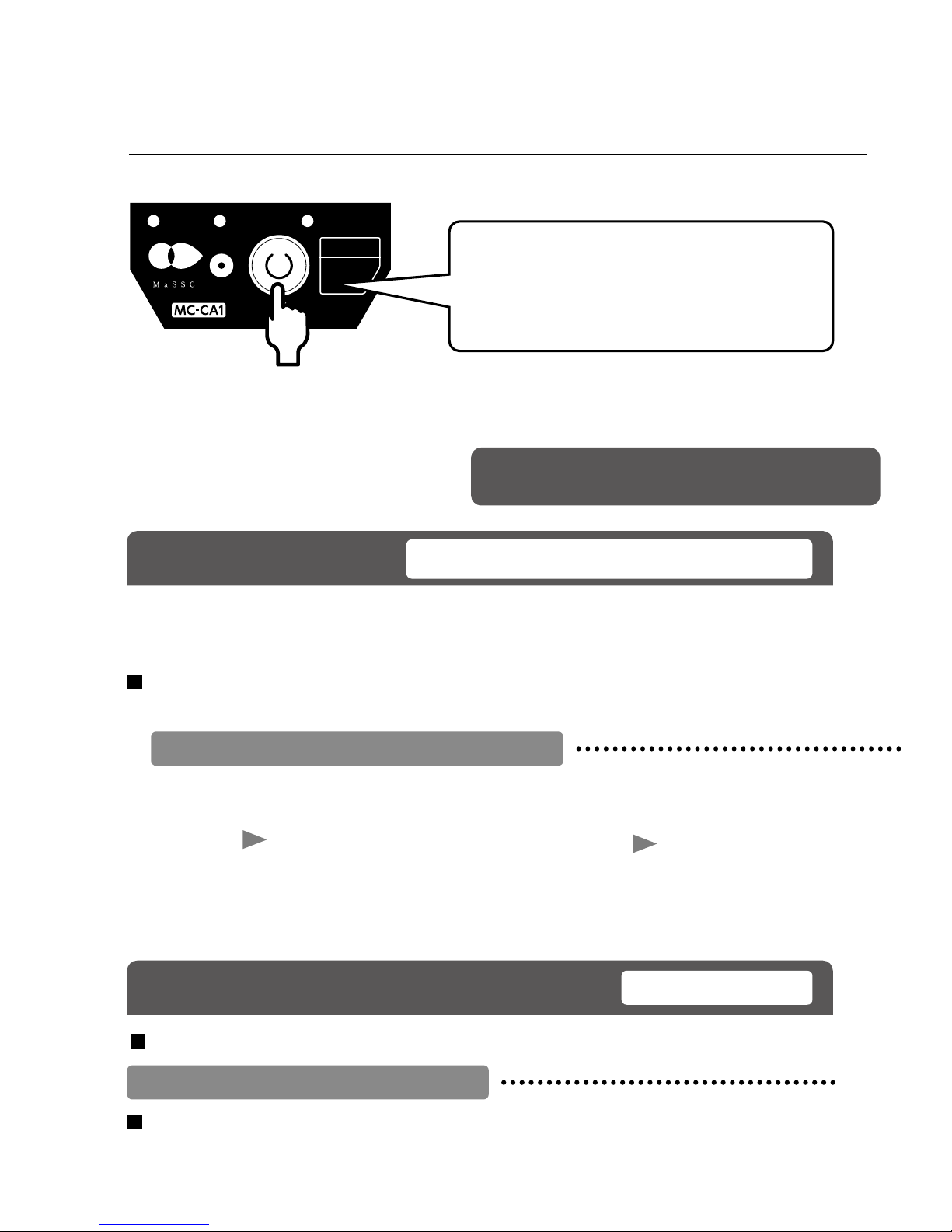

Easy operation by pressing
the operation button
Operating Method
Replacing the fuse
Specifications
Rated voltage
Applicable Volume
Power consumption
Air flow
Model
Operating noise level
Dimension(Main unit)
Length of the cord
Weight
MC-CA1
DC 12V
Approx 3.6m3 (Space corresponding to a cabin)
9.0W
0.05 m3/min
28dB
Approx. 1.8m
Approx. 220g (Not including car adapter)
56.5 mm (diameter of the bottom part)
Maximum diameter 66 mm x Height 130 mm
Cleaning and
maintenance
Filter (Air intake)
Frequency of maintenance:Approx. 720 hours (Approx. 3 months
if the unit is in operation for 8 hours per day)
Press the operation button.
The green light indicates that the unit
is under normal operation.
For stubborn dirt caused by moist dust or stain, etc..
Ɏ
Ɏ
!
dz
!
! Wipe the surface with a soft cloth
Main Unit
Clean once a month
If the dirt does not come off easily by soft cloth
! Wipe with a wrung soft cloth which is soaked in a dilute kitchen detergent.
Be sure to unplug the cigar plug from the
cigar lighter socket when cleaning.
(Failure to do so could cause electric shock or injury)
Warning
12V/5A glass tube fuse
In order to maintain the performance of MaSSC, please clean the filter frequently. The dust of
the filter depends on the environment usage and please clean the filter immediately if the
operation light turns on in orange or the filter is blocked by the dust.
*Some specifications may be changed due to product improvement.
Remove and rinse in water (Use a soft cleaning sponge if the dirt does not clean off easily.)
Be careful not to detach the filter from the filter frame
①Rinse ②Wipe with a dry cloth（Dry in the shade）③Install
●If using synthetic kitchen detergent, rinse well to remove all traces of the detergent.
●Dry the product in a shaded area so that water drop does not remain in gap between filter
frame and filter.
After the maintenance, press the operation button until the operation light turns green.
Accessories: Car adapter (12V/5A)
10

Normal
Clean Filter
Filter reset
Press & hold
ON/OFF
ON OFF
button
Error
Turn the tip of the cigar plug and remove it
Insert the new fuse, and then reassemble as before.
!
!
Remove dust from filter by using a vacuum cleaner.
● Do not press the vacuum cleaner strongly against the filter to avoid damage to the filter.
Ɏ
!
Easy operation by pressing
the operation button
Operating Method
Replacing the fuse
Specifications
Rated voltage
Applicable Volume
Power consumption
Air flow
Model
Operating noise level
Dimension(Main unit)
Length of the cord
Weight
MC-CA1
DC 12V
Approx 3.6m3 (Space corresponding to a cabin)
9.0W
0.05 m3/min
28dB
Approx. 1.8m
Approx. 220g (Not including car adapter)
56.5 mm (diameter of the bottom part)
Maximum diameter 66 mm x Height 130 mm
Cleaning and
maintenance
Filter (Air intake)
Frequency of maintenance:Approx. 720 hours (Approx. 3 months
if the unit is in operation for 8 hours per day)
Press the operation button.
The green light indicates that the unit
is under normal operation.
For stubborn dirt caused by moist dust or stain, etc..
Ɏ
Ɏ
!
dz
!
! Wipe the surface with a soft cloth
Main Unit
Clean once a month
If the dirt does not come off easily by soft cloth
! Wipe with a wrung soft cloth which is soaked in a dilute kitchen detergent.
Be sure to unplug the cigar plug from the
cigar lighter socket when cleaning.
(Failure to do so could cause electric shock or injury)
Warning
12V/5A glass tube fuse
In order to maintain the performance of MaSSC, please clean the filter frequently. The dust of
the filter depends on the environment usage and please clean the filter immediately if the
operation light turns on in orange or the filter is blocked by the dust.
*Some specifications may be changed due to product improvement.
Remove and rinse in water (Use a soft cleaning sponge if the dirt does not clean off easily.)
Be careful not to detach the filter from the filter frame
①Rinse ②Wipe with a dry cloth（Dry in the shade）③Install
●If using synthetic kitchen detergent, rinse well to remove all traces of the detergent.
●Dry the product in a shaded area so that water drop does not remain in gap between filter
frame and filter.
After the maintenance, press the operation button until the operation light turns green.
Accessories: Car adapter (12V/5A)
11

The unit does
not work properly.
SituationPlease confirm Reference
Page
Troubleshooting
Clicking sound
comes from the unit
The operation does
not stop, even if the
car engine turned off
The operation light
flickers in red and the
unit is stopped
http://www.fujico.oa.hk
● Is the car adapter connected properly?
→Please be connected definitely.
● Have you checked if the fuse has blown?
→Replace with a new fuse.
● Clicking sound may be audible when the
unit is in operation. The time interval and the
sound level depend on the environment you
are using. However, the performance of
MaSSC will not be affected.
● Check if the dust has blocked the filter
→Clean the filter.
● If the main unit is operated even if the key of the
vehicle is pulled out or the engine switch is turned
off, pull out the cigar plug for preventing battery
loss.
● The unit has failed. Pull out the cigar plug
and consult Shun Hing Technology Co., Ltd
(Hotline: [phone])
9
22
4
21
9
ᇄ
12
