master mechanic 134455 User manual

18V 5-1/2" CORDLESS
CIRCULAR SAW
134455
Owner’s Manual
Manufactured For and Distributed By
True Value® Company, Chicago, IL
©2011 True Value Company
Made in China
PRODUCT SPECIFICATIONS
CIRCULAR SAW
Battery:
18V Ni-Cd
Speed:
3,800 RPM (no load)
Blade:
5 1/2" (14.0 cm) , 3/8" (10 mm) arbor,
24 carbide teeth
Maximum cutting depth:
1 9/16" (39.7 mm) at 90°
1 1/8" (28.6 mm) at 45°
Bevel gauge:
0°–50°
Weight:
5 lb 5 oz (2.4 kg) without battery
BATTERY & CHARGER
Battery voltage:
18V
Charger:
1 Hour, Class 2
Charger input:
120V AC, 60Hz, 60W
Charger output:
18V DC, 2.2 AMP
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665 Monday –Friday from 9am to 5pm
Eastern Standard Time
Technical questions
Replacement parts
Parts missing from package
NOTE:The 18V Compact
Cordless 2 Piece Tool Kit
(Drill/Driver and Circular
Saw) #134474.
Included Accessories:
1-Hour Fast Charger
#134457
2-18V Ni-Cd Batteries
#134458
2-Double Ended
(Phillips/Slotted) Driver Bits
Custom Tote
5½” - 24 Tooth Carbide Tip
Blade
Blade Change Wrench
Adjustable Rip Fence

2
Product specifications ………….…………………………………………………….
1
Table of contents ……………………………………………………………………...
2
General safety warnings ……………………………………………………………..
3–4
Eye, ear & lung protection ……………………………………………………………
3–4
Electrical safety ……………………………………………………………………….
4
Power tool safety ……………………………………………………………………...
5–6
General safety rules …………………………………………………………………..
5
Work area ………………………………………………………………….................
5
Electrical safety ……………………………………………………………………….
5
Personal safety ………………………………………………………………………..
5–6
Power tool use and care ……………………………………………………………..
6
Battery tool use and care …………………………………………………………….
7
Service …………………………………………………………………………………
7
Specific safety rules …………………………………………………………………..
8–10
Battery & charger safety ……………………………………………………………..
11
Battery pack recycling ……………………………………………………………….
12

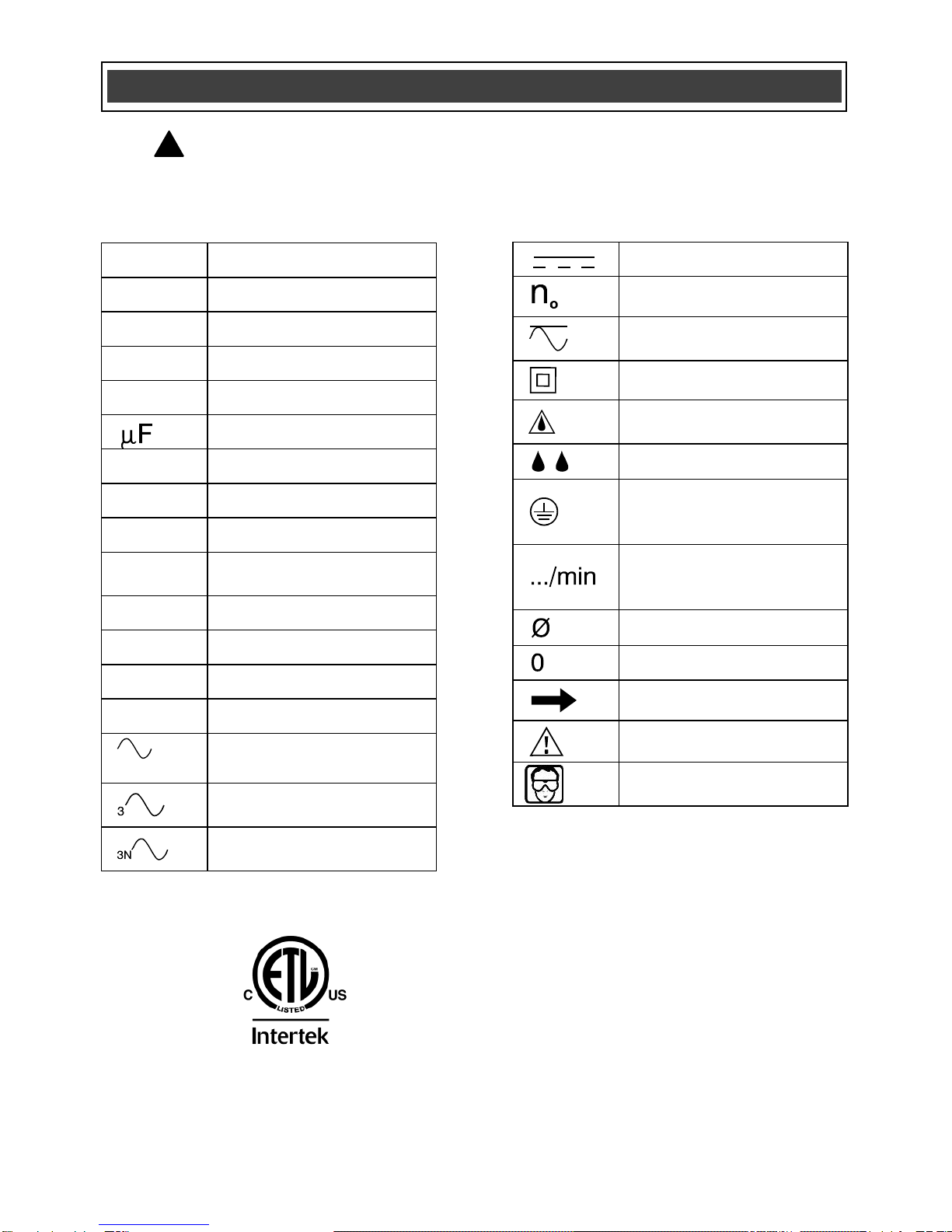

Symbols ………………………………………………………………………………..
13

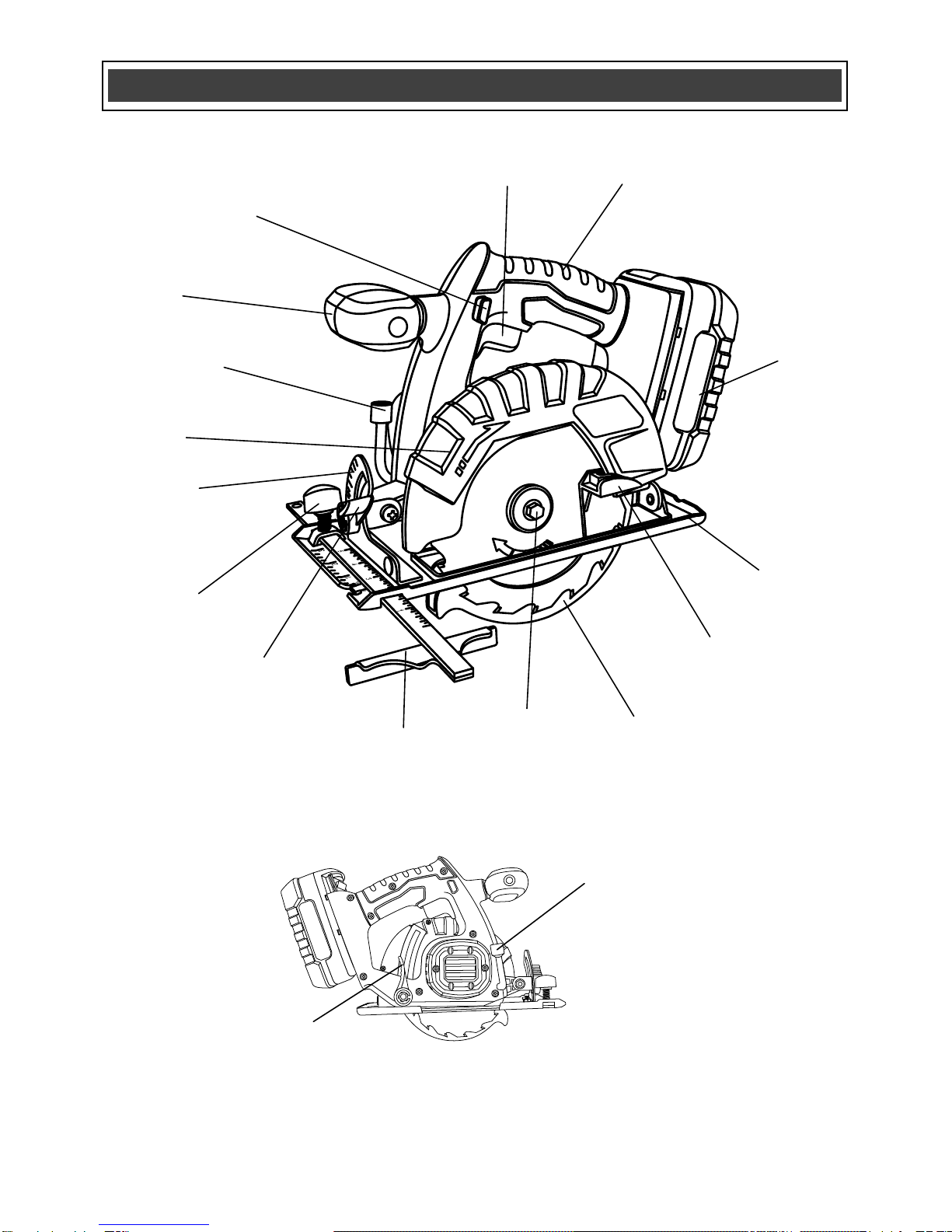

Know your circular saw ………………………………………………………………
14
Accessories ……………………………………………………………………………
15
Contents ……………………………………………………………………………….
15–16
Assembly and operation ……………………………………………………………..
17–25
Charging the battery pack ……………………………………………………………
17

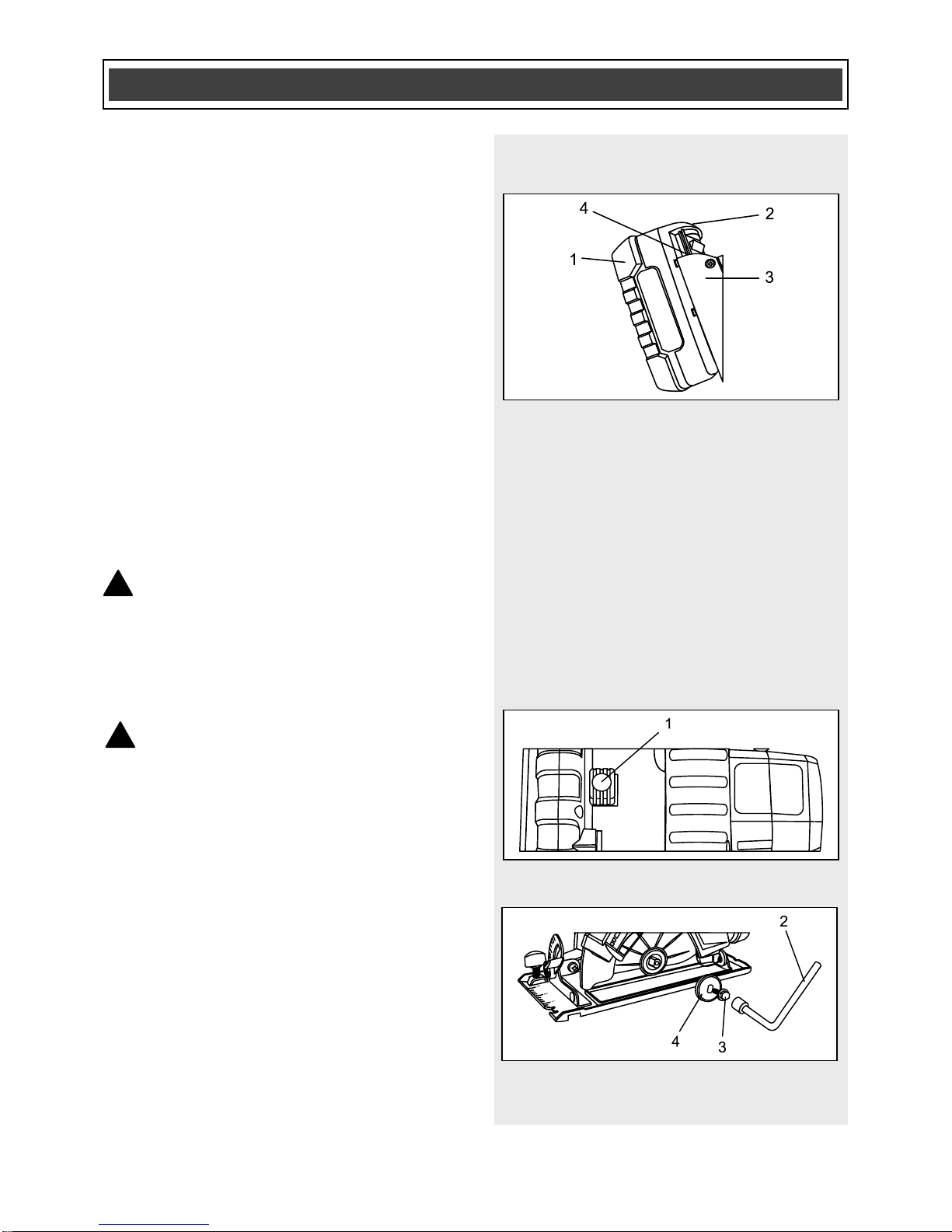

Installing the battery pack on the circular saw …………………………………….
18
Installing a blade ………………………………………………………………………
18–19
Setting the cutting depth ……………………………………………………………..
20
Bevel cutting …………………………………………………………………………..
20
Setting the 0° stop …………………………………………………………………….
21
Installing the edge guide ……………………………………………………………..
21
Lock-out switch ………………………………………………………………………..
22
Trigger switch ………………………………………………………………………….
22–23
Materials you can cut …………………………………………………………………
23
General cutting ………………………………………………………………………..
24–25
Rip cutting ……………………………………………………………………………..
25
Maintenance …………………………………………………………………………..
26
Exploded view …………………………………………………………………………
27
Parts list ………………………………………………………………………………..
28–29
Warranty ……………………………………………………………………….………
30
TABLE OF CONTENTS

3
EYE, EAR & LUNG PROTECTION
This instruction manual includes the following:
General Safety Rules
Specific Safety Rules and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories
!
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
WARNING: Non-compliant eyewear can cause serious injury if
broken during the operation of a power tool.
SAVE THESE INSTRUCTIONS FOR REFERENCE
WARNING: Use hearing protection, particularly during extended
periods of operation of the tool, or if the operation is noisy.
!
GENERAL SAFETY WARNINGS
WARNING: Before using this tool or any of its accessories, read this
manual and follow all Safety Rules and Operating Instructions. The important
precautions, safeguards and instructions appearing in this manual are not
meant to cover all possible situations. It must be understood that common
sense and caution are factors which cannot be built into the product.
!

4
ELECTRICAL SAFETY
OVERHEATING AND FIRE HAZARD
WARNING: To avoid electrical hazards, fire hazards or damage to the
tool, use proper circuit protection.
This tool is wired at the factory for 120V AC operation. It must be connected
to a 120V AC, 15 AMP circuit that is protected by a time-delayed fuse or
circuit breaker. To avoid shock or fire, replace power cord immediately if it
is worn, cut or damaged in any way.
GENERAL SAFETY WARNINGS
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
WARNING: Dust that is created by power sanding, sawing, grinding,
drilling, and other construction activities may contain chemicals that are
known to cause cancer, birth defects, or other genetic abnormalities. These
chemicals include:
Lead from lead-based paints
Crystalline silica from bricks, cement, and other masonry products
Arsenic and chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies, according to how
often this type of work is performed. In order to reduce exposure to these
chemicals, work in a well-ventilated area, and use approved safety
equipment, such as a dust mask that is specifically designed to filter out
microscopic particles.
!
WARNING: Ventilation openings in batteries and chargers must always be
open to allow cooling air to circulate freely. Air vents that are blocked,
restricted or covered may result in the battery or charger overheating.
Overheating may lead to damage to the tool or cause a fire, resulting in
possible serious injury.
!

5
WARNING: Read all safety warnings
and instructions. Failure to follow the
warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
Work area safety
Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence
of flammable liquids, gases or dust.
Power tools create sparks which may
ignite the dust or fumes.
Keep children and bystanders away
while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified
plugs and matching outlets will reduce risk
of electric shock.
Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
Do not expose power tools to rain or
wet conditions. Water entering a power
tool will increase the risk of electric shock.
Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of a ground fault circuit interrupter
(GFCI) reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the
influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger
on the switch or energizing power tools
that have the switch on invites accidents.
POWER TOOL SAFETY
!

6
PERSONAL SAFETY –cont’d
Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.
Power tool use and care
Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be repaired.
Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of starting
the power tool accidentally.
Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tool’s operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
Hold power tools by insulated gripping
surfaces when performing an operation
where the cutting tool may contact
hidden wiring or its own cord. Contact
with a “live“wire will make exposed metal
parts of the tool “live“and shock the
operator.
POWER TOOL SAFETY
SAVE THESE INSTRUCTIONS FOR REFERENCE

7
Battery tool use and care
Recharge only with the charger
specified by the manufacturer. A charger
that is suitable for one type of battery pack
may create a risk of fire when used with
another battery pack.
Use power tools only with specifically
designated battery packs. Use of any
other battery packs may create a risk of
injury and fire.
When battery pack is not in use, keep it
away from other metal objects, like
paper clips, coins, keys, nails, screws
or other small metal objects that can
make a connection from one terminal to
another. Shorting the battery terminals
together may cause burns or a fire.
Under abusive conditions, liquid may
be ejected from the battery; avoid
contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid
ejected from the battery may cause
irritation or burns.
Service
Have your power tool serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
POWER TOOL SAFETY
SAVE THESE INSTRUCTIONS FOR REFERENCE

8
WARNING: Know your circular
saw. Do not plug the charger into the
power source or install a battery in the
tool until you have read and understand
this Instruction Manual. Learn the tool’s
applications and limitations, as well as
the specific potential hazards related to
this tool. Following this rule will reduce the
risk of electric shock, fire, or serious injury.
Always wear eye protection.
Any power tool can throw
foreign objects into your eyes
and cause permanent eye
damage. ALWAYS wear safety goggles
(not glasses) that comply with ANSI safety
standard Z87.1. Everyday glasses have
only impact resistant lenses. They ARE
NOT safety glasses.
WARNING: Glasses or goggles
not in compliance with ANSI Z87.1
could cause serious injury when they
break.
Always keep hands out of the path of the
saw blade. Avoid awkward hand positions
where a sudden slip could cause your
hand to move into the path of the saw
blade.
DANGER: Keep hands away from
cutting area and the blade. Keep your
second hand on the tool. If both hands
are holding the saw, they cannot be cut by
the blade.
Do not reach underneath the workpiece.
The guard cannot protect you from the
blade below the workpiece.
Adjust the cutting depth according to
the thickness of the workpiece. Less
than a full tooth of the blade teeth should
be visible below the workpiece or
approximately 3/8" (10 mm).
Never hold piece being cut in your
hands or across your leg. Secure the
workpiece to a stable platform. It is
important to support the work properly to
minimize body exposure, blade binding, or
loss of control.
Hold power tool by insulated gripping
surfaces when performing an operation
where the cutting tool may contact
hidden wiring or its own cord. Contact
with a “live” wire will also make exposed
metal parts of the power tool “live” and
shock the operator.
When ripping always use a straight
edge guide. This improves the accuracy of
cut and reduces the chance of the blade
binding.
Always use blades with correct size and
shape (diamond versus round) of arbor
holes. Blades that do not match the
mounting hardware of the saw will run
eccentrically, causing loss of control.
Never use damaged or incorrect blade
washers or bolt. The blade washers and
bolt were specially designed for your saw,
for optimum performance and safety of
operation.
SPECIFIC SAFETY RULES
!
!
!

9
CAUSES AND OPERATOR
PREVENTION OF KICKBACK
Kickback is a sudden reaction to a
pinched, bound or misaligned saw blade,
causing an uncontrolled saw to lift up and
out of the workpiece toward the operator;
When the blade is pinched or bound tightly
by the kerf closing down, the blade stalls
and the motor reaction drives the unit
rapidly back toward the operator.
If the blade becomes twisted or misaligned
in the cut, the teeth at the back edge of the
blade can dig into the top surface of the
wood causing the blade to climb out of the
kerf and jump back toward the operator.
Kickback is the result of saw misuse
and/or incorrect operating procedures or
conditions and can be avoided by taking
proper precautions as given below:
Maintain a firm grip with both hands on
the saw and position your arms to
resist kickback forces. Position your
body to the left or right side of the
blade, but not in line with the blade.
Kickback could cause the saw to jump
backwards, but kickback forces can be
controlled by the operator, if proper
precautions are taken.
When the blade is binding, or when
interrupting a cut for any reason,
release the trigger and hold the saw
motionless in the material until the
blade comes to a complete stop.
Never attempt to remove the saw from
the work or pull the saw backward while
the blade is in motion or kickback may
occur. Investigate and take corrective
actions to eliminate the cause of blade
binding.
When restarting a saw in the workpiece,
center the saw blade in the kerf and
check that saw teeth are not engaged
into the material. If the saw blades are
binding, it may walk up or kickback from
the workpiece as the saw is restarted.
Support large panels to minimize the
risk of blade pinching and kickback.
Large panels tend to sag under their own
weight. Supports must be placed under the
panel on both sides, near the line of cut
and near the edge of the panel.
Do not use dull or damaged blades.
Unsharpened or improperly set blades
produce narrow kerf causing excessive
friction, blade binding and kickback.
ADDITIONAL SPECIFIC SAFETY RULES
Use extra caution when making a
“plunge cut” into existing walls or other
blind areas. The protruding blade may cut
objects that can cause kickback.
Check the lower guard for proper
closing before each use. Do not operate
the saw if the lower guard does not
move freely and close instantly. Never
clamp or tie the lower guard into the
open position. If the saw is accidentally
dropped, the lower guard may be
damaged. Raise the lower guard with the
retracting handle and make sure it moves
freely and does not touch the blade or any
other part in all depths of cuts.
SPECIFIC SAFETY RULES

10
ADDITIONAL SPECIFIC SAFETY RULES –
cont’d
Check the operation of the lower guard
spring. If the guard and the spring are
not operating properly, they must be
serviced before use. The lower guard
may operate sluggishly due to damaged
parts, gummy deposits, or a build-up of
debris.
The lower guard should be retracted
manually only for special cuts such as
“plunge cuts” and “compound cuts”.
Raise lower guard by retracting handle
and as soon as the blade enters the
material, the lower guard must be
released. For all other sawing, the lower
guard should operate automatically.
Always observe that the lower guard is
covering the blade before placing saw
down on the bench or on the floor. An
unprotected, coasting blade will cause the
saw to walk backwards, cutting whatever is
in its path. Be aware of the time it takes for
the blade to stop after the switch is
released.
Never operate the saw while it is being
carried to another location. The blade
guard may be open and potentially cause
serious injury.
If the switch fails to turn the saw ON or
OFF properly, stop using it immediately
and have the saw switch repaired.
Always allow the saw to reach full speed
before beginning the cut.
Never use the side of the blade for cutting.
When making horizontal cuts, make sure
the weight of the tool is not forcing the side
of the blade to do the cutting. This will
reduce the risk of kickback.
Make sure there are no nails or foreign
objects in the area of the workpiece to be
cut.
Never lay workpiece on hard surfaces
like concrete, stone, etc. The protruding
blade may cause tool to jump.
DANGER: To avoid injury from
accidental starting, always remove the
plug from the power source before
making any adjustments and before
installing or removing a saw blade.
When replacing the blade, make sure
the replacement blade is 5½"
(14 cm) in diameter and is rated for at
least 3,800 RPM. Installing an incorrect
blade will result in possible injury and poor
cutting action.
After changing a blade or making
adjustments, make sure the blade
clamp screw is securely tightened.
Loose blades and adjustment devices will
be violently thrown.
Never touch the blade during or
immediately after use. After use the
blade is too hot to be safely touched with
bare hands.
DANGER: Never use the laser in the
presence of small children. Small children
may stare directly into the laser light beam
and cause serious eye injury.
DANGER: The laser light beam that
is projected from the front of the laser level
can be dangerous to eyesight. Never allow
anyone to stare directly into the light.
Staring directly into the light beam may
result in serious eye damage.
DANGER: Always remove the
battery when changing the blade.
SPECIFIC SAFETY RULES
!
!
!
!

11
WARNING: Only use the
diagnostic charger supplied with this kit
to charge the 18V Ni-Cd battery.
Charging any other batteries may
damage the charger and possibly cause
serious injury.
Do not store or carry the battery in a
manner in which metal objects could
contact the exposed metal end. Do not
place the battery in aprons, pockets,
drawers, etc. with loose nails, screws, keys
etc. The battery could short circuit causing
a fire, personal injury or damage to the
battery.
Never attempt to open the battery for any
reason. If the housing of the battery breaks
or cracks, immediately discontinue use
and do not recharge.
Do not charge the battery if it is wet or
shows any evidence of corrosion.
A small leakage from the battery may
occur under extreme usage, charging or
temperature conditions. This does not
indicate a failure. However, if the outer
seal is broken and this leakage gets on
your skin, follow these steps:
1. Wash immediately with soap and
water.
2. Neutralize with a mild acid such as
lemon juice or vinegar.
3. If liquid gets into your eyes, flush
immediately with clean water for a
minimum of 10 minutes and seek
medical attention.
NOTE: The battery liquid is slightly acidic.
Do not incinerate the battery. It can
explode in a fire.
Do not use an extension cord. Plug the
charger cord directly into an electrical
outlet.
Use the charger only in a standard
120V, 60Hz electrical outlet.
Do not use the charger in wet or damp
conditions. It is intended for indoor use
only. Do not use the charger near sinks or
tubs. Do not immerse the charger in water.
Do not allow the cord to hang over the
edge of a table or counter or touch hot
surfaces. The charger should be placed
away from sinks and hot surfaces.
Do not use the charger to charge any
batteries other than the circular saw
batteries. Other batteries may explode.
Do not operate charger if the cord or plug
is damaged. Replace the damaged cord
and plug immediately.
Do not operate the charger if it has
received a sharp blow, been dropped or
otherwise damaged in any way. Have a
qualified technician examine the charger
and repair it if necessary. Do not
disassemble the charger.
Do NOT charge the batteries when the
work area or the battery temperature is at
or below 0°C (32°F) or above
45°C (113°F).
Unplug the charger when not in use and
before cleaning or maintenance.
BATTERY & CHARGER SAFETY
!

12
BATTERY PACK RECYCLING
To preserve our natural resources, please
recycle or dispose of batteries properly.
The batteries charged by this charger may
contain chemicals and metals that are
harmful to the environment. Never dispose
of re-chargeable batteries in your normal
household garbage or in landfill sites as
they will add to the pollution of the
environment.
Please call 1-800-822-8837 for the location
of your nearest RBRC battery recycling
location.
BATTERY & CHARGER SAFETY

13
This symbol designates that this tool is
listed with U.S. requirements by
ETL Testing Laboratories, Inc.
Conforms to UL Std. 60745-1 and
60745-2-5.
3042597
JD534318
LISTED
V
Volts
A
Amperes
Hz
Hertz
W
Watts
kW
Kilowatts
Microfarads
L
Liters
kg
Kilograms
H
Hours
N/cm2
Newtons per square
centimeter
Pa
Pascals
OPM
Oscillations per minute
Min
Minutes
S
Seconds
or a.c.
Alternating current
Three-phase alternating
current
Three-phase alternating
current with neutral
Direct current
No load speed
Alternating or direct
current
Class II construction
Splash-proof
construction
Watertight construction
Protective grounding at
grounding terminal,
Class I tools
Revolutions or
reciprocations per
minute
Diameter
Off position
Arrow
Warning symbol
Wear your safety
glasses
SYMBOLS
WARNING: Some of the following symbols may appear on the circular
saw. Study these symbols and learn their meaning. Proper interpretation of
these symbols will allow for more efficient and safer operation of this tool.
!

14
KNOW YOUR CIRCULAR SAW
Upper blade
guard
Bevel
gauge
Bevel gauge
adjustment
knob
Rip guide
adjustment
knob
Trigger
switch
Lock-out
switch
Main
handle
Front
handle
Edge guide
Battery
Blade guard
lever
Sole plate
Lower blade
guard
Blade
wrench
Blade
screw
Cutting depth
lever
Blade wrench

15
AVAILABLE ACCESSORIES
WARNING: Use only circular saw
blades that are recommended for this
circular saw. Follow the instructions
that accompany the accessories. The
use of improper accessories may result
in injury to the operator or damage to
the circular saw.
Before using any accessory, carefully read
the instructions or the owner’s manual for
the accessory.
Circular saw blades
Replacement 18V battery 134458
Replacement 18V charger 134457
WARNING: If any part is missing or
damaged, do not install the battery in the
circular saw or plug the charger into the
power source until the missing or damaged
part is replaced.
CONTENTS
Carefully unpack the circular saw.
Compare the contents against the
“CIRCULAR SAW COMPONENTS” chart
below.
NOTE: See illustration of the circular saw
on Page 16.
WARNING: To avoid fire or toxic
reaction, never use gasoline, naphtha,
acetone, lacquer thinner or similar
highly volatile solvents to clean the
tool.
!
CIRCULAR SAW COMPONENTS
KEY
DESCRIPTION
QTY
A
Saw assembly
1
B
Battery
See
front
cover
C
Blade 5 1/2“ (14 cm)
24-tooth blade
1
D
Blade wrench
3/8" (10 mm)
1
E
Edge guide
1
F
1-Hour Fast Charger
See
front
cover
Owner’s Manual
1
ACCESSORIES & CONTENTS
!
!

16
CONTENTS

17
CHARGING THE BATTERY PACK
1. Place the battery charger (1) in a dry
location near a 110–120V 60Hz
electrical outlet (Fig. 1)
2. Turn the battery (2) upside down and
slide it onto the charger.
NOTE: Make sure the grooves (3) in the
sides of the battery slide over the matching
tabs on the charger (4) until the battery
latch “clicks“ into place.
3. Plug the battery charger into the 110–
120V 60Hz wall receptacle.
NOTES:
a) When the charger is plugged into the
wall receptacle and NO battery is on the
charger, the green indicator light (5) will
turn ON indicating the charger is “live”.
b) When a discharged battery is installed
on the charger, the green indicator light will
turn OFF and the red indicator light (6) will
FLASH. The flashing red indicator light
indicates the battery is being charged.
c) If the red indicator light does not come
ON, check to make sure battery pack is
slid fully onto the charger and the electrical
outlet is working properly.
d) See Fig. 2 at right for other indicator
light functions.
e) A new battery pack or one that is
completely run down should be charged
for 2 hours. After normal use, a battery
pack should be fully charged in about one
hour.
f) It is normal for the battery charger to
hum and be warm to the touch during
operation.
g) If the battery pack does not charge
properly, check to make sure the electrical
outlet is “live”.
h) Do NOT charge batteries when the work
area or the battery temperature is at or
below 0°C (32°F) or above 45°C (113°F).
ASSEMBLY AND OPERATING
Fig. 1
Green
Light
Red
Light
Battery
Inserted
Into
Charger
Charging
Status
ON
OFF
NO
Charger
connected
to power
supply
OFF
Flashing
YES
Battery
being
charged
ON
OFF
YES
Battery fully
charged
OFF
ON
YES
Battery
defective or
bad contact
ON
ON
YES
Battery too
hot or too
cold to be
charged
Fig. 2

18
INSTALLING A BATTERY ON THE
CIRCULAR SAW
1. Remove the discharged battery (1)
from the circular saw by pressing on
the battery release button (2) and
sliding the battery backward until it is
removed from the circular saw handle
(3) (Fig. 3).
2. Slide the fully charged battery onto the
matching keys (4) in the circular saw
handle where the discharged battery
has been removed.
NOTE: Make sure the slots in the battery
are fully engaged with the mounting keys
in the circular saw handle. The battery
release button will “click” into place when
the battery is fully installed.
WARNING: Do not immerse the
battery pack in water. Sudden cooling
could cause a hot battery to explode or
leak.
INSTALLING A BLADE
WARNING: Always remove the
battery from the tool before installing or
removing a blade or adjusting the saw
in any way.
1. Place your right thumb on the shaft-
locking button (1) (Fig. 4).
2. Place the socket end of the blade
wrench (2) on the blade screw (3)
(Fig. 5)
NOTE: The blade wrench is stored on the
front of the motor housing just above the
sole plate.
ASSEMBLY AND OPERATING
!
!
Fig. 3
Fig. 4
Fig. 5

19
INSTALLING A BLADE –cont’d
2. While pressing the shaft-locking
button, rotate the blade wrench
clockwise until the blade-locking
button engages the blade shaft.
Continue turning the blade wrench
clockwise to remove the blade screw
and the large washer (4).
NOTE: The blade screw has a left-handed
thread and must be turned clockwise to
be removed.
3. To place blade onto the motor shaft,
rotate the blade guard lever (5)
forward and slide the blade (6)
through the slot (7) in the sole plate
until it fits over the motor shaft (8)
(Fig. 6).
NOTE: Make sure the blade teeth are
pointing forward at the bottom of the blade.
4. Place the large flat washer (4) onto
the motor shaft.
NOTE: Make sure the flat sections of the
large washer fit over the matching flat
sections on the motor shaft.
5. Insert the blade screw (3) through the
large flat washer and thread it
counter-clockwise into the end of the
motor shaft.
6. Lock motor shaft using the shaft-
locking button and firmly tighten the
blade screw using the blade wrench
(2).
NOTE: Make sure the screw is NOT cross-
threaded and that the blade does not
wobble when turned by hand.
ASSEMBLY AND OPERATING
Fig. 5
Fig. 6

20
SETTING THE CUTTING DEPTH
The cutting depth of the blade should be
set to suit the thickness of the material
being cut. The cutting depth should be
approximately 1/8" (3 mm) greater than the
thickness of the material being cut.
1. Push the depth adjustment lever (1)
downward in a counter clockwise
direction (2) (Fig. 7).
2. Pull the sole plate (3) downward until
the correct amount of the blade is
protruding below the sole plate.
3. Lift upward on the depth adjustment
lever in a clockwise direction to lock
the sole plate in position.
BEVEL CUTTING
The sole plate can be tilted to provide
bevel cuts from 0°–50°.
Adjusting the sole plate angle
1. Lift upward on the bevel gauge
adjustment lever (1) and rotate it in a
counter-clockwise direction (Fig. 8).
2. Rotate the sole plate (2) to the desired
angle as shown on the bevel gauge
(3).
3. Tighten the bevel gauge adjustment
lever by rotating it in a clockwise
direction to lock the sole plate in
position.
ASSEMBLY AND OPERATING
Fig. 7
Fig. 8
