MasterChef EH-380-16 User manual

Static Horizontal Coolers
Instruction Manual for handling, installation, use and maintenance

It is a source of pride for Masterchef to know that you have
given us your trust by purchasing this product, the result of
our effort in design, development and research.
To achieve normal operation of your equipment, never disconnect or
turn it off as it may not comply with the specifications provided in this
manual.
Please read these
instructions carefully before
using your equipment and
save them for future
reference.
When you receive your
equipment, check that it does not
have signs of abuse. In case of
damage, contact your dealer
immediately.

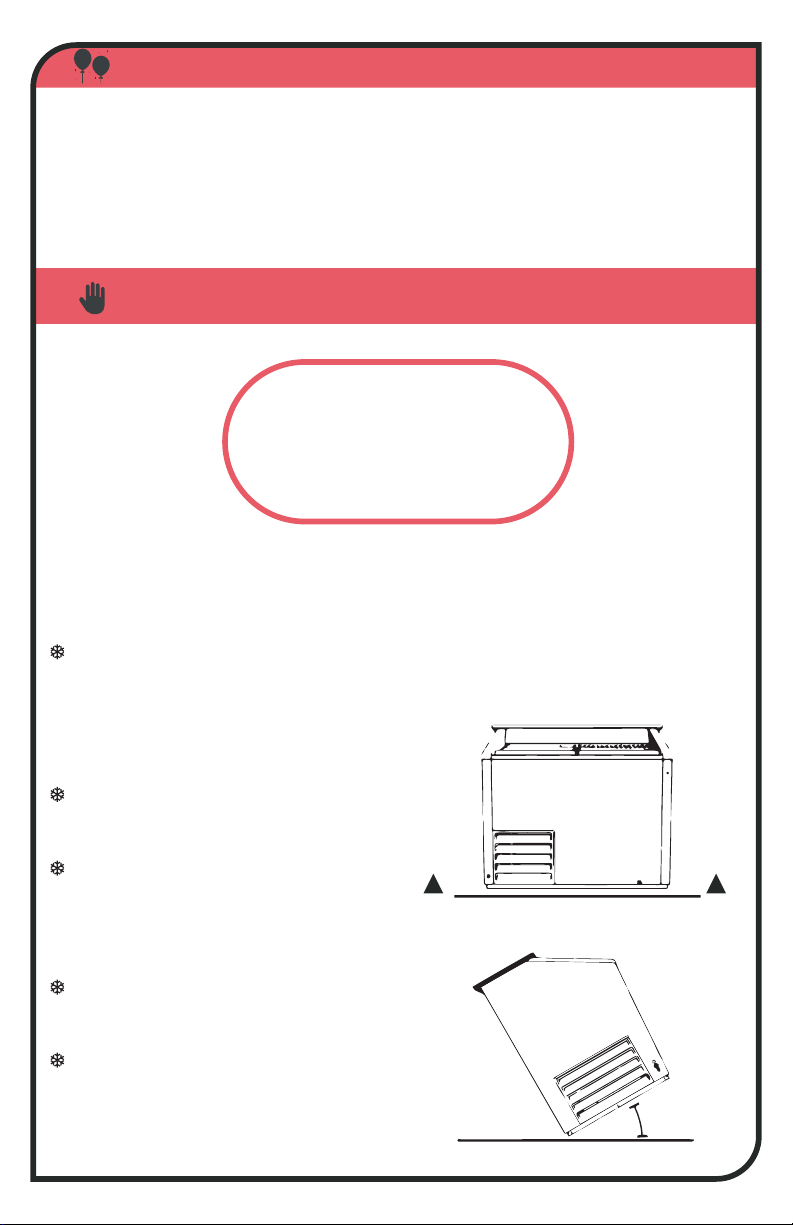

To transport your equipment, do
it in an upright position.
When moving from place to
place, hold firmly to the lower
base. Do not hit it or drop it
roughly.
Do not lay it down or tilt the
equipment more than 30°.
Immediately after unpacking the
equipment, remove the packaging
material from the reach of
children.





CONGRATULATIONS
IMPORTANT
30°
30°

ÍNDICE
ÍNDICE
Technical Information 3
Location 5
Connection 6
Start up 7
On and Off 9
Maintenance and General cleaning 10
Care for stainless steel 11
FAQ 12
Recommendations, Tips y 13
Warranty
Guide for the use of the Instruction Manual
The symbols to follow will be found in the text to guide you
through the instructions.
Technical information
Security instructions
Step by step instructions

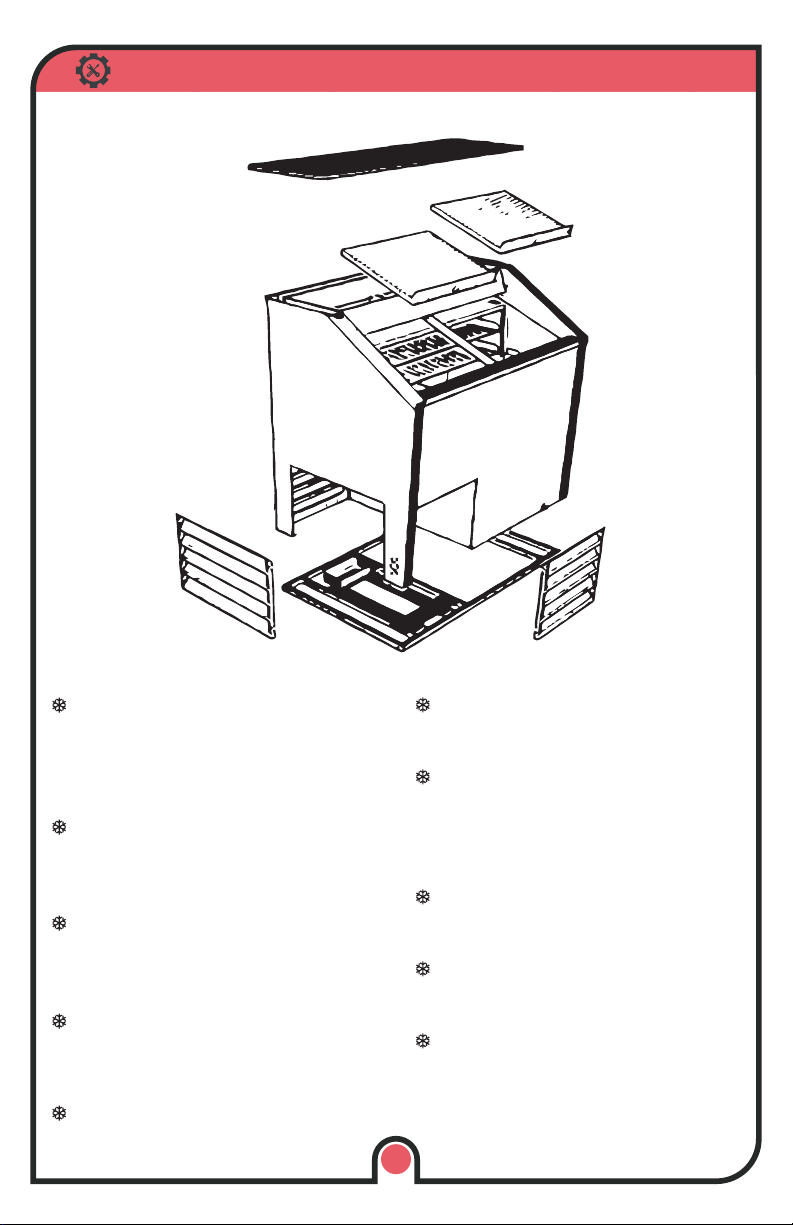

Interior and exterior structure
built in prepainted sheet
(optional material: stainless
steel sheet)
Thermal insulation in
high-density rigid polyurethane
foam.
Cooling system with static
evaporator, with temperature
from -12°C to 5°C
ice trays for the manufacture
of ice in trays.
Digital control
Top cover made of stainless
steel.
Sliding doors made of
stainless steel with gasket for
hermetic closure.
Provided with bottle opener
for greater comfort.
Equipment support made of
metal profiles.
Casters that facilitate the
mobility of the equipment, with
nylon casters.










TECHNICAL INFORMATION
3

Models
Outside dimensions
(mm)
Height Width Length
(lts) (ft3)
Compresor
HP
Temp.
(°C)
Capacity Total
320566770
1380
1080
2-12 a 5
1645377011101080
Doors
1 / 4
1 / 4
EH-700-27 2
2776577016601080 1 / 3
Height
Width
length
EH-1000-37 3
37104877024101080 1 / 2
EH-380-16
EH-500-20
EH-P720 257027001820900 1 / 3
EH-P950 4
339317002490900 1 / 2
3
-12 a 5
-12 a 5-12 a 5
-12 a 5
-12 a 5
-12 a 5
4
TECHNICAL INFORMATION

10 cm
LOCATION
Optimum operation of your equipment depends on its
placement at a perfect level, this facilitates drainage and
ensures proper operation of the condensing unit.
Install your equipment in an airy space where the sun's rays
do not directly affect it.
Make sure that the equipment is far from heat sources
(stoves, ovens, ...)
Do not install your equipment outdoors.
The ventilation grids of the equipment must be at least 10
cm. (4 inches) away from any obstacles to ensure good
airflow and lower energy consumption.
5






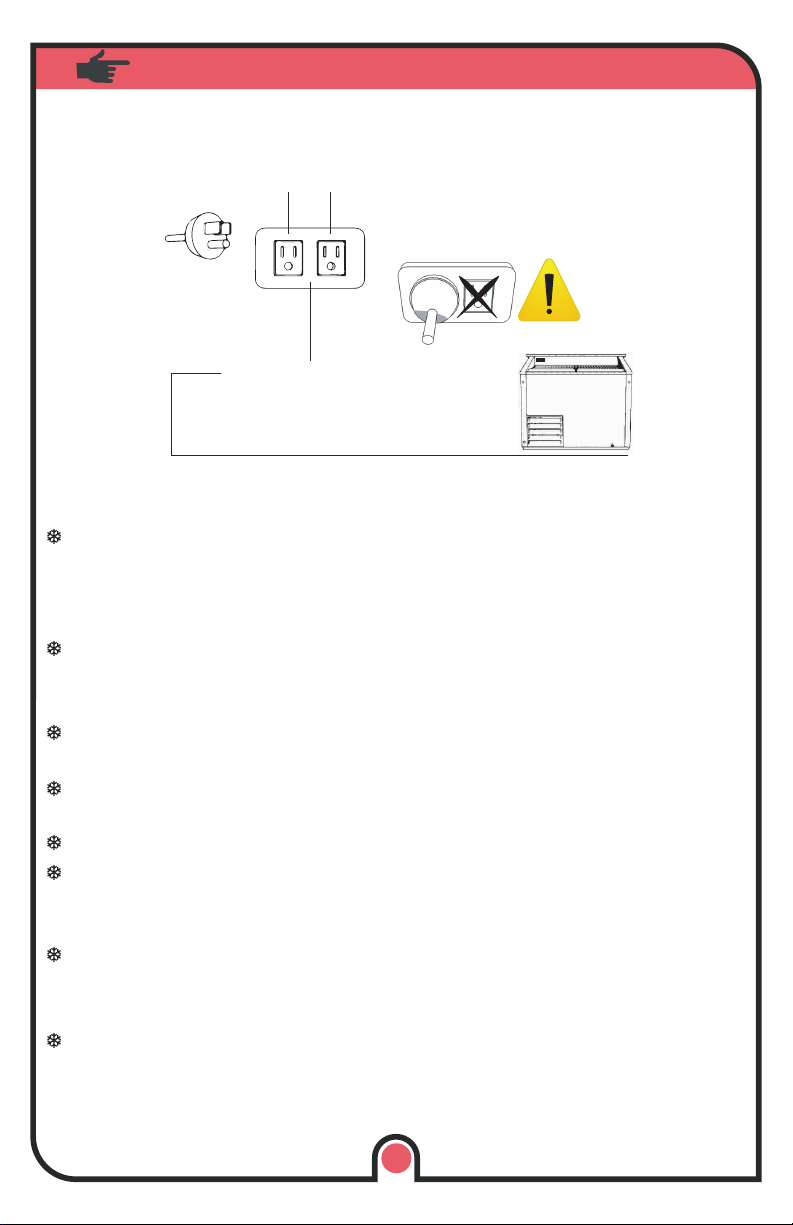

DO NOT USE
Breaker
110V ó 220V (As applicable)
Standalone Installation
Ground Pole Connection
The power cord has a grounded polarized plug that must be
plugged into a separate 10V or 240V (as applicable) grounded
outlet for the safety of the user and the equipment .
Do not connect the equipment to a wall outlet to which other
devices are connected, and do not plug other devices into the outlet
to which the equipment is connected.
Do not use extension cords. If you are forced to use it, it should
be as short as possible, with #12 wire and ground.
For the EH-380-16, EH-500-20 and EH-700-27 equipment use a
15 Amp fuse.
For EH-1000-37 equipment, use a 30 Amp fuse.
The voltage must be in the range of (120v +5 / -10%) or (240v +5/
-10%) according to Colombia technical standards NTC1340 (as
applicable).
If it is less than 108 or 216 and unstable, it is advisable to use an
energy regulator booster to compensate for this and ensure the
optimal operation of your equipment.
For the EH-380-16, EH-500-20 and EH-700-27 equipment, use a
2 KW regulator booster.








CONNECTION
6

For the EH-1000-37 equipment, use a 3KW regulator booster.
When the electrical flow is cut off, unplug the equipment. Power
surges can damage equipment at the time of reset.
Never unplug from the outlet by pulling on the power cord. Use
the plug.
If for any reason the equipment has been disconnected, or the
electrical power has been cut off, it must not be connected again
until after three (3) minutes have elapsed so that the pressures level
off and the compressor is not damaged.
Connect the equipment (it will start only up to 3 minutes later).
Let the equipment run empty for 2 hours.
After this time, fill it up to its load capacity.
The product must enter at room temperature maximum.
The refrigeration time for beverages and prepackaged products
is between 16 to 24 hours at an ambient temperature of 32°, the
time may vary depending on the ambient temperature, the
installation condition and the maintenance of your equipment.
Do not leave the doors of your equipment open to avoid loss of
cold both from it and from the product.
Do not unplug the equipment at night, by plugging it in again
during the day, you will increase your power consumption.
Do not place liquid products packaged in glass in the bucket,
since when its contents freeze, they can break, causing the loss of
the product and generating danger for the equipment operator.
EQUIPMENT WITH DIGITAL CONTROL











7
START UP

Once the equipment is connected, the electronic control will
be activated, after 3 minutes the compressor will be activated
and the refrigeration cycle will start.
8
NOTE: You must monitor and rotate the bottles or products entered
in your equipment to prevent prolonged permanence in the
equipment from causing them to freeze, in the case of the bottles it
could break.
Models
(Capacity of bags
in buckets)
EH-700-27
EH-1000-37
EH-380-16
EH-500-20
EH-P720
EH-P950
(Bags 750cm) (JUMBO 1250cm)
24 14
34 20
42 24
64 38
48 28
68 40
The ice freezing time is between 16 to 24 hours at an ambient
temperature of 32°, the time may vary depending on the ambient
temperature, the installation condition and the maintenance of your
equipment.
For ice making, adjust your shutdown temperature between -12 and
-5.
ON AND OFF

9
-00.034.2U
P
Z31
With the equipment operating in
normal mode, press “ ” for 5 seconds,
it allows Activating/Deactivating a
manual defrost cycle.
MANUAL DEFROST
-00.034.2U
P
Z31
LED ALARM : Indicates alarm on (LED ON)
.
LED SALIDA :Indicates that the output of the
compressor is on. (LED ON) .
LED DEFROST :Indicates DEFROST in
progress (LED ON)
LED CONTROL
TEMPERATURE SETTING
To change the value of the control
temperature, one press on the key
. The display will show “ ”
(set point) altering with the value
configured. To modify, press the
key to increase or the
key to decrease the value.
Once the value is set desired,
press the key.
SP
-00.034.2U
P
Z31
P
P
Increase
Temperature
(Hotter)
Decrease
temperature
(Colder)
SETTING CONTROL CAREL PJP4
SETTING CONTROL COEL
press for 5 sec to
enter power saving
mode
press this button to turn
lights on and off
to adjust the operating temperature of the
equipment, press the “set” button for 3 seconds,
then with the “up” button dial code 22 and the
“set” button. Then with the "up" button, locate the
"ST" parameter, enter and select the desired
temperature for the equipment. Finally stop
pressing the “set” button until the display shows
the instantaneous temperature of the equipment.
SET POINT ADJUSTMENT:

MAINTENANCE
10
GENERAL CLEANING
It is recommended to perform this cleaning once a month.
Unplug and empty equipment, allow interior to reach room temperature.
Check that the ice cube trays located in the upper part of the equipment
are completely thawed. The accumulation of ice decreases the efficiency
causing an increase in energy consumption.
Do not use sharp elements to remove the ice, let the equipment defrost
naturally.
Remove the drain plug to allow the washing water to drain out.
Clean all the dirt that the equipment has inside and outside, use a cloth
for cleaning
with soapy water. Do not use abrasive detergents or strong solvents.
Dry completely, connect and start your equipment again.
Dry completely, connect and start your equipment again.
Do this activity at least once a month. or when required.
If the condenser becomes covered with dust, specks or any dirt, clean
it with vertical movements using a soft bristle brush. Also clean up any dirt
that has fallen on the floor.
Reinstall the grille and plug in your equipment.
The long life of the compressor depends
on the cleanliness of the condenser and
you can also obtain a 25% saving in
energy consumption.










Data taken from the manual Cleaning and Maintenance of Stainless Steel Surfaces,
of The European Stainless Steel Development Association. © EuroInox 2003
www.euro-inox.org
11
CARE FOR STAINLESS STEEL
It is necessary to regularly carry out some maintenance and
cleaning tasks on parts made of stainless steel in order to
maintain and not compromise either their aesthetic appearance
or their resistance to corrosion.
Cleaning intervals:
La limpieza debe llevarse a cabo antes de que se acumule
una visible cantidad de suciedad o marcas de dedos, para
minimizar esfuerzo y costo de limpieza, así como el riesgo de
que se altere o marque la apariencia de las superficies.
Cleaners and cleaning utensils:
For finger marks and others you can use soapy water or a
very mild detergent, you can also find spray cleaners. After
applying the spray to the polished surface with a dry cloth.
The mirror finish can be cleaned with glass cleaner. These
must not contain chlorides.
For tougher stains, mild creamy household cleansers are
effective. After cleaning, remove residue with water (preferably
deionized).
Powder cleaners should not be used.
Stubborn oil and grease stains can be removed with products
that contain alcohol, including methylated spirits and isopropyl
alcohol, or other solvents such as acetone.
The use of hard scrapers or knives should be avoided so that
the surface of the Aluminum is not scratched.
Very neglected surfaces can be treated with metal cleaner.
Cleaners that should not be used include:
- Cleaners containing chlorides, especially those with
hydrochloric acid.
- Hypochlorite bleach.
- Silver cleaners.
To remove light dirt and stains it is appropriate to use a damp
cloth or chamois.
For more difficult dirt, nylon scouring pads (type "Scotch
Brite") are used.












Bad location, the grids
vents are less than
10cm of some obstacle.
The sun's rays hit
directly on the equipment.
It is close to heat sources.
12
INCONVENIENTES
FAILED
- Does not start
- Presents Unusual Noise
- Presents Unusual Noise
- Defective lighting.
POSSIBLE CAUSE
It's disconnected.
Control is on delay
The breaker went off
Insufficient voltage.



Set in temperature
high.
Dirty condenser.
Poorly closed doors.
Accumulated ice on the
evaporator or shelves.
Equipment not level.
Noises in the system
refrigeration
Noises in pipes
refrigeration system
Cast lamp.
flashing lighting
Lamp does not turn on.
SOLUTION
Conecct
Espere 3 minutos.
Check electrical connection
looking for a possible short,
if not, raise the breaker.
Check the installation electrical,
use voltage regulator.
Relocate it according
to the instructions.
Adjust the set point of the
control according to instructions.
Clean it according to
instructions.
Close them well.
Clean it according to
instructions.
Level the equipment.
Check that there are no
obstacles in the drive
condenser. If there is
disconnect and remove them.
,
Call the service center
authorized.
Change lamp.
Check voltage.

12
FAQ
Antes de llamar o acudir al servicio técnico autorizado o al
distribuidor haga usted mismo una revisión previa de acuerdo a las
siguientes instrucciones:
Call the service center
authorized.

Do not put hot liquids or liquids in open containers inside your
equipment.
In case of short absence (eg holidays) keep your equipment connected.
In case of prolonged absence (eg vacations), if you intend to disconnect
the equipment, empty, clean and leave the drain open to allow flow of
ventilation and avoid unpleasant odours.
This equipment is guaranteed for manufacturing defects or
malfunctions derived from the quality of the components and that
are not caused by misapplication or bad installation of the
equipment.
* The warranty period starts from the date of purchase of the
product, so the user must present the purchase invoice in order to
access the warranty.
Preventive maintenance (equipment
cleaning, condenser cleaning).
Damages caused during the transport and
installation of the equipment.
Electrical damage caused by voltage
fluctuation or improper electrical installations.
Malfunctions due to misuse, bad
application, bad installation.
Malfunction caused by not having the
appliance in the recommended working
positions.
Peripheral heating.
Noise claims specified as normal sounds
in the instruction manual.
Dripping of water caused by obstruction in
the drainage pipe such as food.








Warranty does not cover:The Warranty covers:
Refrigeration system: Compressor,
refrigeration system piping, condenser,
evaporator.
Lighting system: Ballasts, fluorescent
lamps.


Dear
Mr. Owner, The warranty is
lost if unauthorized personnel
performs repairs on equipment.
RECOMMENDATIONS AND TIPS
WARRANTY
13

CATAÑO - PUERTO RICO
CONTACT: [phone]
| [phone] | [phone]
Email: [email protected]
www.masterchef.com.
www.masterchefpr.com
VIGENCIA 22-JUNIO-2022
V7
COD.102060057
INDUCOL S.A.S. reserves the right to modify all or part of the information contained herein without prior notice.
