Masterclean Products Penguin 200U User manual

Serial Number:
Date of Purchase:
Distributor:
Penguin 200U Cordless Sprayer with
Interchangeable Tank
User’s Manual

2
LIMITED WARRANTY POLICY
Masterclean Products, LLC endeavors to provide high quality products and product support to its customers and therefore
backs up all of its new products purchased from Masterclean Products, LLC or any authorized distributor with this limited
warranty. This limited warranty begins on the date of the customer’s purchase and is valid to the original purchaser only.
Masterclean Products, LLC products are for commercial use only and are not intended for personal, family or household uses.
HOWEVER, OTHER THAN SET FORTH HEREIN, MASTERCLEAN PRODUCTS, LLC GIVES NO WARRANTY, EXPRESS OR IMPLIED, AS
TO DESCRIPTION, QUALITY, MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, PRODUCTIVENESS, INFRINGEMENT,
OR OTHER MATTER, OF ANY GOODS WHICH MASTERCLEAN PRODUCTS SHALL SUPPLY. THERE ARE NO WARRANTIES, WHICH
EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. MASTERCLEAN PRODUCTS, LLC SHALL IN NO WAY BE RESPONSIBLE
FOR THE PROPER USE AND APPLICATION OF THE GOODS. MASTERCLEAN PRODUCTS, LLC NEITHER ASSUMES NOR AUTHORIZES
ANY OTHER PERSON TO ASSUME FOR MASTERCLEAN PRODUCTS, LLC ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF
MASTERCLEAN PRODUCTS, LLC’S GOODS. THIS LIMITED WARRANTY POLICY MAY BE CHANGED OR WITHDRAWN BY
MASTERCLEAN PRODUCTS, LLC AT ANY TIME WITHOUT NOTICE.
WEAR PARTS 90-DAY LIMITED WARRANTY: Masterclean Products, LLC will replace all wear parts for 90 days from the date of
original purchase. “Wear parts” are items which wear out as a result of usage or the passage of time and are consumed despite
attempts to maintain them, such as gaskets, wheels, brass fittings, cords, wires, electrical terminals, hoses, switches, filters,
bearings, o-rings, bulbs, castors or other parts deemed wear items in Masterclean Products, LLC’s sole discretion. This warranty
covers the cost of replacement only and does not cover shipping or labor costs.
PUMP 6-MONTH LIMITED WARRANTY: Masterclean Products, LLC warrants that pumps will be free from manufacturing defects,
defects in workmanship, and defects in material for 90 days from the date of original purchase. This warranty does not apply
and is void if the pump has water damage, chemical build-up, chemical damage, or evidence of abuse, neglect or tampering.
This warranty covers the cost of replacement or repairs only and does not cover shipping or labor costs.
TANK 1-YEAR LIMITED WARRANTY: Masterclean Products, LLC will pay 100% of replacement cost in the first year from the date
of purchase. Replacement does not include the cost of shipping or labor. This warranty does not cover user damage or abuse.
LIMITATION OF DAMAGES: THE REMEDY OF REPLACEMENT OR REPAIR OF ANY DEFECTIVE GOODS SHALL BE THE EXCLUSIVE
REMEDY UNDER ANY WARRANTY MADE BY MASTERCLEAN PRODUCTS, LLC, WHETHER EXPRESS OR IMPLIED. IN NO EVENT
SHALL MASTERCLEAN PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, PROPERTY DAMAGES,
OR PERSONAL INJURIES.
All limited warranties are void for, and Masterclean Products, LLC does not warrant in any way, any product that evidences
misapplication, improper installation, abuse, lack of maintenance, negligence in use or care, abnormal use, alteration of design,
use of incompatible or corrosive chemicals, use in a rental service, and/or servicing, installation of parts, or repairs by anyone
other than Masterclean Products, LLC or an authorized distributor or service center of Masterclean Products, LLC. Masterclean
Products, LLC may make changes in products it manufactures and markets at any time; these changes are made without
obligation to change, retrofit or upgrade any product previously sold or manufactured.
Masterclean Products, LLC has no obligation to honor the limited warranties set forth herein unless the original purchaser,
promptly upon discovering the warranty claim and prior to continuing to use the product, contacts Masterclean Products, LLC
or an authorized distributor or service center to describe the claim and to receive and follow instructions for documenting and
resolving the claim. In addition, the purchaser must provide the product to which the claim applies to Masterclean Products,
LLC or an authorized distributor or service center for a thorough inspection.
If any provision or portion of this limited warranty policy is found to be unenforceable, then the remaining provisions and
portions shall remain valid and enforceable. If any provision or portion of this limited warranty policy is found to be limited by
law, then that provision or portions shall be construed to make it effective within the bounds of law. For example, if there are
legal limitations on the duration of warranties, the warranties made herein shall be construed to have the minimum duration
required by law, or, if there are legal limitations of exclusion of remedies, the exclusions made herein shall be construed to
apply to the fullest extent possible without violating the law.
The validity, construction and performance of this warranty policy shall be governed by the laws of the State of Colorado,
without respect to conflicts of laws principles. The exclusive jurisdiction of any legal action arising from or related to this
warranty policy shall be in the State of Colorado and no legal action shall be commenced elsewhere.

3
Unpacking and Inspection
Prior to unpacking, please check the shipping carton for any obvious
damages.
Report the damages to the carrier prior to signing for it.
During unpacking, check for any damages to the Penguin 200U Cordless
Sprayer and its components.
Report any Penguin 200U Cordless Sprayer damages to Masterclean
Products, LLC Customer Service Department.
Check that the carton contains:
Penguin 200U Cordless Sprayer Unit
Spray Gun
Stainless Steel Lance (~2 ft. length)
Recoil Hose
Upholstery Nozzle
Charger Cord (4 ft. length)
User’s Manual
PLEASE DO NOT REMOVE ANY OF THE LABELS ON THE BACK OF THE
SPRAYER.
THE LABELS CONTAIN IMPORTANT INFORMATION INCLUDING THE SERIAL
NUMBER SHOULD SERVICING OF THE UNIT IS REQUIRED IN THE FUTURE.

4
Safety
Do not operate the Penguin 200U Cordless Sprayer:
Unless you are trained and authorized.
If this unit is not in its proper operating condition.
If you and the unit is in standing water.
If you and the unit is in flammable or explosive areas.
If the operator manual has not been read.
Before you operate the Penguin 200U Cordless Sprayer:
Check to see that all safety devices are in place and operating
properly.
While using the Penguin 200U Cordless Sprayer:
Avoid handling the electrical plug with wet hands, stray
electrocution may occur.
Keep the electrical cord away from heated surfaces.
Report machine damage or faulty operation immediately to your
distributor.
Follow mixing and handling instructions on chemical containers.
Do not use flammable materials in this tank.
Do not use solvent based chemicals in this tank.
There are no user serviceable parts in this unit.
Servicing on the machine should be done by your local Distributor.

5
Charging and Recharging
First time use - it is important to charge the Penguin 200U Cordless
Sprayer prior to operating the unit.
The built-in charger is a “SMART” charger. It knows when not to over-
charge the battery and at the same time maintain the battery’s charge.
The charging light on the back of the unit has two modes.
Plug the charger cord to a standard 120VAC grounded outlet, and the other
end of the charger cord is plugged into the receptacle at the side of the
unit.
When the charging light is RED, the battery is being charged or recharged.
The charging time may vary depending on the battery’s available charge.
This may take between 1-8 hours.
The unit must be in the OFF position. This will allow the battery to
charge/recharge quicker.
When the charging light is GREEN, the battery is fully charged and the unit
is ready for use.
The manufacture recommends that t
he unit remain plugged into the
electrical outlet 24/7 when it is not in use to maintain the life of the
battery.
When the Penguin 200U Cordless Sprayer unit begins to act sluggish and
you need to continue with your job. Attach the charger cord and plug it to
the electrical outlet. The battery will be charging while you are using the
unit.
It is important to connect the unit to an electrical outlet at the end of the
day to “top off” the battery.

6
Operation
Please refer to the pictures of the Penguin 200U Cordless Sprayer on page
8 - 10 to refer to the components outlined below.
Connect the Recoil Hose to the Spray Gun.
Connect the other end of the Recoil Hose to the Quick-Disconnect
at the rear of the unit.
Connect the Stainless Steel Lance to the Spray Gun.
Prior to operating the unit - unscrew the Fill Cap and fill the Tank
with your solution to be sprayed.
Turn the Power Switch to the ON position.
You will hear the pump begin to run and as the pressure builds up
and fills the Recoil Hose, it will stop.

When the trigger of the Spray Gun is depressed, the pump will run.
When the trigger of the Spray Gun is not depressed, the pump will
stop.
Turn the unit OFF when not in use to save the battery’s charge for
the next use.

7
Storage & Maintenance
Empty the unit at the end of each job, and make sure the tank is cleaned
out thoroughly.
Flush the unit with clean water. If mineral deposits are a problem, use a
vinegar rinse.
It is important that the tank and pump are clear of any chemical solution
for any period of time that the Penguin 200U Cordless Sprayer is idle.
This is necessary, since some solutions contain d’Limonene or a caustic
material, which tends to deteriorate the pump.
In other cases, some diluted solutions tend to coagulate (thicken) when
sitting for a period of time and may cause an obstruction.
If storing in freezing conditions, please make sure that the unit contains no
water, including in the pump, internal lines, and re-coil hose.
Technical Specifications
Input Voltage:
120 VAC
Battery Voltage:
12 VOLT
Battery Type:
Sealed Lead Acid
Operating Current:
1.5 AMP
Pump RPM:
2800 –3000 RPM
Working Pressure:
80 PSI
Tank Capacity:
5.0 Gallons
Unit Weight:
30 lbs.

8
Recoil Hose
Interchangeable
Tank
Fill Cap
Spray Gun
Handle
Basket
Holster
Stainless-Steel Lance

9
Charger Receptacle
Recoil Hose Hanger

10

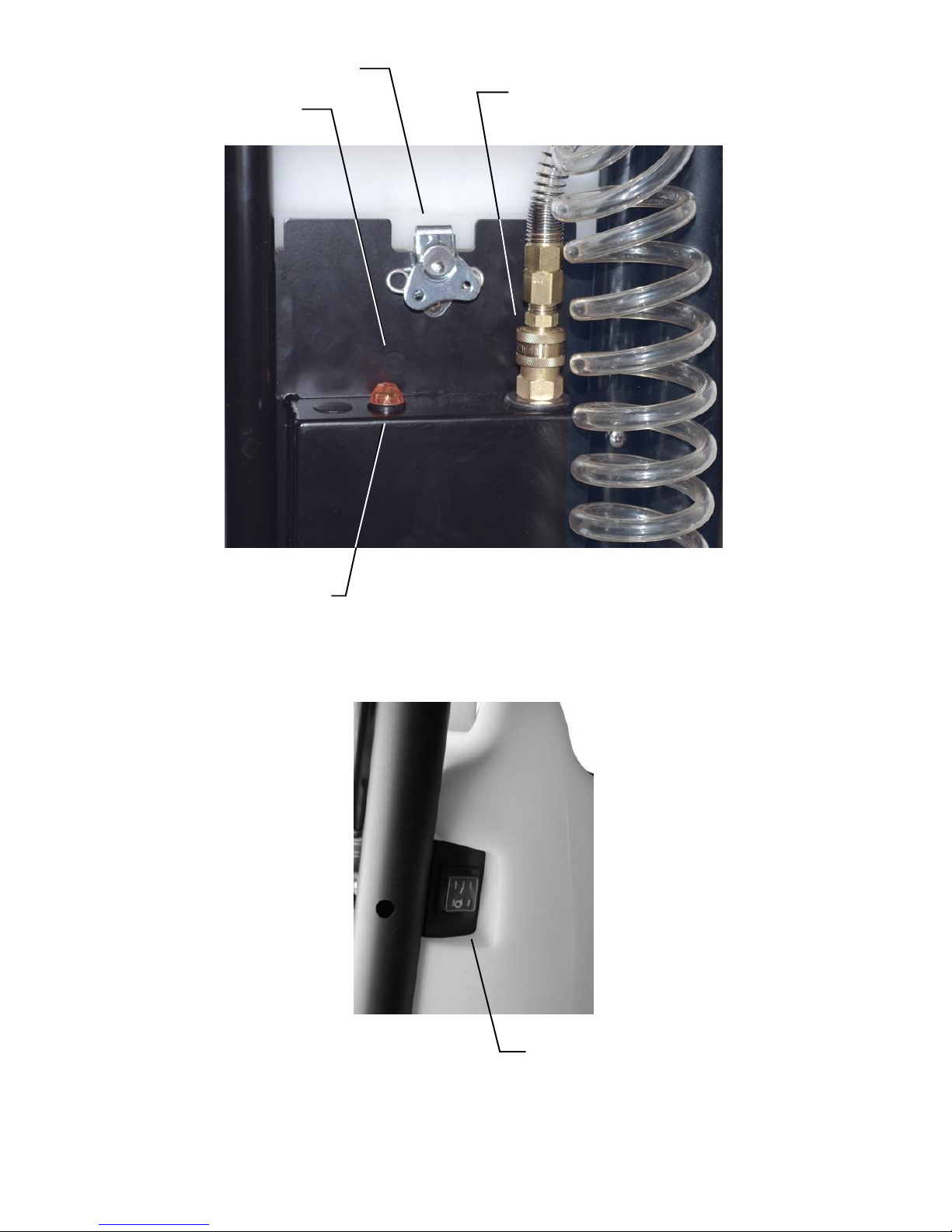

Power Switch
Charging Light
Power Lamp
Quick-Disconnect
Tank Clasp

11
Changing the Interchangeable Tank
To change the Tank on the unit with another Tank:
Step 1: Turn the unit OFF.
Step 2: Lift the Tank Clasp handle and turn it counter-clockwise until it
stops.
Step 3: Carefully, pull the Tank Clasp away from the Tank.
Handle
Tank Clasp

12

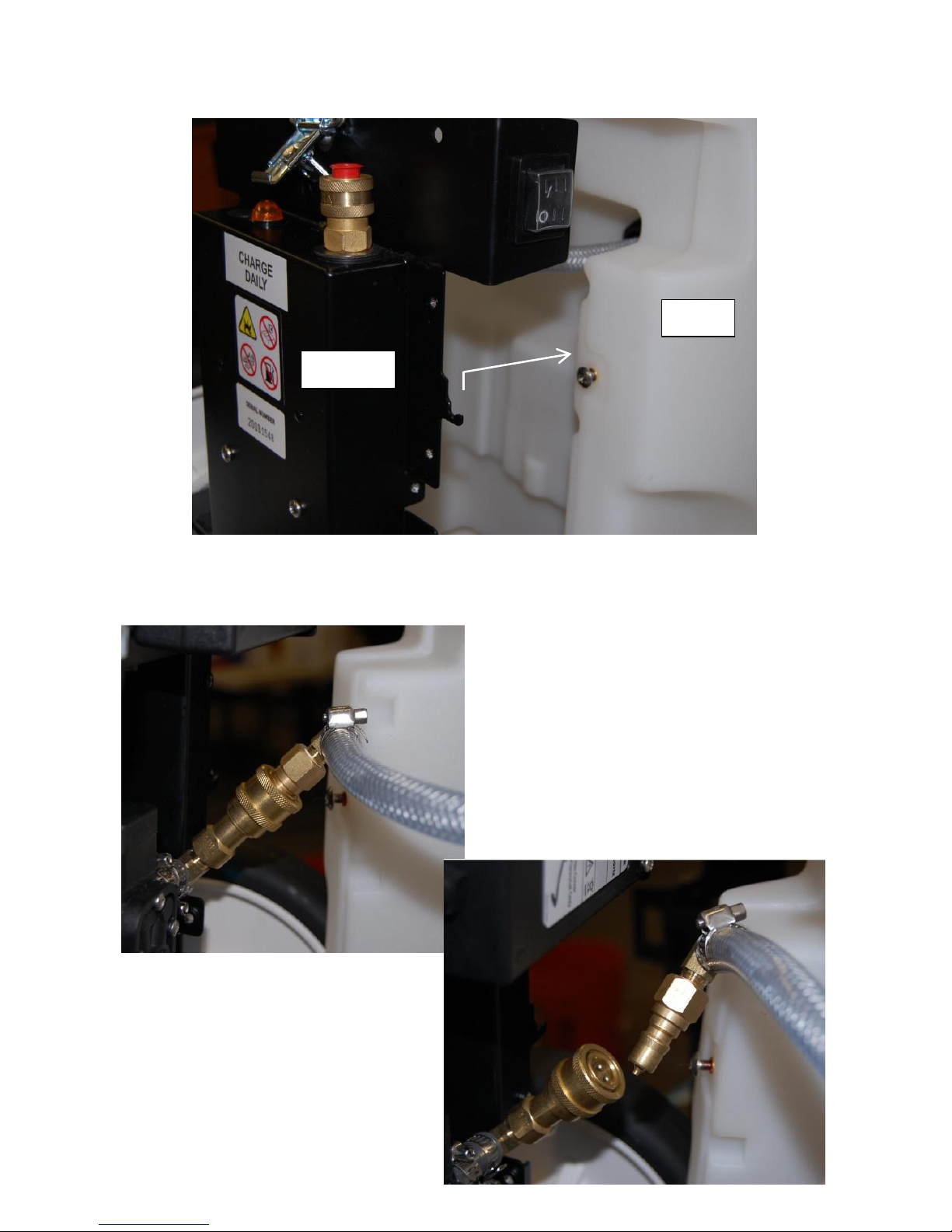

Step 4: Gently lift and pull the Tank away from the Chassis.
Tank
Chassis

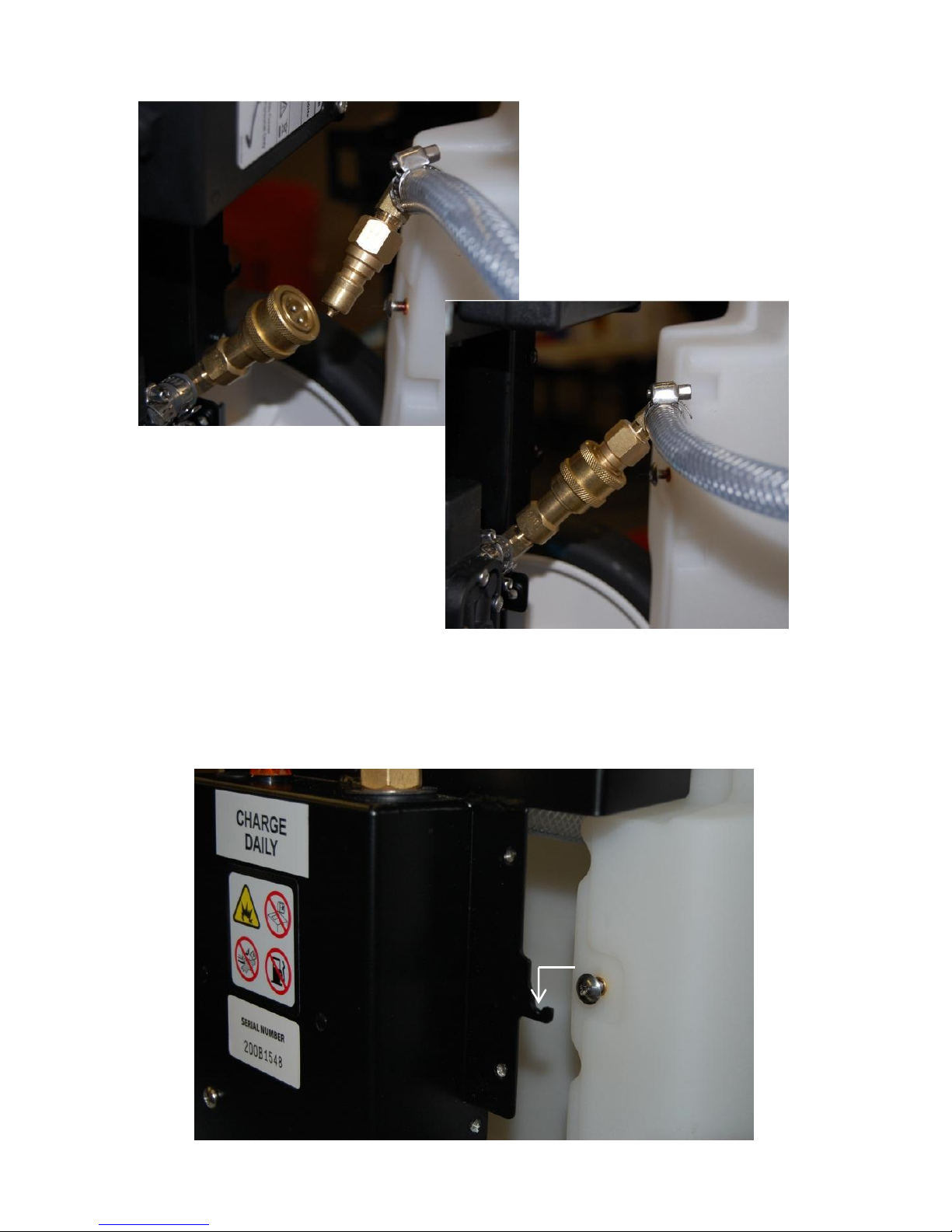

Step 5: Disconnect the QD between the Tank and the Pump.

13
Step 7: Carefully, mount the Tank onto the Chassis. Push the Tank toward
the Chassis. As the Tank is close to the Chassis, lift and push in the Tank to
seat it onto the Chassis.
Step 6: Re-connect the QD from another Tank.

14
Step 9: The unit is now ready.

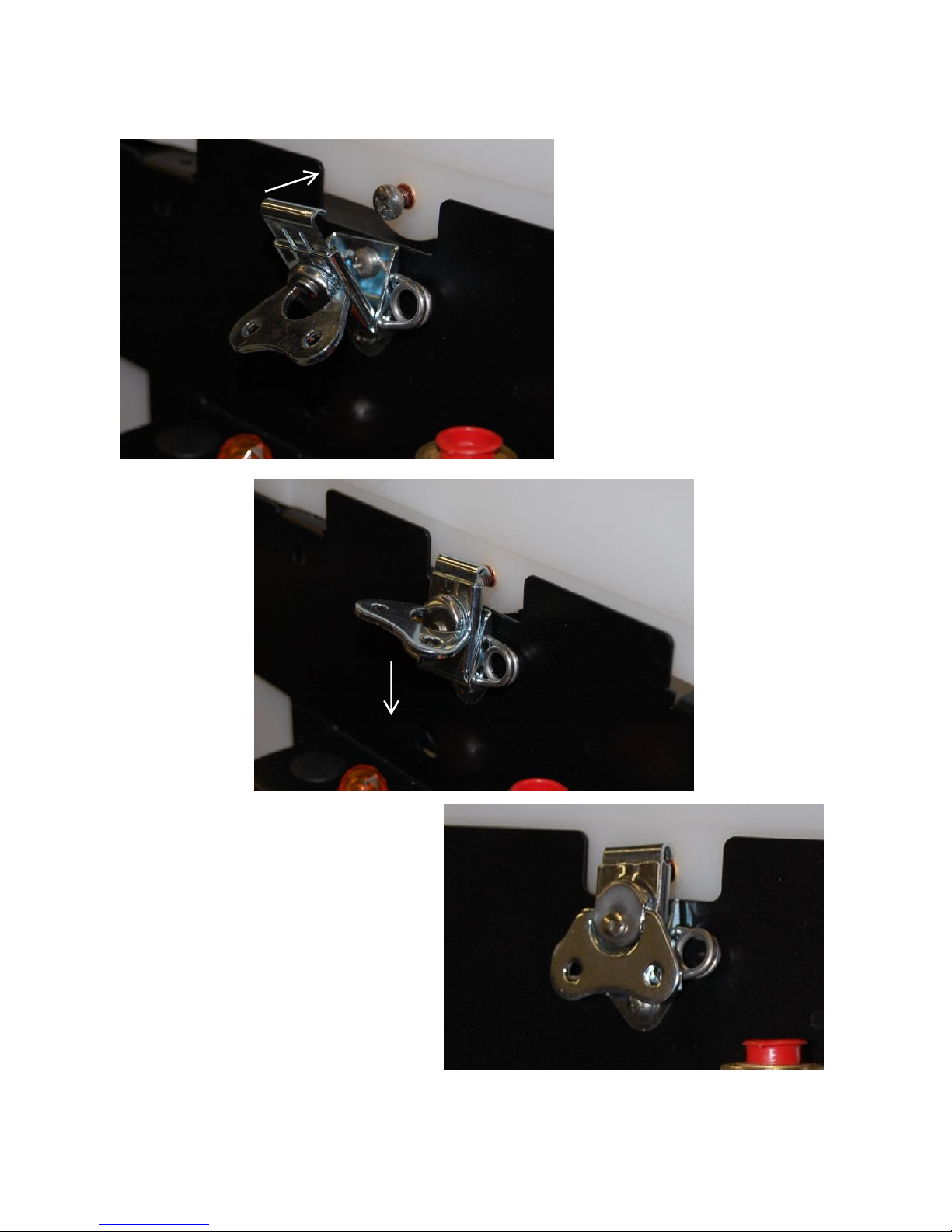

Step 8: Carefully, latch the Tank Clasp to the Tank. Turn the handle
clockwise until it stops. Push down the handle to lock it.

15
Replacement Parts List
Item
Part Number
Description
1
204HA
Handle Assembly
2
103G-P
Spray Gun
3
108SSL25-P
Lance, Stainless Steel
4
109H1/4DT-6508
Nozzle
5
210HA
Recoil Hose
6
200UPH
Upholstery Nozzle
7
209CC
Charger Cord
8
202LA
Fill Cap
Parts not listed here can be obtained from your distributor and from www.mastercleanstore.com.
1
3
2
4
5
7
6
8

16
01-2012 REV A
