Masterclean Products penguin PR200 User manual

Penguin PR200 Cordless Sprayer
User’s Manual
Serial Number:
Date of Purchase:
Distributor:

2
LIMITED WARRANTY POLICY
Masterclean Products, LLC endeavors to provide high quality products and product support to its customers and therefore
backs up all of its new products purchased from Masterclean Products, LLC or any authorized distributor with this limited
warranty. This limited warranty begins on the date of the customer’s purchase and is valid to the original purchaser only.
Masterclean Products, LLC products are for commercial use only and are not intended for personal, family or household uses.
HOWEVER, OTHER THAN SET FORTH HEREIN, MASTERCLEAN PRODUCTS, LLC GIVES NO WARRANTY, EXPRESS OR IMPLIED, AS
TO DESCRIPTION, QUALITY, MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, PRODUCTIVENESS, INFRINGEMENT,
OR OTHER MATTER, OF ANY GOODS WHICH MASTERCLEAN PRODUCTS SHALL SUPPLY. THERE ARE NO WARRANTIES, WHICH
EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. MASTERCLEAN PRODUCTS, LLC SHALL IN NO WAY BE RESPONSIBLE
FOR THE PROPER USE AND APPLICATION OF THE GOODS. MASTERCLEAN PRODUCTS, LLC NEITHER ASSUMES NOR AUTHORIZES
ANY OTHER PERSON TO ASSUME FOR MASTERCLEAN PRODUCTS, LLC ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF
MASTERCLEAN PRODUCTS, LLC’S GOODS. THIS LIMITED WARRANTY POLICY MAY BE CHANGED OR WITHDRAWN BY
MASTERCLEAN PRODUCTS, LLC AT ANY TIME WITHOUT NOTICE.
WEAR PARTS 90-DAY LIMITED WARRANTY: Masterclean Products, LLC will replace all wear parts for 90 days from the date of
original purchase. “Wear parts” are items which wear out as a result of usage or the passage of time and are consumed despite
attempts to maintain them, such as gaskets, wheels, brass fittings, cords, wires, electrical terminals, hoses, switches, filters,
bearings, o-rings, bulbs, castors or other parts deemed wear items in Masterclean Products, LLC’s sole discretion. This warranty
covers the cost of replacement only and does not cover shipping or labor costs.
PUMP 6-MONTH LIMITED WARRANTY: Masterclean Products, LLC warrants that pumps will be free from manufacturing defects,
defects in workmanship, and defects in material for 6 months from the date of original purchase. This warranty does not apply
and is void if the pump has water damage, chemical build-up, chemical damage, or evidence of abuse, neglect or tampering.
This warranty covers the cost of replacement or repairs only and does not cover shipping or labor costs.
TANK 1-YEAR LIMITED WARRANTY: Masterclean Products, LLC will pay 100% of replacement cost in the first year from the date
of purchase. Replacement does not include the cost of shipping or labor. This warranty does not cover user damage or abuse.
LIMITATION OF DAMAGES: THE REMEDY OF REPLACEMENT OR REPAIR OF ANY DEFECTIVE GOODS SHALL BE THE EXCLUSIVE
REMEDY UNDER ANY WARRANTY MADE BY MASTERCLEAN PRODUCTS, LLC, WHETHER EXPRESS OR IMPLIED. IN NO EVENT
SHALL MASTERCLEAN PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, PROPERTY DAMAGES,
OR PERSONAL INJURIES.
All limited warranties are void for, and Masterclean Products, LLC does not warrant in any way, any product that evidences
misapplication, improper installation, abuse, lack of maintenance, negligence in use or care, abnormal use, alteration of design,
use of incompatible or corrosive chemicals, use in a rental service, and/or servicing, installation of parts, or repairs by others
than Masterclean Products, LLC or an authorized distributor or service center of Masterclean Products, LLC. Masterclean
Products, LLC may make changes in products it manufactures and markets at any time; these changes are made without
obligation to change, retrofit or upgrade any product previously sold or manufactured.
Masterclean Products, LLC has no obligation to honor the limited warranties set forth herein unless the original purchaser,
promptly upon discovering the warranty claim and prior to continuing to use the product, contacts Masterclean Products, LLC
or an authorized distributor or service center to describe the claim and to receive and follow instructions for documenting or
resolving the claim. In addition, the purchaser must provide the product to which the claim applies to Masterclean Products,
LLC or an authorized distributor or service center for a thorough inspection.
If any provision or portion of this limited warranty policy is found to be unenforceable, then the remaining provisions and
portions shall remain valid and enforceable. If any provision or portion of this limited warranty policy is found to be limited by
law, then that provision or portions shall be construed to make it effective within the bounds of law. For example, if there are
legal limitations on the duration of warranties, the warranties made herein shall be construed to have the minimum duration
required by law, or, if there are legal limitations of exclusion of remedies, the exclusions made herein shall be construed to
apply to the fullest extent possible without violating the law.
The validity, construction and performance of this warranty policy shall be governed by the laws of the State of Colorado,
without respect to conflicts of laws principles. The exclusive jurisdiction of any legal action arising from or related to this
warranty policy shall be in the State of Colorado and no legal action shall be commenced elsewhere.

3
Unpacking and Inspection
Prior to unpacking, please check the shipping carton for any obvious
damages.
Report the damages to the carrier prior to signing for it.
During unpacking, check for any damages to the Penguin PR200 Cordless
Sprayer and its components.
Report any Penguin PR200 Cordless Sprayer damages to Masterclean
Products, LLC Customer Service Department.
Check that the carton contains:
Penguin PR200 Cordless Sprayer Unit
Spray Gun
Stainless Steel Lance
Recoil Hose
Upholstery Tool
External Charger
PLEASE DO NOT REMOVE ANY OF THE LABELS ON THE BACK OF THE
SPRAYER.
THE LABELS CONTAIN IMPORTANT INFORMATION INCLUDING THE SERIAL
NUMBER SHOULD SERVICING OF THE UNIT BE REQUIRED IN THE FUTURE.

4
Safety
Do not operate the Penguin PR200 Cordless Sprayer:
Unless you are trained and authorized.
If this unit is not in its proper operating condition.
If you and the unit are in standing water.
If you and the unit are in flammable or explosive areas.
If the user’s manual has not been read.
Before you operate the Penguin PR200 Cordless Sprayer:
Check to see that all safety devices are in place and functioning
properly.
While using the Penguin PR200 Cordless Sprayer:
Avoid handling the electrical plug with wet hands as stray
electrocution may occur.
Keep the electrical cord away from heated surfaces.
Report machine damage or faulty operation immediately to your
distributor.
Follow mixing and handling instructions on chemical containers.
Do not use flammable materials in this tank.
Do not use solvent based chemicals in this tank.
There are no user serviceable parts in this unit.
Servicing of this machine should be performed by your local Distributor.

5
Charging and Recharging
First time use - It is important to charge the Penguin PR200 Cordless
Sprayer prior to operating the unit.
The external battery charger is a “SMART” charger. It will charge/recharge
the battery and will not over-charge it.
Plug in the external charger electrical cord to a standard 120-VAC grounded
outlet. Plug the other end of the external charger cord to the jack at the
side of the unit.
The external battery charger will be numbered either ① or ② on its label.
This will indicate the charger mode shown on the table below.
The table below will indicate the correct colors of the charging light.
Charger Type ①
Charger Type ②
Green - Charging/Recharging
Red –Charging/Recharging
Red - Charged
Blue - Charged
For the battery to charge/recharge rapidly, it is recommended that the
power switch of the unit be in the ‘OFF’position.
The charging/recharging time may vary depending on the battery’s
available charge. This may take between 1-8 hours.
The manufacturer recommends that the external battery charger be
disconnected from the unit after it is fully charged.
If during operation the unit begins to lose power and you need to continue
using the sprayer, simply reconnect the charger to the jack and the plug to
the electrical outlet. You may continue to operate the unit while the
battery is charging.
It is important to recharge the unit at the end of the day.

6
Operation
Connect the Recoil Hose to the Spray Gun.
Connect the other end of the Recoil Hose to the Quick-Disconnect
at the top-rear of the unit.
Connect the Stainless Steel Lance to the Spray Gun.
Prior to operating the unit, unscrew the Fill Cap and fill the Tank.
Turn the Power Switch to the ‘ON’position.
You will hear the pump begin to run, as the pump pressure builds
up and fills the Recoil Hose, it will stop.
When the trigger of the Spray Gun is depressed, the pump will run.
When the trigger of the Spray Gun is not depressed, the pump will
stop.
Turn the unit OFF when not in use to save the battery’s charge for
the next use.

7
Storage & Maintenance
Empty the unit at the end of each job, and make sure the tank is cleaned
out thoroughly.
Flush the unit with clean water. If mineral deposits are a problem, use a
vinegar rinse.
It is important that the tank and pump are clear of any chemical solution
for any period of time that the Penguin PR200 Cordless Sprayer is idle.
This is necessary, since some solutions contain d’Limonene or a caustic
material, which tends to deteriorate the pump.
In other cases, some diluted solutions tend to coagulate (thicken) when
sitting for a period of time and may cause an obstruction.
If storing in freezing conditions, please make sure that the unit contains no
water, including in the pump, internal lines, and re-coil hose.
Technical Specifications
Input Voltage:
120 VAC
Battery Rating:
12 VOLT / 5Ah
Battery Type:
Sealed Lead Acid
Operating Current:
1.5 AMP
Pump RPM:
2800 –3000 RPM
Working Pressure:
80 PSI
Tank Capacity:
5.0 Gallons
Unit Weight:
30 lbs. (without liquids in the tank)

8

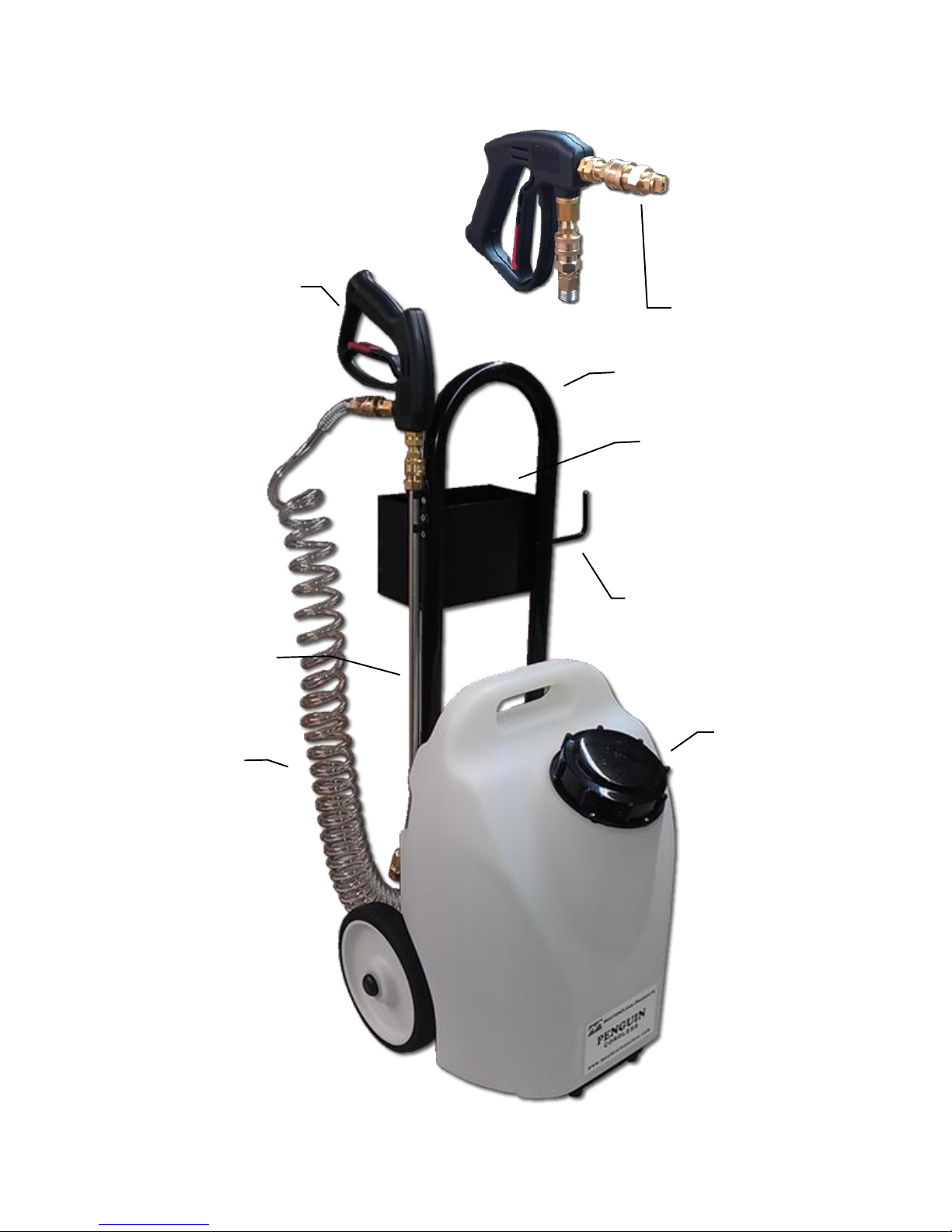

Recoil Hose Hanger
Recoil Hose
Fill Cap
Spray Gun
Handle
Basket
Stainless-Steel
Lance
Upholstery
Tool
Penguin PR200

9
Charger
Jack
Penguin PR200

10
Power Switch
Charger Jack
Power Lamp
Quick-Disconnect

11

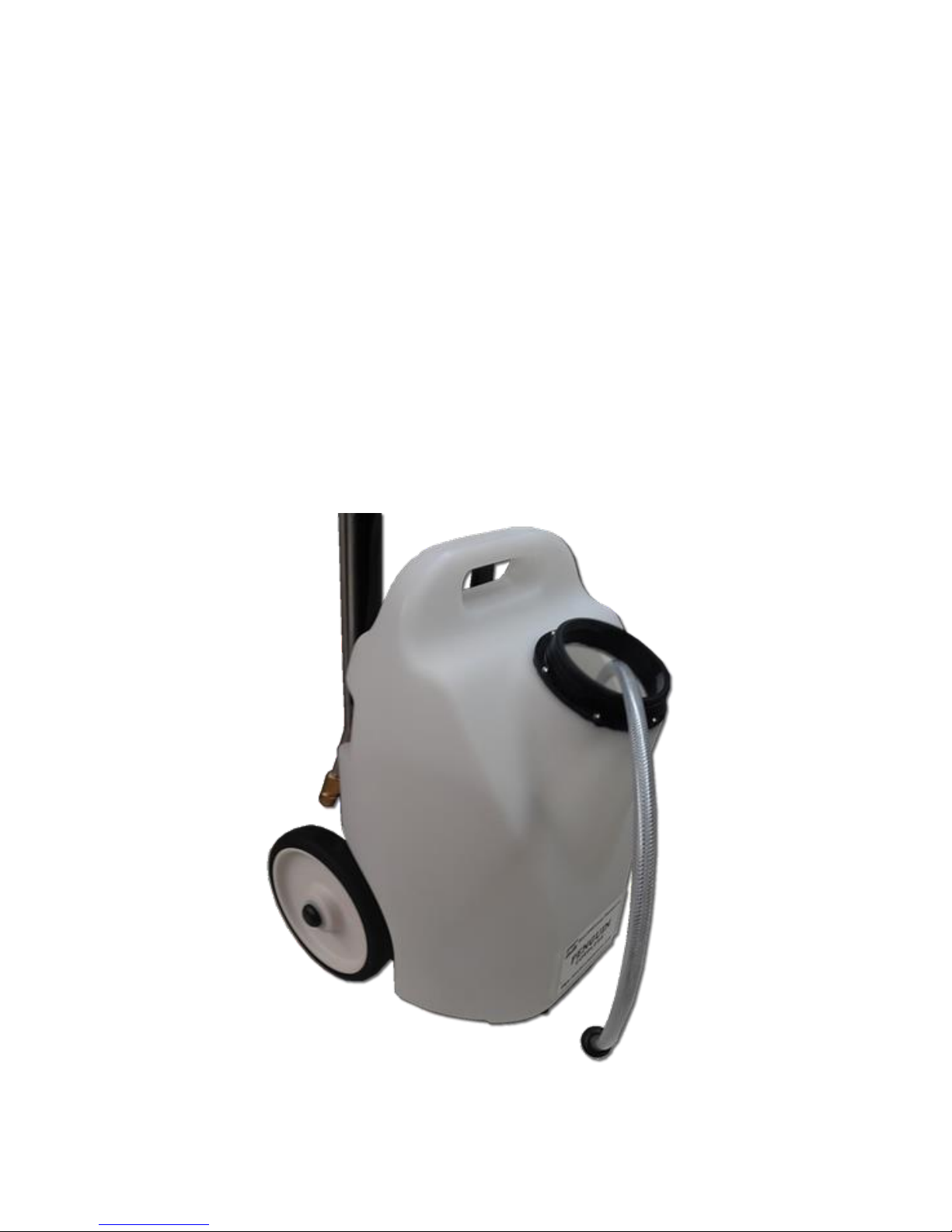

Tank Rinse-Ease
To change the solution that is already in the Tank with another type of
solution or to rinse out the lines.
There is a built-in 33” Dip-Tube with a Stainless Steel Strainer inside the
Tank.
Please read the following step-to-step instruction below:
Step 1: Turn the unit “OFF”.
Step 2: Unscrew the Fill Cap.
Step 3: Carefully, pull out the 33” built-in Dip-Tube from the Tank.

12
Step 4: Insert the 33” built-in Dip-Tube into a suitable external container
with clean warm water.
Step 5: Turn the unit “ON”.
Step 6: Depress the Spray Gun. The internal pump will begin siphoning
the water from the external container. Continue depressing the Spray Gun
until all of the solution in the line is rinsed out.

13
Step 7: Turn the unit “OFF”.
Step 8: Carefully, re-insert the 33” Dip-Tube into the Tank with the
Stainless Steel Strainer resting at the bottom of the Tank.
Step 9: Refill the Tank with another solution.
Step 10: Re-screw the Fill Cap. The unit is ready for the next use.

14

15

16
2015 REV F
www.mastercleanstore.com
